USER MANUAL VLUU L310W SAMSUNG

Getting to know your camera

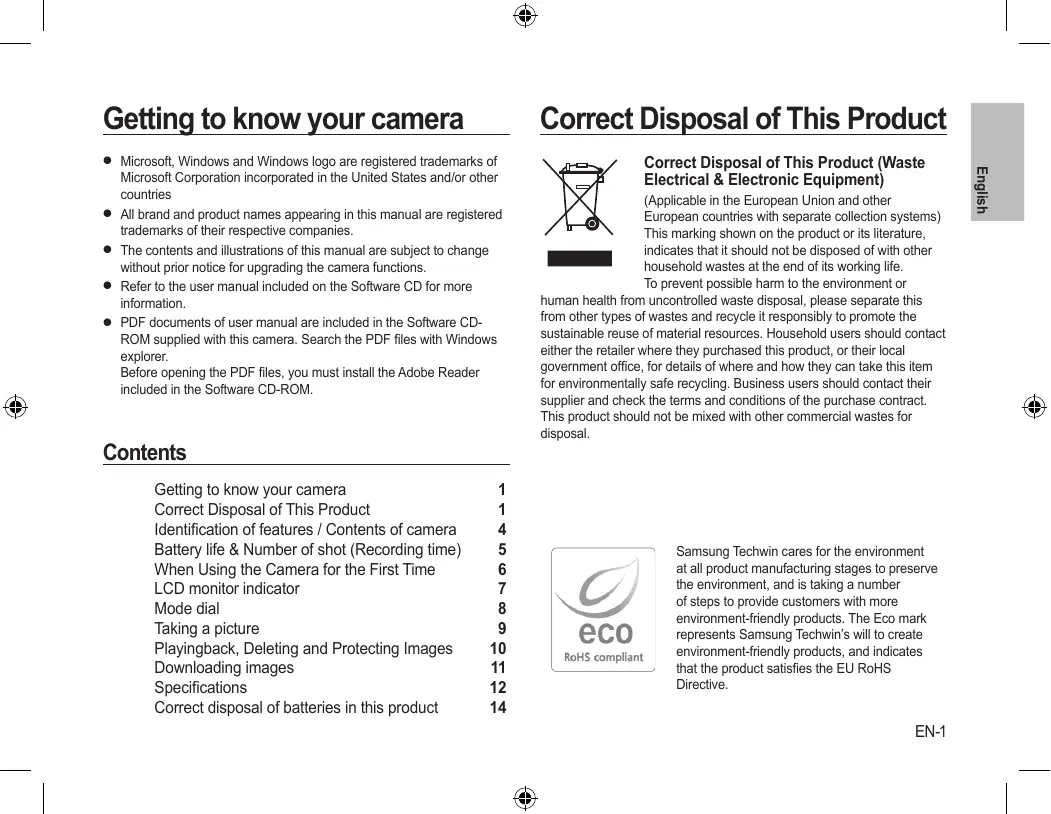

Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries All brand and product names appearing in this manual are registered trademarks of their respective companies. The contents and illustrations of this manual are subject to change without prior notice for upgrading the camera functions. Refer to the user manual included on the Software CD for more information. PDF documents of user manual are included in the Software CDROM supplied with this camera. Search the PDF files with Windows explorer. Before opening the PDF files, you must install the Adobe Reader included in the Software CD-ROM. Contents Getting to know your camera Correct Disposal of This Product Identification of features / Contents of camera Battery life & Number of shot (Recording time) When Using the Camera for the First Time LCD monitor indicator Mode dial Taking a picture Playingback, Deleting and Protecting Images Downloading images Specifications Correct disposal of batteries in this product

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products. The Eco mark represents Samsung Techwin’s will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive. EN-1 English

Correct Disposal of This Product Getting to know your camera DANGER WARNING DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Do not attempt to modify this camera in any way. To do so may result in fire, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service centre. Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a fire or electric shock. Please do not use this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion. EN-2 Do not use the flash in close proximity to people or animals. Positioning the flash too close to your subject’s eyes may cause eyesight damage. For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.: - Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately. - There is the possibility of injury from the camera’s moving parts. Battery and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool. Do not insert or drop metallic or inflammable foreign objects into the camera through access points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock. Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to extreme temperatures may adversely affect the camera’s internal components and could cause a fire. Do not operate this camera with wet hands. This could pose a risk of electric shock. When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a fire. Always use the camera and its accessories in a wellventilated area. Getting to know your camera English CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury. Remove the battery when not planning to use the camera for a long period of time. Otherwise the battery may leak corrosive electrolyte and permanently damage the camera’s components. Leaking, overheating, or damaged battery could result in fire or injury. – Use battery with the correct specification for the camera. – Do not short circuit, heat or dispose of battery in fire. – Do not insert the battery with the polarities reversed. Be sure to format the memory card if you are using a newly purchased memory for the first time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera. Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it continuously. It may cause burns. Do not move the camera while it is switched on when you are using the AC Charger. After use, always switch off the camera before unplugging the cable from the wall socket. Then make sure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a fire or electric shock. Take care not to touch the lens or lens cover to avoid taking an unclear image and possibly causing camera malfunction. Avoid obstructing the lens or the flash when you capture an image. Before inserting any cables or AC adapter, check the directions and do not insert by force. It may cause breakage of cable or camera. It is highly likely to result in computer malfunctions when the 20 pin connector is connected to the USB port of a PC. Never connect the 20 pin connector to USB port of a PC. Do not insert the memory card the wrong way round. Doing so may cause damage to the camera. Credit cards may be demagnetized if left near a camera case. Avoid leaving magnetic strip cards near the case. Before an important event or going on a trip, you should check the camera condition. Samsung cannot be held responsible for camera malfunctions. EN-3 Identification of features / Contents of camera Zoom T button (Digital zoom) Zoom W button (Thumbnail) Mode dial Speaker Shutter button Camera status lamp POWER button AF sensor / Self-timer lamp LCD monitor Camera strap E (Effect) button Flash Microphone Open Fn / Delete button Lens 5-function button Play mode / Print button Close

terminal OIS button Contents Package Sold Separately Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre. Camera User manual, Product warranty Camera strap Rechargeable battery (SLB-10A) AC adapter (SAC-47)/ USB cable (SUC-C3) Software CD EN-4 AV cable SD/SDHC memory card/ MMC Camera case Battery life & Number of shot (Recording time) Number of images and battery life: Using the SLB-10A Still image Movie

Battery life /Number of images Conditions Approx. 120 MIN/ Approx. 240 shots Using the fully charged battery, Auto mode, 13M image size, Fine image quality, Shot to shot interval: 30Sec. Changing the zoom position between the Wide and the Tele after every shot. Using the flash on every second shot. Using the camera for 5 minutes and then Powering it off for 1 minute. Approx. 120 MIN

When using a 1GB SD memory, the specified shooting capacity will be as follows. These figures are approximate as image capacities can be affected by variables such as subject matter and memory card type. Recorded image size Still image Using the fully charged battery 640x480 image size 30fps frame rate These figures are measured under Samsung’s standard conditions and shooting conditions and may vary depending on the user’s methods. These figures are measured under OIS shooting condition.

about 120 MIN The recording times can be changed by the zoom operation. The zoom button doesn’t function during the movie recording. EN-5 English

When Using the Camera for the First Time

Charge the rechargeable battery fully before using the camera for the first time. When the camera is turned on for the first time, a menu will be displayed in the LCD monitor to set date, time and language. This menu will not be displayed again after setting up the date, time and language. Set up the date, time and language before using this camera. Setting up the language

1. Select the [Language] menu by

pressing the Up/Down button and press the Right button.

2. Select the desired sub menu by

pressing the Up/Down button and press the OK button. Setting up the date, time and date type

1. Select the [Date&Time] menu by

+ Seoul, Tokyo 08 / 08 / 01 13 : 00 Off Back – You can select one of 26 OK Set Back languages. These are listed below: English, Korean, French, German, Spanish, Italian, S.Chinese, T.Chinese, Japanese, Russian, Portuguese, Dutch, Danish, Swedish, Finnish, Thai, Bahasa (Malay / Indonesian), Arabic, Czech, Polish, Hungarian, Turkish, Estonian, Lituanian, Latvian and Persian. EN-6

OK Set Selects world time/year/ month/ day/hour/ minute/date type Moves the cursor to the [Date&Time] main menu if the cursor is at the first item of the date and time setup. In all other instances, the cursor will be shifted to the left of its current position. Changes the value of each item. For more information on setting World Time, please refer to the documentation included with the software CD. LCD monitor indicator

Number of available shots remaining/Remaining time

Memory card icon/ Internal memory icon

Image Size 01:00 PM 2008/08/01 Image Quality/Frame Rate

Exposure compensation

Self-timer Icons x 5.0

OIS (Optical Image tabilization)

Aperture Value/Shutter Speed Icons English The LCD monitor displays information about the shooting functions and selections. Refer to the user manual included on the Software CD for more information.

You can select the desired shooting mode by using the mode dial on the upper body of your camera. Auto Selects this mode for quick and easy picture taking with minimal user interaction. In this mode, you can select the basic menus. To select an advanced menu, select the other camera mode. Program Selecting the automatic mode will configure the camera with optimal settings. You can still manually configure all functions except the aperture value and shutter speed. Manual Photo Help Guide Helps the user learn the correct picture taking method and includes solutions for potential problems that may occur. This also enables the user to practice the best way to take the pictures. Beauty Shot Take a photo of portraits by setting options to clear facial imperfections. Use the menu to easily configure optimal settings for a variety of shooting situations. The user can manually set both the aperture value and the shutter speed. Movie DUAL IS This mode will reduce the effect of camera shake and help you get a well-exposed image in dim conditions. EN-8 For taking a movie Taking a picture How to take a picture

1. Turn on the POWER button and

then select the desired shooting mode by using the mode dial on the upper body of your camera. Pressing halfway down Focus and Flash status are checked.

2. Hold the camera as shown.

Pressing fully Image is taken. How to record a movie. Select the Movie Clip mode by using the mode dial on the upper body of your camera.

3. Confirm the composition.

2. Start the recording.

Press the Shutter button and the recording starts and press the Shutter button again to stop the recording EN-9 Playingback, Deleting and Protecting Images

Playingback the images

2. To add images to delete, press

the T button. The last image stored on the memory is displayed. Press the Play mode ( – Left/Right button: Selects images – T button: Checks for deletion – OK button: Deletes the selection ) button.

Delete button This deletes images stored on the memory card.

1. Select an image that you want to delete by pressing the Left/Right

button and press the Delete ( ) button. [Select]: Selected images are protected or unprotected. [All]: All stored images are protected or unprotected.

Select OK Confirm <Single Image> EN-10 Delete? Yes

▶ Next OK Delete Protecting images This is used to protect specific shots from being accidentally erased. Delete? Prev

3. Select the submenu values by pressing the Up/Down button and

then press the OK button. – If [No] is selected: Cancels “Delete Image”. – If [Yes] is selected: Deletes the selected images. Select an image that you want to play back by pressing the Left/Right button

If you protect an image, the protect icon will be displayed on the LCD monitor. An image in LOCK mode will be protected from the delete function, but will NOT be protected from the [Format] function. Select All OK Set 100-0010 Downloading images System Requirements For Windows PC with processor better than Pentium III 500MHz USB support environment (Pentium III 800MHz recommended) Windows 2000 / XP / Vista Minimum 256MB RAM (Over 512MB recommended)

For Macintosh PC connection mode English

Power Mac G3 or later, or Intel Processor Mac OS 10.3 or later Minimum 256MB RAM (Over 512MB recommended)

2. Download the images

250MB of available harddisk space (Over 1GB recommended) Software support environment 1024×768 pixels, 16-bit color display compatible monitor Not supported (24-bit color display recommended) Microsoft DirectX 9.0 or later It is not compatible with Windows XP and Vista 64-bit Edition. ※ Samsung is not responsible for any defects or damages caused by the use of unauthorized computer including an assembled PC. – Connect the camera and Computer with supplied USB cable and download the image on your computer to save them. EN-11

EN-12 Control: Program AE Metering: Multi, Spot, Center-weighted, Face Detection AE Compensation: ±2EV (1/3EV steps) ISO: Auto, 80, 100, 200, 400, 800, 1600, 3200 (Selectable 3M or under) Flash – Modes: Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off, Red-eye Fix – Range: Wide: 0.5 ~ 4.6m, Tele: 0.5 ~ 2.3 m (ISO Auto) – Recharging Time: Approx. under 4 seconds (new battery) Shake Reduction – Dual IS (OIS + DIS)

• OIS (Optical Image Stabilization), DIS (Digital Image Stabilization) Sharpness – Soft+, Soft, Normal, Vivid, Vivid+ White Balance – Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom Voice Recording – Voice Recording (max 10 hours) – Voice Memo in Still Image (max. 10 sec.) Date Imprinting – Date, Date & Time, Off (user selectable) Shooting – Still Image
• Mode: Auto, Program, Manual, Dual IS, Photo Help Guide, Beauty Shot, Scene Scene: Nightscene, Portrait, Children, Landscape, Text, Close-up, Sunset, Dawn, Backlight, Fireworks, Beach & Snow
• Shooting: Single, Continuous, AEB, Motion Capture
• Self-timer: 2 sec., 10 sec., Double (10 sec, 2 sec), Motion Timer Specifications Storage – Media
• Internal memory: 30MB
• External Memory (Optional) MMC Plus (Up to 2GB, guaranteed, 4bit 20MHz) SD (up to 4GB guaranteed) SDHC (up to 8GB guaranteed)
• Internal memory capacity is subject to change without prior notice. – File Format
• Still Image: JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0

These figures are measured under Samsung standard conditions and may vary depending on shooting conditions and camera settings. E Button – Recording Effect: Color Effect: Normal, B&W, Sepia, Red, Blue, Green, Negative, Custom Color Image Adjust: Saturation, Contrast, Sharpness – Playback Effect: Image Edit: Resize, Rotate, Trimming Color Effect: Normal, B&W, Sepia, Red, Blue, Green, Negative, Custom Color Image Adjust: ACB, Red Eye Fix, Brightness, Contrast, Saturation, Face Retouch Image Play – Single image, Thumbnails, Slide show, Movie clip

• Slide show : Slide show with Effect & Music EN-13 English – Movie Clip
• With Audio or without Audio (user selectable, recording time : Memory capacity dependent, max 2hours)
• Size: 800x592(20FPS), 640x480 (30FPS,15FPS), 320x240(30FPS, 15FPS)
• Frame rate: 15FPS, 20FPS, 30FPS
• Optical Zoom up to 3.6X (Sound goes mute when operating the zoom function)
• Movie Editing (Embedded): Movie Stabilization, Pause during recording, Still Image Capture Time Trimming

– Digital output connector: USB 2.0 High Speed 20 pin connector – Audio: Mono (Speaker), Stereo (Microphone) – Video output: NTSC, PAL (user selectable) – DC Adapter: 4.2V, 20 pin connector – Rechargeable battery: SLB-10A, 3.7V (1,050mAh) – Adaptor: SAC-47, SUC-C3 Included battery may vary depending on sales region. Dimensions (WxHxD) – 91.6 X 61 X 22.95mm (excluding protrusions) Weight – 138g (without batteries and card) Operating Temperature – 0 ~ 40°C Operating Humidity – 5 ~ 85% Software – Application: Samsung Master, Adobe Reader Specifications are subject to change without prior notice. All trademarks are the property of their respective owners. EN-14 Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems.) This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system. The rechargeable battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider. Découvrir votre appareil photo
