USER MANUAL MMB6386M BOSCH

Register yo new devic ur e on MyBosch now and get free b enefits: bosch-h ome.com / welcome

Manuel d'utilisation

Gebruikershandleiding

Betjeningsvejledning

Futher information and explanations are available online:

Table of contents 1 Safety 31 1.1 General information 31 1.2 Intended use 31 1.3 Restriction on user group 32 1.4 Safety instructions 32 2 Avoiding material damage 35 3 Environmental protection and saving energy 35 3.1 Disposing of packaging 35 4 Unpacking and checking 35 4.1 Unpacking the appliance and parts 35 4.2 Scope of delivery 35 4.3 Setting up the appliance 35 5 Familiarising yourself with your appliance 36 5.1 Appliance 36 5.2 Symbols 36 5.3 Rotary switch 36 5.4 Programme buttons 36 5.5 Safety systems 37 6 Before using for the first time ... 37 6.1 Cleaning the appliance and parts 37 7 Basic operation 37 7.1 Cable length 37 7.2 Recommended speeds 37 7.3 Using the blender to process food 38 7.4 Using instantaneous switching 38 7.5 Using programmes 39 30

7.6 Pushing down food for processing 39

7.7 Adding more ingredients 39 7.8 Emptying the blender jug 39 7.9 Processing food using the To-Go blender jug 39 7.10 Closing the To-Go blender jug 40 7.11 Using the chopper-grinder accessory to process food .... 40 7.12 Emptying the choppergrinder accessory 41 8 Cleaning and servicing 41 8.1 Dishwasher-safe components 41 8.2 Cleaning products 41 8.3 Cleaning the main unit 41 8.4 Cleaning the blender 42 8.5 Cleaning the To-Go blender jug and To-Go blade insert 42 8.6 Cleaning the choppergrinder accessory 42 8.7 Using the cleaning programme 42 9 Recipes 43 9.1 Overview of recipes 43 10 Troubleshooting 45 11 Transportation, storage and disposal 47 11.1 Disposing of old appliance .... 47 12 Customer Service 47 12.1 Product number (E-Nr.) and production number (FD) 47

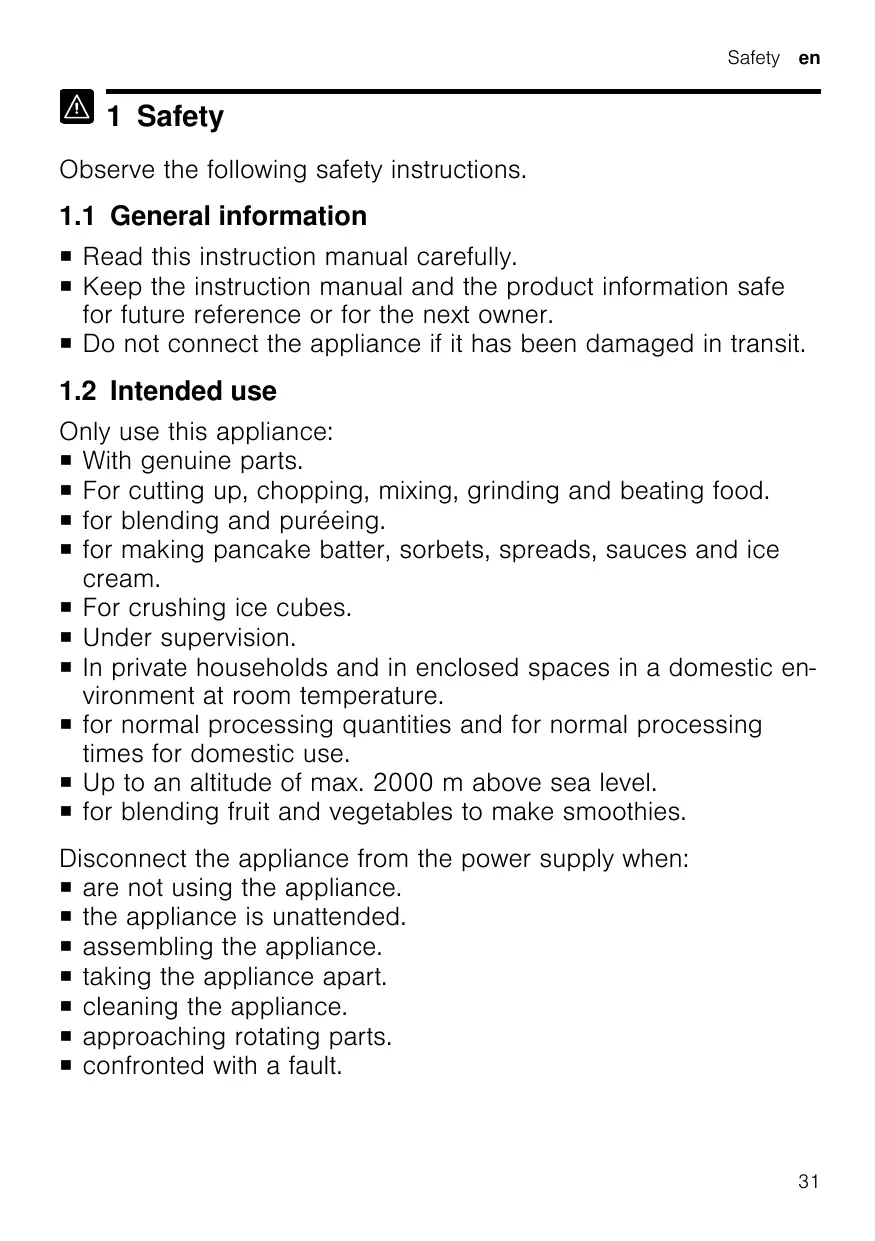

Observe the following safety instructions.

1.1 General information

¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit.

Only use this appliance: ¡ With genuine parts. ¡ For cutting up, chopping, mixing, grinding and beating food. ¡ for blending and puréeing. ¡ for making pancake batter, sorbets, spreads, sauces and ice cream. ¡ For crushing ice cubes. ¡ Under supervision. ¡ In private households and in enclosed spaces in a domestic environment at room temperature. ¡ for normal processing quantities and for normal processing times for domestic use. ¡ Up to an altitude of max. 2000 m above sea level. ¡ for blending fruit and vegetables to make smoothies. Disconnect the appliance from the power supply when: ¡ are not using the appliance. ¡ the appliance is unattended. ¡ assembling the appliance. ¡ taking the appliance apart. ¡ cleaning the appliance. ¡ approaching rotating parts. ¡ confronted with a fault.

1.3 Restriction on user group

This appliance can be used by persons with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Do not let children play with the appliance. Cleaning and user maintenance must not be performed by children. The appliance must not be used by children. Keep children away from the appliance and power cable.

1.4 Safety instructions

Observe the safety instructions. WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never operate an appliance with a cracked or fractured surface. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. ▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box. ▶ Call customer services. → Page 47 Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. Incorrect repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water or clean in the dishwasher. ▶ Only use the appliance in enclosed spaces. ▶ Never expose the appliance to intense heat or humidity. ▶ Do not use steam- or high-pressure cleaners to clean the appliance. If the insulation of the power cord is damaged, this is dangerous. ▶ Never let the power cord come into contact with hot appliance parts or heat sources. ▶ Never let the power cord come into contact with sharp points or edges. ▶ Never kink, crush or modify the power cord. WARNING ‒ Risk of fire! Intense heat may cause the appliance and other parts to catch fire. ▶ Never place the appliance on or near hot surfaces. WARNING ‒ Risk of scalding! Hot food may splash out during processing and steam can escape from the lid. ▶ Add a maximum of 1000 ml of hot or frothing food. ▶ Process hot food carefully. ▶ Do not lean over the appliance. ▶ Do not process food that is hotter than 50 °C in the To-Go blender jug. WARNING ‒ Risk of injury! Operating the appliance with damaged parts may result in injury. ▶ Parts which show cracks or other damage or do not fit correctly must be replaced with genuine spare parts. Improper use may cause injuries. ▶ Only use the appliance once it is fully assembled.

WARNING ‒ Risk of cutting!

The blender knife has sharp blades. ▶ When cleaning and emptying the blender jug, watch out for the sharp blades. ▶ Never touch the edges of the blades with bare hands. WARNING ‒ Risk of suffocation! Children may put packaging material over their heads or wrap themselves up in it and suffocate. ▶ Keep packaging material away from children. ▶ Do not let children play with packaging material. Children may breathe in or swallow small parts, causing them to suffocate. ▶ Keep small parts away from children. ▶ Do not let children play with small parts. WARNING ‒ Risk of harm to health! Soiling on surfaces may be harmful to health. ▶ Follow the cleaning instructions. ▶ Clean surfaces which come in contact with food before each use.

2 Avoiding material damage

ATTENTION! Improper use may cause material damage. ▶ Do not operate the appliance at no-load. ▶ Observe the maximum processing quantities. ▶ Never use the blender jug in the microwave or oven. ▶ Do not use the blender jug to store objects which do not belong to it. ▶ Do not process food that is hotter than 50 °C in the To-Go blender jug.

2. Take all other parts and the ac-

companying documents out of the packaging and place them to hand.

3. Remove any packaging material. 4. Remove any stickers or film.

4.2 Scope of delivery

After unpacking all parts, check for any damage in transit and completeness of the delivery. → Fig. 1

3 Environmental protection and saving energy

3.1 Disposing of packaging The packaging materials are environmentally compatible and can be recycled. ▶ Sort the individual components by type and dispose of them separately.

4 Unpacking and checking

Find out here what you need to note when unpacking the appliance.

Blender jug with EasyClick blade insert Lid and measuring cup Pusher To-Go blender jug with blade insert1 Lid with seal and closable mouthpiece1 Chopper-grinder attachment with blade insert User manual

Depending on the appliance specifications

4.3 Setting up the appliance

1. Place the appliance on a stable,

level, clean and flat work surface.

2. Pull the power cable out to the re-

→ "Cable length", Page 37 Do not insert the mains plug.

4.1 Unpacking the appliance and parts

1. Take the appliance out of the

Familiarising yourself with your appliance

5 Familiarising yourself with your appliance

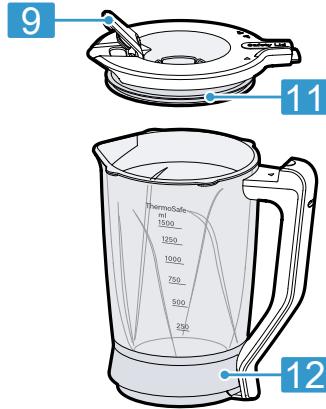

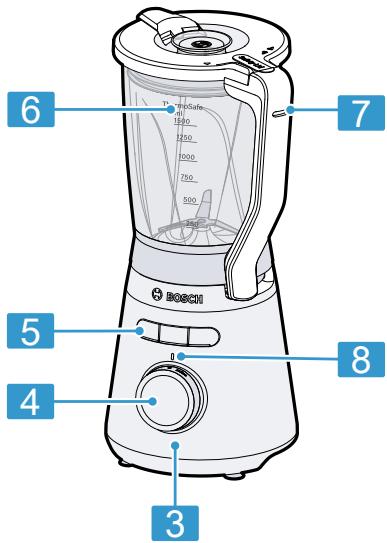

5.1 Appliance You can find an overview of the parts of your appliance here. → Fig. 2

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 1

Chopper-grinder blade insert

Chopper-grinder attachment Main unit Rotary switch Programme buttons with LEDs Scale Lock indicator for the lid Status display (LED) Spout Measuring cup Lid with filling opening Blender jug EasyClick blade insert Retaining bracket

You can find an overview of the symbols used on your appliance here. Symbol

Position markings Open locking mechanism. Close locking mechanism. Blade holder with grinding blade and cutting blade. The grinding blade is blunt and the cutting blade is sharp.

The rotary switch is used to start and stop processing and select the speed. Symbol Function Stop processing. Switch on the appliance. Process ingredients at low speed. Process ingredients at maximum speed. Process ingredients briefly at maximum speed.

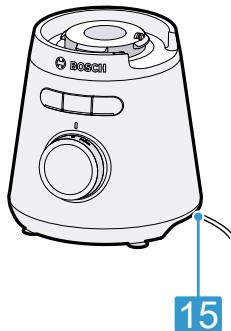

Power cord storage compartment

Tip: You can adjust the speed steplessly between and

You can use the programme buttons to start the programmes for specific use cases or precleaning. Each programme button has a corresponding

LED, which shows the operating status.

Lid with seal and closable mouthpiece1

Depending on the appliance specifications

Note: When the To-Go blender jug is attached, only use the programme. The and programmes are not suitable for the ToGo blender jug.

Cleaning programme for precleaning when food residue has dried in Programme for preparing smoothies Programme for crushing ice cubes

You can find an overview of your appliance's safety systems here.

Start lock-out prevents your appliance from being switched on accidentally. You can switch on and operate the appliance once the blender jug has been correctly positioned and the lid is locked. Overload protection The overload protection system prevents the motor and other components from being damaged through being overloaded.

6 Before using for the first time

Configure the basic settings. Clean the appliance and accessories.

6.1 Cleaning the appliance and parts

1. Clean all parts that come into con-

tact with food before using for the first time.

→ "Cleaning and servicing", Page 41 2. Put the cleaned and dried parts out ready for use.

7 Basic operation ope r a o it n

Adjust the length of the power cable to your needs.

Adjusting cable length via cable storage compartment

1. Pull the power cable out to the required length. 2. To shorten the cable, push it into the cable storage compartment.

7.2 Recommended speeds

You can find out here which speeds you can use to achieve optimal results. Setting

Briefly blending food with instantaneous switching at maximum speed. Blending, puréeing, emulsifying, frothing and cutting up food. Blending food that should not be cut up too small.

Tip: Please use our recipe suggestions to gain experience with your new appliance.

→ "Overview of recipes", Page 43

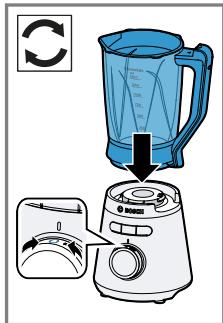

7.3 Using the blender to process food

WARNING Risk of injury! Improper use may cause injuries. ▶ Only use the appliance once it is fully assembled. 1. Prepare the food.

For example, cut large items of food into pieces.

2. Check the seal on the EasyClick blade insert. If a seal has been removed, reinsert it correctly. → Fig. 3 Note: The seal remains on the EasyClick blade insert for cleaning. If the seal is damaged or not correctly positioned, liquid may run out. a The seal is seated in the groove. a The sealing lips point in the direction of the blender jug. a The smooth sealing surface lies against the EasyClick blade insert. 3. Turn the blender jug upside down. 4. Open the retaining bracket. → Fig. 4 5. Align the EasyClick blade insert with the tap in the blender jug. 6. Push the EasyClick blade insert into the blender jug and close the retaining bracket until it clicks into place. → Fig. 4 7. Set the rotary switch to ⁠. 8. Place the blender jug onto the main unit and rotate in a clockwise direction until it locks into place. → Fig. 5 38

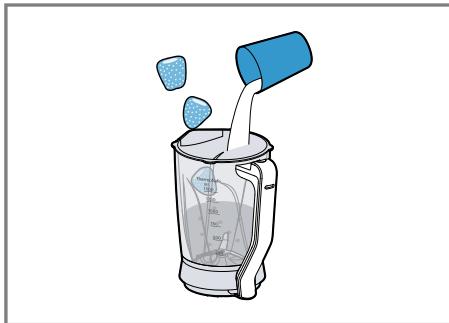

9. Add the food to the blender jug.

Observe the minimum and maximum processing quantities. → "Overview of recipes", Page 43 10. Insert the measuring jug in the lid and place the lid on the blender jug. → Fig. 7 The and markings must match up. 11. Turn the lid in the direction until it clicks into place. → Fig. 8 The lid must be completely closed. a The colour of the lock indicator for the lid changes from red to green. 12. Insert mains plug. 13. Set the rotary switch to ⁠. → Fig. 9 a The status display (LED) on the rotary switch lights up. 14. Set the rotary switch to the recommended speed. → Fig. 10 15. Process the ingredients until you achieve the required result. 16. To end the operation, set the rotary switch to ⁠.

7.4 Using instantaneous switching

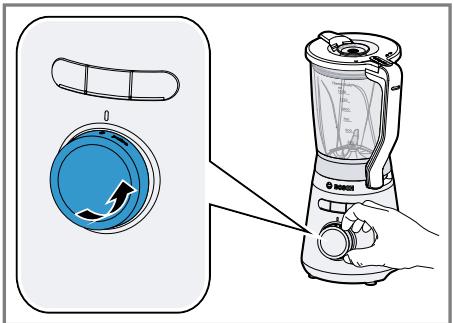

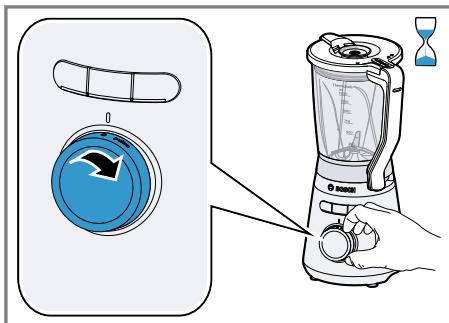

1. Set the rotary switch to

→ Fig. 11 a The ingredients are processed at maximum speed. 2. Release the rotary switch. a The rotary switch jumps to ⁠. a Processing stops.

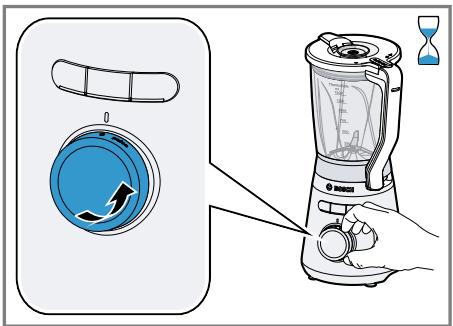

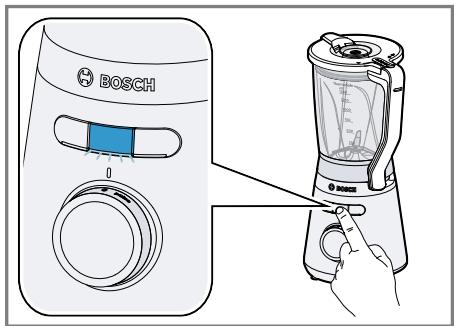

7.5 Using programmes

2. To add larger quantities, set the

¡ The blade insert is installed. ¡ The blender jug has been attached and locked. ¡ The blender jug is filled with the food or ice cubes. ¡ The lid is attached and locked. ¡ The rotary switch is set to ⁠. 1. Set the rotary switch to ⁠. → Fig. 9 a The status display (LED) on the rotary switch lights up. 2. Press the ⁠ or ⁠ programme button. → Fig. 12 a While the programme is running, the LED for the selected programme lights up and the status display (LED) goes out. 3. Wait until the appliance stops. 4. Set the rotary switch to ⁠. → Fig. 13 Tip: To prematurely stop the programme, set the rotary switch to ⁠. 5. Empty the blender jug. → "Emptying the blender jug", Page 39

3. Wait until the appliance stops.

4. Turn the lid in the direction and

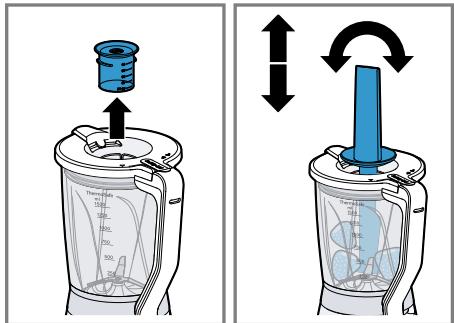

7.6 Pushing down food for processing

1. Remove the measuring jug and in-

sert the pusher into the filling opening.

→ Fig. 14 2. Push down the food from the sides of the blender jug. → Fig. 14

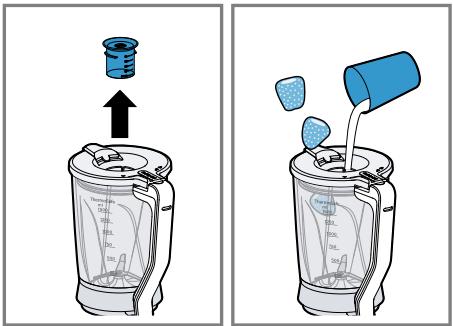

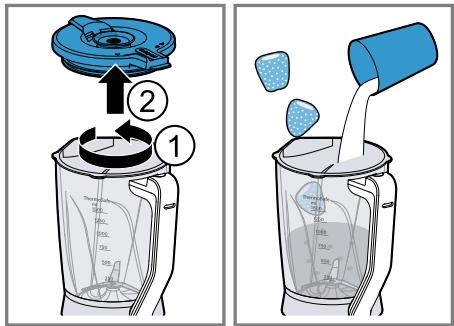

7.7 Adding more ingredients

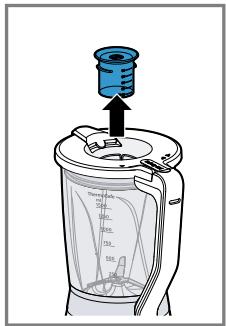

1. During processing, remove the

measuring jug and add the ingredients through the opening in the lid.

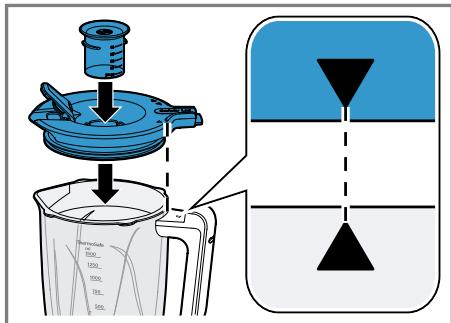

→ Fig. 16 5. Add the ingredients. → Fig. 16 6. Place the lid on the blender jug again and continue to process the ingredients.

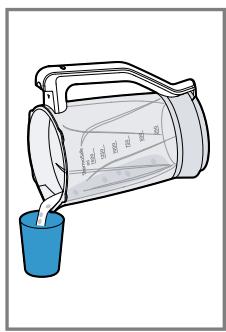

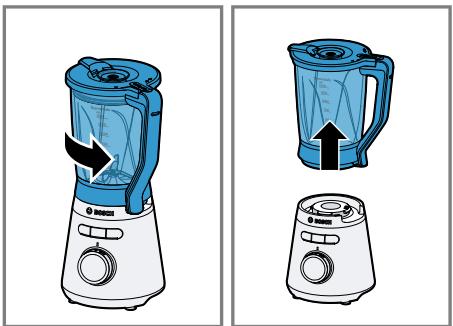

7.8 Emptying the blender jug

Requirement: The appliance has stopped. 1. Turn the blender jug anti-clockwise and remove it from the main unit. → Fig. 17 2. To pour out just a portion of the processed food, use the spout. ‒ Open the spout. ‒ Place the processed food in a suitable container or serve immediately. ‒ Close the spout. → Fig. 18 3. To pour out all of the processed food, remove the lid. → Fig. 19

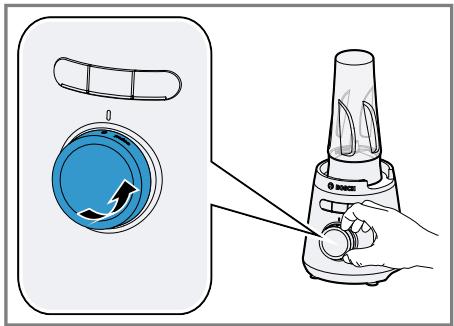

7.9 Processing food using the To-Go blender jug

1. Prepare the food.

For example, cut large items of food into pieces.

2. Add the food to the To-Go blender jug. → Fig. 20 Observe the minimum and maximum processing quantities. → "Overview of recipes", Page 43 3. Place the To-Go blade insert on the To-Go blender jug. → Fig. 20 39

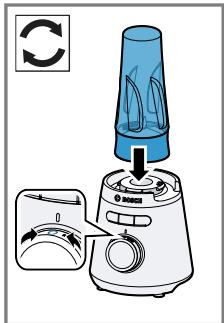

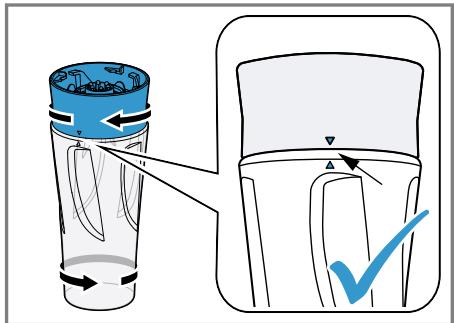

4. Screw the To-Go blade insert and

the To-Go blender jug in tightly.

→ Fig. 21 – The and markings must match up. – You can only connect the To-Go blade insert to the main unit when the To-Go blender jug is screwed on fully. 5. Set the rotary switch to ⁠. 6. Turn the To-Go blender jug upside down. → Fig. 22 7. Place the To-Go blade insert on the main unit and rotate it in a clockwise direction until it locks into place. → Fig. 22 8. Set the rotary switch to the recommended speed. → Fig. 23 Tip: We recommend pausing operation several times when preparing smaller quantities of baby food in the To-Go blender jug. Processing can also take place with instantaneous switching. → "Using instantaneous switching", Page 38 9. Process the ingredients until you achieve the required result. 10. To end the operation, set the rotary switch to ⁠. → Fig. 24

screw the To-Go blade insert.

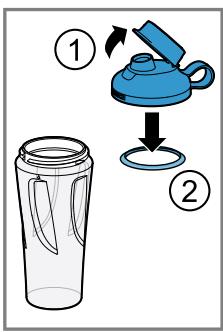

→ Fig. 25 3. Insert the seal for the lid. → Fig. 26 4. Close the mouthpiece on the lid. → Fig. 26 5. Screw the lid and the To-Go blender jug in tightly. → Fig. 26

7.11 Using the choppergrinder accessory to process food

1. Prepare the food.

7.10 Closing the To-Go blender jug

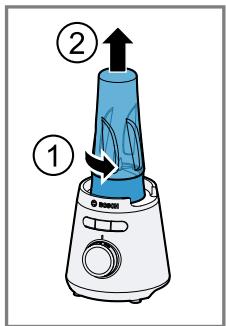

Requirement: The appliance has stopped. 1. Turn the To-Go blender jug anticlockwise and remove it from the main unit. → Fig. 25

For example, cut large items of food into pieces.

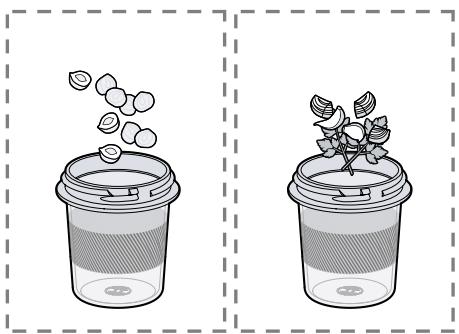

Add the ingredients to the chopper-grinder attachment. → Fig. 27 Observe the maximum processing quantities. → "Overview of recipes", Page 43 Place the chopper-grinder blade insert on the chopper-grinder attachment. → Fig. 28 Screw the chopper-grinder blade insert and the chopper-grinder attachment in tightly. → Fig. 29 – The and markings must match up. – You can only connect the chopper-grinder blade insert to the main unit when the choppergrinder attachment is fully screwed on. Set the rotary switch to ⁠. Turn the chopper-grinder accessory upside down. → Fig. 30

Cleaning and servicing

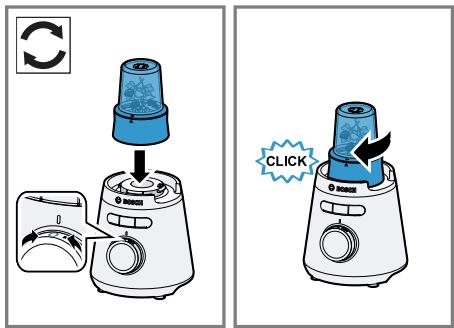

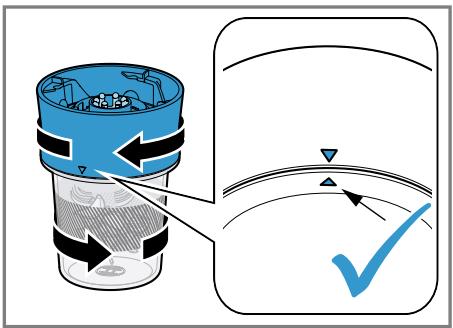

7. Place the chopper-grinder access-

ory onto the main unit and rotate in a clockwise direction until it locks into place.

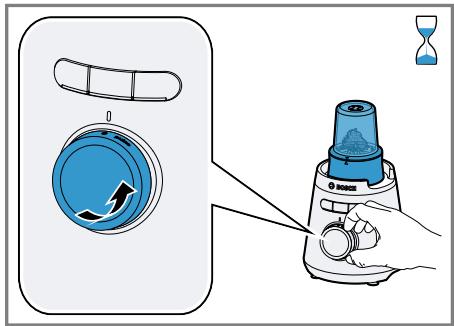

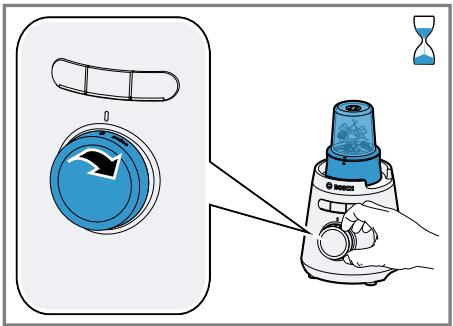

→ Fig. 30 8. Set the rotary switch to the recommended speed. → Fig. 31 Tip: Processing can also take place with instantaneous switching. → "Using instantaneous switching", Page 38 9. Process the ingredients until you achieve the required result. 10. To end the operation, set the rotary switch to ⁠. → Fig. 32

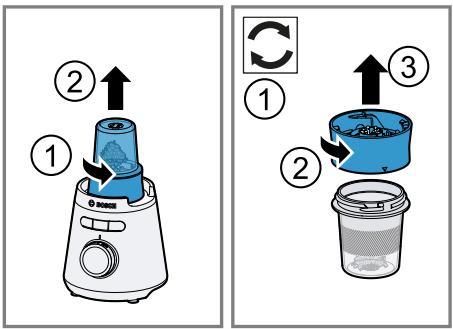

7.12 Emptying the choppergrinder accessory

Requirement: The appliance has stopped. 1. Turn the chopper-grinder accessory anti-clockwise and remove it from the main unit. → Fig. 33 2. Turn the chopper-grinder accessory over and unscrew the choppergrinder blade insert. → Fig. 33 3. Empty the chopper-grinder attachment with the processed food.

8 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

8.1 Dishwasher-safe components

Some parts may be damaged if they are put in a dishwasher. ▶ Only put dishwasher-safe parts in the dishwasher. ▶ Only use programmes that do not heat the water above 60 °C. ▶ Do not wedge plastic parts in the dishwasher. This overview describes the cleaning process for the components. → Fig. 34

8.2 Cleaning products

Find out here which cleaning products are suitable for your appliance. ATTENTION! Using unsuitable cleaning agents or incorrect cleaning may damage the appliance. ▶ Do not use cleaning agents containing alcohol or spirits. ▶ Do not use sharp, pointed or metal objects. ▶ Do not use abrasive cloths or cleaning agents.

8.3 Cleaning the main unit

WARNING Risk of electric shock! An ingress of moisture can cause an electric shock. ▶ Never immerse the appliance or the power cord in water or clean in the dishwasher. ▶ Do not use steam- or high-pressure cleaners to clean the appliance. ▶ Wipe down the main unit with a

Find out here which components can be put in the dishwasher.

Cleaning and servicing

8.4 Cleaning the blender

WARNING Risk of cutting! The blender knife has sharp blades. ▶ When cleaning and emptying the blender jug, watch out for the sharp blades. ▶ Never touch the edges of the blades with bare hands. ATTENTION! The blender knife has sharp blades. Improper handling may damage the blades or the surface. ▶ Never set the blade insert down with the blade facing downwards. 1. Remove the measuring jug. 2. 3.

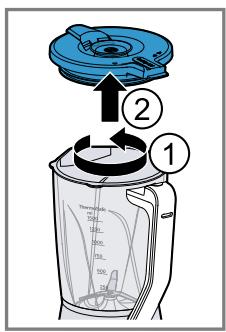

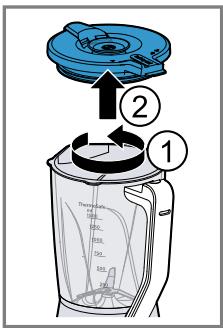

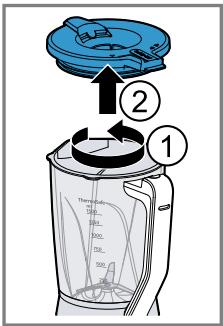

Remove the lid. → Fig. 35 Turn the blender jug anti-clockwise and remove it from the main unit. → Fig. 36 Turn the blender jug upside down. Open the retaining bracket. → Fig. 37 Remove the EasyClick blade insert from the blender jug. → Fig. 37 Clean the components.

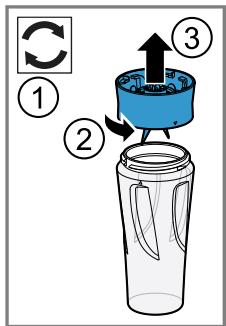

8.5 Cleaning the To-Go blender jug and To-Go blade insert

ATTENTION! The blender knife has sharp blades. Improper handling may damage the blades or the surface. ▶ Never set the blade insert down with the blade facing downwards.

clockwise and remove it from the

To-Go blender jug. → Fig. 38 Turn the lid anti-clockwise and remove it from the To-Go blender jug. → Fig. 39 Open the mouthpiece on the lid. → Fig. 39 Remove the seal. → Fig. 39 Clean the components.

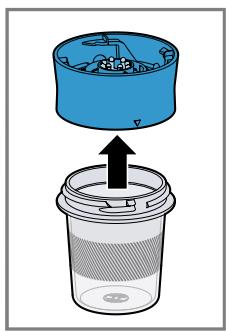

8.6 Cleaning the choppergrinder accessory

ATTENTION! The blender knife has sharp blades. Improper handling may damage the blades or the surface. ▶ Never set the blade insert down with the blade facing downwards. 1. Rotate the chopper-grinder blade

insert anticlockwise and remove it from the chopper-grinder attachment.

→ Fig. 40 2. Clean the components.

8.7 Using the cleaning programme

You can use the cleaning programme to preclean the blender jug and the blade insert. Requirements ¡ The blade insert is installed. ¡ The blender jug has been attached and locked. ¡ The blender jug is filled with cleaning fluid (700 g water + 1 drops of washing-up liquid). ¡ The lid is attached and locked. ¡ The rotary switch is set to ⁠.

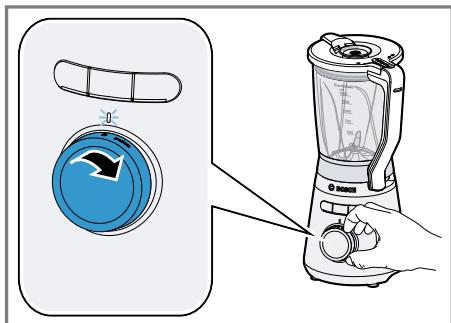

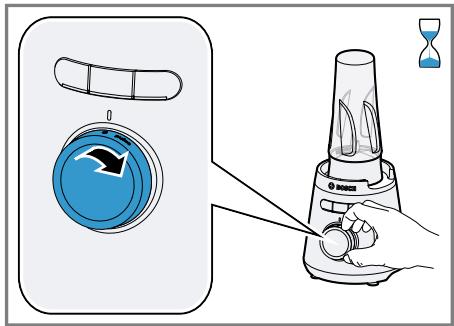

1. Set the rotary switch to

→ Fig. 9 a The status display (LED) on the rotary switch lights up. . 2. Press the programme button → Fig. 12 a While the programme is running, the LED for lights up and the status display (LED) goes out. 3. Wait until the appliance stops. 4. Set the rotary switch to ⁠.

5. Turn the blender attachment anti-

clockwise and remove it from the base unit.

→ Fig. 17 6. Turn the lid in the direction and remove it. → Fig. 41 7. Dispose of the cleaning fluid. a The most stubborn food residues are removed. 8. Clean the components.

You can find a selection of recipes specially developed for your appliance here.

9.1 Overview of recipes

This overview lists the ingredients and processing steps for various recipes. → Fig. 42 → Fig. 43 Recipe Sports drink

For the recipes labelled with (*) in the recipe table, leave the appliance to cool to room temperature after three operating cycles.

Using unsuitable food may damage the appliance. ▶ Do not process food that is hotter than 50 °C in the To-Go blender jug. ▶ Do not process food that is hotter than 70 °C in the blender jug.

¡ Restrictions on processing in the blender: – Do not use it to chop ingredients like almonds, onions, parsley and meat. – It is only possible to mix spreads, such as peanut butter, coconut butter or nut spreads, with a suitable Bosch pusher. – The blender cannot be used to make mayonnaise. – Use enough liquid when mixing solid food. – Mix powdered food with sufficient liquid before blending, or dissolve it entirely in liquid. Examples of powdered food include icing sugar, cocoa powder, roasted soybeans, flour, protein powder. ¡ Restrictions on processing in the chopper/grinder accessory: – Use instantaneous switching for coarse and fine chopping. – Do not grind very dry or solid food larger than coffee beans. Unsuitable food includes e.g. nutmeg and dry ginger. – Do not grind any sugar. – Do not chop ice cubes. – The chopper-grinder attachment cannot be used to produce nut spreads. – Chop a maximum of 50 g of solid food at maximum speed for a maximum of one second or 1 - 5 pulses unless otherwise indicated in the recipe table. – The chopper/grinder attachment is not suitable for fine chopping meat, e.g. for Bolognese.

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk. Fault The appliance is not working.

Cause and troubleshooting

The mains plug of the power cord is not plugged in. ▶ Connect the appliance to the power supply. The circuit breaker in the fuse box has tripped. ▶ Check the circuit breaker in the fuse box. There has been a power cut. ▶ Check whether the lighting in your kitchen or other appliances are working.

The lid or blender jug are not locked.

▶ Set the rotary switch to ⁠. 1. Place the blender jug onto the main unit and rotate in a clockwise direction until it locks into place. until it clicks into 2. Turn the lid in the direction place. a The colour of the lock indicator for the lid changes from red to green. 3. If required, select this option: ‒ Place the To-Go blender jug with the To-Go blade insert onto the main unit and rotate in a clockwise direction until it locks into place. Programme was cancelled using the rotary switch. ▶ Set the rotary switch to ⁠.

Appliance has a hum- The blade is blocked or stiff. ming sound.

▶ Set the rotary switch to ⁠. ▶ Remove the blockage.

Cause and troubleshooting Appliance switches off Processing quantity is too great or processing time during use. was too long. ▶ Set the rotary switch to ⁠. ▶ Reduce the processing quantity. ▶ Allow the appliance to cool down to room temperature. The programme does not start.

The rotary switch is not set to

▶ Set the rotary switch to

The programme has been cancelled using the programme button.

1. Set the rotary switch to ⁠. 2. Press the programme button for the required programme. The To-Go blade insert cannot be connected to the main unit.

Outlet protection is active.

▶ Screw the To-Go blade insert and the To-Go blender jug in by turning them in a clockwise direction. a The To-Go blender jug and To-Go blade insert are fully and tightly screwed in. a The and markings match up.

Outlet protection is active. accessory cannot be ▶ Screw the chopper-grinder blade insert and the connected to the main chopper-grinder attachment in place with one rotaunit. tion in a clockwise direction. a The chopper-grinder blade insert and the choppergrinder attachment are fully and securely screwed in. a The and markings match up. To-Go blender jug is leaking.

Seal is missing from the lid.

Liquid is leaking from the blade insert.

Seal between the blender jug and the blade insert is missing.

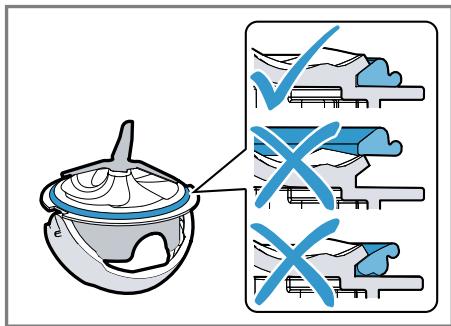

▶ Insert the seal on the EasyClick blade insert. a The seal is seated in the groove. a The sealing lips point in the direction of the blender jug. a The smooth sealing surface lies against the EasyClick blade insert.

Transportation, storage and disposal

11 Transportation, storage and disposal

11.1 Disposing of old appliance Valuable raw materials can be reused by recycling. 1. Unplug the appliance from the mains. 2. Cut through the power cord. 3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

Detailed information on the warranty period and terms of warranty in your country is available from our aftersales service, your retailer or on our website. If you contact Customer Service, you will require the product number (ENr.) and the production number (FD) of your appliance. The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

12.1 Product number (E-Nr.) and production number

(FD) You can find the product number (ENr.) and the production number (FD) on the appliance's rating plate. Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 7 years from the date on which your appliance was placed on the market within the European Economic Area.
