USER MANUAL 18996-56 RUSSELL HOBBS

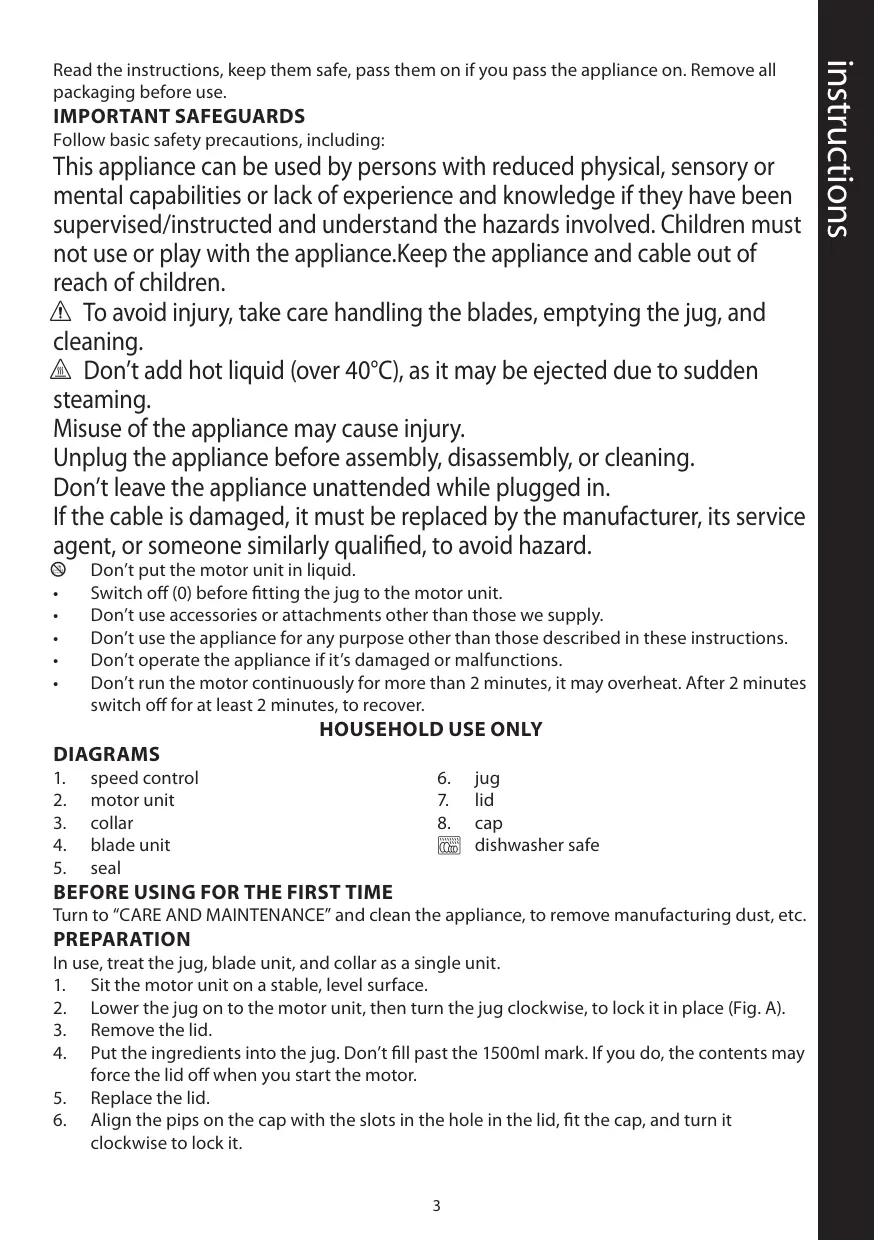

IMPORTANT SAFEGUARDS Follow basic safety precautions, including:

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children must not use or play with the appliance.Keep the appliance and cable out of reach of children. c To avoid injury, take care handling the blades, emptying the jug, and cleaning. h Don’t add hot liquid (over 40°C), as it may be ejected due to sudden steaming.

Misuse of the appliance may cause injury. Unplug the appliance before assembly, disassembly, or cleaning. Don’t leave the appliance unattended while plugged in. If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard. l • • • • •

Don’t put the motor unit in liquid.

Switch off (0) before fitting the jug to the motor unit. Don’t use accessories or attachments other than those we supply. Don’t use the appliance for any purpose other than those described in these instructions. Don’t operate the appliance if it’s damaged or malfunctions. Don’t run the motor continuously for more than 2 minutes, it may overheat. After 2 minutes switch off for at least 2 minutes, to recover.

speed control motor unit collar blade unit seal

BEFORE USING FOR THE FIRST TIME Turn to “CARE AND MAINTENANCE” and clean the appliance, to remove manufacturing dust, etc.

PREPARATION In use, treat the jug, blade unit, and collar as a single unit.

1. Sit the motor unit on a stable, level surface. 2. Lower the jug on to the motor unit, then turn the jug clockwise, to lock it in place (Fig. A). 3. Remove the lid. 4. Put the ingredients into the jug. Don’t fill past the 1500ml mark. If you do, the contents may force the lid off when you start the motor. 5. Replace the lid. 6. Align the pips on the cap with the slots in the hole in the lid, fit the cap, and turn it clockwise to lock it. 3

Read the instructions, keep them safe, pass them on if you pass the appliance on. Remove all packaging before use.

Don’t run the appliance without fitting the cap.

Check that the speed control is set to 0. Put the plug into the power socket. Turn the speed control to the speed you want (1 = low, 2 = high). Turn the speed control back to 0 to turn the motor off. Generally, large quantities, thick mixes, and a high ratio of solids to liquids suggest longer timings and slower speeds. • Smaller quantities, thinner mixes, and more liquids than solids suggest shorter timings and higher speeds. • Turning the speed control anti-clockwise to Y will give you a short burst at high speed. In this direction, the knob is spring-loaded. When you let go, it’ll return to 0. • To add ingredients while the blender is working, remove the cap, pour the new ingredients through the hole, then replace the cap. When you have finished: 1. Switch the appliance off (0) and unplug it. 2. Turn the jug anti-clockwise, and lift it off the motor unit.

CRUSHED ICE For best results, full the jug with between 150ml and 500ml of ice cubes.

Put the lid on the blender, then: 1. Turn the speed control to Y for a second or two, then release it. 2. Check the results, and adjust.

OVERLOAD PROTECTION This appliance is fitted with a device to protect it in the event it becomes overloaded or overheats. If the appliance stops without warning for any reason, do the following:

1. Switch off (O) and unplug the appliance. 2. Allow the appliance to cool down for 15 min 3. Once cooled down the protection device will automatically reset and the appliance can be used normally again.

CARE AND MAINTENANCE

1. Switch the appliance off (0) and unplug it. 2. Wipe the outside of the motor unit with a clean damp cloth. 3. Hand wash the removable parts. ` You may wash these parts in a dishwasher. If you use a dishwasher, the harsh environment inside the dishwasher will affect the surface finishes. The damage should be cosmetic only, and should not affect the operation of the appliance. To remove the blade unit from the jug: 1. Remove the lid. 2. Sit the jug upside down. 3. Unscrew the collar. 4. Remove the blade unit and seal. 5. Hand wash the removable parts. 6. Replace the blade unit and seal. 7. Screw the collar back into place.

W ENVIRONMENTAL PROTECTION To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with this symbol mustn’t be disposed of with unsorted municipal waste, but recovered, reused, or recycled.

RECIPE CORIANDER PESTO (DIP, TOPPING OR SAUCE)

• 4 handfuls fresh leaf coriander • 250ml olive oil • 4 cloves fresh garlic • 120g freshly grated Parmesan • 120g pine nuts • salt and pepper Blend the coriander, garlic, pine nuts, and a bit more than half the oil at speed 2 till smooth. To adjust the thickness, add a little oil, blend, and repeat. Transfer to a bowl, stir in the Parmesan, and adjust the seasoning. Serve as a dip (fairly thick), as a topping for soup (not too thick, but not runny), or with warm pasta (fairly runny). Recipes are available on our website: http://www.russellhobbs.com/ifu/550931
