CERM600B - Food Processor CONTINENTAL EDISON - Free user manual and instructions

Product type	Food processor
Brand	Continental Edison
Model	CERM600B
Nominal voltage	220-240 V, 50/60 Hz
Power	600 W
Protection class	II
Speeds	2 speeds + pulse mode (P)
Included accessories	Stainless steel blade, plastic blade, slicing disc, julienne disc, french fry disc, emulsifying disc
Bowl capacity	Approximately 1.5 L (estimate)
Main functions	Chop, mix, slice, grate, julienne, cut into fries, emulsify, whisk
Maximum continuous operation time	3 minutes
Recommended cooling time	5 minutes after use, 30 minutes after 3 consecutive uses
Safety	Safety switches on bowl and lid; do not immerse the housing; keep out of reach of children
Cleaning and maintenance	Clean accessories with soapy water; housing with a damp cloth; do not use abrasive detergents
Recyclable materials	Yes

Frequently Asked Questions - CERM600B CONTINENTAL EDISON

How to assemble the CERM600B food processor?

Follow the steps illustrated in the manual: lock the bowl onto the base, install the desired accessory (blade or disc) on the shaft, then secure the lid ensuring the latches are engaged. The appliance only operates if the bowl and lid are properly locked.

What is the power of the appliance?

The Continental Edison CERM600B food processor has a power of 600 W and a nominal voltage of 220-240 V, 50/60 Hz.

How to use pulse mode?

Turn the control knob to the P position to activate pulse mode. The processor runs at high speed as long as you hold the knob on P. Release to stop. Ideal for bulky foods or precise control.

What accessories are supplied with the CERM600B?

The appliance comes with a stainless steel blade, a plastic blade, a slicing disc, a julienne disc, a french fry disc, and an emulsifying disc.

How to clean the food processor?

Unplug the appliance. Clean the accessories (blades, discs, bowl) with soapy water, then dry them completely. The motor housing can be cleaned with a damp cloth. Never immerse the housing in water.

Why won't my food processor start?

Check that the bowl and lid are properly locked (safety switches). Ensure the power cord is plugged in and the outlet works. If the problem persists, contact customer service.

What is the maximum continuous use time?

Do not operate the processor for more than 3 minutes continuously. Allow the appliance to cool for at least 5 minutes after each use, and 30 minutes after 3 consecutive uses.

How to make mayonnaise with the emulsifying disc?

Place the ingredients (egg yolk, mustard, oil, etc.) in the bowl, attach the emulsifying disc and run at speed 2. Proceed in pulses or continuously depending on the recipe. The emulsifying disc is also ideal for whipped cream and egg whites.

What to do if the motor slows down when chopping meat?

Reduce the amount of meat in the bowl. Remove fat and cut the meat into 2 cm pieces before chopping. Do it in several batches if necessary.

Where can I find spare parts?

Use only original parts. Contact Continental Edison customer service or an authorized dealer. Refer to the manual for contact details.

USER MANUAL CERM600B CONTINENTAL EDISON

■ MISE AU REBUT APPROPRIÉE

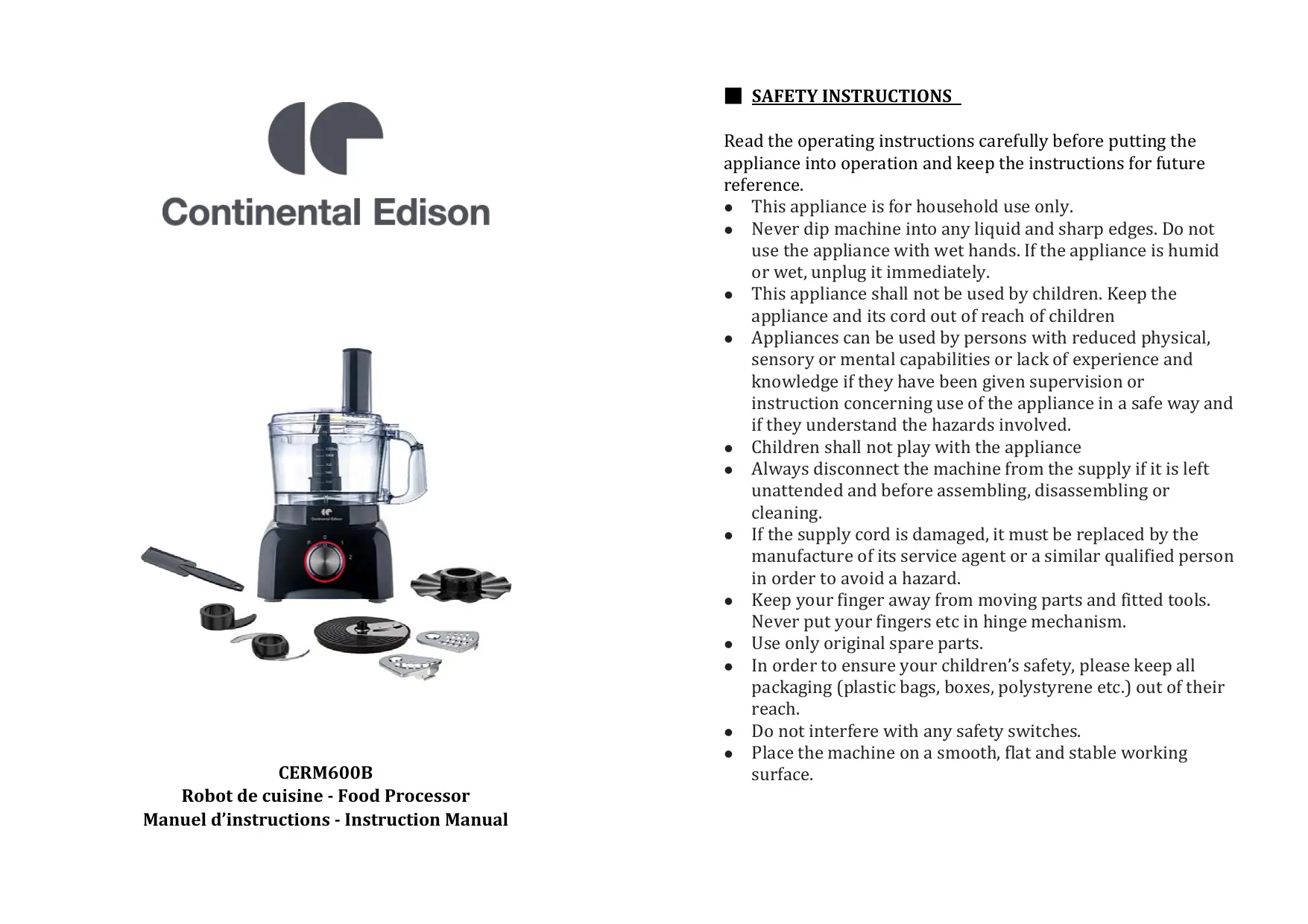

Robot de cuisine - Food Processor

Manuel d'instructions - Instruction Manual

■ SAFETY INSTRUCTIONS

Read the operating instructions carefully before putting the appliance into operation and keep the instructions for future reference.

This appliance is for household use only.
- Never dip machine into any liquid and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children
- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
Children shall not play with the appliance
- Always disconnect the machine from the supply if it is left unattended and before assembling, disassembling or cleaning.
- If the supply cord is damaged, it must be replaced by the manufacture of its service agent or a similar qualified person in order to avoid a hazard.
- Keep your finger away from moving parts and fitted tools. Never put your fingers etc in hinge mechanism.
- Use only original spare parts.
- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
- Do not interfere with any safety switches.
- Place the machine on a smooth, flat and stable working surface.

• Be very careful when you handle the blades or inserts. Be especially careful when you remove them from machine, their cutting edges are very sharp.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning
• Wait until moving parts stop running before you remove the lid of machine.
• Do not exceed the maximum content indicated on the accessories.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

BEFORE CONNECTING TO POWER

• Before connecting to the power, recheck the type of supply and the mains voltage match with the details given on the rating label on the appliance.
• Using for the first time, rip off all wrapping paper and plastic bags. Clean the fittings.

SAVE THESE INSTRUCTIONS

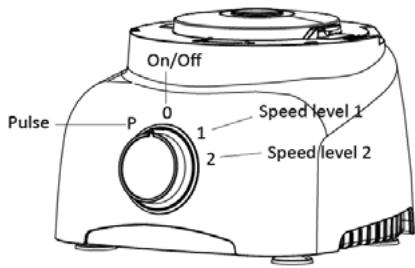

2 SPEED REGULATOR & PULSE SPEED

After settle down the parts you need, If you want the food processor move slowly, turn the adjustment for "1" level.
- If you need the food processor move fast, turn the adjustment for "2" level.
- Use pulse switch for a faster speed. Stop the pulse switch to stop the motor.

USING THE KNIFE BLADE

The 2 knife blades could be the most versatile of all the attachments.

For Stainless Steel Knife Blade:

Before processing, cut the food into pusher size pieces.
Operation cannot longer than 3 minutes every time. Please rest machine 5 minutes before next operation. It's better rest machine 30 minutes after 3 times' operations, this will cool down motor and better protect machine life.
For coarser foods use the pulse control.

Food	Processing size	Quantity	Processing time	Speed
Onion	Into 4 pcs Without skin	100g	approx. 20-40 sec.	Pulse
Garlic	Without skin	100g	approx. 30-60 sec.	Pulse
Carrot	< 2x2 cm	100g	approx. 30-60 sec.	Speed 2/ Pulse
Meat	< 2x2 cm without bone	100g	approx. 20-40 sec.	Speed 2/ Pulse

For Plastic Knife Blade:

Operation cannot longer than 2 minutes every time. Please rest machine 5 minutes before next operation. It's better rest machine 30 minutes after 3 times' operations, this will cool down motor and better protect machine life.

Food	Suggest quantity		Processing time	Speed
Flour / water	Flour water	100g 60g	approx. 50-90 sec.	Speed 1
Mixing of cake batter	Eggs	1 pcs	approx. 2 min.	Speed 1
	Margarine	50g
	Sugar	50g
	Flour	50g
	Baking powder	1g

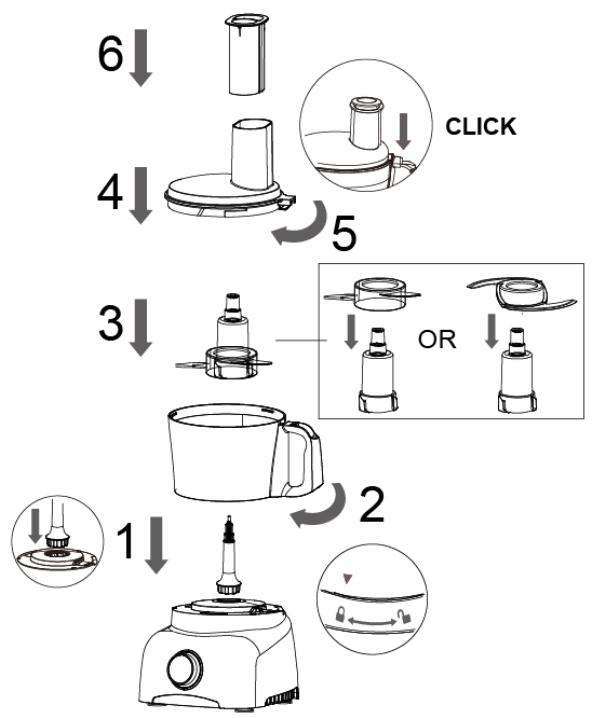

• Follow below flow pictured step by step to assemble machine.
• Ensure the bowl in step 2 and the lid in step 5 are locked well, or the machine will not work.
• In step 3, Stainless Steel knife blade or Plastic blade could be settled, sure either blade is fixed well on shaft.
  After operation, you can disassemble machine by opposite flow and direction.
• Only open the lid when blades completely stopped.

USING SLICER / JULIENNE / FRENCH FRIED POTATO BLADE

Please pay attention to the capacity line of container. Once the food approaches the max line on the container, please stop operation and pour out food.
Switch on and push down evenly with the Pushers - never put your fingers in the feed tube.
Operation cannot longer than 3 minutes every time. Please rest machine 5 minutes before next operation. It's better rest machine 30 minutes after 3 times' operations, this will cool down motor and better protect machine life.

Julienne Blade

Slicer Blade

French Fried Potato Blade

Food	Suggest quantity	Processing time	Speeds
			Julienne Disc	Slicer Disc	French Fried Potato Disc
Carrot	200g	approx. 30-60 sec.	Speed 1	Speed 1	N/A
Potato	200g	approx. 30-60 sec.	N/A	N/A	Speed 2
Zucchini	200g	approx. 30-60 sec.	N/A	Speed 1	N/A
Leek	200g	approx. 30-60 sec.	N/A	Speed 1	N/A
Beetroot without skin	200g	approx. 30-60 sec.	N/A	Speed 1	N/A

To get the best performance, follow above suggestion on the speeds.

For Julienne blade, it is suggested on speed 1.

For Shred blade, it is suggested on speed 1

For French Fried Potato blade, it is suggested on speed 2

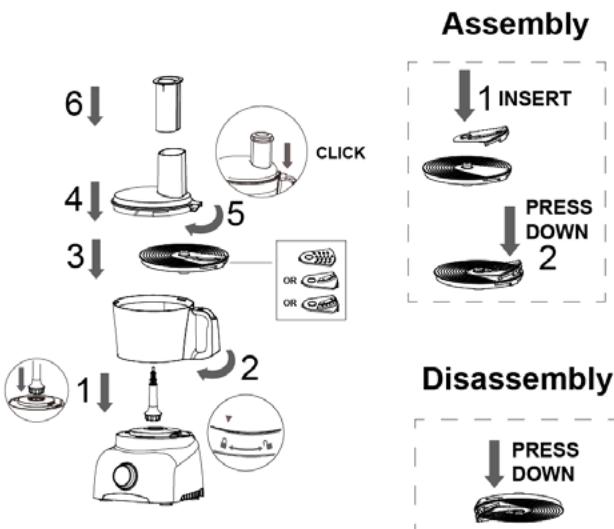

1. Follow the flow pictured step by step to assemble machine.
2. Ensure the bowl in step 2 and the lid in step 5 are locked well, or the machine will not work.
3. In step 3, 3 type blades could be settled, sure either blade is fixed well on blade holder.
4. After operation, you can disassemble machine by opposite flow and direction.
5. Always be careful when handling the blade as they are very sharp.
6. Only open the lid when the blades are completely stopped

USING THE EMULSIFYING DISC

Operation cannot longer than 2 minutes every time. Please rest machine 5 minutes before next operation. It's better rest machine 30 minutes after 3 times' operations, this will cool down motor and better protect machine life.
Use for aioli, instant pudding, mayonnaise, whipping cream, whisking eggs, egg whites, and sponge cake mixtures.
For egg white whisking, please use room temperature eggs. Please ensure the bowl and emulsifying disc is dry and free from grease.
Clean the emulsifying disc after each use.

Ingredients	Quantity	Processing time	Speed
Whisking cream	100 ml	approx. 10-20 sec.	Speed 2
Egg white	3 eggs	approx. 1-3 min.	Speed 2

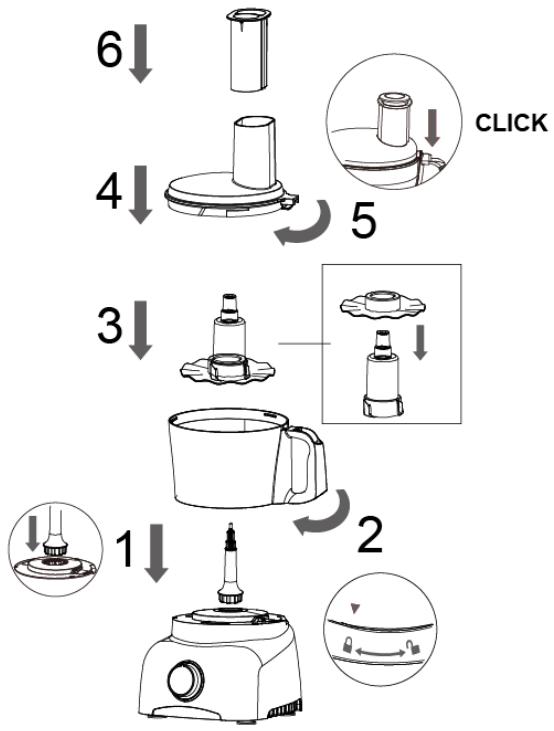

1. Follow the flow pictured step by step to assemble machine.
2. Ensure the bowl in step 2 and the lid in step 5 are locked well, or the machine will not work.
3. After operation, you can disassemble machine by opposite flow and direction.
4. Only take the disc from the machine when the disc is completely Stopped

CLEANING

• Before cleaning please remove the power cord from the socket.
• Do not immerse the housing with motor in water.
• Do not use any abrasive detergents.
• Please only use a damp to clean the outside of the housing.
• Components that have come into contact with food can be cleaned in soapy water.
• Allow the parts to dry thoroughly before reassembling the device.

TECHNICAL DATA

Item reference: CERM600B

Model: CY-363

Rated voltage: 220 - 240V , 50 / 60Hz

Power consumption: 600W

Protection class: II

Lot #: amc102019

PROPER DISPOSAL

This product contains recyclable materials.

Do not dispose this product as unsorted municipal waste.

Please contact your local municipality for the nearest collection point.

TROUBLESHOOTING

PROBLEM	EASY SOLUTION
Machine does not work	* There is a safety interlock switch on processing bowl / blender. Please sure bowl and lock are securely locked into position. * If the motor still will not start, check the power cord and power outlet.
French Fried Potato Julienne Disk	* Always clear any blocked potato from the chipper disc before processing more potatoes.
Some food remains on the disc after processing	* It is normal for small pieces to remain after processing.
Motor slows down when mixing dough	* Amount of dough may exceed maximum capacity. Remove half and process in two batches.
Dough is too dry	* Running machine and add water through feed cube, 1 tablespoon at a time until dough cleans the inside of the processing bowl.
Dough is too wet	* Running machine and add flour through feed cube, 1 tablespoon at a time until dough cleans the inside of the processing bowl.
Motor slow down when chopping blade	* Amount of meat may be too much. Remove half and process in two batches. * For the best result, trim the meat of fat before processing.
Vibrates/moves during processing	* Clean and dry the rubber feet at the bottom of the unit. * Also make sure that the maximum load capacity is not being exceeded.
