USER MANUAL RC 282 203 GAGGENAU

Isometric diagram of a room with raindrops and a horizontal line, no text or symbols present

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Diagram of a refrigerator interior showing horizontal shelves and a double door, with no text or symbols present.

Hinweise

Illustration of hands holding pens and writing on a document with a downward arrow indicating motion (no text or symbols)

Illustration of a refrigerator shelf with a downward arrow indicating storage or ventilation (no text or symbols)

Two-panel illustration showing a cable installation with a downward arrow and a bottle hanging on a wavy surface (no text or symbols)

Flaschenhalter

Diagram illustrating a door lock mechanism with labeled parts and directional arrows, including a bottle in the container.

Aufkleber "OK"

Diagram illustrating a mechanical or electrical process with labeled components A and B, showing directional arrows and motion indicators.

Achtung

Illustration of hands holding a clipboard with a ruler, showing a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical assembly with a downward arrow indicating direction, showing internal components (no text or symbols)

Tauwasserrinne

Isometric illustration of a shower pool with raindrops and an arrow indicating direction (no text or symbols)

Diagram of a mechanical assembly with two components and directional arrows indicating movement (no text or symbols)

Diagram showing two mechanical joint configurations with directional arrows indicating movement (no text or symbols)

Illustration of a mechanical device with a close-up view showing internal components and a blue arrow indicating motion (no text or symbols present)

Gerüche

Safety and warning information	20
Before you switch ON the appliance	20
Technical safety	20
Important information when using the appliance	20
Children in the household	21
General regulations	21

Information concerning disposal	21
Disposal of packaging	21
Disposal of your old appliance	21

Scope of delivery

21

Room temperature, ventilation and cavity depth	22
Ambient temperature	22
Ventilation	22
Cavity depth	22

Installation location

22

Connecting the appliance	22
Electrical connection	22

Getting to know your appliance	23
Controls	24

Switching the appliance on	24
Operating tips	24

Setting the temperature

25

Alarm function	25
Door alarm	25
Switching off the alarm	25

Usable capacity

25

Refrigerator compartment	25
Storing food	25
Note the chill zones in the refrigerator compartment	25
Vegetable container with humidity controller	26

Fast cooling	26
Switching on and off	26

Interior fittings	26

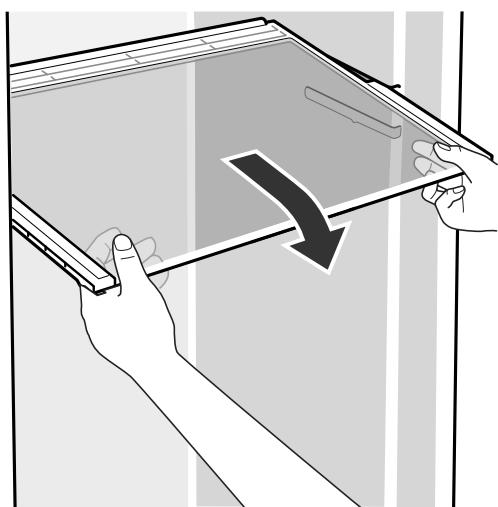

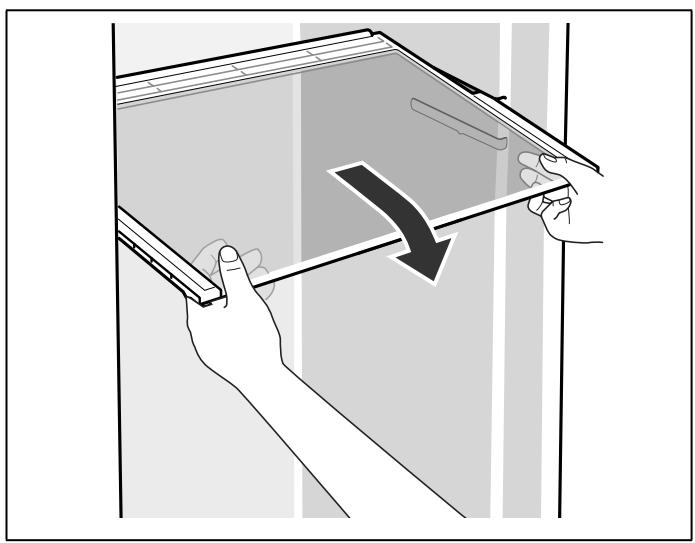

Glass shelves	26

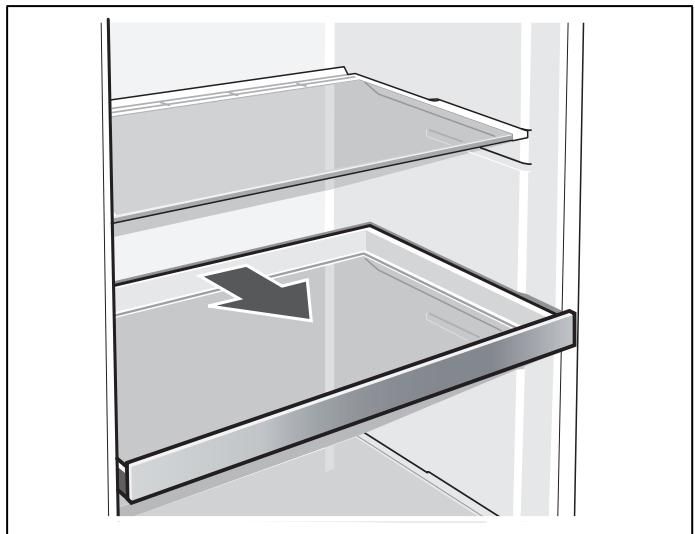

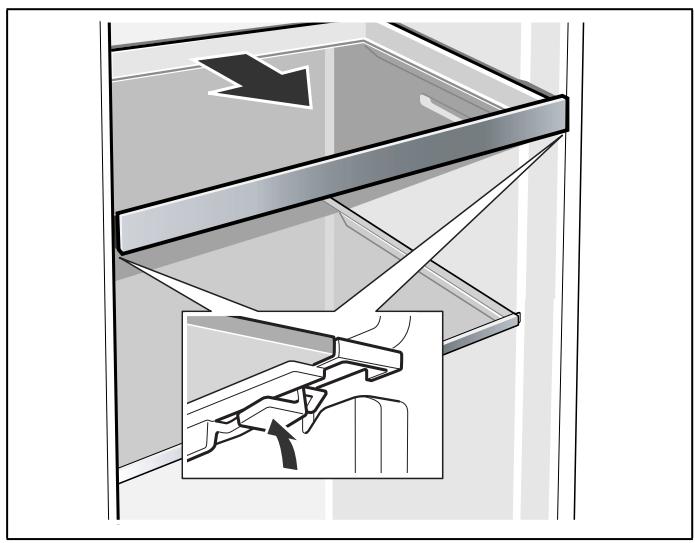

Extendable glass shelf	27

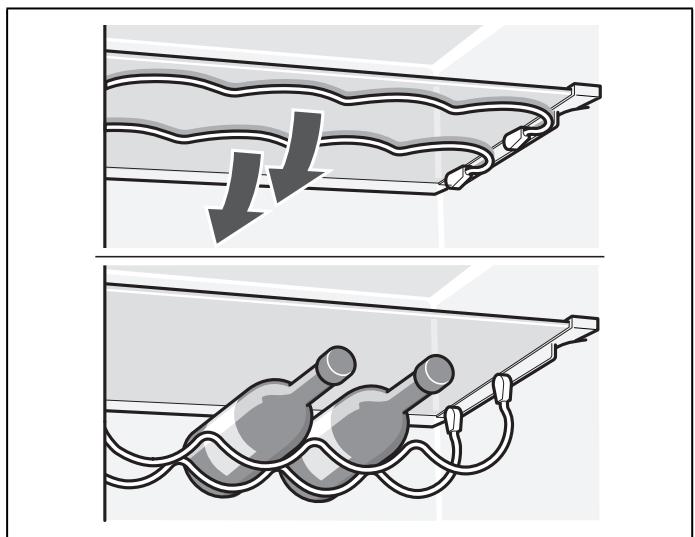

Wine and champagne rack	27

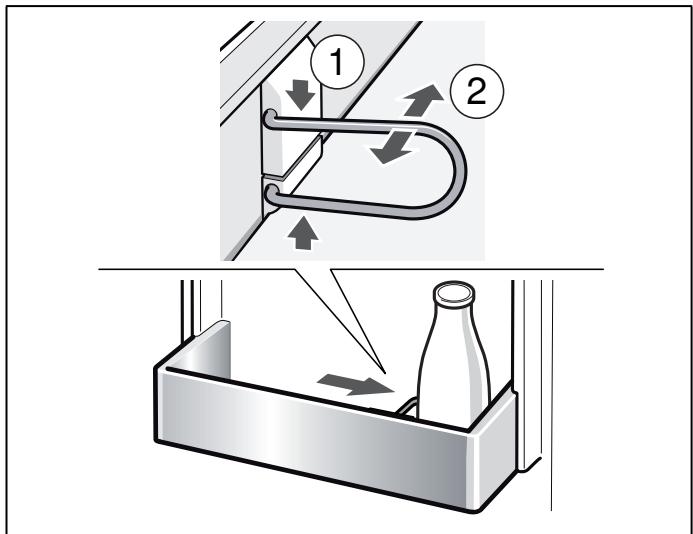

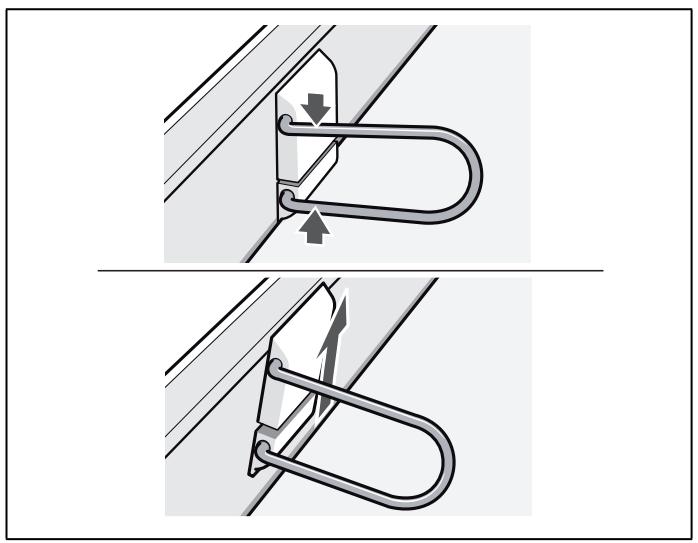

Bottle holder	27

Sticker “OK”

27

Switching off and disconnecting the appliance	28
Switching the appliance off	28
Disconnecting the appliance	28

Defrosting	28
Refrigerator compartment	28

Cleaning the appliance	28
Interior fittings	28

Odours

30

Light (LED)

31

Tips for saving energy

31

Operating noises	31
Quite normal noises	31
Preventing noises	31

Eliminating minor faults yourself

32

Appliance self-test	33
Starting the appliance self-test	33
Ending the appliance self-test	33

Customer service	33
Repair order and advice on faults	33

Before you switch ON the appliance

Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner.

Technical safety

The appliance contains a small quantity of environmentally friendly but flammable refrigerant R600a. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite.

If damage has occurred

• Keep naked flames and/or ignition sources away from the appliance,
• thoroughly ventilate the room for several minutes,
• switch off the appliance and pull out the mains plug,
  • inform customer service.

The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small.

The room must be at least 1 m^3 per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.

Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.

Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.

A extension cable may be purchased from customer service only.

Important information when using the appliance

• Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Explosion hazard!
• Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!
• Do not use pointed or sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite.
• Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Explosion hazard!
• Do not stand on or lean heavily against base of appliance, drawers or doors, etc
• For defrosting and cleaning, pull the mains plug out or switch off the fuse. Do not pull out the mains plug by tugging on the power cord.

• Avoiding placing children and vulnerable people at risk:
  At risk are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.
  Ensure that children and vulnerable people have understood the hazards.
  A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance.
  Only children from 8 years and above may use the appliance.
  Supervise children who are cleaning and maintaining the appliance.
  Never allow children to play with the appliance.

• Store high-percentage alcohol tightly closed and standing up.

• Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.
• Never cover or block the ventilation openings of the appliance!

Children in the household

• Keep children away from packaging and its parts.
  Danger of suffocation from folding cartons and plastic film!
• Do not allow children to play with the appliance!
• If the appliance features a lock: keep the key out of the reach of children!

General regulations

The appliance is suitable for refrigerating food.

This appliance is intended for use in the home and the home environment.

The appliance is suppressed according to EU Directive 2004/108/EC.

The refrigeration circuit has been checked for leaks.

This product complies with the relevant safety regulations for electrical appliances (EN 60335-2-24).

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

Information concerning disposal

Disposal of packaging

The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

Disposal of your old appliance

Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Warning

Redundant appliances

1. Pull out the mains plug.
2. Cut off the power cord and discard with the mains plug.
3. Do not take out the trays and receptacles: children are therefore prevented from climbing in!
4. Do not allow children to play with the appliance once it has spent its useful life. Danger of suffocation!

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

Scope of delivery

After unpacking all parts, check for any damage in transit.

If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.

The delivery consists of the following parts:

Built-in appliance
- Interior fittings (depending on model)
- Bag containing installation materials
- Operating instructions
• Installation manual
- Customer service booklet
- Warranty enclosure
• Information on the energy consumption and noises

Room temperature, ventilation and cavity depth

Ambient temperature

The appliance is designed for a specific climate class. Depending on the climate class, the appliance can be operated at the following room temperatures.

Climate class	Permitted ambient temperature
SN	+10 °C to 32 °C
N	+16 °C to 32 °C
ST	+16 °C to 38 °C
T	+16 °C to 43 °C

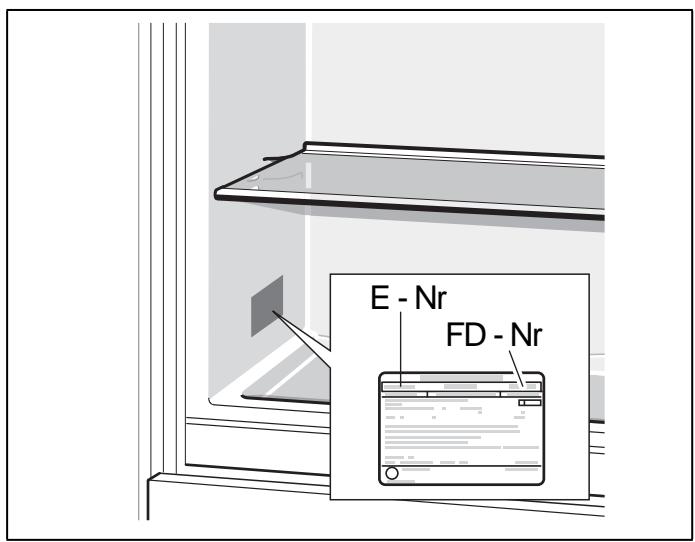

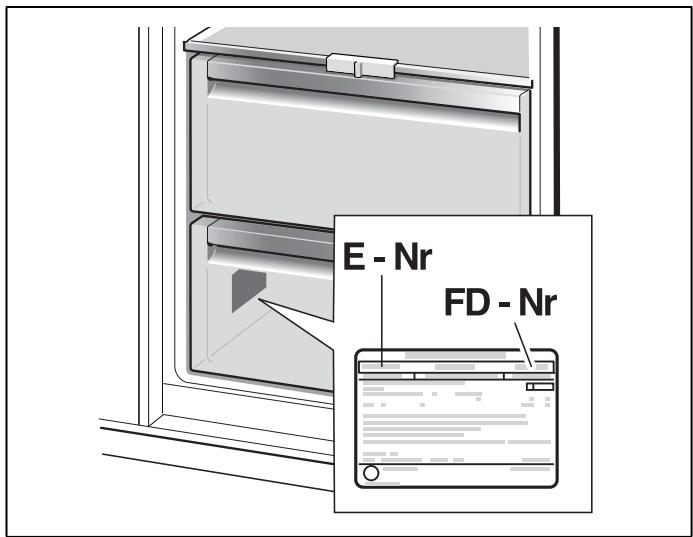

The climate class can be found on the rating plate.

E - Nr FD - Nr

Note

The appliance is fully functional within the room temperature limits of the indicated climatic class. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a temperature of +5 °C.

Ventilation

The air on the rear panel of the appliance heats up. Conduction of the heated air must not be obstructed. Otherwise, the refrigeration unit must work harder. This increases power consumption. Therefore: Never cover or block the ventilation openings!

Cavity depth

A cavity depth of 560 mm is recommended for the appliance. If the cavity depth is smaller – at least 550 mm – the energy consumption increases slightly.

Installation location

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances to a heat source:

3 cm to electric or gas cookers.
- 30 cm to an oil or coal-fired cooker.

Connecting the appliance

After installing the appliance, wait at least 1 hour until the appliance is switched on. During transportation the oil in the compressor may have flowed into the refrigeration system.

Before switching on the appliance for the first time, clean the interior of the appliance (see chapter "Cleaning the appliance").

Electrical connection

The socket must be near the appliance and also freely accessible following installation of the appliance.

The appliance complies with the protection class I. Connect the appliance to 220–240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be fused with a 10 to 16 A fuse.

For appliances operated in non-European countries, check whether the stated voltage and current type match the values of your mains supply. These specifications can be found on the rating plate.

Warning

Never connect the appliance to electronic energy saver plugs.

Our appliances can be used with mains and sine-controlled inverters. Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid.

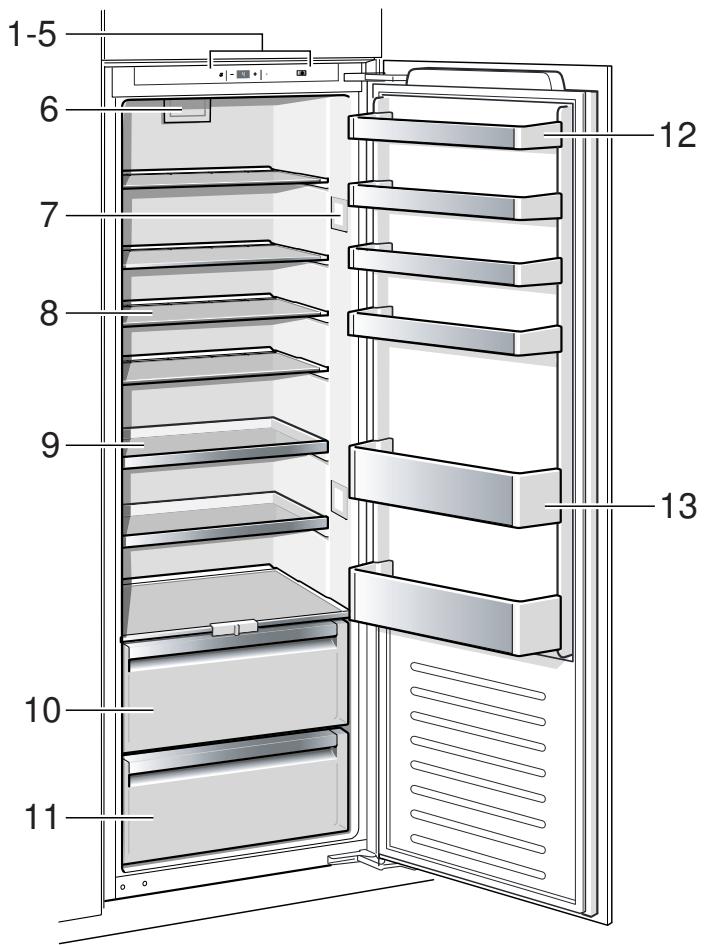

Getting to know your appliance

These operating instructions refer to several models.

The features of the models may vary.

The diagrams may differ.

1-5 6 7 8 9 10 11 12 13

1-5 Controls
6 Fan
7 Light
8 Glass shelf in the refrigerator compartment
9 Extendable glass shelf
10 Vegetable container with humidity control
11 Vegetable container
12 Door shelf
13 Shelf for large bottles

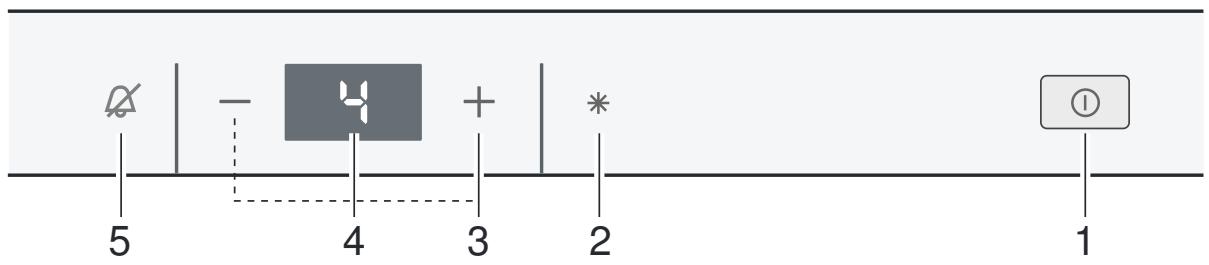

5 - 4 3 2 1

1 On/Off button Ⓘ

Serves to switch the whole appliance on and off.

2 Fast button refrigerator compartment *

Switches fast cooling on and off (see chapter "Fast cooling").

3 Temperature setting buttons for the refrigerator compartment +/-

These buttons set the temperature in the refrigerator compartment.

4 Temperature display refrigerator compartment

The numbers correspond to the set refrigerator compartment temperatures in ^ C.

5 Alarm button

Used to switch off the warning signal, (see chapter "Alarm function").

Switching the appliance on

Switch on the appliance with the On/Off button ①.

The temperature display indicates the set temperature.

The appliance begins to cool. Light is switched on when the door is open.

We recommend a factory setting of +4 °C in the refrigerator compartment.

Do not store perishable food warmer than +4 °C.

Operating tips

• After the appliance has been switched on, it may take several hours until the set temperature has been reached. Do not put any food in the appliance beforehand.

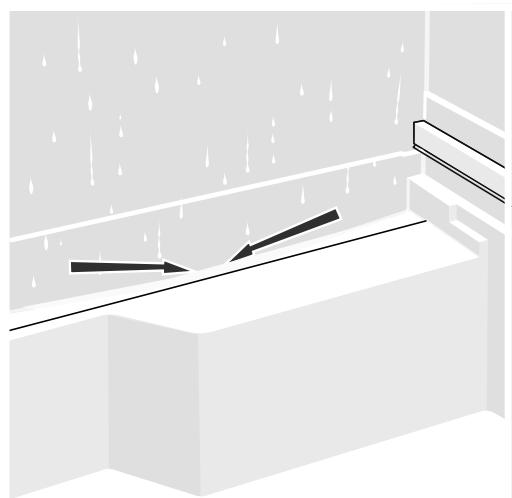

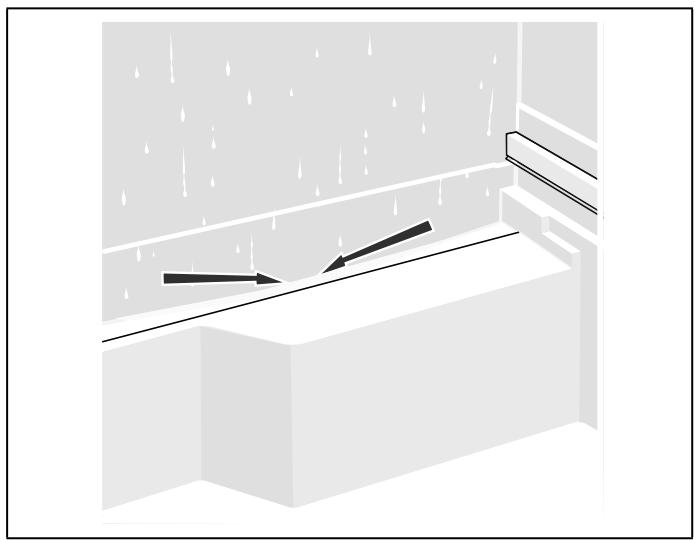

• While the refrigeration unit is running, water droplets or hoarfrost may form at the rear panel of the refrigerator. This is due to functional reasons. It is not necessary to scrape off the frost or wipe off the water droplets. The rear panel defrosts automatically. The condensation collects in the drainage channel and is carried to the refrigeration unit where it evaporates.

Isometric illustration of a shower pool with raindrops and an arrow indicating direction (no text or symbols)

Setting the temperature

The temperature can be set from +2 °C to +8 °C.

Keep pressing temperature setting button +/- until the required refrigerator compartment temperature is set.

The value last selected is saved. The set temperature is indicated on temperature display for the refrigerator compartment.

Alarm function

Door alarm

The door alarm (continuous sound) switches on if the appliance door is open for longer than two minutes. Close the door to switch off the warning signal.

Switching off the alarm

Press the alarm button ⚠ to switch off the warning signal.

Usable capacity

Information on the usable capacity can be found inside your appliance on the rating plate (see diagram at chapter "Customer service").

Refrigerator compartment

The refrigerator compartment is the ideal storage location for meat, sausage, fish, dairy products, eggs, ready meals and pastries.

Storing food

• Store fresh, undamaged food. The quality and freshness will then be retained for longer.
• In the case of ready-made products and bottled goods, observe the best-before date or use-by date specified by the manufacturer.
• To retain aroma, colour and freshness, pack or cover food well before placing in the appliance. This will prevent the transfer of flavours and the discolouration of plastic parts in the refrigerator compartment.
• Allow warm food and drinks to cool down before placing in the appliance.

Note

Avoid contact between food and rear panel. Otherwise the air circulation will be impaired. Food or packaging could freeze to the rear panel.

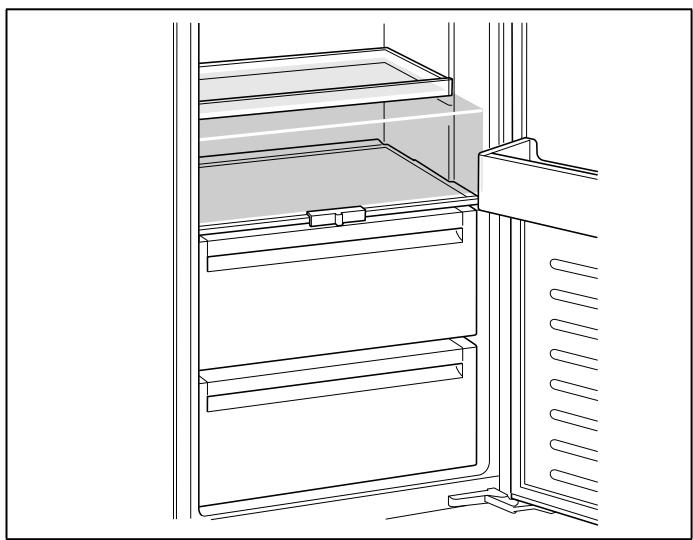

Note the chill zones in the refrigerator compartment

The air circulation in the refrigerator compartment creates different chill zones:

• Coldest zone is between the arrow stamped on the side and the glass shelf situated below.
  Store perishable food (e.g. fish, sausage, meat) in the coldest zone.
• Warmest zone is at the very top of the door and in the lower vegetable container.

Note

Note

Store at the very top of the door e.g. hard cheese and butter. Cheese can then continue to release its flavour and the butter will still be easy to spread.

Line drawing of a refrigerator interior showing the door, shelves, and drawer (no text or symbols)

Vegetable container with humidity controller

The vegetable container is the optimum storage location for fresh fruit and vegetables. A humidity controller and a special seal can be used to adjust the air humidity in the vegetable container. This allows fresh fruit and vegetables to be stored twice as long as with conventional storage.

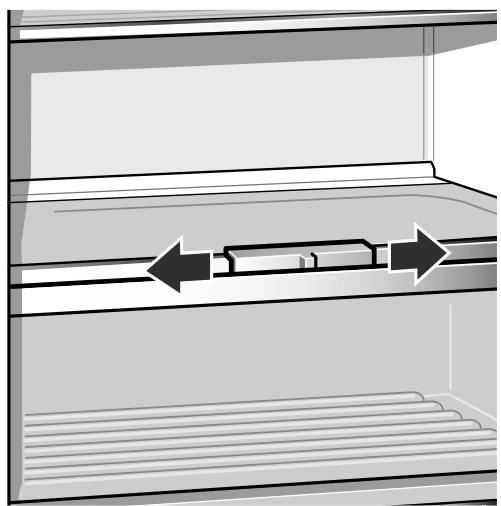

The air humidity in the vegetable container can be set according to the type and amount of products to be stored:

• Mainly fruit as well as for a large load – lower air humidity
• Mainly vegetables as well as for a mixed load or small load – higher air humidity

Diagram of a double door with an arrow indicating direction, no text or symbols present

Notes

• Fruit sensitive to cold (e.g. pineapple, banana, papaya and citrus fruit) and vegetables sensitive to cold (e.g. aubergines, cucumbers, zucchini, peppers, tomatoes and potatoes) should be stored outside the refrigerator at temperatures of approx. +8 °C to +12 °C for optimum preservation of quality and flavour.
• Condensation may form in the vegetable container depending on the type and quantity of products stored. Remove condensation with a dry cloth and adjust air humidity in the vegetable container with the humidity controller.

Fast cooling

Fast cooling sets the refrigerator compartment to the coldest temperature setting for approx. 15 hours. Then the original temperature set before fast cooling mode is automatically restored.

Switch on fast cooling mode, e.g.:

• before placing large quantities of food in the refrigerator compartment.
  • for the fast cooling of drinks.

Note

When fast cooling is switched on, increased operating noises may occur.

Switching on and off

Press "fast" button refrigerator compartment *.

The button is lit when fast cooling is switched on.

Interior fittings

(not all models)

Glass shelves

You can reposition the inner shelves as required: lift shelf, pull forwards, lower and swivel out to the side.

Illustration of hands holding a tray with a directional arrow indicating movement (no text or symbols)

Extendable glass shelf

The extendable glass shelf can be pulled out for a better overview of the food.

Illustration of a refrigerator shelf with a downward arrow indicating storage or ventilation (no text or symbols)

Wine and champagne rack

You can store bottles securely in the wine and champagne rack. If you require space for other food, you can fold the metal clips upwards.

Two-panel illustration showing a cable installation with a downward arrow and a bottle being lifted by ropes (no text or symbols)

Bottle holder

The bottle holder prevents bottles from falling over when the door is opened and closed.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, likely illustrating a system or installation process.

Sticker "OK"

(not all models)

The “OK” temperature monitor can be used to determine temperatures below +4 °C. Gradually reduce the temperature if the sticker does not indicate “OK”.

Note

When the appliance is switched on, it may take 12 hours until the temperature is reached.

Correct setting

Switching off and disconnecting the appliance

Switching the appliance off

Press the On/Off button Ⓐ.

Temperature display goes out, refrigeration unit switches off.

Disconnecting the appliance

If you do not use the appliance for a prolonged period:

1. Switch off the appliance.
2. Pull out mains plug or switch off fuse.
3. Clean the appliance.
4. Leave the appliance door open.

Defrosting

Refrigerator compartment

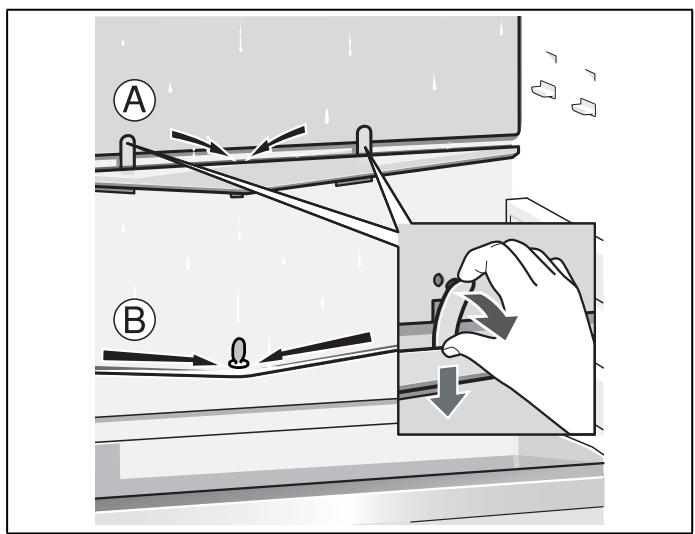

While the appliance is running, condensation droplets or frost form on the rear panel of the refrigerator compartment. As the rear panel defrosts automatically, it is not necessary to remove the frost or the condensation droplets. The condensation runs through the condensation channel and the drainage hole to the evaporation pan where it evaporates.

Note

Keep the condensation channel and drainage hole clean, so the condensation can drain off.

Diagram illustrating a hand operating a switch mechanism with labeled parts A and B, showing directional arrows and motion indicators.

Cleaning the appliance

Caution

• Do not use abrasive, chloride or acidic cleaning agents or solvents.
• Do not use scouring or abrasive sponges. The metallic surfaces could corrode.
• Never clean the shelves or containers in the dishwasher. The parts may become deformed!

Proceed as follows:

1. Before cleaning: Switch off the appliance.
2. Pull out the mains plug or switch off the fuse!
3. Take out the food and store in a cool location. Place ice pack (if available) on the food.
4. Wait until the layer of frost has thawed.
5. Clean the appliance with a soft cloth, lukewarm water and a little pH neutral washing-up liquid. The rinsing water must not run into the light or through the drainage hole into the evaporation area.
6. Wipe the door seal with clear water only and then wipe dry thoroughly.
7. After cleaning reconnect and switch the appliance back on.
8. Put the food back into the appliance.

Interior fittings

All variable parts of the appliance can be taken out for cleaning.

Take out glass shelves

To do this, pull out shelf, lift at the front and take out.

Illustration of hands holding pens and a document with a downward arrow indicating motion (no text or symbols)

Taking out the extendable glass shelf

Hold down levers on the underside on both sides, pull glass shelf forwards, lift and swivel out to the side.

Diagram showing a mechanical assembly with an inset close-up of a hand holding a tool, no text or symbols present.

Condensation channel

To clean the condensation channel, take out the pull-out container.

Regularly clean the condensation channel and drainage hole with a cotton bud or similar implement to ensure that the condensation can drain.

Isometric illustration of a shower area with raindrops and a horizontal line, no text or symbols present

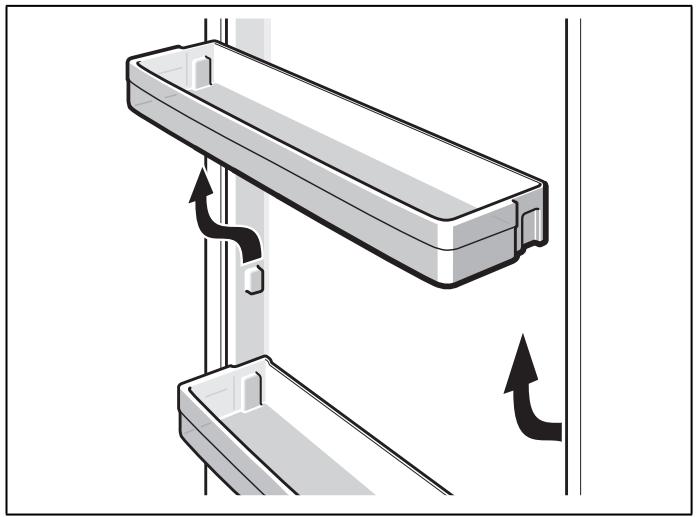

Take out shelves in the door

Lift shelves upwards and take out.

Diagram of a mechanical assembly with two components and directional arrows indicating movement (no text or symbols)

Taking out the bottle holder

Press bottle holder together and take out.

Diagram showing two mechanical joint configurations with directional arrows indicating movement (no text or symbols)

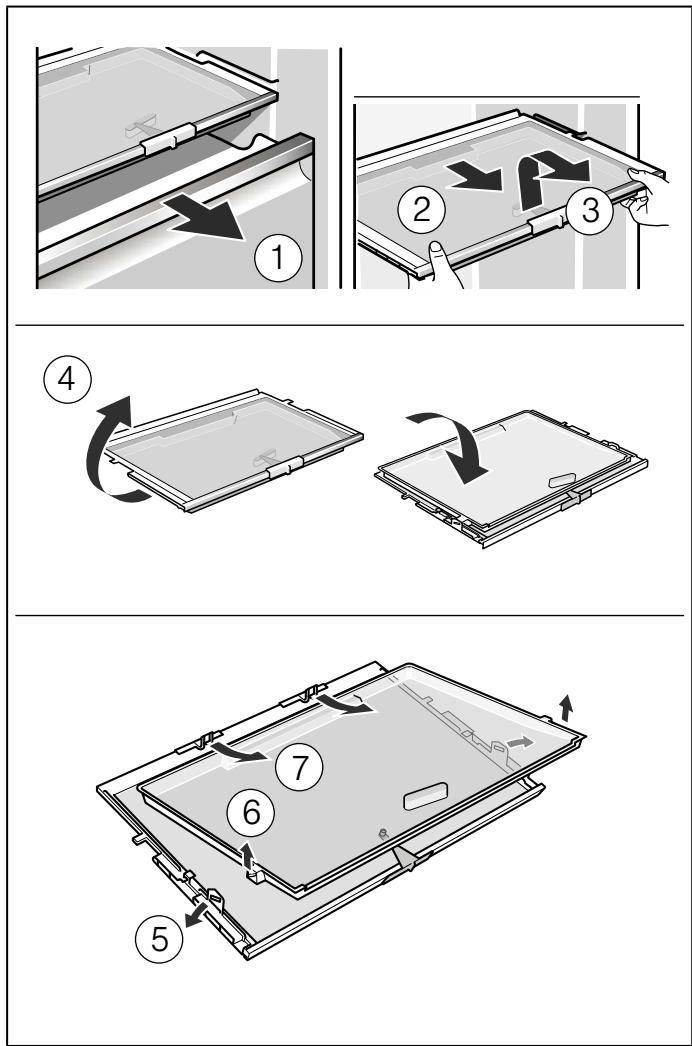

Taking out glass shelf above vegetable container

The glass shelf can be taken out and disassembled for cleaning.

Note

Before taking out the glass shelf, pull out vegetable container.


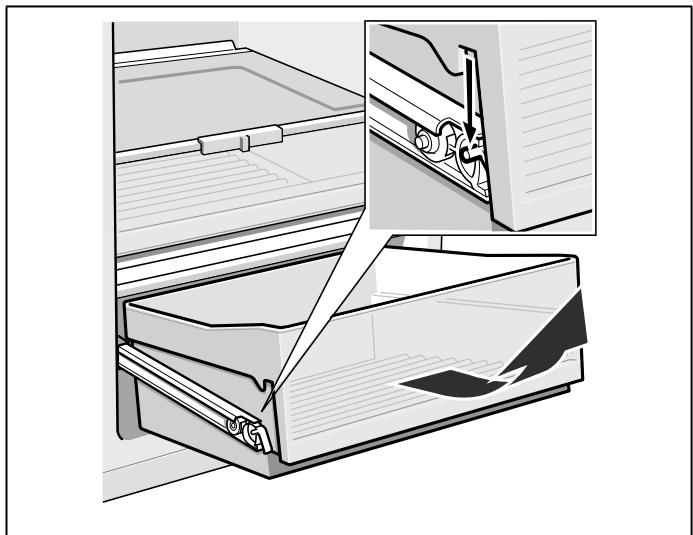

Removing the container

Pull out the container all the way and lift to detach it from the holder.

To insert the container, place on the telescopic rails and push into the appliance. Attach the container by pressing it down.

Diagram showing a door latch with a close-up view of the interior panel and a close-up of the handle (no text or symbols present)

Odours

If you experience unpleasant odours:

1. Switch off the appliance with the On/Off button Ⓐ.
2. Take all food out of the appliance.
3. Clean interior (see chapter "Cleaning the appliance").
4. Clean all packages.
5. Seal strong smelling food in order to avoid odours from forming.
6. Switch the appliance on again.
7. Store food in the appliance.
8. Check whether the formation of odours is still occurring after 24 hours.

Light (LED)

Your appliance features a maintenance-free LED light.

These lights may be repaired by customer service or authorised technicians only.

Tips for saving energy

• Install the appliance in a dry, well ventilated room! The appliance should not be installed in direct sunlight or near a heat source (e.g. radiator, cooker).
  If required, use an insulating plate.
• Select 560 mm cavity depth.
  A smaller cavity depth will result in a higher energy consumption.
• Allow warm food and drinks to cool down before placing in the appliance.
• Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food.
• Open the appliance as briefly as possible.
• To avoid increased power consumption, occasionally clean the back of the appliance.
• The arrangement of the fittings does not affect the energy rating of the appliance.

Operating noises

Quite normal noises

Droning

Motors are running (e.g. refrigerating units, fan).

Bubbling, humming or gurgling noises

Refrigerant is flowing through the tubing.

Clicking

Motor, switches or solenoid valves are switching on/off.

Preventing noises

The appliance is not level

Please align the appliance with a spirit level. If required, place something underneath.

Containers or storage areas wobble or stick

Please check the removable parts and re-insert them correctly if required.

Bottles or receptacles are touching each other

Move the bottles or receptacles slightly away from each other.

Before you call customer service:

Please check whether you can eliminate the fault yourself based on the following information.

Customer service will charge you for advice – even if the appliance is still under guarantee!

Fault	Possible cause	Remedial action
Temperature differs greatly from the set value.		In some cases it is adequate to switch off the appliance for 5 minutes.If the temperature is too high wait a few hours and check whether the temperature has approached the set value.If the temperature is too low check the temperature again the next day.
Displays do not illuminate.	Power failure; the fuse has been switched off; the mains plug has not been inserted properly.	Connect mains plug. Check whether the power is on, check the fuses.
The light does not function.	The LED light is defective.	See chapter “Light (LED)” section.
	Appliance was open too long.Light is switched off after approx. 10 min.	When the appliance is closed and opened, the light is on again.
Floor of the refrigerator compartment is wet.	The condensation channel or drainage hole are blocked.	Clean the condensation channel and the drainage hole. See chapter Cleaning the appliance.
The temperature in the refrigerator compartment is too cold.	Temperature has been set too low.	Increase the temperature.
The refrigeration unit is switching on more frequently and for longer.	Appliance opened frequently.	Do not open the appliance unnecessarily.
	The ventilation openings have been covered.	Remove obstacles.
	Large quantities of fresh food are placed in the freezer.	Switch on fast cooling (see chapter Fast cooling).
Appliance is not cooling, temperature display and light are lit.	Showroom mode is switched on.	Start appliance self-test (see chapter “Appliance self-test”).When the programme has ended, the appliance switches over to normal operation.

Your appliance features an automatic self-test program which shows you sources of faults which may be repaired by customer service only.

Starting the appliance self-test

1. Switch off the appliance with the On/Off button ① and wait 5 minutes.
2. Switch on the appliance with the On/Off button ①.
3. Within the first 10 seconds, press and hold the refrigerator compartment fast button * for 3 to 5 seconds until an audible signal sounds. The self-test programme starts. While the self-test is running, a long audible signal sounds in the meantime.

If 2 audible signals sound and the set temperature is displayed after the self-test has ended, your appliance is OK.

If 5 audible signals sound and the refrigerator compartment fast button * flashes for 10 seconds after the self-test has ended, there is a fault. Inform customer service.

Ending the appliance self-test

When the programme has ended, the appliance switches over to normal operation.

Customer service

Your local customer service can be found in the telephone directory or in the customer-service index. Please provide customer service with the appliance product number (E-Nr.) and production number (FD-Nr.).

These specifications can be found on the rating plate.

E - Nr FD - Nr

To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs.

Repair order and advice on faults

Contact information for all countries can be found on the enclosed customer service list.

GB	0344 892 8988	Calls charged at local or mobile rate.
IE	01450 2655	0.03 € per minute at peak. Off peak 0.0088 € per minute.
US	877 442 4436	toll-free

Isometric diagram of a room with raindrops and a horizontal line, no text or symbols present

Line drawing of an open refrigerator with shelves and door (no text or symbols)

Diagram of a double door shelf with an arrow indicating direction, no text or symbols present

Remarques

Illustration of hands holding a rectangular object with a curved arrow indicating rotation or movement (no text or symbols)

Illustration of a refrigerator shelf with a downward arrow indicating storage or ventilation (no text or symbols)

Two-panel diagram showing a cable installation with downward force arrows and a bottle on a wavy surface (no text or symbols)

Porte-bouteilles

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, likely illustrating a system or installation process.

Autocollant « OK »

(selon le modèle)

Diagram illustrating a hand operating a switch mechanism with labeled parts A and B, showing directional arrows and motion indicators.

Illustration of hands holding pens and writing on a document with a curved arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating direction, no text or symbols present

Isometric illustration of a shower area with raindrops and a horizontal line, no text or symbols present

Diagram of a mechanical assembly with two components and directional arrows indicating movement (no text or symbols)

Diagram showing two mechanical joint configurations with directional arrows indicating movement (no text or symbols)

Diagram showing a door latch with a close-up view of the interior panel and a close-up of the handle (no text or symbols present)

Odeurs

Illustration of a showerhead with raindrops and an arrow indicating direction (no text or symbols)

Line drawing of a refrigerator interior showing the door, shelves, and drawer (no text or symbols)

Diagram of a double-door refrigerator with horizontal shelves and a central internal structure, showing airflow direction (no text or symbols)

Avvertenze

Illustration of hands holding pens and a ruler over a document with a downward arrow (no text or symbols)

Illustration of a refrigerator shelf with a downward arrow indicating storage or ventilation (no text or symbols)

Two-panel diagram showing a cable installation process: top panel with downward arrow indicating compression, bottom panel with two bottles hanging from a ceiling (no text or symbols)

Fermabottiglie

Diagram illustrating a mechanical or electrical component with numbered parts and directional arrows, likely illustrating a system or installation process.

Adesivo «OK»

Diagram illustrating a hand operating a switch mechanism with labeled parts A and B, showing directional arrows and motion indicators.

Illustration of hands holding a ruler and a sheet of paper with a downward arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating direction, no text or symbols present

Isometric illustration of a shower area with raindrops and a horizontal line, no text or symbols present

Diagram of a mechanical assembly with two components and directional arrows indicating movement (no text or symbols)

Diagram showing two mechanical joint configurations with directional arrows indicating movement (no text or symbols)

Diagram showing a door latch with a close-up view of the interior panel (no text or symbols present)

Odori

Diagram showing rain falling from a wall with an arrow indicating direction, no text or symbols present

Line drawing of a refrigerator interior showing the door, shelves, and drawer (no text or symbols)

Diagram of a refrigerated storage cabinet with horizontal shelves and a central inlet (no text or symbols)

Aanwijzingen

Illustration of hands holding a tablet with a directional arrow indicating movement (no text or symbols)

Illustration of a refrigerator shelf with a downward arrow indicating storage or ventilation (no text or symbols)

Wijn- en champagnerek

Two-panel diagram showing a cable installation with a downward arrow and a bottle on a wavy surface (no text or symbols)

Flessenhouder

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows, including a bottle in a container.

Sticker „OK“

Diagram illustrating a hand operating a valve mechanism with labeled parts A and B, showing fluid flow and movement directions.

Illustration of hands holding a clipboard with a ruler, showing a downward arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating direction, no text or symbols present

Dooiwatergoot

Isometric illustration of a shower area with raindrops and a horizontal line, no text or symbols present

Diagram of a mechanical assembly with two components and directional arrows indicating motion (no text or symbols)

Diagram showing two mechanical joint configurations with directional arrows indicating movement (no text or symbols)

Diagram showing a cabinet with insulation and a close-up of the interior panel (no text or symbols)

Luchtjes
