EWA3300 - Bouilloire électrique AEG - Free user manual and instructions

USER MANUAL EWA3300 AEG

INSTRUCTION BOOK EWA33xx Water Kettle

PT MANUAL DE INSTRUÇÕES AR FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to: Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice Register your product for better service: www.registeraeg.com Buy Accessories and Consumables for www.aeg.com/shop

CUSTOMER CARE AND SERVICE When contacting Service, ensure that you have the following data available:

- Model Number - PNC number - Serial number The information can be found on the rating plate.

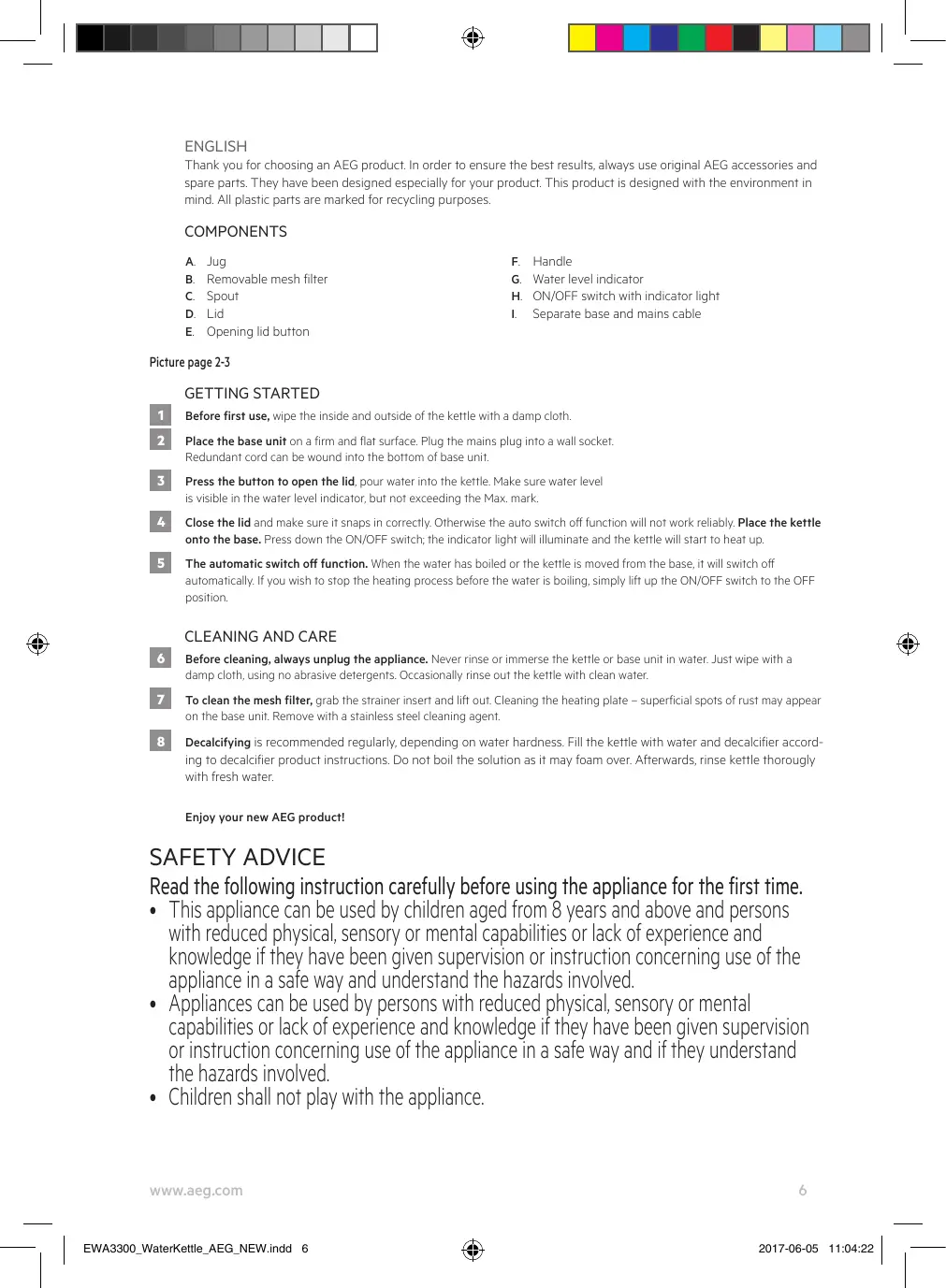

ENGLISH Thank you for choosing an AEG product. In order to ensure the best results, always use original AEG accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

Removable mesh filter Spout Lid Opening lid button

Water level indicator ON/OFF switch with indicator light Separate base and mains cable

Before first use, wipe the inside and outside of the kettle with a damp cloth.

Place the base unit on a firm and flat surface. Plug the mains plug into a wall socket.

Redundant cord can be wound into the bottom of base unit.

Press the button to open the lid, pour water into the kettle. Make sure water level is visible in the water level indicator, but not exceeding the Max. mark.

Close the lid and make sure it snaps in correctly. Otherwise the auto switch off function will not work reliably. Place the kettle onto the base. Press down the ON/OFF switch; the indicator light will illuminate and the kettle will start to heat up.

The automatic switch off function. When the water has boiled or the kettle is moved from the base, it will switch off automatically. If you wish to stop the heating process before the water is boiling, simply lift up the ON/OFF switch to the OFF position.

Before cleaning, always unplug the appliance. Never rinse or immerse the kettle or base unit in water. Just wipe with a damp cloth, using no abrasive detergents. Occasionally rinse out the kettle with clean water.

To clean the mesh filter, grab the strainer insert and lift out. Cleaning the heating plate – superficial spots of rust may appear on the base unit. Remove with a stainless steel cleaning agent.

Decalcifying is recommended regularly, depending on water hardness. Fill the kettle with water and decalcifier according to decalcifier product instructions. Do not boil the solution as it may foam over. Afterwards, rinse kettle thorougly with fresh water.

Enjoy your new AEG product!

SAFETY ADVICE Read the following instruction carefully before using the appliance for the first time.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. • Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. • Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years. • The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate! • Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged. • The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used. • If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard. • Always place the appliance on a flat, level surface. • Never leave the appliance unattended while connected to the supply mains. • The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance. • The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage. • Do not immerse the appliance in water or any other liquid. • Do not use or place the appliance on a hot surface or near source of heat. • Warning: Avoid spillage on the connector. • Attention: The heating element surface is subject to residual heat after use. • The mains cable must not come into contact with any hot parts of the appliance. • This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use. • Attention: If the kettle is overfilled there is a risk that the boiling water may spray out, which could scald or burn! Therefore never fill the kettle above the maximum marking. • Never operate appliance with open lid. • Only use the kettle for heating water! • The kettle can only be used with the stand provided. • The mains cable or anything else must do not touch the power switch. Failure to do so could result in the auto shut off function not to work correctly and therefore in a risk of overheating or fire. • While water boiling, avoid contacting with steam from the spout when water is boiling or just after it has switched off. Do not be anxious to uncover the lid. This appliances is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and others working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

The appliance switches off before boiling.

Too much lime scale at the base of the kettle.

Run the decalcifying procedure.

The appliance does not switch off.

Close lid until it locks

Insert the strainer correctly.

The appliance cannot be switched on.

After operating with little or no water, the appliance has not cooled down suffiently.

Allow to cool a short time and try again.

DISPOSAL This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country’s rules for the separate collection of electrical products and rechargeable batteries. AEG reserves the right to change products, information and specifications without notice.

• • • • • • • • • • • • • • • • • • •

CÓMO DESECHAR EL ELECTRODOMÉSTICO NL

• • • • • • • • • • • • • • • • •

ES RICERCA ED ELIMINAZIONE DEI GUASTI PROBLEMA CAUSA POSSIBILE SOLUZIONE FA ONDERDELEN A.

Printed on recycled paper

Electrolux Hausgerate GmbH Further Strasse 246 D-90429 Nurnberg Germany 3482 A EWA33XX 02 02 0517
