LFV426K - Range hood ELECTROLUX - Free user manual and instructions

Product type	Extractor hood
Brand	Electrolux
Model	LFV426K
Control	Touch
Number of speeds	4 (including Boost)
Lighting	LED
Grease filter	Dishwasher safe
Charcoal filter	Replaceable (not washable)
Special function	Hob²Hood (connection with hob)
Maintenance notification	Filter saturation indicator
Grease filter maintenance	Every month
Charcoal filter replacement	According to indicator
Bulb	LED, replacement by technician
Power supply	220-240 V, 50/60 Hz
Dimensions (W x D x H)	600 x 500 x 400 mm (estimate)
Weight	~12 kg (estimate)

Frequently Asked Questions - LFV426K ELECTROLUX

How to turn on the hood?

Press the On/Off symbol (①) for 1 second to turn on the hood. Press again to turn it off.

How to activate maximum speed (Boost)?

Press the Boost symbol (6) to activate maximum speed for 5 minutes. Then the hood returns to the previous setting.

What does the filter indicator mean?

The filter indicator lights up (solid) to remind of grease filter cleaning or flashes to indicate charcoal filter replacement. It lasts 30 seconds.

How to clean the grease filter?

Remove the filter by pressing the clip lever, then wash it in a low-temperature dishwasher or by hand with a mild detergent. Reinstall it once dry.

How to replace the charcoal filter?

First remove the grease filters. Turn the charcoal filter to the left, then pull it down to remove it. Insert the new filter by turning it to the right.

How to reset the filter indicator?

Press the Filter notification symbol (7) for 3 seconds until the indicator turns off or flashes depending on the state.

How does the Hob²Hood function work?

This function connects the hood to a compatible hob via infrared. The speed adjusts automatically according to the temperature of the hottest pot. Activate it from the hob.

What to do if the lighting stops working?

The bulb is an LED that can only be replaced by an authorized technician. Contact after-sales service.

Can the charcoal filter be washed?

No, the charcoal filter is not washable. It must be replaced when saturated (flashing indicator).

How often to clean the grease filters?

It is recommended to clean the grease filters every month or when the filter indicator lights up. Regular cleaning prevents fire risks.

USER MANUAL LFV426K ELECTROLUX

The appliance is designed to operate at the correct speed according to the manufacturer's specifications.

Follow the instructions carefully to ensure proper installation and use.

www.registerelectrolux.com

Choose fresh, healthy and tasty ingredients for your appliance.

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Use only genuine spare parts.

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support

Register your product for better service: www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

① General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION AND INSTALLATION

WARNING!

Refer to the separate

Installation Instructions

booklet for Safety

Information and Installation.

Read carefully the Safety

chapters before any use or

maintenance of the

appliance.

2. PRODUCT DESCRIPTION

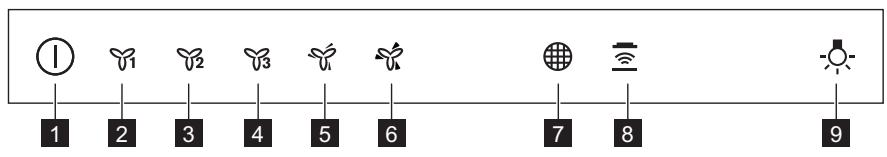

2.1 Control panel overview

	Function	Description
1	On / Off	Turns the hood on and off.
2	First speed	The motor switches to first speed level.
3	Second speed	The motor switches to second speed level.
4	Third speed	The motor switches to third speed level.
5	Maximum speed	The motor switches to maximum speed level.
6	Speed boost	The motor switches to maximum speed level. After 5 minutes the appliance returns to previous setting.
7	Filter notification	Reminds to change or clean the charcoal filter and clean the grease filter.
8	Hob²Hood	Indicator of the function to control hood from hob.
9	Lamp	Turns the lights on and off.

3. DAILY USE

3.1 Using the hood

Check the recommended speed according to the table below.

Y1	While heating up food, cooking with covered pots.
Y2	While cooking with covered pots on multiple cook- ing zones or burners, gentle frying.
Y3	While boiling and frying big quantities of food with- out a lid, cooking on multiple cooking zones or burners.
and	While boiling and frying big quantities of food with- out a lid, big humidity.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

The control panel is a sensor field. Touch the symbols for 1 second to activate the functions.

To operate the hood:

1. Turn on the appliance by pressing the ① symbol.

You can now activate the functions. 2. To activate the function touch the symbol. 3. If needed, touch the light symbol to illuminate the cooking surface.

To turn off the appliance press the ① symbol again.

3.2 Hob²Hood function

It is an automatic function which connects the hob with a hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan using the hob manually. The function can be activated from panel of the hob.

For more information on how to use the function, refer to the hob user manual.

3.3 Activating Maximum Motor Speed

When you touch , the Maximum Motor Speed starts to operate for 8

minutes. After that time, the appliance returns to its previous speed settings.

When the function is turned on, additional touches on do not have any effects.

3.4 Filter notification

The filter alarm reminds you to change or clean the charcoal filter and clean the grease filter. The filter indicator is turned on for 30 seconds if the grease filter must be cleaned. The filter indicator flashes for 30 seconds if the charcoal filter must be replaced or cleaned.

Refer to cleaning the grease filter in the care and cleaning chapter.

Refer to cleaning the charcoal filter or replacing the charcoal filter in the care and cleaning chapter.

To reset the function, touch for 3 seconds.

To activate or deactivate the function:

1. Switch on the control panel.
2. Make sure that the icons are turned white.
3. To activate the function, touch for 3 seconds.

If the function is activated, the filter icon flashes five times.

1. To deactivate the function, touch for 3 seconds.

If the function is deactivated, the filter icon turns on for 4 seconds.

4. CARE AND CLEANING

4.1 Notes on cleaning

Cleaning Agents	Do not use abrasive detergents and brushes. Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.
	After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.
	Clean stains with a mild detergent.
Keep the hood clean	Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire. Follow the instructions for cleaning the accessories when filter notification is on. Refer to Filter notification in daily use chapter.
	Grease filters can be washed in a dishwasher. The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.
Charcoal filter	The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter.

4.2 Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side.

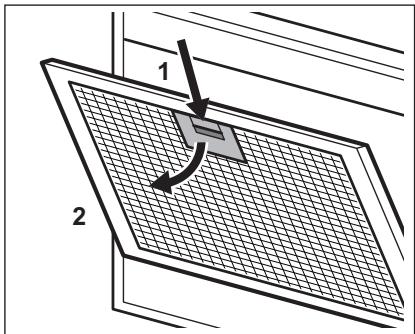

To clean the filter:

1. Press the handle of the mounting clip on the filter panel underneath the hood.

1. Slightly tilt the front of the filter downwards, then pull.

Repeat the first two steps for all filters.

1. Clean the filters using a sponge with non-abrasive detergents or in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, but this has no influence on the performance of the appliance.

1. To mount the filters back, follow the first two steps in reverse order.

Repeat the steps for all filters if applicable.

4.3 Replacing the charcoal filter

The charcoal filter must be replaced if the filter alarm is on.

Refer to the filter notification in the daily use chapter for more information about this function.

WARNING!

The charcoal filter is NON-washable! The filter cannot be regenerated!

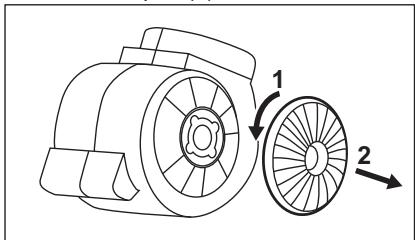

To replace the charcoal filter:

1. Remove the grease filters from the appliance. Refer to "Cleaning the grease filter" in this chapter.
2. Turn the filter counterclockwise (1) and then pull (2).

To mount the filters back, follow the steps in reverse order.

4.4 Replacing the lamp

This appliance is supplied with a LED lamp and separate control gear (LED driver). These parts can be replaced by a technician only. In case of any malfunction, refer to "Service" in the "Safety Instructions" chapter.

5. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol \(\mathcal{C}\). Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol \(\mathbb{R}\) with the household waste. Return the product to your local recycling facility or contact your municipal office.

1. MAINTENANCE AND CLEANING 36
2. ENVIRONMENTAL ASPECTS 37

WE THINK OF YOU

4.3 Replacing the charcoal filter

When the filter warning is on, the charcoal filter must be replaced.

3. DAILY USE

3.1 Using the hood

Check the recommended speed according to the table below.

Y1	Prilikom zagrijavanja hrane, kuhanja sPokrivenim posudama.
Y2	Prilikom kuhanja sPokrivenim posudama na više zona kuhanja ili plamenika, lagano prženje.
Y3	Prilikom ključanja i prženja velikih količina hrane bezPoklopca, kuhanja na više zona kuhanja ili plamenika.
i	Prilikom ključanja i prženja velikih količine hrane bezPoklopca, visoka VLCznost.

It is recommended to leave the hood running for about 15 minutes after cooking. The control panel is a sensor field. Touch the symbols for 1 second to activate the function.

To operate the hood:

To access the website:

We recommend using original accessories, filters, and metal grease filters.

www.electrolux.com/support

To receive service, contact us:

www.registerelectrolux.com

We have purchased spare parts, consumables and accessories for the belt buckles:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We have installed the belt buckles for the original packaging.

When contacting our authorized service center, please have the following information ready: Model, PNC, Serial Number.

These are not covered by the warranty for technical defects.

Appliance for professional use: ① The appliance is intended for professional use.

Read the instructions carefully before use.

1. SAFETY INFORMATION AND INSTALLATION

WARNING!

Safety and installation

For the appliance

intended use

Safe installation instructions

Check the appliance visually.

The device is designed

for use in

accordance with

the instructions

provided.

1. General.

2. Device Description

2.1 Control panel

1. ① Press the power button to turn on the device.

The indicator lights up.

2. To turn off the device, press the button. 3. If necessary, press the button again to reset.

To turn off the device, press and hold the ① button.

3.2 Function

The device automatically turns off when the temperature reaches the set value. The temperature sensor signal

is transmitted to the communication port. The device automatically turns off when the temperature exceeds the maximum allowable temperature. Therefore, do not leave the device unattended. This function can be disabled via the menu.

3.3 Checking the oil level

With the engine off, check the oil level within 8 minutes of stopping. After that, the oil level reading may be inaccurate.

Function check:

If the engine is hot, wait for it to cool down.

3.4 Low oil pressure warning

The low oil pressure warning light should not come on during normal operation, except when the ignition is switched on. If the low oil pressure warning light comes on, the warning light should stay on for 30 seconds. If the low oil pressure warning light does not come on, the warning light should stay off for 30 seconds.

See the "Low oil pressure warning" section in the "Warning and indicator lights" chapter.

The warning and indicator lights include the low oil pressure warning light and the low oil pressure warning light.

To test the function, press and hold the button for 3 seconds.

To activate or deactivate the function:

1. Press the button.
2. The indicator light should come on. 3. To activate the function, press and hold the button for 3 seconds. If the function is activated, the indicator light will blink 5 times. 4. To deactivate the function, press and hold the button for 3 seconds. If the function is deactivated, the indicator light will blink 4 times.

4. WARNING AND INDICATOR LIGHTS

4.1 Warning lights

Жуrbш 3aTTAP	Жemіріш жуrbш 3aTTAPды және щетkeларді пайдалианбаны3. Курьлгынbilн оалдынгы каflын жумсak жуфыш 3at кocьлfaнжылы суfa 6atbIpilfahн жумсak ушbepeknepн тазаланы3.
	Таşам Nicіpresненій Кійн Kурьлгынbilн Кійбір 6eінтэрі рьсын кетуі Мумкін. Дады 6oJырмас ушін Курьлгынbilny суын, таза шуbepeknen hemecе kafla3 сулгіmenн Курfaу kepek.
	Даэтарды жумсak жуфыш 3aTпнтн ТAZALANH3.
Aya tarTkblsh Куралды Tazа Устаны3	Курьлгынbilжәне май суглорін ai сayын тazalaanb3. Курьлгынbilн iшін және май суглорін майдан тazapынbil3. Май Жиналлafнда hemece backka калдых киналca, орт kayінн Тудырь Mумкін. Суглінх xabapлама сиигалы кocуны Ke3de kepek-jжарктарды Тазалану hyckayapлathn opbɪdəнbil3. Суглу typалы xabapламаы КУнdenіkti пайдалиу tappingынн карынbil3.
	Майы суглорін bIDlcсучыш машида жууfa 6oJanaы. bIDlcсучыш машида төmen төmpатурахьөнөн Кыскацл орнау kepek. Май суг Ricinir Tyci e3regpyl Mумкін, Бүл Курьлгынжумсic icteyiine aceper etneyni.

Kemip cy3ricihTOny yaKbITb TaFAM nicipyin Tpyi MeH Macy3ricih KaHaanblkTb XnTa3aJNaHaBbHa 6aJNaHbCTb 6OJabl.

4.2 Ma'im cy3ricin Ta3aJay

Cy3rIePepi opHaTy yuHkapama-kapcbi KaTapbIHda KbICbIUtap MeH KaaybIUtap naJaIaNbIFaH.

Cy3rihi ta3anay yuih:

1. Aya tapTkbl KwpaanDbIH actbHdafbI cy3ri naHeniHderi 6ekity KblckblbHbIHvCTaFbllbH 6acblb3.

1. Cy3rHih aIbIHfbl XaFbIH TEmeH Kapaa a3dan eHkeTih3, cOaH KeiH TapTbIHb3. BapIbIK cy3rinep ysiH anFaUkbl eki KaamdbI kaTanaHbI3.
2. Cy3rinepiKemipriuEmec Kyfbi3aTtapdbI KOJdaNbIN XeKeMeH HEmec bIDBC KYfBiMaUNHaTa3aJNaHbI3.

i bIbIC KJyB1W MaunHana TEmeH TempepaTpaHbI XaHE KbICKa uNKnDi oPNaTy KepeK. MaCy3rCICIH Tyci e3repYi MymKiH, 6yN KypbJIIFbIHIbIH Kymblc icTeyIHe acep etneNi. 4. Cy3rihi KaT aOpHbHa KOIO yUih anFaWKbI eKi KaDAMdbI KepicIHwe opbIHHaHbI3.

KaKet 6oNca, 6apIbIK cy3rInep yuH Kaamdapdbi KaTanaHbI3.

4.3 Kemip cy3ricih aybictbipy

Cy3rHiH eckepTy cHraJIb Kocylb 6oJca, kMip cy3riciH aIbIpbacTay KepeK.

Функцу Тураьл Кбірек aknapaT Any yuHIN KYNdeJIkiKti naindanaHу TapaybIHdaFbl Cy3ri Tураьl Eckeptydi kapaHbI3.

ECKEPTY!

Kemip cy3ricin kyyfaoB0JMAHdbl! Cy3riKaannbHa KeTipy MmKiHemec!

Kemip cy3rici aybictbyhi:

1. Mai cy3rilepiH KypblfblaH anbHb3. OcbI tapaydaftb"IaM cy3rinepiH Ta3anay"6eimH KapaHbI3.
2. Cy3rihi caFat tiJIHe Kapcbl 6aBbTTa 6ypaHbI3 (1), codan KeiH tapTbIHbI3 (2).

Cy3rHi KaIHa opHbHa KOHO yuIH KdAmdapdbi Kepicihwe OpbHdaHb3.

4.4 WamdbiaybiCTbipy

Bny KpybIy JxuMbImen KHe 6eKe icke Kocy KypalbEmn (KxuD dpaibepi) Ka6dbkTaNfAH. Byn 6eIweKterpi TexHKn KaHa aybcIbpa anaDbI. AkaybIK opbIH anFaH KaFdaJa "Kayinc3ik HcckaynapbI" TapaybHaBfB "Kb3Met Kepcety" 6eimin KapaHbI3.

5. KOPUFAH OPTAFA KATbICTbI XAFDAJLAP

Benri caIbIHfAH MaTePnIaIapbl KaIbTa eHdeUeH eTki3yre TaIcbIbIbI3. OpaMaTePnIaIapbl KaIbTa eHdeUeH eTKi3y yIwIH TNICTI KOHTeHepNepre caIbIbI3. 3JIeKTPnIK KHe 3JIeKTPoHnKaIbIK KpybINfbJaNPdbl KaIbIbFbIH KaITa eHdeUeH eTki3y apKbIbI, KopShaFaH opTaFA KHe aAdAMhIH DeHCaylbIFbHa 3NbIH

KeTiptinKaFdainapfKaon6epMeyre e3 yneciH3di KocbIbI3.Benri caIbIHFaH KypblfBnapDbTypMbICTbIK KanblkTapMeH 6ipre TactaMaHbI3. OhimDi XeprinikTi KaetaeHdey opTaIbIbHa eTKi3iH3 Hemece XeprinikTi Mekemere xa6apnaCbIbI3.

TURINYS

1. SAUGOS INFORMACIJA IR IRENGIMAS 74
2. GAMINIO APRASYMAS 75
3. KASDIENIS NAUDOJIMAS 75
4. VALYMAS IR PrieziURA 77 5.APLINKOS APSAUGA 78

MES GALVOJAME APIE JUS

3.3 Setting the maximum engine speed.

When you press the button, the device will operate at maximum engine speed for a period of 8 minutes. After that period, the device returns to its preset speed.

When the function is activated, the additional power has no effect.

3.4 FILTER INDICATOR

The filter indicator reminds you to replace or clean the oil filter and to clean the air filter. The filter indicator is activated for 30 seconds if the oil filter needs to be cleaned.

The filter indicator flashes for 30 seconds if the air filter needs to be replaced or cleaned.

See the section on cleaning the oil filter in the chapter on maintenance and cleaning.

See the section on cleaning the air filter or replacing the air filter in the chapter on maintenance and cleaning.

To reset the function, press the button for 3 seconds.

To activate or deactivate the function:

1. Turn on the control panel.
2. Select whether the icon is lit. To activate the function, press and hold the button for 3 seconds.

If the function is activated, the filter icon flashes for 4 seconds. 4. To deactivate the function, press the button for 3 seconds.

If the function is deactivated, the filter icon stays lit for 4 seconds.

4. MAINTENANCE AND CLEANING

4. MAINTENANCE AND CLEANING

It is recommended to let the hood run for about 15 minutes after cooking.

The control panel is touch-sensitive. Functions are activated by touching the symbols for 1 second.

Switching on the hood:

1. Switch on the appliance by touching symbol ①.

Now you can switch on the functions.

2. To switch on a function, touch the symbol. 3. If necessary, touch the light symbol to illuminate the hob. To switch off the appliance, touch symbol ① again.

3.2 Hob²Hood function

This function uses automation, linking the hob to the hood. Both the hob and the hood maintain the connection via the hob's cooking zones. The fan speed is set automatically based on the selected mode and temperature of the pots on the hob. There is also the possibility of manual adjustment of the fan using the hob. The function is activated on the hob control panel.

For more detailed information on using this function, see the instructions for the hob.

3.3 Switching on the motor at maximum speed

When touching the motor for 8 minutes, it switches to maximum speed mode. After this period, the appliance returns to the previous speed setting.

If this function is activated, further touches do not produce any result.

3.4 Filter warning

The indicator lamp signals the need to replace the carbon filter or clean the grease filter. If cleaning of the grease filter is necessary, the filter indicator lights up for 30 seconds. The need to replace the carbon filter within 30 seconds causes the filter indicator to flash.

See the description of the cleaning or replacement procedure for the carbon filter in the chapter "Care and Cleaning".

The function is activated by holding the button for three seconds.

Switching the function on/off:

1. Turn on the control panel.
2. Make sure that the indicators are white. 3. To activate the function, hold the button for three seconds.

If the function is activated, the filter indicator flashes 5 times.

The grease filters can be washed in the dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may change color; this does not affect the performance of the appliance.

Carbon filter

The saturation time of the carbon filter varies depending on the type of cooking and the frequency of cleaning of the grease filter.

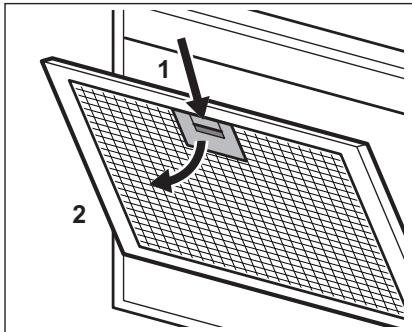

4.2 Cleaning the grease filter

For washing them in the dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may change color; this does not affect the performance of the appliance.

4. To reinstall the filters, perform the two steps described above in reverse order. Repeat these steps with all filters, if applicable.

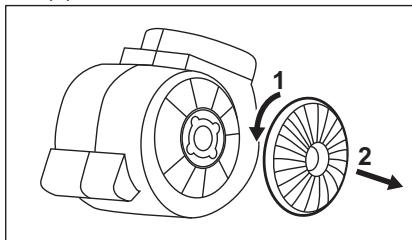

4.3 Replacing the carbon filter

The carbon filter must be replaced after the signal indicator for the filter has been activated.

For more details, see "Filter alarm" in the chapter "Daily use".

WARNING!

The carbon filter is not washable! The filter cannot be regenerated!

To install the filter in place, perform the steps described above in reverse order.

4.4 Replacing the lamp

This appliance is supplied with a LED lamp and a separate control device (LED driver). These parts may only be replaced by a qualified technician. In case of any malfunctions, see "Service" in the chapter "Safety instructions".

5. ENVIRONMENTAL PROTECTION

Materials marked with the symbol should be recycled. Place the packaging in the appropriate containers for collection of recyclable materials. By participating in the recycling of old electrical appliances, you help protect the environment and human health. Do not throw away

household appliances marked with the symbol together with household waste. The appliance should be taken to a local collection point for waste electrical and electronic equipment for subsequent recycling.

OBSAH

1. BEZPEČNOSTNÉ POKYNY A INŠTALÁCIA 122
2. POPIS VÝROBKU 123
3. KAŽDODENNÉ POUŽÍVANIE 123
4. Maintenance and Cleaning 125
5. Environmental Protection 126

DESIGNED FOR YOU

KOPINCHNCHKA NOIDPISHA I CEPBNC

Always use original spare parts.

Each authorized service center will require you to have the following data: Model, product number, serial number.

For more information, see the technical characteristics.

Use/Disposal - Safety Information

Information and advice

Information about the environment

Right to change reserved.

1. SAFETY INFORMATION FOR INSTALLATION

WARNING!

See the safety

brochure with instructions for

Installation

Normal operation

Safety

Installation. Layout

Read the safety instructions before

Safety instructions before

Any corrective action

Official repair.

2. PRODUCT DESCRIPTION

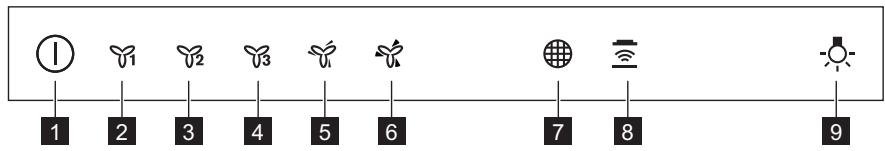

2.1 Control Panel

	Функциja	Опис
1	Уклычи/Исклычи	Уклычуje и Исклычуje acnPираТор.
2	Прва 6рзинa	Мотор п的对象и на пву 6рзину.
3	Друга 6рзинa	Мотор п的对象и на другу 6рзину.
4	Т repe ha 6рзинa	Мотор п的对象и на т repe ha 6рзину.
5	Мakсимална 6рзинa	Мотор п的对象и на мakсималну 6рзину.
6	Пове hahe 6рзинe	Мотор п的对象и на мakсималну 6рзину. Наков 5MinHyta урehaj ce bpaha y петхоюно поедшава-ъe.
7	Оьавшte ha e o Филтete- ру	Подс ha bacда jenotрбно замен'tи ялиочстити Филтep ca akтуВим угьем и очирстити Филтep 3a мacr.
8	Hob² Hood	Инданатор Функциje за конт polу acnPираTopа сплоу за Кубаъe.
9	Лампица	Уклычуje и Исклычуje с Bretпа.

3. DAILY USE

3.1 Using the appliance

Check the recommended speed in accordance with the speed table.

Repair information:

www.electrolux.com/support

Register your product for better service:

www.registerelectrolux.com

3.3 Activating the maximum suction power

Pressing the button activates the maximum suction power for 8 minutes. After this time, the

device returns to the previously set suction power.

When the function is activated, the button does not light up.

3.4 Filter reminders

The filter reminders indicate the need to replace or clean the HEPA filter and the carbon filter. If the HEPA filter needs cleaning, the indicator flashes for 30 seconds. If the carbon filter needs replacement or cleaning, the indicator flashes for 30 seconds

and then goes out. See the section "Cleaning the HEPA filter" in the chapter "Care and Cleaning".

and then goes out. See the section "Cleaning the carbon filter" or "Replacing the carbon filter" in the chapter "Care and Cleaning".

To reset the function, press and hold the button for 3 seconds.

Activating or deactivating the function:

4.2 Cleaning the HEPA filter
