BLP-1200 - Blender WILFA - Free user manual and instructions

USER MANUAL BLP-1200 WILFA

BLS-1200S, BLP-1200W, BLP-1200B

INSTRUCTION MANUAL · WILFA XPLODE

BLENDER · BLS-1200S, BLP-1200W, BLP-1200B

IMPORTANT SAFETY INSTRUCTIONS

SPECIAL SAFETY INSTRUCTIONS FOR THIS UNIT

PRODUCT OVERVIEW BEFORE USE OPERATION

AFTER USING THE BLENDER

CLEANING & MAINTENANCE GUARANTEE PRODUCT SPECIFICATIONS

SUPPORT AND SPARE PARTS

INSTRUCTION MANUAL · WILFA XPLODE

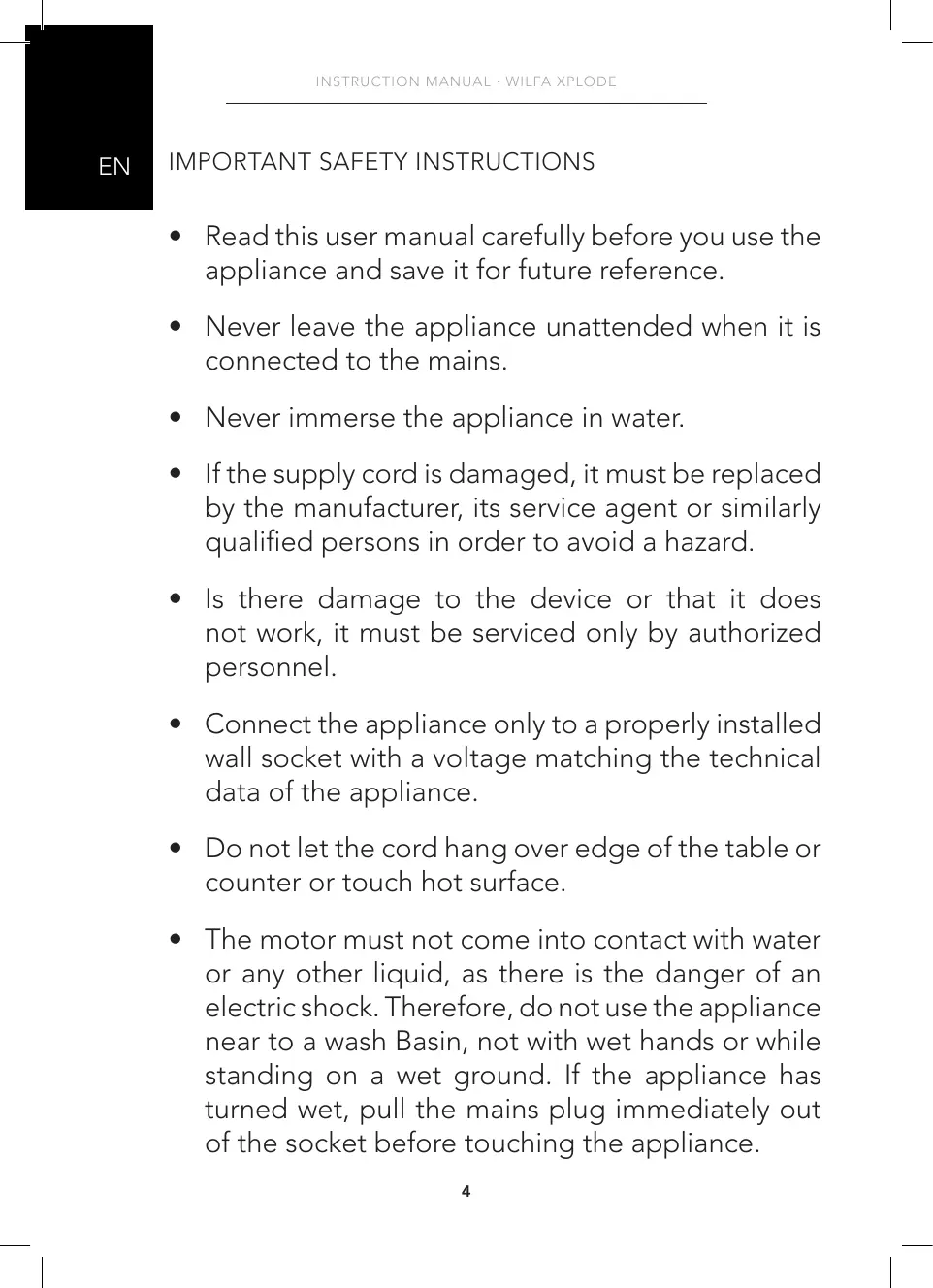

IMPORTANT SAFETY INSTRUCTIONS

• Read this user manual carefully before you use the appliance and save it for future reference.
• Never leave the appliance unattended when it is connected to the mains.
• Never immerse the appliance in water.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Is there damage to the device or that it does not work, it must be serviced only by authorized personnel.
• Connect the appliance only to a properly installed wall socket with a voltage matching the technical data of the appliance.
• Do not let the cord hang over edge of the table or counter or touch hot surface.
• The motor must not come into contact with water or any other liquid, as there is the danger of an electric shock. Therefore, do not use the appliance near to a wash Basin, not with wet hands or while standing on a wet ground. If the appliance has turned wet, pull the mains plug immediately out of the socket before touching the appliance.

BLENDER · BLS-1200S, BLP-1200W, BLP-1200B

• Do not use the appliance outdoors.
• This product is intended for household use and not for commercial use.
• Use the appliance only for the purpose it was designed for.
• Do not use appliance, if it or parts of it show visible damage or if the appliance was dropped.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

INSTRUCTION MANUAL · WILFA XPLODE

CAUTION We are very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

• There is a potential injury from misuse. The care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• To reduce the risk of injury, never place cutterassembly blades on base without jar properly attached.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Be careful is hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

BLENDER · BLS-1200S, BLP-1200W, BLP-1200B

SPECIAL SAFETY INSTRUCTIONS FOR THIS UNIT

• Operate the blender with lid closed.
• Blades are very sharp. Handle with care.
• Only remove the jar while motor is off.
• Avoid overwork of motor.
• Handle carefully with glass jar.
• Never place your hands into the glass jar while the motor is on.
• Avoid contact with moving parts.

INSTRUCTION MANUAL · WILFA XPLODE

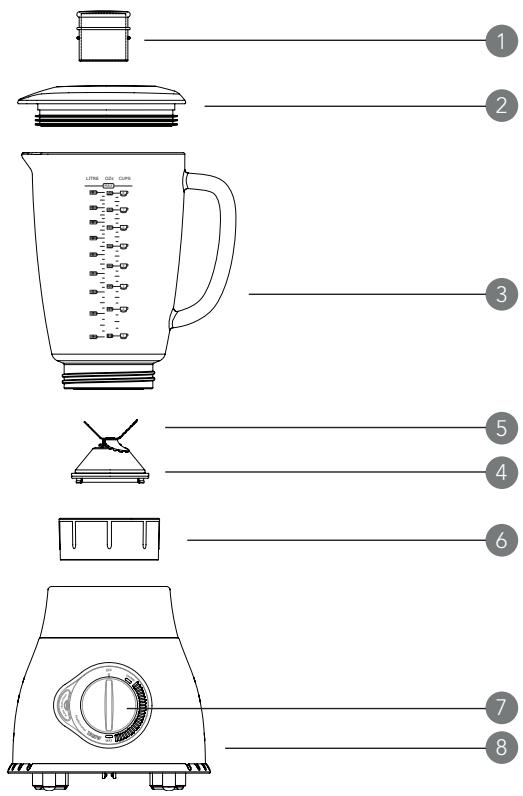

6 P. PRODUCT OVERVIEW PARTS DESCRIPTION

1 Measuring cup 2 Lid

1. Measuring

5. Blade assembly unit

3 Glass jar with level indication

2. Lid

6. Blade assembly unit interface

3. Glass4 jarSealed

7. Control panel

4. Sealed

8. Motor unit

Blade assembly unit 6 Blade assembly unit interface 7 Control panel 8 Motor unit

BLENDER · BLS-1200S, BLP-1200W, BLP-1200B P. 7 Built-in safety lock BEFORE USE This function ensures that user can only switch the appliance on when the accessories have been placed on the unit in correct position. When the

BUILT-IN SAFETY LOCK

accessories have been fixed properly, the unit can only be switched on. This function ensures that user can only switch the appliance on when the accessories have been placed on the unit in correct position. When the accessories have been fixed properly, the unit can only be switched on. (i.e. Built-in safety Before first use lock function is disabled at this moment) Clean the unit and parts thoroughly before you use the appliance for the first time.

Clean the unit and parts thoroughly before you use the appliance for the first time.

USING THE APPLIANCE

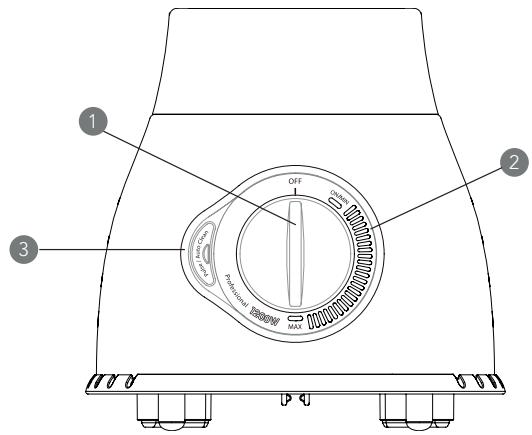

OPERATION To switch on appliance, turn the knob “ON” “ON” The light“ON” light will Tothe switch on the appliance, turntothe knobposition. to “ON”The position. will be illuminated. To control the rotary turn theturn knob between be illuminated. To control the speed, rotary speed, theatknob at between “MIN” & “MAX”position. position. “MIN” & “MAX” CONTROL PANEL English

ON/ OFF switch Pulse/Auto clean button This function is only working when blender is already running. When blender is running, button is pushed to get blender quickly up to full speed. When button

Warning: is released, blender gets down to pre-set speed again. This function is suitable

ice crushing or8pcs cleaning. Do not addformore than than ice cubes (less than 20 x 20 x 20mm size of the ice) in glass jar at a time.

Warning: Do not add more than than 8pcs ice cubes (less than 20 x 20 x 20mm

size of the ice) in glass jar at a time.

5. Connect to main power supply.

INSTRUCTION MANUAL · WILFA XPLODE

HOW TO USE THE GLASS JAR

HOW TO USE THE GLASS JAR

Place ingredients glass Place thethe ingredients in in thethe glass jar.jar. Place and close it tightly. Place thethe lidlid onon thethe jarjar and close it tightly.

3. Insert the measuring cup into the lid opening.

3. Insert the measuring cup into the lid opening.

4. Select the speed by turning the control knob or press the Quick-select button.

Note: Do not let the appliance to operate more than 2 minutes continuously. Let the appliance to cool down to room temperature before continue operating the appliance. Note that the glas jar can only withstand temperatures up to 60° C.

AFTER USING THE BLENDER

1. Disconnect the power from main supply.

2. Remove the lid (together with measuring cup) from the jar.

3. Remove the jar (together with blade assembly unit interface) from the motor

part. Note: Always clean the removable parts immediately after use. Note: It is recommended to cut the meat or other food into smaller pieces before putting them in the jar. Do not operate with large quantities of food at one time.

BLENDER · BLS-1200S, BLP-1200W, BLP-1200B CLEANING & MAINTENANCE Always clean the removable parts immediately after use. Note: Be careful when cleaning the parts. Avoid touching the sharp blades!

Disconnect the power from main supply.

Disassemble all removable parts before cleaning.

Clean all removable parts in lukewarm water with dishwashing liquid.

Use dry cloth to clean the main body.

INSTRUCTION MANUAL · WILFA XPLODE

GUARANTEE Wilfa issues a 5 year guarantee on this product from the day of purchase. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee. The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
• Parts which are normally worn down

BLENDER · BLS-1200S, BLP-1200W, BLP-1200B PRODUCT SPECIFICATIONS

220-240V~ 50/60Hz, 1200W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information. RECYCLABILITY This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge. BLENDERE · BLS-1200S, BLP-1200W, BLP-1200B

BLENDERE · BLS-1200S, BLP-1200W, BLP-1200B BLENDERE · BLS-1200S, BLP-1200W, BLP-1200B PRODUKTOVERSIKT PARTS DESCRIPTION

BLENDERE · BLS-1200S, BLP-1200W, BLP-1200B P. 7

USING THE APPLIANCE

5. Connect to main power supply.

BRUKSANVISNING · WILFA XPLODE

BLENDERE · BLS-1200S, BLP-1200W, BLP-1200B BLENDERE · BLS-1200S, BLP-1200W, BLP-1200B PRODUKTSPESIFIKASJONER 220–240 V ~ 50/60 Hz 1200W PRODUKTÖVERSIKT PARTS DESCRIPTION

USING THE APPLIANCE

5. Connect to main power supply.

BRUKSANVISNING · WILFA XPLODE

English BLENDER · BLS-1200S, BLP-1200W, BLP-1200B

BLENDER · BLS-1200S, BLP-1200W, BLP-1200B BLENDER · BLS-1200S, BLP-1200W, BLP-1200B BLENDER · BLS-1200S, BLP-1200W, BLP-1200B P. 7

USING THE APPLIANCE

5. Connect to main power supply.

BETJENINGSVEJLEDNING · WILFA XPLODE

BLENDER · BLS-1200S, BLP-1200W, BLP-1200B BLENDER · BLS-1200S, BLP-1200W, BLP-1200B TEHOSEKOITIN · BLS-1200S, BLP-1200W, BLP-1200B

TEHOSEKOITIN · BLS-1200S, BLP-1200W, BLP-1200B TEHOSEKOITIN · BLS-1200S, BLP-1200W, BLP-1200B TEHOSEKOITTIMEN TURVALLISUUSOHJEET TEHOSEKOITIN · BLS-1200S, BLP-1200W, BLP-1200B Built-in safety lock ENNEN P. 7

KÄYTTÄMISTÄ

TEHOSEKOITIN · BLS-1200S, BLP-1200W, BLP-1200B TEHOSEKOITIN · BLS-1200S, BLP-1200W, BLP-1200B TUOTETIEDOT 220–240 V ~ 50/60 Hz, 1200 W BLENDER · BLS-1200S, BLP-1200W, BLP-1200B

BLENDER · BLS-1200S, BLP-1200W, BLP-1200B BLENDER · BLS-1200S, BLP-1200W, BLP-1200B BLENDER · BLS-1200S, BLP-1200W, BLP-1200B P. 7

USING THE APPLIANCE

BEDIENUNG BLENDER · BLS-1200S, BLP-1200W, BLP-1200B BLENDER · BLS-1200S, BLP-1200W, BLP-1200B Wilfa Germany GMBH Feldbergst. 27-29, 61440 Oberursel, Germany

BLENDER · BLS-1200S, BLP-1200W, BLP-1200B INHOUDSOPGAVE

BLENDER · BLS-1200S, BLP-1200W, BLP-1200B BLENDER · BLS-1200S, BLP-1200W, BLP-1200B BLENDER · BLS-1200S, BLP-1200W, BLP-1200B P. 7

USING THE APPLIANCE

BEDIENING BLENDER · BLS-1200S, BLP-1200W, BLP-1200B BLENDER · BLS-1200S, BLP-1200W, BLP-1200B PRODUCTSPECIFICATIES 220-240V~ 50/60Hz, 1200 W BLENDERA · BLS-1200S, BLP-1200W, BLP-1200B BLENDERA · BLS-1200S, BLP-1200W, BLP-1200B BLENDERA · BLS-1200S, BLP-1200W, BLP-1200B P. 7 BLENDERA · BLS-1200S, BLP-1200W, BLP-1200B

USING THE APPLIANCE

UŻYCIE 2 Speed control (MIN -> MAX)

5. Connect to main power supply.

INSTRUKCJE · WILFA XPLODE

English BLENDERA · BLS-1200S, BLP-1200W, BLP-1200B BLENDERA · BLS-1200S, BLP-1200W, BLP-1200B

INSTRUCTIONS · WILFA XPLODE

INSTRUCTIONS · WILFA XPLODE

INSTRUCTIONS · WILFA XPLODE

INSTRUCTIONS · WILFA XPLODE

DU PRODUIT PARTS DESCRIPTION

Built-in safety lock

USING THE APPLIANCE

INSTRUCTIONS · WILFA XPLODE

INSTRUCTIONS · WILFA XPLODE

CARACTÉRISTIQUES DU PRODUIT

220-240 V~ 50/60 Hz, 1 200 W FRULLATORE · BLS-1200S, BLP-1200W, BLP-1200B FRULLATORE · BLS-1200S, BLP-1200W, BLP-1200B FRULLATORE · BLS-1200S, BLP-1200W, BLP-1200B P. 7 FRULLATORE · BLS-1200S, BLP-1200W, BLP-1200B Built-in safety lock This function ensures that user can only switch the appliance on when the accessories have been placed on the unit in correct position. When the DELL’UTILIZZO accessoriesPRIMA have been fixed properly, the unit can only be switched on. To switch on the appliance, turn the knob to “ON” position. The “ON” light will be illuminated. To control the rotary speed, turn the knob at between FUNZIONAMENTO “MIN” & “MAX” position.

5. Connect to main power supply.

MANUALE DI ISTRUZIONI · WILFA XPLODE

FRULLATORE · BLS-1200S, BLP-1200W, BLP-1200B FRULLATORE · BLS-1200S, BLP-1200W, BLP-1200B BATIDORA DE VASO · BLS-1200S, BLP-1200W, BLP-1200B BATIDORA DE VASO · BLS-1200S, BLP-1200W, BLP-1200B BATIDORA DE VASO · BLS-1200S, BLP-1200W, BLP-1200B P. 7 BATIDORA DE VASO · BLS-1200S, BLP-1200W, BLP-1200B Built-in safety lock This function ensures that user can only switch the appliance on when the accessoriesANTES have beenDE placed the unit in correct position. When the SU on USO accessories have been fixed properly, the unit can only be switched on.

5. Connect to main power supply.

MANUAL DE INSTRUCCIONES · WILFA XPLODE

BATIDORA DE VASO · BLS-1200S, BLP-1200W, BLP-1200B BATIDORA DE VASO · BLS-1200S, BLP-1200W, BLP-1200B

BLS-1200S_BLP-1200W_BLP-1200B_20_04
