Product type	Decorative extractor hood
Brand	Hoover
Model	HTS6CBK3X
Installation	External extraction or recirculation (with charcoal filter)
Minimum distance above cooking surface	65 cm (recommended 65-75 cm)
Exhaust duct diameter	150 mm
Number of speeds	3 speeds + booster function
Lighting	LED (max 1.5 W)
Control type	Electronic (buttons or display depending on configuration)
Grease filter	Monthly cleaning (dishwasher or manual)
Active carbon filter	Annual replacement (only in recirculation mode)
Electrical supply	220-240 V, 50 Hz, class I, 3 A fuse
Mounting	Wall-mounted, fixing on supplied bracket
Noise level	Not specified (moderate noise operation)
Weight	Estimated 15-20 kg (not specified)
Dimensions (W x D x H)	Not specified (standard chimney hood)
Repairability	Bulbs and filters replaceable; motor requires professional
Safety	Earth connection mandatory; automatic shut-off in case of overheating?; hot surfaces
Warranty	See provided warranty certificate

Frequently Asked Questions - HTS6CBK3X HOOVER

What is the recommended installation height for the hood?

The distance between the hood and the hob must be between 65 and 75 cm for optimal performance.

How to clean the grease filter?

The grease filter must be cleaned every month. It can be washed in the dishwasher or by hand with a mild detergent. A clogged filter increases the risk of fire.

When should the carbon filter be replaced?

The active carbon filter should be replaced at least once a year, or more often if the hood is used intensively. It is only necessary in recirculation mode.

How to replace an LED bulb?

Unplug the hood, remove the glass cover, disconnect the connector and replace the bulb + socket + cable assembly. The bulbs cannot be replaced individually. Use LED max 1.5 W.

What to do if the hood vibrates strongly?

Check that the hood is properly fixed to the wall and that the motor is not loose. If the problem persists, call a professional. A blocked turbine can also be the cause.

The hood does not work at all, what to check?

First check that the power cord is plugged in and that the fuse (3 A) has not blown. If the light does not come on either, the bulb may be burned out.

How to use the booster function?

The booster function activates the maximum speed for 5 minutes. It is triggered by pressing the dedicated button (depending on the model). After this time, the hood automatically returns to the previous speed.

Can I use the hood with a gas hob?

Yes, but you must ensure adequate ventilation of the room. The air must not be exhausted into a duct used by other combustion appliances.

How to set the timer?

When the hood is on, press the timer button to start a countdown (up to 60 minutes). Each press adds one minute. The hood will turn off automatically at the end of the countdown.

Where to find the serial number of the appliance?

The 16-digit serial number (starting with 3) is on the warranty certificate or on a label on the appliance. It is useful for after-sales service.

USER MANUAL HTS6CBK3X HOOVER

1. Before installation, turn off the appliance and disconnect it from the power supply.

1. For best performance, the range hood should be installed at a height of 65-75 cm above the cooktop.

For angled panel model

- drill 2 additional 8mm holes and insert the mounting screws and locking screws before installation

1. Lift the hood and hang it on the wall bracket using the hook.

1. Drill 2 holes for the wall plugs, then screw and secure the bracket to the wall using the supplied screws (2 pcs ST4x30mm).

1. Install the chimney onto the unit and secure it.

1. Install the chimney onto the unit and secure it.

For internal ventilation, an activated carbon filter is used to filter smoke and odors. Before installing the activated carbon filter, first remove the grease filter. Press the latch and pull the filter downwards.

CLOSE

IMPORTANT NOTE:

o Make sure the activated carbon filter is securely and correctly fastened. Otherwise, it may become loose and cause a hazard. o With the activated carbon filter installed, the suction power of the range hood will be reduced.

CONFIGURATION 1

1

2

3

PART NAMES

Button 1

Screw 4x30 mm

For models with inclined surface

Note:

INSTALLATION AND USER'S MANUAL

CONTENTS

INTRODUCTION 52

SAFETY PRECAUTIONS 52

SPECIFICATIONS 55

INSTALLATION (VENT OUTSIDE) 56

INSTALLATION (VENT INSIDE) 67

DESCRIPTION OF COMPONENTS 68

OPERATION 68

MAINTENANCE 73

TROUBLESHOOTING 74

CONFORMITY WITH DIRECTIVES 74

ENVIRONMENTAL PROTECTION 75

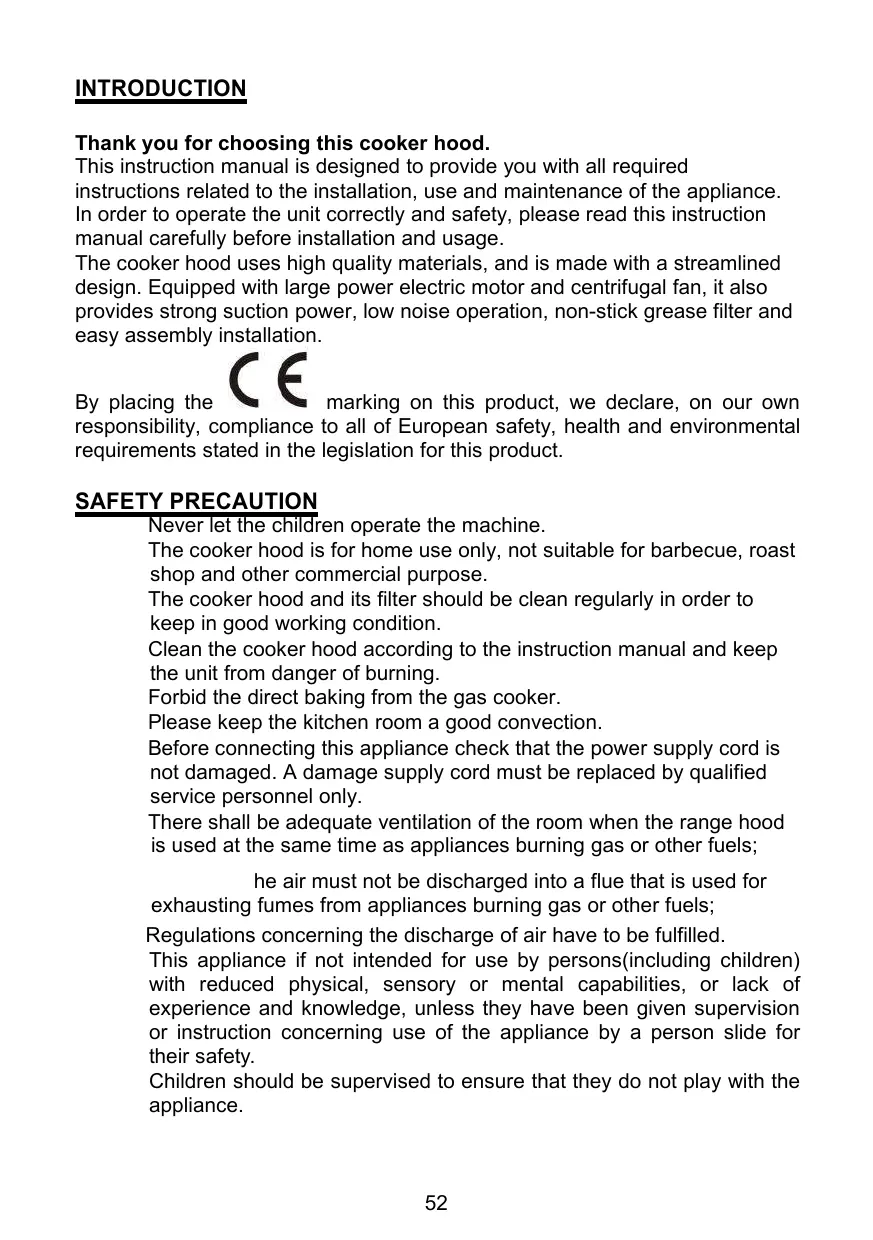

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with a large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

CE

By placing the CE marking on this product, we declare, on our own responsibility, compliance to all European safety, health and environmental requirements stated in the legislation for this product.

SAFETY PRECAUTION

Never let children operate the machine.

The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purposes.

The cooker hood and its filter should be cleaned regularly in order to keep in good working condition.

Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.

Forbid direct baking from the gas cooker.

Please keep the kitchen room well ventilated.

Before connecting this appliance, check that the power supply cord is not damaged. A damaged supply cord must be replaced by qualified service personnel only.

There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Regulations concerning the discharge of air have to be fulfilled.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not flambé under the range hood.

CAUTION: Accessible parts may become hot when used with cooking appliances.

There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

• The details concerning the method and frequency of cleaning.
• There is a fire risk if cleaning is not carried out in accordance with the instructions; do not flame under the range hood.
• CAUTION: Accessible parts may become hot when used with cooking appliances.

Electrical Shock Hazard.

Only plug this unit into a properly earthed outlet. If in doubt, seek advice from a suitably qualified engineer.

Failure to follow these instructions can result in death, fire, or electrical shock.

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

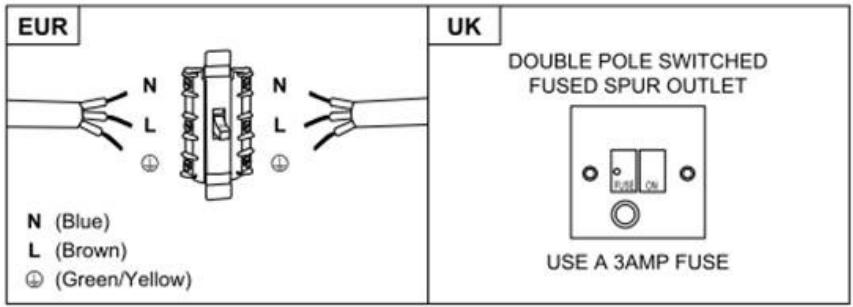

WARNING: This is a Class I appliance and MUST be earthed

This appliance is supplied with a 3 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

The fuse must be rated at 3 Amps.

Standard Installation Accessories List

Spec.	Illustration Picture	Qty
Casing		1
Upper Chimney		1
Lower Chimney		1
Lower chimney bracket		1
Upper chimney bracket		1
Hanging Board		1
φ8 rawl plugsφ8×φ6 white color		9
ScrewsST4.0×30		9
φ7.2screwsST4.0×8		2

If you have an outlet to the outside, your cooker hood can be connected as shown in the picture below by means of an extraction duct (enamel, aluminum, flexible pipe, or inflammable material with an interior diameter of 150mm).

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65~75cm above the cooking plane for best effect.

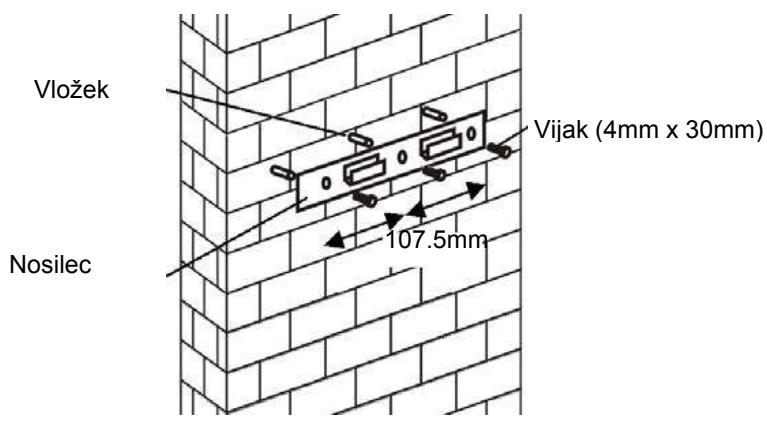

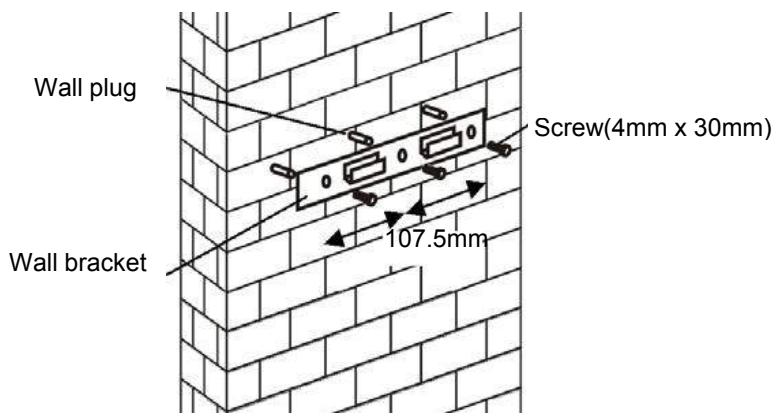

1. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

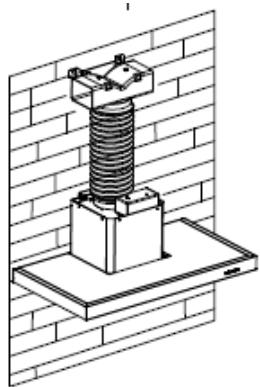

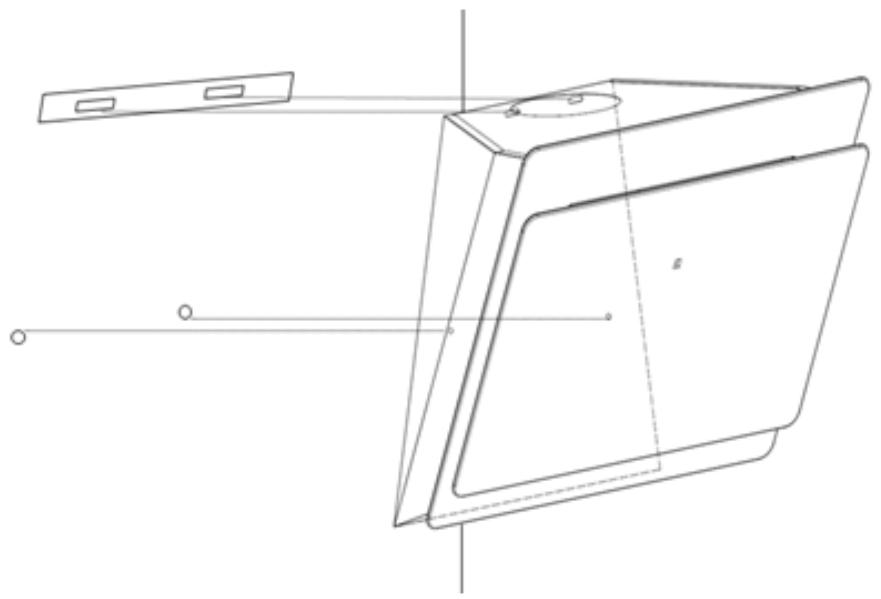

For inclined panel model:

Need to drill 2x8mm extra holes & fixing screws & screw plugs before installation. For inclined models.

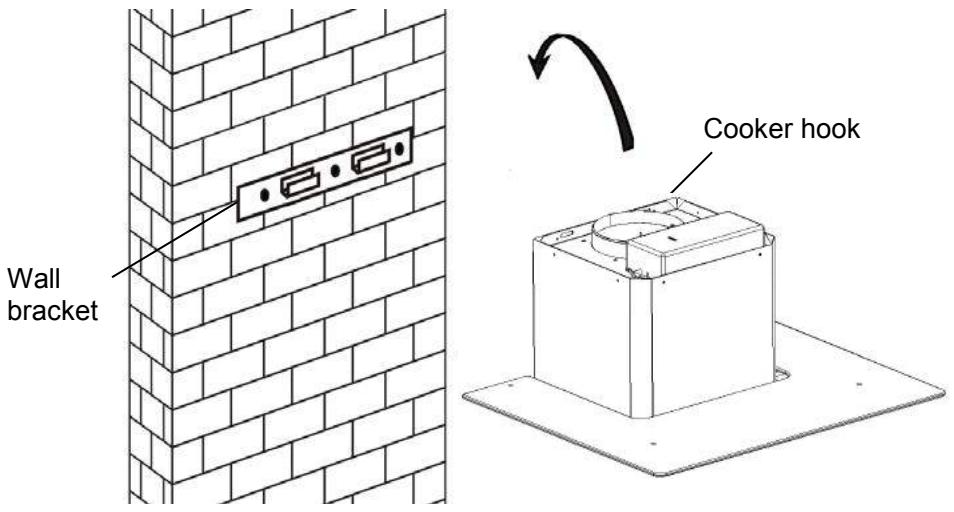

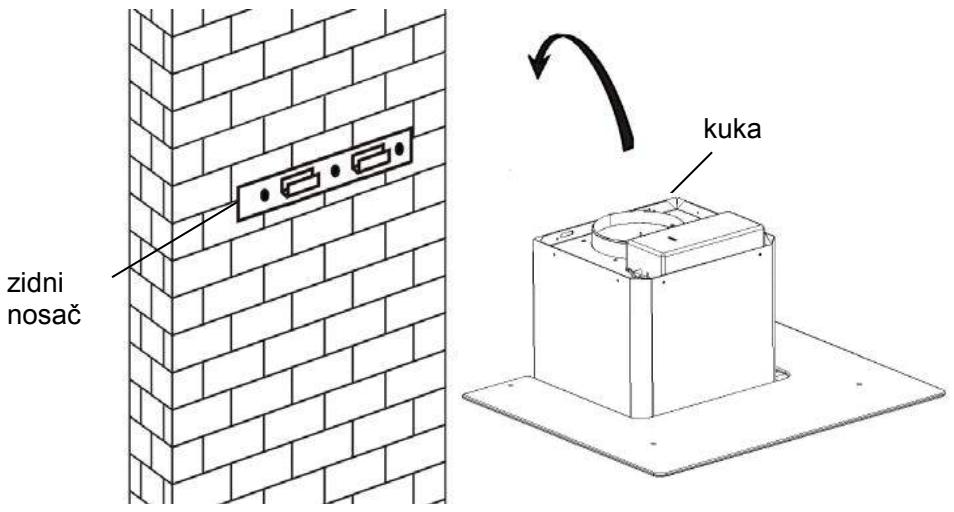

1. Lift up the cooker hood and hang it onto the wall bracket hook.

1. Fix the one-way-valve to the air outlet of the cooker hood. Then, attach the exhaust pipe onto the one-way-valve as shown below.

6.

i. Place the glass in appropriate position on the top of the cooker hood. ii. Fix with 4 screws and washer. In order to avoid the glass cracking, please do not tighten the screws too strongly. i. Put the inner chimney into outer chimney. Then pull out the inner chimney upwards. Adjust to reach the height required.

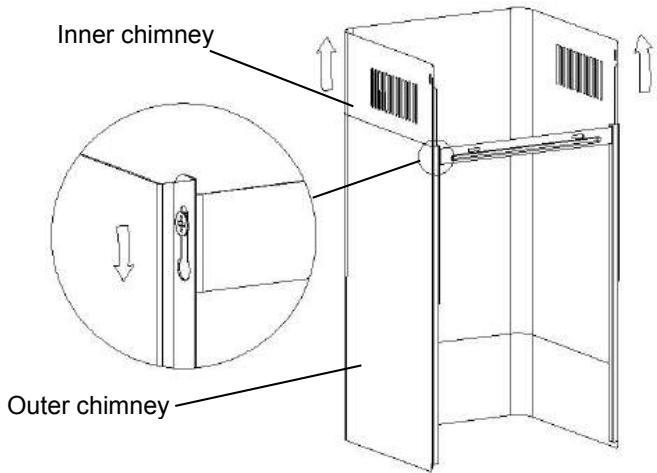

ii. Slide the chimney to adjust the chimney height. When the height you require is reached, then hang the fixing hole to the fixing screws as shown in the pictures below.

8.

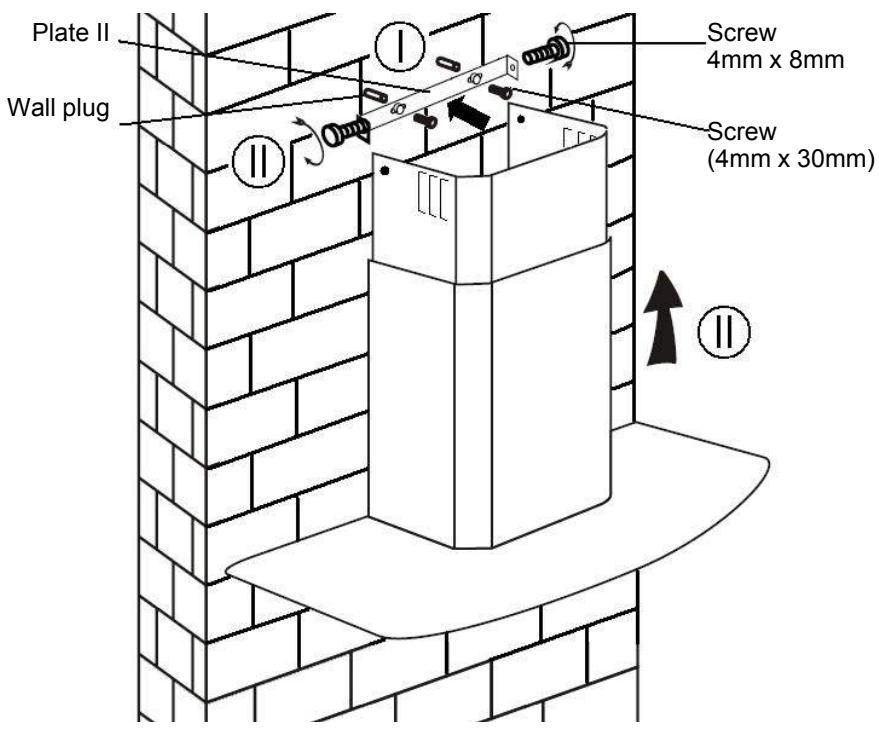

i. Drill 2 x 8mm holes to accommodate the plate. ii. Screw and tighten the plate onto the wall with 2 screws provided. iii. Assemble the chimney onto the unit and fix it with 2 screws.

Standard Installation Accessories List

Spec.	Illustration Picture	Qty
Air Deflector		1
Bracket		1
φ8 rawl plugsφ8×φ6 white color		2
ScrewsST4.0×30		2
ScrewsST3.5×12		2

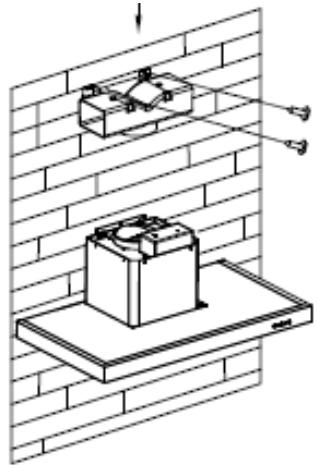

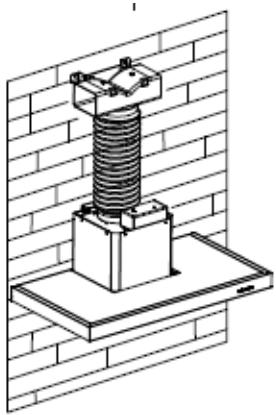

INSTALLATION (AIR DEFLECTOR FOR T-SHAPE, CURVED GLASS, FLAT GLASS MODELS):

Air deflector is mentioned as included and not optional.

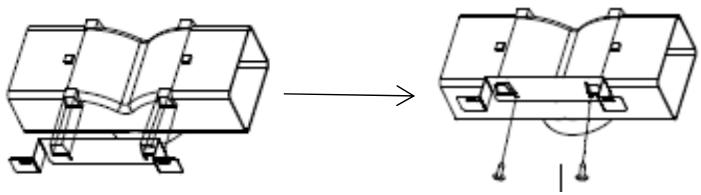

1. Before installation, curve both ends of the bracket as shown below:

1. Fix the bracket to the T-shaped plastic outlet with 2pcs ST3.5x12mm screws provided.

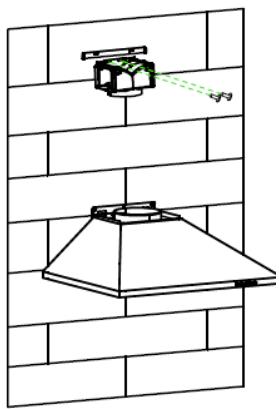

1. Drill 2 holes to accommodate the wall plugs, then screw and tighten the bracket onto the wall with 2pcs ST4x30mm screws provided.

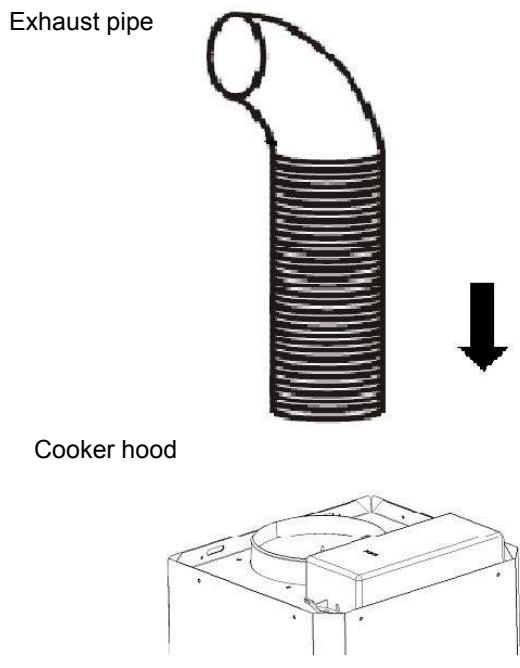

1. Attach the exhaust pipe onto the air outlet of the cooker hood as shown below:

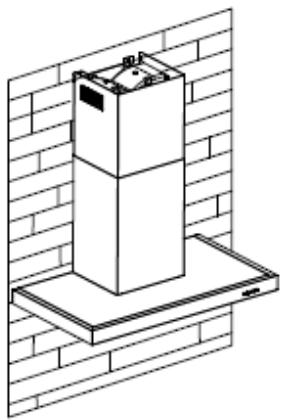

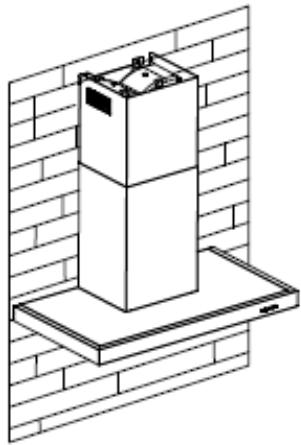

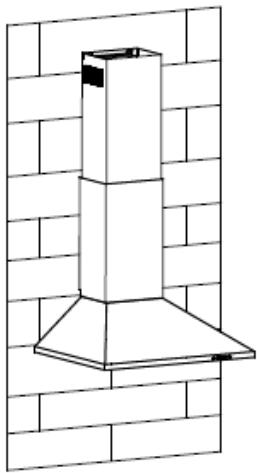

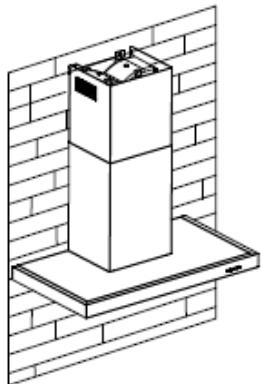

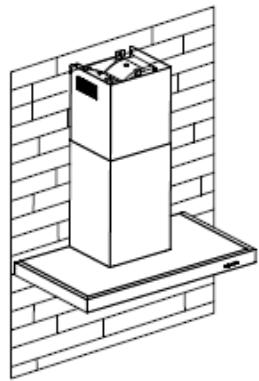

1. Install the chimney to the unit and fix it.

Please kindly be noted: T-shaped plastic outlet and v-flaps cannot be used at the same time. You can use them in two ways: 1) Add v-flap on existing outlet; 2) Use T-shaped plastic outlet, no add v-flap.

Note: The product is provided with v-flap accessory. This accessory is not mandatory for installation, operation and use of the product.

Standard Installation Accessories List

Spec.	Illustration Picture	Qty
Air Deflector		1
Bracket		1
φ8 rawl plugsφ8×φ6 white color		2
ScrewsST4.0×30		2
ScrewsST3.5×12		2

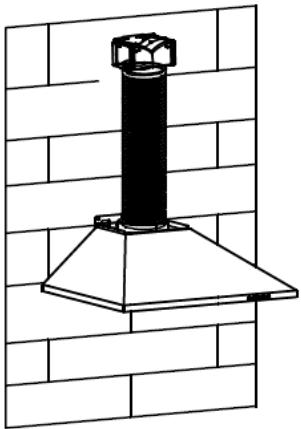

INSTALLATION (AIR DEFLECTOR FOR PYRAMID & SLANT MODELS):

Air deflector is mentioned as included and not optional.

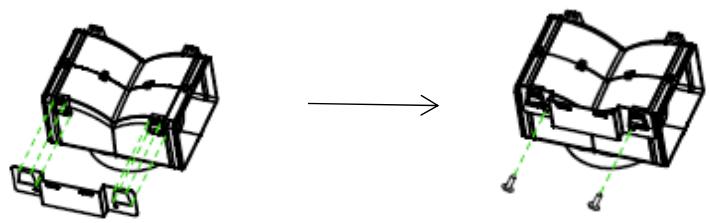

1. Fix the bracket to the T-shaped plastic outlet with 2pcs ST3.5x12mm screws provided as shown below:

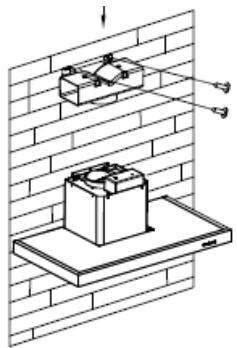

1. Drill 2 holes on the wall to accommodate the wall plugs, then screw and tighten the bracket onto the wall with 2pcs ST4x30mm screws provided.

1. Attach the exhaust pipe onto the air outlet of the cooker hood as shown below:

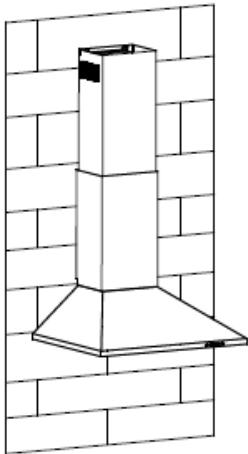

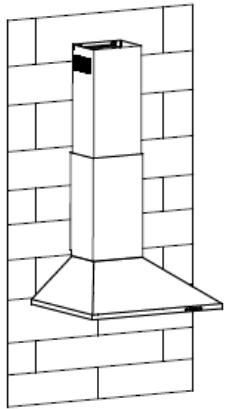

1. Install the chimney to the unit and fix it.

Please kindly note: the T-shaped plastic outlet and the v-flaps cannot be used at the same time. You can use them in two ways: 1) Add a v-flap on the existing outlet; 2) Use the T-shaped plastic outlet without adding a v-flap.

Note: The product is provided with a v-flap accessory. This accessory is not mandatory for installation, operation, and use of the product.

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, an exhaust pipe is not required, and the installation is similar to the one shown in the section "INSTALLATION (VENT

OUTSIDE)".

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Plug the activated carbon filter into the unit and turn it in a clockwise direction. Repeat the same on the other side.

NOTE:

Make sure the filter is securely locked. Otherwise, it could loosen and cause danger. When the activated carbon filter is attached, the suction power will be lower.

CONFIGURATION 1

1

2

3

OPERATION

Button 1

The button has an indicator backlight. When you press the button, the backlight turns on and the fan turns on at low speed. Pressing it again turns off the fan.

It is used for ventilation in the kitchen. It is suitable for simmering and cooking that do not produce much steam.

Button 2

The button has an indicator backlight. When you press the button, the backlight turns on and the fan turns on at medium speed. Pressing it again turns off the fan.

Airflow speed is ideal for ventilation during standard cooking operations.

Button 3

The button has an indicator backlight. When you press the button, the backlight turns on and the fan turns on at high speed. Pressing it again turns off the fan.

When high density of smoke or steam is produced, press the high-speed button for the most effective ventilation.

NOTE: If the Low / Medium / High speed buttons are pressed at the same time, the unit will only operate at the highest speed.

Light button

CONFIGURATION 2

0

1

2

3

OPERATION

Off button 0

It's used for turning off the fan.

Low Speed button 1

It's used for ventilation in the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button 2

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button 3

When high density of smoke or steam is produced, press the high-speed button for the highest effective ventilation.

NOTE: If Low / Medium / High speed buttons are pressed at the same time, the unit will only operate at the highest speed.

Light button

CONFIGURATION 3

① On/Off button

It's used for turning on/off the fan.

+ Speed plus button

For increasing the speed of the fan

- Speed decrease button

For decreasing the speed of the fan.

Light button

8 Digital display

Fan speed display: "1" for Low speed, "2" for Medium speed, "3" for High speed, "4" for Booster function.

Quick timer: Press + & - hold for 1 second, Digital display will flash & enter 5 minutes count down, after 5 minutes motor & light will turn off automatically & Buzzer sound for 1 second.

Booster function

This hood has a booster function. To activate the booster, press ☐ to speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again.

CONFIGURATION 4

Timer button

1. Setting the time of the day

When hood in standby mode (motor not working), press the timer button to enter the time setting.

Press the 'Fan speed' key to set the hour of the day and press the 'Light' key to set the minute.

1. Setting the Timer

When the hood is in operation mode, press the timer button to set the countdown.

Press the timer button once, and the countdown will increase by one minute. The maximum countdown is 60 minutes.

Speed decrease button

For decreasing the speed of the fan.

Speed plus button

For increasing the speed of the fan.

LIGHT Button

For turning the light ON & OFF.

LCD display

1. Motor symbol, will rotate when the motor is working;
2. Time display;
3. Timer symbol, will appear when timer is setting and counting;
4. Light symbol;
5. Motor speed;
6. Turbo speed symbol, will appear when the speed is set to the highest.
7. Alarm symbol, will appear for 5 seconds when the timer countdown is over.
8. Cleaning alarm, appears when total working time reaches 14 hours or at the first use after plugging in.

CONFIGURATION 5

STANDBY MODE.

After plugging in, all lighting and system are in STANDBY MODE.

1 Low Speed button

Used for ventilation in the kitchen. It is suitable for simmering and cooking that does not produce much steam.

2 Medium Speed button

Airflow speed is ideal for ventilation during standard cooking operations.

3 High Speed button

When high density of smoke or steam is produced, press the high-speed button for effective ventilation.

B Booster function

This hood has a booster function. To activate the booster, press B to speed 4, entering the highest speed while the hood is in use, and it will increase speed for 5 minutes before slowing down again.

Light

For lighting ON & OFF.

MAINTENANCE

Before cleaning, switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material, or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month to prevent any risk of fire.

The filter collects grease, smoke, and dust... so the filter directly affects the efficiency of the cooker hood. If not cleaned, the grease residue (potentially flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to units installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequently the cooker hood is used.

IV. Changing a Light Bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement; you will find it located in the light fixture which is inside the exposed section of the canopy.

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually; it will be necessary to obtain the bulbs, bulb holders, and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders, and wiring in the same manner as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROUBLESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

INSTALLATION AND USE MANUAL

AND USE

Table of Contents

INTRODUCTION 77

Installation (Evacuation) 81

Installation (Recycling) 92

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The cable must not be bent or compressed.

Hood

6.

On

NOTE:

For decreasing the speed of the fan.

Light button

8 Digital display

Fan speed display: "1" for Low speed, "2" for Medium speed, "3" for High speed, "4" for the Booster function.

Quick timer: Press + & - hold for 1 second, Digital display will flash & enter 5 minutes count down, after 5 minutes motor & light will turn off automatically & Buzzer sound for 1 second.

Booster function

Blue = N or Neutral

NOTE:

Cap

6.

NOTE:

CLOSE

For inclined panel model

Hood

6.

NOTE:

(Waste Electrical and Electronic Equipment - WEEE).

Hood

6.

NOTE:

Regulations concerning the discharge of air have to be fulfilled.

Screw (4mm x 30mm)

For models with inclined panel

1. Connect the exhaust pipe to the air outlet of the hood, as shown below:

NOTE:

Screw (4mmx30mm)

107.5mm

8.

List of standard installation accessories

Spec.	Imagine	Cant
deflector de aer		1
paranteză		1
Bolturi de φ8		2
Suruburi ST4.0×30		2
Suruburi ST3.5×12		2

INSTALLATION (AIR DEFLECTOR FOR T-SHAPE, CURVED GLASS, GLASS MODELS):

NOTE:

1. Before connecting the pipe, switch off the hood and unplug it from the socket.

1. The hood will be most effective if it is 65~75cm away from the cooking surface.

1. Drill 3 holes with a diameter of 8 mm for the bracket. Attach the bracket to the wall with the provided screws; tighten them well.

1. Hang the hood on the hooks on the bracket that you attached to the wall.

Kitchen hood

6.

i. Place the glass part on the kitchen hood in the correct position. ii. Secure it with 4 screws with washers. Do not overtighten the screws to avoid cracking the glass. i. Insert the inner chimney part into the outer chimney part. Then pull the inner part upward. Adjust the height.

1. Drill 2 holes for wall plugs, then screw and secure the bracket to the wall with the provided screws (2 pcs ST4x30mm).

1. Install the chimney on the unit and secure it.

2. Mark 2 holes on the wall to install wall plugs, then screw and secure the bracket to the wall with the provided screws (2 pcs ST4x30mm).

1. Install the chimney on the unit and secure it.

In this case, insert the activated carbon filter into the hood to retain odors. First, remove the grease filter, then insert the carbon filter. Push the latch and pull the grease filter downward.

Push the activated carbon filter into the hood and turn it clockwise. Repeat the procedure on the other side of the hood.

(SECURING)

NOTE:

Disconnect the bulb wire and disconnect the bulb holder and wire from the hood. Important: It is not possible to replace only the bulb; you need a kit – bulb, holder, and wire. (LED light: G4, MAX 1.5W)

Attach the new bulb with holder and wire as the burned-out bulb was attached. Then reconnect the wire.

Reinstall the glass and tighten the screws. Make sure they are fully tightened.

TROUBLESHOOTING

6.

5. Install the chimney to the unit and secure it.

NOTE:

INSTALLATION (EXTERNAL VENTILATION) 307

INSTALLATION (INTERNAL VENTILATION) 318

DESCRIPTION OF COMPONENTS 319

OPERATION 319

MAINTENANCE 324

TROUBLESHOOTING 325

COMPLIANCE WITH DIRECTIVES 325

ENVIRONMENTAL PROTECTION 325

Blue = N or Neutral

Extractor hood

6.

INSTALLATION (INTERNAL VENTILATION)

NOTE:

Cooker flue

.6

Note:

6.

NOTE:
