Product type	Kitchen hood
Brand	FRANKE
Model	COUNTRY LONDRA FCL 602
Dimensions (width)	Available in 60 cm, 90 cm and 120 cm
Minimum safety distance	650 mm above the cooking surface
Air outlet diameter	120 mm (reducible to 150 mm)
Supply voltage	Corresponds to the rating plate (220-240 V)
Number of speeds	3 (minimum, medium, maximum)
Lighting	2 incandescent bulbs of 40 W
Grease filter type	Metallic, dishwasher safe
Anti-odor filter (activated carbon)	Yes, not washable, to be replaced every 4 months
Surface cleaning	Damp cloth and neutral liquid detergent
Material	Stainless steel
Use	Domestic
Installation	Wall-mounted, extractor or filter version
Electrical connection	Connection with bipolar switch (contact opening ≥ 3 mm)
Earthing	Mandatory (class I)
Spare parts available	Grease filters, charcoal filters, bulbs

Frequently Asked Questions - COUNTRY LONDRA FCL 602 FRANKE

How to install the COUNTRY LONDRA FCL 602 hood?

Follow the drilling and fixing instructions provided. Draw a vertical line at the center of the area, a horizontal line at least 650 mm above the cooking surface. Mark the drilling points according to the width of the hood (X mm). Drill, insert dowels and fix the brackets. Hang the hood body, then mount the chimney and fix it with the screws provided.

What is the minimum distance between the hood and the cooking surface?

The minimum safety distance between the cooking surface and the hood is 650 mm.

How to clean the metallic grease filters?

The metallic grease filters are dishwasher safe. Remove them by pushing backward and pulling downward. Wash them approximately every 2 months without bending. Let them dry before reassembling, handle visible.

When and how to replace the activated carbon filter?

The activated carbon filter is not washable. It must be replaced at least every 4 months, or more often in case of intensive use. Remove the metallic filters, then the saturated carbon filters by unclipping (A). Mount the new ones (B) and reassemble the metallic filters.

How to replace a hood bulb?

Unplug the hood. Remove the metallic grease filters. Unscrew the 40 W incandescent bulbs and replace them with identical bulbs. Reassemble the filters.

The hood is noisy, what to do?

Check that the filters are clean and properly installed. Make sure the air outlet is not obstructed. If the noise persists, contact after-sales service.

Why is the hood not suctioning well?

Check that the grease filters are not clogged. Clean them or replace the carbon filters if necessary. Ensure that the distance to the cooking surface is correct and that the air outlet is not blocked.

How to install the hood in recirculation (filter) version?

For the filter version, drill a 125 mm hole in the shelf above the hood. Insert the reduction flange on the outlet, connect a 120 mm hose to the hole. Fix the oriented grid on the recirculated air outlet. Make sure the activated carbon filters are in place.

Can I use the hood with a gas hob?

Yes, but ensure the room has sufficient ventilation. Never leave intense open flames under the hood. Adjust the flames to avoid any lateral overflow.

Where to find spare parts for the COUNTRY LONDRA FCL 602 hood?

Spare parts (filters, bulbs) are available from Franke authorized dealers or online. Use the references indicated in the manual.

USER MANUAL COUNTRY LONDRA FCL 602 FRANKE

Instructions Manual INDEX

RECOMMENDATIONS AND SUGGESTIONS 14
CHARACTERISTICS 15
INSTALLATION 16
USE 19
MAINTENANCE 20

Manuel d'Instructions SOMMAIRE

CONSEILS ET SUGGESTIONS 21
CHARACTERISTIQUES 22
INSTALLATION 23
UTILISATION 26
ENTRETIEN 27

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

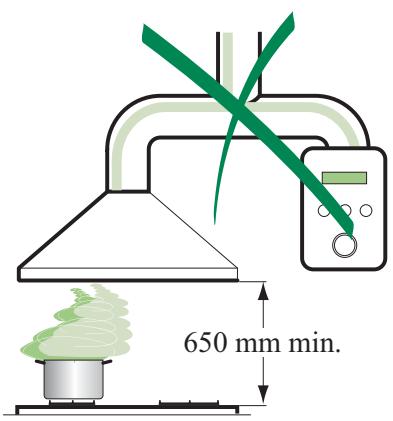

• The minimum safety distance between the cooker top and the extractor hood is 650~mm .

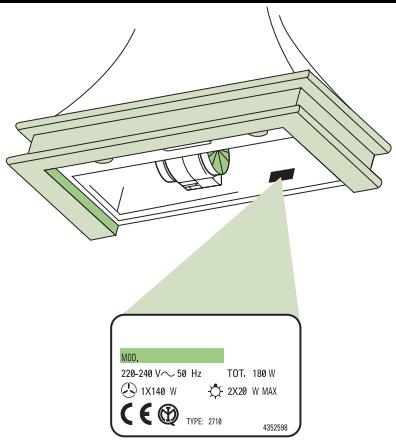

• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm . The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.

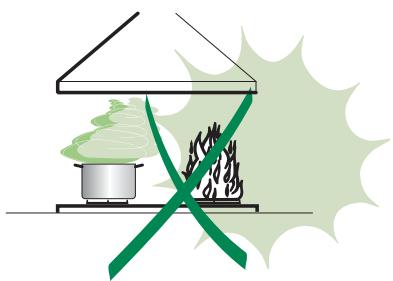

• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• The hood should not be used by children or persons not instructed in its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.

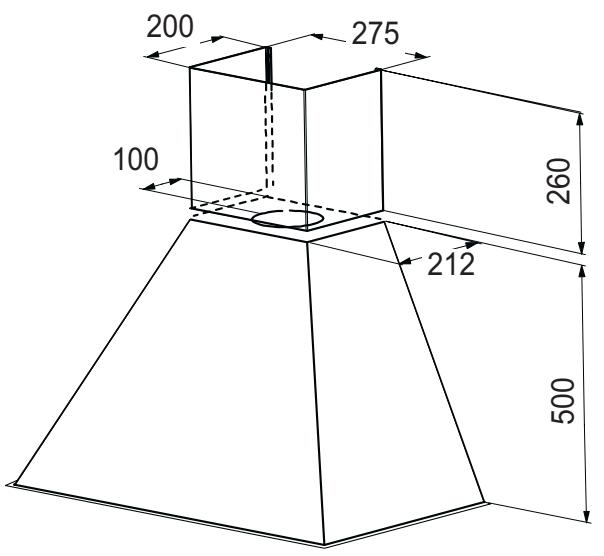

Dimensions

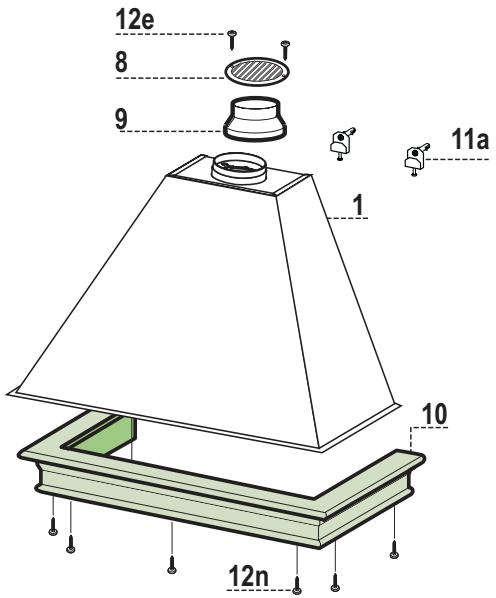

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2	1	Chimney
8	1	Air Outlet Grill
9	1	Reducer Flange ø 150-120 mm

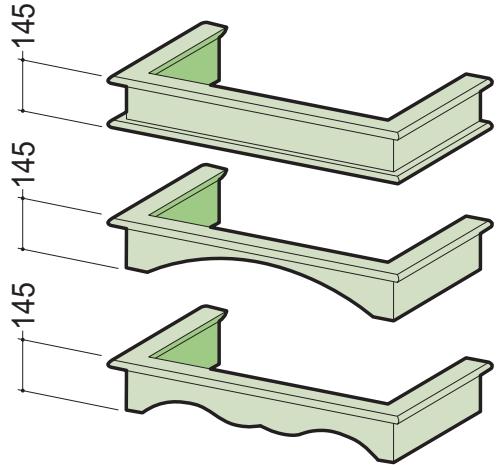

10	1	Shelf Frame (optional)
20	1	Wooden Profile (optional)

Ref. Q.ty Installation Components
7.2 1 Chimney Fixing Brackets
11 2 Wall Plugs
11a 2 Wall Plugs SB 12/10
12a 2 Screws 4,2× 44,4
12e 2 Screws 2,9× 12,7
12m 6 Screws 2,9× 18
12n 7 Screws 3,5× 16

Q.ty Documentation

1 Instruction Manual

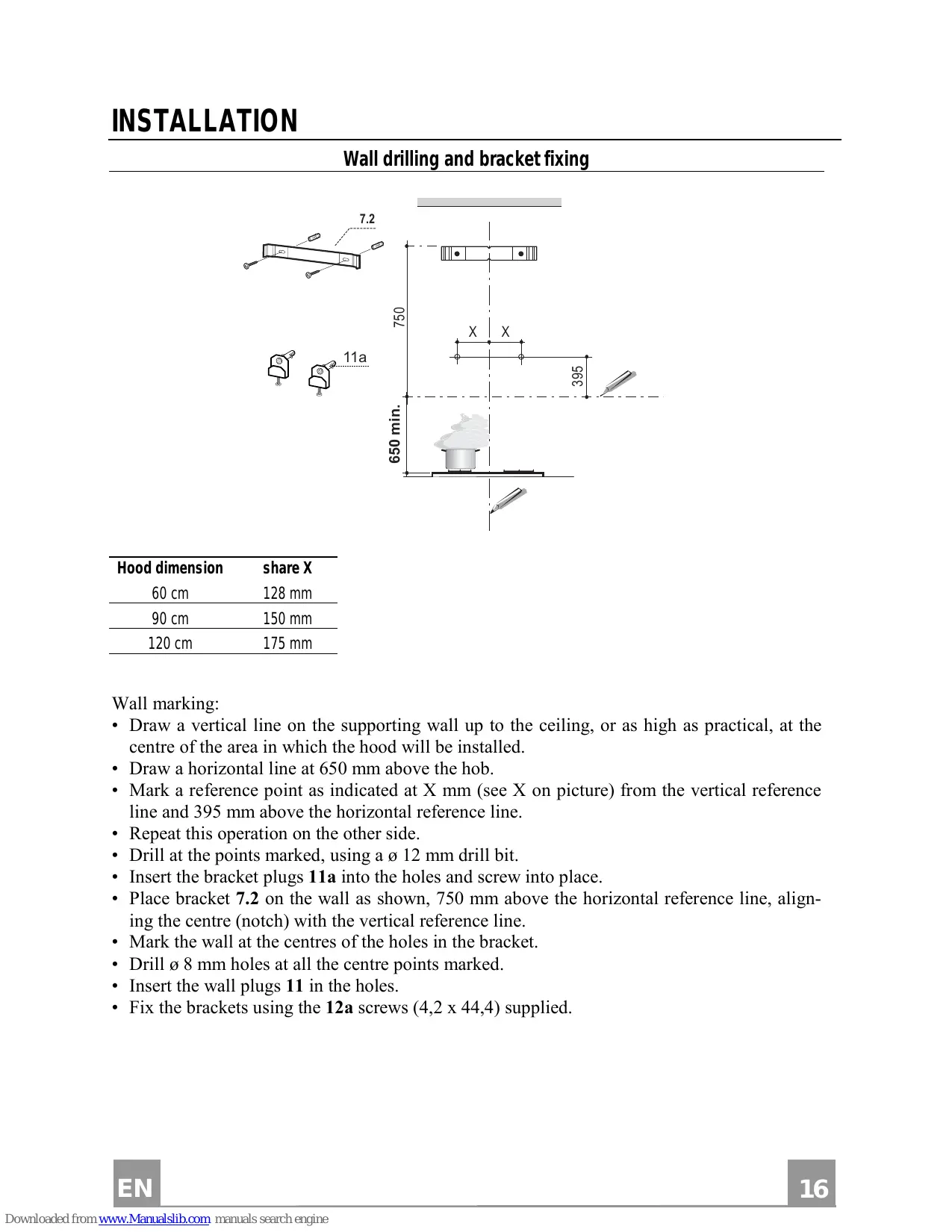

Wall drilling and bracket fixing

Hood dimension	share X
60 cm	128 mm
90 cm	150 mm
120 cm	175 mm

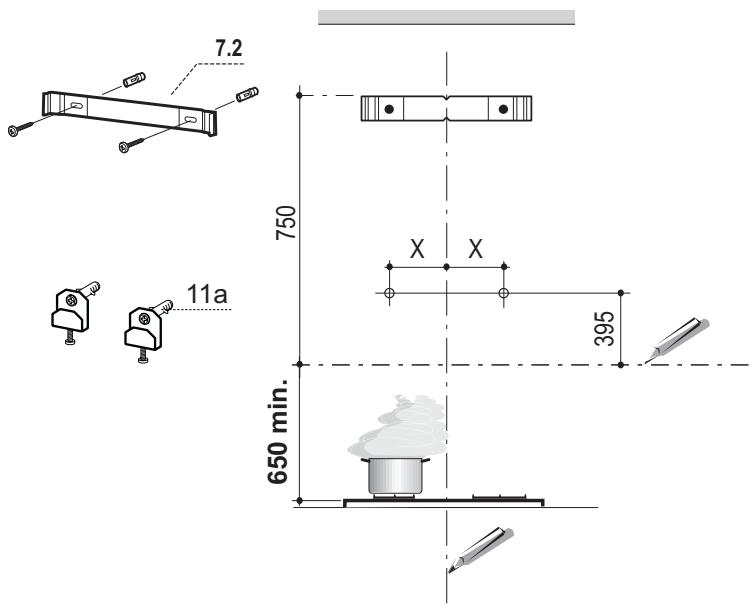

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650mm above the hob.
• Mark a reference point as indicated at X mm (see X on picture) from the vertical reference line and 395 mm above the horizontal reference line.
• Repeat this operation on the other side.
• Drill at the points marked, using a 12mm drill bit.
• Insert the bracket plugs 11a into the holes and screw into place.
• Place bracket 7.2 on the wall as shown, 750 mm above the horizontal reference line, aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Drill 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
  Fix the brackets using the 12a screws (4,2 x 44,4) supplied.

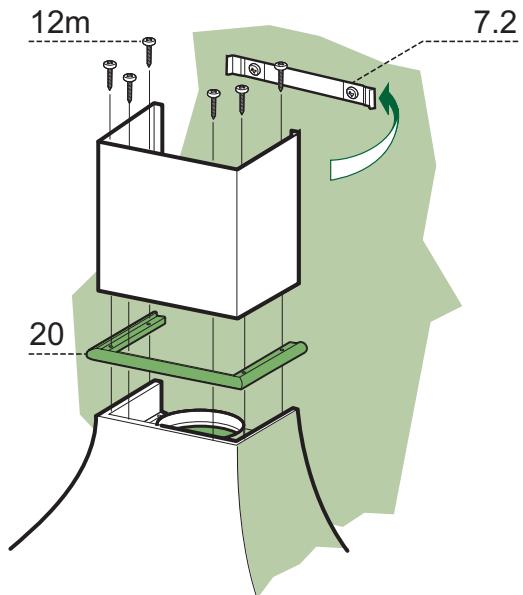

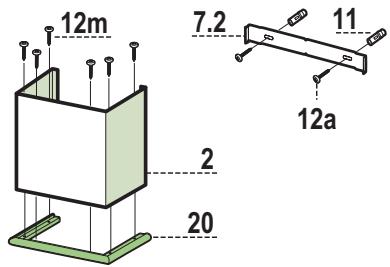

Flue assembly

• Slightly widen the two sides of the flue and hook them behind the bracket 7.2, making sure that they are well seated.
• Insert the wooden profile 20 between the hood body and the flue.
  Fix the lower section of the flue and the cable raceway to the hood body from above, using the 6 screws 12m (2.9 x 18) provided.

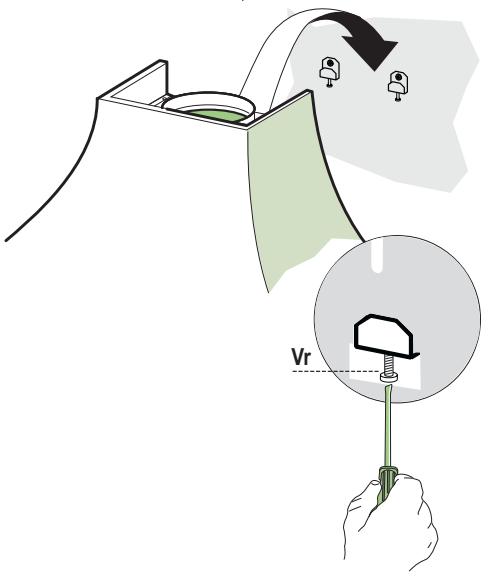

Mounting the hood body

• Adjust the two screws Vr , on brackets 11a, to a minimum.
• Hook the hood canopy onto the two brackets 11a.
• Remove the metal grease filters by turning the handles provided.
• From inside the hood canopy, adjust the screws Vr to set the Hood Canopy level.

Connections

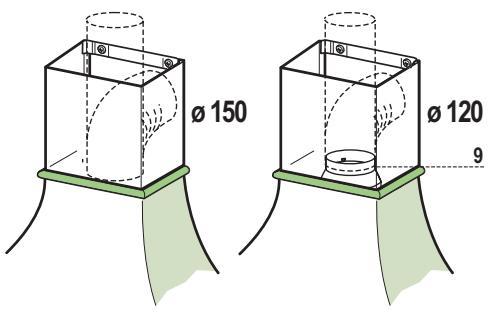

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120mm , the choice of which is left to the installer.

• To install a 0.120 ~mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
  Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

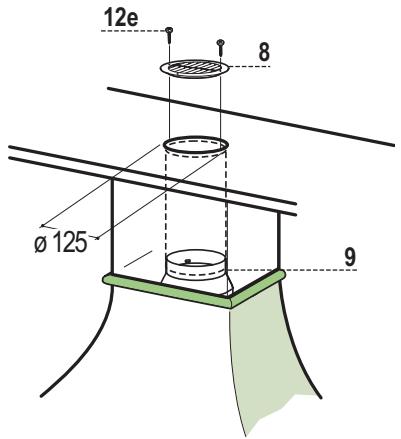

RECIRCULATION VERSION AIR OUTLET

• Cut a hole 125 mm in any shelf that may be positioned over the hood.
• Insert the reducer flange 9 on the hood body outlet.
• Connect the flange to the outlet on the shelf over the hood using a flexible or rigid pipe 120mm .
  Fix the pipe in position using sufficient pipe clamps (not supplied).
  Fix the directional grille 8 on the recirculation air outlet using the 2 screws 12e (2,9 x 9,5) provided.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .

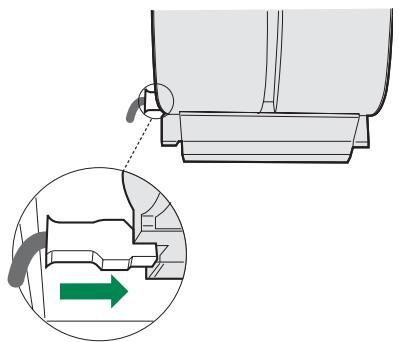

• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

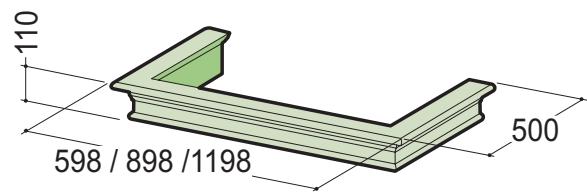

Fitting Shelf frame

• Rest the shelf frame 10 (optional) over the bottom edge of the hood body, aligning the fixing holes.
  Fix from below using the 4 screws 12n (3.5× 16) provided..

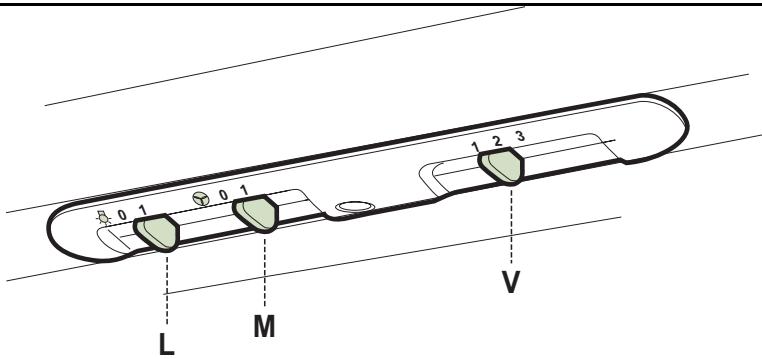

L Light Switches the lighting system on and off
M Motor Switches the extractor motor on and off
V Speed Sets the operating speed of the extractor:

1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.
2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.
3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Activated charcoal filter (Recirculation version)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

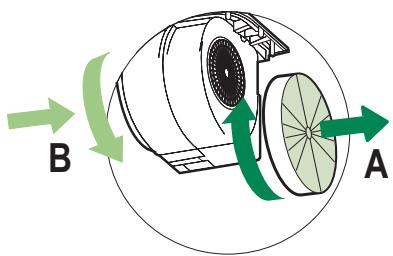

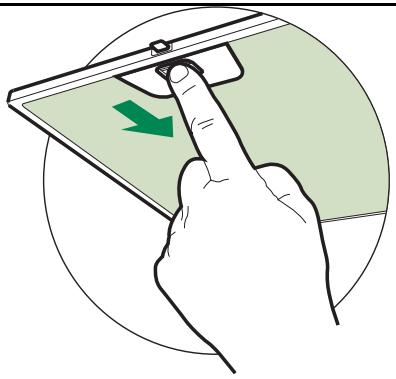

REPLACING THE ACTIVATED CHARCOAL FILTER

• Remove the metal grease filters
• Remove the saturated activated charcoal filter as shown (A).
• Fit the new filters (B).
• Replace the metal grease filters.

Lighting

LIGHT REPLACEMENT

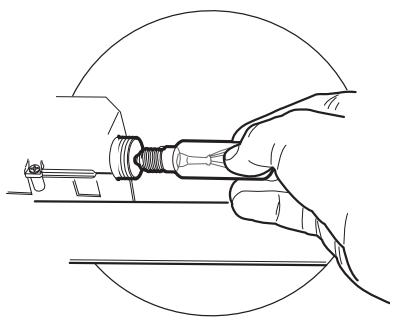

40 W incandescent light.

• Remove the metal grease filters.
• Unscrew the bulbs and replace them with new ones having the same characteristics
• Replace the metal grease filters.

INSTALLATION

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
