USER MANUAL WAKE ELICA

EN FRONT LOAD WASHER

FR LAVEUSE Á CHARGEMENT FRONTAL

ES LAVADORA DE CARGA FRONTAL

USE & CARE GUIDE

GUIDE D'UTILISATION ET D'ENTRETIEN

GUÍA DE USO Y CUIDADO

Electrolux

Electrolux

WARNING

Please read all instructions before using this washer.

Recognize safety symbols, words and labels

Safety items throughout this manual are labeled with a WARNING or CAUTION based on the risk type as described below:

Definitions

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

IMPORTANT indicates installation, operation or maintenance information which is important but not hazard-related.

TABLE OF CONTENTS

Important Safety Instructions....2

Features 5

Operating Instructions 6

Stain Removal Guide....16

Care and Cleaning....18

Solutions to Common Problems 23

Major Appliance Warranty Information....27

Français....29

Español 57

Product Record

Record Your Model and Serial Numbers

The model and serial numbers of your washer are found on the serial plate located inside the door opening. Record and retain these numbers.

Model Number

Serial Number

Purchase Date

Read all instructions before using this appliance. This book contains valuable information about:

• Operation
• Care
• Service

Keep it in a safe place.

This Use and Care Guide provides general operating instructions for your washer. It also contains information about features for several other models. Your washer may not have every feature included.

Use the washer only as instructed in this Use & Care Guide.

NOTE

The instructions appearing in this Use and Care Guide are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

WARNING

To reduce the risk of fire, electrical shock, or injury to persons when using this washer, comply with the basic warnings listed below. Failure to comply with these warnings could result in serious personal injuries.

You can be killed or seriously injured if you don't follow these Important Safety Instructions:

PREVENT FIRE

• Do not wash items that have been previously cleaned in, soaked in, or spotted with gasoline, cleaning solvents, kerosene, cooking oils, waxes, etc. Do not store these items on or near the washer. These substances give off vapors or chemical reactions that could ignite or explode.
• Do not put oily or greasy rags or clothing on top of the washer. These substances give off vapors that could ignite the materials.
• Do not add gasoline, cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.
• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the washer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. Hydrogen gas is flammable; do not smoke or use an open flame during this time.
• Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
• Failure to comply with these warnings could result in fire, explosion, serious bodily injury and/or damage to the rubber or plastic parts of the washer.
• Do not continue to use the washer if you hear squeaking, grinding, rubbing or other unusual noises. This could be a sign of mechanical breakdown and lead to fire or serious injury. Contact a qualified technician immediately.

PROTECT CHILDREN

• Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. As children grow, teach them the proper, safe use of all appliances.
• Destroy the carton, plastic bag and other packing materials after the washer is unpacked. Children might use them for play. Cartons covered with rugs, bedspreads or plastic sheets can become airtight chambers.
• Keep laundry products out of children's reach. To prevent personal injury, observe all warnings on product labels.
• Before the washer is removed from service or discarded, remove the washer door to prevent accidental entrapment.
• Failure to comply with these warnings could result in serious personal injuries.

PREVENT INJURY

• To prevent shock hazard and assure stability during operation, the washer must be installed and electrically grounded by a qualified service person in accordance with local codes. Installation instructions are packed in the washer for installer's reference. Refer to INSTALLATION INSTRUCTIONS for detailed grounding procedures. If the washer is moved to a new location, have it checked and reinstalled by a qualified service person.
• To prevent personal injury or damage to the washer, the electrical power cord must be plugged into a properly grounded and polarized 3-prong outlet. The third grounding prong must never be removed. Never ground the washer to a gas pipe. Do not use an extension cord or an adaptor plug.
• Follow package directions when using laundry products. Incorrect usage can produce poisonous gas - resulting in serious injury or death.
• Do not combine laundry products for use in same load unless specified on the label.
• Do not mix chlorine bleach with ammonia or acids such as vinegar.

WARNING

FIRE/ELECTRICAL SHOCK HAZARD

Avoid fire hazard or electrical shock. Do not use an adaptor plug or extension cord or remove grounding prong from electrical power cord. Failure to follow this warning can cause serious injury, fire or death.

Grounding type wall receptacle

Do not, under any circumstances, cut, remove, or bypass the grounding prong. Power cord with 3-prong grounded plug

PREVENT INJURY AND DAMAGE TO THE APPLIANCE

To prevent serious personal injury and damage to the washer:

• All repairs and servicing must be performed by an authorized servicer unless specifically recommended in this Use & Care Guide. Use only authorized factory parts.
• Do not tamper with controls.
• Do not install or store the washer where it will be exposed to the weather.
• Do not install on carpet. Install washer on a solid floor. It may be necessary to reinforce the floor to prevent vibration or movement.
• Do not sit on, step on or stand on the washer. Do not rest heavy loads on top. The washer is not meant to support weight.
• To reduce the risk of electric shock, disconnect this appliance from the power supply before attempting any user maintenance. Canceling a cycle or turning the power off at the console does not disconnect this appliance from the power supply.
• To prevent injury, do not reach into the washer while parts are moving. Before loading, unloading or adding items, press POWER button to stop the cycle. Allow the wash tub to coast to a complete stop before reaching inside.
• This washer is equipped with an electrical overload protector. The washer motor will stop if it becomes overheated.
• Failure to comply with these warnings could result in serious personal injuries.

WARNING

HARMFUL VAPOR HAZARD

Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.

No Meat Meat

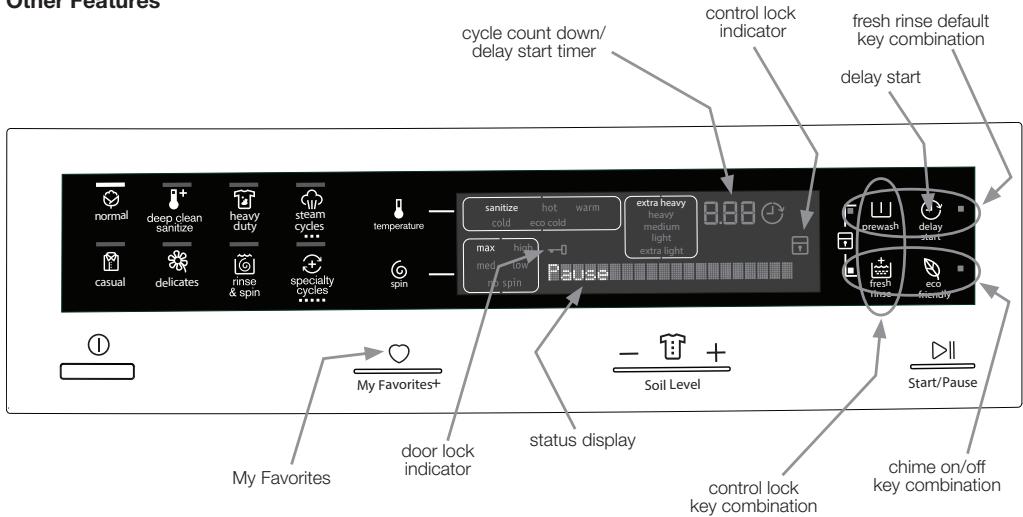

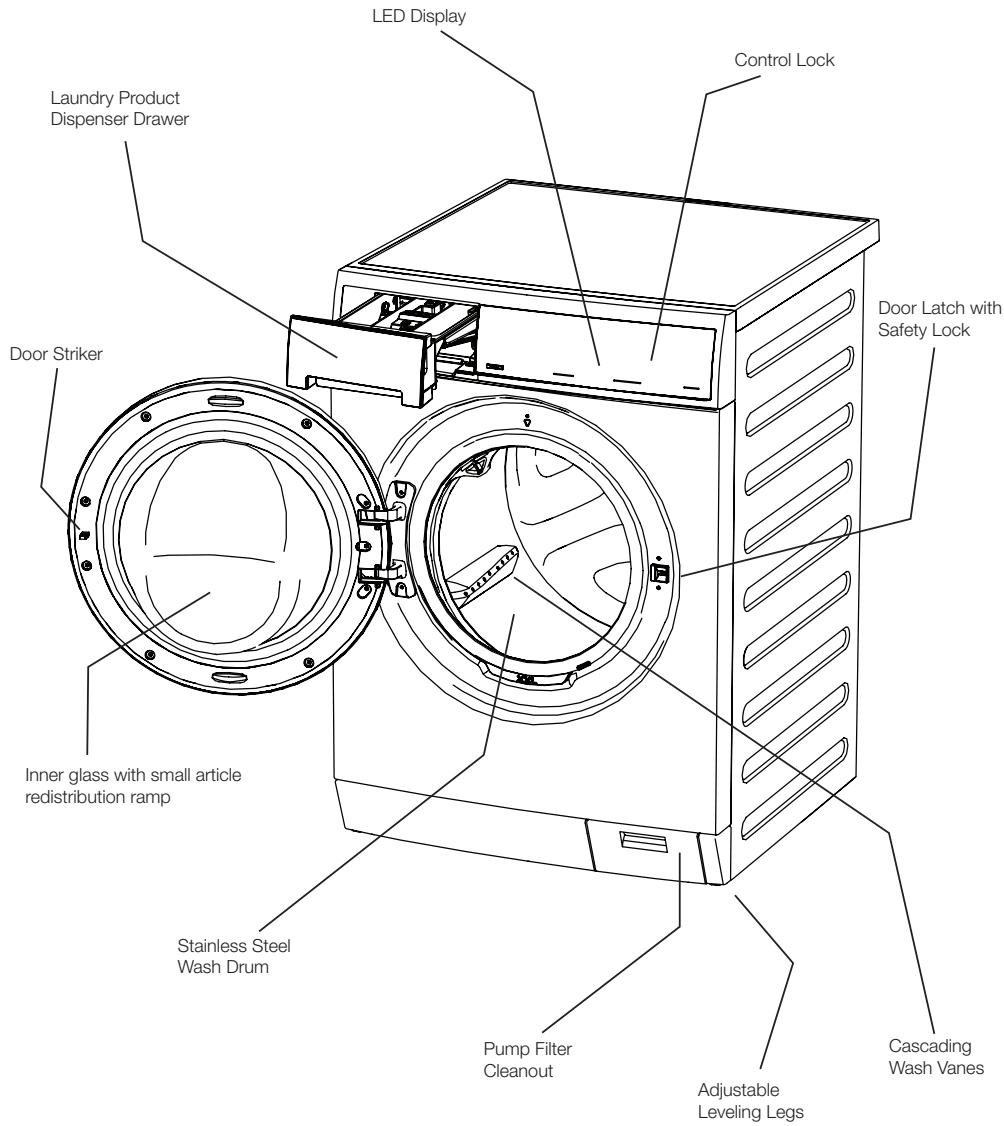

LED Display Control Lock Laundry Product Dispenser Drawer Door Striker Door Latch with Safety Lock Inner glass with small article redistribution ramp Stainless Steel Wash Drum Pump Filter Cleanout Adjustable Leveling Legs Cascading Wash Vanes

ENERGY STAR

As an ENERGY STAR® Partner, Electrolux Major Appliances has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

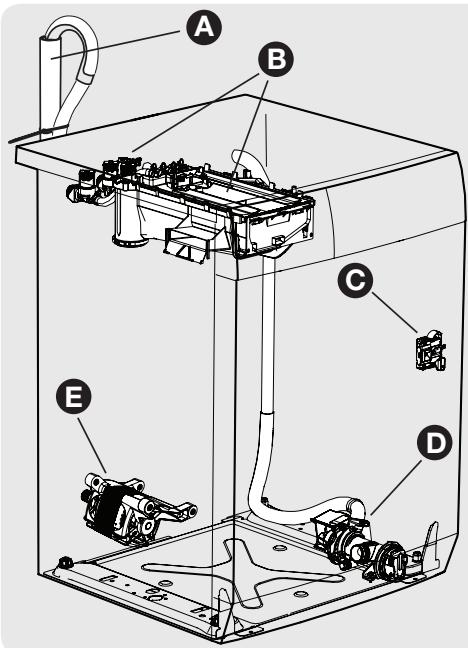

Normal Operating Sounds

You may or may not hear the following sounds from your new washer:

A. DRAIN HOSE The washer has a flexible drain hose to carry water from the washer to the stand pipe of your home. You will hear water flowing into your stand pipe. This is a normal part of the operation of the washer.
B. WATER VALVES/DISPENSER As water enters the dispenser system, it is common to hear a water flowing sound. This normal sound will vary slightly based on the water pressure in your home.
C. DOOR LOCK Your washer is equipped with a door lock with an electric solenoid. There will be a clicking sound as the washer door is being locked or unlocked.
D. DRAIN PUMP Your washer is equipped with a high velocity drain pump. It is normal to hear humming and gurgling sounds as water is pumped from the washer. Both of these sounds are normal and indicate that your pump is functioning correctly.
E. HIGH SPEED MOTOR A powerful motor is used to drive the drum to high spin speeds to extract water from your load. You will hear a sound associated with these higher spin speeds. This sound is normal and will vary slightly as the spin speed varies with load size and cycle selected.

Technical diagram of a mechanical device with labeled components A, B, C, D, and E

CAUTION

Abnormal, on-going sounds may be an indication of a pending washer failure and should be investigated by a qualified technician.

Operating Your Washer

WARNING

To reduce the risk of fire, electric shock or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS in this Use and Care Guide before operating your washer.

1 Sort laundry into loads that can be washed together.

Illustration of four food containers with different fillings, no text or symbols present

• Sort items by recommended cycle and water temperature.
• Separate white, light and colorfast items from dark and non-colorfast items.
• Separate items that shed lint from items that attract lint. Casual, synthetic, knit, and corduroy items will pick up lint from towels, rugs, and chenille bedspreads.
• Separate heavily soiled items from lightly soiled items.
• Separate lacy, sheer, loosely knit, or delicate items from durable items.
• Do not machine wash items containing fiberglass. Small particles of fiberglass left in the drum may transfer to fabrics in other loads and cause skin irritation.

2 Prepare items for washing.

- Empty pockets.

Illustration of a table with a pair of shoes, no text or symbols present

• Brush off lint and dirt. Shake out rugs and beach towels.
• Close zippers, fasten hooks, tie strings and sashes, and remove non-washable trims and ornaments.
• Mend rips and tears to prevent further damage during washing.
• Turn knit items inside out to prevent pilling.
• Place delicate and small items such as bras, hosiery and baby socks in a mesh bag.

Simple line drawing of a folded paper or plastic sheet with a diamond pattern on the front panel (no text or symbols)

(Mesh bag not included.)

3 Pretreat stains and heavy soil.

• See Stain Removal Guide in this guide for safe,

successful stain removal instructions.

Line drawing of a hand cleaning a cloth with a spray bottle (no text or symbols)

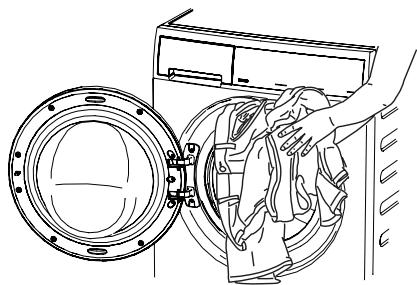

4 Add laundry load to washer.

Line drawing of a hand cleaning a washing machine with a large door open (no text or symbols)

• Combine large and small items in a load.
• Load large items first. Large items should not be more than half the total wash load.

Line drawing of a person inside a circular mechanical component with a cross mark, no text or symbols present

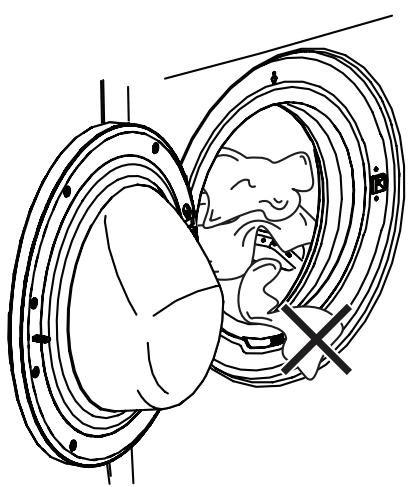

IMPORTANT

Make sure that no items stay between the seal and the door. There is a risk of water leakage or damage to the load.

• Washing single items such as a sweater, towel or jeans is inefficient and may cause an out-of-balance load. Add 1 or 2 similar items to help balance the load.
• The washer can be fully loaded, but the items should not be tightly packed. The door should close easily.

Operating Your Washer, continued

5 Add laundry products to the dispenser.

For best results

Use a low-sudsing, high efficiency detergent to prevent oversudsing in front load washers. Look for this symbol on the detergent label:

Detergent, liquid chlorine bleach and liquid fabric softener will be dispensed at the proper times in the cycle.

IMPORTANT

Open and close the dispenser drawer slowly. Closing the drawer too quickly could result in early dispensing of the bleach or fabric softener.

Mainwash

Use the cap or scoop provided by the detergent manufacturer to measure the amount recommended. Detergent dosage may need to be adjusted for water temperature, water hardness, load size and soil level.

IMPORTANT

Do not mix liquids and powders.

Mainwash - Liquid Detergent

• Ensure the flap in the downward position.
• Add the recommended amount of liquid detergent to the "Main Wash" compartment.

NOTE

From time to time you may see water in the main wash (liquid) chamber. This is part of the normal operation of the washer.

Mainwash - Powder Detergent

• Ensure the flap in the upward position.
• Add the recommended amount of high-efficiency powder detergent to the “Main Wash” detergent chamber.

Technical line drawing of a mechanical assembly with motion lines (no text or symbols)

Diagram of a mechanical assembly with an arrow indicating direction (no text or symbols)

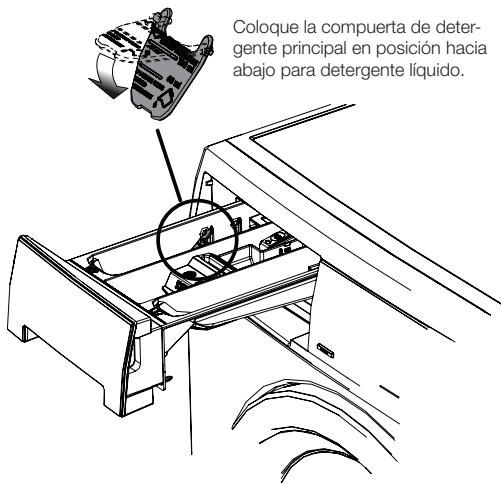

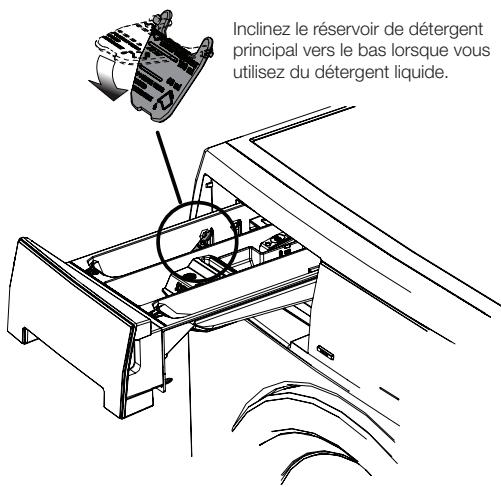

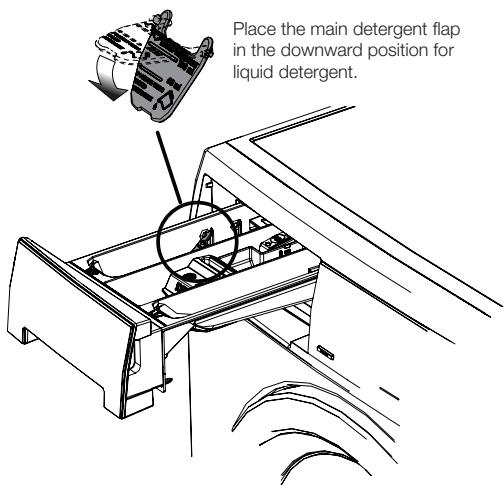

Place the main detergent flap in the downward position for liquid detergent.

Place the main detergent flap in the upward position for powder detergent.

Place the main detergent flap in the downward position for liquid detergent.

Place the main detergent flap in the upward position for powder detergent.

Operating Your Washer, continued

Other Wash Products

Color-safe bleach, water conditioner, detergent booster and enzyme products may be added with the detergent. Put liquid products with liquid detergent in the mainwash (liquid) chamber or powder products with powder detergent in the mainwash (powder) chamber.

IMPORTANT

Do not mix liquids and powders.

IMPORTANT

Use of multi-product (detergent plus softener) sheets or color-absorbing sheets NOT recommended. They could disable your machine and result in unwarranted repair costs.

NOTE

From time to time you may see water in the liquid bleach and fabric softener chambers. This is part of the normal operation of the washer.

Prewash

- For heavily soiled or stained loads, select the prewash option and add the recommended amount of detergent to the "Pre-Wash" detergent compartment.

Liquid Chlorine Bleach

• If desired, add liquid chlorine bleach to the chamber.
• DO NOT fill above the maximum fill line.
• Add color-safe bleach with the detergent.

IMPORTANT

To prevent fabric damage, do not overfill the "Liquid Bleach" chamber or pour liquid chlorine bleach directly onto the load.

Liquid Fabric Softener

• If desired, pour the recommended amount of liquid fabric softener into the chamber marked with this symbol ⚙.
• Fill to the MAX line for large loads.
• DO NOT fill above the maximum fill line.
• Use of a fabric softener-dispensing ball is not recommended in tumble action washers.

NOTE

To prevent staining, do not overfill the fabric softener chamber or pour liquid fabric softener directly on the wash load.

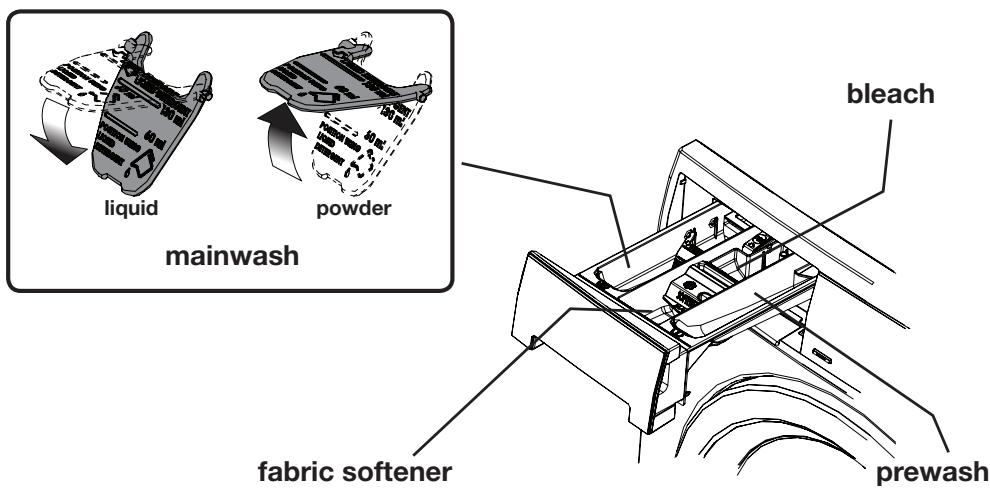

liquid powder mainwash bleach fabric softener prewash

Operating Your Washer, continued

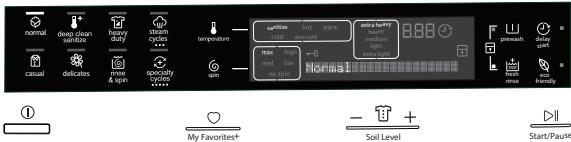

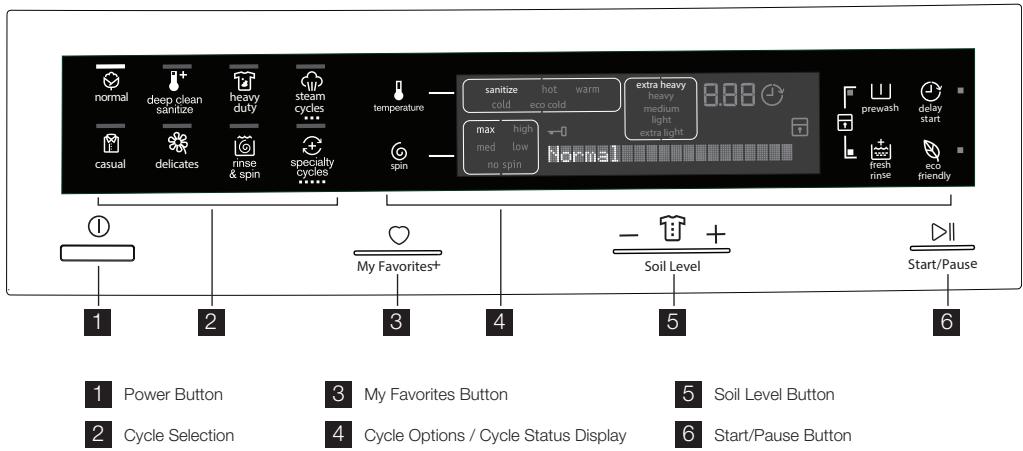

6 Select the appropriate cycle and settings for the load.

• Press the Power button to turn on the unit.
• Select a desired cycle by pressing its icon.
• The estimated cycle time, rinse water temperatures, final spin speed, and soil level for each cycle will be indicated for the cycle selected. See the “Washer Settings Chart” for more details.
• To change the settings, press the temperature, spin speed and soil level icons to scroll to the desired settings.
• To select or delete an option, press the icon for that option. The indicator will be illuminated when the option has been selected. The indicator will no longer be lighted when the option has been deleted.

NOTE

To provide the best care for your laundry, not every setting or option is available with every cycle. If a setting or option is not available for the cycle selected, the indicator will not light.

7 Start the washer.

• Close the door and press Start. The washer will not operate with the door open. "Check the door" will be displayed as a reminder to close the door.
• Select delay start to delay the beginning of the cycle, if desired.
• As a safety measure, the door will automatically lock during the entire wash cycle and the door lock indicator will be lighted.

• To add a forgotten item to the wash drum, press Pause and open the door. "Pause" will be displayed along with the estimated remaining cycle time. Add the item, close the door and press Start to resume the cycle.

• If changes to the settings or options are attempted after the cycle starts, you will hear several beeps when the buttons are pressed. To change the settings or options, press Pause, make the new selections and press Start again.

• To change the cycle once the cycle has begun, press the Power button to cancel the current cycle, press the Power button to turn on unit again, select a new cycle, and press Start again. Just pressing another cycle icon will not change the cycle.
• To stop the cycle, press the Power button.
• A signal will sound at the end of the cycle if the chime option has been selected.
• Remove items from the washer when the cycle ends and place in dryer, line dry or dry flat as directed on the fabric care label.

For best results

Follow the fabric care label instructions on items to be dried.

拉伸缩进

- Excess wrinkling, color transfer or odors may develop in items left in the washer after the cycle has ended, if not removed promptly.

CAUTION

ENTRAPMENT and TIP-OVER HAZARD

Do not leave the door open if there are small children or pets present. An open door could entice children to hang on the door or crawl inside the washer. If there are no small children present, you may leave the door ajar to prevent odor build up.

normal deep clean sanitize heavy duty steam cycles ... temperature sanitize hot warm cold eco cold extra heavy heavy medium light max high med low Normal extra light casual delicates rinse & spin specialty cycles ... spin - My Favorites+ - Soil Level Start/Pause 1 2 3 4 5 6 1 Power Button 2 Cycle Selection 3 My Favorites Button 4 Cycle Options / Cycle Status Display 5 Soil Level Button 6 Start/Pause Button

This manual covers many models and not all cycles, options, or features listed are available on every model. Console shown above for reference only. Your model may differ.

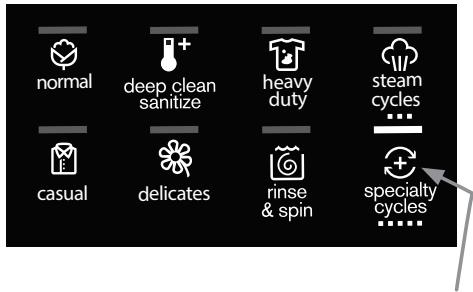

Cycle Selection

Press the Power button to turn on the unit. Press the icon for the cycle desired and the indicator for that cycle will be illuminated.

To change the cycle once the cycle has begun, press the Power button to cancel the current cycle, press the Power button to turn on unit again, select a new cycle, and press Start again. Just pressing another cycle icon will not change the cycle.

For best results

Follow the fabric care label instructions on items to be washed.

normal

Use this load for cotton, linen, towels, shirts, sheets, denims and mixed loads.

deep clean sanitize

Use the deep clean sanitize cycle to clean and sanitize heavily soiled, colorfast fabrics including towels, bedding, and children's clothing.

It is recommended that you set your water heater to 120^ F ( 49^ C) or higher to ensure proper performance during this cycle. If the setting is lower or the load is extra large, the cycle time will be extended by 30 minutes or more.

The sanitize cycle will kill 99.9% of bacteria with no carryover of bacteria between loads. No bleach or harsh chemicals are needed, but higher temperatures are required. Please check fabric care labels to prevent damage.

NOTE

Only sanitizing cycles have been designed to meet the requirements of NSF P172 protocol for sanitization efficacy.

NSF®

NSF Protocol P172

Sanitization Performance of Residential and Commercial, Family-Sized Clothes Washers

The wash water is heated by an internal boost heater as the load tumbles. Cold water is added to cool down the load prior to drain and spin.

NOTE

If the voltage at your outlet is under 110 v, the internal heater may not adequately heat the wash water. If the cycle is interrupted while the water is heating, the final temperature of the wash water may be lower and sanitization may be reduced.

heavy duty

Use this cycle for heavily soiled, durable garments - ex. towels, sports gear, or fabric tote bags. For best soil and stain removal, use the hottest water safe for the fabrics being washed.

casual

Use this cycle for cottons and blends with a permanent press or no-iron finish.

delicates

Use this cycle for lightly soiled knits and delicates which require gentle washing.

rinse & spin

Select rinse & spin for loads that need a cold water rinse or to add fabric softener that may have been omitted in a regular cycle. Add the fabric softener to the dispenser chamber. Select the spin speed appropriate for the load.

NOTE

You may deselect fresh rinse if you wish to perform a spin only cycle or select no spin if you want to perform a drain only cycle.

Steam Cycle Selection

To scroll through the steam cycles, continue to press the steam cycles icon. The selected cycle will be displayed on the text display.

NOTE

• Steam may not necessarily be visible inside drum during the steam cycles.
• Steam may not be present during entire cycle.

IMPORTANT

If washer is paused during the steam portion of a steam cycle, the door will remain locked due to higher temperature in drum. DO NOT force open - it will unlock upon cooling.

steam refresh

Refresh a small load of dry clothes with the perfect amount of steam. Steam alone will infuse into the dry load as it tumbles to refresh fabrics, remove odors, and release wrinkles, reducing ironing. Remove load, hang or iron as necessary.

normal with steam

NOTE

STEAM REFRESH is not a washing cycle. It is intended for clean, dry clothes. Take care not to load items with stains.

Steam cycle for cotton, linen, towels, shirts, sheets, denims and mixed loads.

casual with steam

Steam cycle for cycle for cottons and blends with a permanent press or no-iron finish.

Specialty Cycle Selection

To scroll through the specialty cycles, continue to press the specialty cycles icon. The selected cycle will be shown on the text display.

fast wash

Quickly wash a small, lightly soiled load in 22 minutes.

whites

Use this cycle for white fabrics and lightly colored clothing. Refer to fabric care label for use of liquid chlorine bleach. Hot water is recommended to ensure optimal bleach activation. For peak rinsing performance and to avoid chlorine residues on your laundry add fresh rinse to this cycle.

wool

Designed for a small load of machine-washable woolen items, the wool cycle uses gentle washing action along with cold rinses to eliminate shrinking and damage to wool. You may use an the wool detergent approved for front load washers.

NOTE

Washing wool garments labeled "Dry Clean Only" or using chlorine bleach can result in permanent damage.

jeans

Select this specialty cycle for washing an entire load of lightly to normally soiled denim jeans or similarly-colored cotton khakis.

clean washer

To clean and freshen the washer, perform the clean washer cycle. This maintenance cycle uses hot water and two cold rinses to remove residue that may cause odor. See “Inside Routine Cleaning (Preventive)” for detailed information about the clean washer cycle.

Cycle Settings

For best results

Follow the fabric care label instructions on items to be washed.

bel be

Appropriate wash temperature, spin speeds, soil level and options will be displayed for each cycle. The settings can be changed before the cycle is started. Make modifications according to fiber content, colorfastness and soil level. If changes are attempted after the cycle starts a signal will beep and “Not possible” will be displayed.

NOTE

To change settings after the cycle starts, press Pause, adjust the setting and press Start to resume the cycle.

Wash Water Temperature

To change the preset temperature, press the temperature icon to scroll to the desired setting. A cold water rinse saves energy and reduces wrinkling.

To protect your fabrics, not all temperatures are available with every cycle. The indicator will not light if the setting is not available with that cycle.

Wash water temperatures are automatically regulated to maximize detergent effectiveness and improve washing performance. The water heater setting and its distance from the washer, water usage in other parts of the home, and seasonally low ground water temperature in some geographic areas can affect water temperature.

sanitize

This setting sanitizes heavily soiled colorfast fabrics such as towels, bedding, and children's clothing by killing 99.9% of bacteria using wash water heated with a boost heater. Cold water is used to cool and rinse the load.

NOTE

Only sanitizing cycles have been designed to meet the requirements of NSF P172 protocol for sanitization efficacy.

NSF Protocol P172

Sanitization Performance of Residential and Commercial, Family-Sized Clothes Washers

hot

Use this setting for heavily soiled white or colorfast cottons and blends.

warm

Use this setting for normally soiled white or colorfast cottons or blends.

cold

Some warm water will automatically blend with cold tap supply to achieve a precise cold. Use this setting for lightly soiled non-colorfast items, knits, delicates, and hand washables.

eco cold

Wash and rinse temperatures are equivalent to temperature of cold tap supply. Use this selection for fabrics and colors that are prone to dye transfer. For use with cold water detergents.

Spin Speed

Max, high, medium and low spin speeds are available for each cycle. The spin speed and/or duration of final spin vary from model to model and cycle to cycle.

Increasing the spin speed will extract more water, decrease drying time and conserve energy. Decreasing the spin speed will reduce wrinkling.

Select low spin speed to gently spin items that should be line dried.

Use no spin to omit all intermediate spinning phases and the final spin at the end of the cycle. The load will be very wet. Remove items from the wash drum to drip dry or select a rinse & spin cycle to remove excess water at a more convenient time.

Soil Level

Adjust the wash time based on the soil level of each load. Extra heavy, heavy, medium, light, and extra light soil levels are available.

Cycle Options

To add options, press the corresponding option's icon to illuminate the selection desired. To delete options, press the option's icon again and the indicator light will turn off. Not all options are available on every model. To protect your fabrics, not all options are available with every cycle. If an option is not appropriate for the cycle, the indicator will not light. Occasionally, a setting and option in the same cycle will conflict with each other, like no spin (or low spin) and eco friendly. When this happens, the eco friendly option will override any incompatible selections.

NOTE

To change the options once the cycle has begun, press the Pause button, make the new selection and press Start again.

prewash

Select this option to add a short initial wash period to a cycle. Heavily soiled and stained loads will prewash for approximately 15-20 minutes. The water will drain and the load will automatically advance to the regular wash cycle.

fresh rinse

Use this option when additional rinsing is desired to remove excess dirt and detergent. It is recommended for heavily soiled loads or if household members have sensitive skin.

eco friendly

The eco friendly option reduces the amount of hot water usage and total cycle duration to to save energy. See Washer Settings Chart for compatible cycles.

Other Features

Other Features cycle count down/ delay start timer control lock indicator fresh rinse default key combination delay start normal deep clean smitize heavy duty steam cycles casual delicates rinse & spin specialty cycles spin temperature sanitize hot warm cold eco cold extra heavy heavy medium light extra light max high med row no spin Pause prewash delay start fresh rinse eco friendly My Favorites+ door lock indicator status display Soil Level chime on/off key combination Start/Pause

My Favorites

After some time of initial usage, the washer will automatically remember the 3 most used cycles with their settings and options. To cycle through this list continue to press the My Favorites button. Press Start after your desired cycle appears.

Door Lock Indicator

While the cycle is in progress the door lock indicator will be lit. When the indicator is lit, do not force open the door. Wait until the indicator is off.

Chime

A chime will sound at the end of the cycle when this option is selected. The signal can be turned on or off by pressing the fresh rinse and eco friendly icons at the same time.

Delay Start

Press delay start to select a wash time convenient to your schedule or during off peak energy hours. The delay time selected will be displayed and begin counting down when you select Start.

Control Lock

To avoid having someone accidentally start or stop the washer, press prewash and fresh rinse at the same time and hold until the indicator is lit. To unlock the controls, press prewash and fresh rinse at the same time and hold until the indicator is no longer lit.

Status Display/Timer

The estimated total cycle time will be displayed when the cycle is selected. The time may increase if water pressure is low, oversuarsing occurs or the load becomes unbalanced. The estimated remaining cycle time is displayed during the cycle.

Fresh Rinse Default

To programme your unit to perform a default fresh rinse at the end of every compatible cycle, press prewash and delay start icons simultaneously. Press fresh rinse to turn it off for any given cycle while in default fresh rinse mode. To turn default fresh rinse mode off, press prewash and delay start again til fresh rinse light turns off.

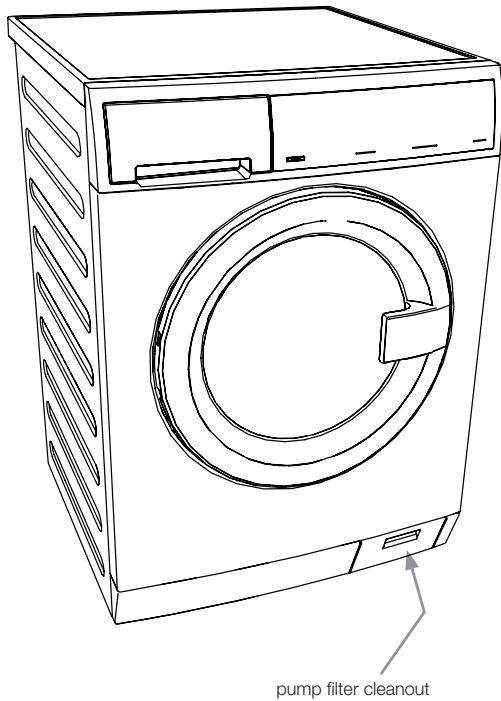

pump filter cleanout

Pump Cleanout/Manual Drain

In the event the washer will not drain under its own power due to a power outage or clogged drain pump you can drain the water left in the tub manually.

Washer Settings Chart

Electrolux

normal deep clean solarize fuzzy dry clean cycles cycles temperature natural warm cool rempland extra heavy dry dairy cleatic turbidity & spin normal Normal greenish dry spot My Favorites+ Soil Level Start/Pause

These Temperatures, Spin Speeds, Soil Levels and Options are available with the following cycles:

normal

deep clean sanitize

heavy duty

steam cycles

casual

delicates

rinse & spin

specialty cycles

steam refresh

normal with steam

casual with steam

fast wash

whites

wool

jeans

clean washer

temperature

sanitize

√

hot

√

√

√

√

√

warm

√

√

√

√

√

√

√

√

√

cold

√

√

√

√

√

√

√

eco cold

√

√

√

√

√

√

spin speed

max

√

√

√

√

√

√

√

high

√

√

√

√

√

√

√

√

medium

√

√

√

√

√

√

√

√

low

√

√

√

√

√

√

√

no spin

√

√

√

soil level

extra heavy

√

√

√

√

heavy

√

√

√

√

medium

√

√

√

√

√

√

√

√

√

√

light

√

√

√

√

√

√

√

extra light

√

√

√

√

√

√

√

options

fresh rinse

√

√

√

√

√

√

√

√

√

√

√

prewash

√

√

√

√

eco friendly

√

√

√

√

add steam

√

√

√

delay start

√

√

√

√

√

√

√

√

√

√

√

√

√

chime

√

√

√

√

√

√

√

√

√

√

√

√

√

√ = Available selections.
□ = Cycle defaults.
■ = Non-modifiable presets.

Safe Stain Removal Procedures

To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below:

• Read and comply with all instructions on stain removal products.
• Keep stain removal products in their original labeled containers and out of children's reach.
  • Thoroughly wash any utensils used.
• Do not combine stain removal products, especially ammonia and chlorine bleach. Dangerous fumes can result.
• Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry cleaning solvents or other flammable or explosive substances because they give off vapors that could ignite or explode.
• Never use highly flammable solvents, such as gasoline, inside the home. Vapors can explode on contact with flames or sparks.

For Successful Stain Removal:

• Remove stains promptly.
• Determine the kind of stain, then follow the recommended treatment in the stain removal chart on the next page.
• To pretreat stains, use a prewash product, liquid detergent, or a paste made from powder detergent and water.
• Use cold water on unknown stains as hot water can set stains.
• Consult care label instructions for treatments to avoid on specific fabrics.
• Check for colorfastness by testing stain remover products on an inside seam.
• Rinse and wash items after stain removal.

WARNING

HARMFUL VAPOR HAZARD

Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.

LEARNAL LEACH

For best results

Follow the fabric care label instructions on items to be washed.

Diagram of a shirt collar with a hair styling toolbar and a logo showing three icons: square, triangle, and circle.

Stain Removal Suggestions

STAIN	TREATMENT
Adhesive tape, chewing gum, rubber cement	Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with pre-wash stain remover or nonflammable dry cleaning fluid.
Baby formula, dairy products, egg	Use product containing enzymes to pretreat or soak stains. Soak for 30 minutes or more. Wash.
Beverages (coffee, tea, soda, juice, alcoholic beverages)	Pretreat stain. Wash using cold water and bleach safe for fabric.
Blood	Rinse with cold water. Rub with bar soap. Or, pretreat or soak with product containing enzymes. Wash using bleach safe for fabric.
Candle wax, crayon	Scrape off surface wax. Place stain face down between paper towels. Press with warm iron until wax is absorbed. Replace paper towels frequently. Treat remaining stain with prewash stain remover or nonflammable dry cleaning fluid. Hand wash to remove solvent. Wash using bleach safe for fabric.
Chocolate	Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.
Collar or cuff soil, cosmetics	Pretreat with prewash stain remover or rub with bar soap.
Dye transfer on white fabric	Use packaged color remover. Wash using bleach safe for fabric.
Grass	Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.
Grease, oil, tar (butter, fats, salad dressing, cooking oils, car grease, motor oils)	Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy stains and tar, apply nonflammable dry cleaning fluid to back of stain. Replace towels under stain frequently. Rinse thoroughly. Wash using hottest water safe for fabric.
Ink	Some inks may be impossible to remove. Washing may set some inks. Use prewash stain remover, denatured alcohol or nonflammable dry cleaning fluid.
Mildew, scorch	Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and hot water before washing. Badly mildewed fabrics may be permanently damaged.
Mud	Brush off dry mud. Pretreat or soak with product containing enzymes.
Mustard, tomato	Pretreat with prewash stain remover. Wash using bleach safe for fabric.
Nail polish	May be impossible to remove. Place stain face down on paper towels. Apply nail polish remover to back of stain. Repeat, replacing paper towels frequently. Do not use on acetate fabrics.
Paint, varnish	WATER BASED: Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed. OIL BASED AND VARNISH: Use solvent recommended on can label. Rinse thoroughly before washing.
Perspiration	Use prewash stain remover or rub with bar soap. Rinse. Wash using nonchlorine bleach in hottest water safe for fabric.
Rust, brown or yellow discoloration	Use rust remover safe for fabric. Do not use chlorine bleach because it may intensify discoloration.
Shoe polish	LIQUID: Pretreat with a paste of powder detergent and water. PASTE: Scrape residue from fabric. Pretreat with prewash stain remover or nonflammable dry cleaning fluid. Rinse. Rub detergent into dampened area. Wash using bleach safe for fabric.
Tomato	Pretreat with prewash stain remover. Wash using bleach safe for fabric.
Urine, vomit, mucus, feces	Pretreat or soak in product containing enzymes. Wash using bleach safe for fabric.
Wine	Pretreat or soak in cold water. Wash in hottest water and bleach safe for fabric

Inside Routine Cleaning (Preventive)

To help prevent odors, mold or mildew, leave the door open for a few hours after use or whenever the washer is not in use.

CAUTION

ENTRAPMENT and TIP-OVER HAZARD

Do not leave the door open if there are small children or pets present. An open door could entice children to hang on the door or crawl inside the washer. If there are no small children present, you may leave the door ajar to prevent odor build up.

TO REFRESH OR CLEAN INSIDE OF WASHER

To clean and freshen the washer, perform the clean washer cycle. For best results use the clean washer cycle once a month.

Press the Power button to wake up the unit. Select the clean washer cycle by continuing to press the specialty cycle icon until clean washer is displayed.

IMPORTANT

Items left in washer while performing the clean washer cycle will cause a severe out-of-balance situation that could damage the washing machine.

Place the mainwash detergent chamber in the upward position. REMOVE ALL ITEMS FROM WASH DRUM before filling the detergent chamber with one (1) cup of liquid chlorine bleach OR one (1) pouch of TIDE® WASHING MACHINE CLEANER. DO NOT use both. Press Start to begin.

For best results

Immediately follow up with a spin cycle. Select fresh rinse on max spin speed with no detergent or bleach to help clear any residual bleach left after the clean washer cycle.

normal deep clean sanitize heavy duty steam cycles ... casual delicates rinse & spin specialty cycles

Press specialty cycle icon until clean washer cycle is displayed.

Place the main detergent flap in the upper position in order to pour the bleach directly into the drum.

WARNING

HARMFUL VAPOR HAZARD

Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.

No BANANA BEEACH

Performing Manual Drain

In the event the washer will not drain under its own power due to a power outage or clogged drain pump you can drain the water left in the drum manually.

CAUTION

BURN HAZARD

Do not attempt to manually drain the drum if it is full of hot water. Allow water to cool before proceeding with manual draining.

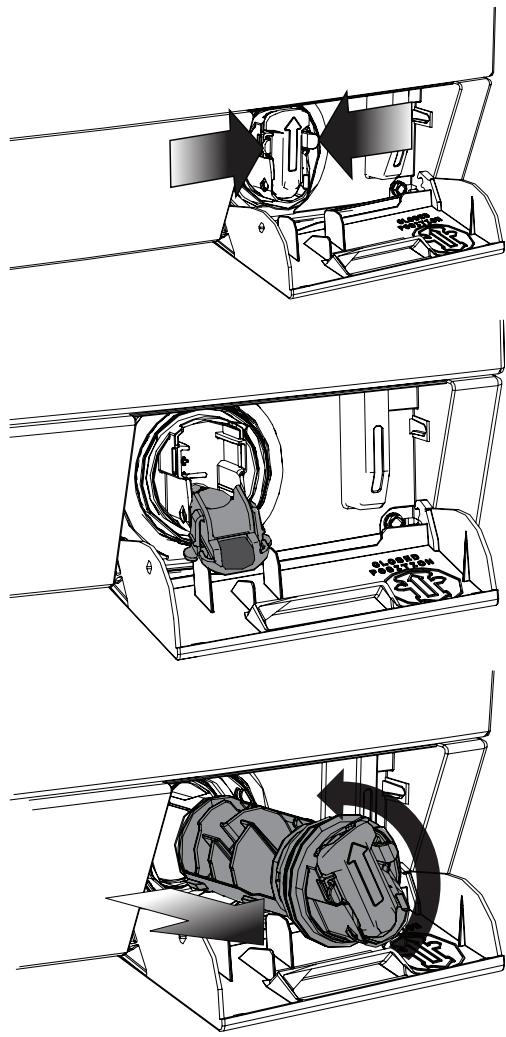

With a catch pan ready, pinch the two flaps on the sides drain spout and flip it down.

NOTE

Removing the pump cleanout door completely may be necessary to place your catch pan under the drain spout.

When the water has stopped flowing, press the drain spout back up and in until the outer flaps snap into place.

Cleaning Pump Filter

With the wash tub and drain hose drained of all water and the drain spout snapped in place, follow these directions to remove, clean, and reinsert the pump filter.

1. "Unscrew" the filter and pull it out.
2. Dump the filter and inspect the opening for any loose objects.
3. Rinse the filter completely before putting it back in place.

IMPORTANT

Check to make sure O-ring is in place before reinserting pump filter. Take care to not cross threads when turning pump filter during reinsertion.

1. "Screw" filter back in place until it stops. The arrow on the drain spout should be pointing upward.
2. Reinstall pump cleanout door if removed earlier.

NOTE

You may have to add about 2 litres of clean water through the mainwash detergent compartment to reprime the drain pump.

Three technical line drawings of a mechanical device with internal components, showing internal components and motion directions (no text or symbols)

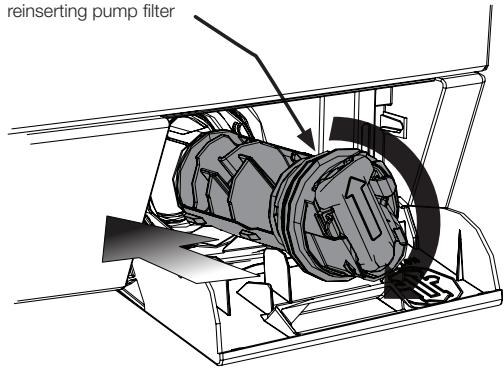

Inspect for O-ring before reinserting pump filter

reinserting pump filter

Other Inside Routine Cleaning (Preventive)

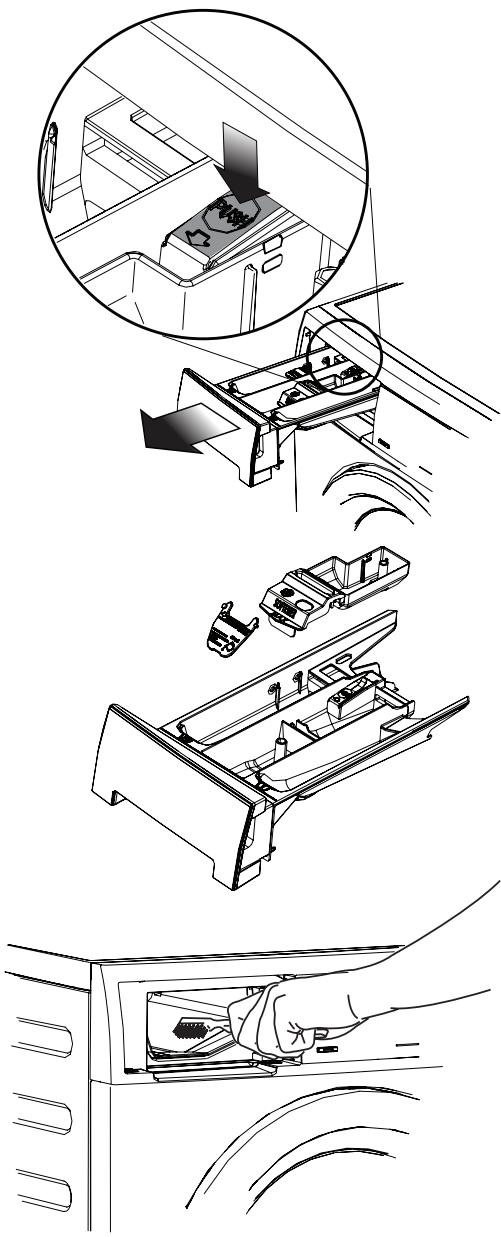

Cleaning Dispenser Drawer Area

NOTE

Detergent and fabric softener may build up in the dispenser drawer. Residue should be removed once or twice a month.

• Remove the drawer by pulling the drawer out until it stops.
• Reach back into the back of the drawer cavity and press down firmly on the lock tab. Pull out the drawer.
• Remove the inserts from the bleach and fabric softener compartments.
• Rinse the drawer and inserts with a combination of 34 cup liquid chlorine bleach and 1 gallon hot tap water to remove traces of accumulated powders and liquids. Large amounts of fabric softener residue may indicate improper dilution or more frequent cleaning is required. Rinse well with tap water.
• To clean the drawer opening, use a small brush to clean the recess. Remove all residue from the upper and lower parts of the recess.
• Replace the inserts by pressing in place until you hear a slight click. Return the dispenser drawer.

Daily Preventive Maintenance

• Remove items from the washer as soon as the cycle ends. Excess wrinkling, color transfer, and odors may develop in items left in the washer.
• If there are no small children or pets present, you may leave the door ajar when the washer is not in use.
• Leave the dispenser drawer open slightly at the end of the wash day.
• Dry around the washer door opening, flexible gasket, and door glass. These areas should always be clean to ensure a water tight seal.
• When extremely soiled items have been washed, a dirty residue may remain on the drum. Remove this by wiping the drum with a nonabrasive household cleanser. Rinse thoroughly with water.
• Periodically, wipe dry the folds in the bottom of the flexible gasket to remove lint and other debris.

Technical line drawing showing car interior components including dashboard, steering wheel, and hand valve (no text or symbols)

Inside Cleaning (Aggressive)

In cases where the clean washer cycle along with care and cleaning of rubber gasket folds isn't done, and severe odor, mold, mildew, or residue buildup have developed, follow the below cleaning procedure to help alleviate the problem.

CLEANING PROCEDURE - Washer Drum

Ensure the wash tub is empty (or no clothes load). Open the detergent drawer and pour eight (8) cups of bleach into the detergent compartment. Select clean washer cycle as described previously in Inside Routine Cleaning (Preventive).

Upon cycle completion inspect the interior of the washer to see if the odor/residue has been eliminated. If any additional cleaning is required, repeat the above procedure. This may take several cycles depending on the severity of the odor/residue. You may observe some remaining discoloration due to the long term effects of this residue.

For especially contaminated areas visible inside the drum (including the front rubber seal), these areas might be more effectively cleaned by spraying a Bleach Cleaner on a scrub brush, soft sponge, or towel and scrubbing.

If odor is still left after bleach cycle(s) and bleach cleaner,

IMPORTANT

Always wear rubber or latex gloves and protect floor and clothing from damage.

open the detergent drawer and pour one (1) pouch of TIDE® WASHING MACHINE CLEANER in detergent drawer. Select clean washer cycle and start the washer.

For best results

Immediately follow up with a spin cycle. Select fresh rinse on max spin speed with no detergent or bleach to help clear any residual bleach left after the clean washer cycle.

IMPORTANT

See Inside Routine Cleaning (Preventive) for future cleaning maintenance which is necessary to avoid repeating issues.

normal deep clean sanitize heavy duty steam cycles casual delicates rinse & spin specialty cycles

Press specialty cycle icon until clean washer cycle is displayed.

Place the main detergent flap in the upper position in order to pour the bleach directly into the drum.

WARNING

HARMFUL VAPOR HAZARD

Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.

LEMONIAL DEATH

Outside Routine Cleaning

• When washing is completed, wipe top and sides of washer with a damp cloth. Turn water faucets off to prevent pressure build-up in the hoses.
• Clean the cabinet with mild soap and water. Never use harsh, gritty or abrasive cleansers
• If the cabinet becomes stained, clean with diluted chlorine bleach (1 part bleach to 8 parts water). Rinse several times with clear water.
• Remove glue residue from tape or labels with a mixture of warm water and mild detergent. Or, touch residue with the sticky side of tape.
• When cleaning chrome parts use a window cleaner with ammonia or mild soap and water.
• Before moving the washer, place a strip of cardboard or thin fiberboard under the front leveling legs to prevent damage to the floor.

Line drawing of a washing machine with a no-smoking symbol overlaid, indicating no disinfection or toxicity (no text present)

IMPORTANT

Do not store or place laundry products on top of washer at any time. They can damage the finish or controls.

Winterizing Instructions

IMPORTANT

If the washer is stored in an area where freezing can occur or moved in freezing temperatures, follow these winterizing instructions to prevent damage to the washer:

1 Turn off water supply faucets.
2 Disconnect hoses from water supply and drain water from hoses.
3 Plug electrical cord into a properly grounded electrical outlet.
4 Perform manual drain to remove all water from the washer. Follow manual draining instructions in the Care and Cleaning section.
5 Remove dispenser drawer. Drain any water in compartments and dry compartments. Replace drawer.
6 Store washer in an upright position.

Follow WINTERIZING IN-STRUCTIONS for cold weather storage and care.

Illustration of a thermometer with ice cubes (no text or symbols)

Common Washing Problems

Many washing problems involve poor soil and stain removal, residues of lint and scum, and fabric damage. For satisfactory washing results, follow these suggestions provided by The Soap and Detergent Association.

PROBLEM	POSSIBLE CAUSES	SOLUTIONS	PREVENTIVE MEASURES
Blue stains	Undiluted liquid detergent or fabric softener dispensed directly onto fabric.	If caused by detergent, mix 1 cup (240 ml) white vinegar with 1 quart (.95 L) water in a plastic container. Soak item 1 hour. Rinse.If caused by fabric softener, rub stains with bar soap. Wash.	Avoid overfilling detergent and fabric softener compartments of dispenser.
Discoloration, graying	Not enough detergent.Wash water temperature too low.Incorrect sorting.	Rewash with correct amount of detergent and hottest water safe for fabric.Add bleach safe for fabric.	Sort items by soil level and color.Use correct amount of detergent, hottest water and bleach safe for fabric.
Greasy, oily stains	Not enough detergent.Undiluted liquid fabric softener poured directly on fabric.	Treat with prewash stain remover or liquid detergent.Increase detergent and water temperature. Rewash.Rub fabric softener stains with bar soap.	Use correct amount of detergent and hottest water safe for fabric.Do not pour liquid fabric softener directly on fabric. See Operating Your Washer.
Holes, tears, or snags	Incorrect use of chlorine bleach.Unfastened zippers, hooks, buckles.Rips, tears and broken threads.Overloading the washer.Degradation of fabric.	May be irreversible if rips, tears and seams cannot be mended.	Never pour chlorine bleach directly on fabric.Check condition of items before washing. See Operating Your Washer.
Lint	Incorrect sorting.Tissues left in pocket.Overloading the washer.Not enough detergent.Undissolved detergent has left a residue resembling lint.Static cling is attracting lint.Load washed too long.	Reduce load size. Rewash using correct water temperature, water level, and amount of detergent.Add nonprecipitating water conditioner to wash water to remove detergent residue.Add liquid fabric softener to final rinse.Dry load in dryer.Remove lint with lint brush or roller.	See Operating Your Washer.Do not overload washer.Use correct temperature and amount of detergent, water and wash time.
Pilling (Fibers ball up and cling to fabric.)	Pilling is normal with synthetic and permanent press fabrics. This is due to abrasion from normal wear.	Use a lint brush or shaver to remove pills.	Use fabric softener in the washer to lubricate fibers.When ironing, use spray starch or fabric finish on collars and cuffs.Turn items inside out to reduce abrasion.
Residue or powder on dark items;Stiff, harsh fabrics.	Undissolved detergent.Some granular detergents can combine with hard water minerals to form a residue.Overloading the washer.	Rewash load.	Increase water temperature using hottest water safe for fabric.Do not overload washer.Use liquid detergent or use non-precipitating water conditioner with powder detergent.

Common Washing Problems, continued

PROBLEM	POSSIBLE CAUSES	SOLUTIONS	PREVENTIVE MEASURES
Wrinkling	Overloading the washer.Incorrect wash cycle for wash load.	Reduce load size.Rinse in cold water with liquid fabric softener using the casual or delicate cycle.	Do not overload washer.Remove items from washer as soon as cycle is completed.Use liquid fabric softener.
Yellow buildup of body soil on synthetic fabrics	Agitation time too short.Wash water temperature too low.Not enough detergent.	Soak in detergent booster or product containing enzymes.Wash in hottest water safe for fabric using casual cycle.Increase detergent.Add bleach safe for fabric or treat with color remover.	Select correct wash cycle.Use correct amount of detergent.Wash synthetics frequently using hot or warm water.
Yellow or brown rust stains	Iron or manganese in water supply, water pipes, or water heater.	To restore discolored load of whites, use rust remover safe for fabric.Do not use chlorine bleach to remove rust stains. It may intensify discoloration.	Use nonprecipitating water softener.Before washing, run hot water for a few minutes to clear lines.Drain water heater occasionally.For an ongoing problem, install an iron filter in your water supply system.
Residue stains / buildup, mold or mildew stains in gasket	Moisture in the washer.Use of non-HE detergent.Overdosing detergent.Overloading wash drum.Leaving a wet load set in washer.Cold water washes which may not completely dissolve and remove detergents.	Perform CLEAN WASHER cycleScrub gasket with CometTM Spray Gel Mildew Stain Remover using brush to remove stains.Use only HE (high efficiency detergent) along with recommended dosage.Remove wash load immediately upon cycle completion.	Run dehumidifier in laundry room.Avoid overfilling detergent and fabric softener compartments of dispenser.Dry the inside of washer and gasket after every run.
Residue stains / buildup, mold or mildew stains in dispenser drawer	Moisture in the washer.Use of non-HE detergent.Overdosing detergent.	Remove dispenser drawer and wipe dispenser and inserts with combination of 3⁄4 cup liquid chlorine bleach and one gallon hot water. Rinse well, and repeat if necessary. Return drawer to location. NOTE: Wear rubber of latex gloves. Protect floor and clothing from bleach damage.Use only HE (high efficiency detergent) along with recommended dosage.	Avoid overfilling detergent and fabric softener compartments of dispenser.
Water in fold of flexible gasket	Result of washing and part of normal operation.	At the end of each wash, dry inside of gasket fold with clean dry towel all around gasket.
Odor	Moisture in the washer.Use of non-HE detergent.Overdosing detergent.Leaving a wet load remain in washer.Cold water washes which may not completely dissolve and remove detergents.	Perform CLEAN WASHER cycle.At the end of each wash, dry inside of gasket fold with clean, dry towel all around gasket.Use only HE (high efficiency detergent) along with recommended dosage.Remove wash load immediately upon cycle completion.Pour one cup liquid chlorine bleach in standpipe; let remain a day and flush with water.	Leave door and dispenser drawer open for a few hours after use or whenever washer is not in use.

Service Prevention Checklist

Before calling for service, review this list. It may save both time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this washer.

OCCURRENCE	POSSIBLE CAUSE	SOLUTION
NOISE
High pitch "jet engine" noise.	A certain amount of motor whine is normal during the spin cycle.
Rattling and clanking noise.	Foreign objects such as coins or safety pins may be in drum or pump.	Stop washer and check drum. If noise continues after washer is restarted, objects may be in pump. Call your authorized servicer.
	Belt buckles and metal fasteners are hitting wash drum.	To prevent unnecessary noise and damage to drum, fasten fasteners and turn items inside out.
Thumping sound.	Heavy wash loads may produce a thumping sound. This is usually normal. If sound continues, washer is probably out of balance.	Stop washer and redistribute wash load.
Vibrating noise.	Washer is not resting firmly on floor.	Move washer so it rests firmly on floor. Adjust leveling legs. See INSTALLATION INSTRUCTIONS for details.
	Shipping bolts and foam block have not been removed during installation.	See INSTALLATION INSTRUCTIONS for removing shipping bolts and foam block.
	Wash load unevenly distributed in drum.	Stop washer and rearrange wash load.
OPERATING
Washer does not start.	Electrical power cord may not be plugged in or connection may be loose.	Make sure plug fits tightly in wall outlet.
	House fuse blown, circuit breaker tripped, or a power outage has occurred.	Reset circuit breaker or replace fuse. Do not increase fuse capacity. If problem is a circuit overload, have it corrected by a qualified electrician. If problem is a power outage, call local electric company.
	Water supply faucets are not turned on.	Turn on water supply faucets.
	Motor is overheated. Washer motor will stop if it becomes overheated.	It will automatically restart after a cool down period of up to 30 minutes (if washer has not been manually turned off).
	Washer door is not completely closed.	Close door completely.
Washer won't spin.	Load is too small.	Add 1 or 2 similar items to help balance the load.
Residue left in drum.	Heavily soiled items.	Wipe drum with a nonabrasive household cleanser, then rinse. Shake or brush excess dirt and sand from items before washing
SHOWN IN LED DISPLAY
"Check the tap"No or slow water fill	Water inlet hoses are not installed.	Install Hot and Cold water hoses and turn on Hot and Cold water supply valves.
	Water supply valves are not turned on.	Turn on Hot and Cold water supply valves.
	Water supply is not adequate in installation.	Test water pressure at another faucet in the house. Water pressure must be at least 30 psi (260 kPa).
	Water is being used elsewhere in the house.	Avoid running water elsewhere while washer is filling.
	Water inlet hoses are kinked.	Straighten hoses.
	Water inlet screens are clogged.	Remove hoses and clean sediment from screens.
"Check drain filter"Washer experiencing drain problems during cycle	Drain pipe blocked.	Unclog drain pipe.
	Pump filter clogged.	See Care and Cleaning for pump filter cleaning instructions.
"Check the door"Washer door is open or not closed completely		Close door completely.
"Water safety alert"Washer not maintaining water level	Drain pipe position too low and water siphoning out drain hose.	Drain pipe height must be minimum 24" above bottom of unit. Refer to Installation Instructions for correct drain pipe installation requirements and adjust accordingly
	If drain pipe height is adequate, error detected can only be resolved by calling service technician.	Close all water supply faucets and call your authorized servicer.
"Detergent overdosing"Too many suds detected	An excessive amount of detergent has been added, causing extra suds; additional rinsing has not corrected the issue.	Use less detergent. Verify detergent is fit for use in front load washers. Look for this symbol on the detergent label: [12].

Service Prevention Checklist, continued

OCCURRENCE	POSSIBLE CAUSE	SOLUTION
WATER
Water collects in folds of the bellows at the end of the cycle.	This is a result of the washing action and is part of the normal operation of the washer.
Water collects in bleach and fabric softener compartments.	This is a result of the siphoning action and is part of the normal operation of the washer.	Water may be removed by removing the dispenser drawer (see Care and Cleaning in this guide) and draining water into the empty drum or sink.
Wash load too wet after spin.	Washer is overloaded.	Do not overload washer. See Operating Your Washer.
	Load is too small.	Add 1 or 2 similar items to help balance the load.
	Load is out of balance.	Rearrange load to allow proper spinning.
	Drain hose is kinked.	Straighten drain hose.
Water does not enter washer or it enters slowly.	Water supply is not adequate in area.	Check another faucet in the house. Wait until water supply and pressure increase.
	Water supply faucets are not completely open.	Fully open hot and cold faucets.
	Water is being used elsewhere in the house. Water pressure must be at least 10 psi (70 kPa).	Avoid running water elsewhere while washer is filling.
	Water inlet hoses are kinked.	Straighten hoses.
Warm or hot water is not hot enough.	Hot water heater is set too low or is a distance from washer.	Measure hot water temperature at nearby faucet with candy or meat thermometer. Water temperature should be at least 120°F (49°C). Adjust water heater as necessary.
	Hot water is being used elsewhere in the house.	Avoid using hot water elsewhere before or during washer use. There may not be enough hot water available for proper cleaning. If problem persists, your hot water system may be unable to support more than 1 use at a time.
Water in washer does not drain or drains slowly.	Drain hose is kinked or clogged.	Clean and straighten the drain hose.
	Drain hose standpipe is too tall. Maximum standpipe height is 56.5" (144 cm).	Reduce standpipe height to less than 56.5" (144 cm). See INSTALLATION INSTRUCTIONS.
	House drain pipes are clogged.	Unclog drain pipes. Contact plumber if necessary.
Water leaks.	Fill hose connection is loose at faucet or washer.	Check and tighten hose connections. Ensure rubber sealing washers are installed.
Oversuding.	Wrong detergent.	Run rinse cycle. Use a low-suding, high efficiency detergent.
	Too much detergent.	Run rinse cycle. Use less detergent in future loads.
Incorrect wash and rinse temperatures.	Hot and cold water hoses are connected to wrong supply faucets.	Connect hot water hose to hot water faucet and cold water hose to cold water faucet.
Water is entering washer but tub does not fill.	Drain hose standpipe is too low. Standpipe must be a minimum of 24" (61 cm) high to prevent siphoning.	Increase standpipe height to at least 24" (61 cm). See INSTALLATION INSTRUCTIONS.

For the applicable warranty period as set forth below, as measured from your original date of purchase, Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.

Warranty Periods:

• All parts — One year including labor. In addition, your appliance is covered by a one year, parts only, limited warranty. During the 2nd year from your original date of purchase, Electrolux will pay for parts needed for this appliance that have proven to be defective in materials or workmanship when your appliance is installed, used, and maintained in accordance with the provided instructions.
• Wash tub — Functional life of the product (excluding labor)
• Wash tub drive motor, non-cosmetic defects — Ten years (excluding labor)

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

IF YOU NEED SERVICE

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.

EN FRONT LOAD WASHER

FR LAVEUSE Á CHARGEMENT FRONTAL

ES LAVADORA DE CARGA FRONTAL

USE & CARE GUIDE

GUIDE D'UTILISATION ET D'ENTRETIEN

GUÍA DE USO Y CUIDADO

Electrolux

⚠ AVERTISSEMENT

Illustration showing a clear ban on a liquid being poured into a beaker, with labeled containers and a no-smoking symbol.

Technical diagram of a mechanical device with labeled components A, B, C, D, and E

ATTENTION

Illustration of four baskets filled with food items, no text or symbols present

Illustration of a pair of shoes leaning against a table with legs and feet (no text or symbols)

Simple line drawing of a folded paper or sheet with a diamond pattern on the left side (no text or symbols)

(Sac-filet non compris.)

Line drawing of a hand cleaning a cloth with a cloth swab (no text or symbols)

Line drawing of a washing machine with a hand cleaning the interior (no text or symbols)

Medical illustration showing a cross-sectional view of a fetus inside a circular anatomical structure (no text or labels)

IMPORTANT

Technical line drawing of a mechanical assembly with motion lines (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Sanitization Performance of Residential and Commercial, Family-Sized Clothes Washers

Only sanitizing cycles have been designed to meet the requirements of NSF P172 protocol for sanitization efficacy.

NSF Protocol P172

Sanitization Performance of Residential and Commercial, Family-Sized Clothes Washers

Electrolux normal dray clean rain/size heavy duty thermal cycles temperature natural cool warm entry happy medium light 8.88 Normal normal dairy cut casual delicates & spin specialty no spin normal normal normal normal My Favorites+ Soil Level Start/Paul*

Electrolux

normal deep clean satiety fuzzy dry clean cycles temperature natural warm cool rempland extra heavy dry darker casual dekates turbidity & spin Normal Normal greenish dry spot My Favorites+ Soil Level Start/Pause

Illustration showing a no-smoking symbol in a container pouring liquid into a beaker, with two labeled containers and a hand holding a milk carton.

Diagram of a shirt collar with a hair styling toolbar and a logo showing three icons: square, triangle, and square.

normal deep clean sanitize heavy duty steam cycles ... casual delicates rinse & spin specialty cycles

Three technical line drawings of a mechanical device with internal components, showing internal mechanisms and assembly (no text or symbols)

Technical line drawing showing car interior components including front, side, and interior views (no text or symbols)

normal deep clean sanitize heavy duty steam cycles ... casual delicates rinse & spin specialty cycles

Illustration showing three containers with a prohibition symbol, one pouring liquid into a beaker, another with a clear label.

Line drawing of a washing machine with a no-smoking symbol overlaid (no text or symbols present)

IMPORTANT

Illustration of a thermometer with ice cubes (no text or symbols)

Technical diagram of a mechanical device with labeled components A, B, C, D, and E

PRECAUCIÓN

Illustration of four baskets of food items, no text or symbols present

as y las toallas playover

Illustration of a folded paper or plastic sheet with a diamond pattern on the front face (no text or symbols)

Line drawing of a hand cleaning a cloth with a spray bottle (no text or symbols)

Line drawing of a hand cleaning a washing machine with a large door open (no text or symbols)

Medical illustration of a human fetus inside a circular anatomical structure, with no visible text or symbols.

IMPORTANTE

Technical line drawing of a mechanical assembly with motion lines (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, showing motion lines around it (no text or symbols)

Diagram of a shirt collar with a hairpin and selection icons above it

Sanitization Performance of Residential and Commercial, Family-Sized Clothes Washers

sanitize (desinfectar)

Sanitization Performance of Residential and Commercial, Family-Sized Clothes Washers

hot (caliente)

Line drawing of a collared shirt with button details (no text or symbols)

normal deep clean sanitize heavy duty steam cycles ... casual delicates rinse & spin specialty cycles

No Cover No Cover to Water

Three-panel technical illustration of a mechanical device with internal components and directional arrows (no text or symbols)

Technical line drawing showing car interior components including dashboard, steering wheel, and hand valve (no text or symbols)

normal deep clean sanitize heavy duty steam cycles casual delicates rinse & spin specialty cycles

No Waterless Waterless Additive

Line drawing of a washing machine with a no-smoking symbol overlaid, indicating no disinfection or consumption (no text present)

IMPORTANTE

Illustration of a thermometer with ice cubes (no text or symbols)

Repeating pattern of white geometric shapes on a light background, no text or symbols present
