Product Type	Island Range Hood
Brand	FABER
Model	STILO ISOLA
Installation	Island, ceiling mount; external exhaust or recirculation (ductless kit optional)
Power Supply	120 V, 60 Hz, 15 A circuit
Controls	Push buttons with LED display; 3 speeds + intensive mode (10 min) + timer (30 min)
Lighting	2 halogen bulbs 20 W (2 intensity levels)
Filters	Dishwasher-safe metal grease filters; charcoal filters optional for recirculation
Material	Stainless steel
Compatible ceiling height (with duct)	From 7 ft 4 3/4 in to 8 ft 11 3/8 in (extension possible with kit)
Minimum distance between hood and cooking surface	24 in (61 cm); up to 30 in (76 cm) for gas ranges
Exhaust duct diameter	6 in (15.2 cm) round, maximum recommended length 35 ft
Maintenance	Clean grease filters regularly; use stainless steel cleaner; do not use abrasive products
Safety	Grounding required; do not use with speed control; automatic shut-off in case of fire?
Warranty	1 year parts and labor (see conditions)

Frequently Asked Questions - STILO ISOLA FABER

What is the minimum height between the hood and the cooktop?

The minimum height is 24 inches (61 cm) for electric ranges, and up to 30 inches (76 cm) for gas ranges. Always check local building codes.

Can I install the hood without an external duct?

Yes, the STILO ISOLA hood can be installed in recirculation mode using the ductless conversion kit (sold separately). This kit includes a diverter, a specific lower chimney cover, and charcoal filters.

How to clean the grease filters?

The metal grease filters should be cleaned regularly. You can wash them by hand in a hot water and detergent solution, or place them in the dishwasher. Make sure they are completely dry before reinstalling.

How to replace a halogen bulb?

Before any intervention, cut off the power supply. Remove the two lamp fixing screws, then replace the defective bulb with a new one of 20 W max. You can also use a 1 1/4 inch suction cup to extract the bulb.

The hood does not turn on, what should I do?

First check that the circuit breaker has not tripped or the fuse has not blown. If everything is normal, unplug the appliance and check the electrical connections inside the hood. If the problem persists, contact a qualified technician.

How to use the automatic timer?

To activate the 30-minute timer, press and hold the speed reduction button (B) for 3 seconds. The LED indicator will flash. The hood will automatically stop after 30 minutes. To cancel, press and hold the button again for 3 seconds.

What is the intensive mode and how to activate it?

Intensive mode runs the hood at maximum speed for 10 minutes, then automatically returns to the previous speed. To activate it, press and hold the speed increase button (D) for 3 seconds. The display shows 'H'.

Can I use a speed control with this hood?

No, using a semiconductor speed control is prohibited. This could cause a fire or electric shock. The hood must be connected directly to a dedicated circuit.

What tools are needed for installation?

Installation requires a drill, a jigsaw, a Phillips and flat screwdriver, pliers, a wire stripper, a tape measure, a level, a caulking tool, and duct tape. See the full manual for the detailed list.

How to fix the hood to the ceiling?

The metal bracket (grid) must be securely fastened to the ceiling joists. Use the provided bolts and washers. For plaster ceilings, a reinforced structure is necessary. Since the hood is heavy, it is recommended to have three people for installation.

USER MANUAL STILO ISOLA FABER

• Installation Instructions
• Use and Care Information

READ AND SAVE THESE INSTRUCTIONS

The Installer must leave these instructions with the homeowner. The homeowner must keep these instructions for future reference and for local electrical inspectors' use.

READ THESE INSTRUCTIONS BEFORE YOU START INSTALLING THIS RANGEHOOD

WARNING: - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium setting.
b) Always turn hood ON when cooking at high heat or when flambeing food
(i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING () :

a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:

1) You know you have a Class ABC extinguisher, and you already know how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit.

(*) Based on "Kitchen Firesafety Tips" published by NFPA.

ALL WALL AND FLOOR OPENINGS WHERE THE RANGEHOOD IS INSTALLED MUST BE SEATED.

This rangehood requires at least 24" of clearance between the bottom of the rangehood and the cooking surface or countertop. This minimum clearance may be higher depending on local building code. For example, for gas ranges, a minimum of 30" is recommended and may be required. Overhead cabinets on both sides of this unit must be a minimum of 18" above the cooking surface or countertop. Consult the cooktop or range installation instructions given by the manufacturer before making any cutouts.

LISEZ BIEN CETTE FICHE AVANT D'INSTALLER LA HOTTE

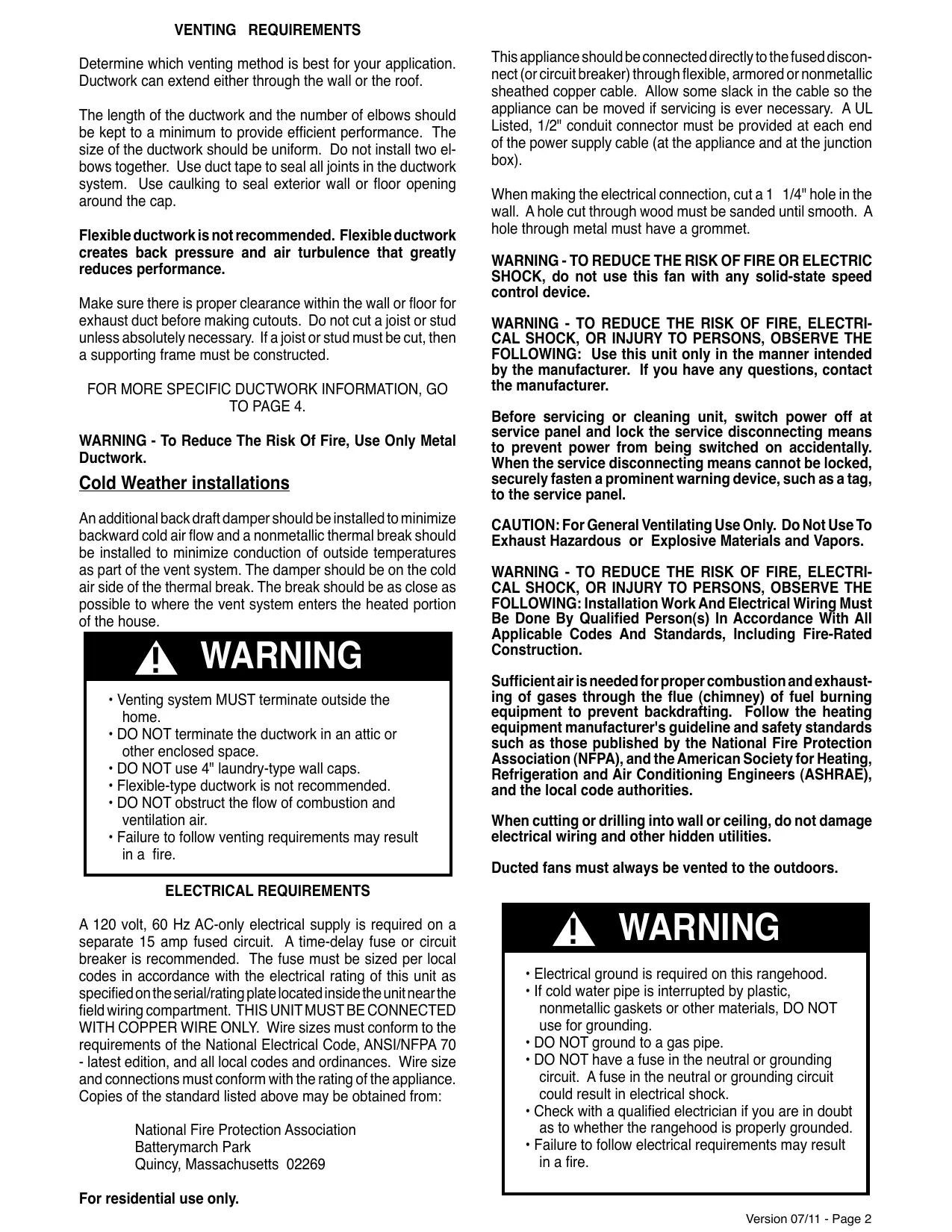

Determine which venting method is best for your application. Ductwork can extend either through the wall or the roof.

The length of the ductwork and the number of elbows should be kept to a minimum to provide efficient performance. The size of the ductwork should be uniform. Do not install two elbows together. Use duct tape to seal all joints in the ductwork system. Use caulking to seal exterior wall or floor opening around the cap.

Flexible ductwork is not recommended. Flexible ductwork creates back pressure and air turbulence that greatly reduces performance.

Make sure there is proper clearance within the wall or floor for exhaust duct before making cutouts. Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame must be constructed.

FOR MORE SPECIFIC DUCTWORK INFORMATION, GO TO PAGE 4.

WARNING - To Reduce The Risk Of Fire, Use Only Metal Ductwork.

Cold Weather installations

An additional back draft damper should be installed to minimize backward cold air flow and a nonmetallic thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the vent system enters the heated portion of the house.

WARNING

• Venting system MUST terminate outside the home.
• DO NOT terminate the ductwork in an attic or other enclosed space.
  DO NOT use 4'' laundry-type wall caps.
• Flexible-type ductwork is not recommended.
  DO NOT obstruct the flow of combustion and ventilation air.
• Failure to follow venting requirements may result in a fire.

ELECTRICAL REQUIREMENTS

A 120 volt, 60Hz AC-only electrical supply is required on a separate 15 amp fused circuit. A time-delay fuse or circuit breaker is recommended. The fuse must be sized per local codes in accordance with the electrical rating of this unit as specified on the serial/rating plate located inside the unit near the field wiring compartment. THIS UNIT MUST BE CONNECTED WITH COPPER WIRE ONLY. Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 - latest edition, and all local codes and ordinances. Wire size and connections must conform with the rating of the appliance. Copies of the standard listed above may be obtained from:

National Fire Protection Association

Batterymarch Park

Quincy, Massachusetts 02269

For residential use only.

This appliance should be connected directly to the fused disconnect (or circuit breaker) through flexible, armored or nonmetallic sheathed copper cable. Allow some slack in the cable so the appliance can be moved if servicing is ever necessary. A UL Listed, 1/2 conduit connector must be provided at each end of the power supply cable (at the appliance and at the junction box).

When making the electrical connection, cut a 1 1/4" hole in the wall. A hole cut through wood must be sanded until smooth. A hole through metal must have a grommet.

WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not use this fan with any solid-state speed control device.

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.

Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous or Explosive Materials and Vapors.

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Installation Work And Electrical Wiring Must Be Done By Qualified Person(s) In Accordance With All Applicable Codes And Standards, Including Fire-Rated Construction.

Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

Ducted fans must always be vented to the outdoors.

WARNING

• Electrical ground is required on this rangehood.
• If cold water pipe is interrupted by plastic, nonmetallic gaskets or other materials, DO NOT use for grounding.
  DO NOT ground to a gas pipe.
• DO NOT have a fuse in the neutral or grounding circuit. A fuse in the neutral or grounding circuit could result in electrical shock.
• Check with a qualified electrician if you are in doubt as to whether the rangehood is properly grounded.
• Failure to follow electrical requirements may result in a fire.

RÉGLEMENTS D'ÉVACUATION

• Saber Saw or Jig Saw
• Drill
• 1 1/4" Wood Drill Bit
  Pliers
• Phillips Screwdriver
• Flat Blade Screwdriver
• Wire Stripper or Utility Knife
  Metal Snips
• Measuring Tape or Ruler
• Level
• Pencil
  Caulking Gun
  Duct Tape

PARTS SUPPLIED FOR INSTALLATION

• 1 Hardware Package
  1 Literature Package

PARTS NEEDED FOR INSTALLATION

2 Conduit Connectors
Power Supply Cable
1 Wall or Roof Cap
All Metal Ductwork

OPTIONAL ACCESSORIES AVAILABLE

High Ceiling Chimney Kit

Extends the island chimney for high ceilings

part # HIGH2 - Stainless

\*Ductless Conversion Kit

For non-vented installations only

• it is highly recommended that professional style cooking always be vented to the outside

part # DUCT2 - Stainless

- Replacement Charcoal Filter

For non-vented installations only, replace charcoal filter as needed part # FILTER2

FIGURE 1

RANGEHOOD COMPONENTS

A. CANOPY SECTION
B. LOWER CHIMNEY COVER
C. UPPER CHIMNEY COVER
D. CHIMNEY COVER SCREWS
E. CANOPY SCREWS
F. CHIMNEY SUPPORT
G. WOOD SHELF BOLTS
H. WOOD SHELF WASHERS
I. WOOD SHELF NUTS
J. MOUNTING TEMPLATE
K. CONNECTOR BOX SCREWS
L. CONNECTOR BOX HALVES
M. DAMPER

UNPACK THE RANGEHOOD

Remove the rangehood from the carton and place on a flat surface for assembly. Before discarding the packaging, check to make sure that no mounting hardware or parts are missing. DO NOT REMOVE THE PLASTIC COVERING ON THE CHIMNEYS AT THIS TIME! This plastic covering protects the chimney from scratches during installation.

For safe packaging, the entire chimney section of the hood is shipped assembled. It must be disassembled completely for installation. Disassemble packaged chimney components by sliding apart the chimney covers (B and C in FIGURE 1). Remove the LOWER CHIMNEY COVER (B) from the CHIMNEY SUPPORT (F) by removing the 2 Philips screws on the outside bottom of the chimney cover. Remove the UPPER CHIMNEY COVER (C) from the CHIMNEY SUPPORT (F) by removing the 2 Philips screws on the outside top of the chimney cover.

PREPARING TO ATTACH THE CHIMNEY

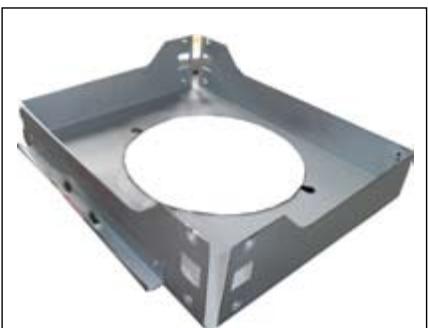

The rangehood attaches to the ceiling by a metal support structure (F in FIGURE 1). This support must be attached to the ceiling before the canopy is attached. This structure must be firmly attached to the ceiling.

FOR WOOD CEILINGS: Use four 4" long wood screws and washers.

FOR PLASTERORSHEETROCKCEILINGS: If possible, the support must be attached to the ceiling joists. If not, a supporting structure behind the sheet rock must be built.

FOR WOOD SHELVES: Use items G, H, & I in FIGURE 1.

CALCULATE THE DUCTRUN LENGTH

The ductrun should not exceed 35 equivalent feet if ducted with the required minimum of 6'' round duct. Calculate the length of the ductwork by adding the equivalent feet in FIGURE 2 for each piece of duct in the system. An example is given in FIGURE 3.

For best results, use no more than three 90^ elbows. Make sure that there is a minimum of 24^ of straight duct between elbows if more than one is used. Do not install two elbows together. If you must elbow right away, do it as far away from the hood's exhaust opening as possible.

FIGURE 2

45° Elbow	3.0 feet
90° Elbow	5.0 feet
90° Flat Elbow	12.0 feet
Wall Cap	0.0 feet

FIGURE 3

9 Feet Straight Duct	9.0 feet
2 - 90° Elbows	10.0 feet
Wall Cap	0.0 feet
Total System	19.0 feet

This rangehood can be installed as either ducted or ductless. When installed ductless, the rangehood vents out of a grate on the back of the lower chimney. Ductless installations require a Ductless Conversion Kit, available from your dealer.

WARNING! BEFORE MAKING ANY CUTS OR HOLES FOR INSTALLATION, DETERMINE WHICH VENTING METHOD WILL BE USED AND CAREFULLY CALCULATE ALL MEASUREMENTS.

(vented to the outside)

DUCTED INSTALLATION DIMENSIONS

The Stilo Isola chimney is highly adjustable and designed to meet varying ceiling heights as indicated in FIGURE 4. The chimney can be adjusted for ceilings between 7^53 / 8'' and 8^113 / 8'' depending on the distance between the bottom of the hood and the cooktop (distance x in FIGURE 4).

For higher ceiling installations, the High Ceiling Chimney Kit includes an additional support structure which adds 27 1/2" to the ceiling heights in FIGURE 4.

NOTE: To reduce the chimney structure to the 27^ minimum height as shown, the middle section of the support structure (FIGURE 5) needs to be removed. Out of the box, the minimum chimney length is 32^ , not 27^ as shown in the dimensional diagram. Add 5^ to all minimum ceiling height calculations if keeping the middle section in place. Contact Faber at 508-358-5353 for more information.

FIGURE 5

WARNING

DUE TO THE SIZE AND WEIGHT OF THIS RANGEHOOD, THE SUPPORT MUST BE FIRMLY ATTACHED TO THE CEILING. For plaster or sheet rock ceilings, the support must be attached to the joists. If this is not possible, a support structure must be built behind the plaster or sheet rock. The manufacturer assumes no responsibility for injury or damage caused by improper installations.

This rangehood can be installed as either ducted or ductless. When installed ductless, the rangehood vents out of grates on either side of the lower chimney. Ductless installations require a Ductless Conversion Kit, available from your dealer.

WARNING! BEFORE MAKING ANY CUTS OR HOLES FOR INSTALLATION, DETERMINE WHICH VENTING METHOD WILL BE USED AND CAREFULLY CALCULATE ALL MEASUREMENTS.

DUCTLESS INSTALLATION DIMENSIONS

(not vented to the outside)

The ductless Stilo Isola chimney is adjustable for varying ceiling heights as indicated in FIGURE 6. The chimney can be adjusted for ceilings between 7^103 / 8'' and 8^113 / 8'' depending on the distance between the bottom of the hood and the cooktop (distance x in FIGURE 6).

For higher ceiling installations, the High Ceiling Chimney Kit includes an additional support structure which adds 27 1/2" to the various ceiling heights in FIGURE 6.

WARNING

DUE TO THE SIZE AND WEIGHT OF THIS RANGEHOOD, THE SUPPORT MUST BE FIRMLY ATTACHED TO THE CEILING. For plaster or sheet rock ceilings, the support must be attached to the joists. If this is not possible, a support structure must be built behind the plaster or sheet rock. The manufacturer assumes no responsibility for injuryordamagecaused by improper installations.

1. Put a thick, protective covering over cooktop, set-in range or countertop to protect from damage or dirt.
2. Determine and clearly mark with a pencil on the ceilingwheretherangehood will be installed.
3. A template (Lin FIGURE 7) for mounting the support is supplied in the carton with the support. Use this template to mark holes for support on the ceiling.
4. Determine and make necessary cuts for the ductwork. The duct opening is shown on the mounting template (L in FIGURE 7). Install ductwork before mounting the support.
5. IfusingtheHighCeiling Chimney Kit, remove the CHIMNEY COVER from the CHIMNEY EXTENSION (A in FIGURE 8). Position the CHIMNEY EXTENSION over the CHIMNEY SUPPORT(BinFIGURE 8) so that the outside edges and the electrical holes line up. Attach the CHIMNEYEXTENSIONto theCHIMNEY SUPPORT using the 4 bolts (C in FIGURE 8). Tighten bolts securely.
6. Determine the proper location for the Power Supply Cable as indicated on the template. Use a 1 1/4" Drill Bit to make this hole. Run the Power Supply Cable. Use caulking to seal around the hole. DO NOT turn on the power until installation is complete! Aknockout is provided at the top of the CHIMNEY SUPPORT (D in FIGURE 9).
7. For ducted installations, place the round DAMPER (N in FIGURE 1) into the exhaust opening of the rangehood and press down.

1. Attach the CHIMNEY SUPPORT (D in FIGURE 9) to the ceiling. Make sure that the support is firmly attached to the ceiling. Determine the desired length of the support structure and adjust the length of the support by removing the four screws (indicated in FIGURE 9) with a flat head screwdriver. Once the length of the support is determined, install and tighten the four screws.

FOR DUCTLESS INSTALLATIONS

Ductless installations require a Ductless Conversion Kit whose components are pictured in FIGURE 10. Do not use the DAMPER (N in FIGURE 1) for ductless installations. The LOWER CHIMNEY COVER (B in FIGURE 1) should be discarded and replaced by the new one with holes from the Ductless Conversion Kit (D in FIGURE 10).

As indicated in FIGURE 10, place the DUCTLESS DIVERTER (A) over the exhaust opening of the EASY CUBE (E). Fitthe DUCTLESS DIVERTER EXTENSIONS HORIZONTAL (B) into the DIVERTER (A).

MAKE THE ELECTRICAL CONNECTION

Remove the cover from the field wiring compartment. DO NOT turn on the power until installation is complete! Connect the Power Supply Cable to the rangehood. Connect the Green (Green and Yellow) ground wire under the Green grounding screw. Attach the White lead of the power supply to the White lead of the rangehood with a twist-on type wire connector. Attach the Black lead of the power supply to the Black lead of the rangehood with a twist-on type wire connector.

INSTALLING THE RANGEHOOD

1. The UPPER CHIMNEY COVER (C in FIGURE 11) attaches using two screws provided (G in FIGURE 11). If using the High Ceiling Chimney Kit, use the UPPER CHIMNEY COVER supplied with the kit. Slide up and attach the UPPER CHIMNEY COVER.
2. Attach the duct work to the DAMPER (N in FIGURE 1). Make sure to seal all joints with duct tape to prevent leaks.
3. The LOWER CHIMNEY COVER (B in FIGURE 11) attaches using two screws provided (G in FIGURE 11). Install the LOWER CHIMNEY COVER by sliding it up over the support and the UPPER CHIMNEY COVER.

FIGURE 11

For ductless installations, line up the DUCTLESS DIVERTER EXTENSIONS HORIZONTAL (B in FIGURE 10) with the holes in the LOWER CHIMNEY COVER (D in FIGURE 10) and snap in the VENT GRIDS (C in FIGURE 10).

WARNING

DUE TO THE SIZE AND WEIGHT OF THIS RANGEHOOD, THREE PEOPLE ARE REQUIRED TO INSTALL THE CANOPY. Two people must hold the canopy in place while the third person installs the screws that attach the canopy to the chimney. The manufacturer assumes no responsibility for injury or damage caused by improper installations.

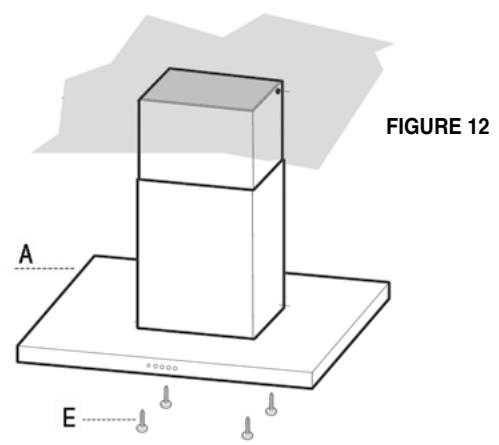

1. From below, attach the CANOPY SECTION (A in FIGURE 12) to the assembled chimney support using the four bolts provided (E in FIGURE 12).

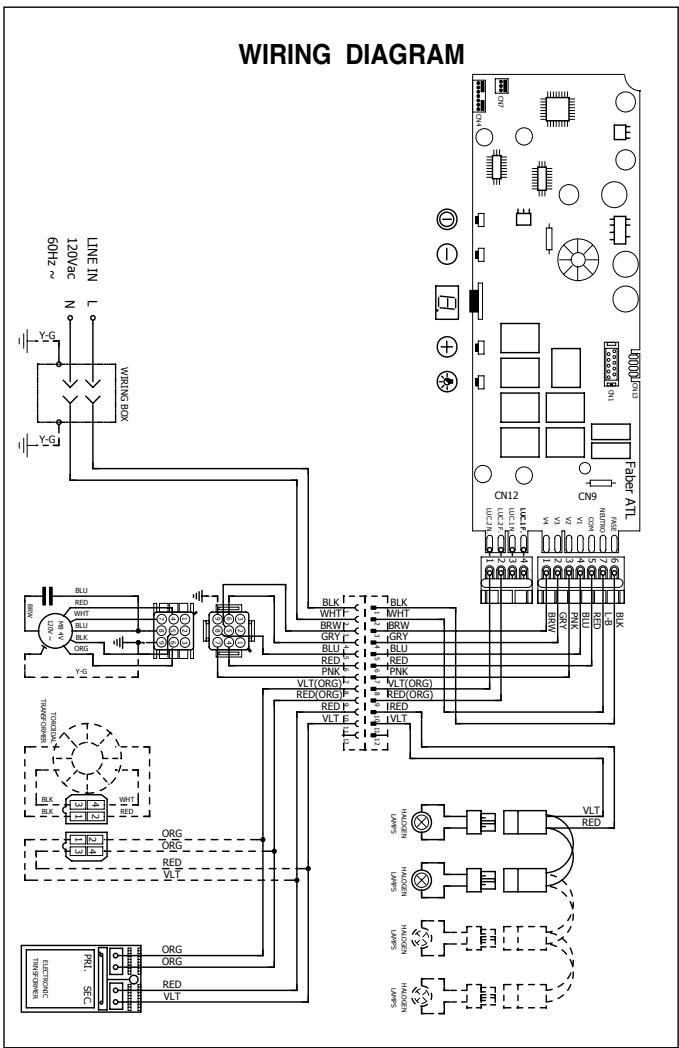

MAKE THE INTERNAL ELECTRICAL CONNECTIONS

1. Connect the CONTROL CABLES together as indicated in A in FIGURE 13. Connect the LIGHT CABLES together as indicated in B in FIGURE 13. Insert the connected CONTROL CABLES (A in FIGURE 13) into the black plastic CONNECTOR BOX (C in FIGURE 13) by connecting the two black plastic pieces using the four screws provided. Using the two longer screws provided, attach the assembled CONNECTOR BOX to the METAL FLANGE (D in FIGURE 13).

FIGURE 13

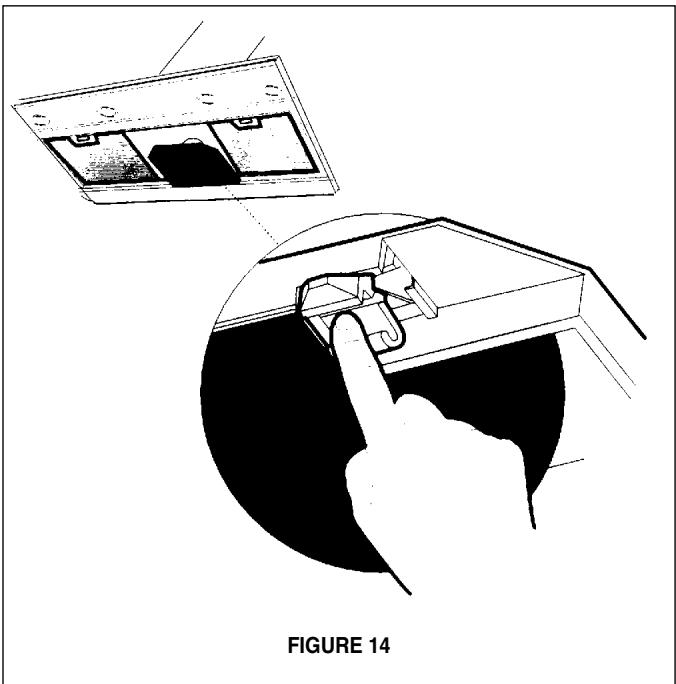

For ductless installations, install the CHARCOAL FILTER (F in FIGURE 10) behind the center grease filter opening by inserting and locking into place. See FIGURE 14

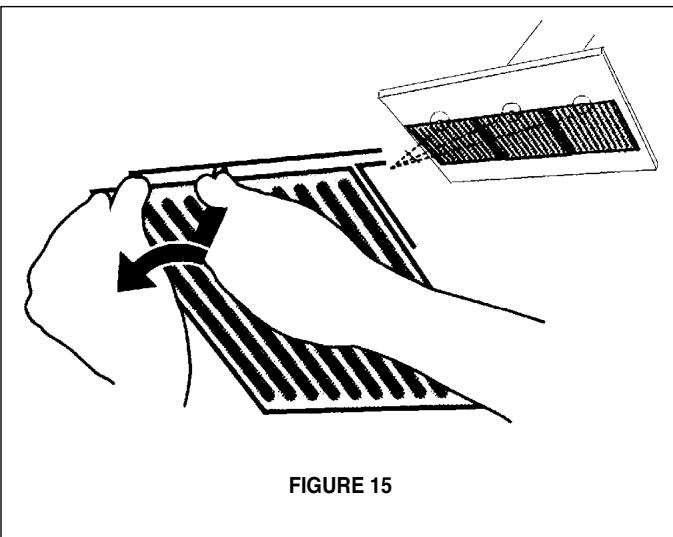

1. Install the grease filters using two hands by first pulling and turning the knob to the left so that the locking lever does not protrude from the filter (as in FIGURE 15). Insert the opposite end of the filter into the retaining channel. Insert the knob end next, then turn knob to the right to lock the filter into place.

1. Turn the power supply on. Turn on blower and lights. If the rangehood does not operate, check that the circuit breaker is not tripped or the house fuse blown. If the unit still does not operate, disconnect the power supply and check that the wiring connections have been made properly.

- This rangehood uses 20 watt halogen lamps.

USE AND CARE INFORMATION

This rangehood system is designed to remove smoke, cooking vapors and odors from the cooktop area.

Rangehood Control Panel

The control panel is located on the front edge of the rangehood canopy. The position and function of each control button are indicated in FIGURE 16.

Button A. Press button to turn fan on / off. Current speed is displayed in C display (1, 2, 3)

Button B. Press to reduce fan speed to as low as speed 1, display C shows the speed selected (1, 2, 3). Hold for 3 seconds to turn on 30 minute delay feature which runs the hood for 30 minutes and automatically shuts the hood off. Current speed on 30 minute delay is shown in C display with a blinking light to indicate 30 minute mode. Shut off the 30 minute mode by holding down the button for 3 seconds

Button C. LED single digit readout display screen

Button D. Press button to increase fan speed up to speed 3. Hold for 3 seconds to activate intensive speed mode which operates hood on highest speed for 10 minutes and then returns to previous speed setting. Display C indicates intensive speed with an "H" and blinking light. Shut off the intensive speed mode by holding down the button for 3 seconds

Button E. Press the button to turn on and off lighting. Press once to turn the dimmer light on, press twice to turn the normal light setting on, and press again to turn off the lighting.

For Best Results

Start the rangehood several minutes before cooking to develop proper airflow. Allow the unit to operate for several minutes after cooking is complete to clear all smoke and odors from the kitchen.

Cleaning

The stainless steel grease filters should be cleaned frequently in hot detergent solution or washed in the dishwasher. Stainless steel cleaner should be used on stainless rangehoods. Abrasives and scouring agents can scratch stainless steel finishes and should not be used to clean finished surfaces.

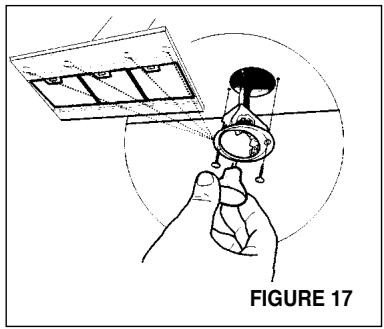

Replacing the Lamps

Before attempting to replace the lamps, make sure that the light switch is turned off. Remove the 2 screws (as indicated in FIGURE 17) that hold the light support and gently pull the support down from the hood. Remove the lamp from the light support and replace with new lamp. Replace the light support and fix it into place with the 2 screws.

An alternative method to replace the lamps is to use a 1 1/4" suction cup (FIGURE 18). Attach the suction cup to the bulb and pull firmly down on the bulb and replace with a new lamp.

FABER WARRANTY & SERVICE (SAVE FOR YOUR RECORDS)

All Faber products are warranted against any defect in materials or workmanship for the original purchaser for a period of 1 year from the date of original purchase. This warranty covers labor and replacement parts. To obtain warranty service, contact the dealer from whom you purchased the rangehood, or the local Faber distributor. If you cannot identify a local Faber distributor, contact us at [phone] for the name of a distributor in your area.

The Following is not covered by Faber's warranty:

1. Service calls to correct the installation of your range hood, to instruct you how to use your range hood, to replace or repair house fuses or to correct house wiring or plumbing.
2. Service calls to repair or replace range hood light bulbs, fuses or filters. Those consumable parts are excluded from warranty coverage.
3. Repairs when your range hood is used for other than normal, single-family household use.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Faber.
5. Replacement parts or repair labor costs for units operated outside the United States or Canada, including any non-UL or C-UL approved Faber rangehoods.
6. Repairs to the hood resulting from unauthorized modifications made to the rangehood.
7. Expenses for travel and transportation for product service in remote locations and pickup and delivery charges. Faber range hoods should be serviced in the home.

Record Your Information Below:

Serial #:

Date of Purchase:

OUTILS NÉCESSAIRES À L'INSTALLATION

part # HIGH2 - Stainless

Coude 45^ 3,0 pi

Coude 90^ 5,0 pi

Coude plat 90° 12,0 pi

Capuchon de mur 0,0 pi

FIGURE 2

DIMENSIONS D'INSTALLATION AVEC CONDUIT

DIMENSIONS D'INSTALLATION SANS CONDUIT

AVERTISSEMENT
