Product type	Cooker hood
Brand	FALMEC
Model	STEALTH
Operating version	External extraction (suction) or air recirculation (filtering)
Minimum distance from cooking hob	65 cm
Number of motor speeds	3 or 4 (timed intensive speed 15 min)
Lighting	Halogen (max 20 W, 12 V, G4 socket) or incandescent (max 25 W) or LED (replacement by professional)
Anti-grease metal filters	Washable (every month)
Activated carbon filters	Replacement every 3-4 months
Timer	Automatic switch-off after 15 minutes of operation
Filter saturation alarm	Red light indicator for metal filters (deactivatable by long press)
Lighting function	Dimmer (intensity adjustment) by long press on light button
Remote control	Optional (range 5 m)
Exterior material	Stainless steel with anti-fingerprint treatment (FastSteel)
Power supply	Complies with rating plate (220-240 V, 50/60 Hz)
Installation	Wall or ceiling (depending on version), by qualified personnel
Maximum weight of suspended objects	1.5 kg

Frequently Asked Questions - STEALTH FALMEC

What is the minimum distance between the cooking hob and the STEALTH hood?

The minimum distance is 65 cm between the cooking hob and the lowest part of the hood.

How to clean the metal filters of the hood?

The metal filters should be cleaned every month in hot water with a little detergent, without bending them. Dry them well before reinstalling.

How often to replace the activated carbon filters?

The activated carbon filters should be replaced on average every 3 to 4 months, depending on usage. They cannot be washed.

How to change the halogen bulb of the hood?

Unplug the appliance, fully open the panel by pressing PUSH, replace the lamp with a similar one (halogen max 20 W, 12 V, G4 socket), then close the panel.

What to do if the filter saturation indicator lights up red?

Press the timer button for a few seconds until the red light turns off. Then wash or replace the filters as needed.

How to use the timer function?

Press the timer button; the hood will automatically switch off after 15 minutes of operation at the current speed.

Can I use the hood in air recirculation mode?

Yes, for this, install the activated carbon filters (if absent) and remove the non-return valve on the motor connection.

How to adjust the lighting intensity?

With the motor off, perform a long press (2 seconds) on the light button, then use the + and - buttons to adjust the intensity.

What maintenance for the stainless steel exterior?

Clean every 2 weeks with a soft cloth and neutral soapy water. For FastSteel (anti-fingerprint) surfaces, use a soft cloth, rinse and wipe dry.

Is the hood supplied with a remote control?

The remote control is optional (available on certain versions). Its maximum range is 5 meters.

USER MANUAL STEALTH FALMEC

INSTRUCTIONS BOOKLET

Dear Sir/Madam, congratulations!

You have purchased a prestigious range hood of guaranteed quality. For best results, we suggest that you carefully follow the operating and maintenance instructions provided in this booklet; in addition, to order spare charcoal filters, use the special coupon on the cover.

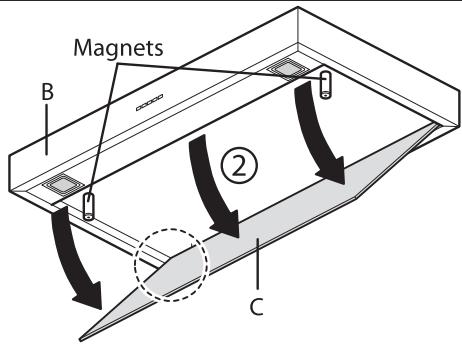

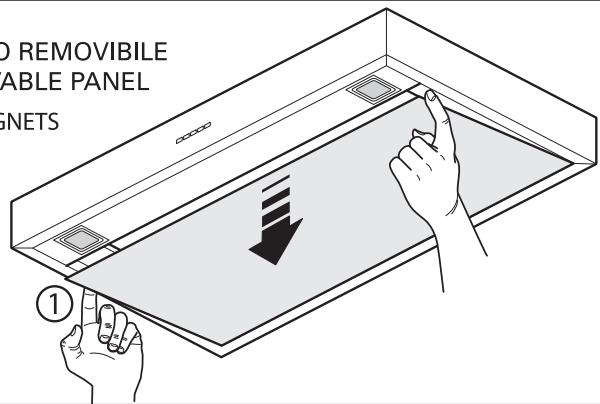

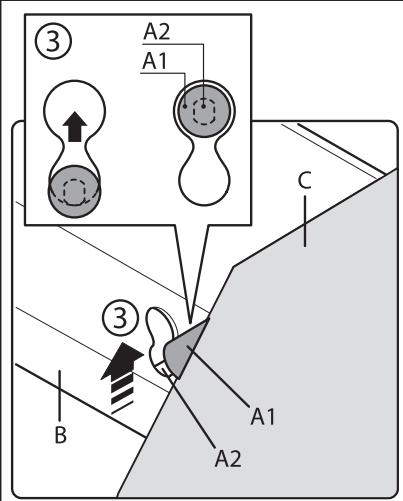

NEW FIXING SYSTEM WITH MAGNETS

Fig. H3

MIRABILIA PARETE/WALL

Fig. 04 Fig. 03

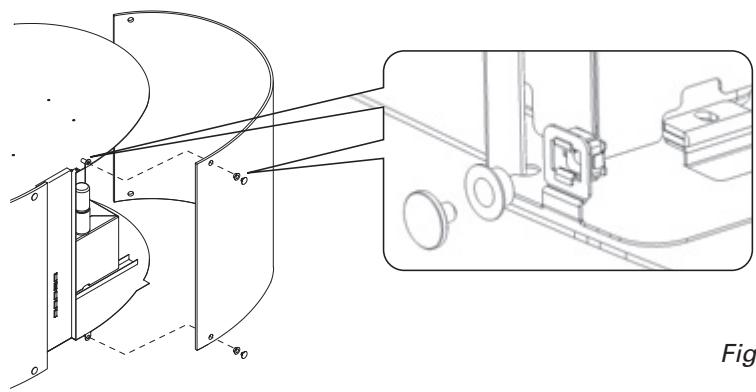

MOUNTING/DISMOUNTING INSTRUCTIONS FOR THE GLASSES

MIRABILIA 67 - MIRABILIA 97

ISLAND 67 CENTRAL CHIMNEY

MIRABILIA ISLAND 85 Fig. 05

MIRABILIA ISLAND 85 ISLAND 67 CENTRAL CHIMNEY

Fig. 1

H1 = 650 mm (25.6")

Fig. 2

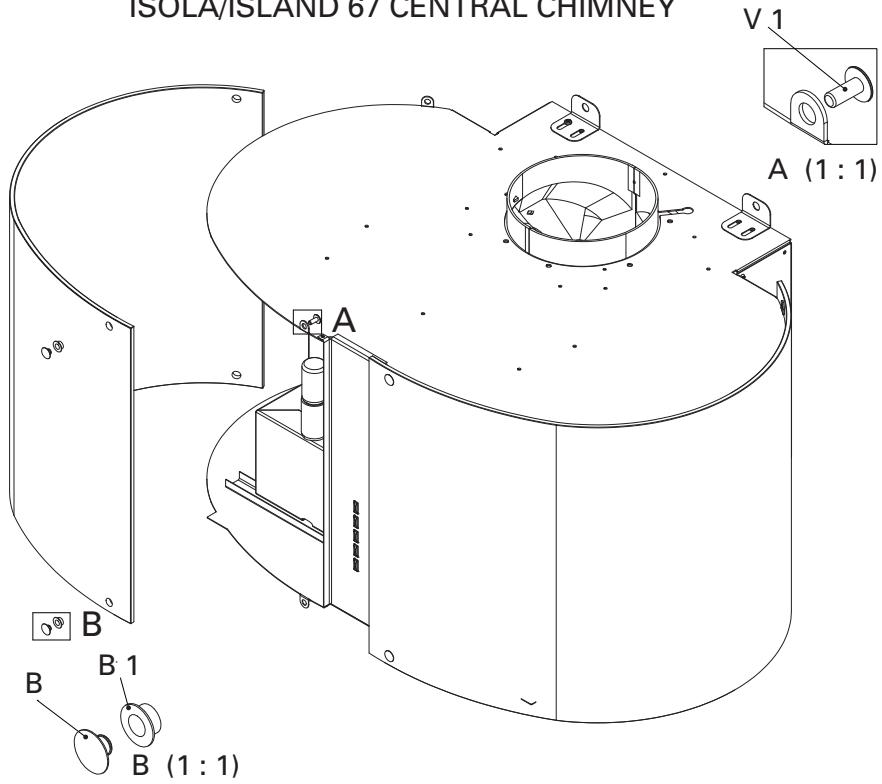

MIRABILIA ISOLA/ISLAND 85 - ISOLA/ISLAND 67 CENTRAL CHIMNEY

Fig. 3

WARNINGS

Square halogen light

This instruction booklet must be kept together with the appliance for future reference. If the appliance is sold or consigned to other parties, check that the booklet is supplied with it, to ensure that the new user has the correct information on the operation of the range hood and is aware of the warnings. These warnings have been provided for your safety and the safety of others. As a result, please read them carefully before installing and operating the appliance.

This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure they do not play with the appliance.

The appliance must be installed by qualified personnel, in accordance with the standards in force. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Any modifications that may be required to the electrical system for the installation of the range hood must only be made by qualified electricians.

It is dangerous to modify or attempt to modify the characteristics of this system. In the event of malfunctions or if repairs are required to the appliance, do not attempt to solve the problems directly.

Repairs performed by unqualified persons may cause damage. For all repair and other work on the appliance, contact an authorized service/spare parts center.

Always check that all the electrical parts (lights, exhaust device) are off when the appliance is not being used. Read the entire instruction booklet before performing any operations on the range hood.

The range hood must only be used for the exhaust of cooking fumes in home kitchens. The manufacturer disclaims all liability for any other use of the appliance.

The maximum weight of any object placed above the hood, or hung to it (if possible) must not exceed 1.5 kilos. After installing the stainless steel hood, clean it in order to remove any residue of the protective glue, and stains of grease or oil. The manufacturer recommends its cleaning cloth available for purchase. The manufacturer accepts no liability in case of damage caused by the use of different detergent types.

TECHNICAL SPECIFICATIONS

The technical data pertaining to the electric appliance. The technical specifications of the appliance are shown on the rating plates located inside the range hood.

(Section reserved for qualified installers of the range hood)

The distance between the hob and the lowest part of the rangehood is normally at least 65 cm (see figure C1). This distance is measured in the lowest part of the rangehood not operating at safety voltage. Based on this detail provided by European Standards, the distance may be reduced in some models as specified in the general catalogue. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.

In the outside exhaust version, the diameter of the fume discharge duct must be no smaller than the range hood connection.

In the horizontal sections, the duct must slope slightly (around 10%) upwards, so as to better convey the air outside of the room.

Avoid using angled pipes, make sure that the pipes are at least of the minimum length.

Comply with the current regulations on air discharge into the atmosphere. If a boiler, stove, fireplace, etc. that uses gas or other fuels is being used at the same time, make sure the room where the fumes are extracted is well ventilated, in compliance with the current regulations.

Mounting instruction: see section "O" of the booklet.

ELECTRICAL CONNECTIONS

(Section reserved for qualified installers)

WARNING!

Before doing any work inside the range hood, disconnect the appliance from the mains power supply.

Check that the wires inside the range hood are not disconnected or cut; if this is the case, contact your nearest service centre. The electrical connections must be performed by qualified personnel.

The connections must be performed in compliance with the legal standards in force. Check that the relief valve and the electrical system are able to support the load of the appliance (see the technical specifications in point B).

Some types of appliance are supplied with a cable without plug; in this case, "standardised" plugs must be used, keeping in mind that:

• the yellow-green wire must be used for the earth,
• the blue wire must be used for the neutral,
• The brown wire must be used for the phase; the cable must not come into contact with hot parts (over 70°C).
• Fit a plug that is suitable for the load to the power cable, and connect it to a suitable power outlet.

For appliances that come supplied with cable and plug, please ensure they are plugged into a circuit suitable for this appliance.

Please refer to a qualified person. (See technical specifications in point B).

The manufacturer declines all liability if the safety standards are not observed.

RANGE HOOD WITH OUTSIDE

DISCHARGE (exhaust)

In this version, the fumes and steam from the kitchen are conveyed outside through an exhaust duct.

The exhaust conveyor that protrudes from the upper part of the range hood must be connected to a duct that carries the fumes and steam outside. In this version, the charcoal filters, if fitted, should be removed; to do this, see the instructions in point F. There must be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels, according to the standard.

Deviation for Germany:

When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4x10 E-5 bar).

RECIRCULATING RANGE

HOOD (with filter)

In this version, the air passes through charcoal filters for purification, and is then recirculated back into the kitchen.

Check that the charcoal filters are fitted to the motor, and if not, install them as described in the instructions in point H.

If the hood is of filtering type, remove the non-return valve fitted at the motor's outlet.

For maximum efficiency, the third speed should be used when there are strong odours or a lot of steam, the second speed in normal conditions, and the first speed for keeping the air clean with minimum energy consumption. The range hood should be switched on when starting to cook, and left on until the odours disappear.

OPERATION

ELECTRONIC CONTROL PANEL

Light pushbutton

• ON: light on (the pushbutton is lit);
• OFF: light off;

Dimmer with keyboard integrated functions: with motor off and prolonged pressing of keyboard light key (2 seconds), access is gained to the amend atmosphere light intensity (incandescent or LED lamp). By acting on the + and - keys, light intensity is adjusted. With motor started, the prolonged pressing of the key, switches the atmosphere light on or off.

Pushbutton -

Press to reduce motor speed

Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and the timer LEDs).

Pushbutton +

Press to increase motor speed

Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and the timer LEDs). (In the 4-speed version the pushbutton + blinks. The fourth speed remains on for a set duration of time. After 15 minutes the motor returns to the third speed).

Mode pushbutton

Function: it turns hood motor on and off.

The function "desired speed" enables to start the motor at the speed that was selected before the hood was last turned off.

Optional: version with remote control (some versions only).

WARNING:

Install the hood away from sources of electromagnetic waves, as these could affect the correct operation of the electronic system.

Maximum operating distance: 5 metres. The maximum operating distance could be less than 5 metres in case of electromagnetic interference by other equipment.

Light pushbutton on remote control: light on/off.

• and + pushbutton: increase/decrease speed (to start the motor press either the + or the - pushbutton).

Timer pushbutton: see instructions below.

Timer and 'filter clogged' alarm pushbutton

• This function allows the automatic turning off of the hood after running for 15 minutes at the speed previously set (the pushbutton shows a flickering light).
• After about 30 hours of running the pushbutton indicates the need for washing the metal filters (the pushbutton shows a solid red light). To disable the alarm press the pushbutton for a few seconds until the red light turns off. Then turn the hood off and on again to check that the alarm has disappeared.

FILTERS REMOVING AND REPLACING'S INSTRUCTIONS

1. METAL FILTERS

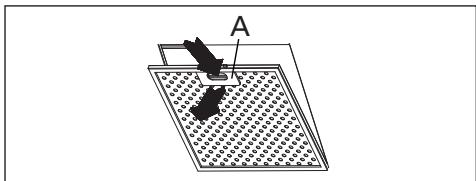

Open the panel (see fig. H3). Use handle A to remove the metal grease filter.

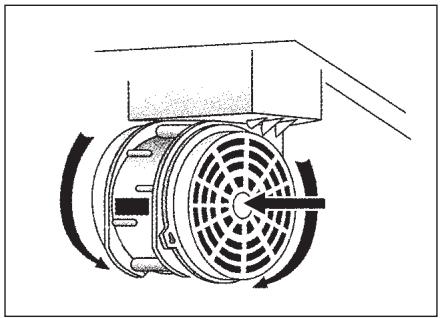

2. CHARCOAL FILTERS

To replace the charcoal filters, proceed as follows: remove the metal filters as described above. The two filters located at the ends of the motor can now be easily accessed.

To install the new filters see picture.

In case of hood with the motor box the filter is located on the bottom part of the motor box.

To install the new filters see picture.

To order new charcoal filters contact the distributor/retailer.

VALID ONLY FOR ITALY: download the appropriate order form from: www.falmec.com (access the assistance drop-down menu).

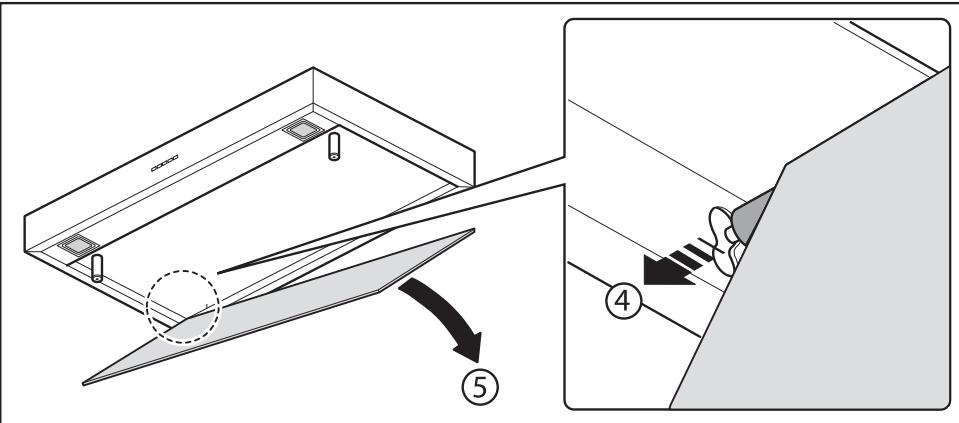

3. REMOVABLE PANEL

Follow the instructions on fig. H3 to remove the panel.

LIGHTING ASSEMBLY AND REPLACEMENT

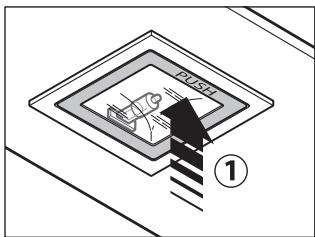

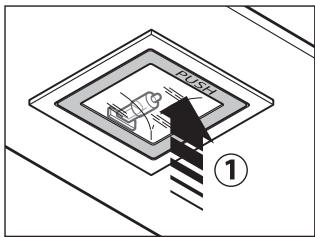

SPOTLIGHT

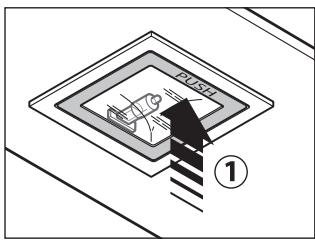

How to replace a square halogen light:

a) Check that the equipment is disconnected from the power supply. b) Open the panel completely till 90° (see figure) pressing the PUSH button c) Replace the lamp with a similar one (halogen, max 20 W, 12 Volt, G4 connection). d) Close the panel. If the panel does not close correctly repeat the operation at point b.

Square halogen light

GLASS LIGHTING

To replace the incandescent lamp:

1) ensure the hood is disconnected from the electric mains;

2) remove the decorative glass (see sec. O); 3) replace the lamp with one of the same model (max. 25W); 4) re-mount the glass (see fig. 05).

In case of hoods with LED lighting, the replacement of the luminous body can only be carried out by specialised staff and with original spare parts.

WARNING: Do not remove the glass if the glass LED lighting is on.

MAINTENANCE AND CLEANING

Constant maintenance ensures the correct operation and efficiency of the appliance over time. Special attention should be paid to the metal grease-trapping filters and the charcoal filters. Frequent cleaning of the filters and their supports will ensure that fats and grease do not accumulate on the range hood, with the consequent risk of fire.

1. METAL GREASE-TRAPPING FILTERS

These trap the fat and grease particles suspended in the air, and therefore should be washed every month in hot water and detergent, without bending them. Wait until they are completely dry before repositioning them.

To remove and replace these filters, see the instructions in point H1. This operation should be performed at regular intervals.

2. CHARCOAL FILTERS

These trap the odours present in the stream of air that passes through them. The air is purified by passing a number of times through the filters and being recirculated into the kitchen. The charcoal filters cannot be cleaned, and should be replaced on average every 3-4 months (according to use). To replace the charcoal filters, see the instructions in point H2.

3. CLEANING THE OUTSIDE OF THE APPLIANCE

It is advised to clean the external hood surfaces at least every 15 days in order to avoid that oily or greasy substances affect the steel surfaces.

The aside of the range hood should be cleaned using a damp cloth and neutral liquid detergent or denatured alcohol.

In case of fingerprint-less finish (fasteel) clean only with water and neutral soap using clean with a soft cloth, rinse and wipe dry thoroughly. Do not use products that contain abrasive substances, rough cloths or cloths specifically designed for cleaning steel. Using abrasive substances or rough cloths will inevitably damage the finish of steel. The steel surface will be irrevocably damaged if the instructions above are not complied with.

Keep these instructions together with the instructions for use of your hood.

The manufacturer accepts no liability for any damage caused by non-compliance with the instructions above.

4. CLEANING THE INSIDE OF THE APPLIANCE

The electrical parts or parts of the motor assembly inside the range hood must not be cleaned using liquids or solvents.

Do not use abrasive products. All the above operations must be performed after having disconnected the appliance from the mains power supply.

The electrical system features an earth connection in compliance with international safety standards; furthermore, it is compliant with the European standard for electromagnetic compatibility.

Do not connect the appliance to flues (from boilers, fireplaces, etc.). Make sure the mains voltage corresponds to the values on the rating plate located inside the range hood. The minimum safety distance between the cooktop and the range hood must be at least 65 cm.

Never cook on "open" flames under the range hood.

Check deep-fryers during use: superheated oil may be flammable.

• Ensure there is adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
• Do not flambe under the range hood.
• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
• Ensure that all regulations concerning the discharge of exhaust air have been fulfilled before you use the appliance.

Before performing any cleaning or maintenance operations, disconnect the appliance by unplugging it or using the main switch. The manufacturer disclaims all liability for any damage that may be directly or indirectly caused to people, things, and animals due to the failure to follow all the instructions provided in this booklet and above all the warnings relating to the installation, operation, and maintenance of the appliance.

WARRANTY

The new equipment is covered by warranty.

The warranty conditions are provided by the distributor.

The manufacturer is not liable for any inaccuracies in this booklet resulting from printing or transcription errors. The manufacturer reserves the right to modify its products as it considers necessary or in the interests of the user, without compromising their essential safety and operating characteristics.

HOOD INSTALLATION

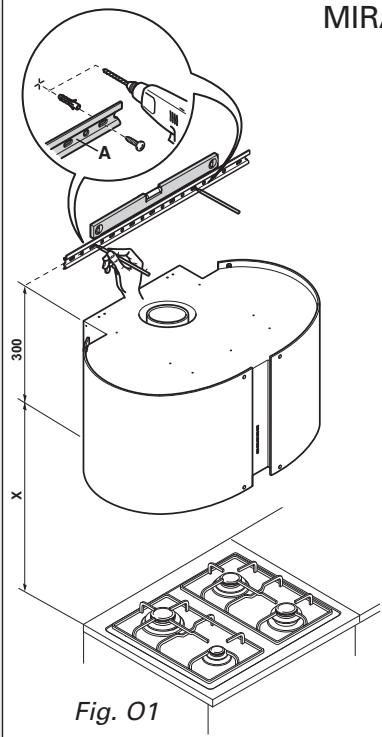

O1 - INSTRUCTIONS FOR WALL-MOUNTED MIRABILIA HOODS

Phase 1

• Place the support bar next to the wall (A-Fig. O1), at a height above the cooktop which corresponds to X + 300 mm.
• With a spirit level, check that the bar is horizontal. Mark a point at each end of the bar.
• Drill the holes, fit 2 Ø8 mm expansion joints, and screw in the bar.

Phase 2

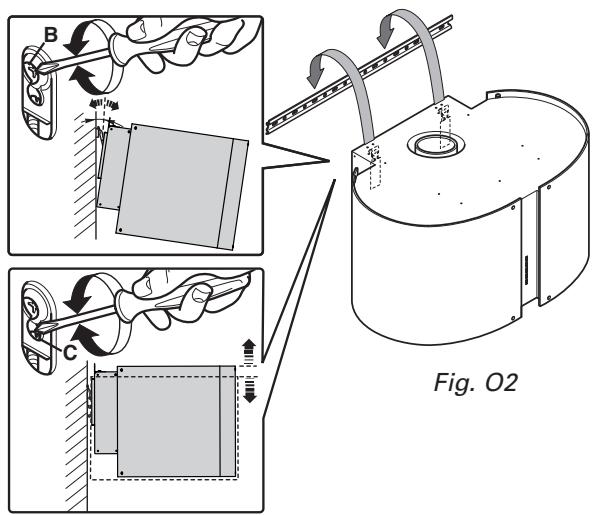

• Fit the hood to the support bar (Fig. O2).
• Adjust hood alignment with the relevant screws: The top screw (B) adjusts the distance from the wall. The bottom screw (C) adjusts the vertical sliding movement.

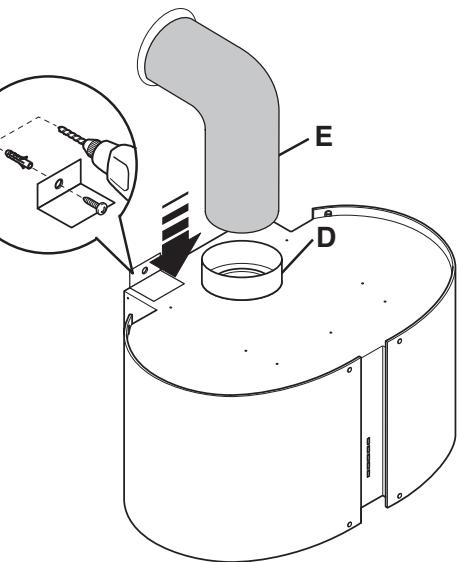

Phase 3

• To prevent the hood from detaching if pressure is exerted from beneath, secure it to the wall with the brackets supplied (fig. O3).
• Fit pipe/hose (E) into (D).

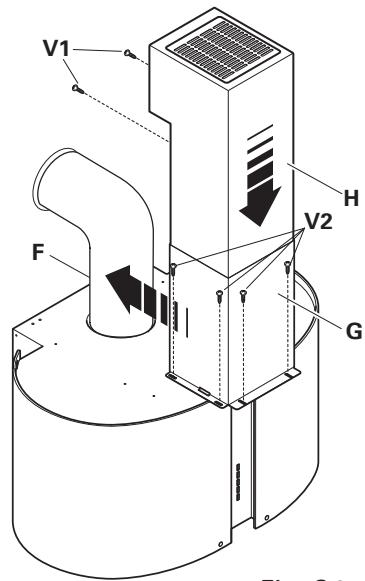

Phase 4

• Slide the extension (H) into (G) till the desired height.
• When the extension is at the desired height, screw it onto the chimney with the screws supplied (V1);
• Lock the chimney + extension onto the hood with 6 V2 screws.
• Fit the glass panels (fig. O5).

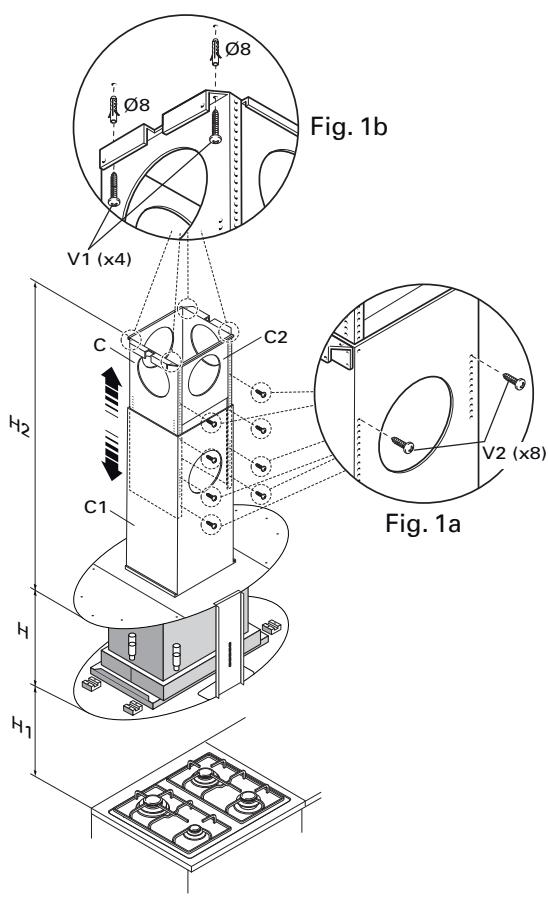

O2 - INSTRUCTIONS FOR MIRABILIA ISLAND 85/ISLAND 67 CENTRAL CHIMNEY

Phase 1

• Identify the desired height (H1=65) for the positioning of the hood.
• Slide the lattice-works (C) and (C1) to the desired height (H2), then block them with the 8 self-threading screws (V2) (Fig.1a).
• Fasten the lattice-work (C) to the ceiling using the four expansion plugs and relative screws (V1) (Fig.1b).

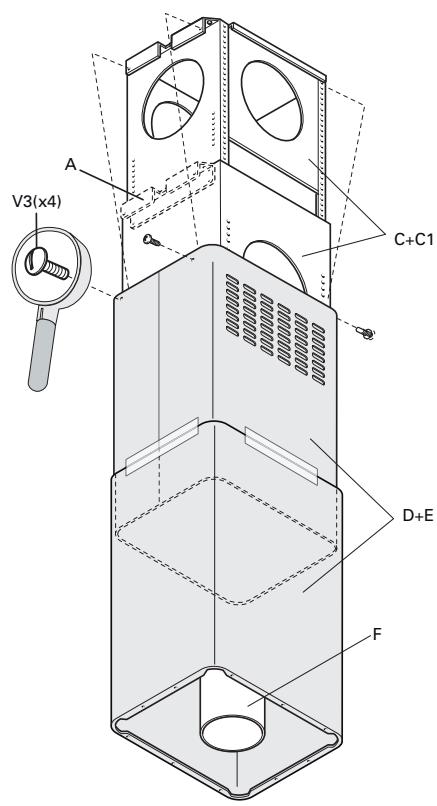

Phase 2

• Insert the extension on the flue and fasten them to each other with masking tape (Fig. 2).
• Fasten the flue-extension assembly (D+E) to the lattice-work (C) with the 4 M4 metric screws (V3) inserted in the existing holes without tightening them completely (Fig. 2).
• For suction version: identify the optimal height for the rigid or flexible exhaust pipe (F) and connect it to the motor connection.

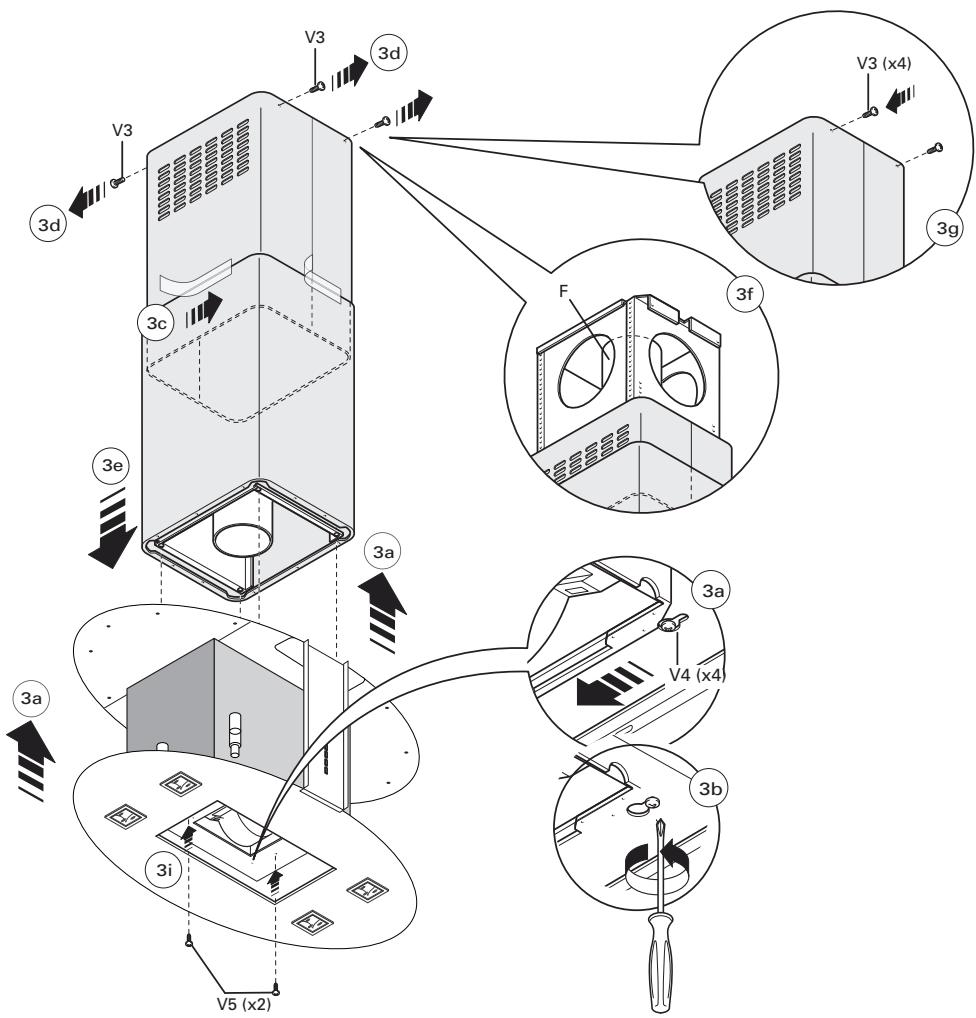

Phase 3

• Raise the hood, hooking it onto the 4 M5 metric screws (V4) pre-tightened to the lattice-work (C) (center the Ø11 holes on the slot of the inner liner and move it laterally) (Fig. 3a).
• Completely tighten the 4 M5 screws (V4) (Fig. 3b).
• Remove the masking tape (Fig. 3c), remove the four M4 metric screws (V3) previously tightened onto the lattice-work (Fig. 3d) and slide the flue-extension assembly downwards (Fig. 3e).
• Connect the pipe to the connection of the ceiling discharge hole (Fig. 3f).
• Make electrical connections only after having removed electrical power supply.
• Fasten the extension to the lattice-work (C) by means of the 4 M4 metric screws (V3), without tightening them completely (Fig. 3g).
• Block the extension completely to the lattice-work (C) by screwing down the 4 M4 metric screws (V3).
• Block the flue with the 2 self-threading screws (V5) (Fig. 3i).
• Use the extension support elements (A) (Fig. 2) only if the upper lattice-work is not used, or in the case of a false ceiling.
• Fit the glass panels (Fig. O5).

NOTES

ELECTRONIC CONTROL PANEL

Light button

Square halogen light

Square halogen light

WINDOW LIGHTING

Square halogen light

EXTRACTOR HOOD WITH EXTERNAL AIR DISCHARGE

In this model, fumes and steam from cooking are discharged outside through a pipe.

The discharge pipe, which protrudes from the upper part of the hood, must be connected to the pipe that carries fumes and steam outside the room, see fig.

In this model, filters are removed on the activated carbon side, if installed; how they are removed, see point F. If the hood is used occasionally for other appliances operating on gas or other fuel, the room must have adequate ventilation.

EXTRACTOR HOOD WITH AIR RECIRCULATION (FILTRATION)

In this model, air passes through activated carbon filters, is purified, and is returned to the kitchen.

Make sure that the carbon filters are installed on the motor, fig. 6, otherwise install them as indicated in point F of the instructions.

For strong odors and large amounts of steam, use the second speed under normal conditions, and the first speed for air purification at low energy consumption.

WARNING: Read the instructions before starting work and leaving the appliance operating in the presence of strong odors.

Key with electronic control

Lighting key

-ON: lighting on (key lights up) - OFF: lighting off;

DIMMER WITH BUILT-IN KEYBOARD FUNCTIONS: With the motor off and a prolonged press (2 seconds) on the lighting key on the keyboard, you can enter the mode for adjusting the intensity of the lighting of the surrounding atmosphere (incandescent or LED lamps). Pressing the + or - keys adjusts the lighting intensity. With the motor on and a prolonged press on the key, the lighting of the surrounding environment is turned on or off.

Key -

Lighting key on the appliance: light on/off.

Key - and + decrease/increase speed (to start the motor, you can press either the + key or the - key).

Timer key: see instructions below.

Timer key and filter saturation

Square halogen light

LIGHTING OF THE GLASS

To replace the incandescent lamp:

1) make sure the appliance is disconnected from the power supply; 2) remove the decorative glass (see section O); 3) replace the lamp with one of the same type and model as the original (max 25 W); 4) put the glass back in place (see fig. O5).

In the case of an appliance with LED lighting, replacement of the light source may only be carried out by a qualified technician and only with original spare parts.

WARNING: Do not remove the glass while the light is on.

CLEANING AND MAINTENANCE

Proper maintenance guarantees good operation and a long service life. Particular attention must be paid to the metal filters for grease capture and the activated carbon filters. Periodically, the filters and the grease collection tray must be cleaned. It is guaranteed that the air is drawn in and collected, which is dangerous due to the flammability of the grease.

1. METAL FILTERS FOR GREASE RETENTION

They are designed to capture grease particles. They should be washed once a month in water with a cleaning agent, then rinsed. Before installation, they must be completely dry. To remove the filter and install it back, see the instructions, paragraph. It is recommended to perform this operation regularly.

For safety reasons, the distance from the cooking surface to the extractor hood must be at least 65 cm.

Do not cook food over an open flame under the extractor hood. Watch the fryers: overheated oil may catch fire.

• Make sure that the room has sufficient ventilation if the extractor hood is used together with other appliances operating on gas or other fuel.
• Do not leave open flames under the extractor hood.
• Do not connect the appliance to flues used for exhausting fumes from combustion of fuel (boilers, fireplaces, etc.).
• Make sure to comply with all applicable regulations regarding air discharge before using the extractor hood.

Before performing any cleaning or maintenance operation, unplug the appliance by pulling the plug out of the socket or using the main switch.

The manufacturer shall not be held responsible for any possible damage, direct or indirect, to persons, objects or domestic animals resulting from failure to comply with the instructions given in the user manual, especially regarding the rules

WARRANTY

The new appliance is under warranty. The warranty conditions are fully described on the last pages of this publication.

The manufacturer reserves the right to make modifications to its own products that it deems necessary or useful, as well as in the interests of the user, and that affect the main functional characteristics and safety.

INSTALLATION OF THE EXTRACTOR HOOD

O1 - WALL-MOUNTED EXTRACTOR HOOD «MIRABILIA»

Step 1

- Position the bracket (A - fig. O1) at a height from the floor calculated by the formula X + 300 mm. - Use a level to check the horizontal alignment and mark 2 points for the holes at the ends of the bracket. - Drill the holes, insert 2 dowels of 8 mm and secure the bracket with the corresponding screws.

Step 2

- Position the extractor hood on the bracket (fig. O2). - Adjust the alignment of the hood using the appropriate screws: the upper screw (B) adjusts the distance from the wall, and the lower one (C) adjusts the vertical movement.

Step 3

- To prevent the hood from detaching under the weight, it must be fixed to the wall using the fixing elements provided in the kit (fig. O3). - Slide the pipe (E) onto the spigot (D).

Step 4

• Insert the extension element into element G and slide it until the desired height is reached;
• Once the optimal position is achieved, fix the extension element to the pipe using the screws (V1) provided in the kit; - Connect the pipe - extension element assembly to the hood using the 6 screws V2.
• Install the glass panels on the extractor hood (fig. O5).

O2 - ISLAND EXTRACTOR HOOD «MIRABILIA» 85/67 CENTRAL CHIMNEY

Step 1

Set the flue (H1=65-75 cm) required for installing the hood. Move the flue sections C and C1 to the required height H2, then secure them with self-tapping screws V2, fig. 1a. Attach the flue to the bracket using 4 screws with a diameter of 8.

corresponding to the flue, fig. 1b.

Step 2

• Insert the extension onto the flue, secure it with masking tape, fig. 2. -Attach the flue with extension (D+E) to the bracket using 4 screws M4 (V3), inserting them into the existing holes without tightening completely, fig. 2. -In case of models with air exhaust, determine the optimal height of the rigid or flexible exhaust duct F and connect it to the motor.

Step 3

-Lift the hood, hooking it onto 4 screws M5 (V4), after having previously screwed the bracket C (align the holes on the hood and the bracket), fig. 3a. -Finally tighten the 4 screws M5 (V4), fig. 3b. - Remove the masking tape, fig. 3c, unscrew the 4 screws M4 (V3) previously inserted into the bracket, fig. 3d, and lower the flue extension, fig. 3e. -Connect the duct to the exhaust opening in the ceiling (in case of models with air exhaust), fig. 3f. -Disconnect the power supply, make the electrical connections. -Attach the extension to the bracket C using 4 screws M4 (V3), without tightening them completely, fig. 3g. -Finally secure the extension to the bracket C, tightening the screws M4 (V3). -Secure the flue with two screws V5, fig. 3i. -Use the extension holder elements A, fig. 2, only if the upper flue is not used or in case of a suspended ceiling.

Perform the installation of the glass on the hood (fig. O5).

WARNINGS

FILTERS INSTRUCTIONS FOR REMOVAL AND REPLACEMENT

1. METAL FILTERS

Square halogen light

GLASS LIGHTING
