OCEANO - Kitchen hood FALMEC - Free user manual and instructions

Product type	Kitchen hood
Brand	FALMEC
Model	OCEANO
Installation type	Wall-mounted or island (depending on version)
Version	Ducted (external evacuation) or recirculation (charcoal filter)
Power supply	220-240 V, 50/60 Hz
Number of motor speeds	3 speeds + 1 timed intensive speed (15 min)
Control	Touch electronic control with light, speed, mode, timer buttons; optional remote control
Lighting	Halogen spot (max 20 W, 12 V, G4 base) or incandescent bulb (max 25 W) or LED (replacement by professional)
Light intensity dimmer	Yes, accessible by long press on light button
Timer	Automatic shut-off after 15 minutes of operation
Filter saturation alarm	Yes, red indicator after about 30 hours of operation (metal filters)
Anti-grease metal filters	Dishwasher safe (hot water + mild detergent), monthly
Activated charcoal filters	Replace every 3-4 months (not washable)
Minimum distance between cooking surface and hood	65 cm (standard); may be reduced depending on model, follow gas cooktop instructions
Air outlet diameter	Not less than the hood connection (e.g., 150 mm or 120 mm depending on model)
Exterior cleaning	Damp cloth with neutral liquid detergent or denatured alcohol, at least every 15 days
Interior cleaning	Prohibited with liquids or solvents; unplug before intervention
Safety	Unplug before maintenance; do not use with open flame; installation by qualified professional
Maximum weight of suspended objects	1.5 kg
Warranty	Manufacturer's warranty (conditions on back of manual)

Frequently Asked Questions - OCEANO FALMEC

What is the minimum distance between the cooking surface and the OCEANO hood?

The minimum distance is 65 cm according to the standard. If the gas cooktop indicates a greater distance, that must be respected.

How to clean the anti-grease metal filters?

The metal filters should be washed monthly in hot water with a little mild detergent, or in the dishwasher. Dry them well before reinstalling.

When should the activated charcoal filters be replaced?

The activated charcoal filters must be replaced every 3 to 4 months depending on usage. They are not washable.

How to replace a halogen lamp?

Unplug the appliance. Open the panel to 90° by pressing PUSH. Replace the lamp with a halogen max. 20 W, 12 V, G4 base. Close the panel.

Is the remote control supplied with the hood?

The remote control is optional (available on certain versions). It works up to 5 meters and allows control of light, speeds, and timer.

What to do if the red filter alarm lights up?

The alarm indicates it is time to wash the metal filters (about 30 hours of use). To deactivate it, press the timer button for a few seconds until the red light turns off.

Can I use the hood at the same time as a gas boiler?

Yes, but the room must be sufficiently ventilated according to applicable standards. For Germany, negative pressure must not exceed 4 Pa.

How to install the ducted version?

Use an exhaust pipe with a diameter not less than the connection. Tilt the pipe about 10% upward, minimize bends, and comply with local regulations.

Does the hood have a timer?

Yes, a 15-minute timer allows automatic motor shutdown at the set speed. The button flashes during the countdown.

Where is the rating plate located?

The technical data plate is located inside the hood: remove the metal filters to access it.

USER MANUAL OCEANO FALMEC

INSTRUCTIONS BOOKLET

Dear Sir/Madam, congratulations!

You have purchased a prestigious range hood of guaranteed quality. For best results, we suggest that you carefully follow the operating and maintenance instructions provided in this booklet; in addition, to order spare charcoal filters, use the special coupon on the cover.

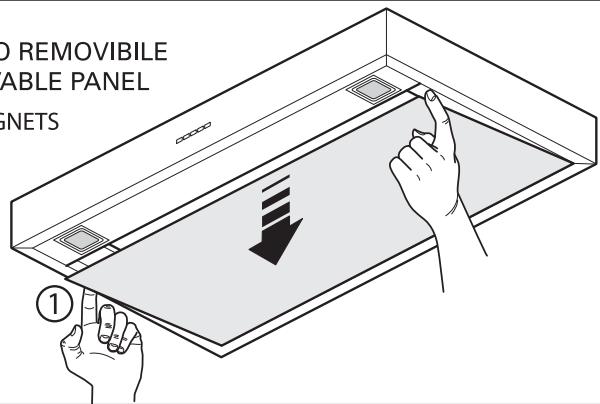

NEW FIXING SYSTEM WITH MAGNETS

Fig. H3

MIRABILIA PARETE/WALL

Fig. 04 Fig. 03

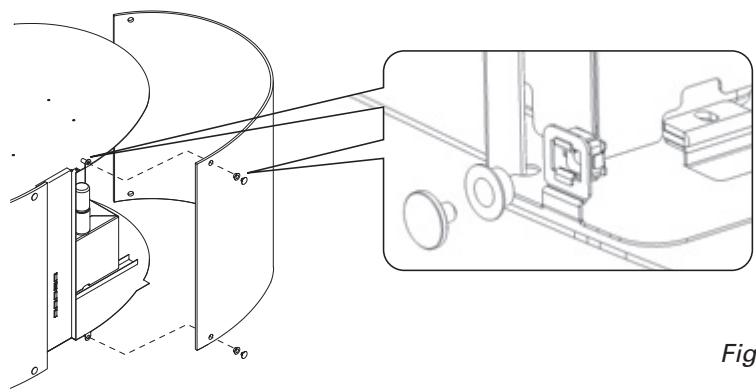

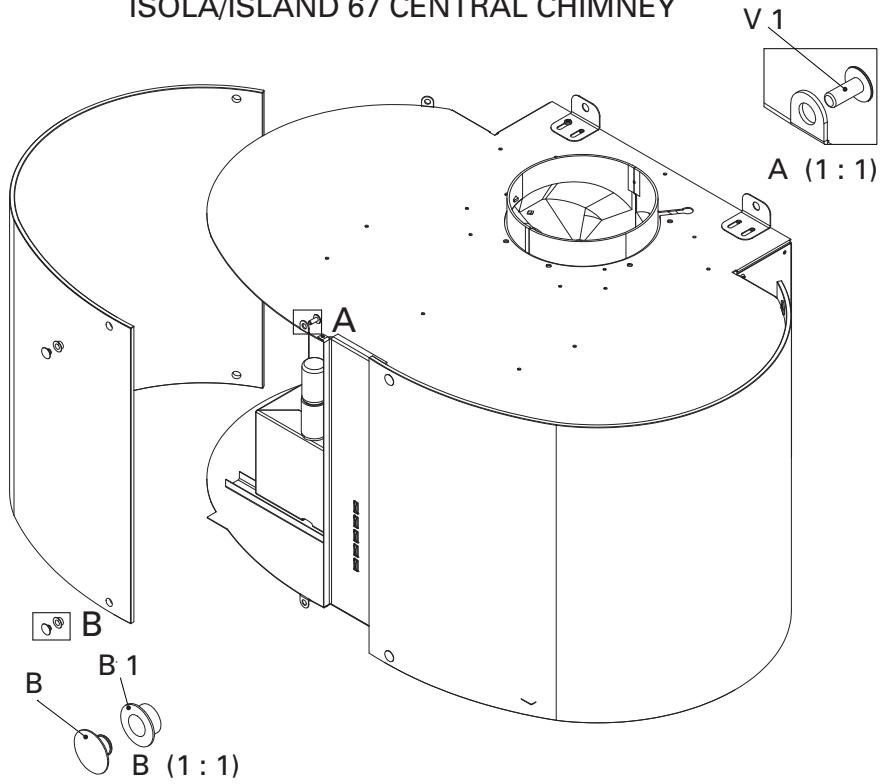

MOUNTING/DISMOUNTING INSTRUCTIONS FOR THE GLASSES

MIRABILIA 67 - MIRABILIA 97

ISLAND 67 CENTRAL CHIMNEY

MIRABILIA ISLAND 85 Fig. 05

MIRABILIA ISLAND 85 ISLAND 67 CENTRAL CHIMNEY

Fig. 1

H1 = 650 mm (25.6")

Fig. 2

MIRABILIA ISOLA/ISLAND 85 - ISOLA/ISLAND 67 CENTRAL CHIMNEY

Fig. 3

WARNINGS

Square halogen light

This instruction booklet must be kept together with the appliance for future reference. If the appliance is sold or consigned to other parties, check that the booklet is supplied with it, to ensure that the new user has the correct information on the operation of the range hood and is aware of the warnings. These warnings have been provided for your safety and the safety of others. As a result, please read them carefully before installing and operating the appliance.

This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure they do not play with the appliance.

The appliance must be installed by qualified personnel, in accordance with the standards in force. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Any modifications that may be required to the electrical system for the installation of the range hood must only be made by qualified electricians.

It is dangerous to modify or attempt to modify the characteristics of this system. In the event of malfunctions or if repairs are required to the appliance, do not attempt to solve the problems directly.

Repairs performed by unqualified persons may cause damage. For all repair and other work on the appliance, contact an authorized service/spare parts center.

Always check that all the electrical parts (lights, exhaust device) are off when the appliance is not being used. Read the entire instruction booklet before performing any operations on the range hood.

The range hood must only be used for the exhaust of cooking fumes in home kitchens. The manufacturer disclaims all liability for any other use of the appliance.

The maximum weight of any object placed above the hood, or hung to it (if possible) must not exceed 1.5 kilos. After installing the stainless steel hood, clean it in order to remove any residue of the protective glue, and stains of grease or oil. The manufacturer recommends its cleaning cloth available for purchase. The manufacturer accepts no liability in case of damage caused by the use of different detergent types.

TECHNICAL SPECIFICATIONS

The technical data pertaining to the electric appliance. The technical specifications of the appliance are shown on the rating plates located inside the range hood.

(Section reserved for qualified installers of the range hood)

The distance between the hob and the lowest part of the rangehood is normally at least 65 cm (see figure C1). This distance is measured in the lowest part of the rangehood not operating at safety voltage. Based on this detail provided by European Standards, the distance may be reduced in some models as specified in the general catalogue. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.

In the outside exhaust version, the diameter of the fume discharge duct must be no smaller than the range hood connection.

In the horizontal sections, the duct must slope slightly (around 10%) upwards, so as to better convey the air outside of the room.

Avoid using angled pipes, make sure that the pipes are at least of the minimum length.

Comply with the current regulations on air discharge into the atmosphere. If a boiler, stove, fireplace, etc. that uses gas or other fuels is being used at the same time, make sure the room where the fumes are extracted is well ventilated, in compliance with the current regulations.

Mounting instruction: see section "O" of the booklet.

ELECTRICAL CONNECTIONS

(Section reserved for qualified installers)

WARNING!

Before doing any work inside the range hood, disconnect the appliance from the mains power supply.

Check that the wires inside the range hood are not disconnected or cut; if this is the case, contact your nearest service centre. The electrical connections must be performed by qualified personnel.

The connections must be performed in compliance with the legal standards in force. Check that the relief valve and the electrical system are able to support the load of the appliance (see the technical specifications in point B).

Some types of appliance are supplied with a cable without plug; in this case, "standardised" plugs must be used, keeping in mind that:

• the yellow-green wire must be used for the earth,
• the blue wire must be used for the neutral,
• The brown wire must be used for the phase; the cable must not come into contact with hot parts (over 70°C).
• Fit a plug that is suitable for the load to the power cable, and connect it to a suitable power outlet.

For appliances that come supplied with cable and plug, please ensure they are plugged into a circuit suitable for this appliance.

Please refer to a qualified person. (See technical specifications in point B).

The manufacturer declines all liability if the safety standards are not observed.

RANGE HOOD WITH OUTSIDE

DISCHARGE (exhaust)

In this version, the fumes and steam from the kitchen are conveyed outside through an exhaust duct.

The exhaust conveyor that protrudes from the upper part of the range hood must be connected to a duct that carries the fumes and steam outside. In this version, the charcoal filters, if fitted, should be removed; to do this, see the instructions in point F. There must be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels, according to the standard.

Deviation for Germany:

When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4x10 E-5 bar).

RECIRCULATING RANGE

HOOD (with filter)

In this version, the air passes through charcoal filters for purification, and is then recirculated back into the kitchen.

Check that the charcoal filters are fitted to the motor, and if not, install them as described in the instructions in point H.

If the hood is of filtering type, remove the non-return valve fitted at the motor's outlet.

For maximum efficiency, the third speed should be used when there are strong odours or a lot of steam, the second speed in normal conditions, and the first speed for keeping the air clean with minimum energy consumption. The range hood should be switched on when starting to cook, and left on until the odours disappear.

OPERATION

ELECTRONIC CONTROL PANEL

Light pushbutton

• ON: light on (the pushbutton is lit);
• OFF: light off;

Dimmer with keyboard integrated functions: with motor off and prolonged pressing of keyboard light key (2 seconds), access is gained to the amend atmosphere light intensity (incandescent or LED lamp). By acting on the + and - keys, light intensity is adjusted. With motor started, the prolonged pressing of the key, switches the atmosphere light on or off.

Pushbutton -

Press to reduce motor speed

Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and the timer LEDs).

Pushbutton +

Press to increase motor speed

Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and the timer LEDs). (In the 4-speed version the pushbutton + blinks. The fourth speed remains on for a set duration of time. After 15 minutes the motor returns to the third speed).

Mode pushbutton

Function: it turns hood motor on and off.

The function "desired speed" enables to start the motor at the speed that was selected before the hood was last turned off.

Optional: version with remote control (some versions only).

WARNING:

Install the hood away from sources of electromagnetic waves, as these could affect the correct operation of the electronic system.

Maximum operating distance: 5 metres. The maximum operating distance could be less than 5 metres in case of electromagnetic interference by other equipment.

Light pushbutton on remote control: light on/off.

• and + pushbutton: increase/decrease speed (to start the motor press either the + or the - pushbutton).

Timer pushbutton: see instructions below.

Timer and 'filter clogged' alarm pushbutton

• This function allows the automatic turning off of the hood after running for 15 minutes at the speed previously set (the pushbutton shows a flickering light).
• After about 30 hours of running the pushbutton indicates the need for washing the metal filters (the pushbutton shows a solid red light). To disable the alarm press the pushbutton for a few seconds until the red light turns off. Then turn the hood off and on again to check that the alarm has disappeared.

FILTERS REMOVING AND REPLACING'S INSTRUCTIONS

1. METAL FILTERS

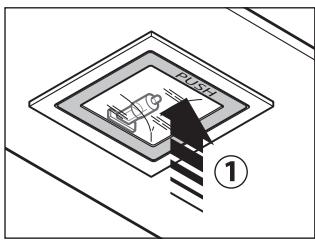

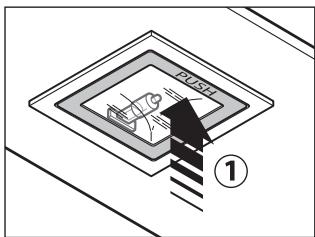

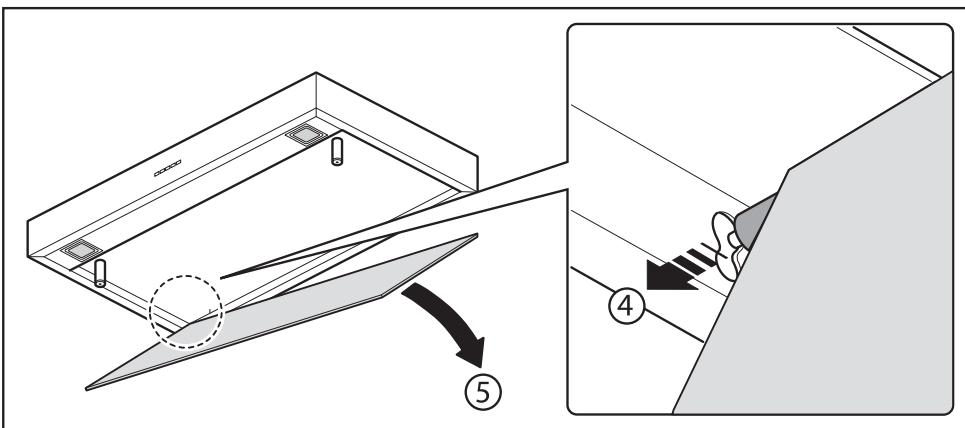

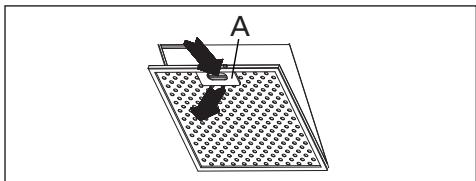

Open the panel (see fig. H3). Use handle A to remove the metal grease filter.

2. CHARCOAL FILTERS

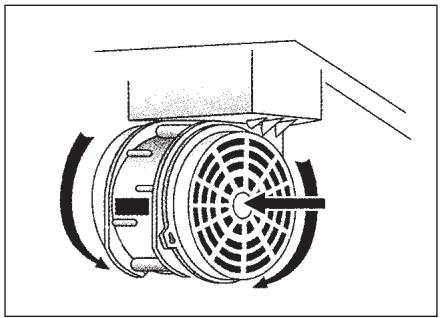

To replace the charcoal filters, proceed as follows: remove the metal filters as described above. The two filters located at the ends of the motor can now be easily accessed.

To install the new filters see picture.

In case of hood with the motor box the filter is located on the bottom part of the motor box.

To install the new filters see picture.

To order new charcoal filters contact the distributor/retailer.

VALID ONLY FOR ITALY: download the appropriate order form from: www.falmec.com (access the assistance drop-down menu).

3. REMOVABLE PANEL

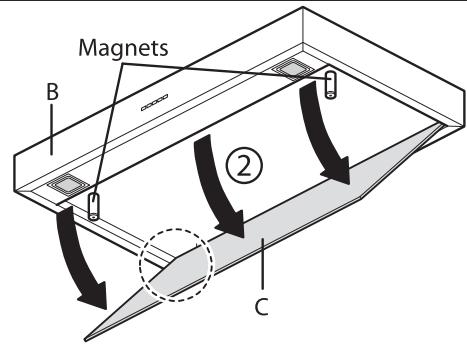

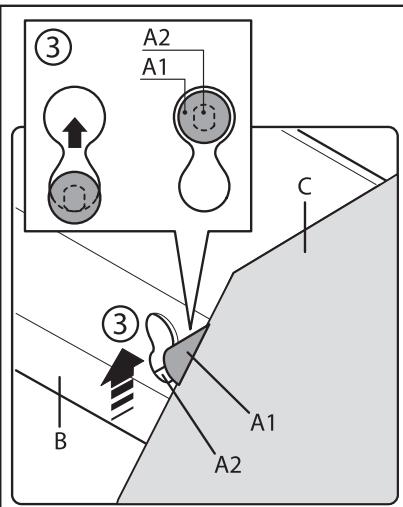

Follow the instructions on fig. H3 to remove the panel.

LIGHTING ASSEMBLY AND REPLACEMENT

SPOTLIGHT

How to replace a square halogen light:

a) Check that the equipment is disconnected from the power supply. b) Open the panel completely till 90° (see figure) pressing the PUSH button c) Replace the lamp with a similar one (halogen, max 20 W, 12 Volt, G4 connection). d) Close the panel. If the panel does not close correctly repeat the operation at point b.

Square halogen light

GLASS LIGHTING

To replace the incandescent lamp:

1) ensure the hood is disconnected from the electric mains;

2) remove the decorative glass (see sec. O); 3) replace the lamp with one of the same model (max. 25W); 4) re-mount the glass (see fig. 05).

In case of hoods with LED lighting, the replacement of the luminous body can only be carried out by specialised staff and with original spare parts.

WARNING: Do not remove the glass if the glass LED lighting is on.

MAINTENANCE AND CLEANING

Constant maintenance ensures the correct operation and efficiency of the appliance over time. Special attention should be paid to the metal grease-trapping filters and the charcoal filters. Frequent cleaning of the filters and their supports will ensure that fats and grease do not accumulate on the range hood, with the consequent risk of fire.

1. METAL GREASE-TRAPPING FILTERS

These trap the fat and grease particles suspended in the air, and therefore should be washed every month in hot water and detergent, without bending them. Wait until they are completely dry before repositioning them.

To remove and replace these filters, see the instructions in point H1. This operation should be performed at regular intervals.

2. CHARCOAL FILTERS

These trap the odours present in the stream of air that passes through them. The air is purified by passing a number of times through the filters and being recirculated into the kitchen. The charcoal filters cannot be cleaned, and should be replaced on average every 3-4 months (according to use). To replace the charcoal filters, see the instructions in point H2.

3. CLEANING THE OUTSIDE OF THE APPLIANCE

It is advised to clean the external hood surfaces at least every 15 days in order to avoid that oily or greasy substances affect the steel surfaces.

The aside of the range hood should be cleaned using a damp cloth and neutral liquid detergent or denatured alcohol.

In case of fingerprint-less finish (fasteel), clean only with water and neutral soap using a soft cloth, rinse, and wipe dry thoroughly. Do not use products that contain abrasive substances, rough cloths, or cloths specifically designed for cleaning steel. Using abrasive substances or rough cloths will inevitably damage the finish of the steel. The steel surface will be irrevocably damaged if the instructions above are not complied with.

Keep these instructions together with the instructions for use of your hood.

The manufacturer accepts no liability for any damage caused by non-compliance with the instructions above.

4. CLEANING THE INSIDE OF THE APPLIANCE

The electrical parts or parts of the motor assembly inside the range hood must not be cleaned using liquids or solvents.

Do not use abrasive products. All the above operations must be performed after having disconnected the appliance from the mains power supply.

The electrical system features an earth connection in compliance with international safety standards; furthermore, it is compliant with the European standard for electromagnetic compatibility.

Do not connect the appliance to flues (from boilers, fireplaces, etc.). Make sure the mains voltage corresponds to the values on the rating plate located inside the range hood. The minimum safety distance between the cooktop and the range hood must be at least 65 cm.

Never cook on "open" flames under the range hood.

Check deep-fryers during use: superheated oil may be flammable.

• Ensure there is adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
• Do not flambé under the range hood.
• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
• Ensure that all regulations concerning the discharge of exhaust air have been fulfilled before you use the appliance.

Before performing any cleaning or maintenance operations, disconnect the appliance by unplugging it or using the main switch. The manufacturer disclaims all liability for any damage that may be directly or indirectly caused to people, things, and animals due to the failure to follow all the instructions provided in this booklet and above all the warnings relating to the installation, operation, and maintenance of the appliance.

WARRANTY

The new equipment is covered by warranty.

The warranty conditions are provided by the distributor.

The manufacturer is not liable for any inaccuracies in this booklet resulting from printing or transcription errors. The manufacturer reserves the right to modify its products as it considers necessary or in the interests of the user, without compromising their essential safety and operating characteristics.

HOOD INSTALLATION

O1 - INSTRUCTIONS FOR WALL-MOUNTED MIRABILIA HOODS

Phase 1

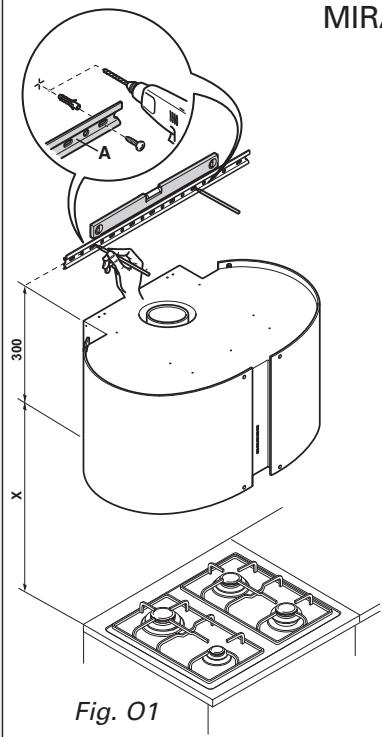

• Place the support bar next to the wall (A-Fig. O1), at a height above the cooktop which corresponds to X + 300 mm.
• With a spirit level check that the bar is horizontal. Mark a point at each end of the bar.
• Drill the holes, fit 2 8 mm expansion joints and screw in the bar.

Phase 2

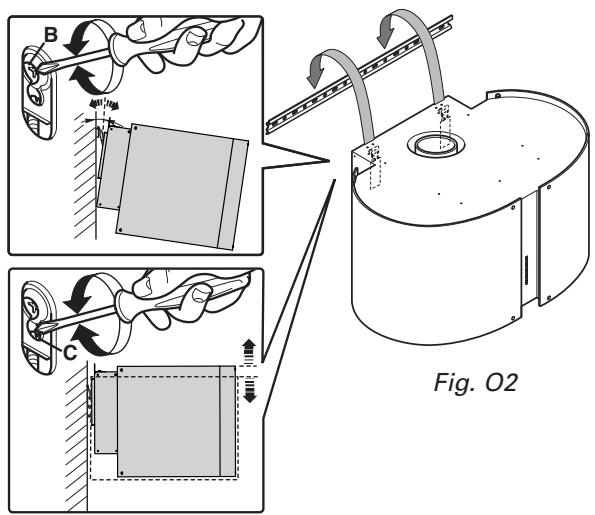

• Fit the hood to the support bar (Fig. O2).
• Adjust hood alignment with the relevant screws: The top screw (B) adjusts the distance from the wall. The bottom screw (C) adjusts the vertical sliding movement.

Phase 3

• To prevent the hood from detaching if pressure is exerted from beneath, secure it to the wall with the brackets supplied (fig. O3).

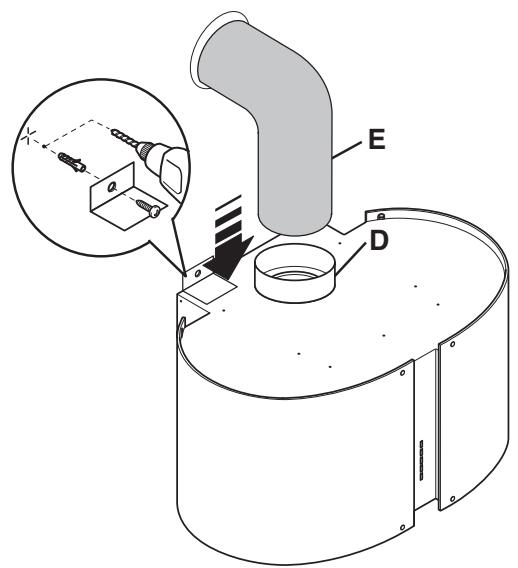

• Fit pipe/hose (E) into (D).

Phase 4

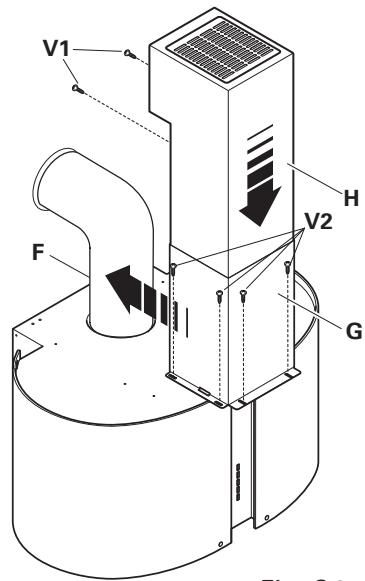

• Slide the extension (H) into (G) till the desired height.
• When the extension is at the desired height, screw it onto the chimney with the screws supplied (V1);
• Lock the chimney + extension onto the hood with 6 V2 screws.
• Fit the glass panels (fig. O5).

O2 - INSTRUCTIONS FOR MIRABILIA ISLAND 85/ISLAND 67 CENTRAL CHIMNEY

Phase 1

• Identify the desired height (H1=65) for the positioning of the hood.

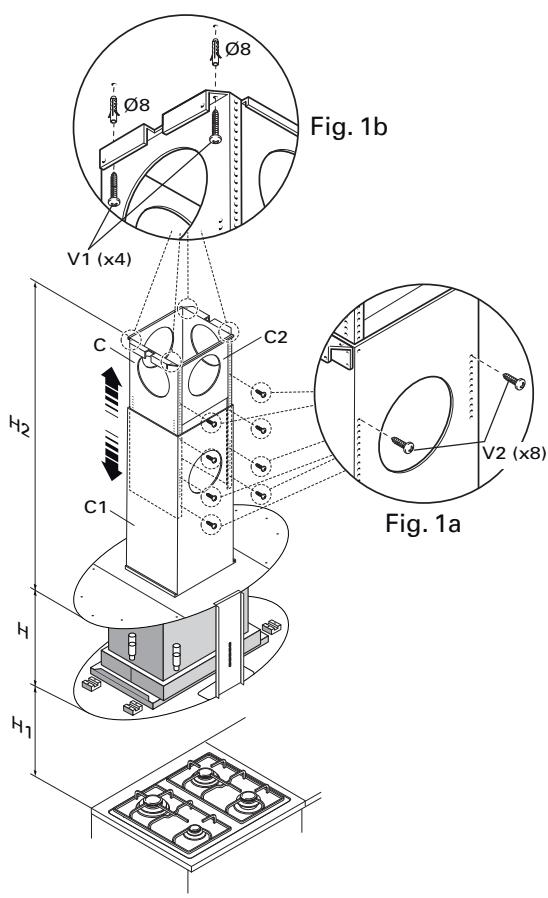

• Slide the lattice-works (C) and (C1) to the desired height (H2), then block them with the 8 self-threading screws (V2) (Fig.1a).
• Fasten the lattice-work (C) to the ceiling using the four expansion plugs and relative screws(V1) (Fig.1b).

Phase 2

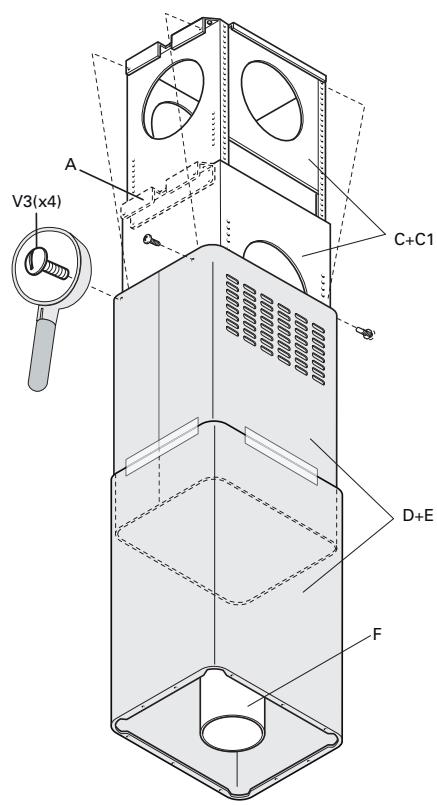

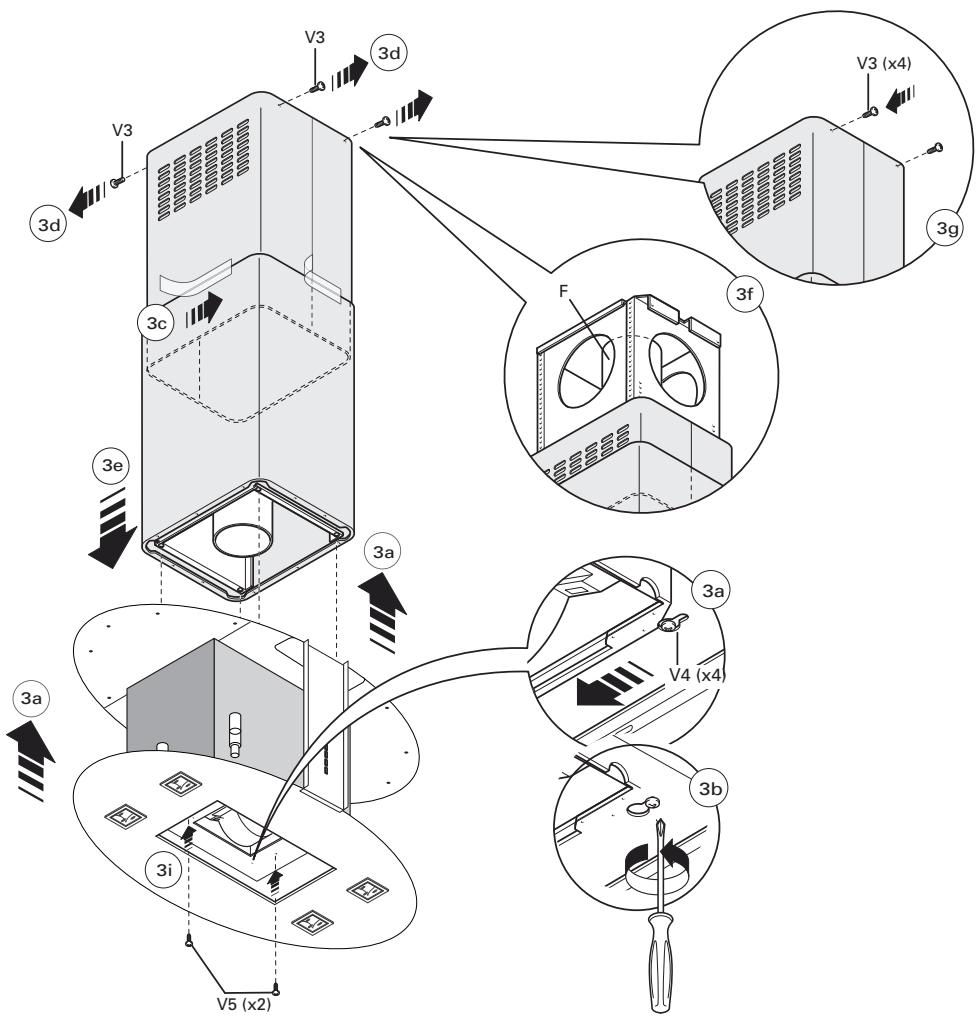

• Insert the extension on the flue and fasten them to each other with masking tape (Fig. 2).
• Fasten the flue-extension assembly (D+E) to the lattice-work (C) with the 4 M4 metric screws (V3) inserted in the existing holes without tightening them completely (Fig. 2).
• For suction version: identify the optimal height for the rigid or flexible exhaust pipe (F) and connect it to the motor connection.

Phase 3

• Raise the hood, hooking it onto the 4 M5 metric screws (V4) pre-tightened to the lattice-work (C) (center the ø 11 holes on the slot of the inner liner and move it laterally)(Fig. 3a).
• Completely tighten the 4 M5 screws (V4) (Fig. 3b).
• Remove the masking tape (Fig. 3c), remove the four M4 metric screws (V3) previously tightened onto the lattice-work (Fig. 3d) and slide the flue-extension assembly downwards. (Fig. 3e).
• Connect the pipe to the connection of the ceiling discharge hole. (Fig. 3f).
• Make electrical connections only after having removed electrical power supply.
• Fasten the extension to the lattice-work (C) by means of the 4 M4 metric screws (V3), without tightening them completely(Fig. 3g).
• Block the extension completely to the lattice-work (C) by screwing down the 4 M4 metric screws (V3).
• Block the flue with the 2 self-threading screws (V5) (Fig. 3i).
• Use the extension support elements(A) (Fig. 2) only if the upper lattice-work is not used, or in the case of a false ceiling.
• Fit the glass panels (fig. O5).

NOTES

ELECTRONIC CONTROL PANEL

Light knob

Square halogen light

Square halogen light

WINDOW LIGHTING

Square halogen light

SAFETY MEASURES

It is very important that this operating manual is kept together with the equipment for possible consultation in the future.

When selling the device or transferring it to another person, the manual must be handed over with the device so that the new user is aware of how to use the extractor and what corresponding safety measures must be observed.

This manual has been compiled for your safety and that of those around you, so please read it carefully before installing and using the device.

Children are only allowed to use the device under the adequate supervision of responsible persons who can ensure safe use of the device.

The responsible person must ensure that children do not play with the device.

Installation work must be carried out by competent, qualified specialists in accordance with applicable standards.

Any necessary adjustment or modification to the electrical block for the installation of the extractor must only be carried out by competent personnel.

Modification or attempt to modify the characteristics of the device is dangerous! In case of incorrect operation of the extractor, do not attempt to repair the fault yourself.

Repair or maintenance by incompetent persons may cause damage.

If the power cord is damaged or the electrical connections are loose, contact the nearest service center. Electrical connections must be made by qualified personnel.

Contact qualified specialists.

Connections must be made in accordance with current legislation. Note that protective devices for electrical equipment may reduce the load from the appliance (see the label with technical characteristics, according to point B). Some appliances may be equipped with a cord without a plug; in such a case, the plug used must

be of the "standard" type, taking into account that:

• the green-yellow wire must be used for grounding,
• the blue wire must be used for the neutral wire,
• the brown wire must be used for the phase, and the plug must touch the live parts, with a maximum temperature of 70°C
• Install on the cord an electrical plug suitable for the load, and insert it into a protected socket.

If direct connection to the mains is necessary, a multi-pole circuit breaker with a minimum opening between contacts of 3 mm, rated for the load and compliant with current standards, must be installed between the appliance and the mains. The green-yellow grounding wire must be connected first.

Before connecting the appliance to the mains, ensure that:

• The mains voltage corresponds to that indicated on the label with technical characteristics. - The grounding is effective and correctly performed. - The power supply line is equipped with effective grounding according to current standards.
• Use a socket or multi-pole connector that is easily accessible after installation of the appliance.

The manufacturer accepts no responsibility if safety standards are not observed.

Exhaust device with air outlet outside

In this section, smoke and vapors from the hood are discharged outside through a pipe.

The exhaust pipe, which protrudes from the front part of the hood, must be equipped with a pipe that removes smoke and steam from the room.

In this model, filters are removed on activated carbon; how they are removed, see point F. If the kitchen hood is used together with other appliances running on gas or other fuels, the room must have sufficient ventilation.

Exhaust device with air recirculation (filtration)

In this model, air passes through activated carbon filters, is cleaned, and returns to the kitchen room.

Make sure that the carbon filters are installed on the motor, fig. 6, otherwise install them as indicated in point F of the instructions.

For strong odors and large amounts of steam, use the second speed under normal conditions, and the first speed for air purification at low power consumption.

It is recommended to operate the hood when you start cooking and leave it running until the strong odors disappear.

Control keys with electronic control

Lighting key

-ON: lighting on (key lights up) - OFF: lighting off;

DIMMER with built-in functions in the keypad: with the motor off and prolonged pressing (2 seconds) on the lighting key on the keypad, you can enter the mode of changing the lighting intensity of the surrounding atmosphere (incandescent or LED lamps). Pressing the + or - keys adjusts the lighting intensity. With the motor on and prolonged pressing on the key, the lighting of the surrounding environment is turned on or off.

Key -

Lighting key: light on/off.

Key - and + decrease/increase speed (to start the motor, you can press either the + key or the - key).

Timer key: see instructions below.

Square halogen light

Glass cover

To replace the halogen lamp:

1) Make sure the hood is disconnected from the power supply; 2) Remove the decorative glass (see section O); 3) Replace the lamp with the same model as the original (max 25 W); 4) Put the glass back in place (see fig. O5).

In the case of a hood with halogen lighting, replacement of the light source may only be carried out by a qualified specialist and only with original spare parts.

WARNING: Do not remove the glass while the halogen lighting is on.

CLEANING AND MAINTENANCE

Proper maintenance guarantees good operation and a long service life. Particular attention must be paid to the metal grease filters and the activated carbon filters. Indeed, frequent cleaning of the filters guarantees that grease is not collected in the hood, which is dangerous due to its flammability.

1. METAL GREASE FILTERS

Designed to trap grease particles, they should be washed once a month in water with detergent, and then dried. Before reinstalling, wait until they are completely dry. To remove the filter and put it back in place, see the instructions, paragraph T. It is recommended to perform this operation regularly.

For safety reasons, the distance from the cooking surface to the hood must be at least 65 cm.

Do not cook with an open flame under the hood. Watch over fryers: overheated oil may catch fire.

• Make sure there is sufficient ventilation in the room if the hood is used together with other appliances operating on gas or other fuels.
• Do not leave open flames under the hood.
• Do not connect the appliance to flues that carry combustion fumes from solid fuel (boilers, fireplaces, etc.).
• Make sure all applicable standards for air exhaust from the room are met before using the extractor hood.

Before performing any cleaning or maintenance operations, switch off the appliance and unplug it from the power socket.

The manufacturer shall not be held liable for any direct or indirect damage to persons, property, or pets resulting from failure to comply with the instructions given in the user manual, especially regarding the rules

WARRANTY

The new appliance is covered by warranty. The warranty conditions are fully described in the following pages of this manual.

The manufacturer reserves the right to make any changes or corrections to this manual that may arise from printing or transcription errors. The manufacturer also reserves the right to make any modifications to its own products that it deems necessary or useful, without affecting the main functional characteristics and safety.

INSTALLATION OF THE EXTRACTOR HOOD

Fig. 1 - WALL-MOUNTED EXTRACTOR HOOD "MIRABILIA"

Step 1

- Position the wall bracket (A - Fig. 1) at a height from the cooking surface calculated according to the formula X + 300 mm. - Use a level to check the horizontal alignment and mark 2 points on the ends of the bracket for the holes. - Drill the holes, insert 2 dowels of 8 mm and secure the bracket with the appropriate screws.

Step 2

- Hang the extractor hood on the wall bracket (Fig. 2). - Adjust the level of the hood using the appropriate screws: the top screw (B) adjusts the distance from the wall, and the bottom screw (C) adjusts the vertical movement.

Step 3

- To prevent the hood from detaching due to its weight, it must be secured to the wall with the screws and wall plugs provided in the kit (Fig. 3). - Fit the duct (E) onto the spigot (D).

• Insert element B into element U and slide it to the desired height;
• Only after determining the optimal position, secure the element to the pipe using screws (V1), included in the kit; - Connect the pipe - extension element to the hood using 6 screws V2.
• Perform the installation of the glass on the hood (fig. O5).

O2 - ISLAND HOOD «MIRABILIA» 85/67 CENTRAL CHIMNEY

Step 1

-Determine the height (H1=65-75 cm) required for the hood installation. -Move the posts to the required height H2, then secure them with self-tapping screws V2, fig. 1a. -Attach the bracket to the post using 4 screws diameter 8

corresponding to the holes V1, fig. 1b.

Step 2

• Insert the extension onto the flue, secure it with masking tape, fig. 2. -Attach the flue with extension (D+E) to the post C using 4 screws M4 (V3), inserting them into the existing holes without tightening fully, fig. 2. -In case of air exhaust model, determine the optimal height of the rigid or flexible exhaust duct F and connect it to the motor.

Step 3

-Lift the hood, hooking it onto the 4 screws M5 (V4), previously screwed into post C (align the holes dia. 11 on the cover and slide sideways), fig. 3a. -Fully tighten the 4 screws M5 (V4), fig. 3b. -Remove the masking tape, fig. 3c, unscrew the 4 screws M4 (V3) previously inserted into the post, fig. 3d, and lower the flue extension, fig. 3e. -Connect the pipe to the exhaust opening in the ceiling (in case of air exhaust model), fig. 3f. -Disconnect the power supply, make the electrical connections. -Attach the extension to post C using 4 screws M4 (V3), without tightening them fully, fig. 3g. -Finally secure the extension to post C, tightening the screws M4 (V3). -Secure the flue with two screws V5, fig. 3i. -Use the extension holder elements A, fig. 2, only if the upper post is not used or in case of a suspended ceiling.

Perform the installation of the glass on the hood (fig. O5).

WARNINGS

FILTERS INSTRUCTIONS FOR REMOVAL AND REPLACEMENT

1. METAL FILTERS

Square halogen light

GLASS LIGHTING
