USER MANUAL GEMMA FABER

Installation Instructions
- Use and Care Information

READ AND SAVE THESE INSTRUCTIONS

The Installer must leave these instructions with the homeowner. The homeowner must keep these instructions for future reference and for local electrical inspectors' use.

READ THESE INSTRUCTIONS BEFORE YOU START INSTALLING THIS RANGEHOOD

WARNING: - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium setting.

b) Always turn hood ON when cooking at high heat or when flambeing food
(i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING (^*) :

a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:

1) You know you have a Class ABC extinguisher, and you already know how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit.

(*) Based on "Kitchen Firesafety Tips" published by NFPA.

ALL WALL AND FLOOR OPENINGS WHERE THE RANGEHOOD IS INSTALLED MUST BE SEATED.

This rangehood requires at least 24" of clearance between the bottom of the rangehood and the cooking surface or countertop. This minimum clearance may be higher depending on local building code. For example, for gas ranges, a minimum of 30" is recommended and may be required. Overhead cabinets on both sides of this unit must be a minimum of 18" above the cooking surface or countertop. Consult the cooktop or range installation instructions given by the manufacturer before making any cutouts.

LISEZ BIEN CETTE FICHE AVANT D'INSTALLER LA HOTTE

Determine which venting method is best for your application. Ductwork can extend either through the wall or the roof.

The length of the ductwork and the number of elbows should be kept to a minimum to provide efficient performance. The size of the ductwork should be uniform. Do not install two elbows together. Use duct tape to seal all joints in the ductwork system. Use caulking to seal exterior wall or floor opening around the cap.

Flexible ductwork is not recommended. If it is used, each foot of flexible ductwork used is equivalent to two feet of straight metal ductwork when calculating the ductrun length. Thus, a flexible elbow equals two standard elbows.

Make sure there is proper clearance within the wall or floor for exhaust duct before making cutouts. Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame must be constructed.

FOR MORE SPECIFIC DUCTWORK INFORMATION, GO TO PAGE 4.

WARNING - To Reduce The Risk Of Fire, Use Only Metal Ductwork.

CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces or garages.

Cold Weather installations

An additional back draft damper should be installed to minimize backward cold air flow and a nonmetallic thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the vent system enters the heated portion of the house.

WARNING

• Venting system MUST terminate outside the home.
• DO NOT terminate the ductwork in an attic or other enclosed space.
• DO NOT use 4" laundry-type wall caps.
• Flexible-type ductwork is not recommended.
  DO NOT obstruct the flow of combustion and ventilation air.
• Failure to follow venting requirements may result in a fire.

ELECTRICAL REQUIREMENTS

A 120 volt, 60Hz AC-only electrical supply is required on a separate 15 amp fused circuit. A time-delay fuse or circuit breaker is recommended. The fuse must be sized per local codes in accordance with the electrical rating of this unit as specified on the serial/rating plate located inside the unit near the field wiring compartment. THIS UNIT MUST BE CONNECTED WITH COPPER WIRE ONLY. Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 - latest edition, and all local codes and ordinances. Wire size and connections must conform with the rating of the appliance. Copies of the standard listed above may be obtained from:

National Fire Protection Association

Batterymarch Park

Quincy, Massachusetts 02269

This appliance should be connected directly to the fused disconnect (or circuit breaker) through flexible, armored or nonmetallic sheathed copper cable. Allow some slack in the cable so the appliance can be moved if servicing is ever necessary. A UL Listed, 1/2" conduit connector must be provided at each end of the power supply cable (at the appliance and at the junction box).

When making the electrical connection, cut a 1 1/4 hole in the wall. A hole cut through wood must be sanded until smooth. A hole through metal must have a grommet.

WARNING-TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, do not use this fan with any solid-state speed control device.

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.

Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous or Explosive Materials and Vapors.

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Installation Work And Electrical Wiring Must Be Done By Qualified Person(s) In Accordance With All Applicable Codes And Standards, Including Fire-Rated Construction.

Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

Ducted fans must always be vented to the outdoors.

WARNING

• Electrical ground is required on this rangehood.
• If cold water pipe is interrupted by plastic, nonmetallic gaskets or other materials, DO NOT use for grounding.
• DO NOT ground to a gas pipe.
• DO NOT have a fuse in the neutral or grounding circuit. A fuse in the neutral or grounding circuit could result in electrical shock.
• Check with a qualified electrician if you are in doubt as to whether the rangehood is properly grounded.
• Failure to follow electrical requirements may result in a fire.

RÉGLEMENTS D'ÉVACUATION

OPTIONAL ACCESSORIES AVAILABLE AND DIMENSIONS ACCESSOIRESPOUR L'INSTALLATION / DIMENSIONS D'INSTALLATION

ACCESSORIES / ACCESSORIES

High Ceiling Chimney Kit / Kit D'extension Pour La Chiminee Plafond Haut

One 40" upper chimney to replace 16"

upper chimney that came with hood. /

NOTE: If using the high ceiling kit, you must duct this hood to the outside of your house. Ductless conversion is not possible when using this kit.

Includes: Ductless Diverter & Extender Wall Bracket

• Charcoal Filters - Screw

DUCT3

• Saber Saw or Jig Saw
• Drill
• 1 1/4" Wood Drill Bit
  Pliers
• Phillips Screwdriver
• Flat Blade Screwdriver
• Wire Stripper or Utility Knife
  Metal Snips
• Measuring Tape or Ruler
• Level
• Pencil
  Caulking Gun
  Duct Tape

PARTS SUPPLIED FOR INSTALLATION

• 1 Hardware Package
  1 Literature Package

PARTS NEEDED FOR INSTALLATION

• 2 Conduit Connectors
• Power Supply Cable
• 1 Wall or Roof Cap
  All Metal Ductwork

WARNING

PERSONAL INJURY HAZARD

Because of the weight and size of the rangehood canopy, two or more people are needed to move and safely install the rangehood canopy.

Failure to properly lift rangehood could result in damage to the product or personal injury.

This rangehood can be installed as either ducted or ductless. In a ducted application, this rangehood can be vented through the wall or ceiling. To vent through a wall, a 90^ elbow is used. When installed ductless, the rangehood vents out the sides of the chimney. Ductless installations require a Ductless Conversion Kit, available from your dealer.

WARNING! BEFORE MAKING ANY CUTS OR HOLES FOR INSTALLATION, DETERMINE WHICH VENTING METHOD WILL BE USED AND CAREFULLY CALCULATE ALL MEASUREMENTS.

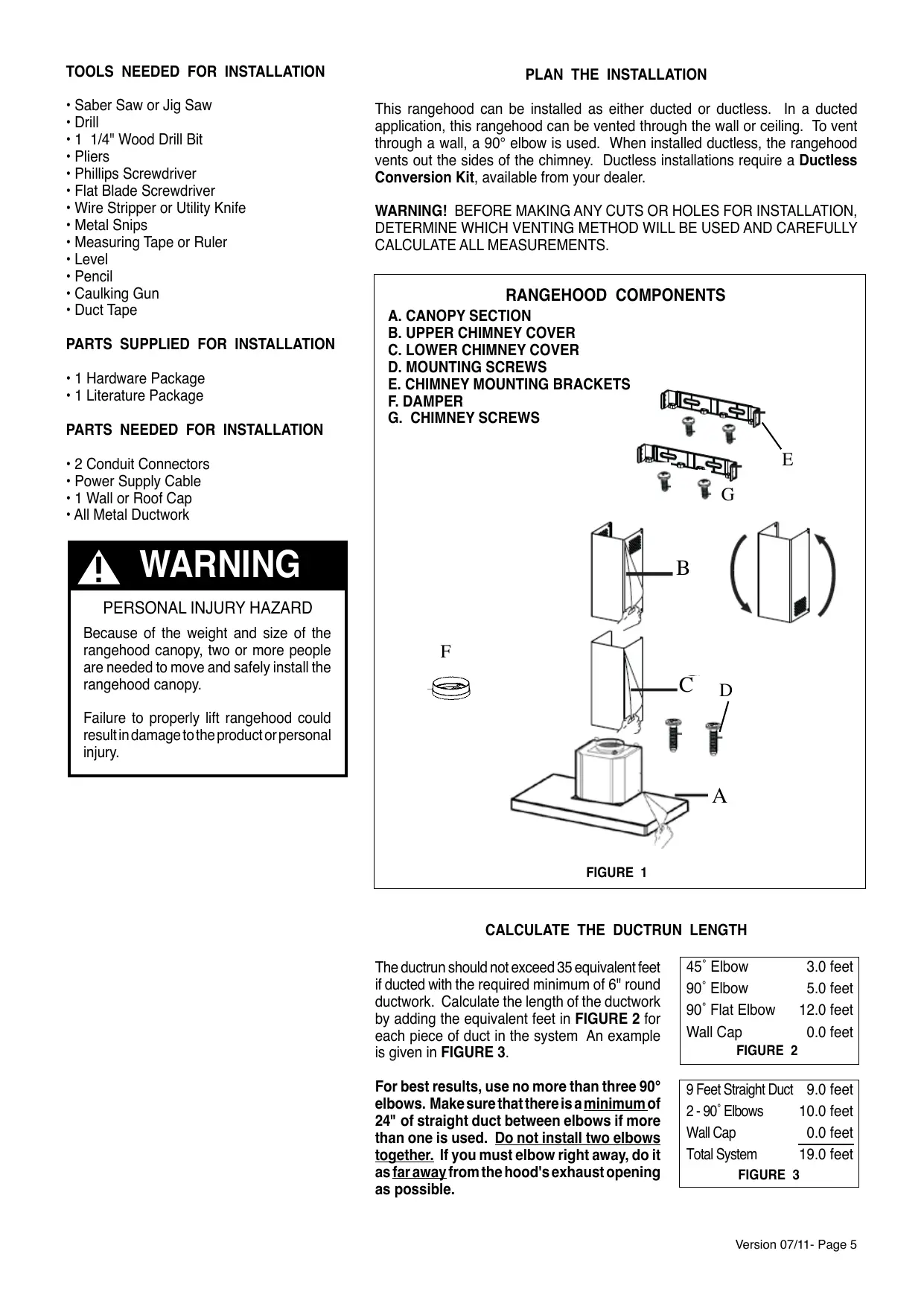

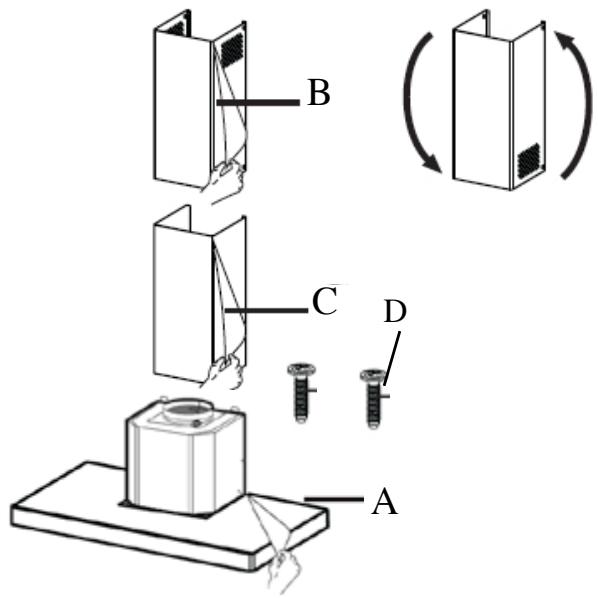

RANGEHOOD COMPONENTS

A. CANOPY SECTION
B. UPPER CHIMNEY COVER
C. LOWER CHIMNEY COVER
D. MOUNTING SCREWS
E. CHIMNEY MOUNTING BRACKETS
F. DAMPER
G. CHIMNEY SCREWS

F

FIGURE 1

CALCULATE THE DUCTRUN LENGTH

The ductrun should not exceed 35 equivalent feet if ducted with the required minimum of 6'' round ductwork. Calculate the length of the ductwork by adding the equivalent feet in FIGURE 2 for each piece of duct in the system An example is given in FIGURE 3.

For best results, use no more than three 90^ elbows. Make sure that there is a minimum of 24^ of straight duct between elbows if more than one is used. Do not install two elbows together. If you must elbow right away, do it as far away from the hood's exhaust opening as possible.

45^ Elbow 3.0 feet

90^ Elbow 5.0 feet

90° Flat Elbow 12.0 feet

Wall Cap 0.0 feet

FIGURE 2

9 Feet Straight Duct 9.0 feet

2-90° Elbows 10.0 feet

Wall Cap 0.0 feet

Total System 19.0 feet

FIGURE 3

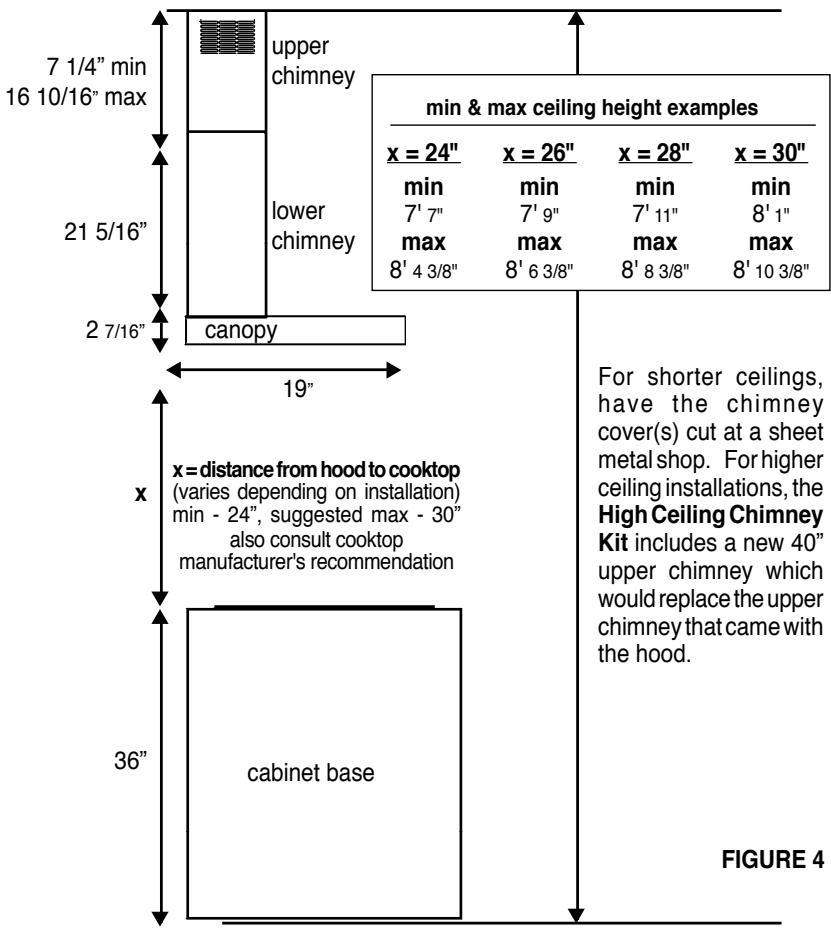

The Gemma chimneys are adjustable and designed to meet varying ceiling heights as indicated in (FIGURE 4). The chimneys can be adjusted for ceilings between 7^7^ and 8^103 / 8^ depending on the distance between the bottom of the hood and the cooktop (distance x in FIGURE 4).

1. Disconnect and move freestanding range from cabinet opening to provide easier access to upper cabinet and rear wall. Put a thick, protective covering over cooktop, set-in range or countertop to protect from damage or dirt.
2. Determine and clearly mark with a pencil the center line on the wall where the rangehood will be installed.
3. Based on your ceiling height and/or personal preference, determine the distance you would like between the bottom of the hood and the cooktop (SEE FIGURE 4 AND 5). The dimensions illustrate mounting the canopy 24^ above the cooking surface.

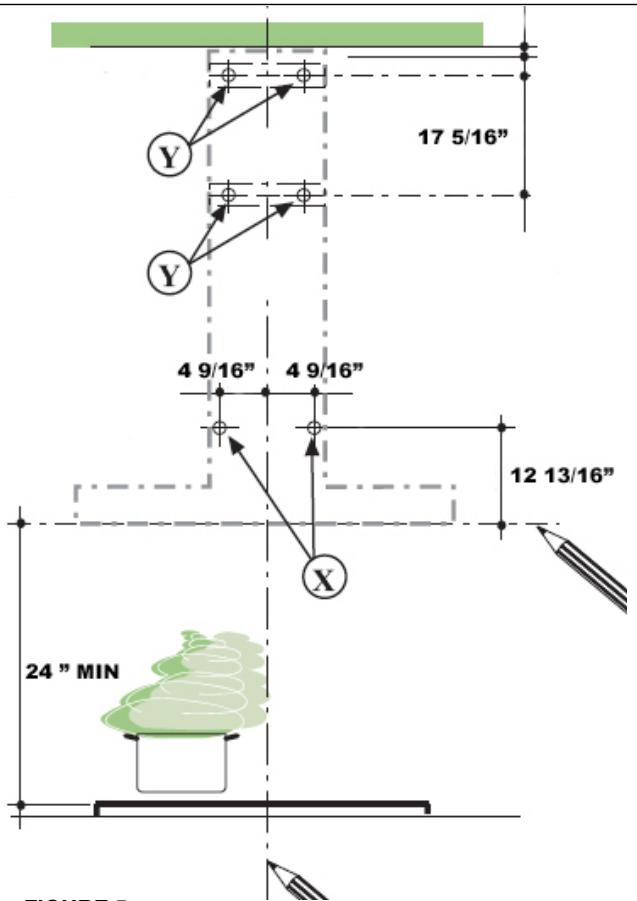

NOTE: if installing the hood ductless, do not install the (top) upper chimney bracket until after installing the ductless kit

1. The chimney mounts by two brackets (E in FIGURE 1). Note the position of the brackets. The top bracket should be installed about 1/8 away from the ceiling. The bottom bracket must be installed at the bottom point of the upper chimney sleeve. See "Y" in FIGURE 5, and use 2 screws (G in FIGURE 1) to attach each of the brackets to the wall. Use the center line on the wall as the middle point for the chimney brackets.
2. For the most secure installation, the MOUNTING SCREWS (D in FIGURE 1) which mount the CANOPY SECTION (A in FIGURE 1) should be installed into wood. Mark the wall along the horizontal line 49/16'' in from the center line on either side (as indicated in X - FIGURE 5) and install the MOUNTING SCREWS into the wall leaving about 1/4'' gap between the wall and the head of the screw.

Determine the proper location for each bracket and install the brackets on the wall. MAKE SURE THAT THE BRACKETS ARE SECURELY FASTENED TO THE WALL.
6. Determine and make all necessary cuts in the wall for the ductwork. Install the ductwork before the rangehood if ducting outside.
7. Determine the proper location for the Power Supply Cable. Use a 1 1/4" Drill Bit to make this hole. Run the Power Supply Cable. Use caulking to seal around the hole. DO NOT turn on the power until installation is complete.

FIGURE 5

INSTALL THE RANGEHOOD

1. Remove the unit from the carton and place on a flat surface for assembly. Cover the surface to prevent accidental damage. Remove all parts including the mounting hardware before discarding the carton. Remove the Protective covering from the chimneys and rangehood canopy section (A, B, C in FIGURE 1).
2. Remove the grease filters from the unit and set aside. The grease filters are removed by pressing the handle in front of the filter (FIGURE 10 next page). When replacing, make sure that the filters are properly positioned with the handles in front and visible.

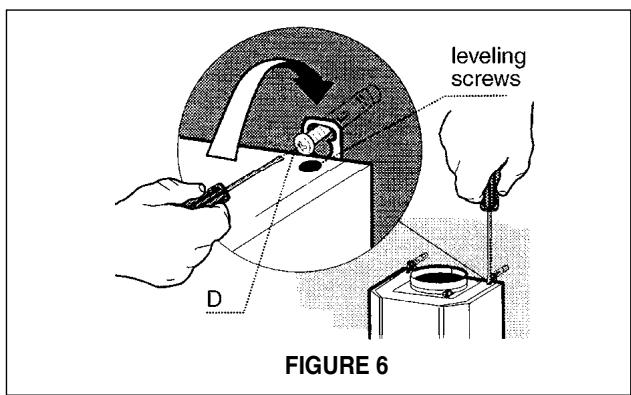

3. Before mounting the CANOPY SECTION, tighten the two leveling screws located near the CANOPY SECTION mounting points as indicated in FIGURE 6.
4. Hook the body on to the MOUNTING SCREWS (D in FIGURE 6) and fully tighten the MOUNTING SCREWS.
5. Adjust the leveling screws to level the CANOPY SECTION.

1. Remove the cover from the Field Wiring Compartment with a phillips screwdriver. Feed the Power Supply Cable through the electrical knockout. Connect the Power Supply Cable to the rangehood cable. Attach the White lead of the power supply to the White lead of the rangehood with a twist-on type wire connector. Attach the Black lead of the power supply to the Black lead of the rangehood with a twiston type wire connector. Attach the Power Supply Cable grounding lead to the green screw provided. Using the 4 holes provided screw the Field Wiring Compartment to the wall as dictated by your Power Supply Cable location (screws not provided). Replace the cover.
2. For ducted installations, the damper must be attached to the exhaust opening on the top of the canopy. Connect the ductwork and seal all connections with duct tape. If installing the hood ductless, go to "FOR DUCTLESS INSTALLATIONS".
3. See FIGURE 1 for reference, The Upper chimney cover can be installed with the side vent holes on the top towards the ceiling, or flip the chimney and hide the holes under the lower chimney. Install the UPPER CHIMNEY COVER (B in FIGURE 1) by slightly widening the two sides and hooking them behind the CHIMNEY MOUNTING BRACKETS (E). Secure the sides to the CHIMNEY MOUNTING BRACKETS with the 4 CHIMNEY SCREWS (G). Install the LOWER CHIMNEY COVER (C) by slightly widening the two sides of the LOWER CHIMNEY COVER and hooking them between the UPPER CHIMNEY COVER and the wall making sure that it fits snugly. Secure the LOWER CHIMNEY COVER to the CANOPY SECTION (A) with 2 CHIMNEY SCREWS (G).

FOR DUCTLESS INSTALLATIONS

The UPPER CHIMNEY COVER must be installed first, before the LOWER CHIMNEY.

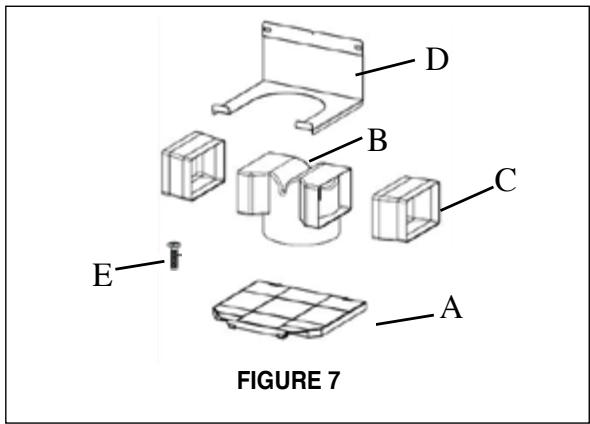

Ductless installations require a Ductless Conversion Kit, purchased separately (FIGURE 7). This kit consists of a CHARCOALFILTER(A in FIGURE7),a DUCTLESSDIVERTER (B) and EXTENSION PIECES (C), and the DIVERTER WALL SUPPORT (D), and SCREW (E).

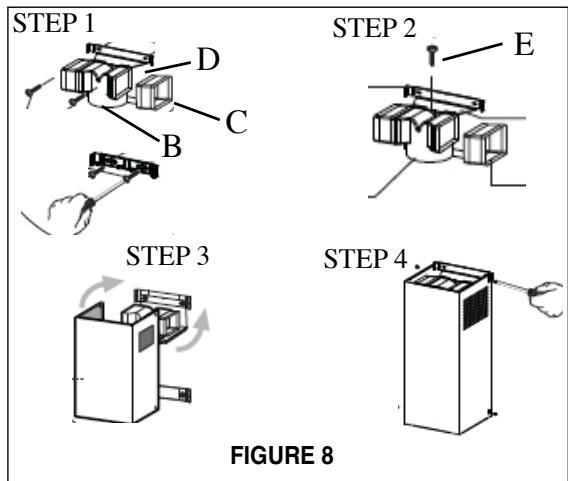

1) See (FIGURE 8), Step 1 - connect B (Diverter) and C (2 - Diverter extension) pieces together, one on each end. Hold the (E) Diverter wall support on the wall 1/8 from the ceiling using the center line as a middle reference point. Using 2 screws, attach the chimney bracket on top of (D) the diverter wall support together into the wall. Step 2 - Attach the diverter and extension pieces (B, C) to the diverter wall support with a screw (E).
2) Use a small amount of 6 inch round metal ducting (purchased seperately), to connect the duct exit on top of the canopy to the ductless diverter near the ceiling. Tape the duct at the top and bottom to seal.
3) Step 3, Attach the upper chimney to the top and bottom chimney brackets, by wrapping the chimney behind the wall brackets, and Step 4 use the chimney screws to secure the chimney to the brackets. Wrap the lower chimney cover over the upper cover, and screw the lower chimney to the canopy at the bottom.

4) Install the CHARCOAL FILTER behind the center grease filter opening by inserting and locking into place, as indicated in FIGURE 9. Replace the grease filters back into the bottom of the hood and snap into place.

ALL INSTALLATIONS

Turn the power supply on. Turn on blower and light. If the rangehood does not operate, check that the circuit breaker is not tripped or the house fuse blown. If the unit still does not operate, disconnect the power supply and check that the wiring connections have been made properly.

USE AND CARE INFORMATION

This rangehood system is designed to remove smoke, cooking vapors and odors from the cooktop area.

For Best Results

Start the rangehood several minutes before cooking to develop proper airflow. Allow the unit to operate for several minutes after cooking is complete to clear all smoke and odors from the kitchen.

Cleaning

The metal grease filters should be cleaned frequently in hot detergent solution or washed in the dishwasher. Stainless steel cleaner should be used on stainless rangehoods. Abrasives and scouring agents can scratch stainless steel finishes and should not be used to clean finished surfaces. To remove the grease filter see FIGURE 10

Replacing the Lamps

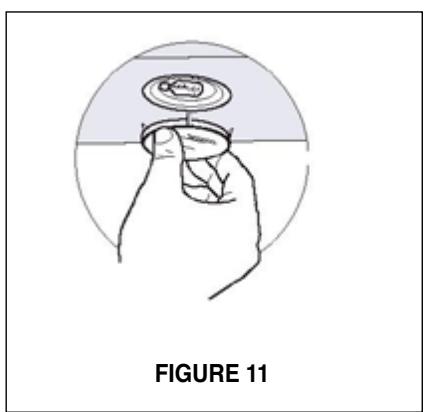

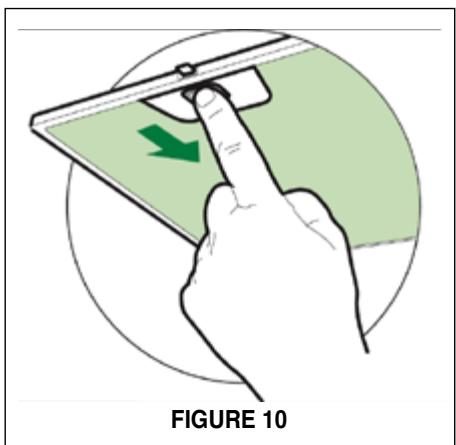

Using gloves to handle the halogen bulbs, remove the snap-on lamp cover (as indicated in FIGURE 11) by levering it from under the metal ring, supporting it with one hand. Remove the halogen lamp from the lamp holder by pulling gently. Replace the lamp with a new one of the same type, making sure that you insert the two pins properly into the housings on the lamp holder. Replace the snap-on lamp cover.

1

3/i
FIGURE 12 - 3-SPEED / 3 VITESSE

Rangehood Control Panel

The control panel is located on the side front of the canopy. The position and function of each control button are noted below (FIGURE 12).

Light On/Off Button ( L )

On/Off switch for the halogen lights. Press the light button to turn the light ON. and again to turn off.

Blower Off Button (M)

Off switch for the blower. The blower can be operated by pressing any of the speed buttons

Blower Speed Button ( V )

Speed control for blower. Press the switch "1" for LOW speed, "2" for MEDIUM speed and "3" for HIGH speed. Hold down the speed 3 button for 5 seconds to activate the intensive speed. Which operates the hood for 10 minutes on the high speed and then returns the previous speed.

All Faber products are warranted against any defect in materials or workmanship for the original purchaser for a period of 1 year from the date of original purchase. This warranty covers labor and replacement parts. To obtain warranty service, contact the dealer from whom you purchased the rangehood, or the local Faber distributor. If you cannot identify a local Faber distributor, contact us at [phone] for the name of a distributor in your area.

The Following is not covered by Faber's warranty:

1. Service calls to correct the installation of your range hood, to instruct you how to use your range hood, to replace or repair house fuses or to correct house wiring or plumbing.
2. Service calls to repair or replace range hood light bulbs, fuses or filters. Those consumable parts are excluded from warranty coverage.
3. Repairs when your range hood is used for other than normal, single-family household use.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Faber.
5. Replacement parts or repair labor costs for units operated outside the United States or Canada, including any non-UL or C-UL approved Faber rangehoods.
6. Repairs to the hood resulting from unauthorized modifications made to the rangehood.
7. Expenses for travel and transportation for product service in remote locations and pickup and delivery charges. Faber range hoods should be serviced in the home.

Record Your Information Below:

Serial #:

Date of Purchase:

ATTENTION

Coude 45^ 3,0 pi

Coude 90^ 5,0 pi

Coude plat 90^ 12,0 pi

Capuchon demur 0,0 pi

FIGURE 2

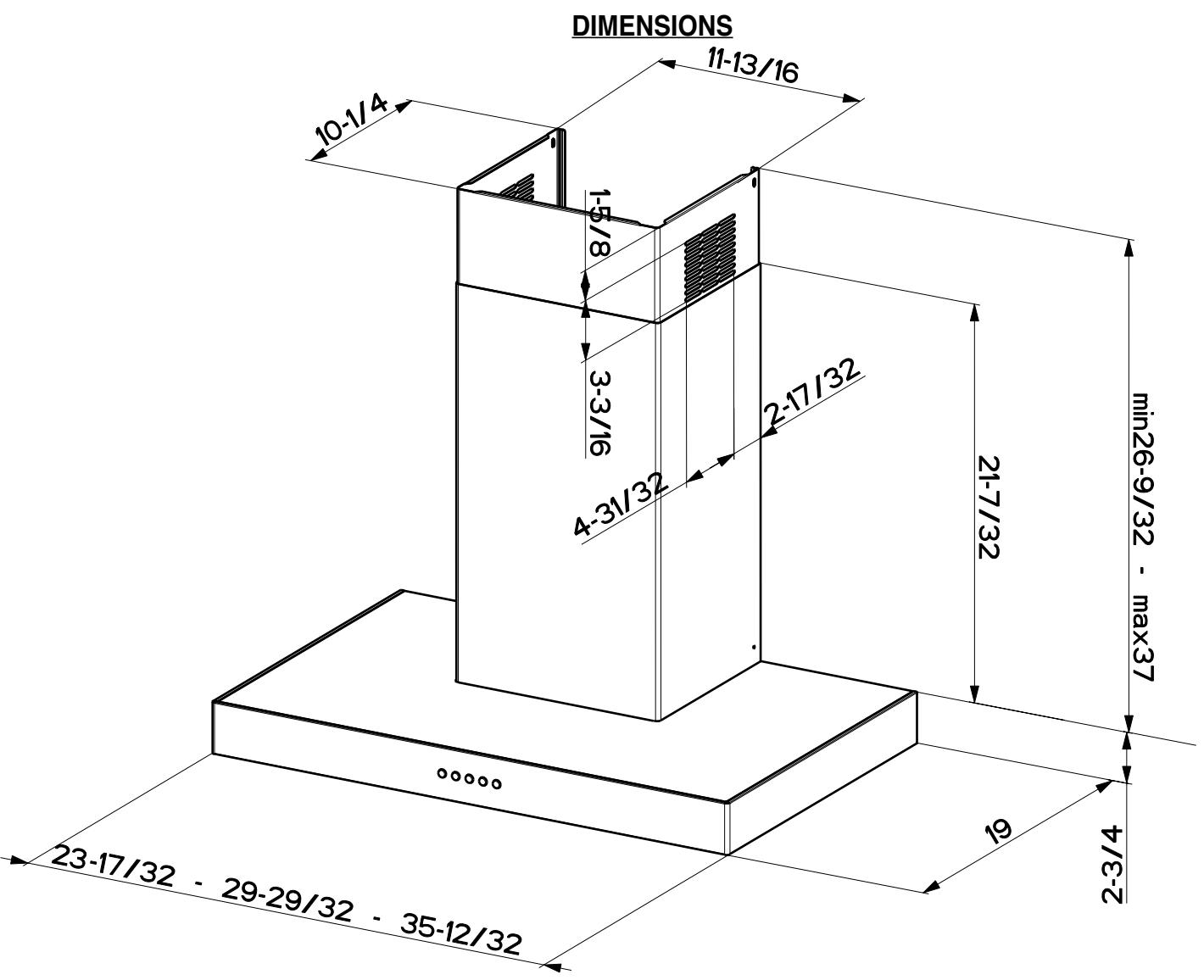

DIMENSIONS D'INSTALLATION
