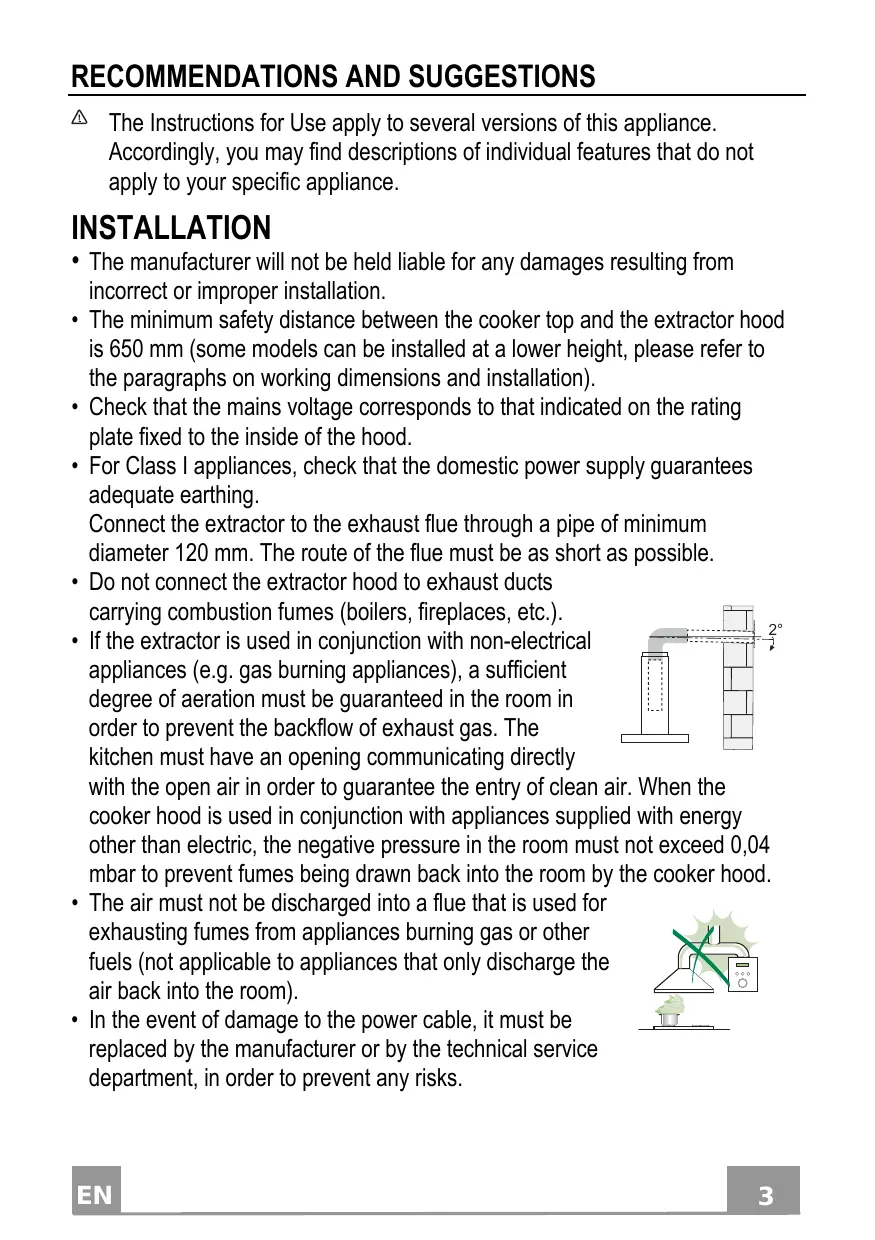

RECOMMENDATIONS AND SUGGESTIONS

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION

• The manufacturer will not be held liable for any damages resulting from

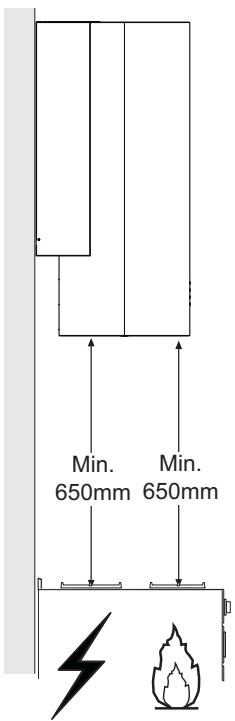

incorrect or improper installation. The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation). Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood. For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible. Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.). If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood. The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room). In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with

these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• “CAUTION: Accessible parts may become hot when used with cooking appliances.” MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent. The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

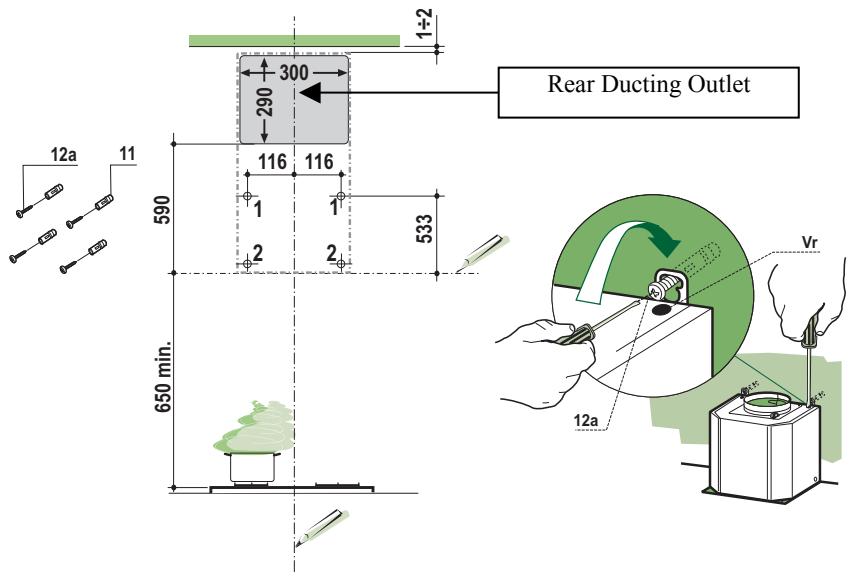

INSTALLATION Drilling the Wall and Fixing the Motor unit 1÷2 Given the complexity of installation operations, they should be carried out by at least two people.

12a If the hood is fitted in the recirculation version, bear in mind that there must be a minimum distance of at least 8-10 Cm left between the top of the hood and the surface above it (ceiling or shelf). Draw the following on the Wall:

• a Vertical line up to the ceiling or top surface, at the centre of the area in which the Hood is to be fitted;
• a Horizontal line: 650 mm min. above the Cooker Top.
• As shown in the drawing, mark a reference point (1) 116 mm from the vertical reference line, and 533 mm above the horizontal reference line.
• Repeat this operation on the other side, checking to ensure it is level.
• Drill the points marked using a ø 8 mm drill bit.
• Insert the plugs 11 into the holes.
• Tighten the 2 screws 12a (4.2 x 44.4) provided in the bores, leaving a gap of 5-6 mm between the wall and the heads of the screws.
• Lock the 2 screws Vr located on the connection points for the Motor unit 3.
• Hook the Motor unit 3 to the screws 12a.
• Turn screws Vr to level the hood canopy.
• Mark the reference points (2) for the brackets hooked under the Motor unit 3, as shown.
• Drill the points marked using a ø 8 mm drill bit.
• Insert the plugs 11 into the holes.
• Insert 2 of the screws 12a (4.2 x 44.4) provided into the bores.
• Tighten the 4 screws 12a fixing the Suction Unit completely.

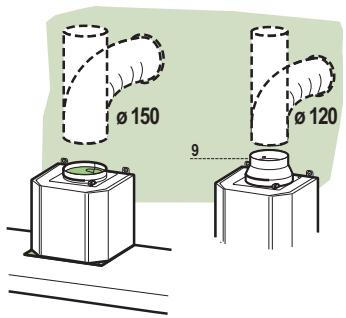

Air Outlet Connection - Ducting Version When installing the Ducting version, join the Hood to the outlet duct using a rigid or flexible pipe ø 150 or 120 mm, selection of which is at the discretion of the installation technician. The pipe may come out of the hood either at the top or at the back. ø 150 ø 120

• Remember that when drilling the ducting opening you must follow the diagram provided in the paragraph on drilling the wall.
• To connect using a ø120 mm pipe, insert the reduction Flange 9 onto the Hood canopy outlet.
• Fasten the pipe using suitable pipe clamps. The materials required to do so are not provided.
• Remove any Activated charcoal filters. TOP OUTLET
• To connect using a ø 150 mm pipe, connect the Hood to the outlet duct using a rigid or flexible pipe.
• To connect using a ø120 mm pipe, insert the reduction Flange 9 onto the Hood canopy outlet.
• Connect the Hood to the outlet duct using a rigid or flexible pipe.
• Fasten the pipe using suitable pipe clamps. The materials required to do so are not provided.
• Remove any Activated charcoal filters.

AIR OUTLET – RECIRCULATION VERSION

• Push the pipe all the way in.

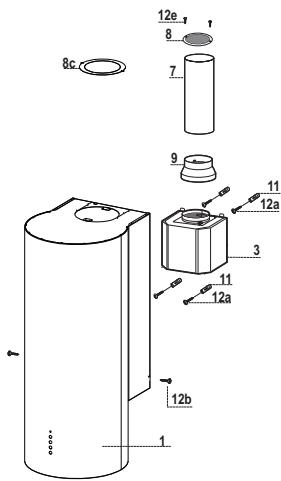

Fitting the hood body – Ducting Version Ducting Version Rear outlet

• If the air outlet on the Rear of the hood has been selected, the Air outlet Reduction-plug 8c must be screwed into the top part of the Hood using 2 Screws 12e provided. Ducting Version Top outlet
• If the air outlet on the top of the hood has been selected, the 2 brackets visible in the top part of the hood canopy must be removed. Also remove the pre-scored section shown in (Fig. 2) to allow the pipe to pass through.
• Screw the brackets to the pre-scored piece, after removing it as described above, using 2 screws 12e provided.

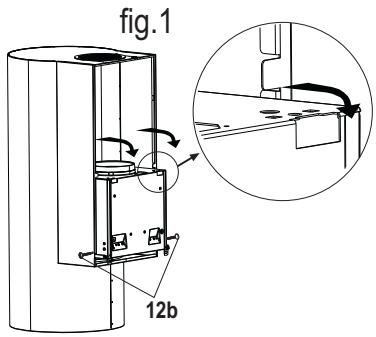

• Rest the Hood Canopy 1 on the Suction Unit 3, inserting it, and fix it at the side using the 2 screws 12b. (Fig.1) 12b

• Screw the pre-scored piece with the brackets (Fig.2) back onto the top part of the hood canopy, using 2 screws 12e provided, so as to block the air ducting pipe. 12e

• If a size 120 pipe is used, break the inner part of the air outlet Reduction-plug 8c. Insert the ring obtained in this way into the air ducting pipe and screw it to the hood canopy using 2 screws 12e provided.

Fitting the hood body – Recirculation Version

• Detach the 2 brackets that can be seen inside the opening on the top part of the hood canopy.
• Rest the Hood Canopy 1 on the Suction Unit 3, inserting it, and fix it at the side using the 2 screws 12b.
• Position the directional grille 8 on the pipe and check that it has been fitted properly.
• Fasten the directional grille 8 using the screws 12e provided.
• Make sure that the Activated charcoal odour filter has been fitted.

12b Electrical connection

• Connect the Hood to the Mains Power Supply, inserting a bipolar switch with a contact aperture of at least 3 mm.
• Remove the filter and make sure that the Power cable has been properly inserted into the Suction fan socket

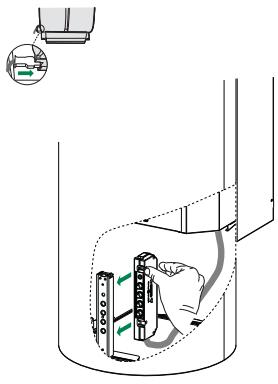

• Take the control box inside the suction unit 3 and slot it into the plastic support provided for it in the hood canopy at the height of the controls.
• Pass an fix the wiring through with the Adhesive cable tie already mounted.
• Fasten the Spotlights connector Lux.
• For the Recirculation Version, fit the Activated Charcoal Odour Filter.
• Replace the metal grease filters. Lux

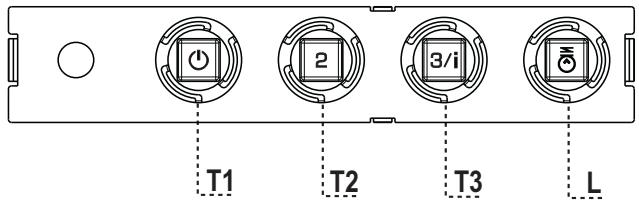

Turns the Motor on at Speed one. T2 Speed

T3 Speed Fixed When pressed briefly, turns the Motor on at Speed three. Flashing Pressed for 2 Seconds. Turns the Motor off. Turns the Motor on at Speed two. Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.

Light Turns the Lighting System on and off.

Warning: Button T1 turns the motor off, after first passing to speed one.

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside. Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Remove the metal grease filters.
• Remove the saturated activated carbon filter by releasing the fixing hooks.
• Fit the new filter by hooking it into its seating.
• Refit the metal grease filters. Lighting unit
• For replacement contact technical support ("To purchase contact technical support").
