Product type	Kitchen hood
Brand	FABER
Model	ODETTE PLUS
Appliance class	I (grounding required)
Power supply	220-240 V ~ 50/60 Hz
Number of speeds	4 + intensive (6 min timed)
Lighting	Yes (button E, max brightness)
Remote control	Yes (CR2032 battery not included)
24h function	Yes (motor 10 min/h for 24h)
Delay function (delayed shutdown)	Yes (30 min)
Minimum safety distance	650 mm (or more per stove instructions)
Exhaust duct diameter	120 mm minimum
Grease filter	Washable (every 2 months, dishwasher)
Charcoal filter	Replace every 4 months (not washable)
Exterior cleaning	Damp cloth and neutral liquid detergent
Use	Domestic only
Repairability	Contact an authorized technician (cable, lighting)

Frequently Asked Questions - ODETTE PLUS FABER

At what height should the hood be installed above the stove?

The minimum safety distance between the cooktop and the hood is 650 mm. If your gas stove specifies a greater distance, strictly follow that.

How to clean the grease filters?

Grease filters should be cleaned every 2 months (more often with heavy use). They can be washed in a dishwasher or by hand with a neutral detergent.

When to replace the charcoal filter?

The activated charcoal filter is neither washable nor regenerable. It should be replaced approximately every 4 months or more often if the hood is heavily used.

What battery does the remote control use?

The remote operates with a 3V CR2032 battery (not included). Do not dispose of used batteries in nature; take them to a collection point.

How to activate the intensive speed?

Press the D button for about 2 seconds to activate intensive speed. It runs for 6 minutes then automatically returns to the previous speed.

What is the 24h function for?

The 24h function runs the motor at speed 1 for 10 minutes per hour for 24 hours. Activate it by pressing the corresponding button on the remote for 2 seconds.

How to use the delayed shutdown (Delay)?

Press the Delay button on the remote to program the complete shutdown of the hood (motor + lighting) after 30 minutes. The delay is indicated by a flashing of the motor LED every 0.5 seconds.

Can I flambé food under the hood?

No, never flambé food under the hood. This could cause a fire.

What to do if the power cord is damaged?

If the cord is damaged, have it replaced by the manufacturer or an authorized technician to avoid any electrical risk.

How to replace the lighting?

For lighting replacement, please contact Customer Service or a qualified technician.

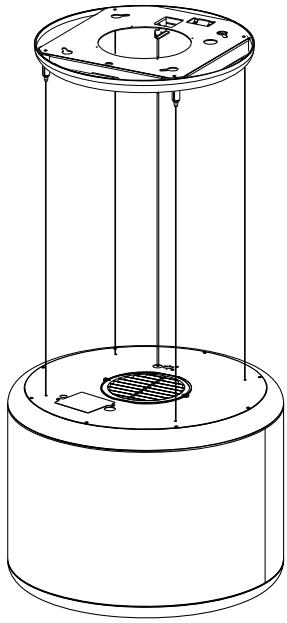

USER MANUAL ODETTE PLUS FABER

EN 1. SAFETY INFORMATION

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances, burning gas or other fuels.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging,

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films. - Use only screws and small parts in support of the hood. WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. - Do not look directly at the light through optical devices (binoculars, magnifying glasses...). - Do not flambé under the range hood; risk of fire. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. - Children should be supervised to ensure that they do not play with the appliance. - The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

! Accessible parts may become hot when used with cooking appliances.

• Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• The symbol \(\underline{\mathbf{x}}\) on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop

where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

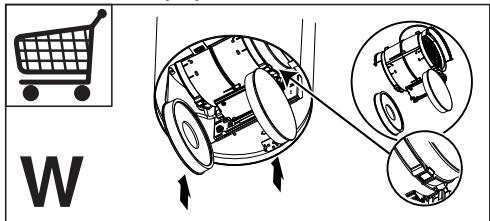

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

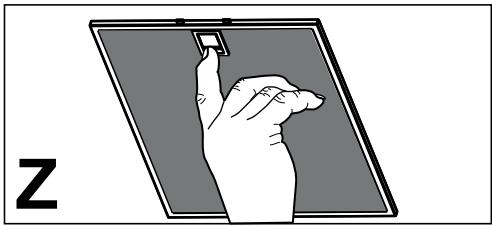

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

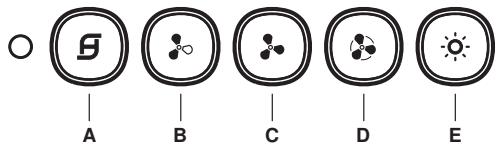

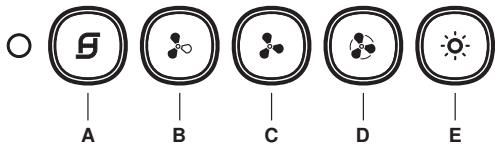

Button	Function	Led
A	Turns the motor on/off at speed 1.	On.
B	Turns the Motor on at speed 2.	B + A ON.
C	Turns the Motor on at speed 3.	C + A ON.
D	Turns the Motor on at speed 4.	D + A ON.
	Press and hold the button for approximately 2 seconds to turn the motor on at INTENSIVE speed. This speed is timed to run for 6 minutes. At the end of this time, the system returns automatically to the speed that was set before. If it is activated with the motor turned off, it will switch to Off at the end of the time. Press and hold button D or button A for approximately 2 seconds to deactivate the function.	Flashing.
E	Turns the lights On/Off at maximum strength.	-

5. REMOTE CONTROL

The remote control is powered by a CR2032 type 3 V battery (not included).

• Do not place the remote control near heat sources.
• Do not discard the batteries with normal waste, they must be put into the specific containers.

+	↑	Turns the motor On and Off.
	↓↑	-
-	Turns the lights On/Off.
+	↑	Enables/Disables the motor at INTENSIVE speed from any other speed, even if the motor is turned off. This speed is timed to run for 6 minutes. At the end of this time, the system returns automatically to the speed that was set before. If it is activated with the motor turned off, it will switch to Off at the end of the time. It is disabled by pressing the button again or pressing the "Motor Off" button.
+	↑	Press and hold this button for a few seconds to activate total shutdown of the hood (lights + motor) after 30 minutes. To deactivate the DELAY, simply press the button again or turn the suction motor off. The DELAY is indicated on the keyboard by flashing of the motor LED (every 0.5 seconds). Press and hold the button for 2 seconds to activate the 24h function. The hood turns on at speed 1. In this case the suction motor is turned on for 10 minutes every hour for a total of 24h, after which the function is deactivated automatically. The 24h function is indicated on the keyboard by flashing of the motor LED (every 2 seconds). To deactivate the 24h function, simply press the button again or turn the suction motor off. Function not enabled with Intensive or Delay active.
+	↑	Increases the working speed of the motor.
-	↑	Decreases the working speed of the motor.

6. LIGHTING

• For replacement contact technical support ("To purchase contact technical support").

• The electrical connection must be made in accordance with the wiring rules. For devices of class I, check that the mains supply voltage corresponds to the rated voltage and that the earthing is adequate.
• Check that the vacuum cleaner hose has a minimum diameter of 120 mm. The hose of the motor must be long enough.
• The air outlet filters must be cleaned. Do not connect the vacuum cleaner to a duct through which flammable gases are drawn (boilers, furnaces, etc.). If the vacuum cleaner is used together with devices that do not operate on electricity (for example, gas appliances), it must be ensured that the room is sufficiently ventilated to prevent the backflow of exhaust gases. When the vacuum cleaner is used together with appliances that do not operate on electricity, the negative pressure in the room must not exceed 0.04 mbar, in order to prevent the backflow of exhaust gases into the room from the vacuum cleaner.

In the case of use for extracting gases from appliances that operate on gas or other fuels.

If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person. - Connect the plug to a socket that corresponds to the rated values and is located in a well-ventilated area. - With regard to the technical and safety measures for gas extraction, it is important to strictly follow the local regulations.

WARNING: Before cleaning the vacuum cleaner, remove the plug from the socket. - Use only original accessories for the vacuum cleaner. WARNING: If the accessories or the device for cleaning are not used in accordance with these instructions, there may be a risk of electric shock. - Do not look directly into the light of optical devices (magnifying glass, lens...). Do not vacuum food under the vacuum cleaner; there is a risk of fire. - This appliance can be used by...

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children must be supervised to ensure that they do not play with the appliance. - The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Install the device so that it can be easily accessed when using the appliance for cooking.

• Check and replace the filters at the specified time intervals (fire hazard). You will do this easily and quickly. There must be adequate ventilation in the room where the hood is used, and where

at the same time appliances operating on gas or other fuels are used (not applicable to appliances that discharge air into the room).

The symbol on the product or its packaging indicates that the product must not be treated as household waste. It should be taken to an appropriate collection point for recycling electrical and electronic equipment. By properly disposing of this product, you help prevent potential negative consequences for the environment and human health, which could arise from improper disposal of this product as waste. For more detailed information about recycling this product, you can contact your local city authorities, the household waste disposal service, or the store where you purchased the product.

2. USE

• The hood is designed exclusively for household use to eliminate kitchen odors. Do not use the hood for other purposes than those for which it was designed.
• Never leave

the open flame of the hood while it is working.

-Adjust the flame intensity to direct it onto the bottom of the pan. Check that the flame does not extend beyond the sides of the pan. -Be careful when frying: the oil in the pan must be constantly monitored during use: overheated oil can easily catch fire.

3. MAINTENANCE

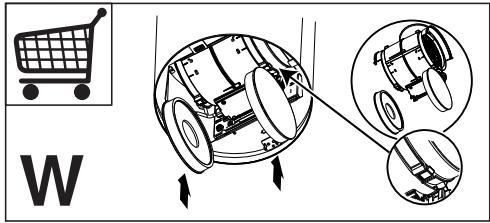

-The filter with active charcoal cannot be washed or renewed, so it must be replaced approximately every three months, or more often with particularly intensive use (W).

Cleaning the hood.

• In case of class 1 appliances, check that the electrical installation can provide adequate grounding.
• Connect the hood to the ventilation duct with a minimum diameter of 120mm. The duct should be as short as possible.
• The regulations concerning the discharge of air must be observed. Do not connect the hood to exhaust ducts that pass through rooms with fireplaces (e.g., from boilers and stoves).
• If the vacuum cleaner is used together with non-electric appliances (e.g., appliances that burn gas), adequate ventilation of the room must be ensured to prevent the return flow of exhaust gases. When the vacuum cleaner is used together with appliances that do not use electrical energy, the negative pressure in the room must not exceed 0.04 mbar to prevent exhaust gases from being drawn back through the vacuum cleaner into the room. Air must not be drawn through a ventilation duct that is used for exhausting fumes from appliances that run on gas or other fuels.
• If the power cord is damaged, it must be replaced by the manufacturer or their service agent.
• Place the vacuum cleaner in a room that is in accordance with the applicable regulations and positioned in an easily accessible place.
• In order to apply technical and safety measures related to the extraction of fumes, it is important to carefully follow the local regulations.

WARNING: Do not operate the vacuum cleaner without the filter bag.

• Use only original filter bags that fit the vacuum cleaner.

WARNING: Installing the filter bag incorrectly or not closing the device properly may lead to severe electric shock.

Do not point directly at the light source through the optical aids (e.g., magnifying glass, lenses...). Do not look directly into the vacuum cleaner; danger of burns. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, as well as persons who lack sufficient experience and knowledge, if they are supervised or have been instructed in the safe use of the appliance and understand the possible dangers. Children must not play with the appliance. Cleaning and user maintenance should not be

performed by children without supervision.

• Children must be supervised to ensure they do not play with the appliance. This appliance should not be used by persons (including children) with reduced physical, sensory or mental capabilities, or by persons who lack sufficient experience and knowledge, unless they are supervised or have been instructed in the use of the appliance by a person responsible for their safety.

Filter parts may become hot when used together with cooking appliances.

Clean or replace the filters after a certain period of time (danger of fire). See the section "Cleaning and Maintenance". - The vacuum cleaner must be adequately ventilated if it is used at the same time as appliances that run on gas or other fuels (this does not apply to appliances that only extract air into the room). The symbol on the product or its packaging indicates that this product must not be treated as household waste. Instead, it must be handed over to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring the correct disposal of this product, you will help prevent potential

negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.

2. YNOTPEBA

• The aspirator is designed exclusively for laying linoleum in the household.
• Never use the aspirator for anything other than what it is intended for.
• Never leave an open flame near the aspirator when it is in use. Adjust the flame intensity so that it is directed only at the fabric, not at its side surfaces. During use, you must continuously supervise: an unattended flame can ignite.

3. CLEANING AND MAINTENANCE

This filter cannot be cleaned and regenerated; it must be replaced every 2 months in case of very intensive use and every 6 months (W).

The filters must be cleaned every 2 months in case of very intensive use and can be washed in a washing machine

for dishes (Z).

• The aspirator is plugged into an electrical outlet with a grounded plug.

4. COMMANDS
