USER MANUAL PU2530F0 ROWENTA

White and black electronic device with perforated grille and control panel (no visible text or symbols)

PURE AIR ESSENTIAL PU2530

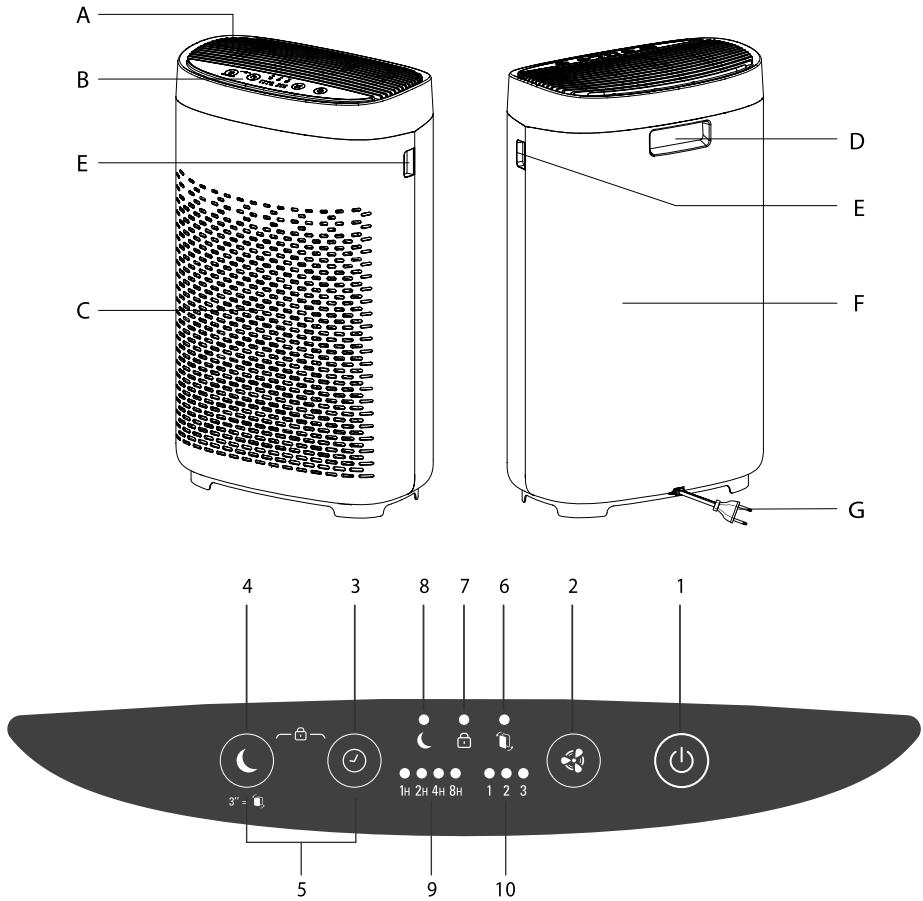

PRODUCT OVERVIEW

Main Unit

A Air outlet
B Control panel
C Air intake
D Handle
E Lifting yoke
F Rear housing
G Power line

Control buttons

1 ON/OFF button
2 Speed mode button
3 Timer button
4 Sleep mode button
5 Child lock button

Indicators

6 Replace filter indicator
7 Child lock indicator
8 Sleep mode indicator
9 Timer selected
10 Speed selected

Illustration of a hand holding a container filled with granular material, next to a mechanical device (no text or symbols visible)

Line drawing of a rectangular electronic device with a screen and mounting base (no text or symbols)

Illustration of a hand inserting a device into a flat-screen panel (no text or symbols visible)

Illustration of a hand holding a tablet device with an arrow pointing to the screen (no text or symbols present)

Illustration of a hand inserting a device into a device panel (no text or symbols visible)

Illustration of a hand holding a cloth over a perforated material inside a machine (no text or symbols visible)

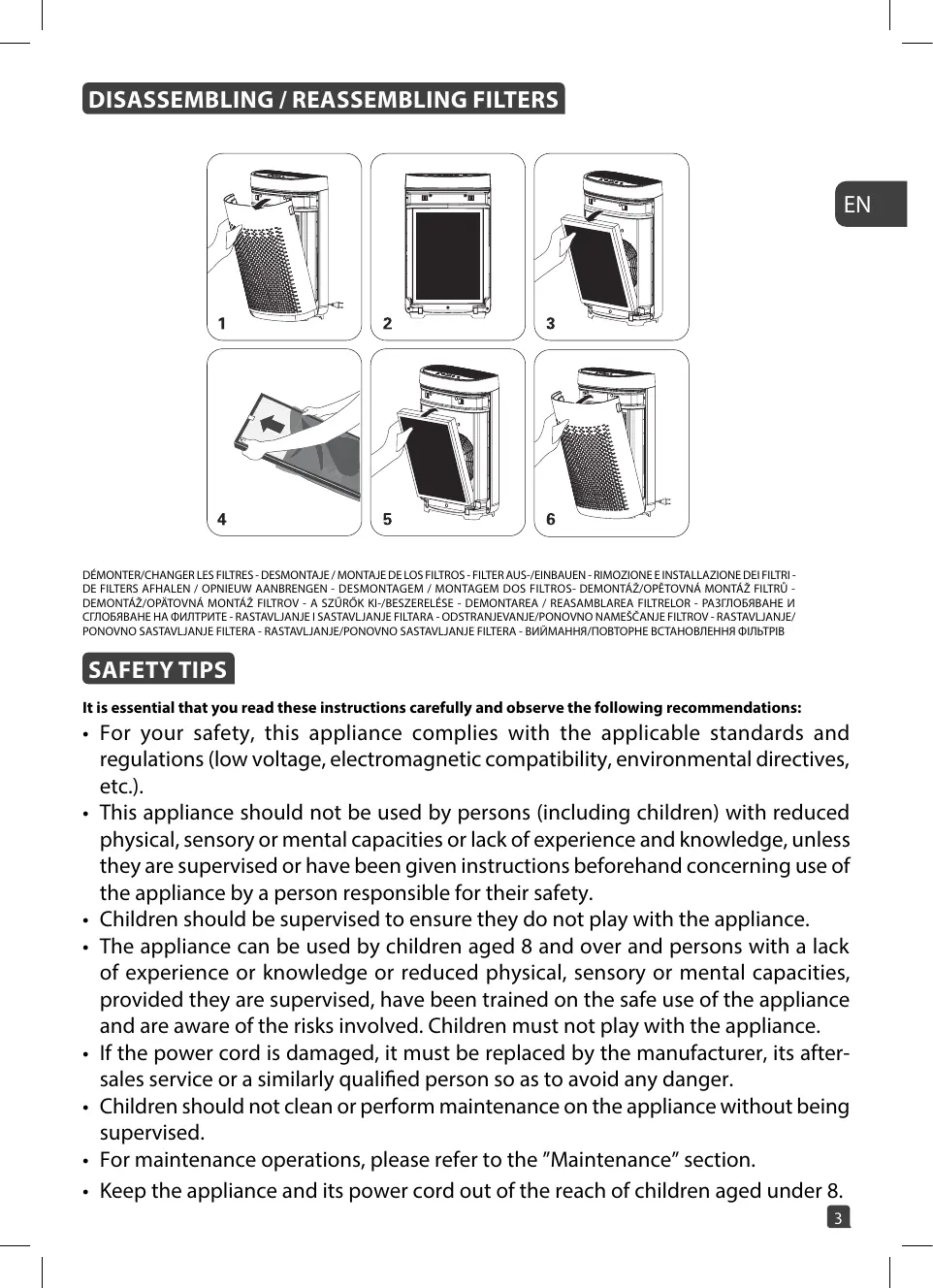

DÉMONTER/CHANGER LES FILTRES - DESMONTAJE / MONTAJE DE LOS FILTROS - FILTER AUS-/EINBAUEN - RIMOZIONE E INSTALLAZIONE DEI FILTRIDE FILTERS AFHALEN / OPNIEUW AANBRENGEN - DESMONTAGEM / MONTAGEM DOS FILTROS - DEMONTÁŽ/OPĚTOVNÁ MONTÁŽ FILTRŮ - DEMONTÁŽ/OPĂTOVNÁ MONTÁŽ FILTROV - A SZÚRŐK KI-/BESZERELÉSE - DEMONTAREA / REASAMBLAREA FILTRELOR - РАЗГЛОБЯВАНЕ И СГЛОБЯВАНЕ НА ФИЛТРИТЕ - RASTAVLJANJE I SASTAVLJANJE FILTERA - ODSTRANJEVANJE/PONOVNO NAMEŠČANJE FILTROV - RASTAVLJANJE/PONOVNO SASTAVLJANJE FILTERA - RASTAVLJANJE/PONOVNO SASTAVLJANJE FILTERA - ВИЙМАННЯ/ПОВТОРНЕ ВСТАНОВЛЕНИЯ ФІЛЬТРИВ

SAFETY TIPS

It is essential that you read these instructions carefully and observe the following recommendations:

• For your safety, this appliance complies with the applicable standards and regulations (low voltage, electromagnetic compatibility, environmental directives, etc.).
• This appliance should not be used by persons (including children) with reduced physical, sensory or mental capacities or lack of experience and knowledge, unless they are supervised or have been given instructions beforehand concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure they do not play with the appliance.
• The appliance can be used by children aged 8 and over and persons with a lack of experience or knowledge or reduced physical, sensory or mental capacities, provided they are supervised, have been trained on the safe use of the appliance and are aware of the risks involved. Children must not play with the appliance.
• If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person so as to avoid any danger.
• Children should not clean or perform maintenance on the appliance without being supervised.
• For maintenance operations, please refer to the "Maintenance" section.

• Keep the appliance and its power cord out of the reach of children aged under 8.

• This appliance is designed for domestic use only. It should not be used for industrial purposes.

• The warranty will be invalidated if damage occurs due to incorrect use.
• Do not operate this appliance in a very dusty and/or humid place or in a location with fire hazards.
• Before use, always make sure that the appliance, plug and power cord are in good condition.
• Never insert objects into the appliance (e.g. needles, etc.).
• Do not pull on the power cord or the appliance, even to unplug it from the wall power outlet.
• Unroll the full length of the cord before use.

VERY IMPORTANT

• Do not cover the air inlets or the outlet grid.
• Do not touch the appliance with wet hands.
• Never allow any liquid to enter the appliance.
• Never use the appliance in a humid place.
• Never use the appliance close to a heat source.
• Never place anything on the appliance or insert anything into it.
• Do not use the appliance close to flammable objects or products (curtains, aerosols, solvents, etc.).
• Never use the appliance in an inclined or horizontal position. Place the appliance on a flat, stable surface.
• In the case of prolonged absence: switch the appliance off using the button (8) and unplug it.
• Switch off and unplug your appliance before moving it.
• Unplug the air purifier during assembly and cleaning.

OPERATING PRINCIPLE

Rowenta Pure Air Essential enables you to breathe pure air in your home and protects your health with up to 3 filtration levels as described below. Each level is essential and traps specific pollutant :

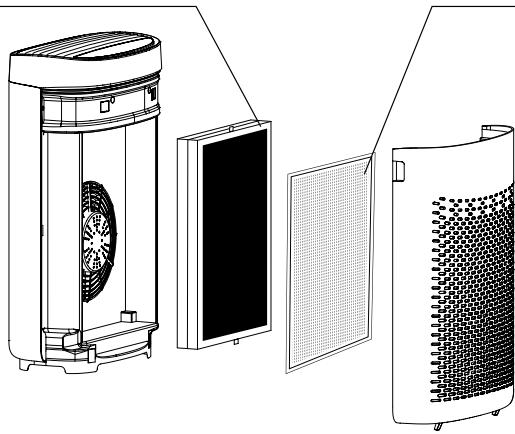

2in1 Active Carbon & particles filter

• Smoke
• Unpleasant odors
• Chemical pollutants
  • Volatile Organic Compounds (VOC)
• Allergens and Pollen
• Dust mites
• Germs and Molds
  • Bacteria and Viruses
• Traps specific pollutants

Technical line drawing of a portable air conditioner unit with front panel, side panel, and back panel (no text or symbols)

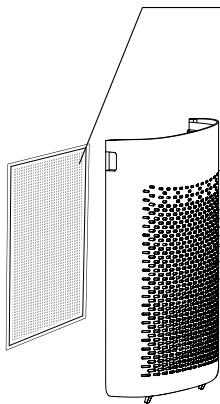

Pre filter

• Dust
• Hairs
• Pet hairs

« HOW TO ACHIEVE CLEANER INDOOR AIR »

In addition to using your Pure Air Essential purifier, here are some tips on how to improve the quality of your indoor air:

• Ventilate the rooms for at least 10 min. every day, in summer and winter.
• Maintain your ventilation system.
• Limit the use of household products.
• Do not smoke indoors.
• Avoid home fragrances, incense sticks, scented candles, etc.
• Ventilate whenever any work is being conducted in your home and for several weeks afterwards.
• Avoid green plants that are allergenic or need frequent watering.

WHERE TO INSTALL THE APPLIANCE

Place the purifier on a flat, stable surface in the room requiring treatment.

To allow the air to circulate freely, avoid placing the appliance behind curtains, below a window, item of furniture or shelf unit, or close to any other obstacle, and leave at least 50 cm of free space on each side of the appliance. Recommended to be used in ambient conditions lower than 35^ C 70%RH.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Before the first use, ensure the voltage, frequency and power of your appliance suit your electric supply.

Your appliance can operate using an unearthed plug. It is a class II (double electrical insulation ☐).

Before switching on your appliance, ensure that:

• the appliance is completely assembled as described in the safety instructions,
• the appliance is placed on a stable, horizontal surface,
• the appliance is positioned in accordance with the instructions given in this manual,
• the air inlets and the oultet grid are completely unobstructed,
• the filters and panel have been correctly installed (See section "Disassembling / Reassembling filters")

IMPORTANT: You are advised to switch off and unplug the appliance when not in use.

OPERATION

• Power Switch (1

- Turn the purifier on or off.

• Speed selection (2)

- You can select 3 purification speeds as required.

• Low gear: in this mode, the purification wind speed is small, and the noise is low, which is suitable when sleep.
• Middle gear: in this mode, the purification wind speed is increased, which is suitable under the good air condition.
• High gear: in this mode, the purification wind speed is the largest, which can quickly purify pollutants in the air, suitable for the environment with poor air quality, such as when some one smoking.

- Timer (3) (√)

- When the purifier is working, press the key to select the required working time(1,2,4,8 hours), and the purifier will stop working after reaching the set time automatically.

- Sleep mode (4) (C)

- In this mode, press the sleep key to count into the sleep mode, the purification wind speed is in the sleep gear. Press the sleep key again then exit the sleep mode and automatically restore to the working mode before entering the sleep mode.

- Child lock (5)

• In working mode, press and hold the timer button (3) plus sleep mode button (4) at the same time for 3 seconds to enter the child lock mode. Press and hold the indicator light of child lock for 3 seconds then exit the child lock.
• In child lock mode, other keys are invalid.

CARE AND MAINTENANCE

Before performing any maintenance work, switch off the air purifier using the on/off button (1).

Use a damp cloth to clean the surface of the product.

Important: Do not use any abrasive materials, as these may damage the surface of the product.

Frequency of cleaning/replacing the filter :

Filter	Clean/replace	Frequency	Filter codes
Pre filter	Clean	Every 2 months
2in1 Active Carbon & Particle filter	Replace	Every 12 months	XD6220F0

Before carrying out any maintenance operation, be sure to unplug the power plug. You can use a slightly wet cloth to clean the purifier body.

Important: Do not clean it with anything of grinding nature to avoid damaging to the surface of the purifier.

• When the 2-in-1 filter reaches 95% of saturation, the filter indicator will light up and the buzzer will ring for one minute to remind the user to replace the 2-in-1 filter.
  * The flashing light indicates that the usage of the filter mesh is about to end.
• The filter indicator will flash when the 2-in-1 filter is full of dust then you must replace it with a new 2-in-1 filter

Performing a force reset:

The filter indicator lights up on the control panel and the buzzer rings for one minute each time the purifier is switched on, to remind the user to replace the 2-in-1 filter. After you replace it, press the « night button » for 3 seconds to reset the filter.

If the 2-in-1 filter is replaced before its end of life, the timing of the 2-in-1 filter should be reset by force:

1. After replacing the 2-in-1 filter, press and hold the sleep mode button for 3 seconds;
2. The corresponding filter indicator light flashes;
3. Press and hold the sleep mode button for 3 seconds again, the filter indicator light goes out and the buzzer beeps twice, then the purifier will recalculate the usage of the 2-in-1 filter.
4. The reset mode will be canceled, if there is no operation for 3 seconds

Caution :

*The working efficiency of the pre-filter will be reduced if cannot be cleaned regularly
*Do not use a wet pre-filter
*Do not wash or reuse too many times the 2-in-1 filter
*Replace the filter mesh in turns, please refer to "Before use" ---- "Frequency of cleaning/replacing the filter"

Please note: certain filters may emit a temporary slight odour, due to the transport and storage conditions.

• Avoid handling used filters if you suffer from allergies or asthma.
• Wear gloves when changing the filters, or wash your hands well afterwards.
• Put used filters directly into a closed, air-tight bag before throwing them away to avoid spreading pollutants.

IMPORTANT:

Never use a detergent or metal object to clean the sensors.

The efficiency of the sensors may be reduced if not cleaned regularly.

Cleaning frequency varies depending on the operating environment of the appliance. If it is used in a dusty environment, clean the sensors more frequently.

STORAGE

When you are not using the appliance, store it in a cool, dry place with ambient conditions no higher than 35^ C 70%RH.

IN THE EVENT OF A PROBLEM

• Do not disassemble the appliance yourself. A poorly repaired appliance may be dangerous for the user.
• Check the troubleshooting table below before contacting an Approved Service Center:

Problem	Check	Solution
The appliance does not switch on.	Is the power cord connected?	Connect the power cord to a plug with the correct voltage.
	Are all the display elements off?	Press the on/off button and select the required function.
	Is there a power outage?	You can use your purifier once the power turns on again.
The flow is a lot weaker than before.	Does the filter need to be cleaned or replaced?	Check the filter cleaning and replacement frequencies and clean/replace the filter(s) if necessary.
There is an unpleasant smell coming from the air outlet.	Is the sensor lens covered with dust?	Check the filter cleaning and replacement frequencies and clean/replace the filter(s) if necessary.

WARRANTY

Do not use the appliance and contact an Approved Service Centre if:

– your appliance has been dropped;
- your appliance or its power cord are damaged;
- your appliance no longer functions properly.

You can find a list of Approved Service Centres on the Rowenta international warranty card.

HELP PROTECT THE ENVIRONMENT!

Your appliance contains many materials which can be recovered or recycled.

Leave it at a local waste collection point or take to an approved service center so that it can be processed.

These instructions can also be found on our internet site, at www.rowenta.com.
