NK36N5703BS - 372539872 - - - - - - - NK36N5703BS/UR - Basket SAMSUNG - Free user manual and instructions

Product type	Extractor hood
Brand	Samsung
Model	NK36N5703BS/UR
Use	Extracting (external venting) or recirculating (internal recycling)
Available speeds	Low, medium, high + intensive (Boost) for 5 minutes
Lighting	LED
Connectivity	Bluetooth (pairing with compatible Samsung hob)
Remote control	Via Smart Things app
Timer	Yes, programmable
Grease filter	Metallic, dishwasher safe (once a month)
Charcoal filter	Activated, to be replaced every 4 months (not included)
Standby consumption	1.90 W
Off consumption	0.48 W
Minimum installation distance (electric)	50 cm
Minimum installation distance (gas)	65 cm
Energy management period	3 minutes
Panel cleaning	Damp cloth, neutral detergent
Lamp replacement	LED, by after-sales service only

Frequently Asked Questions - NK36N5703BS - 372539872 - - - - - - - NK36N5703BS/UR SAMSUNG

What is the minimum installation height of the hood above the hob?

The minimum distance is 50 cm for an electric hob and 65 cm for a gas or mixed hob. Follow the hob instructions if they specify a larger distance.

How to clean the grease filter?

The metallic grease filter should be cleaned once a month by hand with a non-aggressive detergent or in a dishwasher at low temperature and short cycle. Pull the spring handle to remove it.

How often should the charcoal filter be replaced?

The charcoal filter should be replaced every 4 months at most. It cannot be cleaned or regenerated. Replace it sooner if the saturation indicator lights up.

How to pair the hood with a Samsung hob via Bluetooth?

Press the T9 (Bluetooth) button on the hood: the indicator flashes. Then press the Bluetooth button on the compatible hob. The indicator stays on and the 'bt' symbol appears to confirm pairing.

The LED lighting no longer works, what to do?

The LED lamps must be replaced only by the Samsung technical support service. Contact your authorized service center.

How to set the timer?

Press the Timer (T6) button to set the operating time. To cancel, press again for 3 seconds.

The hood does not turn on, what to check?

Check that the wiring fuse has not blown. If the fuses blow several times, call an electrician. Clean the control panel if foreign objects contaminate it.

Can the hood be used without external evacuation?

Yes, in recirculating mode. An activated charcoal filter (not supplied) must be installed. The air is recycled and returned to the room.

How to disable the buzzer?

Press the T7 button for 3 seconds to disable (OFF) the buzzer. Repeat the same operation to reactivate (ON).

The Smart Things app does not connect, what to do?

Make sure the hob is compatible and Bluetooth pairing is active. If the connection is unstable, unplug the power for 30 seconds, then reset Bluetooth (long press on T9). Refer to the hob manual for more details.

USER MANUAL NK36N5703BS - 372539872 - - - - - - - NK36N5703BS/UR SAMSUNG

EN Instruction on mounting and use

1x

Simple line drawing of a cord with a plug attached (no text or symbols)

6x ∅ 5x45

Simple line drawing of a closed book or document (no text or symbols visible)

1x

Simple line drawing of a cable with a plug, no text or symbols present

6x ∅ 8x40

2x

2x

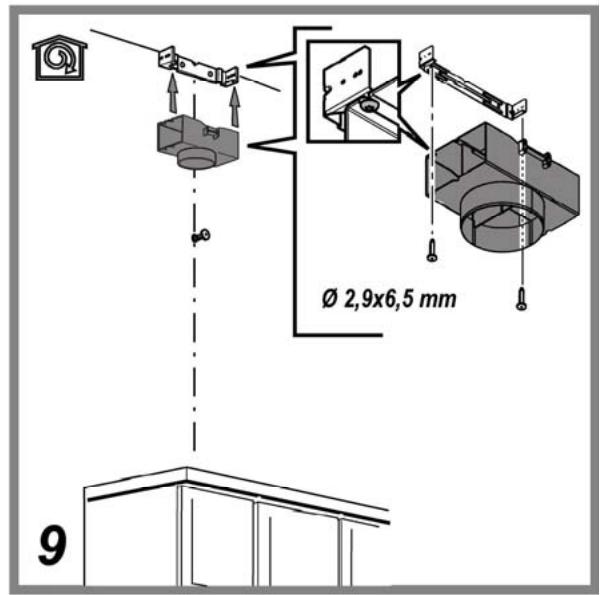

4x ∅ 2,9×6,5

1x

Technical line drawing of a metal bracket with mounting holes (no text or symbols)

1x

2x

1x

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a handheld electric drill bit (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

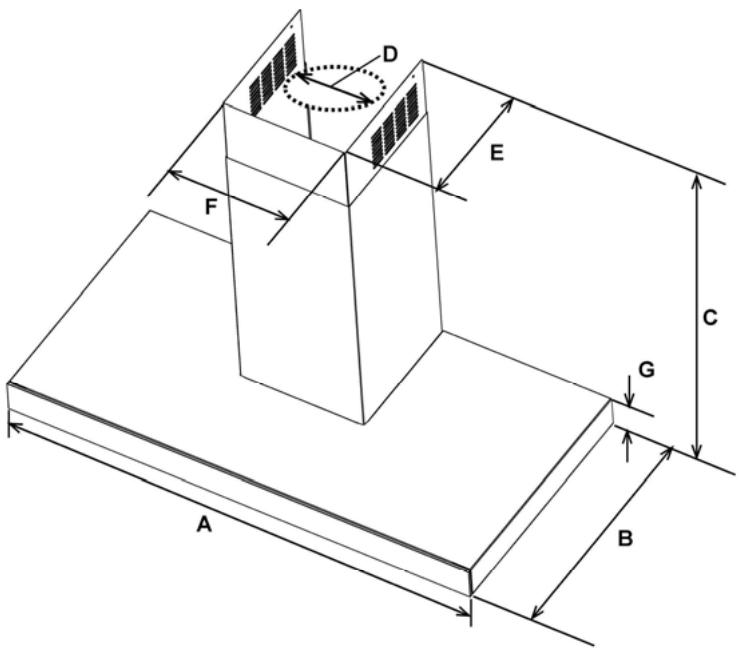

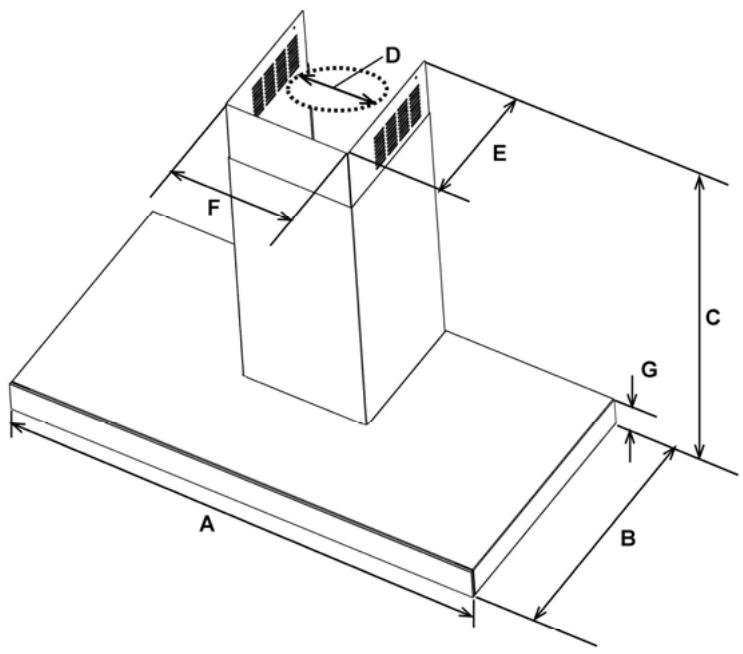

	NK36N5703BS	NK24N5703BS
A	89,8 cm	59,8 cm
B	45,5 cm
C	min. 70.8 - max.114.5 min. 70.8 - max.114.5
D	15 cm
E	25 cm
F	24 cm
G	6.1 cm

NK36N5703BS

NK24N5703BS

NK36N5703BS (net weight - gross weight) : 15,2 Kg - 18,9 Kg NK24N5703BS (net weight - gross weight) : 14,5 Kg - 16,6 Kg

	NK24N5703BM
A	59,8 cm
B	50,5 cm
C	min. 70,6 - max.114,6 min. 70,6 - max.114,6
D	15 cm
E	25 cm
F	24 cm
G	6,1 cm

NK24N5703BM (net weight - gross weight) : 16 Kg - 18,6 Kg

Diagram of a mechanical device with a circular component and a curved arrow indicating motion (no text or symbols)

NK24N5703BM
NK24N5703BS
NK36N5703BS

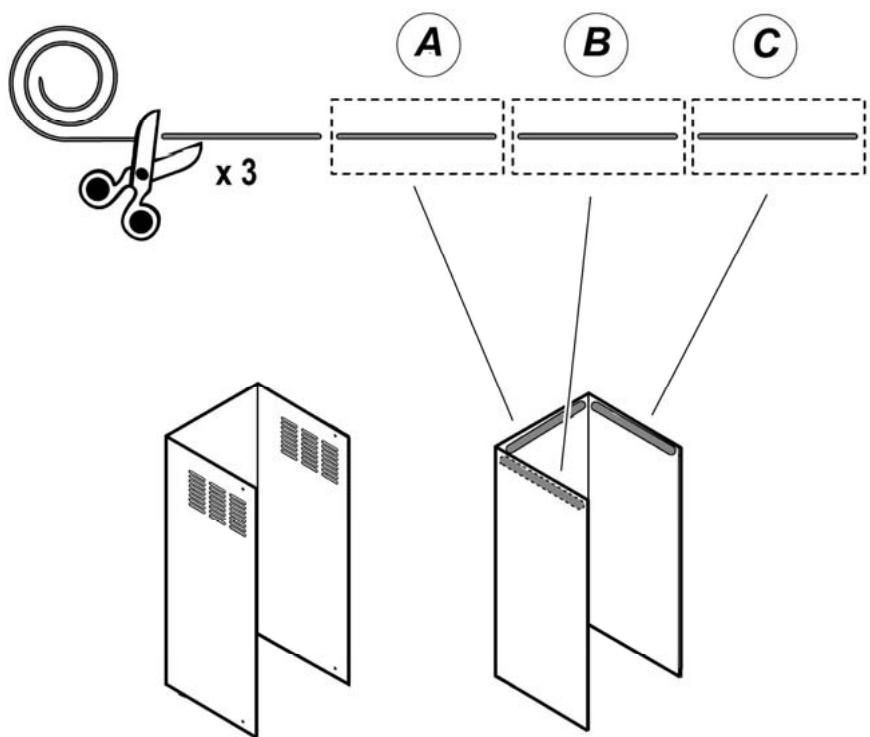

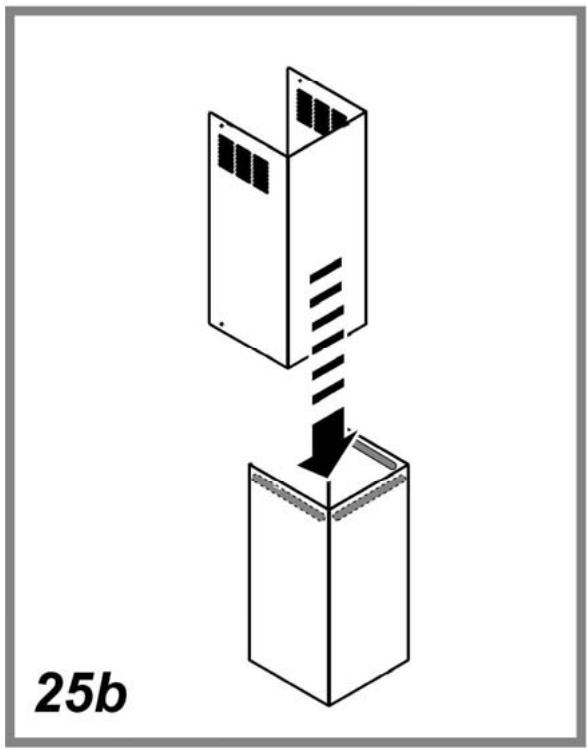

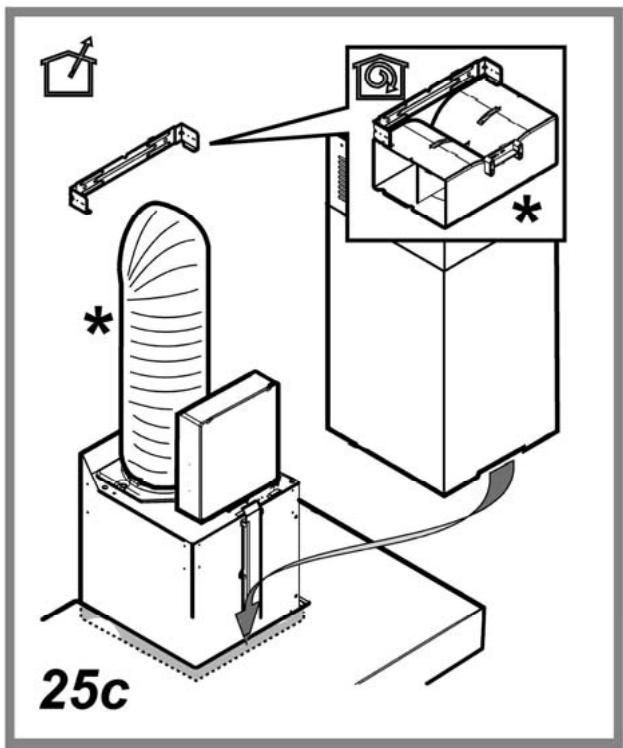

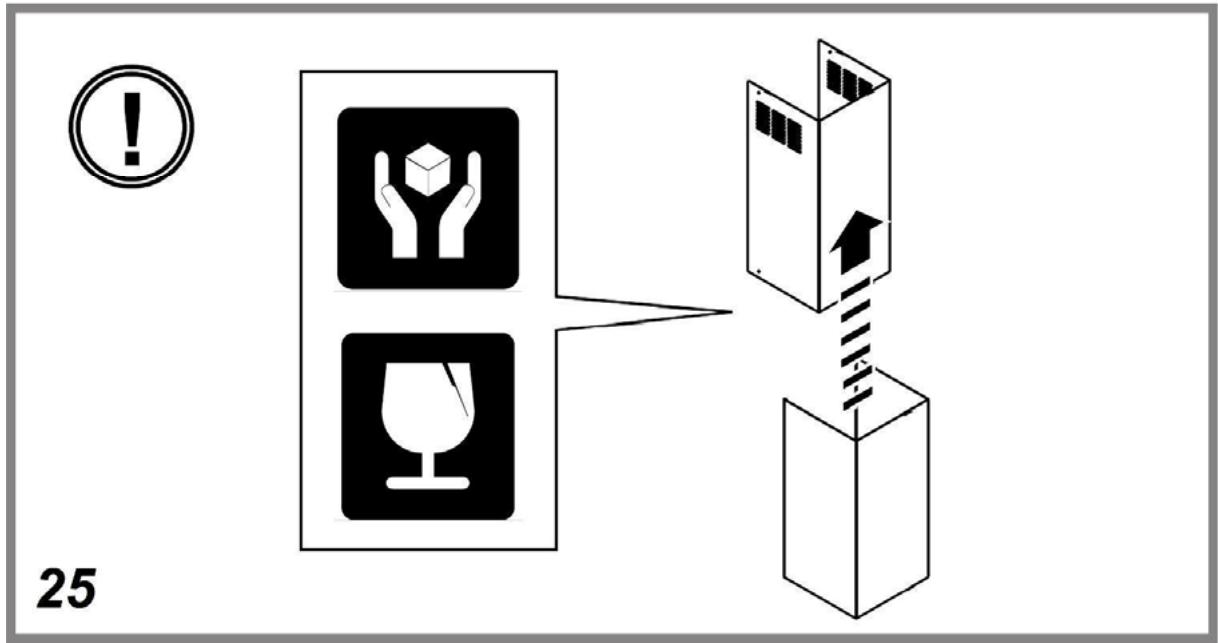

25a

Diagram showing a device being processed into a box, with no visible text or symbols

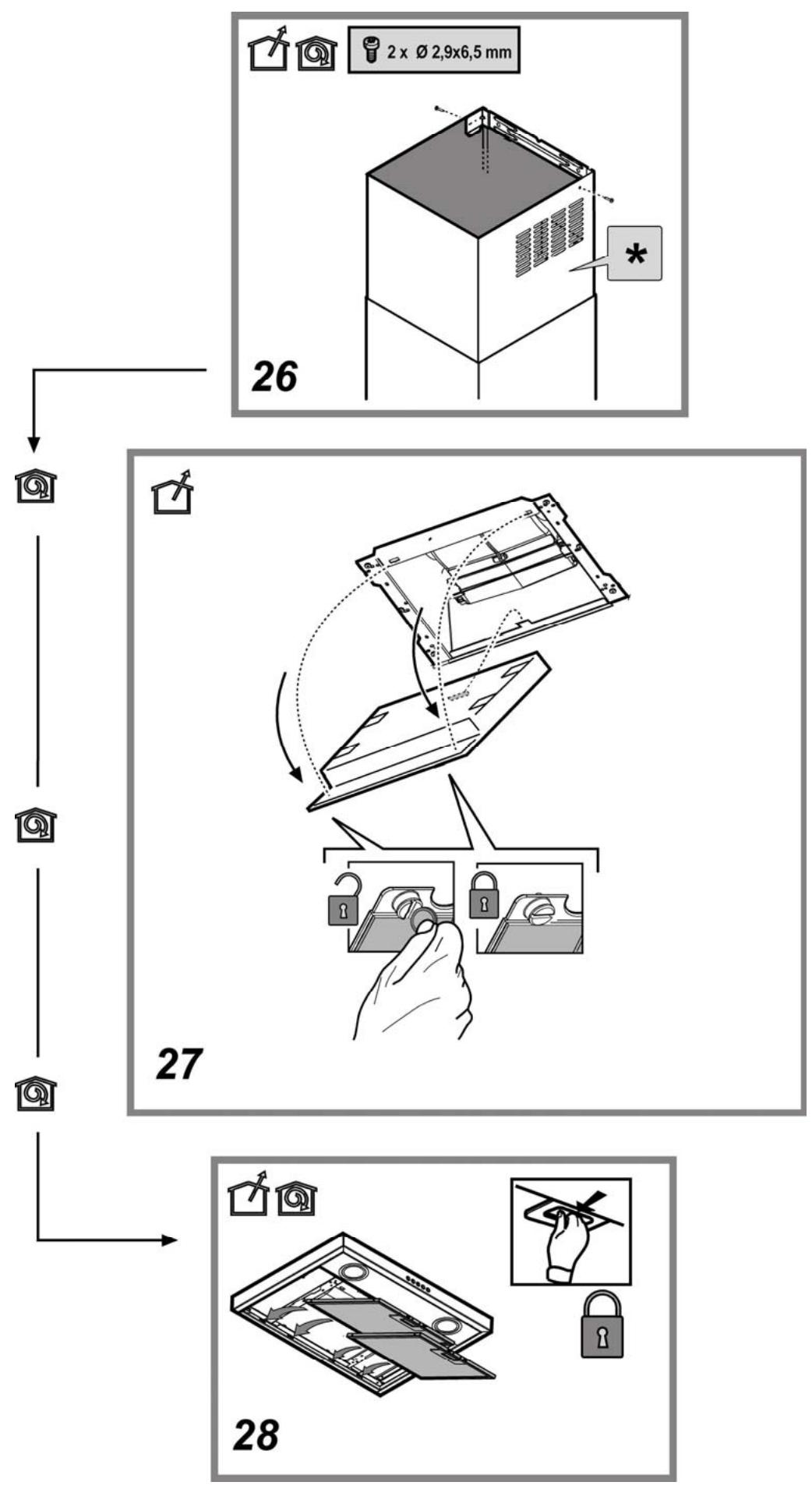


T1. ON/OFF Motore

T1. ON/OFF Motor

T1. ON/OFF Moteur

T5. Vitesse intensive (Boost)

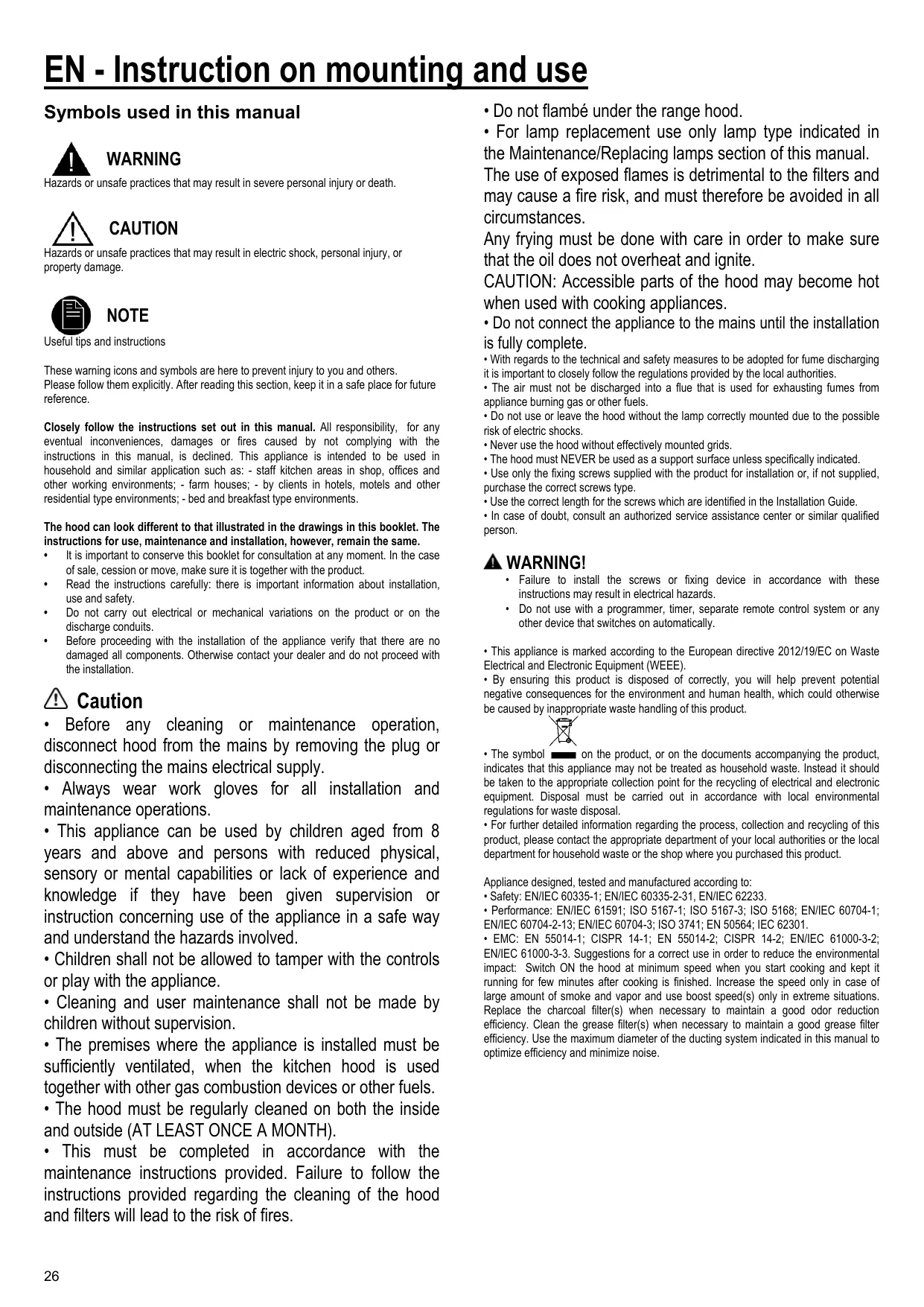

EN - Instruction on mounting and use

Symbols used in this manual

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in electric shock, personal injury, or property damage.

NOTE

Useful tips and instructions

These warning icons and symbols are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Caution

- Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

- Always wear work gloves for all installation and maintenance operations.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

- The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

- This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.

- Do not flambé under the range hood. - For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.
• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
• Never use the hood without effectively mounted grids.
• The hood must NEVER be used as a support surface unless specifically indicated.
• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.
• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

• Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

• This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).

• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use.

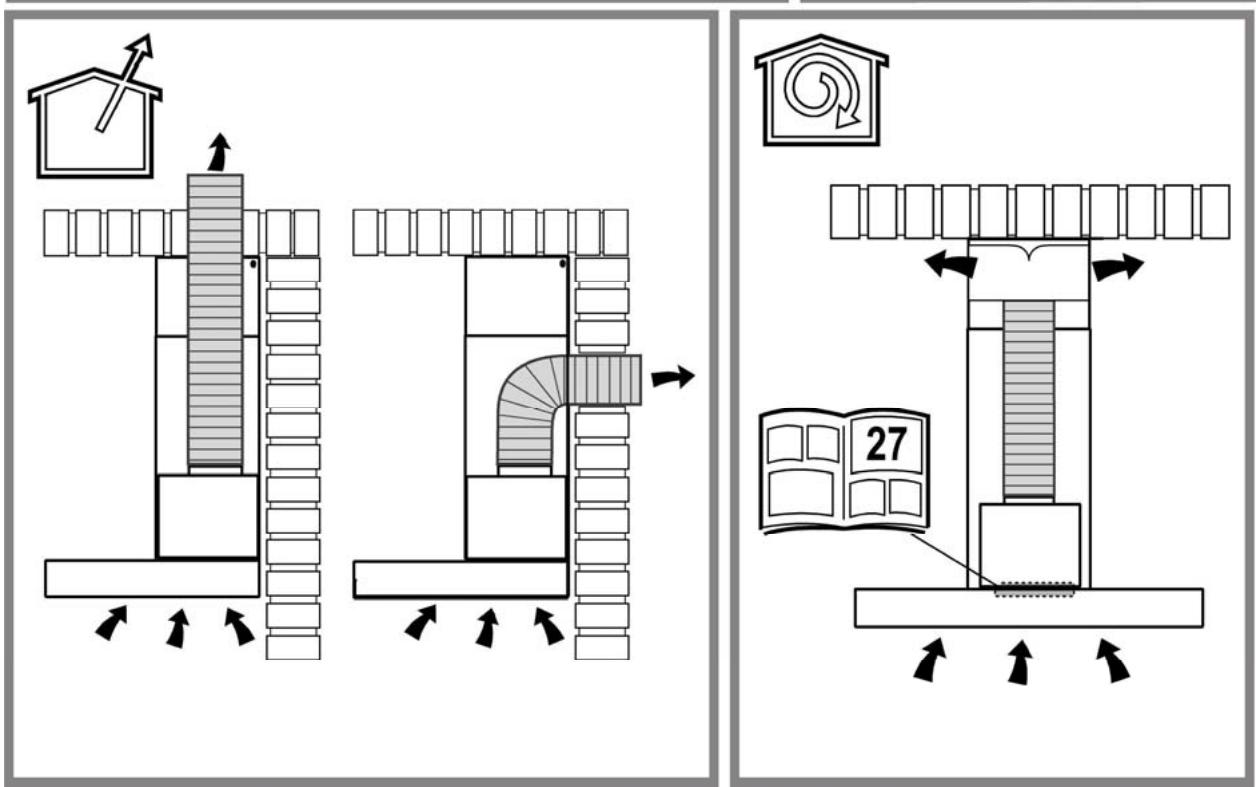

The hood is designed to be used either for exhausting or filter version.

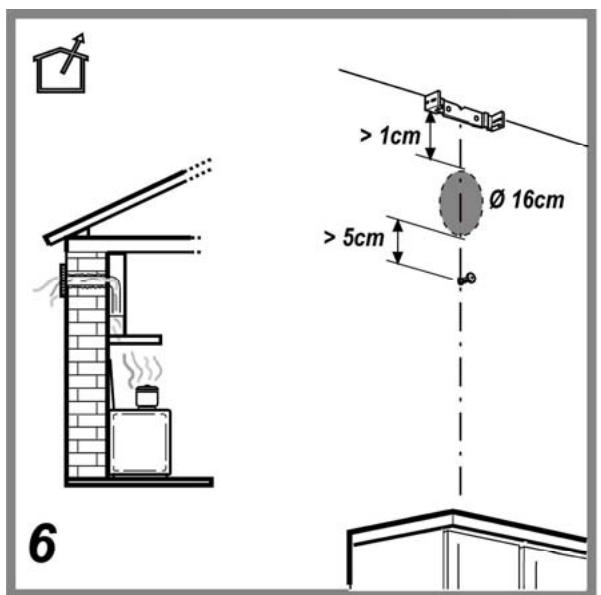

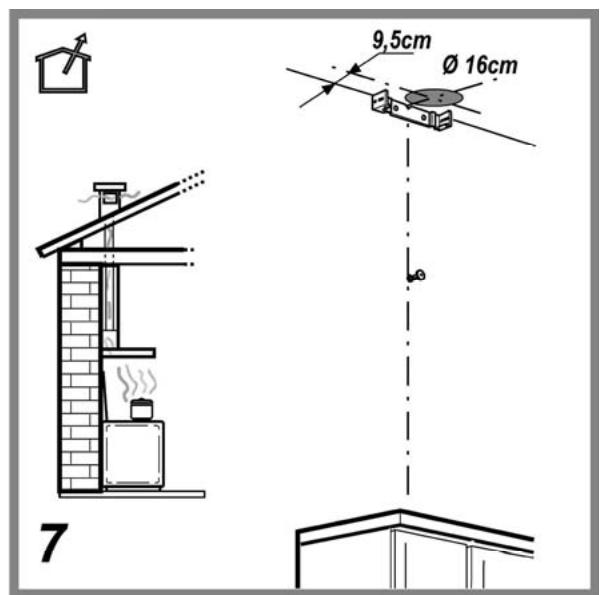

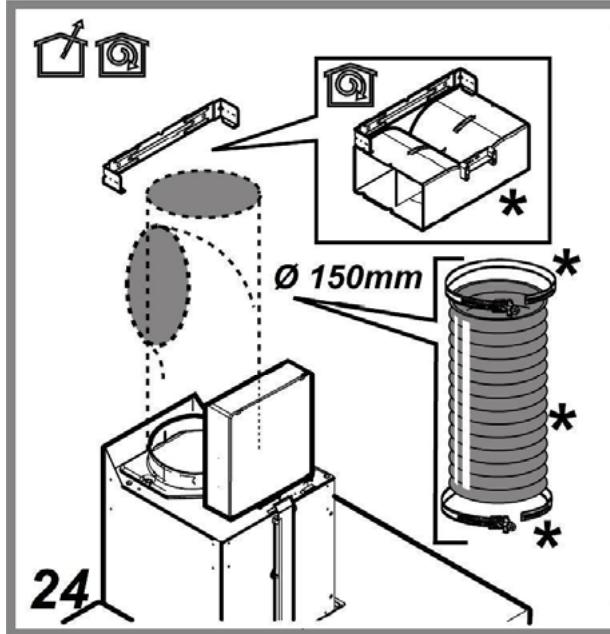

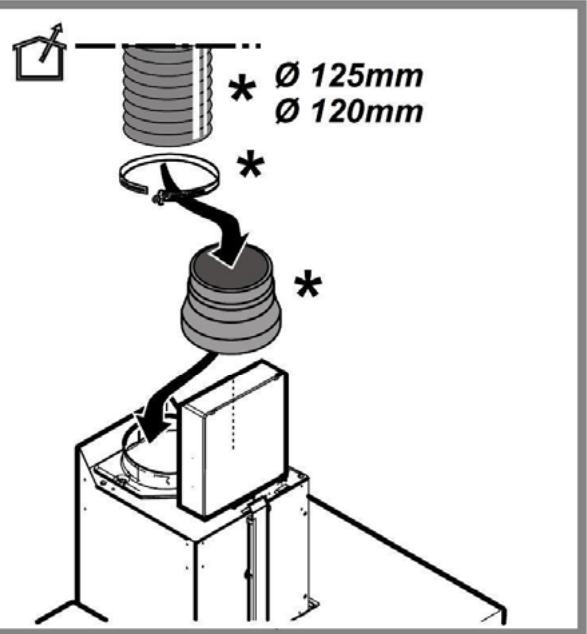

Extraction version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

CAUTION!

The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

If you want to use as Extraction version, Please remove the Charcoal filter on the Hood.

Filtration version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

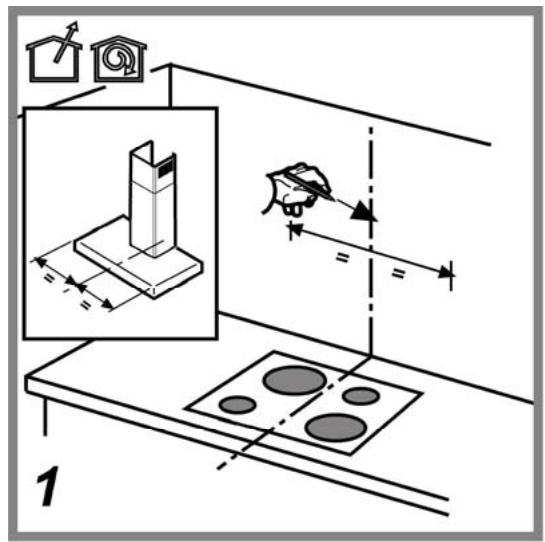

Installation

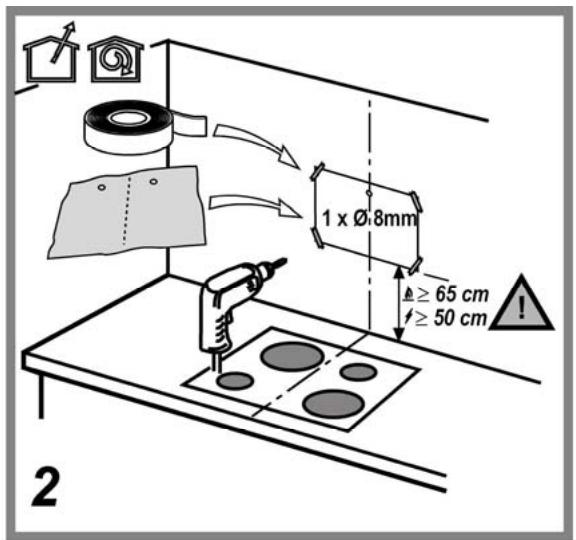

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

*please check local regulation before installation.

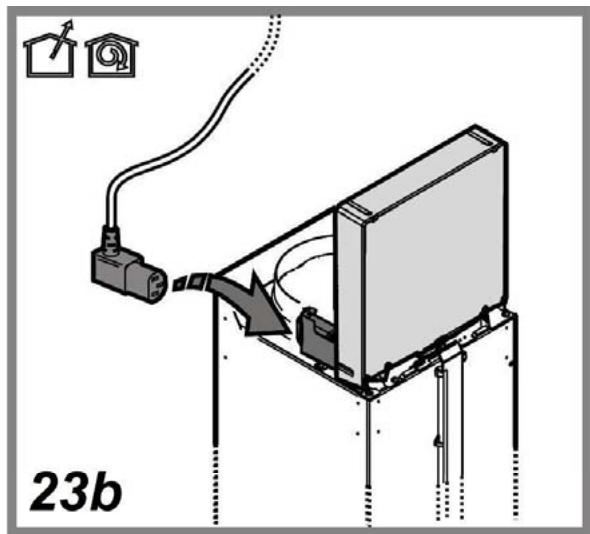

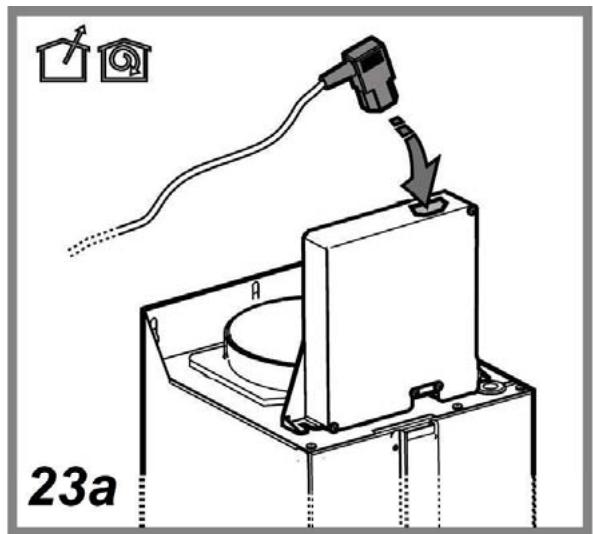

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

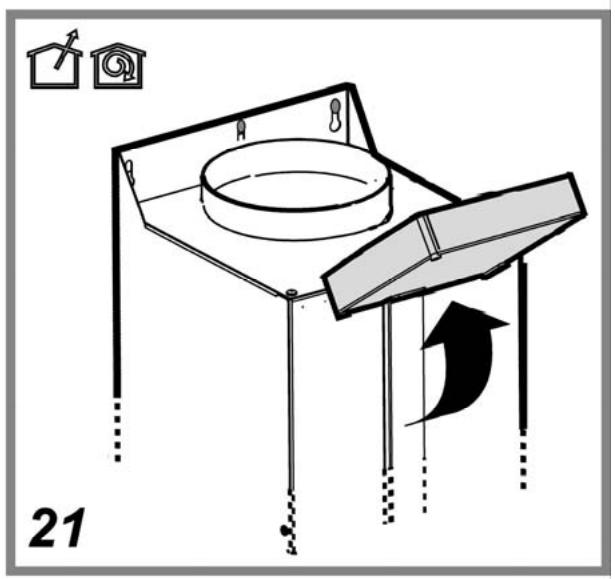

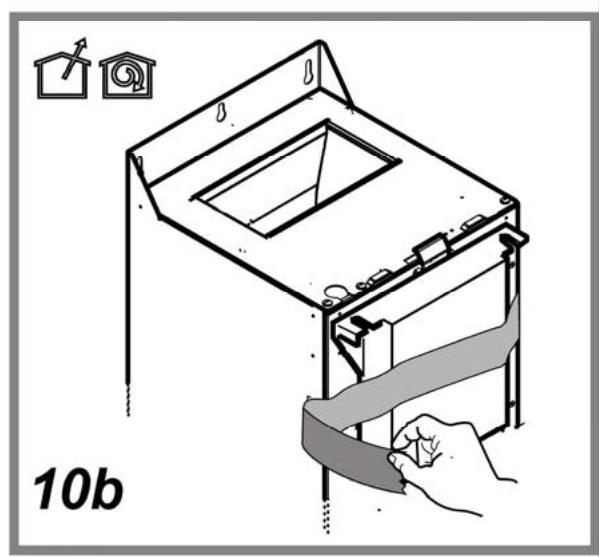

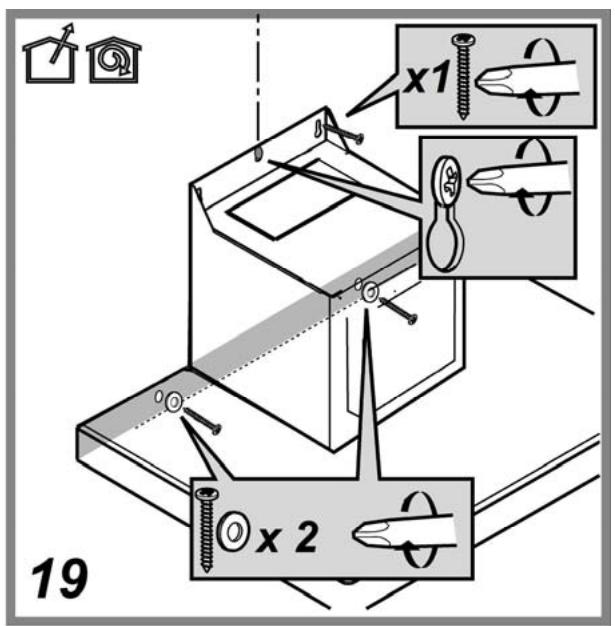

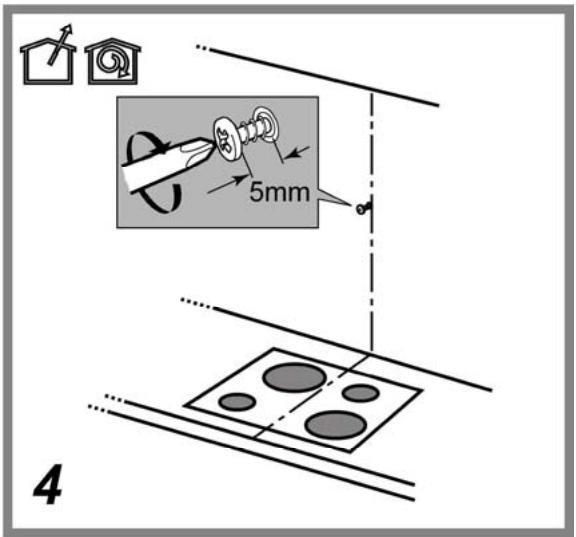

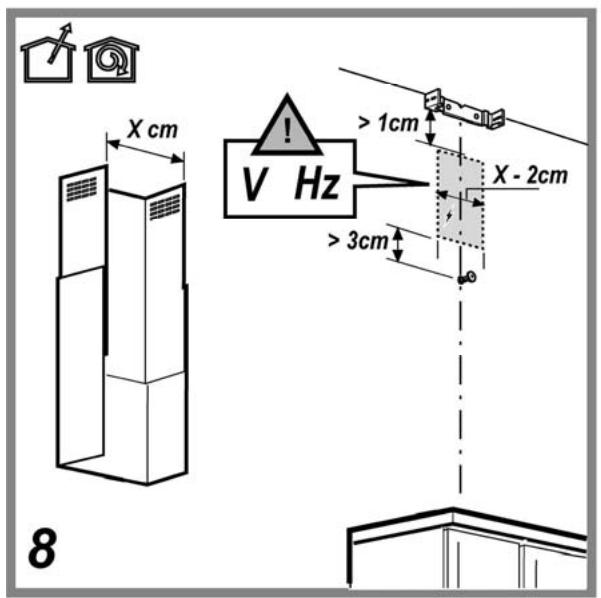

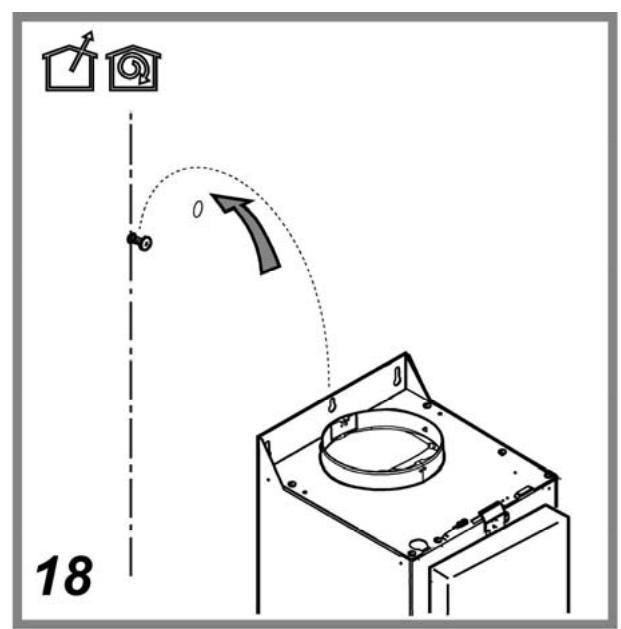

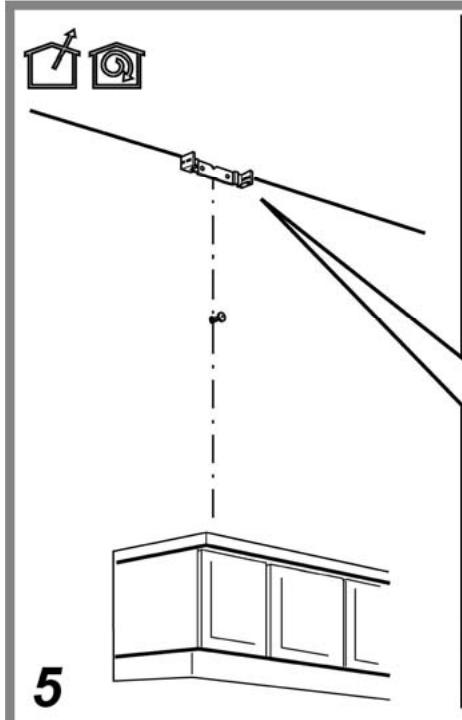

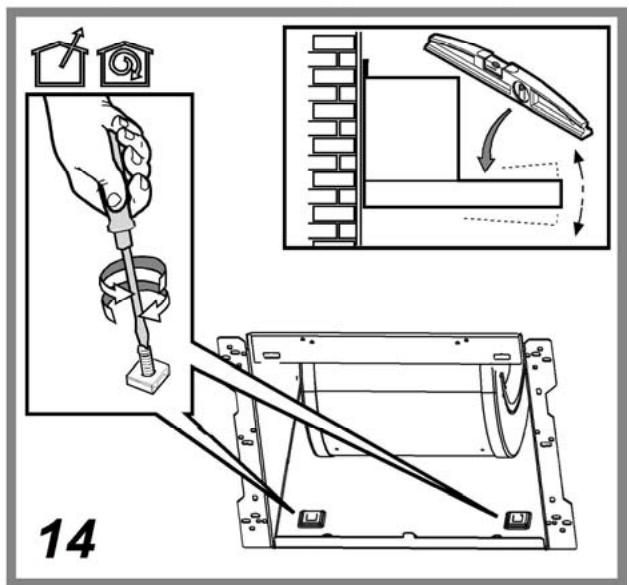

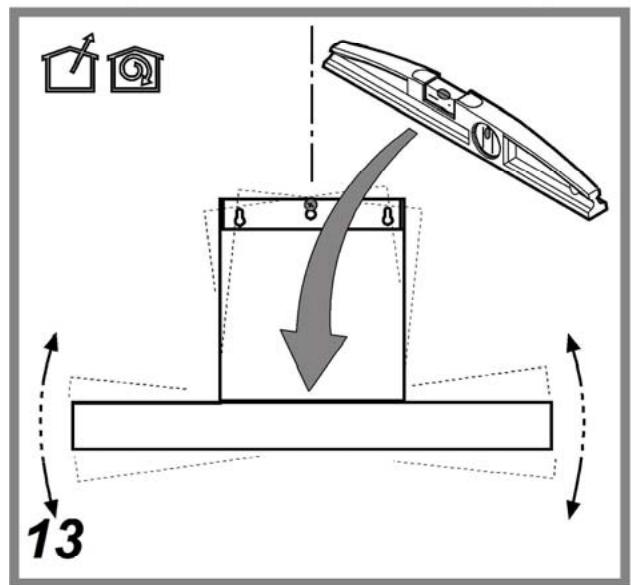

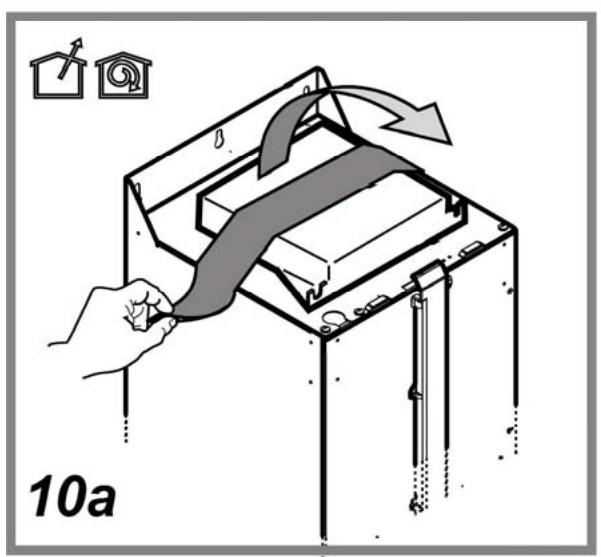

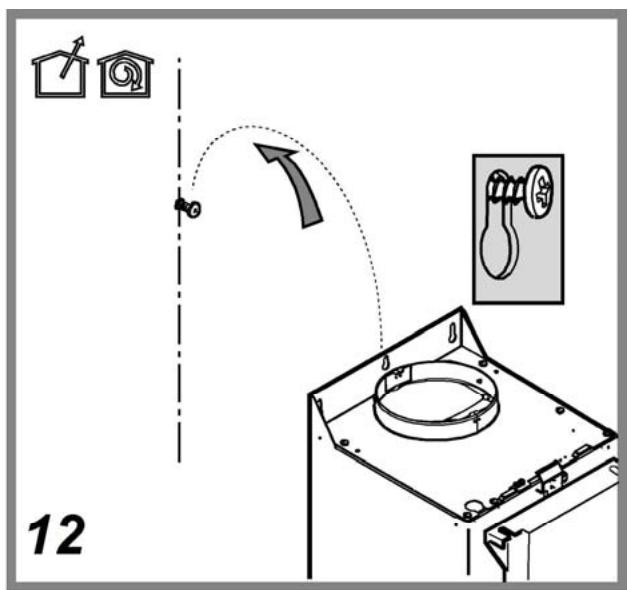

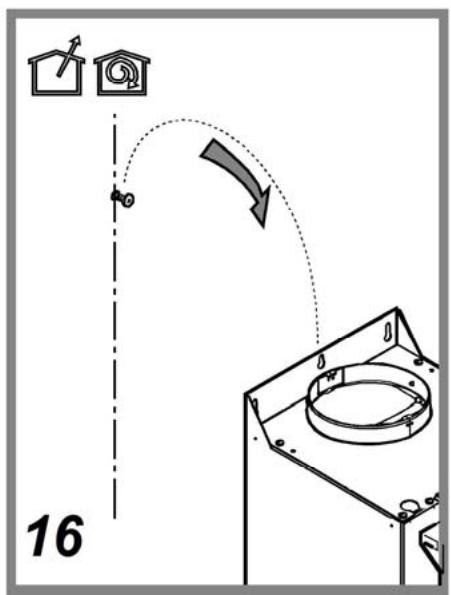

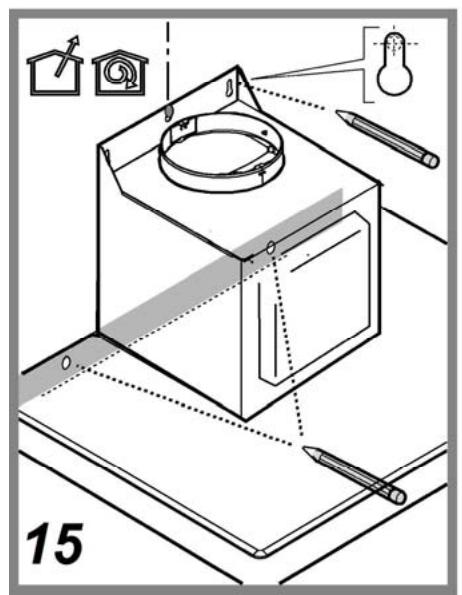

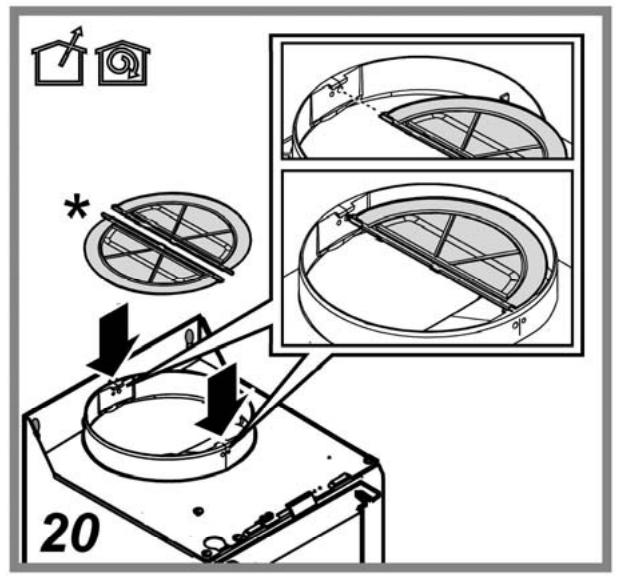

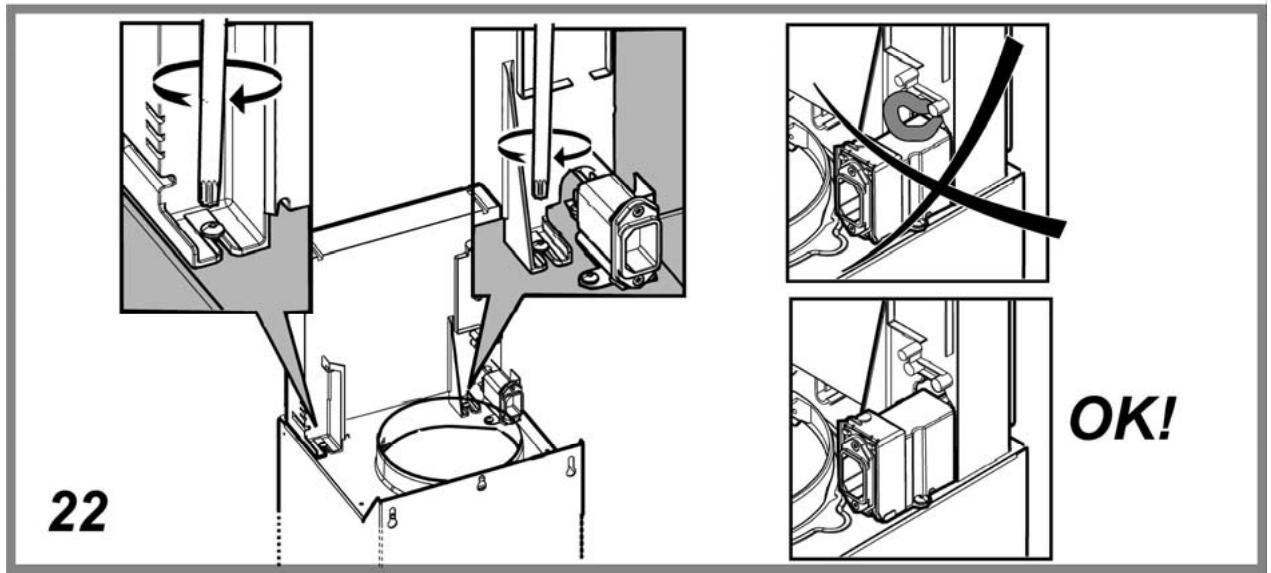

Mounting

Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.
• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want lo use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.

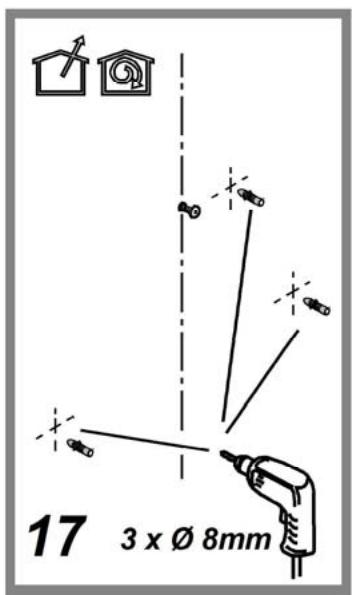

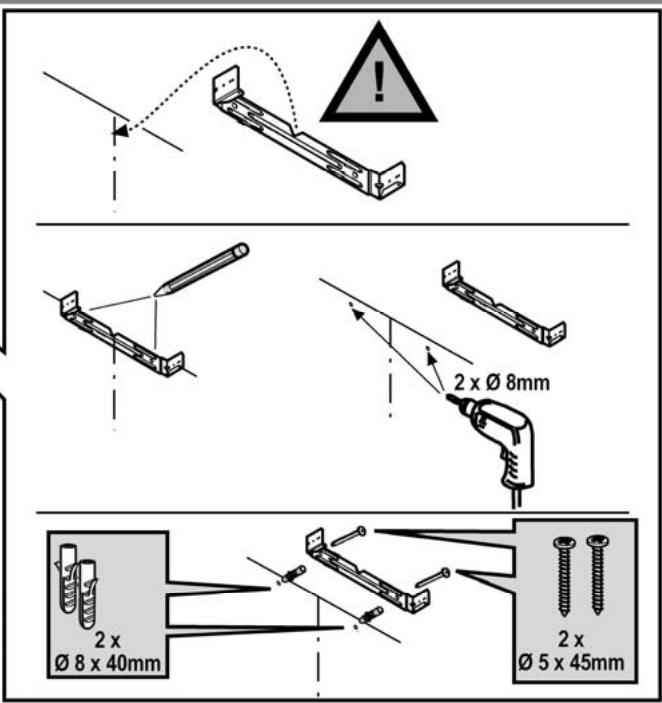

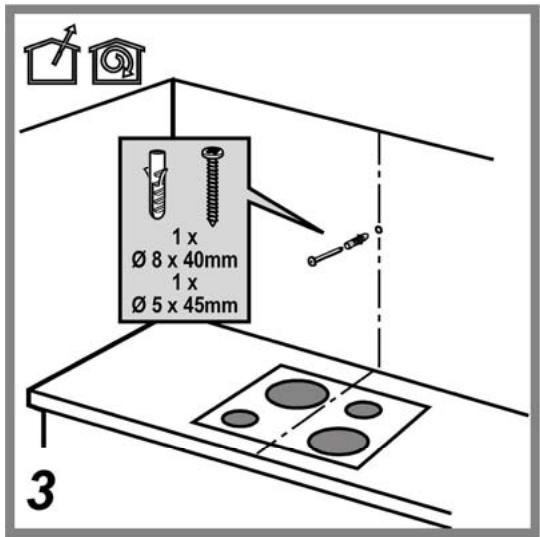

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood.

Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Note: The parts marked with the symbol "(*)" are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

Maintenance

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Always wear work gloves for all maintenance operations.

Grease filter

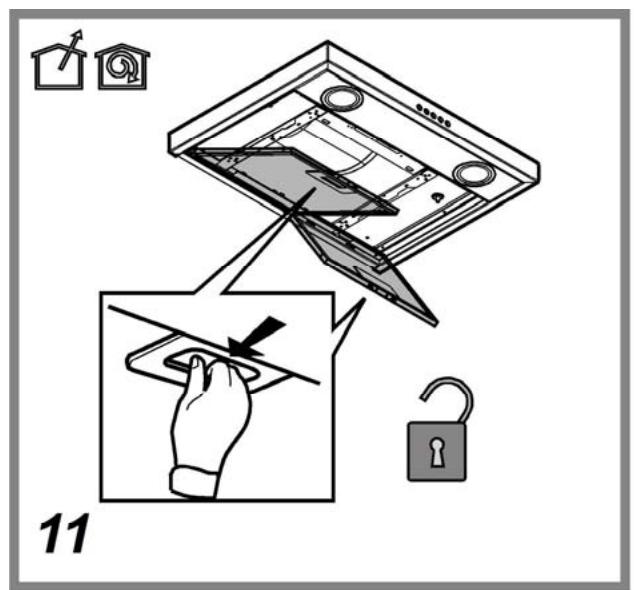

Fig. 11-28

Traps cooking grease particles.

The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Charcoal filter (Optional)

Fig. 27

It absorbs unpleasant odors caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four mounths (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity). The charcoal filter may NOT be washed or regenerated.

Assembly

Hook the charcoal filter at the back on the metal tongue of the hood first, then on the front with the two knobs.

Disassembly

Remove the charcoal filter by turning the knobs fixing it to the hood by 90°.

Buying charcoal filters

The Charcoal filter can be bought at Samsung Service Website and Service Center.

Please refer to the last page of manual.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.

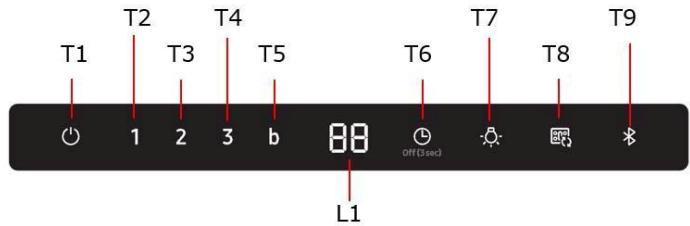

Operation

T1. Motor ON/OFF

Press the T1 button and the hood will be activated at default speed (Default Speed: Low).

Press again and the hood will return to sleep mode.

T2. Low speed

Press the T2 button and the hood will be activated at Low speed.

T3. Med Speed

Press the T3 button and the hood will be activated at Medium speed.

T4. High Speed

Press the T4 button and the hood will be activated at High speed

T5. Boost speed

Press the T5 button and the hood will be activated at Maximum speed for 5 minutes.

T6. Timer ON/OFF

Press the Timer button to set the working time.

Press the Timer button for 3 seconds and the Timer function will turn off.

T7. Light ON/OFF

Press the Light button and the lamps will turn on.

Press the Light button again and the lamps will turn off.

T7. SOUND ON/OFF

Press the Light button for 3 seconds. The sound will be turned off.

Press the Light button for 3 seconds. The sound will be turned on.

COOKTOP AND RANGE HOOD CONNECTIVITY

This appliance has a feature which allows you to pair compatible Samsung cooktops and your hood via Bluetooth.

After you enable this function and pair your hood and a compatible cooktop, the hood fan will automatically come on at Low speed when you turn on a cooktop element. The hood fan will also shut off automatically when you turn off the cooktop elements.

In addition, after the hood and compatible cooktop are paired, you can download the

Smart Things app to a mobile device, and then use the Smart Things app to:

• Monitor and control the On/Off status of the hood.
• Monitor and control the fan speed.
• Monitor and control the lights.
- Set the hood shut-off timer with the time-up alarm.

For more information about downloading the Smart Things app to your mobile device and using it to control your hood, visit:

- www.samsung.com.

T9. Bluetooth connection (Pairing)

1. Press the Bluetooth button on hood.
   The pairing mode will be activated and \the indicator on the Bluetooth button will blink.
2. Press the Bluetooth button on cooktop. After \the pairing process finishes, the Bluetooth light will stay lit and 'bt' appears in the display.

T9. Bluetooth disconnection (Pairing reset)

1. Press and hold the T9 button on the hood for 3 seconds.
2. The Bluetooth connection disconnects and "bt rt" appears in the display.

NOTE

For a detailed description of the pairing method, see the user manual of a compatible Samsung cooktop.

Auto Connectivity

The Auto Connectivity function lets you quickly connect the hood via Bluetooth with a compatible Samsung cooktop after the hood and cooktop have been paired. To turn the function on, press the Auto Connectivity button. To turn the function off and disconnect the hood and cooktop, press the Auto Connectivity button again. While the hood and cooktop are connected, the hood fan and Lamp will automatically come on at Low speed when you turn on a cooktop element. The hood fan and lamp will also shut off automatically when you turn off the cooktop elements. You will also be able to control the hood with the Smart Things app as described above.

T8. Auto Connectivity ON/OFF

1. Press the Auto Connectivity button to activate the function.
2. The hood fan and lamp will turn on/off automatically following the cooktop.
3. Press again to deactivate the function.

Display Icon	Remote Control by Smart Things App	Auto Connectivity	Hood Function
	X	X	O
	O	X	O
	O	O	O

Reset filter signals

• Press the T1 button until hearing the sound signal.
• The flashing LED 1 (grease filter) or 2 (charcoal filter) stops flashing

Charcoal filter signal ON/OFF

• Press the T2 and T3 Button for 3 seconds and the Charcoal filter signal will be activate.
• Press the T2 and T3 Button for 3 seconds, and the charcoal filter signal will be deactivate.

NK36N5703B\*, NK24N5703B\*

Data determined according to Regulation (EC) NO 1275/2008.

Bluetooth	Standby-mode Power Consumption (W) : 1.90WPeriod of time for the power management (min.) : 3 min.
Off Mode	Power Consumption (W) : 0.48WPeriod of time for the power management (min.) : 3min.

Bluetooth max transmitter power

NOTE

Hereby, Samsung Electronics, declares that the radio equipment type appliance is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: The official Declaration of conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.

Bluetooth

Frequency range : 2402 MHz ~ 2480 MHzTransmitter power (Max) :5 dBm

Troubleshooting

A fault may result from a minor information that you can correct yourself with the help of the following instructions. Do not attempt any further repairs if the following instructions do not help in each specific case.

WARNING

Repairs to the appliance are to be performed only by a qualified service technician. Improperly effected repairs may result in considerable risk to the user. If your appliance needs repair, please contact your customer service center.

Problem	Possible cause	Solution
What should I do if the Hood are not working?	The fuse in the house wiring is not intact.	If the fuses trip a number of times, call an authorized electrician.
	The power button was accidentally actuated.	The appliance is properly switched on.
	The control panel is contaminated with foreign objects or liquid.	Clean the control panel.
What should I do if the Bluetooth connection is not working.	See the user manual of a compatible Samsung cooktop.	Only Samsung compatible cooktop can connect with Hood via Bluetooth
	The hood is connected with other appliance.	Activate Bluetooth disconnection (Pairing reset,T9 for 3 sec) and then activate Bluetooth connection process again.
	Bluetooth connection(pairing) is not stable.	Disconnect the power more than 30 seconds. Then restart the appliance. Then activate Bluetooth disconnection and then activate Bluetooth connection process again.

T1. ON/OFF Motor

Reset indicator verzadiging filter

T1. ON/OFF Motor

T1. ON/OFF Silnika

T7. ON/OFF SYGNAŁ DŻWIĘKOWY

T1. ON/OFF Motoru

- Waste Electrical and Electronic Equipment (WEEE).

T1. UKLJ/ISKLJ Motora

Pritisnite dugme T1 za aktiviranje zadate brzine (Zadata brzina: Niska). Pritisnite ponovo, aspirator se vraća u stanje mirovanja.

T2. Niska brzina

T1. ON/OFF Motori

T1. UKLJ/ISKL Motora

Pritisnite tipku T1 za aktiviranje zadane brzine (Zadana brzina: Niska).

T1. VKLOP/IZKLOP motorja

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

T7. Lampani yoqish/o'chirish

T8. Avto-ulanishni yoqish/o'chirish

1. Bu funksiyani faollashtirish uchun Avto-ulanish tugmasini bosing.
2. Gaz plitasiga mos ravishda dudburon parragi va chirog'i avtomatik tarzda yonadi/o'chadi.
3. Bu funksiyani o'chirish uchun o'sha tugmani yana bir marta bosing.

Ekrandagi belgi	Smart Things ilovasi tomonidan masofaviy boshqaruv	Avto ulanish	Dudburon funksiyasi
	X	X	O
	O	X	O
	O	O	O

Filtr signallarini qaytadan o'rnatish

• T1 tugmasini to ovozli signalni eshitmagunga qadar bosib turing.
- Yonib o'chuvchi LED 1 (yog'larni tutib qoluvchi filtr) yoki 2 (ko'mir filtr) yonib o'chishdan to'xtaydi

Ko'mir filtri signalini yoqish/o'chirish

• 3 soniya davomida T2 va T3 tugmalarini bosib turing, ko'mir filtri signali ishga tushadi.
  • 3 soniya davomida T2 va T3 tugmalarini bosib turing, ko'mir filtri signali o'chadi.

NK36N5703B\*, NK24N5703B\*

Ma'lumotlar (Yevropa Ittifoqi) 1275/2008-sonli Nizomiga ko'ra keltiriladi.

Bluetooth	Kutish rejimida iste'mol qilinadigan quvvat (Vatt): 1,90 Vatt. Quvvatni boshqarish uchun vaqt davri (daqiga): 3 daqiga
O'chirish rejimi	Quvvat iste"mol qilish (Vatt): 0,48 Vatt Quvvatni boshqarish uchun vaqt davri (daqiga): 3 daqiga

Bluetooth o'tkazishining maksimal quvvati

ESLATMA

Ushbu bilan Samsung Electronics radio uskuna ko'rinishidagi jihozning 2014/53/EU Direktivasiga muvofiqligini ma'lum qiladi. YI muvofiqlik deklaratsiyasining to'liq matni bilan quyidagi internet sahifasida tanishish mumkin: Rasmiy Muvofiqlik deklaratsiyasi bilan tanishish uchun esa http://www.samsung.com vebsaytiga kiring, Qo'llab-quvvatlash > Mahsulot qo'llab-quvvatlashini qidiring bo'limiga o'ting va model nomini kiriting.

Bluetooth

Davriylik oralig'i: 2402 MGs ~ 2480 MgsUzatkich quvvati (maks.): 5 dBm

Nosozliklarni tuzatish

T1. Motor AÇMA/KAPATMA

T7. SES AÇMA/KAPATMA

T1. ON/OFF Motor

T1. Moottori ON/OFF

T1. Motor PÅ/AV

T1. ON/OFF motor
