USER MANUAL SVART PRECISION WSP-2A WILFA

Product photo of a modern coffee maker with a glass stand and a black-and-white filter, no visible text or symbols.

WILFA SVART PRECISION

AUTOMATIC COFFEE BREWER WSP-2A

EN . Instruction manual

NO . Bruksanvisning

SE . Bruksanvisning

INSTRUCTION MANUAL · WILFA SVART PRECISION

CONTENTS

4 IMPORTANT SAFETY INSTRUCTIONS

6 SPECIAL SAFETY INSTRUCTIONS FOR THIS DEVICE

7 PRODUCT OVERVIEW

8 FIRST USE OF THE MACHINE

8 USE

9 CLEANING

10 GUARANTEE

11 PRODUCT SPECIFICATIONS

11 SUPPORT AND SPARE PARTS

11 RECYCLABILITY

EN

IMPORTANT SAFETY INSTRUCTIONS

• Read this Read the instructions carefully before using the appliance, and keep the instructions including the warranty, receipt, and if possible the box with inner packaging.
• This appliance is designed for private use, and for the intended application. It is not suitable for commercial use.
• Keep the appliance away from heat sources, direct sunlight, moisture and sharp edges.
• Do not use with wet hands. Unplug immediately if the unit is damp or wet. Do not immerse in water.
• Do not use outdoors.
• When the unit is cleaned or put away, it must be turned off and the plug must be pulled out of the socket (pull the plug, not the cable).
• Check device and cable regularly for damage. Do not use if it is damaged.
• Try not to repair the appliance yourself. Always contact an authorized technician.

• Use only original spare parts.

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the unit and cord out of reach of children aged less than 8 years.

• Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  • Children shall not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• When the unit is cleaned after use, it must not be submerged in water or any other fluid.
• Be especially aware of "special security instructions" below.

EN

SPECIAL SAFETY INSTRUCTIONS FOR THIS DEVICE

• The device must only be filled with cold water.
• Decalcification should be done regularly, as needed. If this is not observed, the guarantee on the product will lapse.
• Unplug when not in use.
• Never use a coffee jug on the hob or in microwave.
  • Always unplug the appliance before cleaning.
• Read this instruction carefully and keep them for future references.

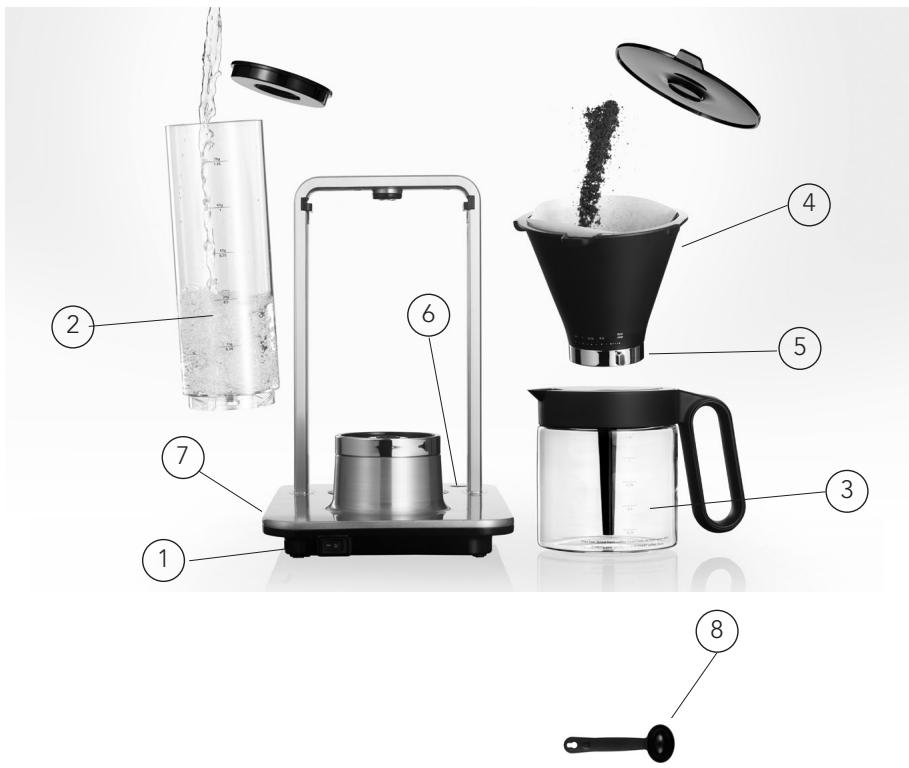

PRODUCT OVERVIEW

EN

Labeled diagram of a coffee maker setup with numbered components for each stage

1. On/off switch 6.
2. Removable water tank 7.
3. Coffee jug 8.
4. Filter holder
5. Flow control and drip stop

Start button/keep warm
Power cord with plug
Measuring spoon; 5, 10, and 15gr.

FIRST USE OF THE MACHINE

Read this instruction carefully and keep them for future references.

Please start the coffee maker with fresh water and without coffee before it is used for the first time.

Wilfa SVART Precision is equipped with a unique pump that always ensures you fresh water every time you brew coffee.

USE

• Set Wilfa SVART Precision on a flat surface.
• Fill the removable water tank with fresh cold water; use the water scale on the side.
• Place the coffee filter (1x4) in the filter holder. Use desired quantity of coffee in the filter.
• We recommend that you use ground coffee, about 60 g per liter of water. Try out the first times until you find out how much coffee you think is best. We also recommend that you use our Wilfa Gram Stål scale that gives 1g intervals for best results.

• We recommend the following ratios of water and coffee:

$$ \begin{array}{c} 1, 2 5 \text {l - } 7 5 \text {g} \ 1 \text {l - } 6 0 \text {g} \ 0, 7 5 \text {l - } 4 5 \text {g} \ 0, 5 \text {l - } 3 0 \text {g} \ 0, 2 5 \text {l - } 1 5 \text {g} \end{array} $$

Please note that different grinds and coffee types will influence these ratios somewhat.

• Set the flow control in relation to water/coffee.
• Turn the power switch on. "Start" button will blink twice.
• Press the start button to start to brewing process.
• Wilfa SVART Precision has a unique pump that pulls water through the system from the first to the last drop.
• When the brewing process is complete, the unit will go to a "keep warm" position for up to 40 minutes.
• By setting the flow control to the right, it will act as a drip stop.
• The coffee should be served fresh.
• Turn of the power switch, when you are finished using the maker.

TIPS

• You can also use our Wilfa NYMALT coffee grinder to change the degree of grind of the coffee. This will also change extraction time.
  • Always use fresh coffee. For best results, the coffee you use is freshly ground.
• To wish for even hotter coffee, the coffee jug can be rinsed in hot water before brewing.

CLEANING

• Use a cleaning product for coffee. Remember to brew through with clean water after the cleaning process.
• If necessary, the device may be cleaned with a damp cloth without any additives.
• Filter holder, coffee jug and lid can be washed in hot soapy water or placed at the top in the dishwasher.
• Never wash other parts of the device in the dishwasher. Never use strong detergents, scouring powders, steel wool or other release agents on any part of the maker.

DESCALING

• Use a commercially available descaling detergent.
• Descaling should be done, as needed. In areas with hard water, descaling must be done regularly.

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Not descaled according to instruction manual
• Overloading of product
- Damage on glass
• Parts which are normally worn down

PRODUCT SPECIFICATIONS

220V\~240V\~50Hz 1.840W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

14 GENERELLE SIKKERHETSINSTRUKSJONER

16 SPESIELLE SIKKERHETSINSTRUKSJONER FOR DETTE APPARATET

17 PRODUKTOVERSIKT

18 F∅RSTE GANG APPARATET BRUKES

18 BRUK

19 RENGJ∅RING

20 GARANTI

21 PRODUKTSPESIFIKASJONER

21 SUPPORT OG RESERVEDELER

21 GJENVINNING

NO

GENERELLE SIKKERHETSINSTRUKSJONER

Labeled diagram of a coffee maker setup with numbered components for each stage

NO

1. Filterholder

2. Aromakontroll og drypp stopp

3. Av/på bryter 6.

4. Avtakbar vanntank 7.

5. Glasskanne 8.

6. Start knapp/hold varm

7. Strømledning

8. Måleskje; 5, 10 og 15 g

F∅RSTE GANG APPARATET BRUKES

Labeled diagram of a coffee maker setup with numbered components for each stage

SE

Labeled diagram of a coffee maker setup with numbered components for each stage

DK

Exploded view diagram of a coffee maker setup with labeled components from top to bottom.

FI

Labeled diagram of a coffee maker setup with numbered components for each stage

DE

Labeled diagram of a coffee maker setup with numbered components for each stage

NL

Labeled diagram of a coffee maker setup with numbered components for each stage

PL

87 APERÇU DU PRODUIT

88 PREMIÈRE UTILISATION DE LA MACHINE

88 UTILISATION

89 NETTOYAGE

90 GARANTIE

91 CARACTÉRISTIQUES DU PRODUIT

91 ASSISTANCE ET PIÈCES DÉTACHÉES

91 RECYCLAGE

CONSIGNES GÉNÉRALES DE SÉCURITÉ

Labeled diagram of a coffee maker setup with numbered components for each stage

FR

CARACTÉRISTIQUES DU PRODUIT

220-240 V\~ 50/60 Hz, 1840 W

ASSISTANCE ET PIÈCES DÉTACHÉES

Exploded view diagram of a coffee maker setup with labeled components from top to bottom.

Exploded view diagram of a coffee maker setup with labeled components from top to bottom.

Exploded view diagram of a coffee maker setup with labeled components from top to bottom.

From well-managed forests

FSC® C000000
