GFT - Range hood TEKA - Free user manual and instructions

Product type	Extractor hood
Brand	TEKA
Model	GFT
Dimensions (W x D x H)	500 x 320 x 295 mm
Recessed dimensions (W x D)	455 x 300 mm
Net weight	Approximately 10 kg
Power supply	See rating plate (230 V / 50 Hz typ.)
Maximum lamp power	40 W
Number of motor speeds	3
Motor control	Sliding with operation indicator light
Lighting	Independent of the motor, dedicated switch
Filter type	Washable metal filter (dishwasher safe)
Filter cleaning frequency	At least once a month
Minimum installation height (electric cooking)	65 cm
Minimum installation height (gas cooking)	70 cm (or according to specific instructions)
Maximum exhaust duct length	4 meters with maximum 2 bends
Exhaust mode	To the outside
Frame maintenance	Soapy water at 40 °C, soft cloth
Power cord replacement	Only by an authorized technician

Frequently Asked Questions - GFT TEKA

What is the minimum installation height of the hood?

For electric cooking, the minimum height is 65 cm. For gas cooking, it is 70 cm (or more if the stove manufacturer's instructions require it).

How to clean the hood filter?

Unhook the filter using the closures. Clean it in the dishwasher or by soaking in hot water to remove grease. Use a specific spray if necessary, then dry it before replacing.

Can I use the hood with gas burners without a container?

No, gas burners must not operate under the hood if no container is placed on them, as this can cause a fire.

The lamps do not light up, what to do?

First check if the lamps are burned out. Replace them with lamps of 40 W maximum. Make sure they are tightly screwed. If the problem persists, contact technical support.

The hood does not work at all, what are the possible causes?

Check that the power cord is properly plugged and the electrical outlet is live. If power is present but the hood does not start, contact technical support service.

Should I run the hood before starting to cook?

Yes, it is recommended to run the hood 3 to 5 minutes before cooking to stabilize airflow, and leave it running for 3 to 5 minutes after to completely remove grease and odors.

How to replace the hood lamps?

Disconnect the hood from the power supply and let the lamps cool down. Remove the filter to access the lamps. Unscrew the used lamps and replace them with new ones of 40 W maximum. Reinstall the filter.

Can the filter be washed in the dishwasher?

Yes, the filter can be washed in the dishwasher. Caution: the use of aggressive detergents may darken the metal surface, but this does not affect its effectiveness.

What to do if the hood does not extract sufficiently or vibrates?

Check the filter: if it is saturated with grease, clean it or replace it. Make sure the exhaust duct is not blocked and that it respects the maximum length of 4 meters with maximum 2 bends.

The power cord is damaged, can I replace it myself?

No, the replacement of the power cord must be carried out exclusively by a qualified technician from the technical support service.

USER MANUAL GFT TEKA

Mounting instructions and maintenance recommendations

Cooker hoods

GF-T

Using this instruction book

Dear Customer,

Thank you for choosing a Teka cooker hood.

We are sure that the appliance you have purchased will fully satisfy your needs.

All of our appliances are made using top quality materials and undergo strict quality controls throughout the manufacturing process.

Before installing or using your new cooker hood, please read this manual carefully and follow the instructions in order to ensure optimum performance of the appliance for many years.

Keep this instruction book in a safe place so that you can consult it whenever necessary and fulfil guarantee requirements.

Safety Instructions

Before using your cooker hood for the first time, please take note of the installation and connection instructions.

Do not use the hood if the power cable has been damaged in any way or if the control switches show visible signs of deterioration.

If the hood stops working, or operates abnormally, disconnect its power supply (unplug from the mains) and get in touch with your TEKA Technical Service.

Do not leave uncovered gas rings burning under the hood.

Do not allow grease to accumulate on any part of the hood, especially in the filter. THIS IS A FIRE RISK.

Do not flambe under the hood.

Contents

Description of the Appliance	Page	4
Special Requirements before First Use		5
Using your Hood		5
Fan motors		5
Light switch		5
Suggestions and Recommendations		6
Cleaning and Maintenance		7
Cleaning the filter		7
Cleaning the hood body		7
Changing light bulbs		8
If Something Doesn’t Work		9
Technical Information		10
Installation		11
Positioning in cabinet		11
Replacement of mains power cable		12

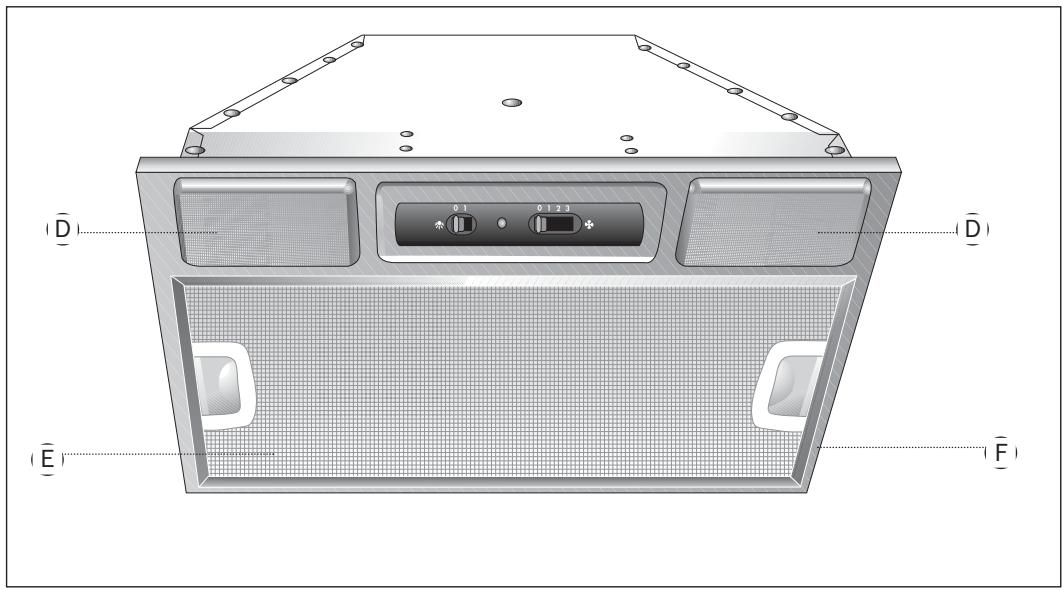

Description of the Appliance

Your cooker hood is equipped with:

A Sliding three-speed extractor fan control
B Light switch, for illumination with or without fan operation
C On/off pilot lamp
D Hob lighting, located behind the extractor panel
E Filter located below the extractor fan intake. Easy-to-remove for cleaning
F Filter support frame

This hood is designed for the external venting of gases.

Special Requirements before First Use

Before connecting the hood to the electricity mains, make sure that the mains voltage and frequency correspond to the values indicated on the rating label inside the hood.

Using your Hood

Fan motors

Select the desired extraction speed by sliding the control switch on the hood's front panel. The extractor fan has three speed settings and an on/off pilot light, which lights up when the fan is operating at any of these speeds.

Position 1:Off	0 1 2 3
Position 2:Firstspeed	0 1 2 3
Position 3:Secondspeed	0 1 2 3
Position 4:Thirdspeed(maximum)	0 1 2 3

Light switch

This is independent of the extractor fan motor, thus allowing the hob lighting to be used irrespective of the extractor hood's operating status.

On

Off

Suggestions and Recommendations

• Switch on the extractor fan a few minutes before you start to cook (3 to 5 minutes) in order to ensure that a steady air flow has been established before cooking fumes appear.
• Allow the extractor fan to run for several minutes after you have finished cooking (3 to 5 minutes) in order to expel all the grease from the outlet duct. This prevents the return of grease, smoke and smells.

Cleaning and Maintenance

BEFORE CARRYING OUT ANY CLEANING OR MAINTENANCE OPERATION,ENSURE THAT THE APPLIANCE IS DISCONNECTED FROM THE MAINS SUPPLY.

Cleaning the filter

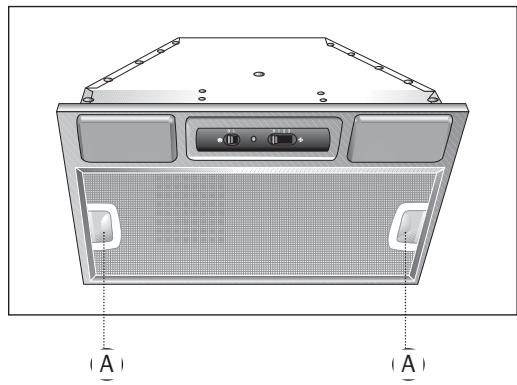

• Remove the filter by releasing its catches (A).
  Take special care to prevent it from dropping.
• The filter can be cleaned either in a dishwasher (see note below) or by soaking it in hot water to soften up the accumulated greases. Special cleaning sprays can also be used, taking care to protect non-metallic parts.
  After cleaning, allow the filter to dry.

N.B.: Cleaning the filter in a dishwasher with strong detergents may blacken its metal surface without affecting its grease retention capacity.

Warning: Filters must be cleaned at least once a month, depending on hood usage.

Grease will accumulate on the hood and in the filters whenever you cook, regardless whether or not the extractor fan is operating.

Cleaning the hood body

It is recommended to use warm (approx. 40^ ) soapy water and a damp cloth to clean the hood body, paying special attention to the slots on the extractor grille. After washing, dry thoroughly using a cloth that does not leave fibres.

Warning:

• Do not use metal scouring pads.
• Do not use abrasive products which could damage the metal surface.
• Do not scrape with sharp objects such as knives, scissors, etc.

If Something Doesn't Work

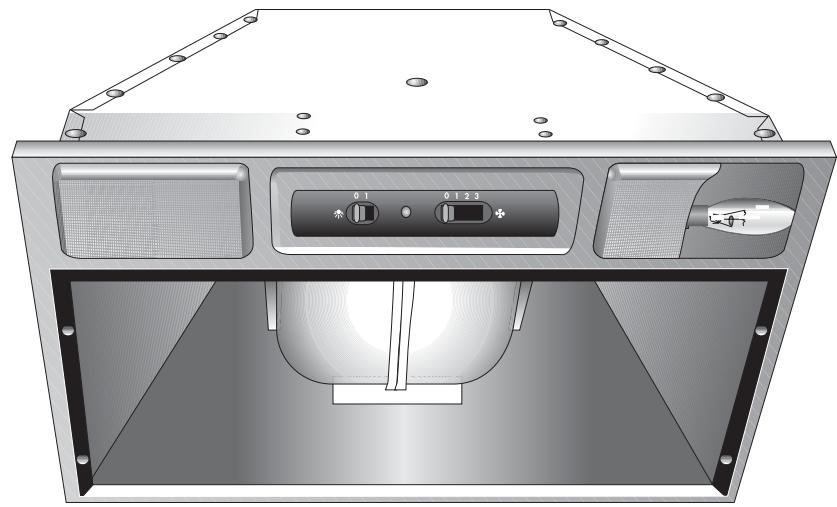

Changing light bulbs

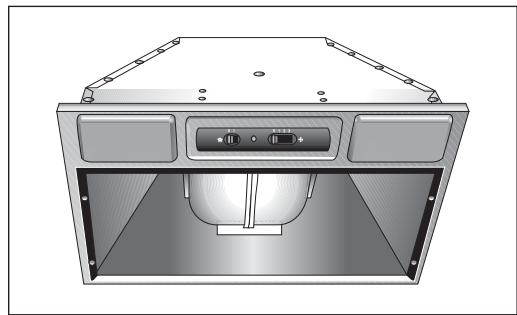

• Remove the filter to access the light bulbs.
• Make sure that the hood has previously been disconnected from the mains supply and that the bulbs to be replaced are not hot.
  The maximum bulb rating is 40W

Before calling the repair service, make the following checks:

Fault	Possible Cause	Solution
Hood does not work
	Mains cable not connected	Connect mains cable
	Power not reaching plug	Check/repair mains supply
Hood not extracting sufficiently or vibrating
	Filter saturated with grease	Clean or replace filter
	Obstruction in venting duct	Remove obstruction
	Inadequate venting duct	Contact installer and follow the instructions in this manual
Lights do not work
	Bulbs blown	Replace bulbs
	Bulbs loose	Tighten up bulbs

Technical Information

Electrical characteristics: SEE RATING LABEL

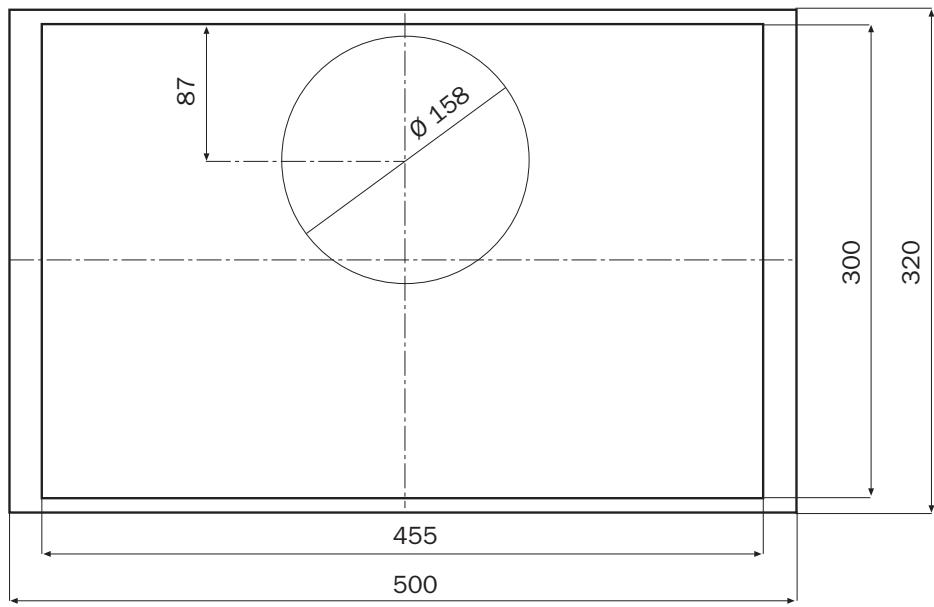

Dimensions (mm)	Fitting Dimensions (mm)
500 x 320 x 295 (Width x Depth x Height)	455 x 300 (Width x Depth)

Installation

Before installing the hood, consult the requirements of the corresponding authorities concerning air and smoke extraction regulations.

Extracted air must not be channelled through ducts used for exhaust fumes from appliances powered by any form of energy other than electricity.

The room (kitchen) must be well ventilated if the extractor hood is to be used at the same time as other extractor fans or other appliances powered by any form of energy other than electricity.

When the hood is to operate at the same time as other appliances powered by any form of energy other than electricity, the air output pressure must not be more than 4Pa (4× 10^-5 bar).

To ensure optimum hood performance, the length of the venting duct should not exceed FOUR metres and should not have more than two right angles (90^) .

If the hood is supplied without a lead for mains connection (or if this is replaced), it must be disconnected from the mains by means of an omnipolar cut-off switch, with a minimum contact separation of 3mm at all the poles, incorporated into the fixed installation.

The appliance must be connected to the mains using flexible cable. Rigid tubing should not be used.

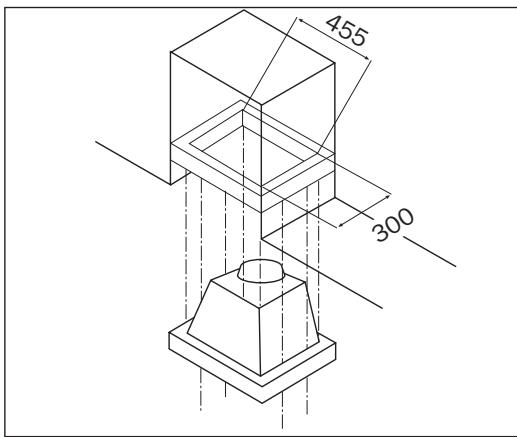

Positioning in cabinet

Using the screws provided in the accessory bag, bolt the hood to a wooden panel in which the fitting opening has previously been cut.

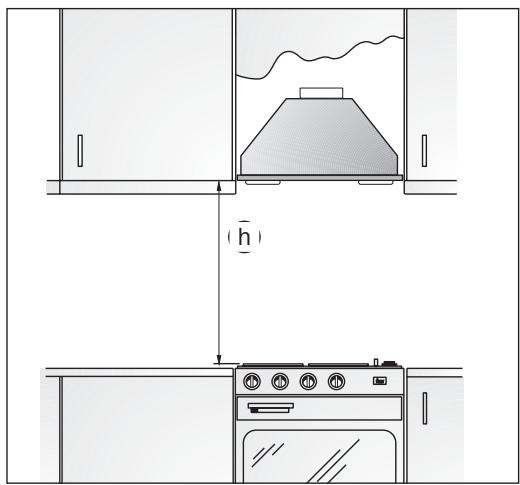

The bottom of the hood must be positioned at a minimum height of 65~cm above electric hobs and 70~cm in the case of gas hobs. If gas hob installation instructions indicate a greater distance, this must be taken into account.

Replacement of mains power cable

The mains power cable may only be replaced by qualified technical service personnel.
