STREET BREAKER - Portable speaker NGS - Free user manual and instructions

Product Type	Portable Speaker
Brand	NGS
Model	STREET BREAKER
Output Power	200 W
Audio System	2.2 (dual tweeter, dual subwoofer)
Bluetooth	Yes, with TWS (connect 2 identical speakers)
Bluetooth Range	10 m
Karaoke Function	Yes (microphone input)
Battery	7.4 V / 4400 mAh rechargeable
Battery Life	5 hours at 70% volume (3 h at max volume, 7 h at 50%)
Charging Time	4-5 hours
Charging Power	5 V / 2 A (recommended power adapter)
Audio Inputs	USB, AUX, microphone
Display	LED
Frequency Response	80 Hz - 16 kHz
USB Playback Formats	MP3
Care and Cleaning	Clean with a soft, dry cloth. Do not use chemicals. Avoid moisture.
Safety	Do not expose to water. Unplug the adapter after full charge. Use the recommended adapter.
Recycling	Do not dispose of with household waste. Drop off at a recycling center.

Frequently Asked Questions - STREET BREAKER NGS

How to connect the speaker via Bluetooth?

Press the MODE button until BT appears on the display. Turn on Bluetooth on your mobile device and search for NGS STREET BREAKER. Select it to pair. Connection is automatic after initial pairing.

How to use the TWS function to connect two speakers?

Turn on both identical speakers (same Bluetooth name). On one of them, press and hold the Play/Pause button for 4 seconds until you hear a 'di' sound and see BU on the display. Then, pair both to your device via Bluetooth.

What is the battery life?

The battery life is approximately 5 hours at 70% volume, 3 hours at maximum volume, and 7 hours at 50% volume.

How to charge the speaker?

Use a 5 V / 2 A power adapter and plug it into the DC 5V port. The indicator turns red during charging and goes off when the battery is full (4-5 hours). Unplug the adapter after charging.

Can I connect a microphone for karaoke?

Yes, connect a microphone to the MIC input (number 7 on the diagram). Then, select the appropriate mode with the MODE button.

How to play music from a USB flash drive?

Insert a USB flash drive containing MP3 files into the USB port. The speaker will play the music automatically. Use the ◄◀/▶▶ buttons to change tracks and press and hold to fast forward/rewind.

What to do if the speaker does not turn on?

Check that the battery is charged. Connect the speaker to the mains with the adapter and wait a few minutes. If it still does not turn on, contact customer service.

How to switch to Line In (AUX) mode?

Connect your audio source to the AUX IN port. Press the MODE button until the display shows LINE IN.

Can I use the speaker continuously while charging?

Yes, it is possible to use the speaker while charging, but this may extend the charging time. It is recommended to charge it fully before use to preserve the battery.

What to do if the sound is distorted or weak?

Check the volume level and equalization mode (button 6). Make sure the audio source is not saturated. Reduce the volume of the speaker or the source device.

USER MANUAL STREET BREAKER NGS

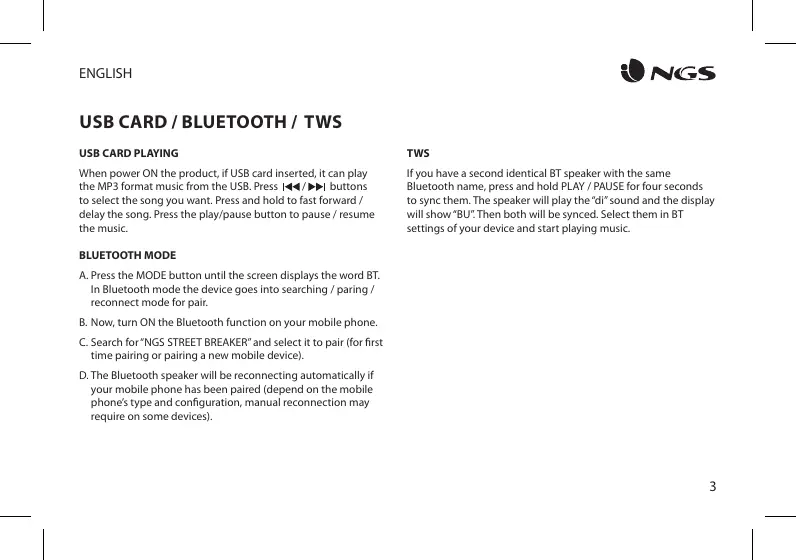

When power ON the product, if USB card inserted, it can play the MP3 format music from the USB. Press I◀◀/▶▶1 buttons to select the song you want. Press and hold to fast forward / delay the song. Press the play/pause button to pause / resume the music.

BLUETOOTH MODE

A. Press the MODE button until the screen displays the word BT. In Bluetooth mode the device goes into searching / paring / reconnect mode for pair.
B. Now, turn ON the Bluetooth function on your mobile phone.
C. Search for "NGS STREET BREAKER" and select it to pair (for first time pairing or pairing a new mobile device).
D. The Bluetooth speaker will be reconnecting automatically if your mobile phone has been paired (depend on the mobile phone's type and configuration, manual reconnection may require on some devices).

TWS

If you have a second identical BT speaker with the same Bluetooth name, press and hold PLAY / PAUSE for four seconds to sync them. The speaker will play the "di" sound and the display will show "BU". Then both will be synced. Select them in BT settings of your device and start playing music.

AUX IN

You can connect the device to external multimedia audio sources via the "AUX IN" port on the side panel. After connection, press the MODE button on the device to enter into LINE IN mode on the screen. Press again to silence. The device can play the audio files from multimedia sources like PC, mobile phone, MP3 and MP4, etc.

CHARGING INSTRUCTIONS

This speaker has a high capacity 7.4V/4400mAh battery. Please use a 5V/2A power adapter for charging. The charging indicator light will turn red to indicate that it is charging. It takes 4-5 hours for the battery to reach full charge. Disconnect the adaptor as soon as battery is fully charged (charge light turns off). Battery run time: 5 hours.*

TECHNICAL SPECIFICATIONS

Power output: 200W

System 2.2

· Double Tweeter

· Double Subwoofer

Bluetooth (TWS. Connects two at the same time)

Karaoke mode

Working range: 10m

Battery: 7.4V / 4400mAh

Battery life: 5 hours*

Frequency response: 80Hz-16kHz

USB audio input

Auxiliary input

Microphone input

LED Display

* 3 hours at full volume

5 hours at 70% volume

7 hours at 50% volume

If at any time in the future you should need to dispose of this product please note that:

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice.

(Waste Electrical and Electronic Equipment Directive)

MANUEL DE L'UTILISATEUR

VUE D'ENSEMBLE

HAS BEEN TESTED AND FOUND IN CONFORMITY WITH THE FOLLOWING HARMONIZED EUROPEAN STANDARDS:

HA SIDO TESTADO EN CONFORMIDAD CON LAS SIGUIENTES NORMAS STANDARD EUROPEAS ARMONIZADAS:

ETSI EN 301 489-1 V 2.1.1 (2017-02) IEC 62321-4:2013

ETSI EN 301 489-17 V 3.1.1 (2017-02) IEC 62321-5:2013

ETSI EN 300 328 V 2.1.1 (2016-11) IEC 62321-7-1:2015

ETSI EN 303 345 V 1.1.7 (2017-03) IEC 62321-7-2.2017 IEC 62321-6:2015

EN 62479: 2010

EN 60065: 2014

AND THEREFORE COMPLY WITH THE ESSENTIAL REQUIREMENTS AND PROVISIONS OF THE FOLLOWING DIRECTIVES OF THE EUROPEAN PARLIAMENT AND EUROPEAN COUNCIL:

NADO Paul J. Sustin

RAÚL MARTÍN

PRODUCT MANAGER

NGS®

technical support: www.ngs.eu/support
