Product type	Range hood
Brand	FRANKE
Model	FSMD508BL
Use	Domestic (kitchen odor removal)
Minimum safety distance (cooking surface – hood)	650 mm
Minimum exhaust duct diameter	120 mm
Insulation class	Class I (requires grounding)
Power supply	Mains (voltage as per rating plate, bipolar disconnection recommended)
Lighting control	Push button (press to turn on/off)
Suction speed control	Rotary knob (multiple speeds available)
Grease filters	Dishwasher-safe, clean every 2 months (or more often with heavy use)
Charcoal filter (recirculation models)	Not washable, replace every 4 months (or more often with heavy use)
Hood cleaning	Damp cloth and mild liquid detergent
Safety – Use with gas appliances	Ensure adequate ventilation (negative pressure < 0.04 mbar)
Safety – Open flames	Never leave an open flame under the hood while it is operating
Safety – Flambé	Do not flambé food under the hood (fire hazard)
Minimum age for use	8 years (under adult supervision for children under 8)
Warning – Hot surfaces	Accessible parts may become very hot during use
Disposal at end of life	Do not dispose with household waste – take to a recycling center or collection point for WEEE recycling
Repairs (damaged cable)	Contact the manufacturer or an authorized service center

Frequently Asked Questions - FSMD508BL FRANKE

What is the minimum distance between my cooktop and the hood?

The minimum safety distance is 650 mm. Also check your gas hob instructions, as they may require a greater distance.

Can I use the hood with a gas stove?

Yes, provided that adequate ventilation of the room is ensured (negative pressure < 0.04 mbar). Never connect the hood to a combustion flue.

How to clean the grease filters?

Grease filters can be washed in the dishwasher or by hand. Clean them every 2 months (more often with heavy use).

When should the charcoal filter be replaced?

The charcoal filter is not washable. Replace it approximately every 4 months, or sooner if you cook a lot.

How to turn on the hood light?

Press the dedicated push button: one press makes it pop out and turns on the light. Another press pushes it in and turns it off.

How to adjust the suction speed?

Pull the rotary knob to pop it out, then turn it to select the desired speed among those available.

What to do if the power cord is damaged?

Do not use it. Have it replaced exclusively by the manufacturer or an authorized service to avoid electrical risk.

Can I flambé food under the hood?

No, it is prohibited. Flambéing food under the hood may cause a fire.

How to dispose of my hood at end of life?

Do not throw it in the trash. Take it to a recycling center or collection point for electrical and electronic equipment (WEEE).

Can children use the hood?

The appliance is not intended for children under 8 years without supervision. Children must not clean or maintain the hood without supervision.

USER MANUAL FSMD508BL FRANKE

EN Recommendations and Suggestions

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120~mm . The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order

to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 ~mm .

Use

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambe under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• "CAUTION: Accessible parts may become hot when used with cooking appliances."

Maintenance

• The symbol on the product or on its packaging indicates that this product may not be treated as

household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).

• "Failure to carry out cleaning as indicated will result in a fire hazard".

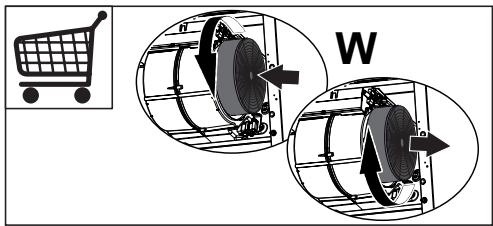

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

Controls

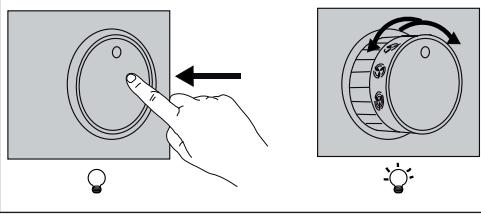

Lights - To turn the lights on, press the dial and release it so that it pops out of its housing. To turn the lights off, push the dial back inwards, returning it to the off position.

Motor Speed Adjustment - Press the dial and release it so that it pops out of its housing, then turn the dial to select one of the available suction speeds.

Lighting

• For replacement contact technical support ("To purchase contact technical support").
