Product type	Range hood
Brand	AEG-ELECTROLUX
Model	DGE5660HM
Dimensions (W x D x H)	60 cm x 50 cm x (variable height, approx. 70 cm)
Weight	Approximately 12 kg
Power supply	220-240 V, 50 Hz
Motor power	Not specified (estimated 150-250 W)
Number of speeds	3 + intensive (timed 6 min)
Controls	Keys (L, T1, T2, T3, T4) with LED indicators
Remote control	Yes (LR03-AAA batteries, not included)
Lighting	Yes, replacement by after-sales service
Grease filter	Metallic, dishwasher safe (every 2 months)
Activated charcoal filter	Not washable, replace every 4 months
Filter saturation alarm	LED S1: solid for grease filter (100 h), flashing for charcoal (200 h)
Minimum safety distance	650 mm from cooking surface
Exhaust duct diameter	120 mm minimum
Installation	External exhaust or recirculation
Maintenance	Clean with damp cloth and neutral detergent
Safety	Automatic shutdown in case of overheating; do not flambé under the hood
Spare parts	Available via AEG after-sales service (www.aeg.com/shop)
Energy class	Not specified (estimated B or C)

Frequently Asked Questions - DGE5660HM AEG-ELECTROLUX

How to clean the grease filters of my DGE5660HM hood?

The metal grease filters should be cleaned every 2 months. They are washable in the dishwasher or by hand with a neutral detergent. After cleaning, dry them well before putting them back in place.

When should I replace the activated charcoal filter?

The activated charcoal filter cannot be cleaned and must be replaced about every 4 months (or sooner if odors persist). The flashing LED alarm indicates it is saturated after 200 hours of use.

How to reset the filter saturation alarm?

To reset the grease filter alarm, press and hold the T3 key for about 3 seconds (motor and lighting off). The LED S1 will flash 3 times to confirm reset.

Can I use a remote control with this hood?

Yes, the DGE5660HM hood is compatible with a remote control (LR03-AAA batteries, not included). To pair the remote, press and hold the T4 key for 3 seconds until the LED flashes twice.

What to do if the hood does not turn on?

First check the power supply (fuse or circuit breaker). Ensure the hood is properly plugged in. If the problem persists, contact AEG after-sales service.

How to change the hood's light bulb?

Replacement of the lighting must be done by an authorized after-sales service. Contact AEG for purchase and installation of the appropriate bulb.

What minimum distance should I keep between the hood and the cooking surface?

The minimum safety distance is 650 mm. For gas cooktops, follow the manufacturer's instructions if they indicate a greater distance.

Can I use the hood in recirculation mode?

Yes, the hood can operate in recirculation mode with an activated charcoal filter. In this case, the air is filtered then returned to the kitchen.

What is the intensive function for?

The intensive function activates the maximum speed for 6 minutes to quickly eliminate strong odors. After this time, the hood automatically returns to the previously selected speed or turns off if it was off.

How to activate or deactivate the charcoal filter alarm?

To activate the charcoal filter alarm, press and hold the T2 key for 3 seconds (all loads off). The LED will flash twice. To deactivate, repeat the operation (the LED will flash once).

USER MANUAL DGE5660HM AEG-ELECTROLUX

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com

Register your product for better service: www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

！

Warning / Caution-Safety information

i

General information and tips

Environmental information

Subject to change without notice.

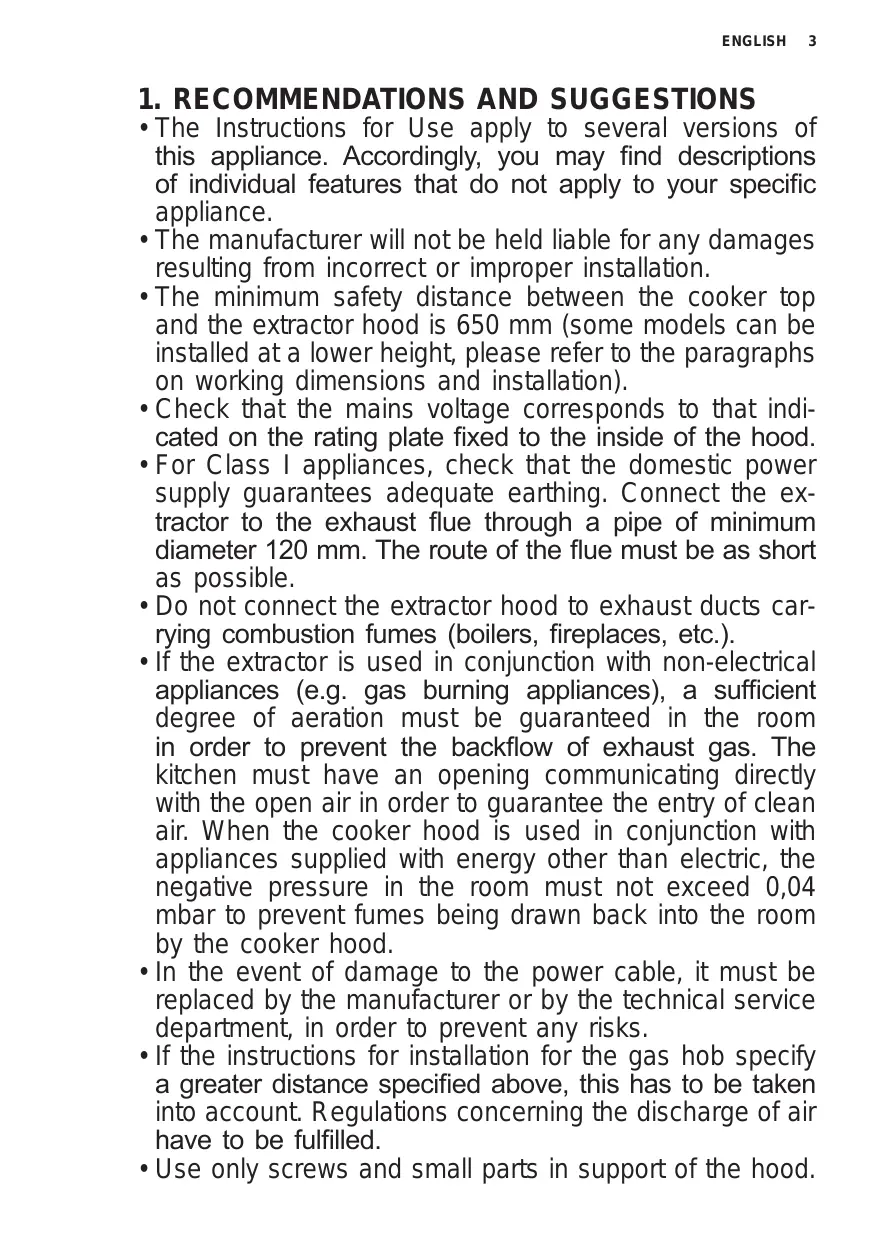

1. RECOMMENDATIONS AND SUGGESTIONS

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• "CAUTION: Accessible parts may become hot when used with cooking appliances."
• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. MAINTENANCE

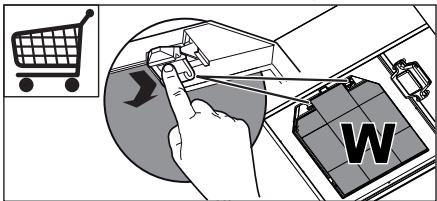

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Control lights, if present.

• Clean the hood using a damp cloth and a neutral liquid detergent.

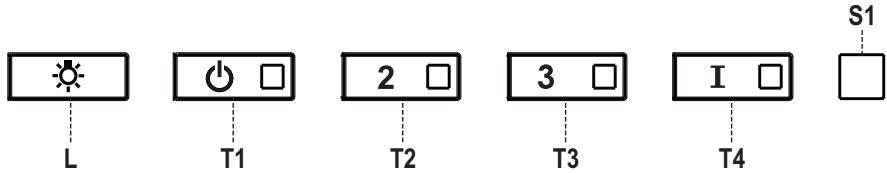

4. CONTROLS

Button	Function	Led
L	Turns the lights on/off at maximum strength.	-
T1	Turns the motor on/off at speed one.	Fixed.
T2	Turns the Motor on at speed two.	Fixed.
	Press and hold the button for approximately 3 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on. The relevant LED flashes twice to confirm. To turn the alarm off, press the button again and hold for at least 3 seconds. The relevant LED flashes once.	-
T3	Turns the Motor on at speed three.	Fixed.
	Press and hold the button for approximately 3 seconds, with all the loads turned off (Motor and Lights), to perform a reset. The LED S1 flashes three times.	-
T4	Turns the Motor on at INTENSIVE Speed.	Fixed.
	This speed is timed to run for 6 minutes. At the end of this time, the system returns automatically to the speed that was set before. If it is activated with the motor turned off, the hood will switch to OFF at the end of the time. Press and hold for 3 seconds to enable the remote control, indicated by the LED flashing twice. Press and hold for 3 seconds to disable the remote control, indicated by the LED flashing just once.	-
S1	Signals the Metal Grease Filter saturation alarm, indicating that it is necessary to wash the filters. The alarm is triggered after the Hood has been in operation for 100 working hours.	Fixed.
	When this is activated, it signals the Activated Charcoal Filter saturation alarm, indicating that the filter must be changed; the Metal Grease Filters must also be washed. The Activated Charcoal Filter saturation alarm comes into operation after the Hood has been working for 200 hours.	Flashing.

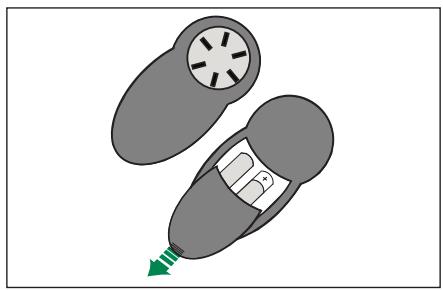

5. REMOTE CONTROL

The appliance can be controlled using a remote control powered by a 1.5V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included).

• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.

Motor	Motor On / Off
-	Decreases the working speed each time it is pressed.
+	Increases the working speed each time it is pressed.
i	Intensive
	-
	Light

6. LIGHTING

• For replacement contact technical support ("To purchase contact technical support").

INHALT

Motor	Motor On / Off
-	Decreases the working speed each time it is pressed.
+	Increases the working speed each time it is pressed.
◎	Intensiv-geschwindigkeit	Activates the Intensive function
◇	-	-
◇	Licht	Lights On / Off

6. BELEUCHTUNG

LED-Strahler

KUNDESERVICE OG VEDLIKEHOLD

Vi anbefaler kun bruk av originale reservedeler.

Sørg for Å ha følgende opplysninger for händen nár du kontakter det autoriserte servicesenteret: Modell, Produktkode (PNC), Seriennummer.

Bo3MOxHOCTb BHeCEHnI3MeHeHnI.

1. COBETBI IN PEKOMEHДAUIN

B INHCTpykunx no 3KcnpyaTauuOnncaHbI pa3JnUHbIe MoJeN np6opa. NToTMy Bbl MoKeTe BCTpeTntb Onnc Hne HeKOTOpbIX xapaKTepnCTNK, He OTHOcrauxc K npno6peTeHHOMy Bamn np60py.
- I3ROTOBNTeJIb He HecET OTBETCTBEHHOCtB 3a y6bITKN, BO3HnKaHOuIe B pe3yJIbTaTe HEnpaBnJbHoN yCTaHOBKn IIN 3KcPnyatauI np6Opa.
- Be3onacHoe paCCTOJHHe MeJy BapOuHoi NaHeJIbIO IN BCaCbIbAIOUeBbITJXKOJ DOJIxHO 6bITb He MeHee 650 MM (HeKOTOpbIE MoDEJIIM MOXHO yCTaHaBJIbBaTb HIXKe; CM. pa3JeI, NocBraUeHHbIpa6OuM pa3MePam I Opeaunm IO yCTaHOBKe npi6opa).
- Пюверыо TE COOTBETCTBVE HAnpЯженя Cetи yKa3aHHOMy Ha TablinuKe, 3akpenJIeHHoB BHyTpNi BbITJxKn.
- Д�� пиборов Класа | поберы, чтоы в заелков сени Вашило дома быларпедусмOTрна COOTВETCTBYUSSA сИСТема 3a3emЛeнь. Соедино.Tыгжку сдимoxODOM C NOMOБTO Tpy6bl MUNHIMAJbHOrO DnAmetpa 120 MM. ТPy6дя OTBeDEHЯ的大IMа DOJIXHa 6byTb KaK MOЖHO KOPOye.
He coeHnIte BCaCbIBaIOUyO BbITJxKc CdbIMOXoJaMn, PO KOTOpbIM BbIBODNTcA DbIM, O6pa3yUOncB INPOuceCe ropeHn (HaNPmEp, OTONTeJIbHbIe KOTJIbI, KaMHbI n npOu.).
- EcJn BbITJXHON annapaT nCNOJb3yETcR B COUeTaHNN C npnbopamn, pa6oTaIOUIIMn He OT 3JIeKTPnuCeCKO TOKa (HaNPImep, rAzOBblE np6Opbl), NOMEuHne DOJXHO XoPo7O npOBETpNBAtbcr BO n36EJaHne O6paTHOrO nOTOKa OTxODaIUX ra3OB. DnA npNTOKa B NOMEuHne CBExeRO BO3dYxHa KuxHe DOJXHO 6bITb PpeDyCMOTpeHO BblXODaIe Hn KUYu OKHO. Pn NOLb3OBAHm KxOHHO BbITJXKO B COUeTAHNN C np6Opamn, pa6oTaIOUIIMn HE OT 3JIeKTPnuCeCKO TOKa, OTPuCaTeIbHoe DaBJIeHne B NOMEuHn He DOJXHO pReBbIaTb 0,04 M6ap c Tem, yTO6bl DbIM He BCacBbIaLCB bITJXKO OBpaTHO B NOMEuHne.
- Bo n36exaHne onaCHOCTn B clyuae NOBpeXdEHHaKbeJnIITAHn, OH dONJKeH 6bITb 3aMeHeH n3rOToBHTeJIeM nIIN CNeUaNCTaMn OTDeJa TEXHnueCKOrO O6cLyXnBaHn.

• EcIn B INHCTpyKcIyX NO yCTaHOBKe ra3OBOI pINITbI cKa3aHO, YTO paCCToRHe N Do BbITJxKn DOJIxHO 6bITb 6OJIbSe yKa3AHORO BbISe, CNeDyeT PnIDepKJBaTBcR IpeDNICAHbIX pa3MepOB. CoBIOdaIte BCE HOpMaTHNBhIe Tpe6OBaHnI PO OTBeDEHNO OTPa6OTaHHOrO BO3dYxa.

• Исторьштей

• Доступа

• Ростит

• Виим

• Матер

• Ростит

• Достит

• Виим

• Матер

• Достит

• Виим

• Матер

• Достит

• Виим

• Матер

IpeynpejdeHne: nCIOJIb3OBAHnE BnHTOB n 3aJIMHBIX yCTPOINCTB, He COOTBETCTByUOxN X Yka3aHnM DaHHbIX INCTpyKcN, MoXeT pInBeCTn K BO3HKnHOBeHNIO ONaCHbIX CNTyaCNI N K 3JIeKTPnueCKm Ydapam.

• CoeINHInTe BbITJgKcY C CeTbIO NITaHnC NOMOuBIO DByXNPOJIHOCHOro BbIKIQUaTeJIa C MInHmAlNbHbIM pa3BeJeHNEm KOHTAKTOB 3 MM.
• He roTOBbTe 6JIoJa φIaMbE NOd BbITJxKoI: ONaCHOCTb BO3HnKHOBeHnRA NOXapa.
• Ппбором могут полььоватбя DeTи CTapшe 8 Лет И Лица C орразнчehнblIM N cnxxuecknIM, ФизчecknIMи ceHCOPHBIMCno6bHocTЯМ, a TAKKe He IMeIoUJIne DoCTaTOUHO OnbIa I 3HaHn, HO TOlbKO IOД npINCMOTpOM OTBETCTBEHHbIX Лиц и пri уcIOBnI, YTO OHI OByeHbI Be3OJaCHOJ EKcNpyatauINпрбopa n 3HaOT O CBra3aHbIX C eRO HENpaBnIbHbIM NcNoIb3OBaHNEM OnaCHOCTAx. CJeDHTe, YTObI DeTn He nrgaJInc C рпборom. OunchKy i yXOD 3a пборom DoJlxeH obecpeuBaTb NOlb3OBaTeJIb, TaKHe DeIcTBnA MOryT BblONHЯrI b I DeTn, HO TOlbKO IOd NaI3OpOM B3PocJIbIX.
  BHIMAHNE:doCTyHbIe yactu BbITJxKmMOrTy CnJIbHO HArpeBaTbcra BO Bpempa60TbI ra3OBbIX npN6OpOB.
  CnmboHa n3deJnHn Ha ynaKOBke yka3bIbaet, YTO npnbop HeIb3a BbIbpaCbIBaTb, KaOObIhBb6bITOBOM MycOp. Pnp6Op, NpIeXaUHn yHnHTOKeHHU, Heo6XoIMOCdaTb BCeUaJIbHbI C6OpHbI PYHKT DJIa NOBTOPHORO IcNoIb3OBaHnA 3JIeKTPnueCKHX U3JIeKTPoHHbIX KOMNOHErTOB. POnb3OBaTeJI, PpaBnJIbHO cDaIOUHn Pnp6Op Ha nepepa60kTy, NOMoraET PpeDTBpaTHTb NOTeUaJIbHbIE HeratNBhIe NocJIeCTBnA dJIra OKpyKaHOUsE CpeDbl NdJIa 3OpOBbJaIHOJe, BO3NtKaIOUSe B CInyae HnPaBnJIbHOero yHnHTOKeHHa. 3a BoJee NpOBoHo INΦopMaUnei

O BTOPNHOM NcIOJIb30BAHnN PpIbOpa O6paUaITeCbB TROPdCKoI COBET, B MeCTHyU CnyK6y NO IpepeAp6OTKe OTXODOB INN B MaRa3IN, rJe PpIbOp 6bln PpNo6peTeH.

-ФильТРHaakTINBnPoBaHHomугн HeJIb3ЯMbITbIBOCCTaHaBJIbBaTb, erO CJIeDyET MeHЯTb npIMepHO pa3B4MeCAza pa60tbyIINuYauSe B CJIyuae OChEB INHTeHCNBHOrO NcNoJIb3OBaHnI npi6opa (W).

• XnpoBbIeФnIbTpblHeo6xOdmo OuHsTaB pa3 B 2 Mecra pa6oTbI INIyAaE B Cclyuae OueHb INHTeHCNBHO ICNoJIb3OBaHnI np6Opa; XnpOBbIe FnIbTpbl MOxHO MbITb B IocydomoeyHOJ MaShInHe (Z).

-Индикаторы(rдевсы)устpoистуypаразеленя.
OuIaIe BbITXkKBy BIAxHoi TprnKOI, CMOUeHHoB B HeITpaJIbHOM KIxDKOM MOIOUeM BeIeCTBe.

4. OPGAHbI UYPABJIENIa
