Thank you for choosing one of our high-quality products.

With this appliance you will experience the perfect combination of functional design and cutting edge technology.

Convince yourself that our appliances are engineered to deliver the best performance and control – indeed we are setting the highest standards of excellence.

In addition to this you find environmental and energy saving aspects as an integral part of our products.

To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently.

To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

Guide to use the instructions

The following symbols will be found in the text to guide you throughout the Instructions:

Safety Instructions

Step by step instructions for an operation

Hints and Tips

Environmental information

Contents

For the User

Important Safety Information 27

Description of the appliance 29

Operation 30

Using the hob 32

Cleaning and Maintenance 33

Declaration of guarantee terms 44

Service and original spare parts 46

European guarantee 46

For the Installer

Technical data 35

Installation 36

Adaptation to different types of gas 38

Electrical connection 39

Building In 41

Possibilities for insertion 43

This appliance complies with the following E.E.C. Directives:

• 2006/95 (Low Voltage Directive)

• 89/336 (Electromagnetical Compatibility Directive)

• 93/68 (General Directives)

and subsequent modifications.

English

Important safety information

This warnings has been given for the safety of you and others. We therefore ask you to carefully read the procedures of installing and using this cooker.

Installation

• The work of installation must be carried out by competent and qualified installers according to the regulations in force.
• Any modifications to the domestic electrical mains which may be necessary for the installation of the appliance should be carried out only by competent personnel.

During Operation

- This appliance has been designed for non professional purpose in private houses only. It is meant to cook edible foodstuff only and must not be used for any other purposes.

- It is dangerous to alter the specification in any way.

- For hygiene and safety reasons, this appliance should be kept clean at all times. A build-up of fats or other foodstuff could result in a fire.

- Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by unexperienced persons may cause injury or serious malfunctioning. Refer to your local Service Centre. Always insist on genuine spare parts.

- Ensure that all control knobs are in the OFF position (●) when not in use.

- Should you connect any electrical tool to a plug near this cooking appliance, ensure that electric cables are not in

contact with it and keep them far enough from the heated parts of this appliance.

- If the appliance is out of order, disconnect it from the electric supply.

People Safety

- This appliance has been designed to be operated by adults and children under supervision. Young children must not be allowed to tamper with the controls or play near or with the oven.

- This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.

- Accessible parts of this appliance may become hot when it is in use. Children should be kept away until it has cooled.

About Installation, Cleaning and Manteinance

- It is mandatory that all operations required for the installation are carried out by a qualified or competent person, in accordance with existing rules and regulations.

- Disconnect the appliance from the electrical supply, before carrying out any cleaning or manteinance work.

• This appliance cannot be cleaned with steam or with a steam cleaning machine.
• Ensure a good ventilation around the appliance. A poor air supply could cause lack of oxygen.
• Ensure that the gas supply complies with the gas type stated on the identification label, placed near the gas supply pipe.
• This appliance is not connected to a combustion products evacuation device. It must be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.
• The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).
• Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.
• Once you removed all packaging from the appliance, ensure that it is not damaged and the electric cable is in perfect conditions. Otherwise, contact your dealer before proceeding with the installation.

- The manufacturer disclaims any responsibility should all the safety measures not be carried out.

Service

- Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by unexperienced persons may cause injury or serious malfunctioning. Refer to your local Service Centre. Always insist on genuine spare parts.

Environmental Information

• After installation, please dispose of the packaging with due regard to safety and the environment.
• When disposing of an old appliance, make it unusable, by cutting off the cable.

The symbol lon

The symbol / on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

It is very important that this instruction book should be kept safely for future consultation. If the appliance should be sold or given to another person, please ensure that the booklet goes together with it, so that the new owner can know of the functions of the machine and also be aware of the warnings.

These instructions are only for the countries stated by the symbol printed on the front cover of this instruction book.

Description of the appliance

1 2 2 3 4 5 6 7 8

1 Hob top
2 Semi-rapid burner
3 Triple crown burner
4 Auxiliary burner
5 Control knob for front left burner (semi-rapid)
6 Control knob for rear left burner (semi-rapid)
7 Control knob for rear right burner (triple crown)
8 Control knob for front right burner (auxiliary)

Operation

Hob burner control knobs

The symbols on the knobs mean:

$$ = \text { no gas supply } $$

ximum gas supply

minimum gas supply

For easier lighting, proceed before putting a pan on the pan support.

To light the burners

To light a burner, turn the relevant knob anticlockwise to maximum position

d push down the knob to ignite.

After lighting the flame, keep the knob pushed down for about 5 seconds. This will allow the "thermocouple" to be heated and the safety device to be switched off, otherwise the gas supply would be interrupted.

Then, check the flame is regular and adjust it as required.

If you cannot light the flame even after several attempts, check the "cap" (see fig. letter A) and "crown" (see fig. letter B) are in the correct position.

In the absence of electricity, ignition can occur without the electrical device; in this case approach the burner with a flame, push the relevant knob down and turn it anti-clockwise until it reaches the "maximum" position.

To switch off burners

To put the flame out, turn the knob to the "off" position (●).

A B C D

Triple crown burner A B D C

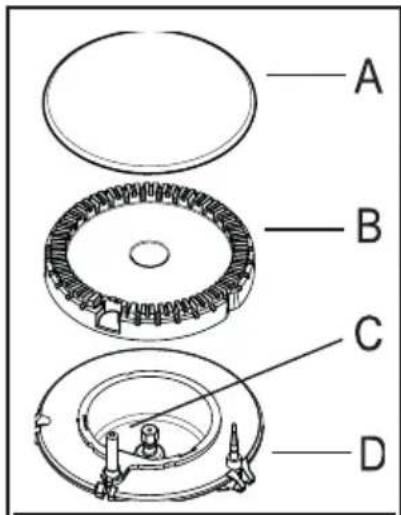

A - Burner cap

B - Burner crown

C - Ignition candle

D - Thermocouple

Do not keep the control knob pressed for more than 15 seconds.

If the burner does not light even after 15 seconds, release the control knob, turn it to the "off" position

(●) and wait for at least one minute before trying to light the burner again.

If the burner accidentally goes out, turn the control knob to the "off" position (●) and wait for at least one minute before trying to light the burner again.

Take care when frying food in hot oil or fat, as the overheated splashes could easily ignite.

When switching on the mains, after installation or a power cut, it is quite normal for the spark generator to be activated automatically.

Using the hob

Practical hints

The burners

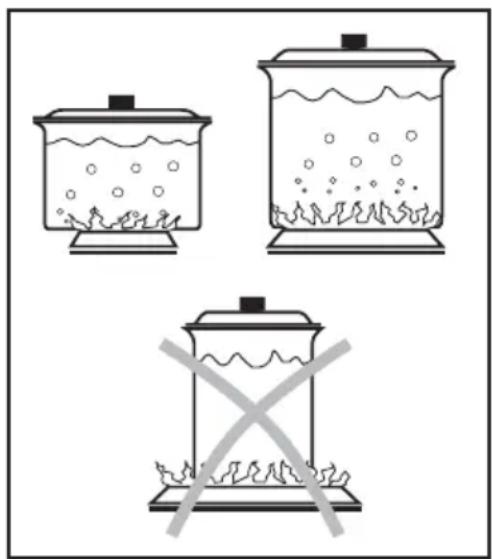

To ensure maximum burner efficiency, you should only use pots and pans with a flat bottom fitting the size of the burner used.

Triple crown burner

diameter 18-26 cm

Front Semi-rapid burner

diameter 12-18 cm

Rear Semi-rapid burner

diameter 12-22 cm

Auxiliary burner

diameter 8-18 cm

• For easier lighting, proceed before putting a pan on the pan support.

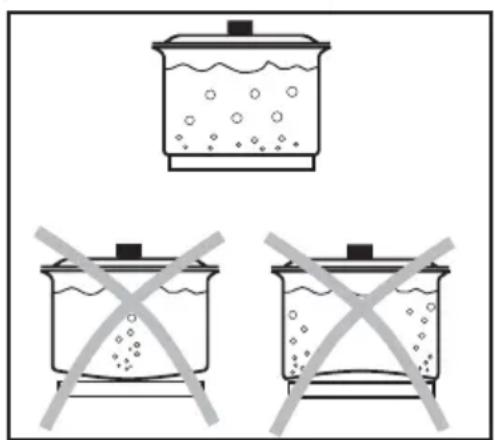

• Use only pans or pots with flat bottom.
  • Take care when frying food in hot oil or fat, as the overheated splashes could easily ignite.
• If you use a saucepan which is smaller than the recommended size, the flame will spread beyond the bottom of the vessel, causing the handle to overheat.
• Prolonged cooking with potstones, earthenware pans or cast-iron plates is inadvisable. Also, do not use aluminium foil to protect the top during use.
• Make sure pots do not protrude over the edges of the cooktop and that they are centrally positioned on the rings in order to obtain lower gas consumption.
• Do not place unstable or deformed pots on the rings: they could tip over or spill their contents, causing accidents.
• Pots must not enter the control zone.
• If the control knobs become difficult to turn, please contact your local Service Force Centre.

- As soon as a liquid starts boiling, turn down the flame so that it will barely keep the liquid simmering.

Three simple line drawings of containers with bubbles and a crossed-out heating element, no text or symbols present.

Diagram showing three cooking containers with liquid and bubbles, each marked with a crossed-out X symbol indicating prohibition or prohibition.

Cleaning and Maintenance

Disconnect the appliance from the electrical supply, before carrying out any cleaning or maintenance work.

The hob is best cleaned whilst it is still warm, as spillage can be removed more easily than if it is left to cool.

This appliance cannot be cleaned with steam or with a steam cleaning machine.

The burners

• The burner caps and crowns can be removed for cleaning.
• Wash the burners taps and crowns using hot soapy water, and remove marks with a mild paste cleaner. A well moistened soap impregnated steel wool pad can be used with caution, if the marks are particularly difficult to remove.
• After cleaning, be sure to wipe dry with a soft cloth.
• Frequently wash the "caps" and the "crows" with hot soapy water, carefully taking away any built-up of food.

The pan supports

- The hob has cast iron pan supports. Take care when removing them. They are quite heavy and could damage the hob or your kitchen furniture if you let them fall down.

Do not wash the cast iron pan supports in the washing machine as they can be damaged.

- Wash the pan supports using hot soapy water. If necessary, a paste cleaner or a soap impregnated steel wool pad can be used with caution. After cleaning, be sure to wipe dry with a soft cloth.

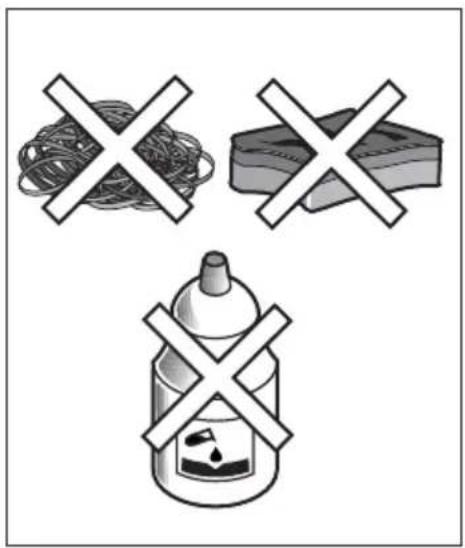

Warning sign with crossed-out symbols and three labeled items: a pasta pile, a bread box, and a paint bottle with a droplet.

• After cleaning, make sure that the pan supports are correctly positioned.
• To make burners work properly, ensure that pan supports are placed in a way that the arms are centred upon the burner as shown in the picture.
• Pay attention when replacing the pan supports in order to avoid damaging the hob top.

The Hob Top

- Regularly wipe over the hob top using a soft cloth well wrung out in warm water to which a little wasing up liquid has been added. Avoid the use of the following:

• household detergent and bleaches;
• impregnated pads unsuitable for non-stick saucepans;
• steel wool pads;
• bath/sink stain removers.

- Should the hob top become heavily soiled, the following products are recommended:

- For stainless steel hobs use a proprietary stainless steel cleaner.

- For other hobs use Hob Brite or Bar Keepers Friend.

- Do not leave acid or alkaline substances (e.g. vinegar, salt, lemon juice, etc.) on the cooktop.

The Ignition electrode

The electric ignition is obtained through a ceramic electrode and a metal electrode. Keep these components very clean, to avoid difficult lighting, and check that the burner crown holes are not obstructed.

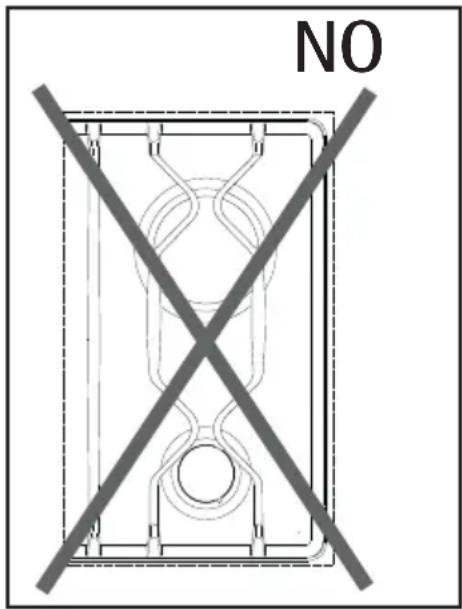

YES

NO

Technical data

Cut out dimensions

(see chapter "Building In")

Width: 560 mm

Depth: 480 mm

Overall dimensions

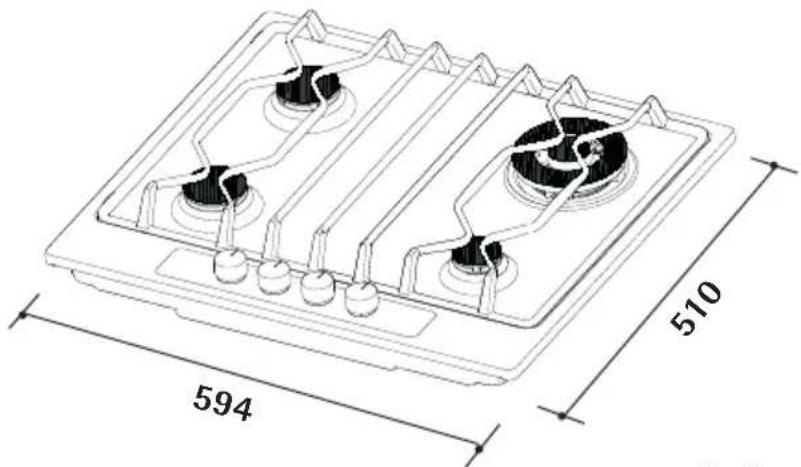

Width: 594 mm

Depth: 510 mm

Appliance class 3

Heat Input

Triple crown burner 4,0 kW

Semi-rapid burner 2,0 kW

Auxiliary burner 1,0 kW

Electric supply: 230 V \~ 50 Hz

Category: II2E+3+

Gas supply: G20/G25 - 20/25 mbar

Burner characteristics

BURNER NORMAL REDUCED NORMAL POWER POWER POWER kW KW NATURAL GAS LIQUID
			GAS 20/25 mbar 28-30/37 mbar
			inj. 100/mm	m^3/h		inj. 100/mm	g/h
				G20 20 mbar	G25 25 mbar		G30	G31
Auxiliary	1,0	0,33	70	0,095	0,111	50	73	71
Semi-rapid	2,0	0,45	96	0,190	0,221	71	145	143
Triple crown	4,0	1,20	146	0,381	0,443	98	291	286

By-pass diameters

Burner ∅ By-pass in 1/100 mm.
Auxiliary	28
Semi-rapid	32
Triple crown	56

Installation

• The following instructions about installation and maintenance must be carried out by qualified personnel in compliance with the regulation in force. The regulation to be applied for this type of installation is NBN D 51.003 : "Installations functioning with combustible gas lighter than air".
• The side walls of the unit in which the hob is going to be installed, must not exceed the height of the working top.
• Avoid installing the appliance in the proximity of inflammable materials (e.g. curtains, tea towels etc.).
• The appliance must be electrically disconnected before all interventions. If any electric supply to the appliance is required to carry out the work, ensure all the necessary precautions are followed.

Gas Connection

It is indispensable that the connection to the gas mains are carried out by means of an AGB tap. Choose fixed connections or use a flexible pipe in AGB (stainless steel).

If using flexible metallic pipes, be careful they do not come in contact with mobile parts or they are not squeezed. Use the same attention when the hob is combined with an oven.

This hob can be operated by Slochteren gas (G25) with a nominal pressure of 25 mbar or by natural gas with nominal pressure of 20 mbar. No regulation is required for use by these two types of gas. Before fitting the appliance ensure that the installation has the correct voltage for the appliance. At full capacity, the drop in pressure must not exceed 5%. Such a drop in pressure is caused by the following parameters:

• maximum capacity of meter;
• diameter and lenght of the tube in front and behind the meter;
• section of transit of variuos tubes positioned on the circuit;
• diameter of eventual connections.

To ensure a correct operation, a saving of energy and the long-life of the appliance, the voltage pressure of the appliance must correspond to the recommended values.

The adjustable connection is fixed to the comprehensive ramp by means of a threaded nut G 1/2". All the components shown in the figure have already been assembled in the factory.

The appliance, before leaving the factory, has been tested in order to give you the best results.

Important

When the final connection has been made, it is essential that a thorough leak test is carried out on the hob and installation. Use some soapy water, never a flame.

A B C

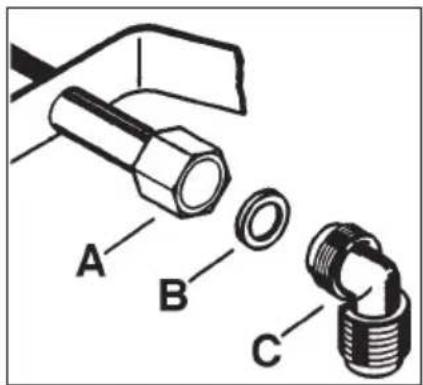

A) Ramp with ending nut
B) Seal
C) Adjustable connection

Adaptation to different types of gas

A. Injectors replacement

1. Remove the pan supports.
2. Remove the burner's caps and crowns.
3. With a socket spanner 7 unscrew and remove the injectors (Fig. 1), and replace them with the ones required for the type of gas in use.
4. Reassemble the parts, following the same procedure backwards.
5. Replace the rating label (placed near the gas supply pipe) with the relevant one for the new type of gas supply. You can find this label in the package of the injectors supplied with the appliance.

Should the feeding gas pressure be different or variable compared with the required pressure, an appropriate pressure adjuster must be fitted on the gas supply pipe, in compliance with the rules in force.

B. Adjustment of minimum level

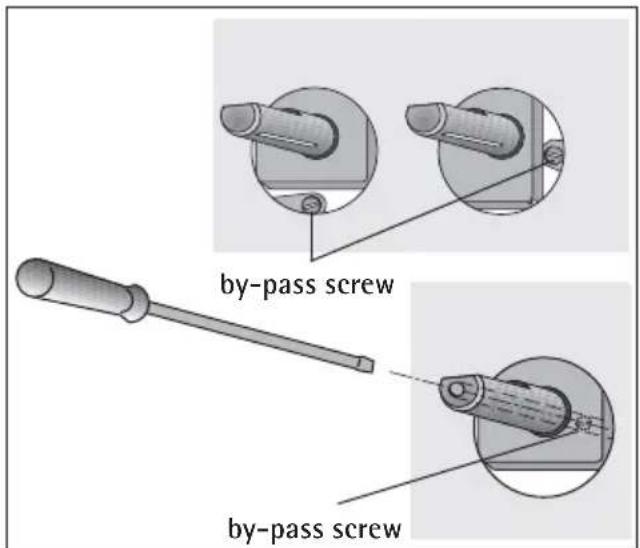

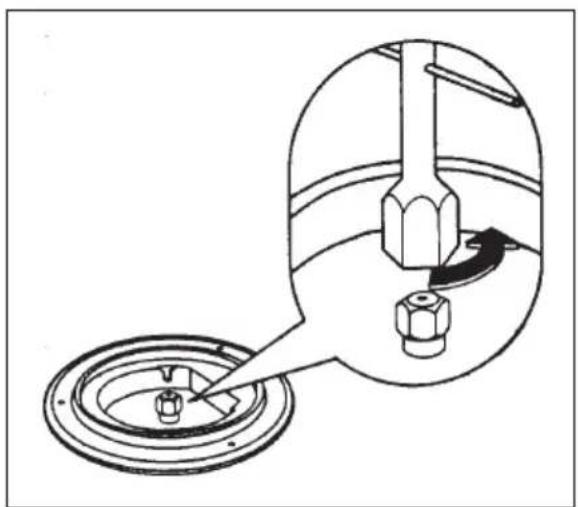

To adjust the minimum level of the burners, proceed as follows:

1. Light the burner.
2. Turn the knob on the minimum position.
3. Remove the knob.

4. With a thin screwdriver, adjust the bypass screw (Fig. 2). If changing from natural gas to liquid gas, completely tighten clockwise the screw, until a small regular flame is obtained. If changing from liquid gas to natural gas, undo the by-pass screw about 1/4 of a turn.

5. Finally check the flame does not go out when quickly turning the knob from the maximum position to the minimum position.

This procedure can easily be carried out, anyhow the hob has been positioned or built in the working top.

Mechanical diagram showing a valve assembly with a rotating component and a circular base (no text or symbols)

Fig. 1

by-pass screw by-pass screw

Fig. 2

Electrical connection

The appliance is designed to be connected to 230 V monophase electricity supply.

The connection must be carried out in compliance with the laws and regulations in force.

Before the appliance is connected:

1) check that the main fuse and the domestic installation can support the load (see the rating label);
2) check that the power supply is properly earthed in compliance with the current rules;
3) check the socket or the double pole switch used for the electrical connection can be easily reached with the appliance built in the furniture unit.

The appliance is supplied with the plug attached. The mains cable and plug as supplied are to be connected to a shockproof socket (230 V\~, 50 Hz). The shockproof socket must be installed in accordance with the regulations.

If connecting the appliance directly to the electric system, it is necessary that you install a double pole switch between the appliance and the electricity supply, with a minimum gap of 3 mm. between the switch contacts and of a type suitable for the required load in compliance with the current rules.

The connection cable has to be placed in order that, in each part, it cannot reach a temperature 50^ C higher than room temperature.

The brown coloured phase cable (fitted in the terminal block contact marked with "L") must always be connected to the network phase.

Remplacement of the voltage cable

The connection of the voltage cable to the appliance's terminal block is of type "Y". This means that its replacement requires the specific equipment of a technician. In this case, only cable type H05V2V2-F T90 must be used. The cable section must be suitable to the voltage and the working temperature. The yellow/green earth wire must be approximately 2 cm. longer than the phase wires (Fig. 3-a).

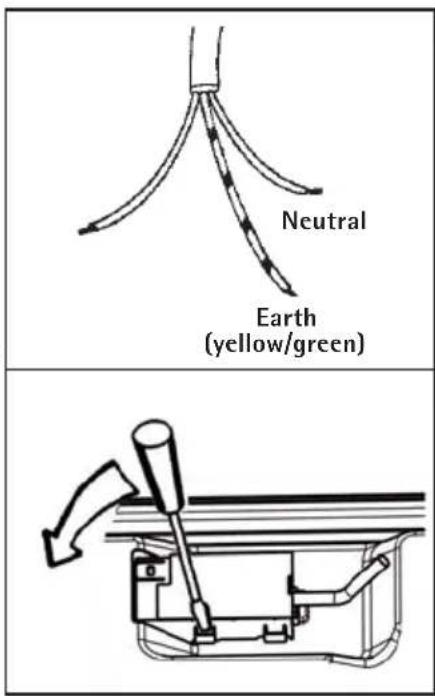

To open the terminal block and reach the terminals, proceed as follows:

• insert the point of a screwdriver into the visible protruding part of the terminal block;
  • exert a light pressure and lift (Fig. 3-b).

Fig. 3-a

Neutral Earth (yellow/green)

Fig. 3-b

Building In

594 510 Fig. 4

Dimensions are given in millimeters

These hobs can be inserted in a built-in kitchen unit whose depth is between 550 and 600 mm. The hob dimensions are shown in Fig. 4.

The edge of the cut out must have a minimum distance from the rear wall of 55 mm.

If there are side walls, or sides of the furniture unit near the hob, the cut out edges must have a minimum distance of 100 mm.

Hanging forniture units or hoods must be placed at 650 mm. minimum from the hob.

650 MIN. 480 55 560 30 240 140 550 MIN 593 560÷570

Fig. 5

Fitting the hob to the worktop

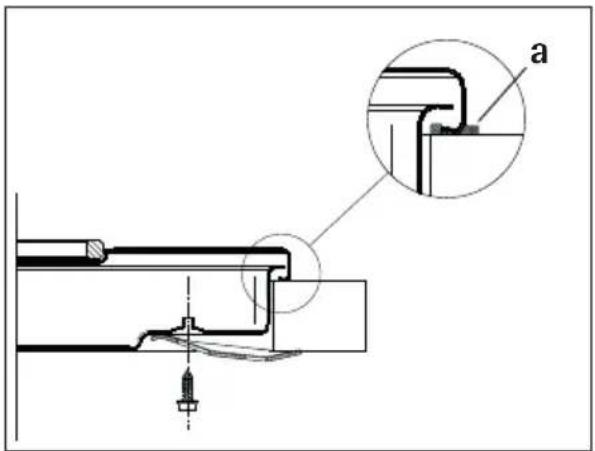

Carry out the building in of the hob as follows:

1. Place the seals supplied with the hob on the front edge of the cut out. Then, place them at 11 mm from the side edges and at 10 mm from the rear edge, as shown in fig. 6, taking care that the seals meet without overlapping.
2. Place the hob in the cut out, taking care that it is centred.
3. Fix the hob with the relevant fixing clamps, supplied with the injectors kit (see fig. 7).

When the screws have been tightened, the excess seal can be removed.

The edge of the hob forms a double seal which prevents the ingress of liquids.

10 11 11

Fig. 6

Technical diagram showing a mechanical assembly with an inset detail labeled 'a', likely illustrating a pipe connection or mounting detail.

a) seal
Fig.7

Possibilities for insertion

Kitchen unit with door

Proper arrangements must be taken in designing the forniture unit, in order to avoid any contact with the bottom of the hob which can be heated when it is operated. The recommended solution is shown in Fig. 8.

The panel fitted under the hob should be easily removable to allow an easy access if a technical assistance intervention is needed.

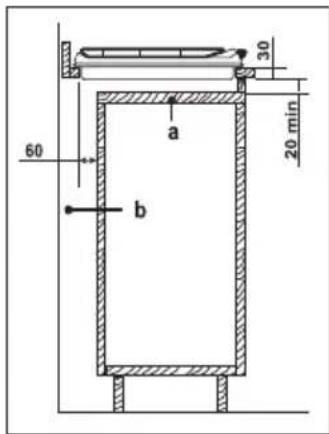

Kitchen unit with oven

The hob recess dimensions must comply the indication given in Fig. 5 and must be provided with brackets to allow a continuous supply of air. To avoid overhating, the building in should be carried out as shown in Figs. 9 and 10.

The hob's electric connection and the oven's one must be carried out separately, both for safety reasons and to allow the oven to be easily taken off the unit.

Fig. 8

60 30 a 20 min b

a) Removable panel b) Space for connections

50 cm² 360 cm²

Fig. 9

120 cm² 180 cm²

Fig. 10

Declaration of guarantee terms

Belgium

Our appliances are produced with the greatest of care. However, a defect may still occur. Our consumer services department will repair this upon request, either during or after the guarantee period. The service life of the appliance will not, however, be reduced as a result.

This declaration of guarantee terms is based on European Union Directive 99/44/EC and the provisions of the Civil Code. The statutory rights that the consumer has under this legislation are not affected by this declaration of guarantee terms.

This declaration does not affect the vendor's statutory warranty to the end user. The appliance is guaranteed within the context of and in adherence with the following terms:

1. In accordance with provisions laid down in paragraphs 2 to 15, we will remedy free of charge any defect that occurs within 24 months from the date the appliance is delivered to the first end user. These guarantee terms do not apply in the event of use for professional or equivalent purposes.
2. Performing the guarantee means that the appliance is returned to the condition it was in before the defect occurred. Defective parts are replaced or repaired. Parts replaced free of charge become our property.
3. So as to avoid more severe damage, the defect must be brought to our attention immediately.
4. Applying the guarantee is subject to the consumer providing proof of purchase showing the purchase and/or delivery date.
5. The guarantee will not apply if damage caused to delicate parts, such as glass (vitreous ceramic), synthetic materials and rubber, is the result of inappropriate use.
6. The guarantee cannot be called on for minor faults that do not affect the value or the overall reliability of the appliance.

7. The statutory warranty does not apply when defects are caused by:

8. a chemical or electrochemical reaction caused by water,
   – abnormal environmental conditions in general,
   – unsuitable operating conditions,

9. contact with harsh substances.

10. The guarantee does not apply to defects due to transport which have occurred outside of our responsibility. Nor will the guarantee cover those caused by inadequate installation or assembly, lack of maintenance or failure to respect the assembly instructions or directions for use.

11. Defects that result from repairs or measures carried out by people who are not qualified or expert or defects that result from the addition of non-original accessories or spare parts are not covered by the guarantee.
12. Appliances that are easy to transport may be delivered or sent to the consumer services department. Home repairs are only anticipated for bulky appliances or built-in appliances.
13. If the appliances are built-in, built-under, fixed or suspended in such a way that removing and replacing them in the place where they are fitted takes more than half an hour, the costs that result therefrom will be charged for. Connected damage

caused by these removal and replacement operations will be the responsibility of the user.

1. If, during the guarantee period, repairing the same defect repeatedly is not conclusive, or if the repair costs are considered disproportionate, in agreement with the consumer, the defective appliance may be replaced with another appliance of the same value. In this event, we reserve the right to ask for a financial contribution calculated according to the length of time it has been used.
2. A repair under guarantee does not mean that the normal guarantee period will be extended nor that a new guarantee period begins.
3. We give a twelve month guarantee for repairs, limited to the same defect.
4. Except in the event where liability is legally imposed, this declaration of guarantee terms excludes any compensation for damage outside the appliance for which the consumer wishes to assert his rights. In the event of legally admitted liability, compensation will not exceed the purchase price paid for the appliance.

These guarantee terms are only valid for appliances purchased and used in Belgium. For exported appliances, the user must first make sure that they satisfy the technical conditions (e.g.: voltage, frequency, installation instructions, etc.) for the country concerned and that they can withstand the local climatic and environmental conditions. For appliances purchased abroad, the user must first ensure that they meet the qualifications required in Belgium. Non-essential or requested adjustments are not covered by the guarantee and are not possible in all cases.

Our consumer services department is always at your disposal, even after the guarantee period has expired.

Address for our consumer services department: BELGIUM

Tel: Fax:

Electrolux Home Products Belgium Consumer services 02/363.04.44 02/363.04.00

ELECTROLUX SERVICE 02/363.04.60

Bergensesteenweg 719

1502 Lembeek

E-mail: [e-mail]

GRAND-DUCHÉ DE LUXEMBOURG

ELECTROLUX HOME PRODUCTS Consumer services 00 35242431-1 0035242 431-360

Rue de Bitbourg. 7

L-1273 Luxembourg-Hamm

E-mail: [e-mail]

Service and original spare parts

This appliance, before leaving the factory, has been tested and studied by many experts and specialists, in order to give you the best results.

Any repair work which needs to be carried out should be done with the utmost care and attention.

For this reason we recommend that for any problem you contact the dealer who sold it to you, or our nearest authorized Service Centre, specifying the nature of the problem, the appliance model (Mod.), the product number (Prod. No.) and the serial number (Ser. No.) marked on the identification plate supplied in the injectors kit.

Original spareparts, certified by the product manufacturer and carrying this symbol are only available at our Service Centre and authorized spareparts shops.

European guarantee

This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed below the appliance guarantee will move with you subject to the following qualifications:

• The appliance guarantee starts from the date you first purchased the appliance which will be evidenced by production of a valid purchase document issued by the seller of the appliance.
• The appliance guarantee is for the same period and to the same extent for labour and parts as exists in your new country of residence for this particular model or range of appliances.
• The appliance guarantee is personal to the original purchaser of the appliance and cannot be transferred to another user.
• The appliance is installed and used in accordance with instructions issued by Electrolux and is only used within the home, i.e. is not used for commercial purposes.
• The appliance is installed in accordance with all relevant regulations in force within your new country of residence.

The provisions of this European Guarantee do not affect any of the rights granted to you by law.

www.electrolux.com

Albania	[phone]	Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/Belgien	[phone]	Bergensesteenweg 719, 1502 Lembeek
Česká republika	[phone]	Budějovická 3, Praha 4, 140 21
Danmark	[phone]	Sjællandsgade 2, 7000 Fredericia
Deutschland	[phone]	Muggenhofer Str. 135, 90429 Nürnberg
Eesti	[phone]	Pärnu mnt. 153, 11624 Tallinn
España	[phone]	Carretera M-300, Km. 29,900 Alcalá de Henares Madrid
France	www.electrolux.fr
Great Britain	[phone]	Addington Way, Luton, Bedfordshire LU4 9QQ
Hellas	[phone]	4, Limnou Str., 54627 Thessaloniki
Hrvatska	[phone]	Slavonska avenija 3, 10000 Zagreb
Ireland	[phone]	Long Mile Road Dublin 12
Italia	[phone]	C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija	[phone]	Kr. Barona iela 130/2, LV-1012, Riga
Lietuva	[phone]	Ozo 10A, LT 08200 Vilnius
Luxembourg	[phone]	Rue de Bitbourg, 7, L-1273 Hamm
Magyarország	[phone]	H-1142 Budapest XIV, Erzsébet királyné útja 87
Nederland	[phone]	Vennootsweg 1, 2404 CG - Alphen aan den Rijn
Norge	[phone]	Risløkkvn. 2 , 0508 Oslo
Österreich	[phone]	Herziggasse 9, 1230 Wien
Polska	[phone]	ul. Kolejowa 5/7, Warszawa
Portugal	[phone]	Quinta da Fonte - Edificio Gonçalves Zarco - Q 35 -2774-518 Paço de Arcos
Romania	[phone]	Str. Garii Progresului 2, S4, 040671 RO
Schweiz - Suisse - Svizzera	[phone]	Industriestrasse 10, CH-5506 Mägenwil
Slovenija	[phone]	Gerbičeva ulica 98, 1000 Ljubljana
Slovensko	[phone]	Electrolux Slovakia s.r.o., Electrolux Domáce spotrebiče SK, Seberiniho 1, 821 03 Bratislava
Suomi	www.electrolux.fi
Sverige	[phone]	Electrolux Service, S:t Göransgatan 143, S-105 45 Stockholm
Türkiye	[phone]	Tarłabași caddesi no : 35 Taksim İstanbul
Россия	[phone]	129090 Москва, Олимпийский проспект, 16, БЦ "Олимпик"

www.electrolux.com

www.aeg-electrolux.be
