USER MANUAL HC451220EB AEG-ELECTROLUX

3.4 OptiHeat Control (3-staps

5.4 Öko Timer (Eco-timer)

7. PROBLEEMOPLOSSING

1800/3500 W 2800/3700 W 5 145

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. Visit our website for: Get usage advice, brochures, trouble shooter, service information: www.aeg.com Register your product for better service: www.aeg.com/productregistration Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number. Warning / Caution-Safety information General information and tips Environmental information Subject to change without notice.

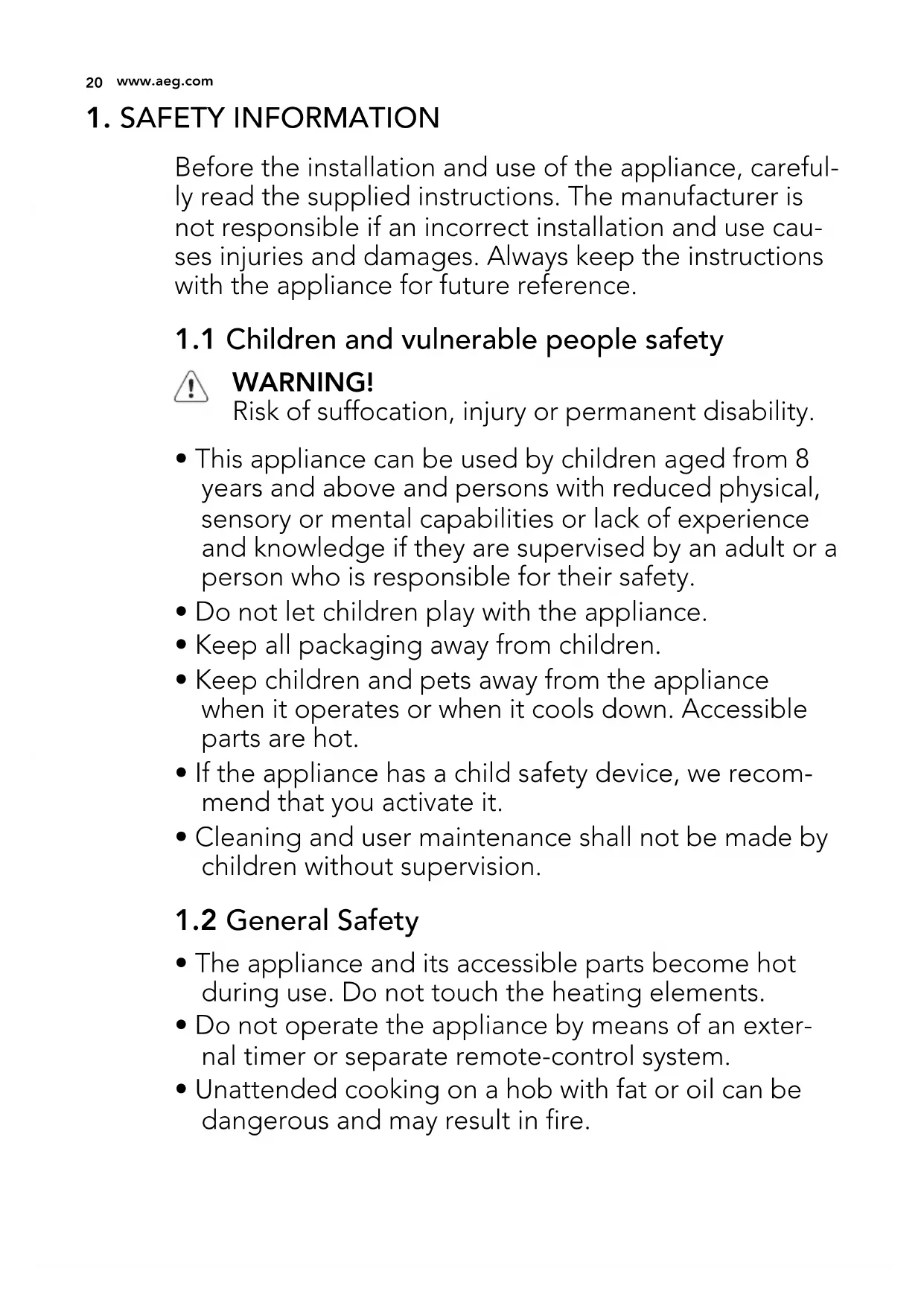

ENGLISH 191. SAFETY INFORMATION

Before the installation and use of the appliance, careful- ly read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use cau- ses injuries and damages. Always keep the instructions with the appliance for future reference.

1.1 Children and vulnerable people safety

WARNING! Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety.

• Do not let children play with the appliance.

• Keep all packaging away from children.

• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.

• If the appliance has a child safety device, we recom- mend that you activate it.

• Cleaning and user maintenance shall not be made by children without supervision.

• The appliance and its accessible parts become hot during use. Do not touch the heating elements.

• Do not operate the appliance by means of an exter- nal timer or separate remote-control system.

• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

www.aeg.com• Never try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• Do not store items on the cooking surfaces.

• Do not use a steam cleaner to clean the appliance.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

• If the glass ceramic surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• After use, switch off the hob element by its control and do not rely on the pan detector.

WARNING! Only a qualified person must in- stall this appliance.

• Remove all the packaging.

• Do not install or use a damaged appli- ance.

• Obey the installation instruction sup- plied with the appliance.

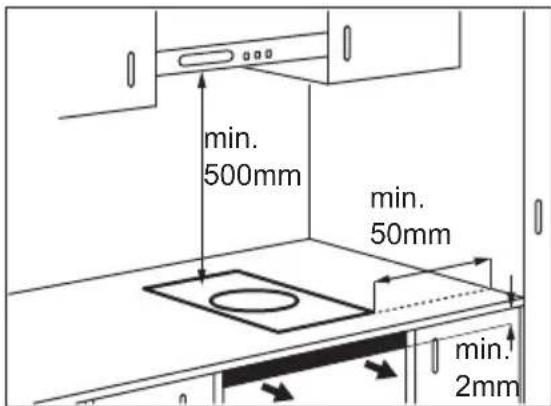

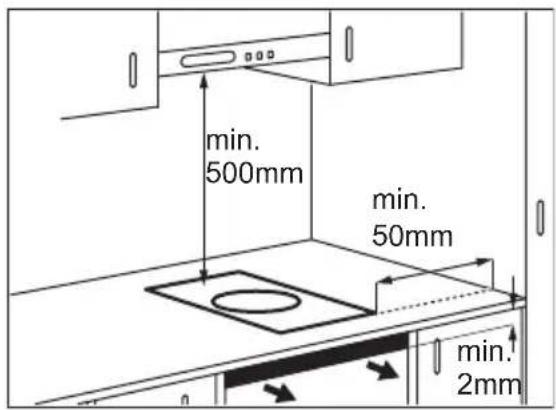

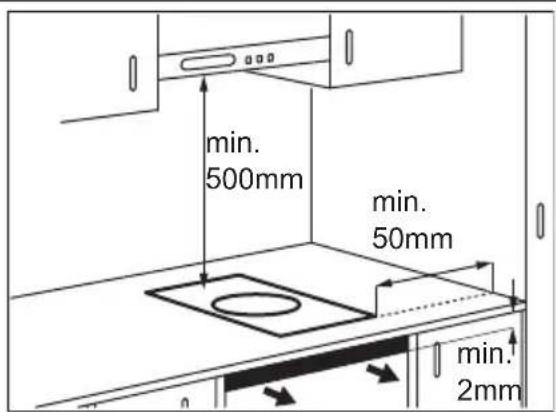

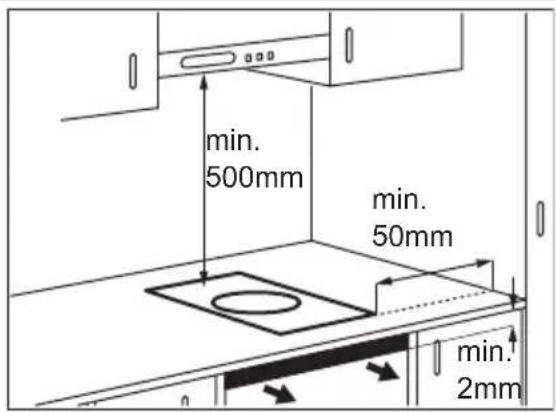

• Keep the minimum distance from the other appliances and units.

• Always be careful when you move the appliance because it is heavy. Always wear safety gloves.

• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.

• Protect the bottom of the appliance from steam and moisture.

• Do not install the appliance adjacent to a door or under a window. This pre- vents hot cookware to fall from the ap- pliance when the door or the window is opened.

• If the appliance is installed above drawers make sure that the space, be- tween the bottom of the appliance and the upper drawer, is sufficient for air circulation.

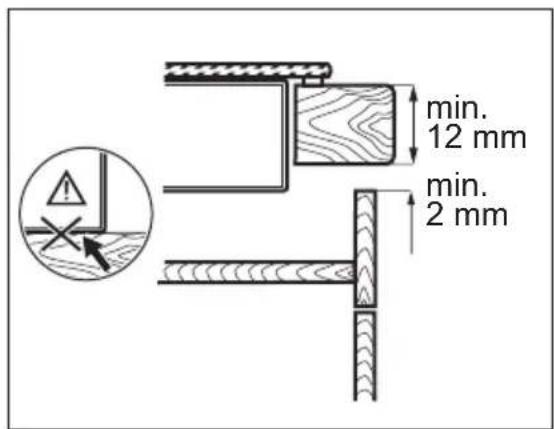

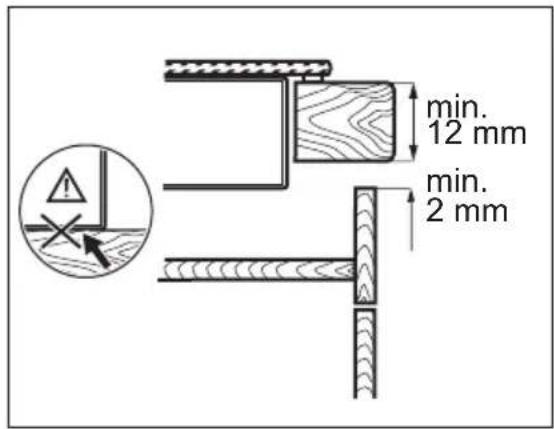

• Make sure that the ventilation space of 2 mm, between the worktop and the front of the below unit, is free. The warranty does not cover damages caused by the lack of an adequate ventilation space.

• The bottom of the appliance can get hot. We recommend to install a non- combustile separation panel under the appliance to prevent access to the bottom. Electrical connection WARNING! Risk of fire and electrical shock.

• All electrical connections must be made by a qualified electrician.

• The appliance must be earthed.

• Before carrying out any operation make sure that the appliance is dis- connected from the power supply.

• Make sure the mains cable or plug (if applicable) does not touch the hot ap- ENGLISH 21pliance or hot cookware, when you connect the appliance to the near sockets

• Make sure the appliance is installed correctly. Loose and incorrect electrici- ty mains cable or plug (if applicable) can make the terminal become too hot.

• Make sure that a shock protection is installed.

• Use the strain relief clamp on cable.

• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact the Service or an electrician to change a damaged mains cable.

• The electrical installation must have an isolation device which lets you discon- nect the appliance from the mains at all poles. The isolation device must have a contact opening width of mini- mum 3 mm.

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

WARNING! Risk of injury, burns or electric shock.

• Use this appliance in a household en- vironment.

• Do not change the specification of this appliance.

• Do not let the appliance stay unatten- ded during operation.

• Do not operate the appliance with wet hands or when it has contact with wa- ter.

• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.

• Set the cooking zone to “off” after each use. Do not rely on the pan de- tector.

• Do not use the appliance as a work surface or as a storage surface.

• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.

• Users with a pacemaker must keep a distance of minimum 30 cm from the induction cooking zones when the ap- pliance is in operation.

• When you place food into a hot oil, it may splash. WARNING! Risk of fire or explosion.

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.

• The vapours that very hot oil releases can cause spontaneous combustion.

• Used oil, that can contain food rem- nants, can cause fire at a lower tem- perature than oil used for the first time.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance. WARNING! Risk of damage to the appliance.

• Do not keep hot cookware on the con- trol panel.

• Do not let cookware to boil dry.

• Be careful not let objects or cookware fall on the appliance. The surface can be damaged.

• Do not activate the cooking zones with empty cookware or without cook- ware.

• Do not put aluminium foil on the ap- pliance.

• Cookware made of cast iron, alumini- um or with a damaged bottom can cause scratches on the glass ceramic. Always lift these objects up when you have to move them on the cooking surface.

2.3 Care and Cleaning

WARNING! Risk of damage to the appliance.

• Clean regularly the appliance to pre- vent the deterioration of the surface material.

• Do not use water spray and steam to clean the appliance.

www.aeg.com• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal ob- jects.

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the ap- pliance correctly.

• Disconnect the appliance from the mains supply.

• Cut off the mains cable and discard it.

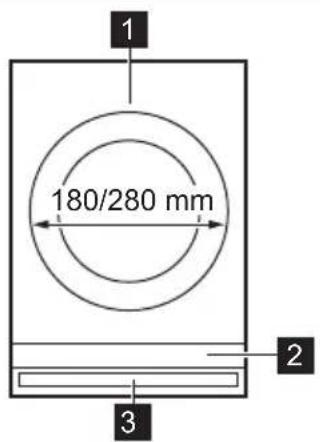

Induction cooking zone

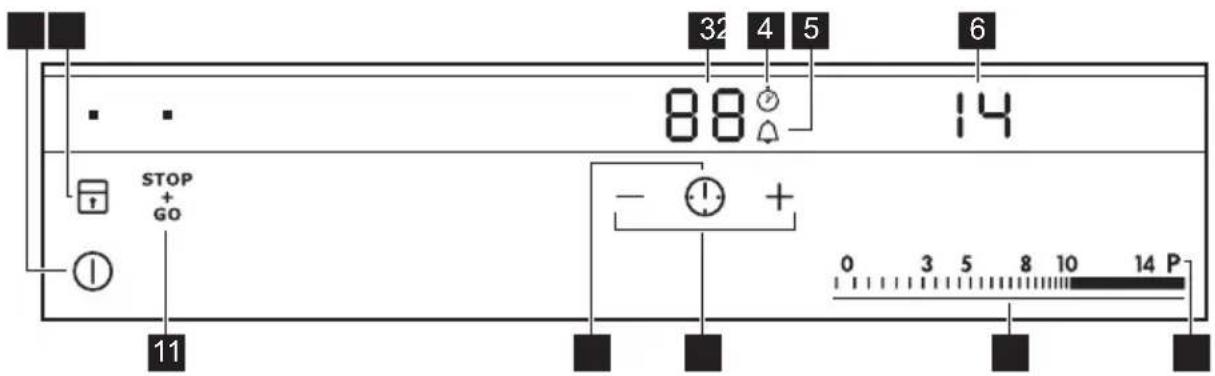

Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate. sensor field function

To activate and deactivate the appli- ance.

To lock/unlock the control panel.

To show that the CountUp timer oper- ates.

The control bar To set the heat setting.

To increase or decrease the time.

To activate and deactivate STOP+GO function.

3.3 Heat setting displays

Display Description The cooking zone is off

The cooking zone operates Keep Warm / function is on The automatic heat-up function is on Power function is on + digit There is a malfunction

OptiHeat Control (3 step Residual heat indicator): still cooking / keep warm / residual heat Lock/Child safety function is on Cookware unsuitable or too small or no cookware on the cooking zone The automatic switch off is on

3.4 OptiHeat Control (3 step

Residual heat indicator) WARNING! \ \ Risk of burns from residual heat! OptiHeat Control indicates the level of the residual heat. The induction cooking zones make the heat necessary for cook- ing directly in the bottom of the cook- ware. The glass ceramic is heated by the heat of the cookware.

Touch for 1 second to start or stop the appliance.

All cooking zones are deactivated (

• You do not set the heat setting after you activate the appliance.

• You spill something or put something on the control panel for more than 10 seconds, (a pan, a cloth, etc.). An acoustic signal sounds some time and the appliance deactivates. Remove the object or clean the control panel.

• The appliance becomes too hot (e.g. when, a saucepan boils dry). Before you use the appliance again, wait for the cooking zone to cool down.

• You use incorrect cookware. The sym- bol comes on and the cooking zone deactivates automatically after 2 minutes.

• You do not deactivate a cooking zone or change the heat setting. After some time comes on and the appliance deactivates. See below.

• The relation between heat setting and times of the Automatic Switch Off function:

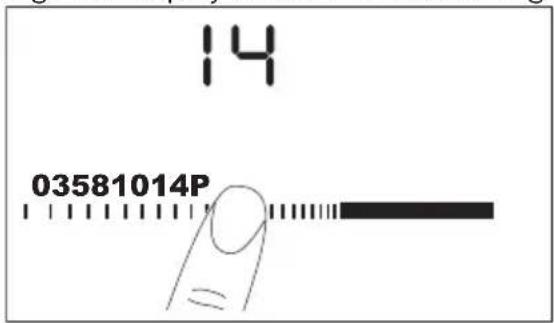

4.3 The heat setting

Touch the control bar at the heat set- ting. Move your finger along the control bar to change the setting. Do not re- lease before you have a correct heat set- ting. The display shows the heat setting. 0 3 5 8 10 14 P

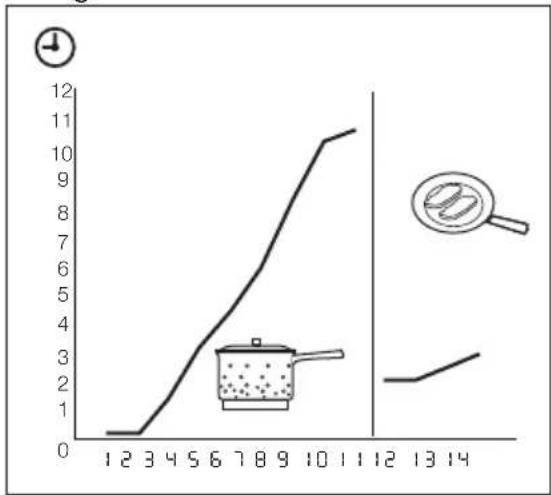

4.4 Automatic Heat Up

You can get a necessary heat setting in a shorter time if you activate the Automat- ic Heat Up function. This function sets the highest heat setting for some time (see the diagram), and then decreases to the necessary heat setting. To start the Automatic Heat Up function for a cooking zone:

Touch ( comes on in the dis- play).

Immediately touch the necessary heat setting. After 3 seconds comes on in the display. To stop the function change the heat setting.

function on and off The Power function makes more power available to the induction cooking zones. The Power function is activated for 10 minutes at most. After that the induction cooking zone automatically switches back to heat setting 14. To switch on, touch , comes on. To switch off, touch a heat setting

You can select the timer function with

The Count Down Timer Use the Count Down Timer to set how long the cooking zone operates for only this one time. It deaktivates the cooking ENGLISH 25zone automatically after the time you set. The selection of Count Down Timer function is possible when the cooking zone is activated and the heat setting is set. When this function is activated, comes on.

• To activate of the Count Down Tim- er: touch of the timer to set the time (

minutes). When the in- dicator of the cooking zone starts to flash slow, the time counts down.

To see the remaining time: touch again and again, until comes on. The display shows the remaining time.

• To change the Count Down Tim- er:touch again and again, until comes on and then touch or .

• To deactivate the Count Down Tim- er: touch again and again, until comes on and then touch . The re- maining time counts back to

When the timer countdown comes to an end, the sound operates and

flashes. The cooking zone deactivates.

To deactivate the sound: touch The Count Up Timer Use the Count Up Timer to monitor how long the cooking zone operates.

When this function is activated, comes on.

• To activate the Count Up Timer: Touch The symbol goes out and comes on.

• To see how long the cooking zone operates: touch again and again, until comes on. The display shows the time that the zone operates.

• To deactivate the Count Up Timer: touch again and again, until comes on and touch . The symbol goes out and comes on.

• To reset the Count Up Timer: touch . The time counts back to

When the two Timer functions operate at the same time, the display shows the Count Up Tim- er first. The Minute Minder. You can use the timer as a minute mind- er while the cooking zones do not oper- ate. Touch Touch or of the timer to set the time. When the time comes to an end , the sound operates and

To stop the sound: touch

The function sets all cooking zones that operate to the lowest heat setting - Keep Warm (

When operates, you cannot change the heat setting. The function does not stop the timer function.

The symbol comes on.

To deactivate this function touch . The heat setting that you set before comes on.

You can lock the control panel, but not . It prevents an accidental change of the heat setting. First set the heat setting. To start this function touch . The sym- bol comes on for 4 seconds. The Timer stays on. To stop this function touch . The heat setting that you set before comes on. When you stop the appliance, you also stop this function.

4.9 The Child Safety Device

This function prevents an accidental op- eration of the hob. Starting the Child Safety Device

Start the hob with .Do not set the heat setting.

Touch for 4 seconds. The symbol comes on.

www.aeg.com• Stop the hob with

Switching off the Child Safety Device

Start the hob with .Do not set the heat setting. Touch for 4 seconds. The symbol comes on.

Overriding the Child Safety Device for one cooking session

Start the hob with . The symbol comes on.

Touch for 4 seconds. Set the heat setting in less than 10 seconds. You can operate the hob.

When you stop the hob with , the Child Safety Device operates again.

4.10 OffSound Control

(Deactivation and activation of the sounds) Deactivation of the sounds Deactivate the appliance. Touch for 3 seconds. The displays come on and go out. Touch for 3 sec- onds. comes on, the sound is on. Touch , comes on, the sound is off. When this function operates, you can hear the sounds only when:

• the Minute Minder comes down

• the Count Down Timer comes down

• you put something on the control pan- el. Activation of the sounds Deactivate the appliance. Touch for 3 seconds. The displays come on and go out. Touch for 3 sec- onds. comes on, because the sound is off. Touch , comes on. The sound is on.

5. HELPFUL HINTS AND TIPS

Use the induction cooking zones with suitable cookware.

5.1 Cookware for induction

cooking zones For induction cooking zones a strong electro-magnetic field creates the heat in the cookware very quickly. Cookware material

• Correct: cast iron, steel, enamelled steel, stainless steel, the bottom made of multi-layer (with correct mark from a manufacturer).

• Not correct: aluminium, copper, brass, glass, ceramic, porcelain. Cookware is correct for an induction hob if …

• ... some water boils very quickly on a zone set to the highest heat setting.

• ... a magnet pulls on to the bottom of the cookware. The bottom of the cookware must be as thick and flat as possi- ble.

5.2 Operating noises

• cracking noise: cookware is made of different materials (Sandwich construc- tion).

• whistling: you use one or more cook- ing zones with high power levels and the cookware is made of different ma- terials (Sandwich construction).

• humming: you use high power levels.

• clicking: electric switching occurs.

• hissing, buzzing: the fan operates. The noises are normal and do not re- fer to any defects. ENGLISH 275.3 Energy saving

• If possible, always put the lids on the cookware.

• Put cookware on a cooking zone before you start it.

5.4 Öko Timer (Eco Timer)

To save the energy, the heater of the cooking zone switches itself off earlier than count down timer signal. The heating time reduc- tion depends on cooking level and cooking time.

5.5 The Examples of cooking

applications The relation between the heat setting and the cooking zone consumption of power is not linear. When you increase the heat setting it is not proportional to the increase of the cooking zone consumption of power. It means that the cooking zone with the medium heat setting uses less than a half of its power. The data in the table is for guid- ance only.

Use to: Time Hints Nominal power con- sumption

Keep warm the food you cooked as required Put a lid on a cook- ware 3 %

5 - 25 min Mix from time to

Solidify: fluffy ome- lettes, baked eggs

Simmer rice and milk- based dishes, heating up ready-cooked meals

25 - 50 min Add the minimum

twice as much liquid as rice, mix milk dishes part proce- dure through 8 – 13 %

Steam vegetables, fish, meat

Cook larger quantities of food, stews and soups

Use to: Time Hints Nominal power con- sumption

Gentle fry: escalope, veal cordon bleu, cut- lets, rissoles, saus- ages, liver, roux, eggs, pancakes, doughnuts as necessa-

Turn halfway through 25 – 45 %

5 - 15 min Turn halfway through 45 – 64 %

14 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips 100 % Boil large quantities of water. Power function is activated.

6. CARE AND CLEANING

Clean the appliance after each use. Always use cookware with clean bottom. WARNING! Sharp objects and abrasive cleaning agents will damage the appliance. For your safety, do not clean the appliance with steam blasters or high-pressure cleaners. Scratches or dark stains on the glass ceramic have no effect on how the appliance operates. To remove the dirt:

– Remove immediately:melted plastic, plastic foil, and food with sugar. If not, the dirt can cause damage to the appliance. Use a special scraper for the glass . Put the scraper on the glass surface at an acute angle and move the blade on the surface . – Remove after the appliance is sufficiently cool:limescale rings , water rings, fat stains, shiny metal- lic discolorations. Use a special cleaning agent for glass ceramic or stainless steel.

Clean the appliance with a moist cloth and some detergent.

At the end rub the appliance dry with a clean cloth. WARNING! Glass bar

• Do not use the scraper or sharp ob- jects to clean the glass bar and the space between it and glass ceramic. Glass bar is attached to the ceramic plate.

• Do not put the pots on the glass bar.

• Make sure that the pans and pots do not touch the glass bar. ENGLISH 297. TROUBLESHOOTING Problem Possible cause and remedy You cannot activate the appliance or operate it.

• You touched 2 or more sensor fields at the same time. Only touch one sensor field.

• There is water or fat stains on the control panel. Clean the control panel

• Activate the appliance again and set the heat set- ting in 7 seconds.

• The child safety device or the lock or STOP+GO operates. See the chapter Daily use. A sound operates when the appliance is deacti- vated. You put something on one or more sensor fields. Remove the object from the sensor fields. The residual heat indica- tor does not come on. The cooking zone is not hot because it operated only for a short time. If the cooking zone must be hot, speak to the service centre. The heat setting changes between two heat set- tings. The Power management is activated. See the sec- tion Power management. A sound operates and appliance activates and deactivates again. After 5 seconds one more sound operates. You put something . Remove the object from the sensor field. comes on

• The Automatic Switch Off operates. Deactivate the appliance and activate it again. comes on

• No cookware on the cooking zone. Put cookware on the cooking zone.

• Not correct cookware. Use the correct cookware.

• The diameter of the bottom of the cookware is too small for the cooking zone. Move cookware to a smaller cooking zone. and number come on. There is an error in the appliance. Disconnect the appliance from the electrical supply for some time. Disconnect the fuse from the electri- cal system of the house. Connect again. If comes on again, speak to the service centre. comes on There is an error in the appliance, because a cook- ware boils dry. The protection against become too hot for the cooking zone operates. The Automatic Switch Off operates. Deactivate the appliance. Remove the hot cook- ware. After, approximately 30 seconds activate the cooking zone again. should go out of the dis- play, residual heat indicator can stay. Let the cook- ware become sufficiently cool and check it with the section Cookware for the induction cooking zone.

www.aeg.comProblem Possible cause and remedy There is no signal when you touch the panel sen- sor fields. The signals are deactivated. Activate the signals (see OffSound Control ). If you tried the above solutions and can- not repair the problem, speak to your dealer or the Customer Care Depart- ment. Give the data from the rating plate, three-digit-letter code for the glass ceramic (it is in the corner of the cooking surface) and an error message that comes on. If you operated the appliance incorrect- ly, the servicing by a customer service technician or dealer will not be free of charge, even during the warranty period. The instructions about the customer service and conditions of guarantee are in the guarantee booklet.

WARNING! Refer to the Safety chapters. Before the installation Before the installation of the appliance, record the information below from the rating plate. The rating plate is on the bottom of the appliance casing.

8.1 Built-in appliances

• Only use the built-in appliances after you assemble the appliance into cor- rect built-in units and work surfaces that align to the standards.

8.2 Connection cable

• The appliance is supplied with the connection cable.

• Replace the damaged mains cable with a special cable (type H05BB-F Tmax 90°C; or higher). Speak to your local Service Centre.

8.3 To attach the seal.

• Clean the worktop in the area of the cut out section.

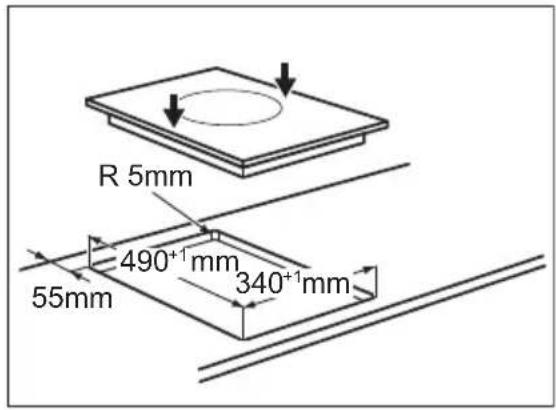

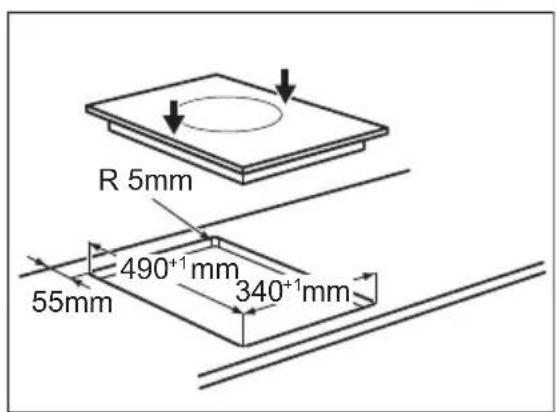

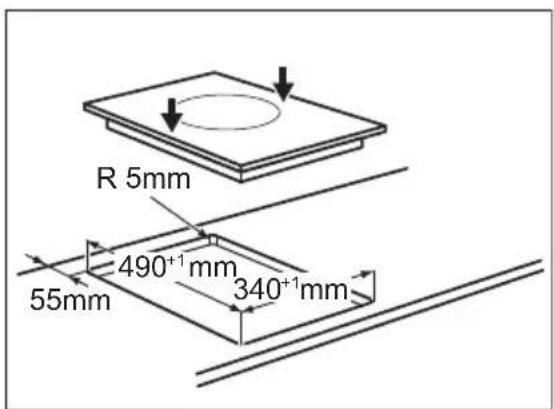

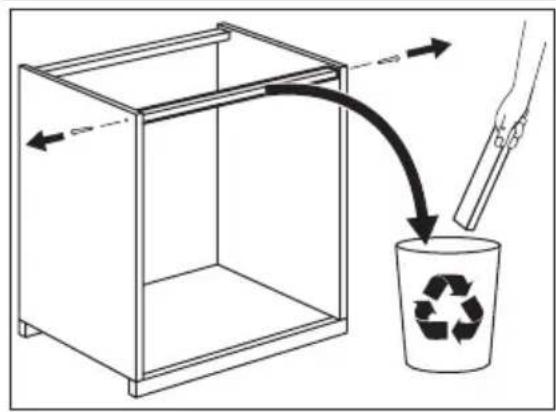

• Bond the seal stripe supplied on the lower edge of the appliance along the outer edge of the glass ceramic. Do not extend it. Let stay the cut ends in the middle of one side. When, you cut it to length (add some mm), push the two ends together. If, you use the accessory frame C- FRAME, first read the instruction sup- plied with the frame before you install the appliance. ENGLISH 318.4 Assembly min. 50mm min. 500mm min. 2mm

• Seal the gap between the worktop and glass ceramic with silicone.

• Put some soapy water on the silicone.

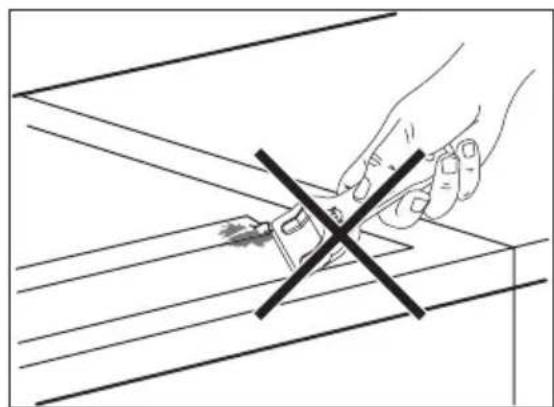

• Pull off the excess silicone with the scraper.

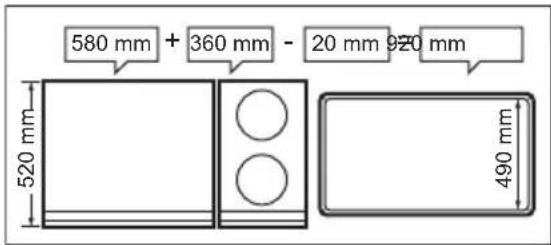

www.aeg.com8.5 The installation of more than one appliance Added parts:connection bar(s), heat re- sistant silicon, rubber shape, sealing strap. Only use special a heat - resistant silicon. 580 mm520 mm490 mm360 mm 20 mm 920 mm The worktop cut out Distance from the wall : minimum 50 mm Depth : 490 mm Width : sum widths of all the appliances to be built-in and subtract 20 mm (see also "Overview of all appliance widths" ) The installation of more than one appli- ance

Put down the dimension of the work- top cut out and saw it out.

Put the appliances one at time on some soft surface, a blanket for ex- ample, with the bottom side up.

Put the seal stripe around the lower edge of the appliance along the outer edge of the glass ceramic.

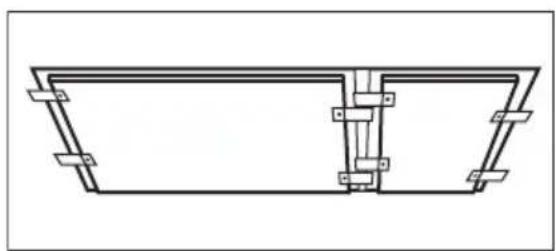

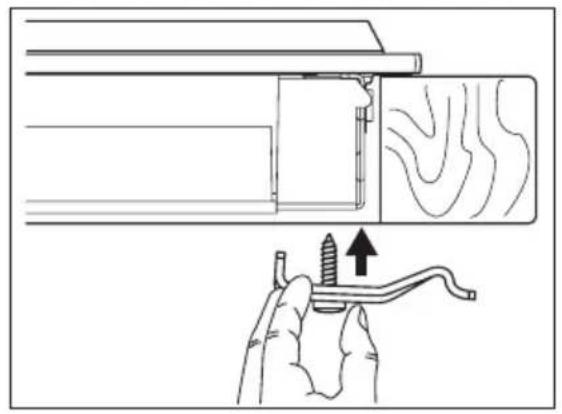

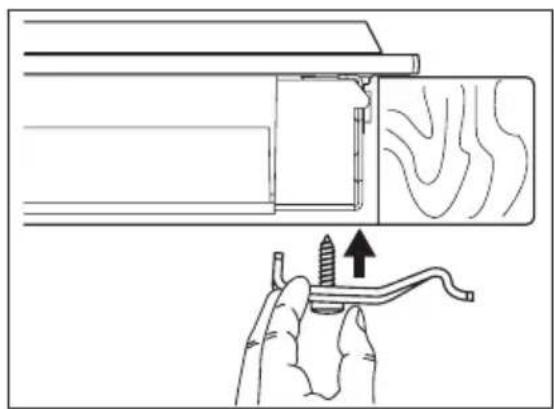

Loosely screw the fixing plates into the appropriate holes in the protec- tive casing.

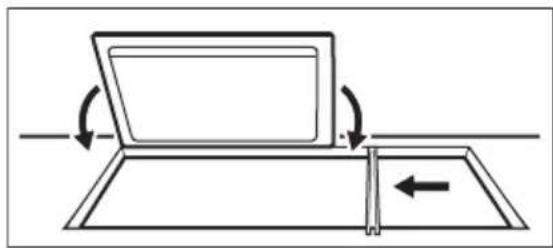

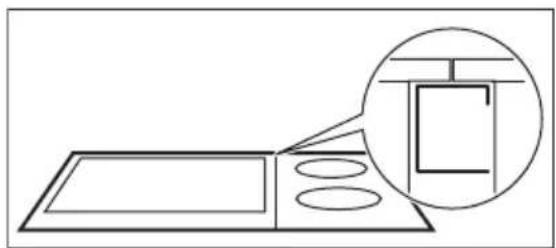

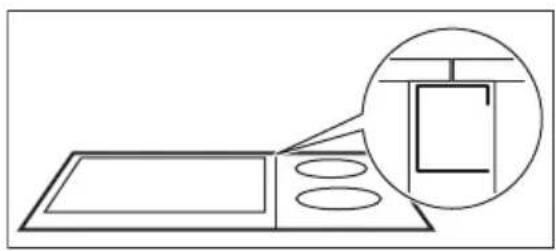

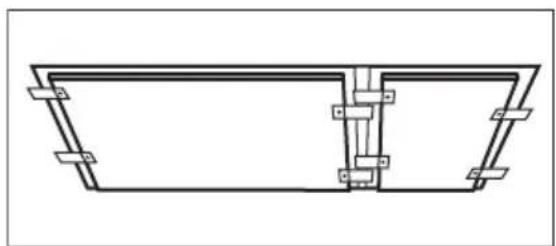

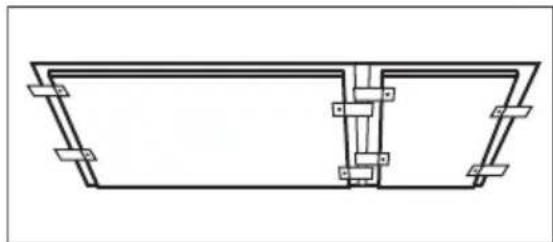

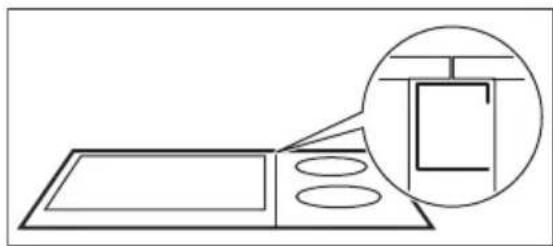

Put the first appliance in the work- top cut out. Put the connection bar in the worktop cut out and push up half of the width against the appli- ance.

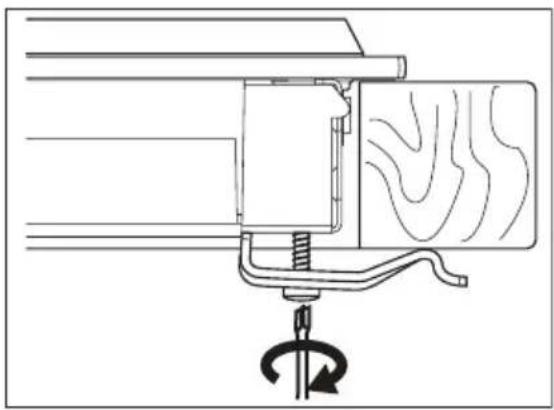

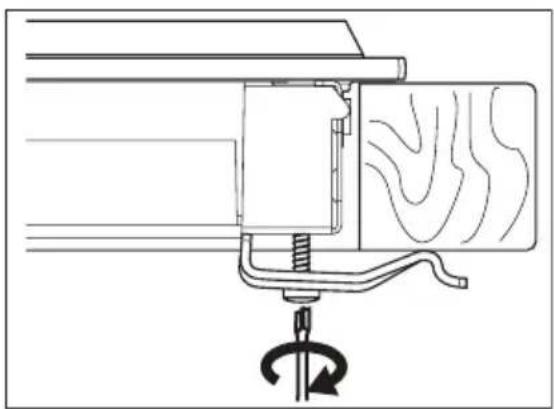

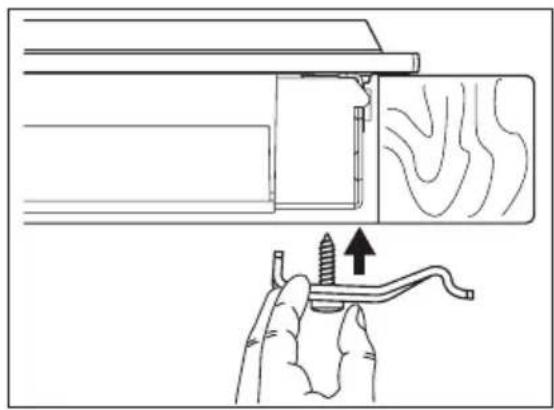

Loosely turn in fixing plates from below on the worktop and on the connection bar.

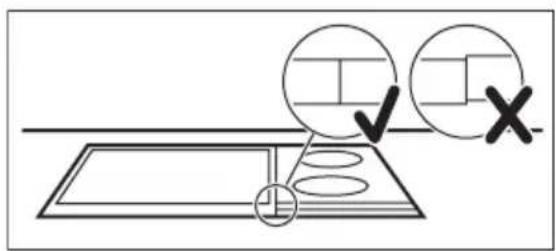

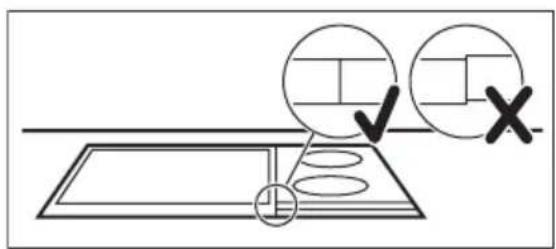

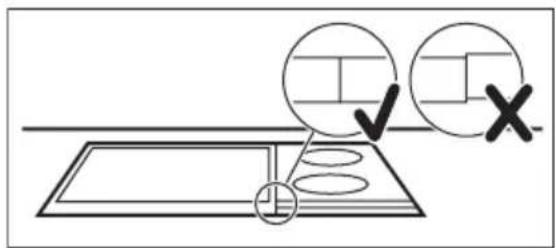

Put the subsequent appliance in the worktop cut out . Make sure that the front ends of the appliances are on the same level.

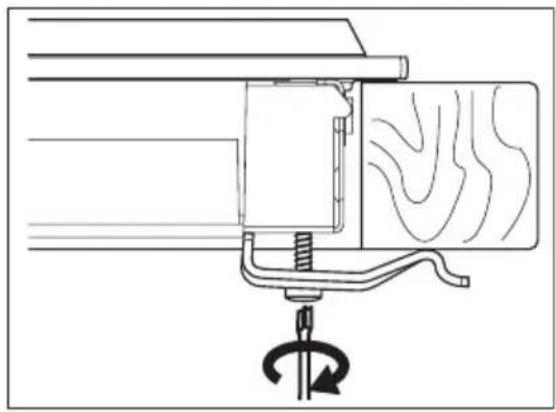

Tighten the fixing plate / retaining grip screws. ENGLISH 339. Seal the gap between the worktop and appliances and between appli- ances with silicone.

Put some soapy water on the silicon.

Press the rubber shape with some strength against the glass ceramic and move it slowly along the space.

Do not touch the silicon until it be- come hard, it can last about a day.

Carefully remove silicon that came out with a shaving blade.

Clean glass ceramic fully.

1800/3500 W 2800/3700 W 5 145

10. ENVIRONMENT CONCERNS

Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
