| Product type | Built-in extractor hood |
| Brand | Electrolux |
| Model | EFF90462OX |
| Power supply | 220-240 V / 50-60 Hz (according to rating plate) |
| Minimum installation distance | 50 cm (electric hob) / 65 cm (gas or mixed hob) |
| Suction speeds | 3 speeds (minimum, medium, maximum) |
| Lighting | LED, do not look directly |
| Grease filter | Dishwasher-safe or hand wash, monthly cleaning |
| Activated carbon filter | Not washable, replace every 4 months maximum |
| Recommended maintenance | Clean interior and exterior at least once a month |
| Safety | Disconnect before maintenance; do not flambé under the hood |
| Spare parts | Use only original parts, contact authorized service |
| Intended use | Extraction of cooking fumes and vapors for domestic use |
| Warranty | See general conditions, registration possible at www.electrolux.com |
| Environmental protection | Recycle the appliance at end of life through collection points |
Frequently Asked Questions - EFF90462OX ELECTROLUX
User questions about EFF90462OX ELECTROLUX
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Built-in oven in PDF format for free! Find your manual EFF90462OX - ELECTROLUX and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EFF90462OX by ELECTROLUX.
USER MANUAL EFF90462OX ELECTROLUX

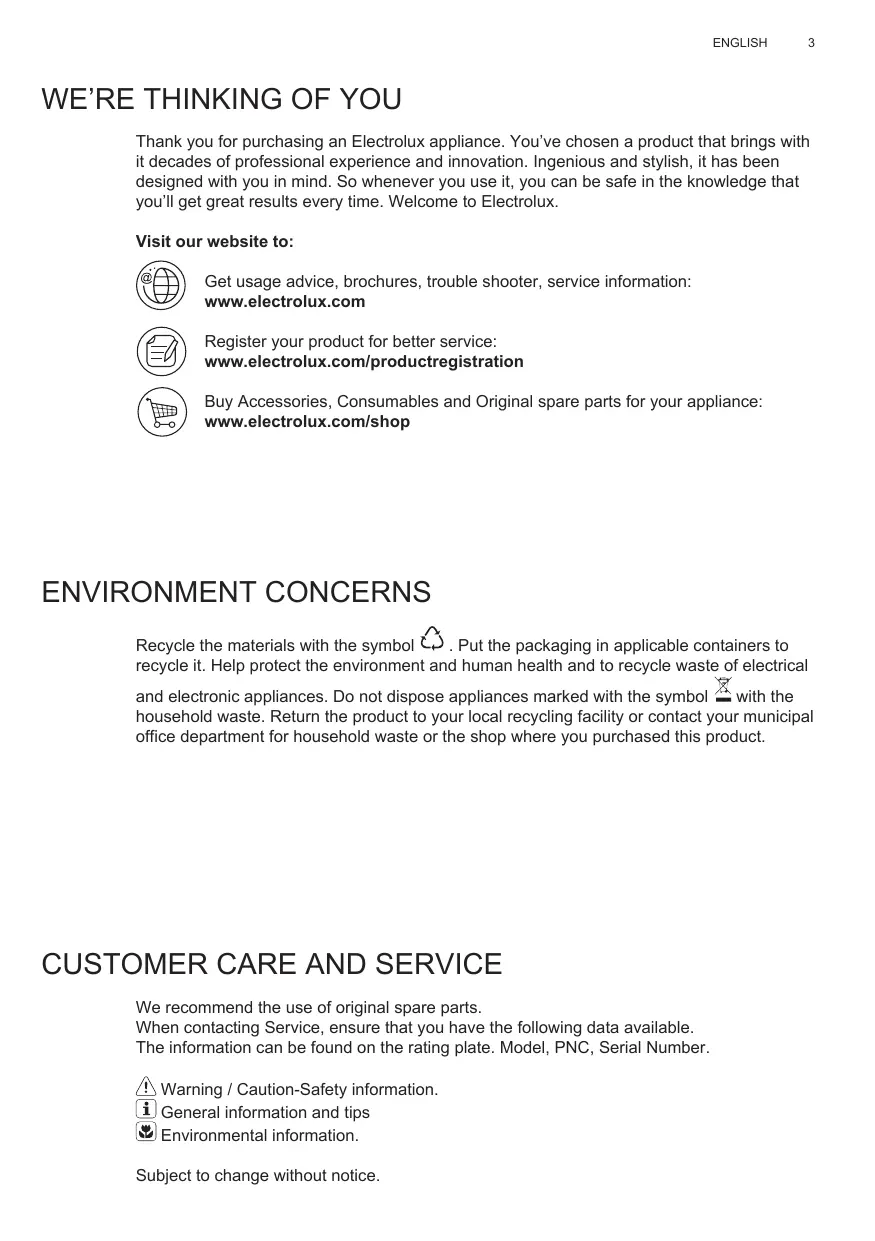

WE'RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time. Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
ENVIRONMENT CONCERNS
Recycle the materials with the symbol \(\mathcal{C}\). Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol \(\mathcal{C}\) with the household waste. Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution - Safety information.
General information and tips
Environmental information.
Subject to change without notice.
1. SAFETY INSTRUCTIONS
Caution! Closely follow the instructions set out in this manual. All responsibility for any eventual inconveniences, damages, or fires caused by not complying with the instructions in this manual is declined. The extractor hood has been designed exclusively for domestic use.
Caution! Do not connect the appliance to the mains until the installation is fully complete. Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the mains electrical supply.
Always wear work gloves during maintenance, installation, and lighting operations. The appliance is not intended for use by children or persons with impaired physical, sensory, or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. This appliance is designed to be operated by adults. Children should be monitored to ensure that they do not play with the appliance. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating! The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is installed must be sufficiently ventilated when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite.
Caution! Accessible parts of the hood may become hot when used with cooking appliances.
With regards to the technical and safety
measures to be adopted for fume discharging, it is important to closely follow the regulations provided by the local authorities. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
This must be completed in accordance with the maintenance instructions provided in this manual. Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. We will not accept any responsibility for any faults, damage, or fires caused to the appliance as a result of the non-observation of the instructions included in this manual.
Warning! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
2. USE
The hood serves to aspirate the fumes and vapors resulting from cooking. The attached installation manual indicates the version to be used depending on the model you have, the suction version with
external evacuation or filtering with internal recirculation
3. INSTALLATION
The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug, connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it is not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.
Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.
The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.
4. MAINTENANCE
ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.
Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.
The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!
Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions.
The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

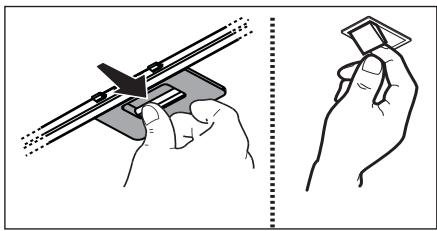

4.1 Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

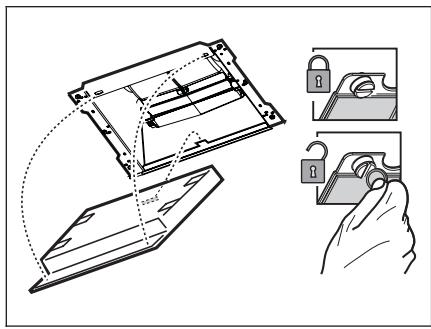

4.2 Non-washable activated charcoal filter - The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four months. The charcoal filter may NOT be washed or regenerated.
5. CONTROLS
The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights. Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking. The control switches are located on the unit's front panel:
- ON/OFF lighting
- OFF motors 3.-4.-5. Minimum suction power (3.), medium (4.), maximum (5.).
6. LIGHTING
The hood is equipped with a lighting system based on LED technology.
The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.
Caution! Do not look directly into the LED light.
To replace lights, contact authorised spare part center.
www.electrolux.com/productregistration
WE'RE THINKING OF YOU
www.electrolux.com/productregistration
WE'RE THINKING OF YOU
www.electrolux.com/productregistration
Here you can:
Find recommendations for use, operating instructions, troubleshooting, and service information.
www.electrolux.com
Register your product for better service: www.electrolux.com/productregistration
www.electrolux.com/productregistration
You can find them on the rating plate. Model, product number (PNC), serial number.
www.electrolux.com/productregistration
Buy original spare parts, materials, and accessories for your appliance:
www.electrolux.com/shop
ENVIRONMENTAL PROTECTION
Recycle materials with the symbol. Place packaging materials in appropriate containers for recycling.
www.electrolux.com/productregistration
To purchase spare parts and original accessories for your appliance:
www.electrolux.com/shop
ENVIRONMENT PROTECTION
To ensure safe operation, it is necessary to strictly follow the safety rules and regulations prescribed by the installation instructions.
It is recommended to carry out maintenance regularly, both internal and external (at least once a month, in any case, follow all instructions described in the manual).
Failure to follow the rules of maintenance and replacement of filters may cause a risk of damage.
Do not use or operate the appliance without properly installed lamps due to the possible risk of electric shock. The manufacturer is not responsible for any damage or injury caused by improper use, misuse, or failure to follow the instructions in this manual.
Warning! The absence of installation of the appliance and fastening parts in accordance with these instructions may lead to a risk of electric shock.
2. USE
The appliance is intended for boiling water and steam, which is formed during cooking.
The instructions provided indicate how you can use your
model - either as a hood with extraction or as a hood with recirculation.
3. INSTALLATION
The electric hob may not correspond to the characteristics indicated on the rating plate, which is located on the lower part of the appliance. If the hob is not supplied with a plug, connect the hob to the socket that complies with the existing standards and is located in an accessible place, so that it can be connected after installation. If the hob is not supplied with a plug (for connection to the electric hob), and the socket is not located in an accessible place, then after installation, a reliable two-pole switch should be installed, which ensures disconnection from the mains under overload conditions of category III, in full compliance with the installation rules.
!Warning! Before connecting the hob to the electric mains again, check the correctness of the work, so that the mains switch is installed correctly.
The distance from the lower part of the hob to the cabinet below must be at least 50 cm for electric hobs, and 65 cm for gas and combined hobs.
It is necessary to take into account the distances indicated in the installation instructions for the hob.
4. MAINTENANCE
!Warning! Before any cleaning or maintenance operation, disconnect the hob from the electric mains, turn off the switch or switch off the main switch.
The hob should be cleaned regularly, both externally and internally (at least as often as the filters are cleaned or replaced). For cleaning, use a special sponge, preferably with a non-abrasive liquid agent. Do not use abrasive agents or sharp materials.
DO NOT USE ALCOHOL!
! Warning! Failure to follow the cleaning instructions for the filters may lead to a risk of fire. Therefore, we recommend following the instructions provided.
The manufacturer declines all responsibility for any damage or injuries resulting from improper repair or failure to follow the above precautions.

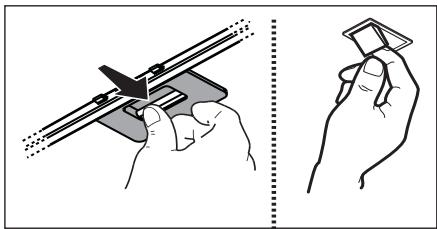

4.1 Grease filter
www.electrolux.com/productregistration
www.electrolux.com/productregistration
For the appliance, you can purchase accessories, consumables and original
spare parts:
www.electrolux.com/shop
ENVIRONMENTAL PROTECTION
www.electrolux.com/productregistration
www.electrolux.com/productregistration
www.electrolux.com/productregistration
Buy accessories, consumables and original spare parts for your appliance:
www.electrolux.com/shop
ENVIRONMENTAL CONCERNS
Recycle materials with the symbol. Dispose of the packaging in appropriate recycling containers.
Help protect the environment and human health and recycle waste from electrical and electronic
appliances. Do not dispose of appliances marked with the symbol with household waste.
Register your product for better service: www.electrolux.com/productregistration
Buy accessories, consumables and original spare parts for your appliance: www.electrolux.com/shop
ENVIRONMENTAL CONCERNS
Recycle materials with the symbol. Dispose of packaging in appropriate recycling containers.
www.electrolux.com/productregistration
For spare parts and original accessories for your appliance:
www.electrolux.com/shop
ENVIRONMENT PROTECTION
Recycle the materials with the symbol . Put the packaging in the relevant containers to recycle it.
Help protect the environment and human health, as well as to recycle waste of electrical and electronic appliances. Do not dispose
appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When you contact the Service department, make sure that you have the following information available.
The information can be found on the rating plate. Model, PNC (product number), Serial number.
Warning - Important safety information. General information and tips for environmental protection.
We reserve the right to make changes without prior notice.
1. SAFETY INSTRUCTIONS
Warning! Read the supplied instructions carefully. The manufacturer is not responsible for any possible damage or malfunction caused by failure to comply with the instructions in this manual. The vacuum cleaner is intended for household use only.
The appliance must be disconnected from the mains before cleaning, if it is not completely cooled down. Before cleaning and maintenance, the extractor must be disconnected from the mains, either by unplugging it or by switching off the main switch of the appliance.
For all installation and maintenance operations, use protective gloves.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Never use the extractor if the grille is not correctly mounted! The extractor must never be used as a worktop, unless this is specifically indicated. The room must have good ventilation when the extractor is used simultaneously with other appliances using gas or other fuels. The extracted air must not be discharged through a flue used for exhaust fumes from appliances burning gas or other fuels.
Strictly avoid open flames under the extractor. Using open flames is harmful for the filters and may cause fire, so it must absolutely be avoided.
Frying must be done under supervision, to avoid overheating of the oil.
Attention! Accessible parts may become hot when used with cooking appliances.
As far as the technical measures and safety measures are concerned, the regulations for the discharge of fumes must be followed.
Strictly follow the local regulations of the competent authorities. The extractor must be cleaned regularly, both inside and outside. When cleaning, always follow the instructions for maintenance, especially in the indicated points. Failure to follow the regulations for cleaning the extractor and for cleaning and replacing the filters involves a risk of fire. Do not use or leave the extractor without correctly mounted lamps! Danger of electric shock! No liability is accepted for any damage, fire, or injury caused to the appliance as a result of failure to follow these instructions.
Attention! Failure to install the fixing screws of the mechanism in accordance with these instructions may lead to electric shock.
2. USE
The extractor extracts fumes and vapors produced during cooking.
In the attached drawing, the version suitable for you is indicated depending on the purchased model, as well as the choice between the extractor version and the filter version.
Venting version and filtering version
3. INSTALLATION
The appliance must be connected and the connection must be checked, which is placed on the label with the data for the appliance, placed on the inner side. If it is equipped with a plug, connect the appliance to the contact, corresponding to the current standards, at an easily accessible place after installation. If it is not equipped with a plug (direct connection to the mains), or if the plug is not at an easily accessible place after installation, or if the appliance is connected to the mains with a fixed connection, install a double-pole switch in accordance with the standards, so as to ensure full disconnection from the mains under overvoltage category III, in accordance with the installation rules.
Attention! Before connecting the appliance to the mains, check that it functions properly. Check that the cable is installed as it should be.
The minimum distance between the surface on which the cooktop is placed and the lower part of the kitchen hood must be no less than 50 cm in the case of an electric cooker and no less than 65 cm in the case of a gas or combined cooker. If the instructions for the gas cooker specify a greater distance, that must be taken into account.
4. MAINTENANCE
Warning! Before carrying out any operation related to maintenance or cleaning, disconnect the hood from the mains, by removing the plug or switching off the main switch.
The hood must be cleaned frequently (or at least as often as the filters are cleaned), both inside and outside. Use a damp cloth and neutral liquid detergent. Avoid products containing abrasive substances. Warning! Never clean with a sponge!
Warning! Failure to comply with the standards for cleaning the hood and for replacing the filters may lead to fire risk.
Follow the instructions strictly! No responsibility is accepted for any damage to the motor or fire, caused by improper maintenance or failure to comply with the instructions.

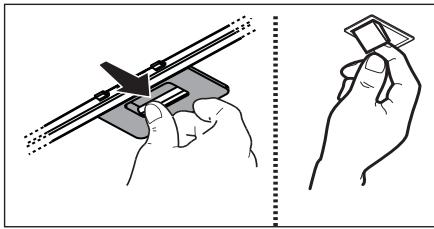

4.1 GREASE FILTERS
Clean them every month with neutral detergent. They can be washed in the dishwasher at low temperature and short washing cycle. If the grease filter is washed in the dishwasher, it may become discolored, but this in no way affects its filtering capacity.

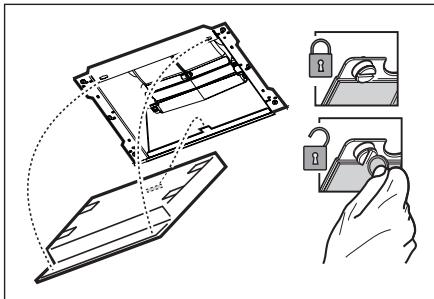

4.2 ACTIVATED CARBON FILTER
The activated carbon filter must be replaced periodically, depending on the type of cooking and how often the filter is cleaned. In any case, it is necessary to replace the activated carbon filter every four months or when the filter saturation indicator shows that it is necessary. It cannot be washed or reused.
5. CONTROLS
The hoods are equipped with a control panel with the possibility to adjust the suction speed and a switch for the lighting of the cooking surface. If during cooking a lot of smoke is produced, switch to maximum speed. It is recommended to turn on the hood 5 minutes before starting to cook and to leave it running for 15 minutes after turning off. The controls are located on the front panel:
- ON/OFF switch for the motor. 2. Motor OFF. 3.-4.-5. Suction power: minimum (3.), medium (4.), maximum (5.).
6. ILLUMINATION
The vacuum cleaner is equipped with an illumination system with LED light. The LED light guarantees optimal illumination, up to 10 times longer life than conventional lamps, and allows up to 90% energy savings.
Warning! Do not look directly at the LED light!
To replace the lamps, contact an authorized service center for spare parts.
Electrolux vacuum cleaners are designed for home use. Please read the instructions carefully before using the appliance and keep them for future reference. Use the appliance only as described in the manual. The manufacturer is not responsible for any damage caused by improper use. For any questions, contact the Electrolux service center.
Visit our website:
For troubleshooting, spare parts, and accessories: www.electrolux.com
To register your product for better service, visit: www.electrolux.com/productregistration
To purchase accessories, consumables, and original spare parts for your appliance: www.electrolux.com/shop
ENVIRONMENTAL CONCERNS
Recycle materials with the symbol. Recycle the packaging in the appropriate containers to help protect the environment. When disposing of an old appliance, do not dispose of it with household waste. Take it to your local recycling center or contact your municipal office. By recycling appliances, you help prevent potential negative consequences for the environment and human health.
CUSTOMER SERVICE
We are at your disposal for any questions.
The operator's manual must be kept with the equipment at all times.
The equipment is intended for professional use. Persons, including children, with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, must not use the equipment unless they have been given supervision or instruction concerning use of the equipment by a person responsible for their safety.
Safety / Warning - Danger of injury.
Do not use the equipment without reading the manual.
Contact the manufacturer for assistance.
The operator must be trained.
1. SAFETY INSTRUCTIONS
General safety instructions
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
WARNING! Keep children away.
Do not touch the power cord with wet hands. If the power cord or plug is damaged, unplug it immediately and do not use the equipment until it is repaired.
To avoid all risks, do not allow children or persons unfamiliar with these instructions to operate the equipment. Local regulations may restrict the age of the operator. Children must be supervised to ensure that they do not play with the equipment.
If the power cord is damaged, it must be replaced by the manufacturer.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Do not use the equipment if the cord is damaged. Do not attempt to repair the cord yourself.
When using the equipment, always wear protective gloves and safety glasses. Do not wear loose clothing or jewelry that could get caught in moving parts. Keep long hair tied back. Use the equipment only in well-ventilated areas.
Attention! Ici, il est important de respecter les consignes de sécurité lors de l'utilisation de l'appareil.
Instructions techniques et consignes de sécurité
Instructions techniques et consignes de sécurité : Veuillez respecter les consignes de sécurité et les avertissements indiqués dans ce manuel. L'utilisation de l'appareil avec des filtres ou des accessoires non conformes peut entraîner des dommages. Ne pas utiliser l'appareil avec des liquides inflammables ou des solvants. Nous déclinons toute responsabilité en cas de non-respect des consignes de ce manuel.
Attention! Ne pas immerger l'appareil dans l'eau ou tout autre liquide.
2. INSTALLATION
Pour l'installation, suivez les étapes ci-dessous. Assurez-vous que l'appareil est correctement installé et que les connexions sont sécurisées.
Vérifiez les connexions ou les filtres
3. UTILISATION
Avant la première utilisation, consultez les instructions techniques. Si l'appareil est endommagé, ne l'utilisez pas et contactez le service après-vente. Si l'appareil n'est pas endommagé, suivez les étapes d'installation et d'utilisation conformément aux instructions.
Attention! Assurez-vous que le câble d'alimentation est correctement branché avant de connecter l'appareil.
L'appareil doit être installé à une distance de 50 cm des murs ou obstacles, et de 65 cm pour les modèles avec compresseur.
Si l'appareil est installé dans un endroit où la température est élevée, faites attention.
4. ENTRETIEN TECHNIQUE
Attention! Avant toute opération de nettoyage ou d'entretien, débranchez l'appareil. Utilisez un chiffon doux et sec pour nettoyer l'extérieur. Ne pas utiliser de produits abrasifs.
NETTOYAGE
Eckepy! The filter can be used for cleaning the gas from mechanical impurities. Consult the manufacturer for advice.
When replacing, use only original spare parts or those recommended by the manufacturer. The filter must be installed in accordance with the instructions.
4.1 Filter installation
- The filter must be installed in a place protected from aggressive substances, moisture, or mechanical damage, at a temperature not exceeding the permissible limit. Mechanical damage to the filter is possible, but it must be replaced without fail.
4.2 Filter replacement
The replacement filter must be installed in accordance with the instructions for short or long installation. It is necessary to check the filter installation before starting the machine. Regardless of the condition, replace the cartridge every 4 months. The replacement filter must be disposed of properly.
5. CONTROL ELEMENTS
To ensure safe operation and proper installation, the control valve must be adjusted. When the concentration is increased, the filter must be replaced. We recommend consulting the manufacturer before using the filter. The control elements are located on the front panel:
- Adjusting the valve
- Motor speed: 3.-4.-5. Minimum speed (3.), medium (4.), maximum (5.).
6. LUBRICATION
The housing is made of aluminum alloy and is lubricated. The lubrication points are marked, and the oil level should be checked every 10 hours of operation. The lubrication ensures 90% of the electrical energy is saved.
Danger! Do not touch the hot surfaces.
To operate the lamps, contact the authorized dealer.
DO NOT USE ON HUMANS
Welcome to the world of Electrolux appliances. We trust that our professional expertise and innovation will serve you well. Our style and design are specially crafted for you. Now that you use it, you can be confident that you will get good results every time. Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put the packaging in applicable containers to recycle it.
Help protect the environment and human health and recycle waste of electrical and electronic appliances. Do not dispose of appliances marked with the
symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
CARE AND SERVICE FOR USERS
We recommend that you use original spare parts.
When contacting the Service, ensure that you have the following data available.
Information may be provided with the data. Model, product number, serial number.
Precaution / Warning - follow the information.
Operational information.
Information about the environment.
Possibility for change is reserved.
1. SAFETY INSTRUCTIONS
!Warning! Follow strictly the instructions given in this manual. We do not accept liability for damage, injury or fire caused by non-compliance with the instructions in this manual. The appliance is intended exclusively for household use.
!Warning! Do not use the appliance if the power cord or plug is damaged. Before cleaning or maintenance, disconnect the appliance from the mains by pulling the plug or by switching off the household circuit breaker.
For all installation and maintenance operations, use work gloves. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Never use the appliance if the filter is not properly installed!
The appliance must never be used as a support surface unless explicitly stated.
The room must be sufficiently ventilated when the cooker hood is used together with appliances that burn gas or other fuels.
The exhaust air must not be discharged into an active flue used for fumes from appliances burning gas or other fuels. Strictly forbidden is flambéing food under the hood. Using open flames is harmful to the filters and may cause fire risk; it must be avoided in all circumstances. Any frying must be done carefully to prevent overheating of the oil and ignition.
Warning! The accessible parts of the hood may become hot when used together with cooking appliances.
This refers to the technical and safety regulations for installation and use. It is important to follow the rules set by the competent authorities. The hood must be cleaned regularly both internally
and externally (at least once a month, or more often if necessary, following the maintenance instructions in this manual). Failure to follow the instructions in this manual regarding cleaning and filter replacement may lead to fire risk. Do not use or leave the hood without properly installed filters; there is a risk of electric shock. We do not accept liability for damage, injury or fire caused by non-compliance with the instructions in this manual.
Warning! Before installation, the appliance must be fixed in accordance with the general instructions to avoid electrical hazards.
2. USE
The appliance is intended for extraction of vapors and odors from cooking. The installation instructions indicate which version can be used for the model you have, depending on the type of external discharge of the extracted air.
Version with duct for circular air discharge.
3. INSTALLATION
The main air discharge must comply with the indications on the labels for the characteristics stated inside the appliance. If the appliance is equipped with a plug, connect it to the socket in accordance with the flow directions and position it in a suitable place before installation. If it is not equipped with a plug (direct connection to the electrical supply) or if the plug is not in a suitable place, before installation use a standardized plug that ensures complete disconnection of the electrical supply under conditions related to the network category III, in accordance with the installation instructions.
Warning! Before reconnecting the appliance to the electrical supply and checking its functionality, always verify that the power cable is correctly installed.
The minimum distance between the hob and the lower part of the hood for cooking appliances must not be less than 50 cm for electric cooking appliances and 65 cm for gas or combined cooking appliances. If the installation instructions for the hob specify a greater distance, you must comply with that.
4. MAINTENANCE
Warning! Before
Before any cleaning or maintenance operation, disconnect the appliance from the electrical supply by removing the plug or switching off the main switch.
The appliance must be cleaned regularly (at least with the same frequency as the maintenance of the filters for grease) both internally and externally. For cleaning, use a cloth dampened with neutral detergent. Do not use abrasive products. DO NOT USE
ALCOHOL! Warning! If
Failure to follow the instructions for cleaning the appliance and replacing the filters may lead to fire risk. It is recommended to follow the suggested instructions.
The manufacturer is not liable for any possible damage to the motor or fire caused by improper maintenance or failure to follow the instructions.
Metal filter for parts must be cleaned at least once a month with compressed air, especially when used in environments with high temperatures or in short intervals. With prolonged use, the metal filter for parts may lose its water-repellent properties, but its filtering characteristics do not change.
4.2 Filter with activated carbon that cannot be
The saturation of the carbon filter occurs after a longer or shorter period of operation, depending on the type of cooking and the condition of the filter. In any case, it is necessary to replace the filter at least every 4 months. It cannot be cleaned or reused.
5. CONTROL AND
The extractor is controlled with a command panel with a speed regulator for suction and a regulator for lighting, and the indicator lights from the panel.
Use the highest speed in case of high concentration of vapors in the kitchen. We recommend turning on the suction 5 minutes before starting to cook and leaving it to run about 15 minutes after finishing cooking.
The commands are located on the front panel of the device:
- ON/OFF light
- OFF MOTOR 3.-4.-5. Speed selection: minimum (3.), medium (4.), maximum (5.).
6. LIGHTING SYSTEM
The extractor is equipped with a lighting system based on LED technology.
LED bulbs guarantee optimal lighting, have a lifespan of about 10 times longer than traditional bulbs, and enable energy savings of up to 90%.
Warning! Do not look directly into the LED light.
For replacement of the bulbs, contact the authorized service center for spare parts.
www.electrolux.com/productregistration
Buy accessories, consumables and original spare parts for your appliance:
www.electrolux.com/shop
ENVIRONMENT PROTECTION
Recycle materials with the symbol. Place the packaging in the relevant recycling containers.
www.electrolux.com/productregistration
Buy accessories, consumables and original spare parts for your appliance:
www.electrolux.com/shop
ENVIRONMENT PROTECTION
Recycle materials with the symbol. Place the packaging in the relevant recycling containers.
Help protect the environment and human health as well as recycle waste from electrical and electronic appliances. Appliances marked
with the symbol Do not dispose of with household waste. Return the product to your local recycling facility or contact your municipal office.
1. SAFETY INSTRUCTIONS
Warning! Strictly follow the instructions in this manual. We disclaim any responsibility for possible damage, injury or fire caused by the appliance if it is not used in accordance with the instructions in this manual. This refrigerator is designed exclusively for household use.
Before using the appliance, make sure that the electrical connection is properly completed. For any type of intervention, or if the appliance is not working, contact the manufacturer or a qualified technician. Do not use the appliance without the electrical connection being properly made, or if the appliance is damaged or has a malfunction.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Always check that the appliance is not damaged. Never use the appliance without being properly installed! The appliance must never be used as a support for other objects or placed on top of other devices unless this is explicitly indicated. The room where the appliance is to be installed must have good ventilation when the appliance is used together with other appliances that use gas or other fuels. The exhaust air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. Strictly avoid cooking food on an open flame under the appliance. Using uncontrolled flames is harmful to the filters and may cause a fire, so it must be avoided in all cases. During operation, do not leave the appliance unattended.
Warning! The accessible parts may become hot when used with cooking appliances.
Electrolux 4y
www.electrolux.com
www.electrolux.com/productregistration
www.electrolux.com/shop
4 1
- WE'RE THINKING OF YOU
- VISIT OUR WEBSITE TO
- ENVIRONMENT CONCERNS
- CUSTOMER CARE AND SERVICE
- SAFETY INSTRUCTIONS
- USE
- INSTALLATION
- MAINTENANCE
- CONTROLS
- LIGHTING
- HERE YOU CAN
- ENVIRONMENTAL PROTECTION
- ENVIRONMENT PROTECTION
- GREASE FILTER
- ENVIRONMENTAL CONCERNS
- GREASE FILTERS
- ACTIVATED CARBON FILTER
- ILLUMINATION
- VISIT OUR WEBSITE
- CUSTOMER SERVICE
- GENERAL SAFETY INSTRUCTIONS
- WARNING! KEEP CHILDREN AWAY
- UTILISATION
- ENTRETIEN TECHNIQUE
- FILTER INSTALLATION
- FILTER REPLACEMENT
- CONTROL ELEMENTS
- LUBRICATION
- DO NOT USE ON HUMANS
- CARE AND SERVICE FOR USERS
- WARNING! BEFORE
- ALCOHOL! WARNING! IF
- FILTER WITH ACTIVATED CARBON THAT CANNOT BE
- CONTROL AND
- LIGHTING SYSTEM
Brand : ELECTROLUX
Model : EFF90462OX
Category : Built-in oven
