| Product type | Decorative range hood |
| Brand | FALMEC |
| Model | TAB |
| Power supply | 220-240 V ~ 50/60 Hz (depending on country) |
| Motor power | Not specified (refer to rating plate) |
| Lighting | High-efficiency LED spots (replaceable) |
| Number of speeds | 4 speeds + automatic cycle (SPRING and LYBRA models: 3 speeds) |
| Special functions | Timer 15 min, filter alarm, pollution detection (air quality sensor) |
| Evacuation type | Indoor recirculation (filtering) with charcoal-zeolite filters + E.ION ionization |
| Anti-grease metal filters | Washable (every 30 h of use); dishwasher-safe (55°C max) |
| Combined charcoal-zeolite filters | Regeneration in oven at 200°C every 18 months; replacement every 3 years |
| Ionizing tubes | Clean with ethyl alcohol every 18 months; replacement every 5 years |
| Minimum distance above cooking hob | 65 cm (can be reduced according to installation instructions) |
| Weight | Not specified (approximately 15-25 kg depending on version) |
| Material | Brushed stainless steel (external surfaces) |
| Installation | Reserved for qualified installer; wall or ceiling mounting depending on configuration |
| Safety standards | Compliant with CE standards; mandatory grounding; do not use without filter |
| Maintenance | External cleaning every 15 days with soft cloth and mild detergent; avoid abrasive products |
| Warranty | Manufacturer's warranty (see conditions); original spare parts required |
| Included accessories | Fixing kit, 'Magic Steel' cleaning cloths, filters (depending on version) |
Frequently Asked Questions - TAB FALMEC
User questions about TAB FALMEC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Air conditioner in PDF format for free! Find your manual TAB - FALMEC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TAB by FALMEC.
USER MANUAL TAB FALMEC
A = Ceiling bracket fastening holes B = Support wire pass-through holes C = Closing cover fastening holes
EN A = Wall bracket fastening holes B = Hood perpendicularity adjustment screws C = Safety screw hole

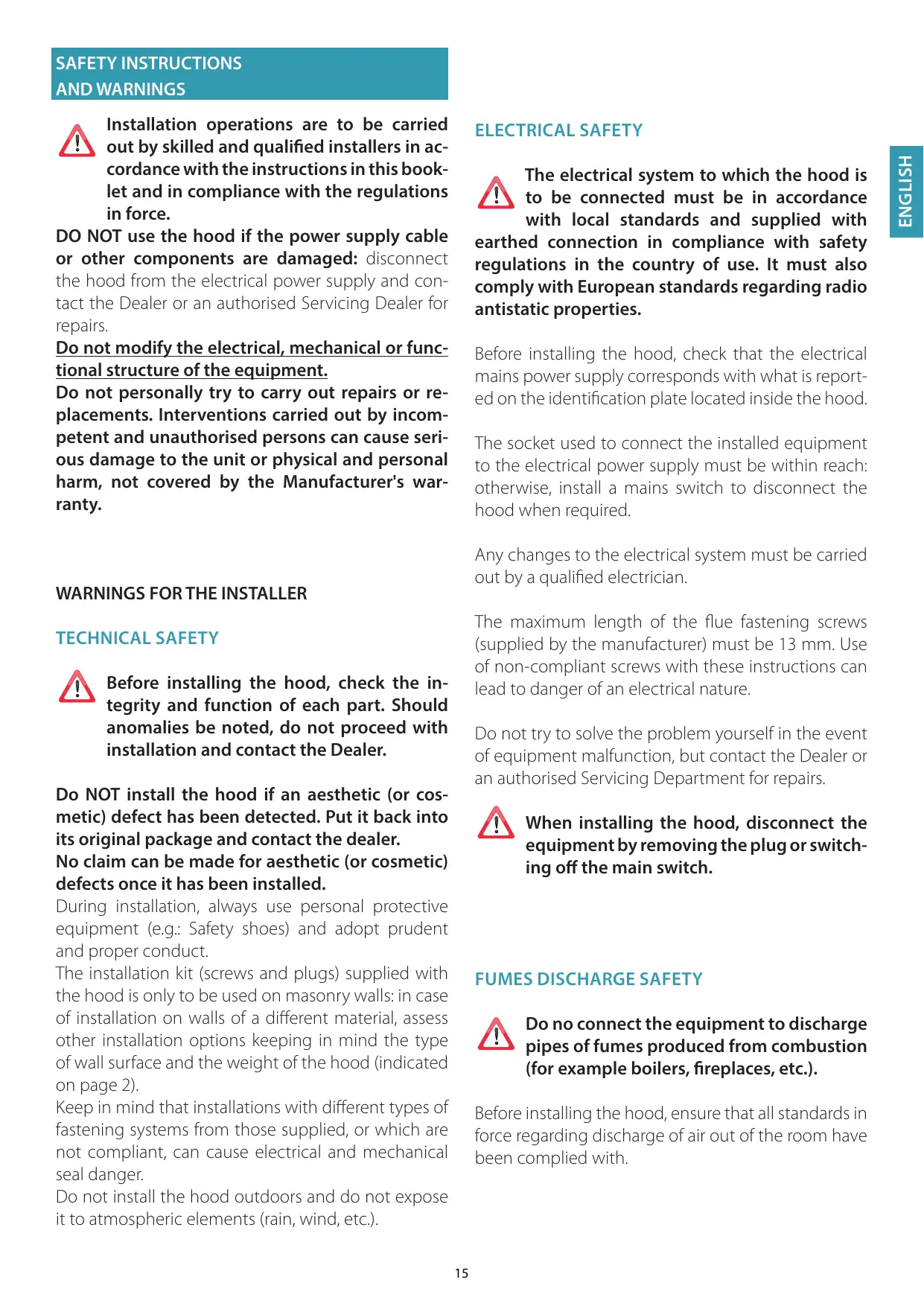

Installation operations are to be carried out by skilled and qualified installers in accordance with the instructions in this booklet and in compliance with the regulations in force.
DO NOT use the hood if the power supply cable or other components are damaged: disconnect the hood from the electrical power supply and contact the Dealer or an authorised Servicing Dealer for repairs.
Do not modify the electrical, mechanical or functional structure of the equipment.
Do not personally try to carry out repairs or replacements. Interventions carried out by incompetent and unauthorised persons can cause serious damage to the unit or physical and personal harm, not covered by the Manufacturer's warranty.
WARNING FOR THE INSTALLER
TECHNICAL SAFETY
Before installing the hood, check the integrity and function of each part. Should anomalies be noted, do not proceed with installation and contact the Dealer.
Do NOT install the hood if an aesthetic (or cosmetic) defect has been detected. Put it back into its original package and contact the dealer.
No claim can be made for aesthetic (or cosmetic) defects once it has been installed.
During installation, always use personal protective equipment (e.g.: Safety shoes) and adopt prudent and proper conduct.
The installation kit (screws and plugs) supplied with the hood is only to be used on masonry walls: in case of installation on walls of a different material, assess other installation options keeping in mind the type of wall surface and the weight of the hood (indicated on page 2).
Keep in mind that installations with different types of fastening systems from those supplied, or which are not compliant, can cause electrical and mechanical seal danger.
Do not install the hood outdoors and do not expose it to atmospheric elements (rain, wind, etc.).
ELECTRICAL SAFETY
The electrical system to which the hood is to be connected must be in accordance with local standards and supplied with a fixed connection in compliance with safety regulations in the country of use. It must also comply with European standards regarding radio static properties.
Before installing the hood, check that the electrical mains power supply corresponds with what is reported on the identification plate located inside the hood.
The socket used to connect the installed equipment to the electrical power supply must be within reach; otherwise, install a mains switch to disconnect the hood when required.
Any changes to the electrical system must be carried out by a qualified electrician.
The maximum length of the flue fastening screws (supplied by the manufacturer) must be 13 mm. Use of non-compliant screws with these instructions can lead to danger of an electrical nature.
Do not try to solve the problem yourself in the event of equipment malfunction, but contact the Dealer or an authorized Servicing Department for repairs.
When installing the hood, disconnect the equipment by removing the plug or switching off the main switch.
FUMES DISCHARGE SAFETY
Do not connect the equipment to discharge pipes of fumes produced from combustion (for example boilers, fireplaces, etc.).
Before installing the hood, ensure that all standards in force regarding discharge of air out of the room have been complied with.
These warnings have been drawn up for your personal safety and those of others.
You are therefore kindly asked to read the booklet carefully in its entirety before using or cleaning the equipment.
The Manufacturer declines all responsibility for any damage caused directly, or indirectly, to persons, things and pets as a consequence of failing to comply with the safety warnings indicated in this booklet.
It is imperative that this instructions booklet is kept together with the equipment for any future consultation.
If the equipment is sold or transferred to another person, make sure that the booklet is also supplied so that the new user can be made aware of the hood's operation and relative warnings.
After the stainless steel hood has been installed, it will need to be cleaned to remove any residues remaining from the protection adhesive as well as any grease and oil stains which, if not removed, can cause irreversible damage to the hood surface. To properly clean the unit, the manufacturer recommends using the supplied moist wipes, which are also available sold separately.
Insist on original spare parts.
INTENDED USE
The equipment is solely intended to be used to extract fumes generated from cooking food in non-professional domestic kitchens: any other use is improper. Improper use can cause damage to persons, things, pets and exempts the Manufacturer from any liability.
The equipment can be used by children over the age of 8 and by persons with reduced physical, sensory and mental abilities, or with no experience or knowledge, as long as they do so under supervision or after having received relative instructions regarding safe use of the equipment and understanding of the dangers connected to it.
Children are not to play with the equipment. Cleaning and maintenance by the user must not be carried out by children without supervision.
USE AND CLEANING WARNINGS
Before cleaning or carrying out maintenance operations, disconnect the equipment by removing the plug or switching off the main switch.
Do not use the hood with wet hands or bare feet.
Always check that all electrical parts (lights, extractor fan) are off when the equipment is not being used.
The maximum overall weight of any objects placed or hung (if applicable) on the hood must not exceed 1.5 kg.
Always supervise the cooking process during the use of deep-fryers: Overheated oil can catch fire.
Do not leave open, unattended flames under the hood.
Do not prepare food over an open flame under the hood.
Never use the hood without the metal anti-grease filters: in this case, grease and dirt will deposit in the equipment and compromise its operation.
Accessible parts of the hood can be hot when used at the same time as the cooking appliances.
Do not carry out any cleaning operations when parts of the hood are still hot.
There can be a risk of fire if cleaning is not carried out according to the instructions and products indicated in this booklet.
Disconnect the main switch when the equipment is not used for long periods of time.
If other appliances that use gas or other fuels are being used at the same time (boiler, stove, fireplaces, etc.), make sure the room where the fumes are discharged is well ventilated, in compliance with the local regulations.
Before installing the hood, carefully read the chapter 'SAFETY INSTRUCTIONS AND WARNINGS'.
TECHNICAL FEATURES
The technical specifications are exhibited on the labels located inside the hood.
POSITIONING
The minimum distance between the highest part of the cooking equipment and the lowest part of the hood is indicated in the installation instructions.
Generally, when the hood is placed over gas cookers, the distance must be at least 65 cm (25.6"). However, according to an interpretation of standard EN60335-2-31 dated 11-07-2002 of TC61 (sub-clause 7.12.1 meeting 15 agenda item 10.11), the minimum distance between the cooker and lower part of the hood can be reduced to the quota reported in the installation instructions.
Should the instructions for the gas cooker specify a greater distance, this must be taken into consideration.
Do not install the hood outdoors and do not expose it to outdoor environment (rain, wind, etc.).
ELECTRICAL CONNECTION
(only intended for qualified personnel)
Disconnect the equipment from electrical mains power supply before carrying out any operations on the hood.
Ensure that the wires inside the hood are not disconnected
or cut:
in the event of damage, contact your nearest Servicing Department.
Refer to qualified personnel for electrical connections.
Connection must be carried out in compliance with the provisions of law in force.
Before connecting the hood to the electrical mains power supply, check that:
- voltage supply corresponds with what is reported on the data plate located inside the hood;
- the electrical system is compliant and can withstand the load (see the technical specifications located inside the hood);
- the power supply plug and cable do not come into contact with temperatures exceeding 70°C ;
- the power supply system is effectively and properly connected to earth in compliance with regulations in force;
- the socket used to connect the hood is within reach.
In case of:
- For devices fitted with cables without a plug, the type of plug to use is a "standardised" one. The wires must be connected as follows: yellow-green for earthing, blue for neutral, and brown for the phase. The plug must be connected to an adequate safety socket.
- For fixed equipment not provided with a power supply cable and plug, or any other device that ensures disconnection from the electrical mains, with an opening gap of the contacts that enables total disconnection in overvoltage category III conditions.
Such disconnection devices must be provided in the mains power supply in compliance with installation regulations.
The yellow/green earth cable must not be cut off by the switch.
The manufacturer declines all responsibility for failure to comply with the safety regulations.
FUMES DISCHARGE
HOOD WITH INTERNAL RECIRCULATION (FILTERING)
In this version, air passes through zeolite-carbon filters and the E.ION ionising system to be purified and recycled in the environment. Make sure the zeolite-carbon filters are installed in the hood; otherwise, apply them as indicated in the assembly instructions.
ASSEMBLY INSTRUCTIONS
Only intended for qualified personnel.
The hood can be installed in various configurations.
The generic assembly steps apply to all installations; for each case, follow the specific steps provided for the actual installation.
OPERATION
WHEN TO TURN ON THE HOOD?
Switch on the hood at least one minute before starting to cook to direct fumes and vapours towards the suction surface.
After cooking, leave the hood operating until complete extraction of all vapours and odours. By means of the Timer function, it is possible to set auto switch-off function which will allow the hood to turn off automatically after 15 minutes of operation.
AIR QUALITY
Air quality is displayed by the colour of the leaf.
Green = excellent quality.
Yellow = pollutant agents found.
The higher the number of pollutant agents, the darker the yellow
colour.
WHICH SPEED IS TO BE SELECTED?
1st speed: maintains the circulation of clean air with low electricity consumption.
2nd speed: normal conditions of use.
3rd speed: presence of strong odours and vapours.
4th speed: rapid disposal of odours and vapours.
(*)Note: 4th speed not included on SPRING and LYBRA models.
WHEN SHOULD THE FILTERS BE WASHED OR REPLACED?
The metal filters must be cleaned every 30 hours of operation.
The zeolite-carbon filters must be reactivated every 18 months and replaced every 3 years.
For further details see the "MAINTENANCE" chapter.
| Motor ON/OFF Upon start-up, the speed is that stored at the previous operation. | ||
| + | Increase speed from 1 to 4 Speed 4 is only active for a few minutes, then speed 3 activates. NOTE: only 3 speeds for SPRING and LYBRA | The speeds are indicated by the LEDs on the keys: - + + Speed 1 - + + Speed 2 - + + Speed 3 - + + Speed 4 ("+" LED flashing) |
| - | Riduzione velocità da 4 a 1 | |
| A | Automatic cycle: the hood only activates when pollutant agents are found. The function deactivates if: - no pollutant agents are found for 3 hours; - The TIMER key (▲) is pressed again; - keys + and - are pressed | |
| Light on/off | ||
| TIMER (red LED flashing) Auto switch-off after 15 min. The function deactivates (red LED off) if: - The TIMER key (▲) is pressed again. - The ON/OFF key (▲) is pressed. FILTER ALARM (Red LED on with (▲) off) Anti-grease filter maintenance after approximately 30 hours of operation. Press (▲) for 3 seconds to reset. | ||
MAINTENANCE
Before cleaning or carrying out maintenance operations, disconnect the equipment by removing the plug or switching off the main switch.
Do not use detergents containing abrasive, acidic or corrosive substances or abrasive cloths.
Regular maintenance guarantees proper operation and performance over time.
Special attention is to be paid to the metal anti-grease filters: frequent cleaning of the filters and their supports ensures that no flammable grease is accumulated.
CLEANING OF EXTERNAL SURFACES
You are advised to clean the external surfaces of the hood at least once every 15 days to prevent oily substances and grease from sticking to them.
Alternatively and for all the other types of surfaces, it can be cleaned using a damp cloth, slightly moistened with mild, liquid detergent or denatured alcohol.
Finish off cleaning by rinsing well and drying with soft cloths.
Do not use too much water next to the push button control panel and lighting devices in order to prevent humidity from reaching electronic parts.
The glass panels can only be cleaned with specific, non-corrosive or non-abrasive detergents using a soft cloth.
The Manufacturer declines all responsibility for failure to comply with these instructions.
CLEANING OF INTERNAL SURFACES
It is forbidden to clean electrical parts, or parts related to the motor inside the hood, with liquids or solvents.
For the internal metal parts, see the previous paragraph.
METAL ANTI-GREASE FILTERS
It is advised to frequently wash the metal filters (at least once a month) leaving them to soak in boiling water and washing up liquid for 1 hour, taking care not to bend them.
Do not use corrosive, acid or alkaline detergents.
Rinse them well and wait for them to be completely dry before reassembling them.
They are dishwasher safe.

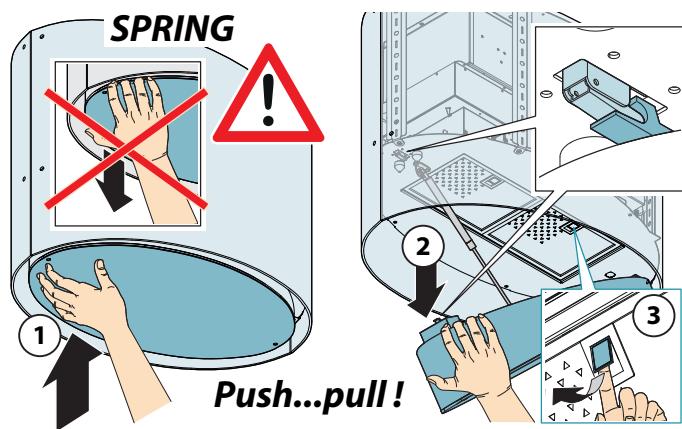

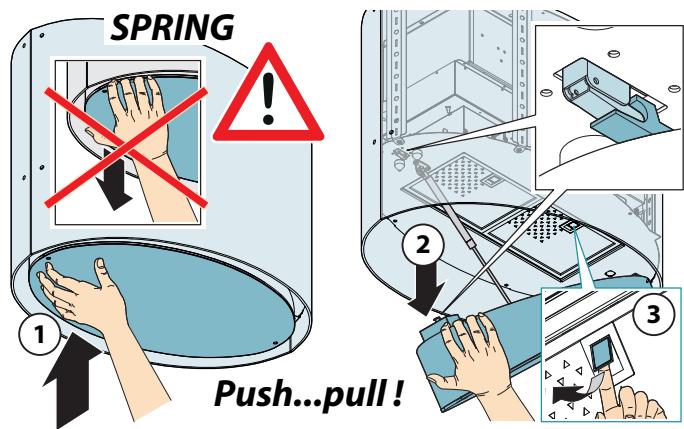

To extract and insert the metal anti-grease filters see the picture.

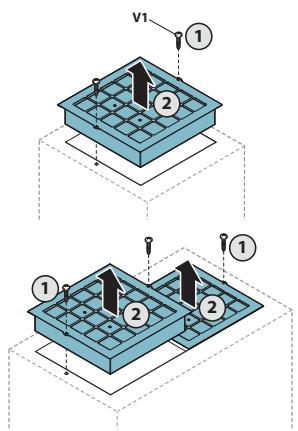

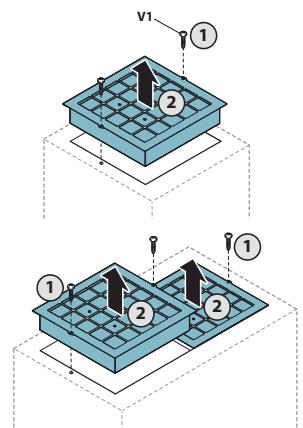

ZEOLITE-CARBON FILTERS

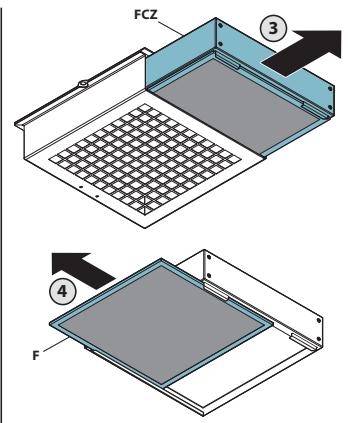

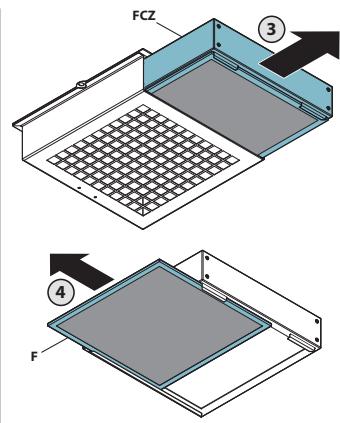

Before performing maintenance on zeolite-carbon filters (FCZ), remove the lower dust filter (F) and vacuum any deposited dust with a vacuum cleaner.
In normal use conditions, we recommend regenerating the zeolite-carbon filter every 18 months and replacing it after 3 years. Simply place it
in a domestic oven at a temperature of 200°C for approximately 2 hours to regenerate it.
Wait until the filter cools before reassembling it.
The zeolite-carbon filter and lower dust filter cannot be washed.
IONISING TUBES (qualified personnel only)
Cut off electricity before cleaning.
In normal use conditions, we recommend cleaning every 18 months and replacing them after 5 years.
Remove the tubes from their housing and separate the metallic lining, as described in the instructions.
Gently clean the tube with a cloth using ethyl alcohol. Clean the metallic lining with soap and water and thoroughly rinse it.
Make sure it is WELL DRIED (placing in a 50°C oven for 10 minutes is recommended) before putting it back on the tube.
LIGHTING
The range hood is equipped with high efficiency, low consumption LED spotlights with extremely long duration under normal use conditions. Should the LED spotlight need to be replaced, proceed as shown in the figure.

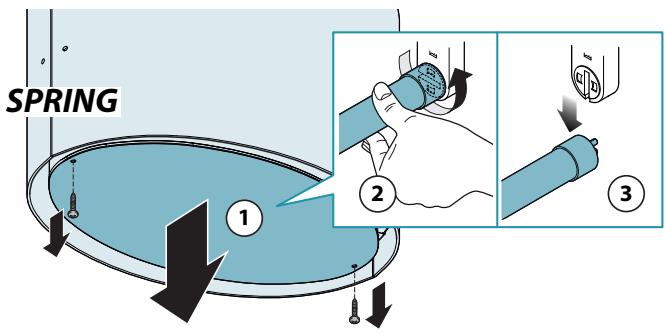

Fluorescent tubes mod. (T5 13W) SPRING only.
DISPOSAL AFTER END OF USEFUL LIFE
The crossed-out wheeled bin symbol on the appliance means that the product is WEEE, i.e. "Waste electrical and electronic equipment", accordingly it must not be disposed of with unsorted waste (i.e. with "mixed household waste"), but it must
be disposed of separately so that it can undergo specific operations for its re-use, or a specific treatment, to remove and safely dispose of any substances that may be harmful to the environment and remove the raw materials that can be recycled. Proper disposal of these products contributes to saving valuable resources and avoid potential negative effects on personal health and the environment, which may be caused by inappropriate disposal of waste.
You are kindly asked to contact your local authorities for further information regarding the designated waste collection points nearest to you. Penalties for improper disposal of such waste can be applied in compliance with national regulations.
INFORMATION ON DISPOSAL IN EUROPEAN UNION COUNTRIES
The EU WEEE Directive was implemented differently in each country, accordingly, if you wish to dispose of this appliance we suggest contacting your local authorities or dealer to find out what the correct method of disposal is.
INFORMATION ON DISPOSAL IN NON-EUROPEAN UNION COUNTRIES
The crossed-out wheeled bin symbol is only valid in the European Union: if you wish to dispose of this appliance in other countries, we suggest contacting your local authorities or dealer to find out what the correct method of disposal is.
WARNING!
The Manufacturer reserves the right to make changes to the equipment at any time and without prior notice. Printing, translation and reproduction, even partial, of this manual are bound by the Manufacturer's authorisation.
Technical information, graphic representations and specifications in this manual are for information purposes and cannot be divulged.
This manual is written in Italian. The Manufacturer is not responsible for any transcription or translation errors.
Fluorescent tubes mod. (T5 13W) subsection SPRING.
END-OF-LIFE DISPOSAL
SAFETY TECHNICAL MEASURES AND PRECAUTIONS
Installation must be carried out by qualified and experienced installers in accordance with the instructions in this manual and applicable regulatory requirements.
If the power cord or other parts are damaged, do not use the hood: disconnect the hood from the electrical power supply and contact the dealer or authorized technical support service for repair.
Do not make electrical, mechanical, or functional modifications to the appliance.
Do not attempt to replace parts or repair the appliance yourself. Work performed by unqualified or non-certified personnel may cause damage, including serious damage, to property and/or persons, for which the manufacturer's warranty does not apply.
PRECAUTIONS FOR THE INSTALLER
SAFETY TECHNICAL MEASURES
Before starting the installation of the hood, it is necessary to verify the integrity and correct functioning of all its parts.
If the packaging is damaged, do not install it, but contact the distributor.
If defects in the external appearance are found, do not install the hood; put it back in its original packaging and contact the distributor.
After installation is complete, no claims regarding defects in the external appearance will be accepted.
During installation, always use personal protective equipment (for example, protective gloves) and exercise care and caution.
The kit of fastening parts (screws, plugs) supplied with the hood can be used exclusively on solid walls. In case of installation on walls made of other materials, it is necessary to take into account other fastening systems, considering the strength of the wall and the weight of the hood (indicated on page 2).
It should be noted that installation using fastening systems different from those supplied or not suitable for the purpose may lead to danger of an electrical nature and mechanical unreliability.
Do not install the hood outdoors or in places where it would be exposed to atmospheric agents (rain, wind, etc.).
ELECTRICAL SAFETY
The electrical system to which the hood is connected must comply with current standards and must be grounded in accordance with the requirements of the standards in force in the country of use; it must also comply with the requirements of European standards regarding anti-interference devices.
Make sure that the voltage in the electrical system corresponds to that indicated on the factory plate, which is located inside the hood.
The socket used for connecting to the electrical power supply network must be easily accessible when the appliance is installed. Otherwise, it is necessary to provide a main switch in the accessible place to disconnect the hood in case of such need.
Before installing the hood, make sure that all requirements of the current standards for exhausting air outside the room have been met.
SAFETY PRECAUTIONS FOR THE USER
These precautions have been drawn up for your safety and also for the safety of other people, so please read them carefully before using or cleaning the appliance.
The manufacturer is not liable for any damage, direct or indirect, caused to persons, property or pets due to failure to comply with the instructions given in this manual.
Keep this manual with the instructions together with the equipment for the last user to refer to it when necessary.
In case of sale or transfer of the appliance to another person, make sure that the manual is also transferred so that the new user can familiarize themselves with the operation of the hood and the corresponding warnings.
Do not light open flames under the hood.
Do not cook food over an open flame under the hood. Never use the hood without metal anti-grease filters; in this case, grease and dirt will settle in the appliance, negatively affecting its operation.
Do not clean the hood when its parts are still hot. If cleaning is carried out not in accordance with the methods and using the means specified in these instructions, there is a possible risk of fire.
When the hood is not used for a long period of time, it is necessary to turn off the main switch.
In case of simultaneous use of other devices (boilers, stoves, fireplaces, etc.) operating on gas or other fuel, provide appropriate ventilation of the room in which the extraction of fumes is carried out, in accordance with current regulatory requirements.
INSTALLATION
section intended only for qualified personnel
Before starting the installation of the hood, carefully read the "SAFETY AND PRECAUTIONARY MEASURES" section.
TECHNICAL CHARACTERISTICS
The technical data of the motor are shown on the labels located inside the hood.
POSITIONING
The minimum distance between the highest part of the appliance and the cooking surface and the lowest part of the hood is indicated in the installation instructions.
Usually, when the hood is installed above a hob with a gas surface, this distance must be no less than 65 cm (25.6"). However, based on the interpretation of the EN60335-2-31 standard of 11-07-2002 by TC61 (subclause 7.12.1, section 15, subparagraph 10.11), the minimum distance between the gas surface and the lower part of the hood can be reduced to the mark indicated in the installation instructions.
According to the gas pipeline operating manual, if a greater distance is indicated, it must be taken into account.
Do not install the exhaust hood outside the premises or in places where it would be exposed to atmospheric phenomena (rain, wind, etc.).
ELECTRICAL CONNECTION
(section intended only for qualified personnel)
Before carrying out any operations on the hood, disconnect the appliance from the electrical power supply.
Check that there are no detached or
torn wires inside the hood:
otherwise, contact the nearest technical service.
The electrical connection must be carried out by qualified personnel.
The connection must be made in compliance with the requirements of current legislation.
The manufacturer bears no responsibility in case of failure to observe safety rules.
EXHAUST MODES
HOOD WITH INTERNAL RECIRCULATION (FILTERING)
In this version, the air passes through activated carbon filters and the E.ION ionization system for purification and return to the environment. Check that the activated carbon filters are installed on the hood; otherwise, install them as indicated in the installation instructions.
INSTALLATION INSTRUCTIONS
Only qualified personnel should install the hood.
The hood can be installed in various configurations.
General installation steps apply to all types of installation; it is also necessary to follow the specific steps indicated for each type of installation.
OPERATION
WHEN TO TURN ON THE EXTRACTOR HOOD?
The hood should be turned on at least a few minutes before starting to cook or to create an air flow to direct smoke and steam towards the suction surface.
After cooking, it is recommended to leave the hood on until all steam and odors have been completely removed. Using the timer function, you can set the hood to turn off automatically after 15 minutes of operation.
AIR QUALITY
The air quality is indicated by the color of the display.
Green = optimal quality.
Yellow = presence of pollutants.
The higher the concentration of pollutants, the more the color changes.
WHICH EXTRACTION SPEED?
Speed 1: maintains clean air with low energy consumption.
Speed 2: normal working conditions.
Speed III: for strong odors and large amounts of vapors.
Speed IV: rapid removal of odors and vapors.
(*)Note: Speed IV is not available on SPRING and LYBRA models.
The manufacturer is not responsible for failure to follow these instructions.
CLEANING OF INTERIOR SURFACES
It is forbidden to wash electrical components or the motor with liquids or solvents.
Cleaning of internal metal parts is described in the previous paragraph.
METAL GREASE FILTERS
It is recommended to wash the metal filters (at least once a month) by soaking them for about 1 hour in very hot water with dishwashing detergent, taking care not to bend the filters.
Do not use corrosive, acidic, or alkaline cleaning agents.
Rinse thoroughly and let them dry completely before reinstalling them.
Dishwashers are allowed, but they may cause discoloration of the filter material. To reduce these effects, use gentle programs with low temperatures (maximum 55°C).
Removal and installation of metal grease filters is described in the installation instructions.
CHARCOAL FILTERS
Before performing maintenance on charcoal filters (FCZ), remove the lower grease filter (F) and remove accumulated dust with a vacuum cleaner.
Under normal operating conditions, it is recommended to regenerate the charcoal filter every 18 months and replace it after 3 years. For regeneration, it is sufficient to place it in a conventional household oven at a temperature of 200°C for approximately 2 hours.
Before installing the filter, make sure it is dry.
The charcoal filter and the grease filter must not be washed.
MONITORING TUBES
(Only qualified personnel)
Remove the tube from the socket and disconnect the metal cover according to the instructions.
Carefully clean the tube with a cloth moistened with ethyl alcohol. Wash the metal cover with soapy water and rinse it thoroughly.
Before reinstalling it on the tube, check that it is completely dry (it is recommended to place it in an oven at 50°C for 10 minutes).
LIGHTING
The hood is equipped with high-efficiency LED lighting elements with low energy consumption and long service life under normal operating conditions.
If it is necessary to replace the light bulb, proceed as shown in the figure.
Fluorescent lamps (T5 13W) only SPRING.
DISPOSAL AT END OF SERVICE LIFE
The symbol of a crossed-out wheeled bin on the appliance indicates that it belongs to the category RAEE, that is, "waste from electrical and electronic equipment".
Therefore, it must not be thrown away with unsorted waste (i.e., with "household waste"), but must be handed in separately, so that the operations necessary for its recycling or special treatment can be carried out in order to dispose of possible harmful materials for the environment and recover raw materials that can be reused. Correct disposal of this product will help save valuable resources and avoid potentially negative effects on human health and the environment, which could occur as a result of improper disposal.
Please contact local authorities for more detailed information about the nearest waste collection point. In accordance with state legislation, sanctions may be imposed in case of improper disposal of these wastes.
Information about disposal in the countries of the European Union.
The European Union Directive on electrical and electronic equipment (RAEE) has been adopted differently in each country, so if you wish to dispose of this appliance, we recommend contacting local authorities or your distributor for information on correct disposal.
Information about disposal in countries outside the European Union.
The symbol of the crossed-out waste bin is valid only in the countries of the European Union. If you wish to dispose of this appliance in other countries, we recommend contacting local authorities or your distributor for information on correct disposal.
WARNING!
The manufacturer reserves the right to make changes to the appliance at any time without prior notice. Reading, reproduction, including partial, of this manual is possible only after obtaining prior written permission from the manufacturer.
Technical information, graphic images, and specifications provided in this manual are for orientation only and are not subject to disclosure.
This manual was written in Italian; the manufacturer is not responsible for possible errors or translation mistakes.
ZEOLITE AND WOOL FILTERS
SAFETY INSTRUCTIONS AND WARNINGS
HOOD WITH INTERNAL RECIRCULATION (FILTERING)
TECHNICAL SPECIFICATIONS
- WARNING FOR THE INSTALLER
- TECHNICAL SAFETY
- ELECTRICAL SAFETY
- FUMES DISCHARGE SAFETY
- INTENDED USE
- USE AND CLEANING WARNINGS
- TECHNICAL FEATURES
- POSITIONING
- THE MINIMUM DISTANCE BETWEEN THE HIGHEST PART OF THE COOKING EQUIPMENT AND THE LOWEST PART OF THE HOOD IS INDICATED IN THE INSTALLATION INSTRUCTIONS
- ELECTRICAL CONNECTION
- OR CUT
- IN CASE OF
- FUMES DISCHARGE
- HOOD WITH INTERNAL RECIRCULATION (FILTERING)
- ASSEMBLY INSTRUCTIONS
- OPERATION
- WHEN TO TURN ON THE HOOD
- AIR QUALITY
- WHICH SPEED IS TO BE SELECTED
- WHEN SHOULD THE FILTERS BE WASHED OR REPLACED
- MAINTENANCE
- CLEANING OF EXTERNAL SURFACES
- CLEANING OF INTERNAL SURFACES
- METAL ANTI-GREASE FILTERS
- ZEOLITE-CARBON FILTERS
- IONISING TUBES (QUALIFIED PERSONNEL ONLY)
- LIGHTING
- DISPOSAL AFTER END OF USEFUL LIFE
- INFORMATION ON DISPOSAL IN EUROPEAN UNION COUNTRIES
- INFORMATION ON DISPOSAL IN NON-EUROPEAN UNION COUNTRIES
- WARNING
- END-OF-LIFE DISPOSAL
- SAFETY TECHNICAL MEASURES AND PRECAUTIONS
- PRECAUTIONS FOR THE INSTALLER
- SAFETY TECHNICAL MEASURES
- SAFETY PRECAUTIONS FOR THE USER
- INSTALLATION
- SECTION INTENDED ONLY FOR QUALIFIED PERSONNEL
- TECHNICAL CHARACTERISTICS
- THE MINIMUM DISTANCE BETWEEN THE HIGHEST PART OF THE APPLIANCE AND THE COOKING SURFACE AND THE LOWEST PART OF THE HOOD IS INDICATED IN THE INSTALLATION INSTRUCTIONS
- TORN WIRES INSIDE THE HOOD
- THE CONNECTION MUST BE MADE IN COMPLIANCE WITH THE REQUIREMENTS OF CURRENT LEGISLATION
- EXHAUST MODES
- INSTALLATION INSTRUCTIONS
- WHEN TO TURN ON THE EXTRACTOR HOOD
- WHICH EXTRACTION SPEED
- (*)NOTE: SPEED IV IS NOT AVAILABLE ON SPRING AND LYBRA MODELS
- CLEANING OF INTERIOR SURFACES
- METAL GREASE FILTERS
- CHARCOAL FILTERS
- MONITORING TUBES
- (ONLY QUALIFIED PERSONNEL)
- DISPOSAL AT END OF SERVICE LIFE
- INFORMATION ABOUT DISPOSAL IN THE COUNTRIES OF THE EUROPEAN UNION
- INFORMATION ABOUT DISPOSAL IN COUNTRIES OUTSIDE THE EUROPEAN UNION
- ZEOLITE AND WOOL FILTERS
- SAFETY INSTRUCTIONS AND WARNINGS
- TECHNICAL SPECIFICATIONS
Brand : FALMEC
Model : TAB
Category : Air conditioner
