USER MANUAL EH-NA66 PANASONIC
Operating Instructions

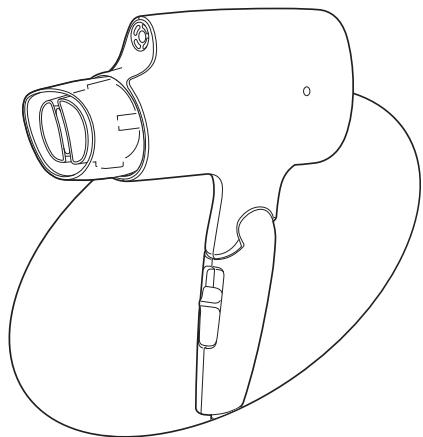

(Household) Hair Dryer
Model No. EH-NA27
English 3
Espanol. 15
Français 27
nanoe
2
Panasonic®
451663

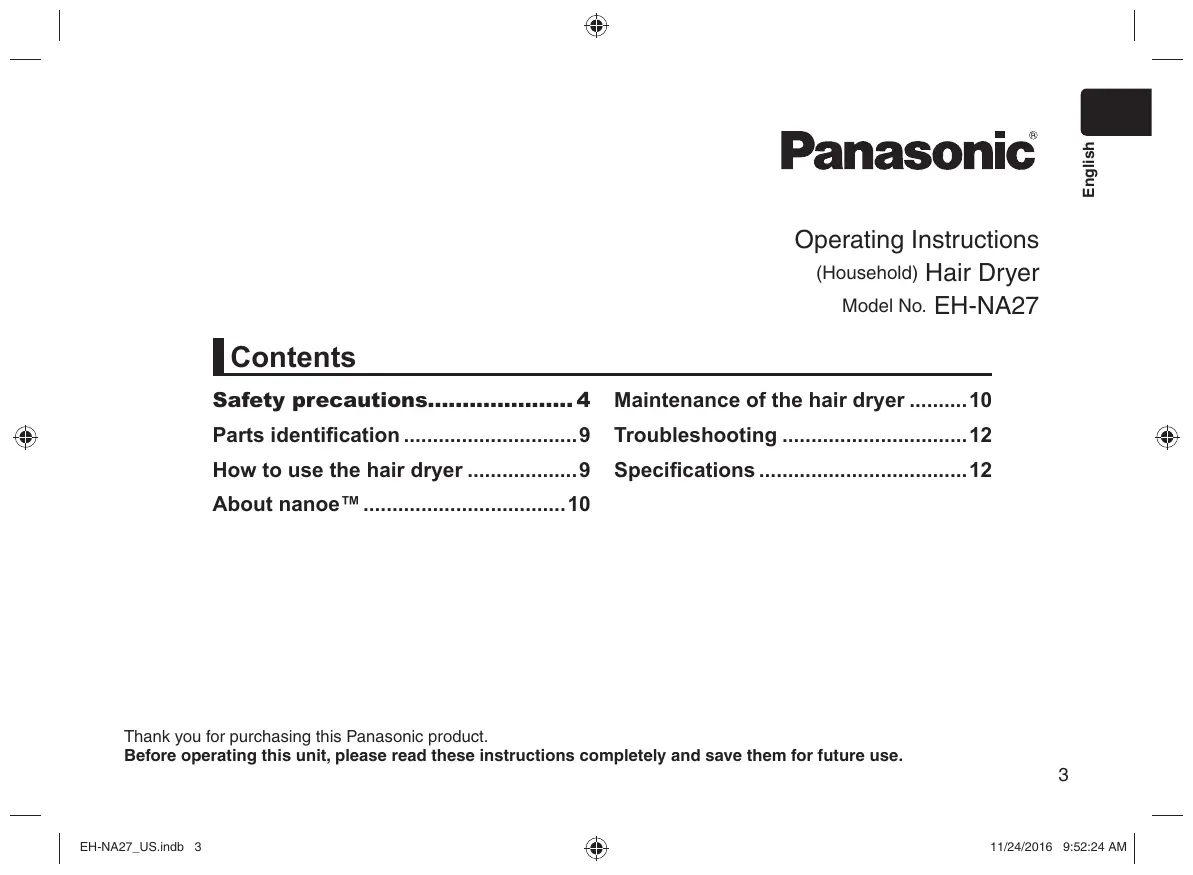

Operating Instructions
(Household) Hair Dryer
Model No. EH-NA27
Contents
Safety precautions. 4 Maintenance of the hair dryer .10
Parts identification. 9 Troubleshooting 12
How to use the hair dryer 9 Specifications 12
About nanoeTM 10
Thank you for purchasing this Panasonic product.
Before operating this unit, please read these instructions completely and save them for future use.
4s16b3
nano™ is a trademark of Panasonic Corporati
A nano ^TM is a nano-sized ion particle coated with water particles.
Safety precautions
To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always observe the following safety precautions.
Explanation of symbols
The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.
DANGER
Denotes a potential hazard that will result in serious injury or death.
WARNING
Denotes a potential hazard that could result in serious injury or death.
CAUTION
Denotes a hazard that could result in minor injury or property damage.
The following symbols are used to classify and describe the type of instructions to be observed.
This symbol is used to alert users to a specific operating procedure that must not be performed.
This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, especially when children are present, basic safety precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING
KEEP AWAY FROM WATER
DANGER
As with most electrical appliances, electrical parts are electrically live even when the switch is off.
To reduce the risk of death by electric shock:
- Always "unplug" it immediately after using.
- Do not use while bathing.
- Do not place or store this appliance where it can fall or be pulled into a tub or sink.
- Do not place in or drop into water or other liquid.
- If an appliance falls into water, "unplug it" immediately. Do not reach into the water.
WARNING
To reduce the risk of burns, electrocution, fire, or injury to persons:
- An appliance should never be left unattended when plugged in.
-
Close supervision is necessary when this appliance is used by, on, or near children or individuals with certain disabilities.
-
Use this appliance only for its intended use as described in this manual.
Do not use attachments not recommended by the manufacturer.
- Never operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped into water. Return the appliance to a service center for examination and repair.
- Keep the cord away from heated surfaces. Do not wrap the cord around the appliance.
- Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch, where the air openings may be blocked.
Keep the air openings free of lint, hair, and the like.
- Never use while sleeping.
- Never drop or insert any object into any opening.
- Do not use outdoors or operate where aerosol(spray) products are being used or where oxygen is being administered.
10.Do not use an extension cord with this appliance.
11. Do not direct hot air toward eyes or other heat sensitive areas.
12. Attachments may be hot during use. Allow them to cool before handling.
13.Do not place appliance on any surface while it is operating.
14. While using the appliance, keep your hair away from the air inlets.
15.Do not use with voltage converter.
16. Do not use in countries with 220/240 volt electrical systems (use only with 120 volt electrical systems).
SAVE THESE INSTRUCTIONS
WARNING
Do not store within the reach of children or infants. Do not let them use it.
- Doing so may cause burn, electric shock, or injury.
Never modify, disassemble, or repair.
- Doing so may cause ignition or injury due to abnormal operation.
Contact an authorized service center for repair.
Do not damage or modify, or forcefully bend, pull, or twist the cord.
Also, do not place anything heavy on or pinch the cord.
- Doing so may cause electric shock or fire due to a short circuit.
Do not use with the cord bundled.
- Doing so may cause fire or electric shock.
Do not wrap the cord around the main body when storing.
- Doing so may cause the wire in the cord to break with the load, and may cause electric shock or fire due to a short circuit.
Do not use when the plug or cord is damaged or hot.
- Doing so may cause burn, electric shock, or fire due to a short circuit.
us6b
WARNING
Never use the appliance if the plug fits loosely in a household outlet.
- Doing so may cause burn, electric shock, or fire due to a short circuit.
Do not connect or disconnect the plug to a household outlet with a wet hand.
- Doing so may cause electric shock or injury.
Do not use the appliance with a wet hand.
- Doing so may cause electric shock or fire due to a short circuit.
Do not leave the area with the power switch left on.
- Doing so may cause fire.
Do not store the appliance in a bathroom or location with high humidity. Also, do not place in a location where water may spill (such as top of a vanity).
- Doing so may cause electric shock or fire.
Do not block, or insert hair pins or other foreign objects into the air inlet, air outlet, or nanoe™ outlet.
- Doing so may cause fire, electric shock, or burn.
Do not use in proximity of flammable materials (such as alcohol, benzine, thinner, spray, hair care product, nail polish remover).
- Doing so may cause an explosion or fire.
This appliance is not designed for commercial use, and is not intended for use without appropriate maintenance.
- Doing so may cause burn or fire due to a continuous load or overload.
Do not immerse the appliance in water.
Do not use the appliance near water.
Do not use the appliance near bathtubs, showers, basins or other vessels containing water.
- Doing so may cause electric shock or fire.
Immediately stop using and remove the plug if there is an abnormality or malfunction.
- Failure to do so may cause fire, electric shock, or injury.
Air is not emitted - Unit stops sporadically
- Interior becomes red hot and smoke is emitted
- Immediately request inspection or repair at an authorized service center.
Directly plug this appliance to a household outlet: do not use with an extension cord.
Fully insert the plug.
Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the appliance.
- Failure to do so may cause fire or electric shock.
When you see sparks around the air outlet while
using the hot air setting, stop use and remove the lint on the air outlet and air inlet.
- Failure to do so may cause burn or fire.
Always turn OFF the power switch and disconnect the plug from the household outlet after use.
- Failure to do so may cause fire or burn.
WARNING
Disconnect the plug by holding onto it instead of pulling on the cord.
- Failure to do so may cause the wire in the cord to break, and may cause burn, electric shock, or fire due to a short circuit.
Regularly clean the plug to prevent dust from accumulating.
- Failure to do so may cause fire due to insulation failure caused by humidity. Disconnect the plug and wipe with a dry cloth.
When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.
- Failure to do so may cause an accident or injury.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Failure to do so may cause an accident or injury.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
- Failure to do so may cause an accident or injury.
CAUTION
Do not store the cord in a twisted state.
- Doing so may cause the wire in the cord to break with the load, and may cause electric shock or fire due to a short circuit.
Do not drop or subject to shock.
- Doing so may cause electric shock or ignition.
Do not use with the air inlet damaged.
- Your hair may get tangled in the air inlet, which could damage the hair.
Do not touch the air outlet, quick-dry nozzle, which will become very hot.
- Doing so may cause burn.
Do not use on infants.
- Doing so may cause burn.
When unfolding or folding the handle, do not touch the shaded area as shown in figures below.
- Doing so may cause finger injury.
usu
CAUTION
Please keep a distance of over 3cm (1-3/16") between the air outlet and your hair.
- Failure to do so may result in your hair being burned.
Be careful about where you point the appliance, and be sure to keep your hair at
least 10cm (3-15/16") away from the air inlet.
- Your hair may get tangled in the air inlet, which could damage the hair.
Only use for drying or styling human hair. (Do not use on pets, or to dry clothing, shoes, etc.)
- Failure to do so may cause fire or burn.
OPERATING INSTRUCTIONS
This product is intended for household use only.
This appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug will fit in a polarized outlet only one way. If the plug cannot be inserted fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
This appliance is also provided with an ALCI protective device that may make the appliance inoperable under some abnormal conditions (such as immersion of the appliance). If the appliance becomes inoperable, return the appliance to a service center for examination and repair. Every time using the appliance, check the safety plug to verify it is in proper working order. Plug the appliance in an electrical outlet and press the test button. The hair dryer should stop immediately. To resume operation, press the reset button.
This hair dryer is equipped with an automatic overheating protective device. If the hair dryer overheats, it will switch to cool air mode. Switch off the hair dryer and unplug it from the household outlet. Allow it to cool down for a few minutes before using it again. Check that no dust, hair etc. is in the air inlets and outlets before switching it on again.

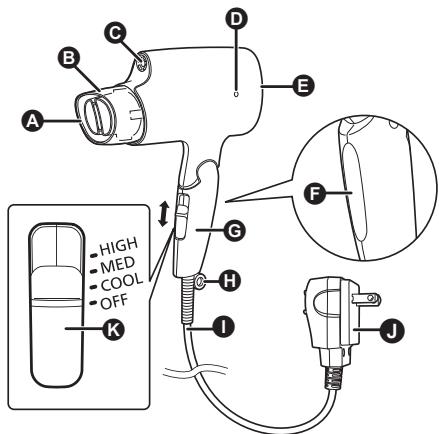

Parts identification
Air outlet
B Quick-dry nozzle
nanoeTM outlet
nanoetm lamp
Air inlet
F nanoeTM charge panel
G Handle
Ring for hanging
Cord
Plug
K Power switch
HIGH: Strong hot airflow
MED: Gentle hot airflow
COOL: Cool airflow
OFF: Off
Quick-dry nozzle
For drying hair quickly
Attach the quick-dry nozzle so this air outlet is vertical.
How to use the hair dryer
Before using the hair dryer, confirm that the power switch is at position "OFF", then plug into a household outlet and turn on the power switch.
2 Select the intensity of the airflow with the power switch, and then dry your hair.
3 Set the power switch to position "OFF", and then remove the plug from the household outlet.
Notes
- Drops of water may blow out of the nanoe™ outlet during use, but this is not a malfunction.
- A humming noise may come out of the nanoe™ outlet, but this is the sound of nanoe™ being discharged and is not a malfunction.
- You may notice a characteristic odor when using this hair dryer. This is not harmful to the human body.
- The effects of nanoe™ might not be felt by the following people. People with crimpy hair, strong curly hair, very smooth hair, short hair, or who have had a hair straightening perm in the last three or four months.
About nanoeTM
What is nanoeTM?
(nanoe™ generation method: High-voltage discharge)
nanoe™ is water-wrapped particulate ion, generated by applying high voltage to split water. Its diameter is smaller than 1/100 of steam, and it cannot be seen with the naked eye.
Since nanoe™ is generated by collecting water in the air, it may be difficult to generate in certain cases depending on the environment.
(It is harder to collect water in the air when it is cold and humidity is low.)
How nanoe™ works
Generally hair has properties which make it easy to become positively charged with electricity. These properties attract strongly negatively charged nanoe™ which penetrates the hair with moisture. Furthermore, they make the hair slightly acidic, tighten cuticles and keep your hair strong, elastic and healthy.
nanoeTM charge panel
When nanoe™ continues to strike hair, hair becomes negatively charged. As a result, the nanoe™ and negatively charged hair repel each other, making it difficult for nanoe™ to reach hair.
With the nanoe™ Charge System, by just gripping the panel together with the handle, the negative charge accumulated on hair is released.
Because of this, nanoe™ continues to penetrate into hair, supplying moisture and thoroughly moistening down to the tips of hair.
Maintenance of the hair dryer
- Make sure to turn OFF the power switch and disconnect the plug from the household outlet. (Except when performing maintenance on the air outlet)
Maintaining the hair dryer
Clean the main body when the hair dryer gets dirty.
Clean the housing only with a soft cloth slightly dampened with tap water or soapy tap water.
Notes
- Do not use alcohol, polish remover, or detergent (liquid hand soap, etc.).
- Doing so may cause malfunction, cracking/discoloration of parts etc.
- Leaving the hair dryer with hair products or makeup still adhered to the handle or body may degrade the plastic, causing discoloration or cracking, and malfunction.
Maintaining the nanoe™ outlet
Clean the nanoe™ outlet about once a month.
- Use commercially available cotton swabs. (We recommend the thin cotton swabs made for use with babies.)
-
This maintenance allows the hair dryer to sustain the generated level of nanoe™ over a long period.
-
dampen the end of the cotton swab with tap water.
- Softly insert the cotton swab until it stops (approx. 1 cm (3/8^) ), and turn it softly for 2 or 3 times.
Gently rub the tip of the needle portion
nanoETM outlet
Maintaining the air inlet
Clean the air inlet once a month or over.
- Wipe to clean lint, hair, or other matter from the air inlet with a tissue or toothbrush.
- Do not press or rub the air inlet with a nail or other sharp object. Doing so may damage the air inlet.
In case of any dust inside air inlet:
Suggest to remove it with a vacuum cleaner (a).
(a)
Maintaining the air outlet
Clean the air outlet once a month or over.
- The hair dryer should be plugged into the household outlet only in case of maintenance for the air outlet.
- Use a commercially available toothbrush.
- Set the power switch to "Cool" and blow away the dust, hair etc. blocking the mesh as you scrub with the toothbrush.
- During maintenance, do not block the air inlet with your hands etc.
- Be careful when using the hair dryer for the first time after maintenance, since it may blow out dust, etc.
Troubleshooting
36
Problem
It switches frequently to cold air while using in "Hot" mode, or sparks can be seen within the body. (These sparks are caused by the thermostat switch, the protective device, and this is not dangerous.)
The hot air repeatedly turns into cold air.
The hot air is abnormally hot.
The plug is abnormally hot.
Sparks are generated inside the nanoe™ outlet.
The nanoe™ outlet emits a noise (crackling noise).
Possible cause
Lint has accumulated on the air inlet or air outlet.
Hair or something is blocking the air inlet.
The connection to the household outlet is loose.
Abnormality caused by a dirty electrode (needle portion).
Action
Remove accumulated lint.
Do not block the air inlet.
Use a household outlet that fits securely.
Perform maintenance of the nanoe™ outlet.
If the problems still cannot be solved, contact the store where you purchased the unit or a service center authorized by Panasonic for repair.
Specifications
| Product name | Hair Dryer |
| Product model | EH-NA27 |
| Power source | 125 V~ 60 Hz |
| Power consumption | 1 400 W |
| Accessory | Quick-dry nozzle |
This product is intended for household use only.
This message about...
ROUND
FAULT
C I R C U I T I N TERRUPTER
...can save a life!
If YOU MUST USE YOUR HAIR DRYER IN THE BATHROOM, INSTALL A GFCI* NOW!
Your local electrician can help you decide which type is best for you- a portable unit that plugs into the electrical outlet or a permanent unit installed by your electrician. The National Electrical Code now requires GFCI's in the bathrooms, garages, and outdoor outlets of all new homes.
WHY DO YOU NEED A GFCI?
Electricity and water don't mix. If your hair dryer falls in water while it's plugged in, the electric shock can kill you...even if the switch is "off". A regular fuse or circuit breaker won't protect you under these circumstances.
A GFCI offers you far greater protection.
A GFCI can save your life! Compared to that, the price is small!! Don't wait ...install one now!
*GFCI is a sensitive device which reacts immediately to a small electric current leak by stopping the electricity flow.
usu
USER- MAINTENANCE INSTRUCTIONS
This hair dryer is virtually maintenance free. No lubrication is needed. For proper operating performance, the hair dryer must be kept clean. When cleaning is needed, unplug the cord, and clean dust and lint from air intake openings with a small brush or the brush attachment of a vacuum cleaner. The outer surface of the hair dryer should be wiped clean with a damp cloth only.
This hair dryer should be stored out of reach of children.
Warning – To prevent the risk of electric shock, personal injury or fire, observe the following:
- Do not perform any servicing. This hair dryer has no user-serviceable parts.
- Never allow the power supply cord to be pulled, twisted, or severely bent.
- Never wrap the cord tightly around the hair dryer. Damage will occur at the high flex point of entry into the hair dryer, causing it to rupture and short. Inspect the cord frequently for damage. Stop use immediately if damage is visible or unit stops or operates intermittently.
Personal Care & Beauty Care Products
FOR USA ONLY
30-Day Quality Satisfaction Guarantee
If you are dissatisfied with any Panasonic Personal Care & Beauty Care Products for any reason, simply return it to the place of purchase with a dated proof of purchase, in the original packaging, with all accessories, parts and instructions, within 30 days of the date of purchase, for a full refund, or call Panasonic at 1-800-338-0552.
Abuse or misapplication of this product voids the guarantee.
FOR YOUR CONVENIENCE, WE HAVE ESTABLISHED A TOLL-FREE (IN USA ONLY) NATIONAL ACCESSORY PURCHASE HOT LINE AT 1-800-332-5368.
IN CANADA, CONTACT PANASONIC CANADA INC. AT THE ADDRESS OR TELEPHONE NUMBER ON THE BACK PAGE.
Panasonic®
Panasonic Corporation of North America
Two Riverfront Plaza, Newark, NJ 07102-5490
IN CANADA CONTACT:
AU CANADA, COMMUNIQUEZ AVEC:
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
www.panasonic.com
Service · Assistance · Accessories
www.panasonic.ca/english/support (In Canada)
www.panasonic.ca/french/support (Au Canada)
http://www.panasonic.com
© Panasonic Corporation 2016-2017
Printed in Thailand
