USER MANUAL THEO48463 - THEO46339 THOMSON

Thank you for your purchase of this cooker. To confirm correct operation and your safety, please read this manual carefully before use and retain it for further reference.

When using electric appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handle or knobs.
3. Close supervision is necessary when any appliance is used by or near children.
4. To protect against electric shock, do not immerse cord, plug, or any parts of the oven in water or other liquids.
5. Do not let cord hang over edge of table or counter, or touch hot surfaces.
6. Do not operate appliance with damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner, return the appliance to the nearest Authorized Service Center for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause hazard or injury.
8. Do not place on or near a hot gas or electric burner, or in a heated oven, or in a microwave oven.
9. When operating the oven, keep at least 12cm of space on all sides of the oven to allow for adequate air circulation.
10. Unplug from outlet when not in use, or before cleaning. Let it to cool down before putting on or taking off parts, or before cleaning.
11. Do not cover any part of the oven with metal foil. This may cause overheating of the oven.
12. Extreme caution should be exercised when removing tray or disposing of hot grease or other hot liquids.
13. Do not clean the oven with metal scouring pads. Metal chippings would touch electrical parts, and endanger a risk of electric shock.
14. A fire may occur if the oven is covered by or placed near the flammable material, including curtains, draperies, walls, and the like, when in operation. Do not store any item on the oven during operation.
15. Extreme caution should be exercised when using containers constructed if anything other than metal or glass.
16. Do not place any of the following materials in the oven: cardboard, plastic, paper, or anything similar.
17. Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
18. To disconnect, turn any control to "off", then remove plug from wall outlet. Always hold the plug, but never pull the cord.
19. Always wear protective, insulated oven mitts when inserting or removing items from the hot oven.
20. Do not use outdoors.
21. Do not use appliance for other than intended use.
22. This appliance is for HOUSEHOLD USE ONLY.

23. The accessible surfaces are liable to get hot when the appliance is operating.

24. Glass Door cannot support goods in the fully open position.

25. The appliance is not intended to be controlled by an external timer or separate remote-control system.
26. Caution, hot surface! The temperature of accessible surface may be high when the appliance is operation. Do not touch hot surfaces. Use handle or knobs.
27. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
28. Children should be supervised to ensure that they do not play with the appliance.
29. For appliance with type Y attachment, if the supply cord is damaged, it must be replaced by the manufacturer, its services agent or similarly qualified persons in order to avoid a hazard.
30. Rear surface of appliances should be placed against a wall.

SAVE THESE INSTRUCTIONS

Before using your cooker for the first time, be sure to:

1. Read all instructions included in this manual.
2. Make sure oven is unplugged and Timer Knob is in the "0" position.
3. Remove all racks and pans. Wash the racks and pans in hot sudsy water or in dishwasher.
4. Thoroughly dry all accessories and re-assemble in oven. Plug oven into outlet and you are ready to use your new cooker with Convection and Grill.

When begin to use:

1. Confirm the marked power consumption is in conformity with your household electric power.
2. Do not let cord hang over edge of table or counter to avoid that children may stumble over.
3. If the supply cord is damaged, the oven should not be used before it is repaired.
4. Oven should be sent to the manufacturer, authorized service agent or a similarly qualified person to repair in order to avoid a hazard.

This unit has a short power supply cord to reduce the risk resulting from becoming entangled in or tripping over a long cord. An extension cord may be used if you are careful in its use:

1. The electric rating of the extension cord should be at least as great as the electrical rating of the appliance.
2. An extension cord with the power cord must be arranged so that it will not drape over the countertop or table top where they can be pulled on by children or tripped over accidentally.

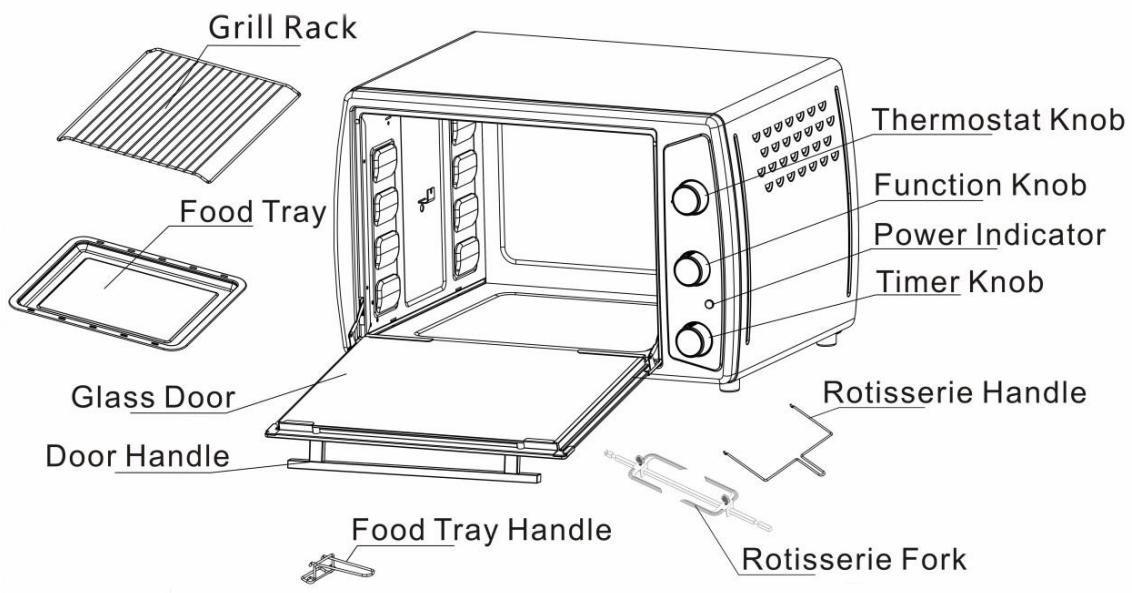

COMPONENTS:

Grill Rack: For toasting, baking, and general cooking in casserole dishes and loading food tray.

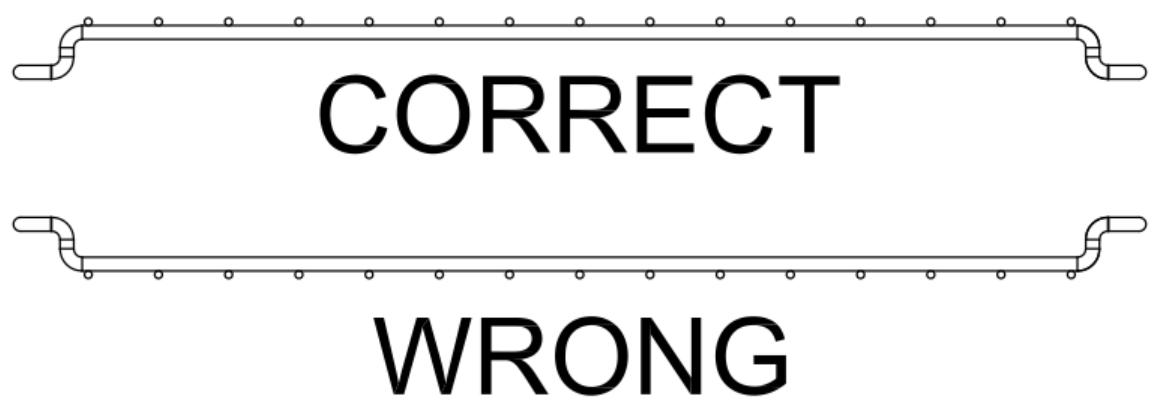

Note: Wire Rack should be positioned with the indentations pointing down.

Food Tray: For use in broiling and roasting various foods that contain water or will release water or oil during cooking.

Food Tray Handle: Allows you to pick up Food Tray and Grill Rack to avoid any scald.

Rotisserie Fork: Can cook up a 3-pound roast or chicken.

Rotisserie Handle: Use for removing hot Rotisserie Fork from oven.

OPERATION INSTRUCTION:

Using Your Oven:

a. Select cooking mode with Function Knob.
b. Use temperature knob to select your desired temperature.

1. Place the food on grill rack or Food tray and close the oven door.

a. Do not use any paper or plastic container.
b. Use Food tray for any food that is small in size or likely to drip while cooking.
c. Place the food evenly on the grill rack.

1. Insert the power plug into the socket.
2. Set the cooking function and desired temperature.
3. When cooking finished, turn the Timer knob to "0" position.
4. Remove the power plug from the socket after cooking.

Operation Instructions

. Plug in the power socket
. Turn Timer Knob to desired time, turn Function Knob to desired function.
. Select the desired temperature by Temperature Knob.
. When completed, turn Function Knob to “OFF” and turn Timer Knob to “0”

Note: The weight of the food which is put on the Food Tray/Grill Rack can not be over 3.5kg . (just for reference) (The food can not concentrate on one side of the Food Tray/Grill Rack, you would better try you best to make the food put on the Food Tray/Grill Rack evenly).

CARE & CLEANING

ALWAYS UNPLUG OVEN AND ALLOW TO COOL BEFORE CLEANING

MAINTENANCE:

This appliance has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper care and regular cleaning.

Warning! Before performing any maintenance or cleaning of this appliance, disconnect the appliance from the electrical supply.

CLEANING:

To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. The exterior surface of the appliance should be cleaned with a clean damp cloth only.

The oven features a Quick-Clean internal coating. If desired, wipe walls with damp cloth moistened with mild detergent.

Wash all accessories in hot sudsy water or in a dishwasher. Wipe the door with a clean

damp cloth, and dry with a paper or cloth towel. Clean exterior with damp cloth.

DO NOT USE ABRASIVE CLEANERS ON ANY PART OF THIS APPLIANCE. ALWAYS UNPLUG THE OVEN AND ALLOW IT COOLING BEFORE CLEANING. DRY ALL PARTS AND SURFACES THOROUGHLY PRIOR TO PLugging Oven IN AND USING!

SPECIFICATION

Power Consumption:

220-240V~50/60Hz

Oven Output:

2200W

Oven Capacity:

63Litres

WEE / ENVIRONMENTAL PROTECTION

Disposal of Electrical and Electronic Equipment

Do not dispose of this product with household waste. For the proper treatment, recovery and recycling please take this product to the appropriate waste collection point. If you are unsure where this may be, please contact your local authority.

Improper disposal may be harmful to the environment
