USER MANUAL Q QUICK DELTA

EN INSTRUCTIONS AND MODE OF USE 24

EN QUICK ESPRESSO COFFEE MACHINE INSTRUCTIONS MANUAL The safety precautions are part of the appliance.

Read this manual carefully before using the equipment. Keep it for future reference.

IMPORTANT SAFETY PRECAUTIONS

• In case of emergency: immediately remove the plug from the outlet.

• Do not let the cord hanging over a table or counter. Do not let the cord get in direct contact with hot surfaces. This manual is also available in PDF format in mydeltaq.com • To switch off, remove the power plug from the respective outlet. Always hold the plug. Never apply pressure on the cord. Read carefully all the instructions and save these recommendations for future • Remove the plug from the respective outlet when the appliance is not reference. being used or before cleaning it. This manual provides important safety informations regarding the installation • In order to protect people from fire, electrical shocks and personal injuries, and use of the appliance. do not immerse the cord, plug or appliance in water or other liquid. • In case an extension cord is needed, use only a grounded one. Note: Keep this manual in an appropriate place for future reference. • Do not touch the cord when your hands are wet or moist. • Fill the water tank only with cold drinking water. Never fill the water tank The manufacturer reserves the right to change the manual without any with milk, oil/olive oil or other similar liquids. obligation to update previous editions, except in exceptional circumstances. • Empty the water tank when the machine is not used for an extended After removing the machine from its packaging, place it base downwads in a period of time. safe, flat horizontal place, where there is no other equipment or articles which • Do not use the appliance outdoors, or exposed to weathering agents may impair use, or allow the machine to be knocked or damaged. Check that the support surface has heating sources and that it is properly clean (rain, sun and others). and dry. • This appliance is used indoor only. Also confirm whether there is an earthed electrical socket near the installation • This appliance is considered to be suitable for use in countries having a warm site. damp equable climate. It may also be used in other countries. • The appliance is to be supplied through a residual current device (RCD) having • Before using your equipment for the first time, make sure the machine a rated residual operating current not exceeding 30 mA. and all its accessories are present and in a good state of repair. • This appliance is intended for household use and similar applications, Where in doubt, do not use the appliance and contact the Customer such as: Service and Support (00 800 20 50 20 50). - staff kitchen areas in shops, offices and other working environments; • Confirm whether the output voltage of the electrical socket corresponds - farm houses; to the voltage stated on the classification label of your coffee machine. - by guests in hotels, motels and other residential type environments; Connect the appliance only to grounded electrical outlets. - in bed-and-breakfast type environments. • Do not turn the equipment on if the cable or socket are damaged or • Do not use the appliance for other than the intended purposes. malfunctioning. Contact Customer Service and Support (00 800 20 50 20 50). • Do not place the appliance near or over an electric or gas hot stove or in a • If the supply cord is damaged, it must be replaced by the manufacturer, its heated oven. • Do not leave appliance on while unattended. service agent or similarly qualified persons in order to avoid a hazard.

EN INSTRUCTIONS AND MODE OF USE

• Do not put your fingers into the coffee outlet, as this can cause burns.

• Do not put your fingers into the capsule holder, as this can cause burns. • Clean all the detachable parts with water. The exterior surfaces of the appliance must be cleaned with a damp cloth. • The appliance must not be immersed in water for cleaning. • Close supervision is required when the appliance is used by or near children. • This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. • The use of accessories not recommended by the appliance manufacturer may result in fire, electric shock and personal injuries. • Misusing the appliance can lead to potential injury. • The coffee-maker shall not be placed in a cabinet when in use. • In case of failure and/or malfunction of the appliance, unplug it from the power outlet and do not try to repair it yourself. Contact the Customer Service and Supporte (00 800 20 50 20 50). Note: The failure to comply with these safeguards may compromise the appliance and the user security.

• The first time you use the appliance, it is possible that some odour may be released, caused by the insulating materials and the appliance’s parts subjected to heating. This inconvenience disappears in a few minutes.

• The installation must be performed in accordance with the manufacturer’s instructions. An incorrect installation may cause damage to the appliance’s parts, which the manufacturer cannot be held responsible for. • The manufacturer cannot be held responsible for any damage resulting from the improper, erroneous and irrational use of the appliance. • In case of misuse or failure to comply with the instructions, the manufacturer declines any responsibility and will void the respective warranty. • This appliance was developed to extract beverages through the use of Delta Q capsules. Delta Q capsules quality is guaranteed when Delta Q capsules are used in Delta Q appliances.

TECHNICAL INFORMATION Model: Quick

Consumables: Delta Q capsules Ejection: Automatic ejection of used capsules Dimensions: W: 116 mm H: 257 mm L: 350 mm Approximate weight: 3 kg Water tank capacity: 800ml Used capsule tank capacity: 10 capsules Power: 1200 W Voltage: 220-240 V Frequency: 50 Hz

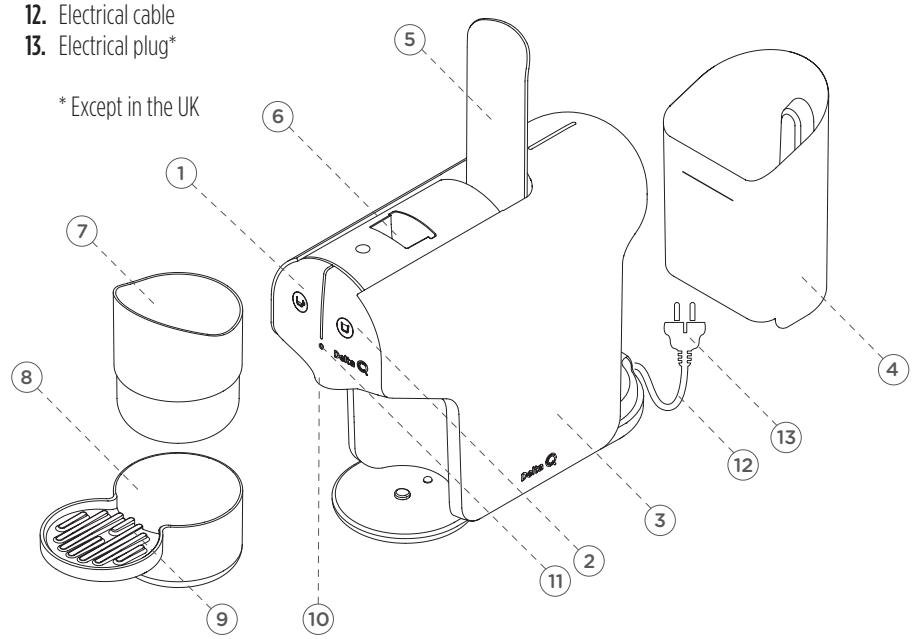

Espresso button / On/Off general button

Long drinks button / On/Off general button Equipment body Water tank Lever Capsule-holder Deposit for used capsules Deposit for liquids Cup tray Extraction nozzle LED Electrical cable 5 Electrical plug* * Except in the UK

00 800 20 50 20 50 (toll free)

EN INSTRUCTIONS AND MODE OF USE

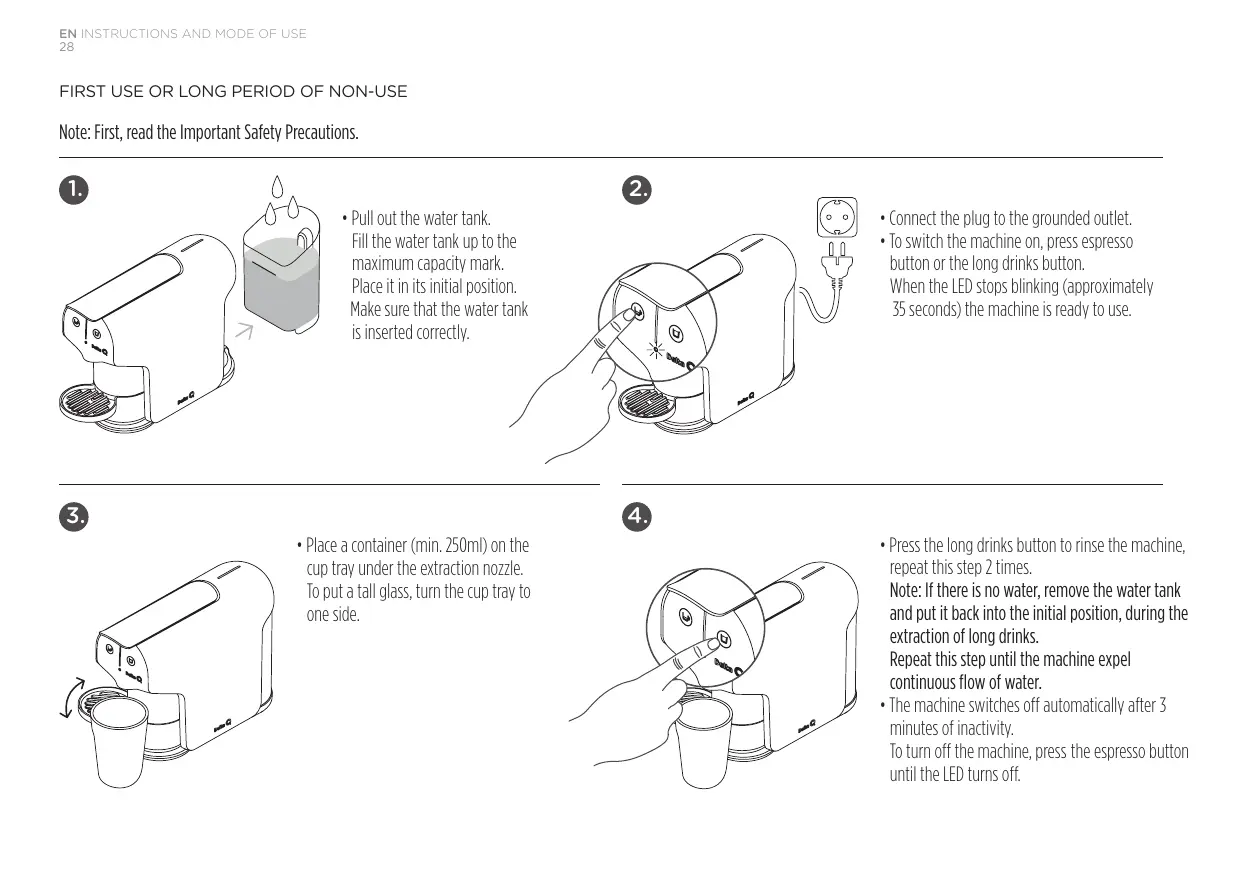

FIRST USE OR LONG PERIOD OF NON-USE Note: First, read the Important Safety Precautions.

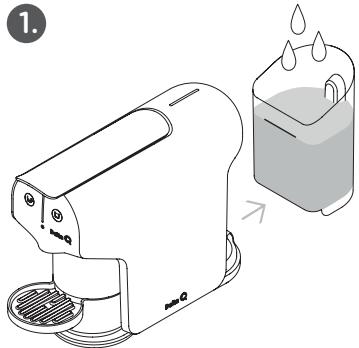

• Pull out the water tank. Fill the water tank up to the maximum capacity mark. Place it in its initial position. Make sure that the water tank is inserted correctly.

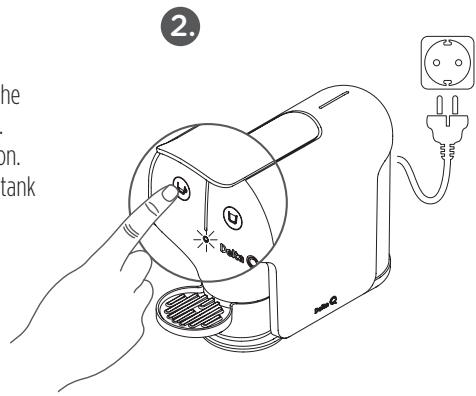

• Connect the plug to the grounded outlet.

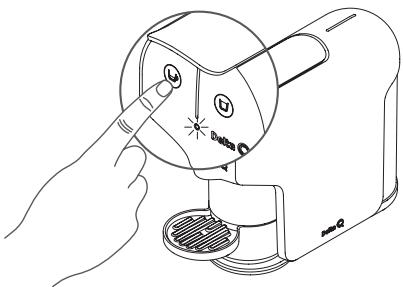

• To switch the machine on, press espresso button or the long drinks button. When the LED stops blinking (approximately 35 seconds) the machine is ready to use.

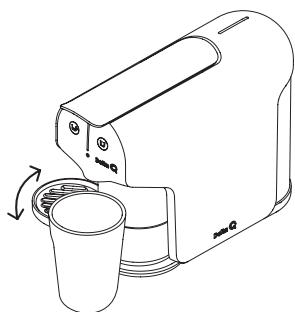

• Place a container (min. 250ml) on the cup tray under the extraction nozzle. To put a tall glass, turn the cup tray to one side.

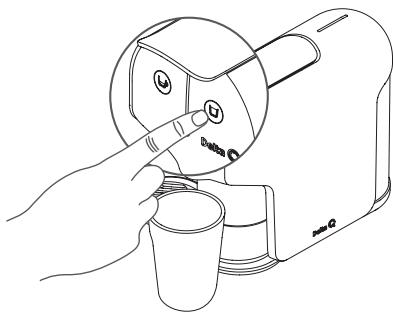

• Press the long drinks button to rinse the machine, repeat this step 2 times.

Note: If there is no water, remove the water tank and put it back into the initial position, during the extraction of long drinks. Repeat this step until the machine expel continuous flow of water. • The machine switches off automatically after 3 minutes of inactivity. To turn off the machine, press the espresso button until the LED turns off.

Note: Whenever the type of drink to be extracted is altered (coffee, long drinks) a purge action must be carried out (see: page 31).

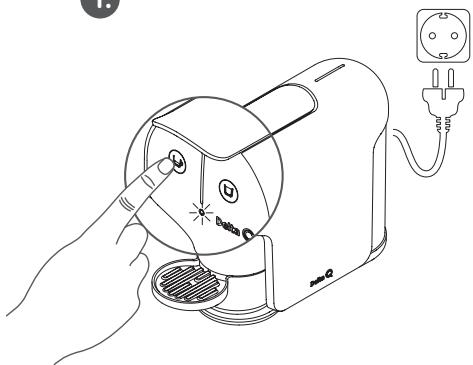

• Connect the plug to the grounded outlet. • To switch the machine on, press espresso button or the long drinks button. When the LED stops blinking (approximately 35 seconds) the machine is ready to use.

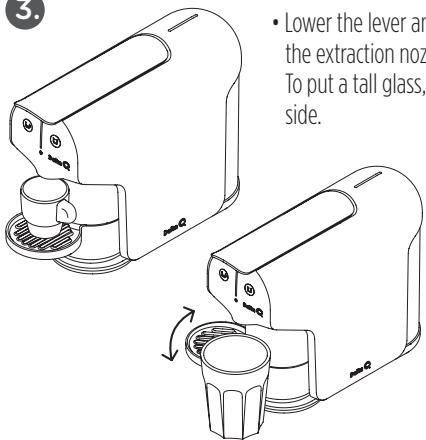

• Lower the lever and place a coffee cup under the extraction nozzle.

To put a tall glass, turn the cup tray to one side.

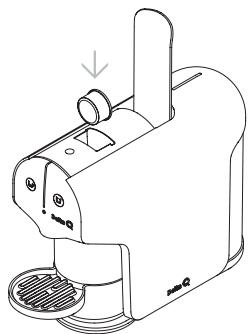

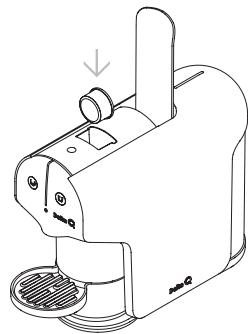

• Raise the lever and insert a Delta Q coffee capsule in the capsule housing hole.

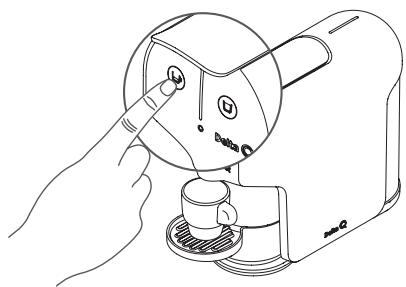

• Press the espresso button or the long drinks button to start the beverage extraction. The extraction stops automatically.

• Lift the lever fully to release the capsule to the used capsule deposit (maximum capacity of 10 capsules). Remove the cup.

EN INSTRUCTIONS AND MODE OF USE

PROGRAM VOLUME Note: The default volume: Espresso: around 30cc and Long drinks: around 180cc.

• To switch the machine on, press espresso button or the long drinks button. When the LED stops blinking (approximately 35 seconds) the machine is ready to use.

• Raise the lever and insert a Delta Q coffee capsule in the capsule housing hole.

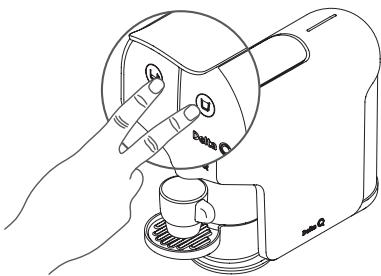

• Place a coffee cup or put a tall glass under the extraction nozzle. • Pressing the espresso button and the long drinks button until the LED blinks (Programming mode).

• Pressing the espresso button or the long drinks button to start the extraction.

• Press any button when the extraction reaches the desired quantity. • The LED will blink 3 times in confirmation. The machine memorises the volume and will start extracting it until a new programme is set. Note: If the user does not press any button to finish the operation, the equipment will automatically assume the maximum volume around of 70cc (Espresso) and 200cc (Long drinks).

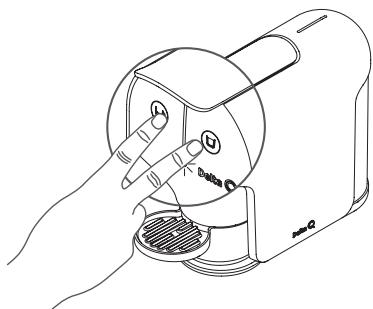

ORIGINAL SETTINGS STAND BY MODE

• Pressing the espresso button and the long

• The machine switches off automatically after 3 minutes of inactivity, the LED turns off. drinks button until the LED blinks If you wish, you can always switch the machine off by pressing the espresso button until (Programming mode). the LED turns off. • Pressing again the espresso button and the long drinks button until the LED blinks 3 times in confirmation. The appliance switches off automatically.

PURGE CLEANING AND MAINTENANCE Frequent use of the “Purge” operation ensures improved beverage quality and proper equipment maintenance.

Warning: Check if you unplugged the appliance from the power outlet before you clean it.

To prevent electrical shocks, do not immerse the cord, plug or appliance in water or any other liquid. Do not use any abrasive or solvent-composed cleaning agent.

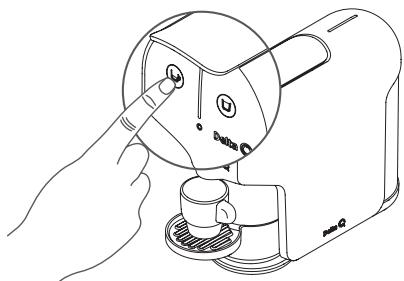

• Place a coffee cup and without inserting a capsule, the espresso button to pump the water through the machine.

The appliance switches off automatically. When the LED stops blinking the machine is ready to use.

• Empty the deposit for used capsules and the deposit for liquids frequently.

• Use a dry cloth to clean the water tank. • The used capsules collection tank, the cup tray and the drip basin may be washed in water and dried with a soft cloth. • Clean the outer surfaces of the equipment with a damp cloth. • You must never immerse the equipment in water or any other liquid.

EN INSTRUCTIONS AND MODE OF USE

DESCALING TROUBLESHOOTING It is recommended to perform the appliance’s descaling every three months or after 300

Delta Q capsules extractions, approximately.

• The appliance does not switch on > Check if the plug is connected properly to the power outlet. Check if you pressed the espresso button to switch the appliance on.

• The capsule got jammed in the capsule-holder. > Check if the used capsules deposit is full. If necessary, empty the content and place the empty deposit in its original position. • Coffee or water does not come out. > Check if the water tank is empty or if it is well placed. • The LED blinks quickly without stopping. > Please, remove the plug of the machine from the outlet and switch it on after 2 minutes. If the problem persists, contact Customer Service (00 800 20 50 20 50).

Follow the safety instructions shown on the Delta Q descaling kit packaging.

Avoid contact of the descaling solution with eyes, skin, machine and surrounding surfaces.

To any other doubt or additional information, you must contact Customer Service

(00 800 20 50 20 50).

• Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

This machine is in compliance with the European Directive 2012/19/EU.

The packaging and the machine were partially made of recyclable materials.

Delta Q is concerned with the recycling of the used capsules.

Check our Website: mydeltaq.com for more information on how to recycle Delta Q used capsule or contact the Customer Service (00 800 20 50 20 50).

Delta Q is committed in designing and producing innovative, high performance machines that are easy to use.

To improve the energy performance of the machine, improvements and functions were introduced that aim at reducing the power consumption.
