USER MANUAL HOLIDAY NILOX
4K HOLIDAY NX4KHLD001
Keep the camera safe from falling and dropping. Keep it away from any strong magnetic interference objects like electrical machines to avoid strong radio waves from damaging the product and affecting the sound or image quality.
EN Keep the camera away from water and liquids (unless equipped with a waterproof case).
We recommend using a high quality Micro SD Card for best results. Please format the micro SD, micro SDHC and micro SDXC memory card in the camera before using and restart the camera after formatting. Do not directly expose the product to high temperatures and strong sunlight. Do not place your Micro SD card near strong magnetic objects to avoid data error or loss. Lithium battery. Danger of explosion if replaced with an incorrect battery type. Remove the battery before using as a dash camera. Keep it away from children while charging. In case of overheating, unwanted smoke or an unpleasant smell from the device, unplug it immediately from the power outlet to prevent hazardous fire. Do not use the camera when it is low on power. Do not use the camera while it is charging. Store the device in a cool, dry and dust free place. Do not attempt to open the case of the camera or modify it in any way. If the camera has been dismantled, the warranty will be void.
The action Camera “Nilox 4K Holiday”is a high-definition digital motion video recording device. It has a wide variety of the leading features for digital video recording, photo shooting, audio recording with screen display and detachable battery. Best suited for vehicle recording, Allowing you to enjoy the moments while capturing every scene anytime, anywhere.
outdoor sports, home security, diving and other related activities.
Power/Mode Button Shutter Button
* In order to take a clear video or photo, please tear off the lens protection film of the waterproof shell before use. * In order to ensure the waterproof performance, please make sure that the waterproof shell is please stop using this waterproof shell. * Please dry it immediately after use, otherwise the waterproof shell metal button will gather dust and reduce the waterproof performance. * The waterproof shell is a vulnerable product. We strongly recommend replacing the waterproof shell in time, depending on the environment and frequency of use. * When using the camera with the waterproof shell in low temperatures, such as winter, rain, underwater and so on, please use the anti-fogging treatment to avoid blurred video.
Congratulations on your new camera! This user manual will help you learn the basics to capture life’s most incredible moments! To power ON: Press and hold the Power/Mode Button for a few seconds to switch on. To power OFF: Press and hold the Power/Mode Button for a few seconds to switch off.
sealed well before use. If the white silicone ring of the waterproof shell cannot seal well,
Turn camera ON and repeatedly press the Power/Mode Button to move through the camera
modes and settings. The modes will appear in the following order:
Repeatedly press the Power/Mode Button for the Setting Menu, use the DOWN Button to move through the various options and press the Shutter Button to select the desired option. Video Setting Video Resolution: EIS 4K30, EIS 2.7K30, EIS 1080P60, EIS1080P30, EIS720P120 EIS: On, Off Looping Video: Off, 1 min, 3 mins, 5 mins Time-Lapse Video: Off, 1 sec, 5 secs, 10 secs, 30 secs, 60 secs Slow Motion: Off, 1080P 60, 720P 120 Audio Record: On, Off 5
Self-Timer Photo: Off, 2 secs, 5 secs, 10 secs Burst Photo: Off, 3 photos, 5 photos General Setting Wi-Fi: On, Off Volume: 0~10 Beep: On, Off Exposure: +/-2.0 ~ 0 White Balance: Auto, daylight, cloudy, Fluoresc, incandesc. ISO: Auto, ISO100, ISO200, ISO400, ISO800, ISO1600, ISO3200 Effect: Normal, Sepia, B&W, Negative Contrast: -100 ~ 100 Saturation: -100 ~ 100 Sharpness: -100 ~ 100 System Setting Language: English/Italian/Español//Portugues/France/Deutsch/Greek Car Mode: On, Off Power Off: Off, 1 Min, 3 Mins, 5 Mins Date & Time: ___Y___M___D 00:00:00 Date Format: YYYY MM DD / MM DD YYYY / DD MM YYYY Stamp: Off/On Frequency: 50Hz/60Hz Upside Down: Off/On Screen Saver: Off/30sec/1min/3min. Format: YES/NO Reset: YES/NO FW Version: L15PD79SRV1.2 Exit:Press the shutter button to exit

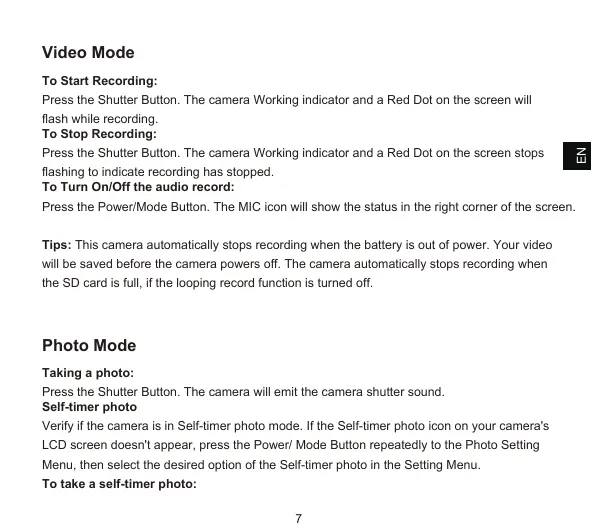

EN Photo Resolution: 20M / 16M / 12M / 8M / 5M Video Mode
To Start Recording: Press the Shutter Button. The camera Working indicator and a Red Dot on the screen will
Press the Shutter Button. The camera Working indicator and a Red Dot on the screen stops flashing to indicate recording has stopped.
To Turn On/Off the audio record:
flash while recording.
Press the Power/Mode Button. The MIC icon will show the status in the right corner of the screen.
Tips: This camera automatically stops recording when the battery is out of power. Your video will be saved before the camera powers off. The camera automatically stops recording when the SD card is full, if the looping record function is turned off.
Taking a photo: Press the Shutter Button. The camera will emit the camera shutter sound. Self-timer photo Verify if the camera is in Self-timer photo mode. If the Self-timer photo icon on your camera's LCD screen doesn't appear, press the Power/ Mode Button repeatedly to the Photo Setting Menu, then select the desired option of the Self-timer photo in the Setting Menu. To take a self-timer photo: 7
Press the Shutter Button, the camera will emit shutter sound each time a photo is taken.
Burst Photos Verify if the camera is in Burst Photo mode. If the Burst Photo icon on your camera's LCD then select the desired option of the Burst Photo in the Setting Menu. To capture a Burst Photo series: Press the Shutter Button, the camera will emit shutter sound each time a photo is taken.
Playing back Videos and Photos Verify if the camera is in the Video or Photo Playback menu. Press the DOWN / WIFI Button to go through the videos or photos and then press the Shutter/Select Button to playback the desired options. To exit playback mode, press the Power/Mode Button to the main preview menu, press the Power/Mode Button again to switch setting modes. Tips: The camera might not be compatible with the files from a different solution camera.
This camera is compatible with 8GB, 16GB, 32GB, 64GB (selected) capacity micro SD, micro 8
screen does not appear, press the Power/Mode Button repeatedly to the Photo Setting Menu,
SDHC and micro SDXC memory card. You must use a micro SD card with at least a CLASS
10 (80M/S) speed rating. We recommend using high quality memory cards for maximum reliability in high vibration activities. Tips: please format the micro SD, micro SDHC and micro SDXC memory card on the camera EN
Please restart the camera after formatting.
Charging the battery To charge the battery 1. Connect the camera to a computer or USB power supply with micro USB cable included. 2. The charging status light remains ON while the battery is charging. 3.The charging status light will turn OFF when the battery is fully charged. *Charging time: 3.5hours * 2 Batteries included 3.7V 1050 mAh *Please make sure the camera is shut down while charging. *Charge only with 5V 1A output charger. *Remove the battery before using as a dash camera. *Do not store at a temperature above 140°F/60°C. *Do not disassemble, crush, damage or dispose of in fire. *Do not use swelling battery. 9
*Stop using the battery after immersion in water.
* Do not dispose of the camera or its battery in the rubbish. Please find a specific recycling point for it.
EN WI-FI APP Connect to the Wi-Fi App
The Wi-Fi App lets you control your camera remotely using a smart phone or tablet. Features include full camera control, live preview, playback and sharing of selected content and more. Download the Nilox LIVE to your smart phone or tablet from the Google Play or Apple App Store. Press the Power/Mode Button to power the camera ON. Make sure the Wi-Fi is turned on in the camera setting menu. Press the Down/Wi-Fi Button to turn on Wi-Fi. In your smart phone or tablet Wi-Fi setting, connect to the network called “Nilox LIVE” followed by a series of numbers. Enter the password”12345678” WiFi Frequency Range: 2,4 Ghz at 11,66 dBm Open the Nilox LIVE App on your smart phone or tablet. *press and hold the Down/Wi-Fi Button to turn off the Wi-Fi. The Nilox Live App is compatible with the smart phone and tablet listed below: For Apple IOS *iPhone 5,5s, 6 (plus), 6s (plus), 7 (above IOS9) *iPhone Air & Mini (above IOS9) For Android *Android 4x Quad-Core devices 10
EN App available on:
INSTRUCTIONS FOR THE ENVIRONMENT This product may contain substances that can be harmful to the environment and human health, if not disposed of properly. We therefore provide you with the following information in order to prevent the release of such substances and to optimize use of natural resources.
The electrical and electronic products should not be disposed of in the normal household waste, but should be properly collected in order to be correctly treated. The symbol of the crossed bin shown on the product and on this page indicates the need to properly dispose of the product at the end of its life. In this way you can avoid a non-specific treatment of the substances contained in these products, or an improper use of parts of these can lead to harmful consequences for the environment and human health. Moreover, you can contribute 11
to the recovery, recycling and reuse of many of the materials which make up these products.
This is why the manufacturers and distributors of Electrical and Electronic Equipment (EEE) organize proper collection and disposal of the equipment themselves. At the end of the product’s lifespan, please contact your dealer for instructions regarding disposal. When device, on condition that the type of product and its functions are the same of the new one. If the dimensions are not over 25 cm, the EEE (Electrical and Electronic Equipment) can be returned without any equivalent product purchase obligation. Disposal of the product in any other way will be liable to the penalties provided by the laws in force of the country where the product is disposed of. Moreover, we suggest adoption of the following measures to protect the environment: recycling the inner and outer packaging supplied with the product and disposing of used batteries (if contained in the product) correctly. With your help, we can reduce the amount of natural resources used in the manufacture of EEE (Electrical and Electronic Equipment), minimize use of landfills for product disposal and improve quality of life by preventing the release of potentially dangerous substances into the environment.
INSTALLING AND REPLACING BATTERIES The product contains a battery that could be replaced during the lifetime of the product itself. Dispose of the battery contained in the product correctly at the end of its useful lifespan
(for instance when it can no longer be charged) by placing it in an appropriate battery disposal container separate from the generic unsorted waste. Collection and recycling of batteries 12
purchasing this product your distributor will inform you of the possibility to return your old
helps protect the environment and preserve natural resources, allowing recovery of valuable materials.
- The warranty validity period for consumers, i.e. those that purchase items for purposes unrelated to their professional or business activity, 2 years from delivery. For those that purchase items using a VAT Code for purposes related to their professional activity, the legal assurances provided 1 year from delivery.
- The warranty on batteries is for 6 months regardless of the type of consumer that buys the product. - The warranty is valid in the event the product has a material or manufacturing defect. Consumers are not entitled to the warranty in the following cases: - lack of proof of purchase (invoice or receipt). - unauthorised attempts to repair hardware and display parts and/or changing or using software which is different to the one installed; - using accessories or items that are not supplied with the product; - normal wear and tear of the product; - accidental damage and falls.
EN Warranty (Validity and Limitations)
The manufacturer, Exhibo S.p.A declares that the Action Cam 4K HOLIDAY complies with the downloaded via www.nilox.com
Specifications may be subject to change without notice.
Distributed by Nilox
Produced and Imported by
Exhibo S.p.A. via Leonardo da Vinci 6 20854-Vedano al Lambro (MB) ITALY Made in China
