INSTRUCTION MANUAL Microwave oven

DEAR CUSTOMER, The purchased microwave oven is a modern and easy to use product. This operator’s manual will allow you to quickly and thoroughly familiarize yourself with the newly purchased oven. Please carefully read the contents of this manual with particular emphasis on the ma­ nufacturer’s comments and recommendations We trust you will be fully satisfied with our product. Should you experience any problems whatsoever when using any Amica product, please contact our SERVICE CENTRE for efficient and professional assistance. We wish to guarantee all those who have trusted the Amica brand full convenience when using our products. Our new SERVICE CENTRE provides: Quick and professional assistance. Helpline number for the whole country. Advice over the telephone on how to use the product. Jobs carried out punctually and professionally. In doubt? Not everything you have read in the instructions is easy to understand? Call the Service Centre for all-round help. Before using the microwave, please careful­ ly read this manual. Store it in such a place, so that it may be used in future. Please follow the instructions to ensure many years of reliable operation of your oven. Important! The appliance is designed for household use only. The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

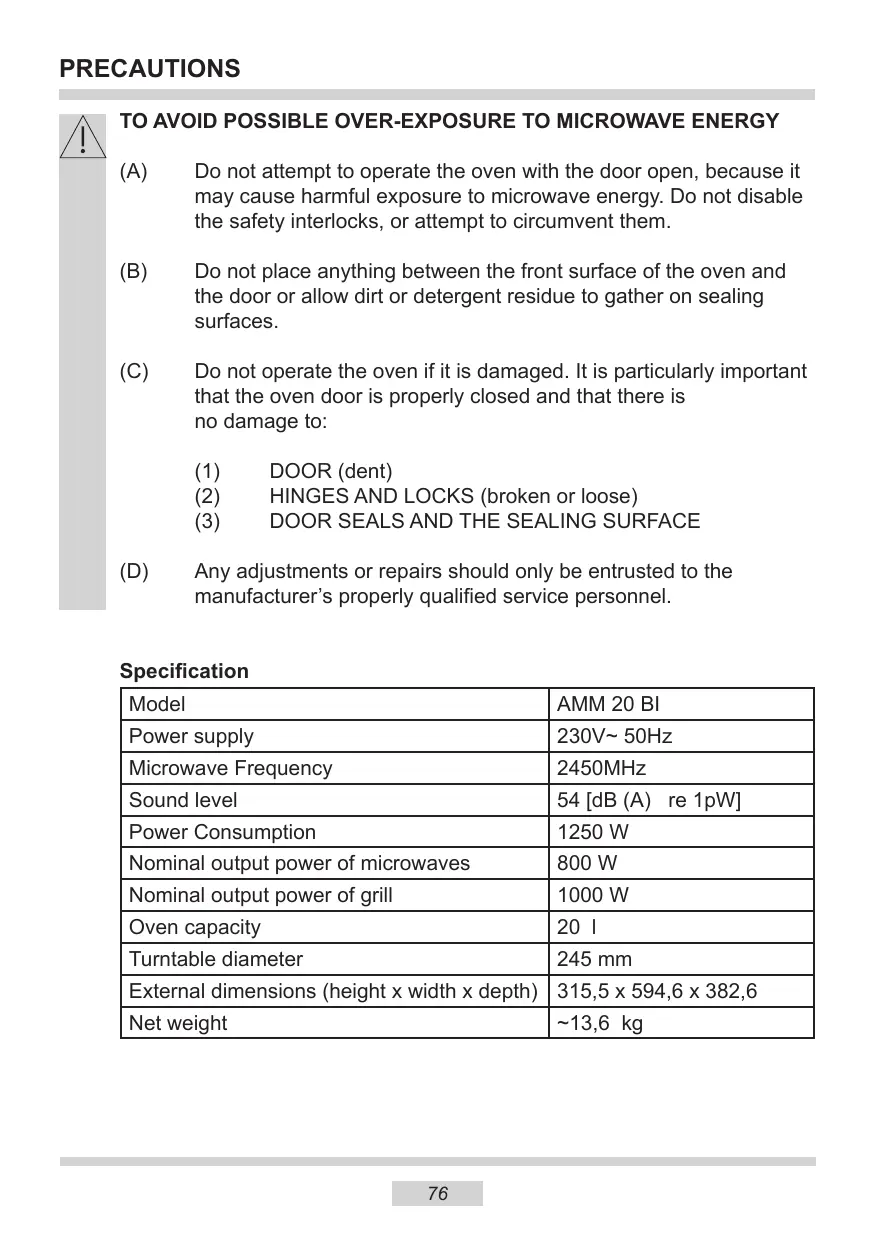

PRECAUTIONS TO AVOID POSSIBLE OVER-EXPOSURE TO MICROWAVE ENERGY (A) Do not attempt to operate the oven with the door open, because it may cause harmful exposure to microwave energy. Do not disable the safety interlocks, or attempt to circumvent them. (B) Do not place anything between the front surface of the oven and the door or allow dirt or detergent residue to gather on sealing surfaces. (C) Do not operate the oven if it is damaged. It is particularly important that the oven door is properly closed and that there is no damage to: (1) (2) (3) (D) DOOR (dent) HINGES AND LOCKS (broken or loose)

SAFETY INSTRUCTIONS FOR USE

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. WARNING: When the appliance is used in a combined mode, children

can use the microwave oven only under adult supervision due to the high temperatures generated;

2. WARNING: If the door or door seals are damaged, the oven must not be

used until it is repaired by a qualified technician (manufacturer’s service); 3. WARNING: Performing any maintenance or repairs which require removing any shielding protecting against microwave energy is dangerous and should only be entrusted to a qualified technician (manufacturer’s service);

4. WARNING: Liquids and other foodstuffs may not be heated in sealed

containers as the containers could explode;

5. WARNING: Only give the child permission to use the oven without

supervision when the child has been given appropriate guidance to use the microwave safely and is aware of the risks of misuse;

6. The minimum required clearance above the top of the microwave oven

is on the installation manual;

7. Use only cookware that is suitable for use in microwave ovens;

8. When heating food in plastic or paper containers, pay special attention

to the microwave oven as containers may ignite;

9. If you see smoke, turn off the appliance or unplug it from power and

keep the door closed until the flames are smothered;

10. Microwave heating of beverages can cause delayed boiling, therefore

care should be taken when handling the container;

11. The contents of feeding bottles and jars with food for children should

be stirred or shaken and the temperature checked before serving to prevent burns;

12. Eggs in the shell and whole hard-boiled eggs should not be heated

in microwave ovens since they could explode even after the microwave heating;

13. For details on how to clean door seals and adjacent parts please refer

14) The oven must be cleaned regularly. Remove any deposits of food and

15) Neglecting to keep the oven clean can damage the surface, which may

adversely affect the durability of the appliance and cause dangerous situations;

16) Important! If the power cord is damaged, it should be replaced by the

manufacturer or specialist repair centre or a qualified person in order to avoid danger.

17) Before using the oven, test heat the grill heater (smoke can be given off

through ventilation grid):

• Switch on the ventilation in the room or open a window,
• Set the oven to heat the grill heater only for about 3 minutes without heating food.

18) Microwave oven should be placed in a cabinet with special frame.

SAFETY INSTRUCTIONS FOR USE

1. Oven must be placed on flat a surface.

2. Turntable and rotating ring assembly should bein the oven during cooking.

Carefully put cooked food on the turntable, and handle it carefully to avoid any breakage.

3. Improper use of the browning plate may cause cracking of the turntable due to

the high temperature.

4. Only use bags for cooking in microwave ovens, which are correct size.

5. Microwave oven has several in-built circuit breakers to prevent emission of

radiation, while the door is open. Do not tamper with these circuit breakers.

6. Do not operate the oven when empty. Operating the oven without food or dish

with very low water content may result in fire, carbonization, arcing and damage to the internal chamber shell.

7. Do not cook food directly on the turntable. Excessive local heating of turntable

may cause its rupture.

8. Do not heat baby bottles or baby food in the microwave. Uneven heating may

occur and cause physical injury.

9. Do not use narrow-necked containers such as bottles for syrups.

10. Do not fry in deep fat in the microwave.

11. Do not do home canning in a microwave oven because not always the entire

contents of pot reaches boiling point.

12. Do not use microwave oven for commercial purposes.

This microwave oven is designed for household use only.

13. In order to avoid delayed boiling of hot liquids and beverages and the risk of

burns, stir the liquid before placing the container in the oven and again in the middle of cooking time. Then leave the container in the oven for a short time and stir again before removing from oven chamber.

14. Do not forget that there is a dish in the microwave oven to avoid burning due

to excessive cooking. 15. When the appliance is used in a combined mode, children can use the microwave oven only under adult supervision the high temperatures generated; 16. Neglecting to keep the oven clean can damage the surface, which may adversely affect the durability of the appliance and cause dangerous situations;

17. This appliance is not intended for use by persons (including children) with

physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety. Ensure that children do not play with the machine.

To reduce the risk of fire, injury to people or exposure to excessive microwave energy when using the appliance, please observe the following basic safety rules:

OVER-EXPOSURE TO MICROWAVE ENERGY.”

As with most ovens, close supervision is needed to reduce the risk of fire inside the oven chamber. If ignition occurs: Leave the oven door closed. Switch off the appliance and pull out the plug from the wall socket Disconnect the power by removing or disconnecting the fuse on the distribution board. Always bear in mind the following principles:

1. Do not overcook dishes. Carefully observe the appliance when paper, plastic

or other combustible materials are inserted into the oven in order to facilitate cooking.

2. Do not use the oven for storage. Do not store combustible items inside the

oven, such as bread, biscuits, paper products, etc. If lightning strikes in the supply line microwave may switch on automatically.

3. Remove the wire clamps and metal fixtures from containers / paper or plastic

bags before placing them in the oven.

4. Microwave oven must be grounded. Only connect to a wall socket with the

proper protective conductor. See „Installing the protective circuit.”

5. Install or position the oven strictly in accordance with the instructions.

6. Some products, such as whole eggs, water, oil or grease, sealed containers

and closed glass jars may explode and therefore should not be heated in the oven.

7. Use this appliance only for its intended purpose as described in the manual.

Do not use corrosive chemicals in the appliance. Oven is specifically designed for heating or cooking food. It is not intended for industrial or laboratory use.

8. Operating the microwave oven should be done with adult supervision at all

times. Do not allow children to play with the appliance or have access to the controls.

9. Do not operate the oven when its terminal strip or plug is damaged, it is not

working properly, or if it has been damaged or dropped.

10. The appliance should be serviced only by qualified Amica service technicians.

11. Do not cover or block the air vents on the oven.

12. Do not store or use the oven outdoors.

Do not use the microwave oven near water, near the kitchen sink, in a damp room or near a swimming pool. Do not immerse the power cord or plug in water. Keep cord away from heated surfaces. Do not allow the connection cord hanging over the edge of a table or counter. Cleaning: Before cleaning, make sure the oven is disconnected from the power source. After use, clean the inside of the oven using a slightly damp cloth. Clean the accessories in the normal way in soapy water. Dirty door frame, seal and adjacent elements should be cleaned gently with a damp cloth. When cleaning the surface of the oven door, use only mild soap or detergent applied with a sponge or soft cloth. UNPACKING

The appliance was protected from damage at the time of transport. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment. All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol. Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking. At the end of its useful life, this product must not be disposed of with normal municipal waste. Instead, it should be taken to an electronic waste collection and recycling point. It is indicated by the symbol on the product itself, or on the Operator’s Manual or packaging. The materials used in making of this appliance can be reused, as indicated. By reusing or recycling the materials or parts, you will be playing an important part in protecting our environment. Information about the relevant disposal points for worn-out electrical goods is available from your local authorities.

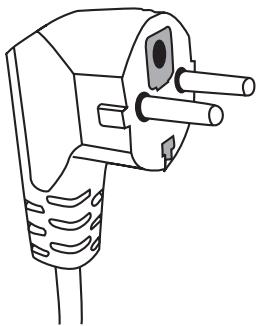

INSTALLING THE PROTECTIVE CIRCUIT

DANGER This appliance must be grounded. In the event of a short-circuit, earthing reduces the risk of electric shock. The appliance is equipped with earthing wire with an appropriate plug. The plug should be inserted into a properly installed and grounded outlet. Danger of electric shock when touched, some internal components may cause serious injury or death. Do not disassemble this appliance. If you do not completely understand earthing instruction or you are unsure whether the appliance is properly grounded, please contact a qualified electrician or service technician. If you must use an extension cord, use only a three-wire extension with an earthing connector. The manufacturer shall not be liable for damage or injury resulting from connecting the microwave oven to a power source without a protective circuit or with a malfunctioning protection circuit. A short power cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord. If you use the extension cord:

1) Extension cord must be

capable of withstanding nominal current required by the appliance.

2) Extension cord must be 3-wire

with earthing, WARNING Electric shock hazard. Improper use of earthing can cause electric shock. Do not insert the plug into the socket before the appliance is properly installed and grounded. Extension cord should be so arranged as not to be hung by the table top where it could be pulled by children, or caught inadvertently.

COOKWARE Materials that can be used and materials to be avoided in the microwave oven. The use of some non-metallic cookware may not be safe in the microwave oven. If in doubt, you can check the cookware following this procedure. WARNING Risk of injury. Tightly closed containers may explode. Closed containers must be opened and plastic bags pierced before cooking. Testing the cookware:

1. Fill the microwave-safe cookware with 1 cup of cold water (250 ml), and do the same

with the test cookware.

2. Operate the oven with the maximum power for 1 minute.

3. Carefully touch the test cookware. If the test cookware is hot, do not use it in the microwave oven.

4. Do not exceed 1 minute cooking time.

Materials that cannot be used in a microwave oven Cookware Comments Aluminium tray May cause an electric arc. Transfer food to microwave-safe cookware. Cardboard carton May cause an electric arc. Transfer food to microwave-safe cookware. with metal handle Metal shields the food from microwave energy. Metal frame can cause an electric arc. Metal or cookware with metal frame May cause an electric arc and fire in the oven. Metal closure - tightened May cause a fire in the oven. Paper bags Plastic foam may melt or contaminate the liquid in it when exposed to high temperatures. Plastic foam Wood dries out when it is heated in the microwave oven and can crack or break. Materials that can be used in a microwave oven Cookware Comments Aluminium foil Only as shielding. Small and smooth pieces can be used for the coating of thin pieces of meat or poultry, to prevent excessive cooking. Arc discharge may occur if the foil is too close to the oven walls. Film must be at least at a distance of 2.5 cm from the oven walls.

COOKWARE Materials that can be used in a microwave oven Cookware Comments Browning plate Observe the manufacturer’s instructions. The bottom of the browning plate must be at least 5 mm above the turntable. Improper use may cause cracking of the turntable. Dinner dishes Suitable for microwave ovens only. Observe the manufacturer’s instructions. Do not use cracked or chipped cookware. Glass jars Always remove the lid. Use only for heating food to a suitable temperature. Most glass jars are not heat resistant and may explode. Glassware Use only heat-resistant glassware in the microwave oven. Make sure that there are no metal frames. Do not use cracked or chipped cookware. Bags for microwave cooking Observe the manufacturer’s instructions. Do not seal with metal clamps. Paper plates and cups Cut through to allow the steam to escape. Use only for short cooking / heating. Do not leave the oven unattended while cooking. Paper towels Use to cover food to be heated to absorb fat. Use only for short cooking under constant surveillance. Parchment paper Use as a cover to prevent splashing or as a container for evaporation. Plastics Suitable for microwave ovens only. Should be labelled „for use in microwave ovens.” Some plastic containers soften when the content is warmed up. Bags for microwave cooking and sealed plastic bags must be pierced or incised, or vented according to the directions on the package. Plastic packaging Suitable for microwave ovens only. Use to cover food during cooking in order to maintain moisture. Do not let plastic packing touch the food. Thermometers Suitable for microwave ovens only (thermometers for meat and sugar). Wax paper Used as a covering to prevent splashing and to keep moisture. Cookware material Microwaves Grill Combi Mode Heat-resistant glass YES YES YES Regular glass

Heat-resistant ceramics YES

Metal rack (provided for the oven)

Aluminium foil and foil containers

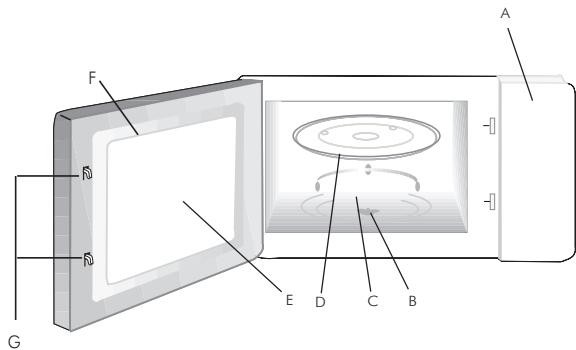

Microwave oven accessories Remove all packaging, both inside and outside the oven, before using the oven. The oven comes with the following accessories: Turntable Turntable support Operator’s Manual

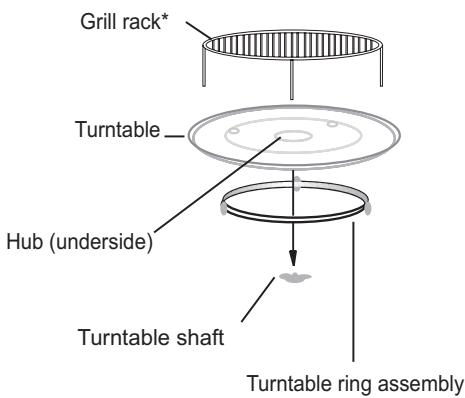

Control panel Turntable shaft Turntable ring assembly Turntable Door glass panel Door assembly System security lock - disconnects power to the oven when the door is opened during operation.

Microwave oven should be placed in a cabinet with special frame. TURNTABLE INSTALLATION

Hub (underside) Never compress or place the turntable upside down. When cooking always use the turntable and its ring support. For cooking or heating always put the food on the turntable. If the turntable breaks, please contact the nearest authorized service centre. Turntable shaft Turntable ring assembly

• Note: The grilling rack supplied with the appliance should only be used when the appliance is set to „GRILL”.

Remove all packaging materials and components. Check the oven for damage such as dents or door misalignment or breakage. Remove any protective film from the surface of the cabinet. Do not install the oven if it is damaged. Do not remove the light brown mica cover bolted into the recess in order to shield the microwave magnetron. Installation

1. The appliance is designed for household use only.

2. The appliance can be used only after fitting in kitchen furniture.

3. For fitting instructions, please refer to „Installation guide”.

4. Microwave oven should be installed in a cabinet with a width of 60 cm and a

height of 85 cm from the kitchen floor. Accessible surfaces may become hot during oven operation.

OPERATION This microwave oven has a modern electronic programmer to adjust the parameters of cooking or reheating.

1. Setting current time

Once the microwave oven is plugged into the outlet, the display shows 00:00. Proceed as follows:

1. Press minute digits start to flash

2. Turn to set the hour

3. Press minute digits start to flash

4. Turn to set the minutes

5. Press to store current time setting

Current time must be set so that all oven functions are available. Current time must be stored. If this is not done within 5 minutes, previous time setting will be restored.

Example: If you want to cook food for 20 minutes using 80% of maximum microwave power, the oven can be set as follows:

, the screen displays „PI 00”.

2. Press repeatedly or turn to set microwave power equal to 80%, the display

will show „P80” (the microwave power is marked with the appropriate symbol shown in the table on the next page).

3. Press to confirm.

4. Turn to select the cook time of 20 minutes.

5. Press to start heating or to cancel settings.

NOTE: Special rack which is supplied with the oven can only be used during grilling.

1. Press to select the grill function (the „G” symbol will be displayed).

2. Press to confirm the selection of the grill function.

3. Turn to set the cook time (ranging from 00:05 to 95:00).

4. Press to start grilling.

Note: Once half of the grilling time has elapsed, an acoustic signal will be sounded to indicate that the food should be turned to obtain better cooking result. Open the door, turn the food and press to resume cooking. If this is not done, the appliance will continue to operate until the set cook time has elapsed.

Combined use of grill and microwave cooking in the appropriate proportions (see C-1 and C-2 table below).

1. Press , the screen displays „G”.

2. Press repeatedly or rotate to set the Combi function indicated on the

display as „C-1” or „C-2” (the ratio of microwave to the grill power is presented in the following table).

3. Press to confirm the selection of the Combi function.

4. Turn to set the cook time (ranging from 00:05 to 95:00).

5. Press to start the appliance.

Ratio of microwave to grill power for the Combi function: Symbol shown on the display Microwave power Grill power C-1 55% 45% C-2 36% 64%

Use this feature to quickly start cooking food. Once the food is placed in the microwave oven press again and again to add cook time and start cooking. Using the Quick Start function you can set a cook time of 30 seconds to 10 minutes. Food is then cooked at maximum power.

6. Defrosting by weight

1. Press button once, the display shows „dEF1” (defrosting by weight).

2. Turn to adjust the weight of food (in the range 100-2000g).

3. Press to start the defrosting process.

7. Defrosting by time

1. Press button twice, the display shows „dEF2” (defrosting by time).

2. Turn to set the cook time (ranging from 00:05 to 95:00).

3. Press to start the defrosting process.

8. Multi-stage cooking

Set the cooking programme. Three power levels can be set. Defrosting should be always set first, if it is included in a multi-step programme. The appliance will beep after each programme step has been completed. Auto Menu cannot be used in multi-step cooking. Example: To defrost food for 5 minutes, then cook it for 7 minutes using 80% microwave power, do the following:

1. Press the button twice (the display shows „dEF2.)

2. Turn to set the defrosting time for 5 minutes.

4. Turn to set the microwave power of 80% (the display will show „P80”).

6. Turn to select the cook time of 7 minutes.

to start the appliance.

First, set the current time, then the cooking process as described above and then set the desired delayed time. Example: If you want to start cooking food at a given time using a 80% microwave power for 7 minutes, do the following:

1. First set the current time (see pt 1).

2. Set the cooking programme. Three power levels can be set.

Defrosting cannot be set in conjunction with delayed start. a) Press once. b) Turn to set the microwave power of 80% (the display will show „P80”). c) Press to confirm. d) Turn to select the cook time of 7 minutes. After this, do not press , but follow these steps:

3. Press , hour digits blink.

4. Turn to set the hour digits (from 0 to 23).

5. Press , minute digits blink.

6. Turn to set the minute digits (from 0 to 59).

7. Press to start the delayed cooking.

The appliance will beep when cooking starts. The last step will be confirmed by an acoustic signal and then the countdown of the delay time begins. Microwave switches on automatically once the countdown has completed.

3. Turn to select the weight of 250g.

4. Press to start the preset programme.

5. Microwave beeps after cooling is finished.

50g (with 450 ml of cold water)

100g (with 800 ml of cold water)

2. Repeatedly press or rotate to select the weight of food (200g, 400g

3. Press to start the appliance.

To activate child lock: Press the for about 3 seconds until the display shows and a long beep is heard - the child lock is activated. To deactivate child lock: Press the for about 3 seconds until the display shows and a long beep is heard - the child lock is deactivated.

13. Information functions:

a) Press or during cooking to show the current power level. b) Press when delayed start function is active to show the time setting. c) Press to resume cooking after the door is opened and closed. d) Press during cooking to show the current time.

Make sure the oven has been disconnected from power. Clean the inside of the oven after use with a lightly moistened cloth. Clean accessories in the usual manner with soap and water. If soiled, door frame, gasket and adjacent parts should be thoroughly cleaned with a damp cloth.

TROUBLESHOOTING Microwave oven interferes with the TV reception Radio and television reception may be disrupted when the microwave oven operates. The same applies to small household appliances such as a blender, vacuum cleaner and electric fan. This is normal. Dimmed oven lighting. When cooking with low microwave power, oven light may be dimmer. This is normal. Condensation forms on the door, hot air comes out through vents. When cooking, steam can be released from food. Most of the steam escapes through the vents. However some steam can collect in the form of condensation on cooler parts, such as oven door. This is normal. Fault Possible cause How to correct (1) power cord unplugged or not plugged properly into the socket Pull the plug and put it back in after 10 seconds. (2) Blown fuse or tripped circuit breaker. Replace the fuse or turn on the circuit breaker (any repairs by Amica service only) (3) No voltage in the socket Check the outlet by plugging in other appliance. The oven does not heat. The door is not closed properly. Close the door fully. Turntable makes noise when oven operates Rotating ring or bottom of the oven dirty. See „Microwave oven maintenance” Oven does not start.

FINAL REMARKS Before using the microwave, please carefully read this manual. Store it in such a place, so that it may be used in future. Do not repair the oven yourself, please contact the factory authorized service. The contents of feeding bottles and jars with food for children should be stirred or shaken and the temperature checked before serving to prevent burns; Regularly check the oven and its power cord for damage. If there is any damage, do not use the oven

1. Performing any maintenance or repairs which require removing any shielding protecting against microwave energy is dangerous and should only be entrusted to a qualified technician (manufacturer’s service);

2. Only give the child permission to use the oven without supervision when

the child has been given appropriate guidance to use the microwave safely and is aware of the risks of misuse;

3. If the power supply cable is damaged, it should be replaced by the manufacturer or at an authorized servicing outlet.

Do not attempt to operate the oven with the door open, because it may cause harmful exposure to microwave energy. Do not disable the safety interlocks, or attempt to circumvent them. Thoroughly clean the door gasket and sealing surfaces. Do not operate the oven if it is damaged. It is particularly important that the oven door is properly closed and that there is no damage to: (1) door (bent), (2) hinges and latches (broken or loosened), (3) gaskets and the door sealing surface. Check cookware and make sure that it is suitable for use in microwave ovens. When heating food in plastic or paper containers, pay special attention to the microwave oven as containers may ignite; Microwave heating of beverages can cause delayed boiling, therefore care should be taken when handling the container;

Warranty Warranty service as stated on the warranty card The manufacturer shall not be held liable for any damage caused by improper use of the product. After-sales service Should you experience any problems whatsoever when using any Amica product, please contact our SERVICE CENTRE for efficient and professional assistance. We wish to guarantee all those who have trusted the Amica brand full convenience when using our products. Service Help Line For the UK: please call 0844 815 8880 For Ireland: please call 0818 46 46 46 Manufacturer’s Declaration The manufacturer hereby declares that this product meets the requirements of the following European directives: Low Voltage Directive 2006/95/EEC, Electromagnetic Compatibility (EMC) Directive 2004/108/EEC and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.
