Product type	Hot air fryer (Air Fryer)
Brand	PROFICOOK
Model	501177 / 501 177 / PC-FR 1177 H
Power supply	220-240 V~, 50/60 Hz
Power	1700 W
Net weight	Approximately 5.75 kg
Basket capacity	MAX marking to avoid contact with heating element (capacity not specified)
Temperature adjustment	80 °C to 200 °C
Timer	1 to 60 minutes
Automatic functions	Preheating, fries, shrimp, meat, poultry, fish, steak, gratin, bacon (9 programs)
Display	Screen with indicator lights
Basket material	Non-stick coating
Cleaning	Basket and tank dishwasher safe (not specified); clean exterior with a damp cloth
Safety	Automatic shut-off, hot surface (caution burn), safety switch if basket not inserted
Standby mode	Automatic switch after 60 seconds of inactivity or at end of cooking
Warranty	Refer to the provided warranty card
Included accessories	Basket, grease tank
Standby consumption	Not specified

Frequently Asked Questions - 501177 - 501 177 PROFICOOK

How to clean the fryer after use?

Unplug the appliance and let it cool down. Clean the basket and grease tank with a soft sponge and dish soap. Never immerse the housing in water. Use a damp cloth for the exterior.

Can you put oil in the tank?

No, this appliance works with hot air. Never put oil or liquid in the tank. For crispy food, you can lightly brush them with oil before cooking.

What to do if the appliance smokes?

If you cook very fatty foods, oil may splatter and produce smoke. Ensure ventilation. Clean the tank after each use to avoid residue.

Why are my foods not cooked evenly?

Do not overload the basket. Stir the food halfway through cooking. Make sure the temperature and time are appropriate.

How to use the automatic programs?

Press the function selection button until you get the desired program (fries, meat, etc.). The temperature and time are preset, but you can adjust them except for the preheating program P.

The appliance does not turn on, what to do?

Check that the outlet works with another appliance. Make sure the grease tank and basket are correctly installed. Check the circuit breaker.

What is the maximum capacity of the basket?

Fill the basket up to the MAX mark inside. Do not exceed to prevent food from touching the heating element.

Can I put frozen foods directly?

Yes, but you need to increase the cooking time by about 3 minutes if you do not preheat. Stir halfway through for even cooking.

How to set temperature and timer manually?

Press the °C button to set the temperature (80-200°C) with the + and - buttons, then Min for the time (1-60 min). Confirmation is by beep.

What does the 'trash can' symbol on the appliance mean?

It indicates that the appliance should not be disposed of with household waste. Take it to a collection point for recycling electrical and electronic waste.

USER MANUAL 501177 - 501 177 PROFICOOK

LET OP: Anti-aanbaklaag

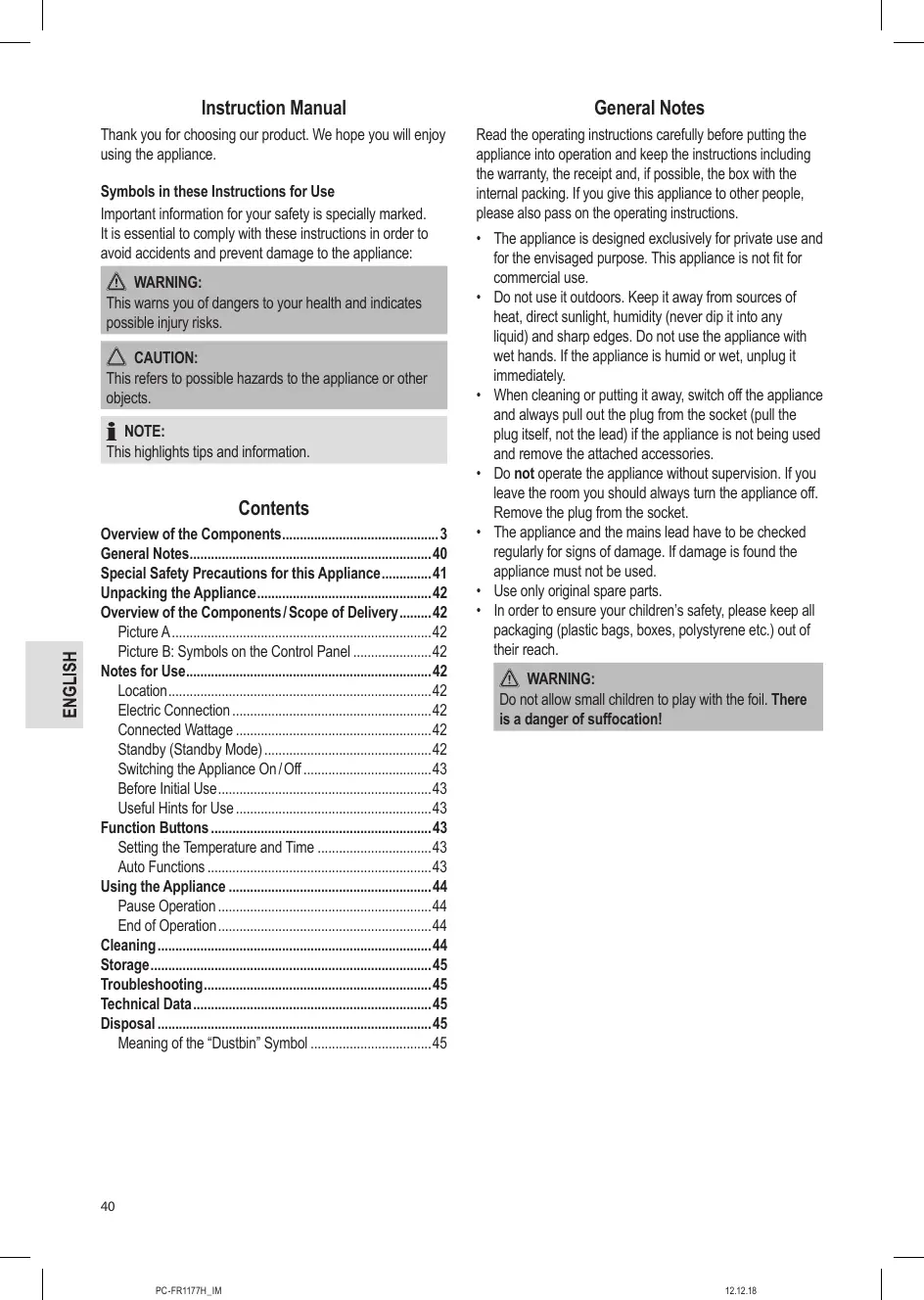

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

Contents

Overview of the Components. 3

General Notes. 40

Special Safety Precautions for this Appliance. 41

Unpacking the Appliance 42

Overview of the Components/ Scope of Delivery. 42

Picture A. 42

Picture B: Symbols on the Control Panel 42

Notes for Use 42

Location 42

Electric Connection 42

Connected Wattage 42

Standby (Standby Mode) 42

Switching the Appliance On/Off 43

Before Initial Use 43

Useful Hints for Use 43

Function Buttons 43

Setting the Temperature and Time 43

Auto Functions 43

Using the Appliance 44

Pause Operation 44

End of Operation 44

Cleaning 44

Storage 45

Troubleshooting 45

Technical Data. 45

Disposal 45

Meaning of the "Dustbin" Symbol 45

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Precautions for this Appliance

You will find the following symbol with warning character on the appliance:

WARNING: Hot surface! Danger of burns!

During operation and afterwards, the temperature of the accessible surfaces will be very high.

• Grasp the fat tank with inserted basket by the handle. If necessary, use oven gloves.

• During operation, hot steam may escape from the air outlet opening. Keep a sufficient distance.

• Do not cover the air inlet opening and air outlet opening, in order to ensure sufficient air circulation.

• Keep sufficient distance (15 cm) to highly flammable objects such as furniture, curtains, etc.!
• Due to rising heat and vapours do not place the appliance under wall cupboards.
• Do not operate the appliance with an external timer or separate remote control system.
• Do not tamper with the safety switch.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.

• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

CAUTION:

This appliance is not intended to be immersed in water during cleaning. Please observe the instructions that we have included for you in the chapter "Cleaning".

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging materials like foils, filling materials, cable holders, and carton packaging.
3. Check the scope of deliveries for completeness.
4. If there are missing parts or obvious damage, do not use the appliance. Return it to your retailer immediately.

Overview of the Components/ Scope of Delivery

Picture A

1 Air inlet opening
2 Air outlet opening
3 Housing
4 Fat tank with internal basket
5 Handle of the basket
6 Cover for the underlying release button
7 Control panel
8 Display

Picture B: Symbols on the Control Panel

9 indicator lamp
10 indicator lamp
11 indicator lamp
12 indicator lamp
13 indicator lamp
14°C button
15 indicator lamp
16 indicator lamp
17 + button
18 - button
19 button
20 Min button
21 button
22 button
23 indicator lamp
24 P indicator lamp
25 indicator lamp

Notes for Use

Location

• Set the appliance onto a non-slip, level, and heat-resistant surface.
  Take care that the appliance and the mains cable never are placed onto hot surfaces or near heat sources (e.g. range, hob).

Electric Connection

Before inserting the power plug into the outlet, check that the mains voltage to be used matches that of the appliance. You can find the required information on the nameplate.

Connected Wattage

The total power consumption of this appliance can be up to 1700W. With this connected load a separate supply line protected by a 16A household circuit breaker is recommended.

CAUTION: Overload!

• If you use extension leads, these should have a cable cross-section of at least 1.5mm^2
• Do not use any multiple sockets, as this appliance is too powerful.

Standby (Standby Mode)

NOTE:

The appliance is in standby, if the button lights red.

When faced with the following situations, the appliance will switch into standby:

• When the power plug is inserted.
  If no button is pressed for approx. 60 seconds.
• When the time has elapsed.
• When you press and hold the button for approx. 3 seconds.

Switching the Appliance On/Off

Turn the appliance on and off by using the button.

NOTE:

Operation is only possible if the fat tank is used with the basket in the appliance.
- After the time has elapsed, the appliance will automatically switch into standby mode. The fan keeps running to cool down the appliance. After approx. 20 seconds, you will hear 5 beep sounds and the symbol goes off.

Before Initial Use

• There is a protective layer on the heating element. To remove this, operate the appliance for about 10 minutes without any contents.

NOTE:

Any smoke or smells produced during this procedure are normal. Please ensure sufficient ventilation.

WARNING:

Allow the appliance to cool down before you clean it!

• Disconnect the mains plug from the wall socket.
  Before using the appliance, wipe out the basket, the fat tank and its interior.

Useful Hints for Use

• This appliance is used for the preparation of solid foods. Do not prepare any soups or liquid foodstuffs in it.
• A safety switch prevents the use of the appliance without a basket with the fat tank.
• To achieve an optimum result, fill the frying basket maximal up to the MAX marking only. Never overfill the frying basket, so that the food does not touch the heating element.
• Never put oil or other liquids in the fat tank. In order to achieve crispy results, you can baste the food with a little oil.
• Do not prepare the appliance for high-fat foods (e.g. sausages).
• All foods can be prepared in the appliance, which are also suitable for the oven.
  Note that the dough expands during baking of cakes, bread or similar. Nothing must come into contact with the heating element.
• Foods that are cooked over one another, must be shaken after half way through the cooking time. Thus the result is optimized and prevents uneven cooking.

Tip: Remove the basket from the fat tank to be able to shake the content in a better way.

• Pour water on homemade potato products after cutting at least 30 minutes to reduce the potato starch. Then dry the potato pieces with paper.

• The cooking time depends on several factors: Size, condition, quantity of food and set temperature. For standard values, see "Function Buttons" "Auto functions".

• If you do not preheat the hot air fryer, add 3 minutes to the cooking time.

• Fry steaks/larger quantities of meat in a pan previously before leaving to cook in the hot air fryer. Time and temperature are dependent on the desired degree of doneness.
• With the appliance, you can also reheat food. Set the time to 10 minutes and the temperature to 150^ C .

Function Buttons

NOTE:

• The buttons on the appliance are touch keys. Gently touch the buttons with a finger to execute the function. Whenever a button is pressed, it will be confirmed by a beep sound.
• By pressing and holding the buttons + or -, a fast-forward will start.

Setting the Temperature and Time

Use the + and - buttons to set the temperature and the time. Press the ^ or Min button to toggle between the display of the temperature and the time. The display automatically changes after about 5 seconds if no button is pressed.

NOTE:

• The ^ C button is displayed only when the temperature in the display is lit.
• The Min button is displayed only when the time in the display is lit.

Auto Functions

Press the button to select from the following auto functions:

Mode	Pre-set temperature in °C	Pre-set time in min.
Preheating P	200	3
French fries	200	22
Prawns	160	8
Meat	200	25
Poultry	180	20
Fish	200	10
Steak	200	12
Baked with cheese	170	3
Bacon	200	10

NOTE:

• These shall be considered as guide values. Depending on the size and weight, the time and temperature may be longer and higher or shorter and lower.
• You may, however, change the pre-set temperature and time of the auto functions. This is not possible while using the automatic program P!

Using the Appliance

1. Connect the appliance to a properly installed earthed socket.

NOTE:

You will hear a beep sound and all symbols light up briefly. The button lights red.

1. Press the button to switch the appliance on. You will see the pre-adjustment 190^ and 3 minutes.
2. Select an auto function by using the button or set the time (1-60 minutes) and the temperature (80^ - 200^) individually by using the buttons + and -

NOTE:

You may use program P for preheating.

1. Press the button to start the cooking process.

NOTE:

• Once the pre-set temperature is reached, the symbol will light green.

• The symbol is switching between the colours red and green. This is normal and it indicates that the temperature is controlled by the thermostat and is being maintained.

• Using the handle, pull the fat tank with the basket from the appliance.

• Fill the basket with the desired food.
• Slide the fat tank with the basket back into the appliance. It must engage.
• If necessary, shake the food after half the cooking time. Pull it out of the fat tank with the basket on the handle.

WARNING:

Hot steam can escape!
- Never shake the basket when it is in the fat tank, because this may contain hot oil.

1. Place the fat tank with basket on a heat-resistant surface.
2. Slide the cover of the release button towards the basket.
3. Press the release button to remove the basket. Shake the contents of the basket.
4. Put the basket back in the fat tank. This must engage.
5. Slide the fat tank back into the appliance.

Pause Operation

• Press the button to pause the operation. The button is flashing. Press the button again to resume the operation. The button is continuously lit again.
• The operation will also be paused as soon as you remove the basket. In order to turn the appliance back on, insert the basket again.

NOTE:

• The appliance will start from the spot it has been paused.
• If, however, you pull out the power plug, your current settings will be lost. When inserting the power plug and pressing the button the appliance will show the pre-adjustment again.

End of Operation

1. After the time has elapsed, the appliance will automatically switch into standby mode. After approx. 20 seconds, you will hear 5 beep sounds and the symbol goes off.
2. Pull out the fat tank with the basket by the handle.
3. Place the fat tank with basket on a heat-resistant surface.
4. Slide the cover of the release button towards the basket.
5. Press the release button to remove the basket. Put the food in a heatproof bowl.
6. Slide the fat tank back into the appliance.

Cleaning

WARNING:

• Always turn the appliance off before cleaning it and remove the mains plug. Wait until the appliance has cooled down.
• Do not immerse the appliance in water! Doing so may result in an electric shock or fire.

CAUTION: Non-stick coating

• Do not use any wire brush or other abrasive objects.

• Do not use any acidic or abrasive detergents.

• The basket and fat tank can be cleaned in a warm rinse.

• Clean the appliance inside and outside with a slightly moist, not wet cloth.

Storage

• Clean the appliance as described. Let the accessories dry completely.
  We recommend that you store the appliance in its original packaging when it is not to be used for a longer period.
  Always store the appliance at a well ventilated and dry place outside the reach of children.

Troubleshooting

If a problem occurs, it is often only a small thing. Before you contact our service, please note the following information:

Problem	Possible Cause	Remedy
The appliance is not working.	The appliance has no power supply.	Check the socket with another appliance.
		Plug in the mains plug correctly.
		Check the main circuit breaker.
	The grease drainage container and the basket are not properly inserted.	Check the correct position.
The food is not cooked to the end.	The basket is too full.	Reduce the amount of food. Smaller quantities are cooked evenly.
	The temperature is set too low.	Set a higher temperature.
	The cooking time is set too low.	Set a longer period of time.
The food is cooked unevenly.	When foods are placed on top of each other, there is inadequate airflow.	The food must be shaken after half the cooking time.
The food is not crisp.	Foods are used, which is only suitable for a conventional fryer.	Use oven-ready food or sprinkle it with a little oil.
Smoke comes out of the appliance.	You are preparing very fatty foods.	Fat splashes inside the appliance may cause the emission of fumes. Provide adequate ventilation.
	In the fat tank there are still fat residues from previous use.	Clean the fat tank after each use as described in the chapter “Cleaning”.
The fat tank with internal basket does not snap.	The basket is too full.	Reduce the amount of food.
	The basket in the fat tank is not seated properly.	Insert the basket correctly. It must audibly snap.

Technical Data

Model: PC-FR 1177 H

Power supply: 220-240V\~,50/60Hz

Power consumption: 1700W

Protection class: I

Net weight: approx. 5.75 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Instrukcja obslugi

CTC Clatronic Sp. z 0.0

Ul. Brzeska 1

45-960 Opole

Usuwanie

Yka3bIbAeHT Ha BO3MOXHyO NaCHOCtB DnIg N3JeNnI INpyTnx OKpyKaIOuIXn PpeMeTOB.

I PIPIMEUYAHNA:

Jaet COBtI INHOpMaunIO.

Copepkanie

O63op dTeanepn6opa. 3

O6uhe 3ameyannia 59

CneuaIbIbIe yka3aHnI no 6e3oNaChocTn
Ira 3toro npnbopa .60

PacnaKOBka yctpoiCTBa. 61

O63op detanei npnbopa/KomnneKT noctabkn 61 PncyHOK A. 61

Pucyok B: Cmbbbl ha naheiyn ynpablenia.61

PpmeuHn no nCnoJIb3OBAHn 61

PacnoJoxeHne 61

3Jektpueeckoe nooknooyehne 61

Iotppe6JraMa MoUHocTb 62

Standby (Jexkypnbpeqim) 62

BkIIOueHHe/BbIKIOueHHe np6opa. 62

Ipeed npBbIM nCIOJIb3OBAHHeM 62

Yka3aHnno 3Kcnnyatau.. 62

I PENEYI P E X K D E H N E:

Ipeed oucTko doxkntecb octlbahan np60pa!

BbHbTe cTeByIO BnKy n3 po3eTKn.

IpeudncnoJIb3ObaHnEMnpi6opa npoTpne KOp3nHy nUa7y dJa JxIPA BHTPN IN ChapyXn.

Yka3aHmno 3KcPnyatau

ДанhoeуctpoICTBOHcnoJIb3yETcIЯпriroTOBHeHnTBePdOII\PuI.3aIpeUeHO roTOBtB cyIbI npryIgKNDkyIO\PuIy.
- PpédoxpaHNTeNbHbBbIKNUOaTeNb ppeoTbPaUaetncnIb3OBaHne yctpoNCTBa 6e3 Kop3HbC caaeJdnyknpa.
ДяdoCTINKHeNOnTIMaJIbHbIXpe3yIbTaTOB He 3aONJIHnTe KOp3nHy DnI O6kApKn BblIe OTMeTKn MAX.HKOrDa He NepenOJHnIe ToKp3nHy DnI O6kApKn, YTObblNiUa He Kacalacb HargBeBaTeNbHOrO 3nEmeHTA.
HnKoIa He 3aINBaTe B aUy dIg KpuMa MacNo IIn DpyTne XkIOCTN. UTo6bI Do6ntbcra XpctraeI KoPouKn, MoXHO NpNTb NtU He6OJIbIMM KOINueCTBOM Macna.
He roTOBbTe B yCTPOIcTBe NIIeBbIe npOdyKbI C BbICOM CoepXaHm E Knpa (HaNPmEp, CocnKn).
B yctpoCTBe moKHO rOToBnTB BCE npOdykTbI, KOTOpbIE TAKKe IOnXoJrT DnI dyXOBKn.
Cneyet yuectb, YTO BO BVPm npiroTOBHeHnKekCOB, XNEba nT.I.T. TcTeO pauchepETcR. HnTu He DoJHKHO Kacatbcra HarpBeaTeBHorO 3JemeHTa.
- PioDyKtI, KOTOpbIe roTOBArTcO OIN HAD pRymM, Heo6XoIMMO BCTPRAXBaTB NOICTeEHNI NIOOBHbI BpeMeHN npriROTOBJIeHNA.3TO N03BOJNT NpOyUHTb ONTImaJIbHbI pe3yIbTaT InpedOTBpaTb HepaBHomepHoe npriTOBJIeHne.

Cobet: IV3BLeKInTe KOp3HIny n3 qaIiN dIЯ Jxnpa, YTObI LyuWe BCTpXHyTb CoepxMIOe.

-ДлгСнжспясосderжанякартофьног�хрaxмалаЗалейteворйкартофьdomaшero nprirotobileняHe MeHecYeHа 30MinHyt,IpeDabpnteBJHo erO hapezab.Пocne STOrO pocuyuTeNoMTnKkaptoфяcnomoшьбумаг.
Bpem npiroTOBHeHn 3aBcNt OT HeckoIbKnx PaKTOpOB:OT pa3Mepa, COCTOHHN, KOJIuYeCTBa npOdyKTOB nOT 3aDaHHo TEMpepaTybl. CtaHapTbHe 3NaueHnEr yka3aHbI B HKUHOHabHbIe KHOKn] ABTomuCheKne FyHKUnn].
- EcnBbI npedBaPnteHbHO He HarpEn Bo3dyuHHyO - ptnTupnHy, doabBe K BpeMeHn pniroTOBHeHn - 3 MInHytbl.
- IpeNd TEM, KAK TOTOBINTB CTeKN/60JIbUoe KOJNUeCTBO MRA C B03dUHNO pPnTIOPHNcE, 06XapbTe INx Ha CKOBOPOE. Bpemr N TEMNEPApya 3aBNCAT OT Heo6xoDIMMO CTeENH nPOXAPKn.
C NOMOJIbO 3TOrO yCTpoIcTBa TAKKHe MOXHO NOIORpeBAtb PIIuY. YCTAHOBITe Bpemr 10 MmHyr T Temnepa-typy 150^

UcnoIb3OBaHne yctpoIcTBA

1.ПоdkночиуctpoiCTBOКправиьho yctaHOBJIeHHO 3a3emJIeHHo p03eTke.

ITPIMUEAHNA:

Ipo3BvHT 3ByKOBmCnHaJI N BCE CnMBOJIbI 3a-ToprTcH a KOpOTKe BpeM. KhOJa 3aRopITcKpaChbIM CBETOM.

2.ДЯВКЛHOUHINЯПИБОРанЖМITEKHOJOKI YO.OTO6pa3NTCЯпEDвAPITeHbNO3aDAHNNATeMNEpApTaPya190°CnBpeM3MHHT.
3. BbIbePHTe ABtOMaTHueCKyO cyHKUHIO C NOMOuBHO KONKIMN IIN OTJeJIbHO YCTAHOBITe BPEM (1-60 MnHYT) IN TEMpePATpy (80^ - 200^) C NOMOuBHO KHOKN +n-

ITPIMEUYAHNA:

Moxho nCIOJIb3OBAtI npOrpAmMy P dIra npOrpeBa.

1. Haxmnte KhONky II JnHaN aHa nAra rotobkn.

ITPIMUEAHNA:

• Пи достпхениnpedваретьно 3аданho Tempepatypbl, CIMBOJ 3aportncra 3eJeHbIM CBETOM.
  CmBbON 6yET 3aRopabcKa pacHbIM 3eJIeHbIM CBETOM. 3TO HopMaIbHoe RaJIeHne N CnIHaN3INpyET O TOM, YTO TEMNepaTypa KOHTpOJIpyETcN IPOdEpxNbAeTcTePMOCTATOM.

5.CnOMOuIbpyuKIN3BLeKeITeN3ycTpoCTBaYauJyJnnaC KOp3HNoI.
6. 3aONHnTe KOp3nHy Heo6xOaMbIMn IpOdyKTAMN.
7. 3aДинь Te obpaTHO B MaUHnY YaSu YIЯ Jxnpa C KOp3N Ho. OHa DoJIxHa BOITn B 3aIeIIeHne.
8. Ipn HeoXOJIMOCn IIO npOeCTBmI pIoOBnHi BpeMeHN npriTOBJIeHn BcTpXHnTe NlUy. BbITrNBaIte Yauy dnn Knpa C Kop3NHO 3a pyKy.

IPEyIpyEKeHNE:

• Mojek TBbIXoJntb ropnyn nap!
  HkoIa He BCTpXnBaTte KOp3nHy, KOrDa OHa HaxoDntcB YaWSe DnJxJnpa, IocKoNbky B HeM MoKET coDePxaTbcra Tropyee MacNo.

• NocTabte yauy dny kina c Kop3nHoi Ha KaponpoHyo NOBepxHOCTb.

10.CdBnHbTe KpblkU KhOpknФmKcTopa B HaprabJIeHNI KOp3MHbl.
11.ДЯСЧТИАКОРЗИНБIHAHXMITEKHONKуФИKCATOPA. BCTPAXHITe CODEPKIMOE KOP3HbI.
12. Bepnite KOp3nHy BuaSy dIy Jxnpa. OHa DoJnxHbOITN B3aueJIeHne.
13.3aBnHbTe o6paTHo B MaunHy aUy dny Knpa.

Mmnybchb npexm

Hakmite KhoNky II npnoctahOBKn pa60bI. Miraet KhoNka II. Hakmite KhoNky II ue pa3, YTO6bl npoDoJXkntb pa60ty. CHOba NoCTOaHHo ropit KhoNka II.

Pa60ta np6bopa 6ydt npnoctaHOBnEHa npn n3BNe- yEHNN KOp3HHbl. YTo6bl BkIIOHTb np6bop, yCTaHOBNTe KOp3HNy.

IIPIMEUYAHIA:

Pa60ta npin6opa npoJokntcC MOMeHTa npinocta-HOBKn.
EcnBbIbIepHnTE BnIKy NtAHnY, TeKUne HAcTPOkN 6dyT NoTePraHbI. Iocne TOrO, KaK Bbl BCTaBnTE BnIKy NtAHnY n HaxMeTe KhoNkY , np6Op nobTOBtHO OTo6pa3nt PpeDabpnteJbHyu HAcTPOkiy.

Koheu pa6obtbi

1. Пи Источьно Времен ппбор abTomatческпперходн в джурны ржим. Пиблмпгьно чеш20 секунд позвит 5 звковых синhalов и симьогпогаchet.
2. BbItaHInTe YaIy dIy Jknpa Ckop3nHoi 3a pyky.
3. Пoctabteчудяжрас корзноги на karponpoHyю NOBepxHOCtB.
   4.CdBnHbTe KpbIuKy KHOpKuΦnKCaTopa B HApnpBaJIeHNKOP3NHBI.
   5.ДЯСЧТЯКОЗИБHаЖМITEKHOKNIуФИΚСАТOPA. BbILOXIMTe NIIUyВжApOINpOHyNIOcUy.
4. 3aBnHbTe o6paTHoMaunHy aUy dny knpa.

Чистka

! ПЕДУПЕЖДЕНЕ:

• Пара д устков BCERda BbIKIQUaIte npi6op И ВынmaIte ceTeBOI wTekepHbI pa3bEМ. ПоJOxДITE, пOKa npi6op He OCTbIHET.
• He noprpykaite npnbop B Body! NocJe 3TOrO Bo3HnKaeT pNCK Bo3rOpaHnI ydapa 3JIeKTpnuCeKIM TOKOM.

BHIMAHHE:ANTinpnparaphoe nokpbitne

He npimEnaIte npoBIOUOHyIe TcN ININ ppeMTebl C abpaBnBHbIM POKpbITMeM.
He npimehnTe cnIbHbIe nIa6pa3NBhIe MOUcne cpeDCTBa.
Kop3mHny uauy dya Jkpa MoKHO OCHUaTb nyTEM npombyBKN B TENIOI BOe.
OuHuaTe npB6op n3Hytpn i ChapyKu cIeKa yBnaKHeHHo,HO He MOKPOI TpRNoHQK.

XpahneHne

-ПочNTte yctpoICTBO COOTBETCTBm C OINCaHnEM.Даite akceccyapam NIOHOCbTO BbICOXHyTb.
- PekOMeHnyETcXpaHnITb yCTpOHTB Go oPmIHnAbHo Hyn yNaKOBKe,ecnOHO He 6yDet NcNtB30BaTbc DaNITeJIbHOE BpEMa.
Bcerda xpaHnTe yctpoCTBO B cyxom, xopoio npoBeTpnaBaEMOM MceTe, HeOCTyHOM DJIa DeTeI.

UcTpaHEnHe HncnpaBnOtei

Bo3nKaIOJIe IPO6IeMbI cAto He RaJIaIOCTc cepBe3HbIM. Ipeep oBaPaeHHeM B HauCepBnCHbI cHTp npocm npOHTaTb CneDyUOUY INΦoPMAuHO:

Iotpe6nemar mouhoctb: 1700BaTT

Klacc 3auntbI:

Bec HETTO: npn6J.5,75K

CoxpaheNo npabo Ha texHnueckne I KOHCTpyKUHOHbIe N3MeHeHnB B pAMkax npdoJTKaIOUeIcR pa3pa6OKn npodyKta.

3ToI3JeIe IpoJIo BCE Heo6xOaMlbIe I aKtYaIbHbIe npOBepKn, IpeJIncaHbIe IaPeKtTbO B CE, K pIIM. Ha 3NeKTpOMaHrTHyIO COBMecTmOCtB N COOTBETCTBNE Tpe6oBaHnI M K Hn3KOBOpJIbTHoI TExNHKe, OHO 6blIO TaKke CCKHOpyuPoBAHO I NOcTPOEHO C yUeTOM NocJeDnIX Tpe6oBaHn IO TeXhKe 6e3OnaChOCTN.

YtJnI3aun

3NaueHHe CmmbOJa «KOp3Ha»

3aunita okpykaohoei cpebl: He donyckaetcnytun3aunia 3neKTPoPnBopOB Bmecte C bI-TObIMN OTXODAMN.

YtIIN3aIy UCTapeBwe TeXHKnN HEnCnpabHBx 3JIeKTPoPnIPbOPOB npOn3BOJNTcB TropODkNX pInEMHbX nYHKTax.

He donyckaIte He npabInbHoy yTmN3aun OTxOdb. 3To HAnocnt Bpe OkpykaUeJe cpeE n OKa3bIbaET HeraTnBHOE BO3deJCTBVe Ha 3doOpBe JIOdEi.

Oka3bIaIe Te cOeIcTBNe IporpAmme yTuIN3aunn nDpyTMMΦOpMaM Ipepa60TKn 3neKtpoHNoN n3neKtpuYeCKoT ETHNIK.

a aaa a a a a a a a a a a a a a

j0 j0 100000000000000000000000000000000000000000

aagjNglg aJySsI cUaB1 pUuslo 1u

Jolalill Jg jll slally aedabil clogabla Ugeaill Jg

aabababalljdo

aalssll

Jaiyll aag jil tals jalgl Jaiy. 1011 1

5 500000000000000000000000000000000000000

.

jolll jn aall g o jg 2

.0jouol gao zao jaoalw ge jgaoal jjfo 3

.4aUllololj 3jyjoull jclb 4

.0jolul pglaoeog jplalll .dalll allyy yollil 5

.6j+2o jlaol 1j0aal 1j0a

4ab = 3a

LgLoaie Gsiilabai joljaoiJoo

ailll llll 1 aaii gws jlll jao aiil lal

gss 1j j k aal g y

.1g 1e gaa JnJnJnJnJnJnJnJnJnJnJnJn

a aabaaabaagaaaagaaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaa

.1Lio 1

| x - 2x| = 1| x| .| r_2^2 + r_1^2 - r_0^2| <

aalalalalalalalalalalalalalalalalal

jz jz alw0g sglj jglwl plao w0g zalwcl

.

a 50

paleal y jaoaill alw ofo bol yjao MAX

JgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUg

.aaalj ju jil no Jullal al aol oLg .aiaao aao

Joo) aaijoo jgsd aaii de giosgill aaablln

.（jla

jdi 3do jSgjjgjjgjjgjjgjj

.

.0jolal glaog jia xie gao zao jao

j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

.（jgllg lgll）

1.2.5.11.1.2.2.5.11

a a a a a a a a a a a a a a a a a a a a a a a a a a

yagl aog1 ydgab1 bclgab1 lgld 1di5 jglq gol

aLogb1bglb aIySsIa

110 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 1

.16

1. 与 a : a x

algbjzssuusuLsdyuuydsyj

J3y10 1,5

1. iJg jIqal lla u! Cua oua wu la (puiy) y

jIgJlIiIiIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaI

:duu dus yj g jd j 1 dol o l c l jy jy

jLwZbW:

g^ ( x) = - 1x + 12x + 1

Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg

DAE = 90^

15 15

laxg jllgl.

.1jilaluljz jaiy y aie auiu ojyiyg jyall gaiy

.

a 8 j 8
