USER MANUAL FG150813 MOULINEX

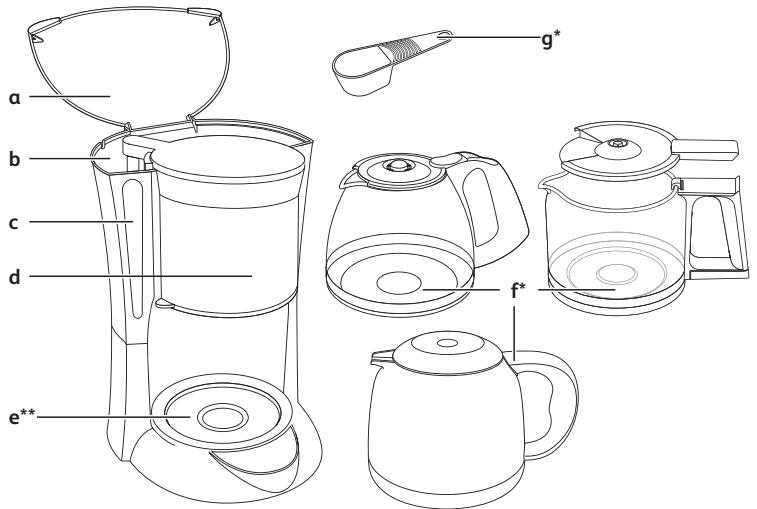

Line drawing of a coffee maker with lid and side handle (no text or symbols)

a b c d e** g* f*

a Couvercle - Lid - Deksel - Deckel - Coperchio - Tapa - Tampa - Калакı - Kapak - Låg - Lokk - Lock - Kansi - غطاء - درب - Крышка - Кришка - Каклағы
b Réservoir - Tank - Reservoir - Wassertank - Serbatoio dell'acqua - Depósito - Depósito - Доχείο - Hazne - Vandtank - Tank - Behållare - Vesisäiliö - مخزن - Резервуар - Резервуар - Су къятын ыдысы
с Niveau d'eau - Water level - Waterpeil - Wasserstandanzeige - Livello dell'acqua - Nivel de agua - Nível de água - Στάθμη νερού - Su seviyesi - Vandniveau - Vannivå - Vattennivå - Vedentason näyttö - سطح آب - مستوى الجام - Уровень воды - Рівень води - Су деңгейі
d Porte-filtre - Filter holder - Filterhouder - Filterträger - Alloggio del filtro - Portafiltros - Portafiltro - Θήκη φίλτρου - Filtre desteği - Filterholder - Filterholder - Filterhållare - Suodatinkotelo - نگهدار في PTR - حاملة الف PTR
e Plaque-chauffante** - Warming plate** - Opwarmplaat** - Heizplatte** - Piastra riscaldante** - Placa calefactora** - Placa de aquecimento** - Θερμαινόμενη πλάκα** - Isinan levha** - Varmeplade** - Varmeplate** - Värmeplatta** - Lämpölevy** -(loحة التسخsein)** - ظرف گرم کردن** - Нагревающая пластина** - Пластина, що нагривається** - ۱стық табаны**
f Verseuse* - Jug* - Koffiekan* - Kanne* - Caraffa* - Jarra* - Jarra* - Kaváta* - Súrahi* - Kande* - Kanne* - Kanna* - Kannu* - إبrieф* - كوزه* - Кофейник с прямой ручкой* - Кофейник з прямою ручкою* - Куман*
g Cuillère doseuse - Dosing spoon - Maatlepel - Dosierlöffel - Cucchiaio dosatore - Cuchara dosificadora - Colher doseadora - Meζούρα - Ölçme kaşığı · Måleske - Doseringsskje - Kaffemått - Mittalusikka - قاشق به ميزان دوز - ملعقة قيسي - Ложка-дозатор - Ложка-дозатор - Łyżka dozująca - Өлшейтин қасық
* Selon modèle - Depending on model - Afhankelijk van de model - Je nach Modell - A seconda del modello - Según modelo - Consoante o modelo - Aváloya με το μοντέλο - Modeline göre - Afhängigt af modellen - Avhengig av modell - Beroende på modell - Riippuu mallista - بسته به مدل - حسب Milesdel - * - В зависимости от модели - В залежності від модели - Улгіре байланысты
** Pour le modèle verseuse verre - For the glass jug model - Voor de glazen koffiekan - Beim Modell mit Glaskanne - Per il modello con caraffa in vetro - Para el modelo con jarra de cristal - Para o modelo con jarra de vidro - Για το μοντέλο με γυάλινη κανάτα - Cam sürahi modeli için - Til modellen med glaskande - For modellen med glaskanne - För modellen med glaskanna - Lasikannulliselle mallille - İmpödül İntürük İztajası - برای مدل tetke مشेष्टी - İmpödül İntürük İztajası - для модели со стеклянным кофейником - ۱۶۰۸۳۹-

1

Simple line drawing of a container with an upward arrow, placed on an open box (no text or symbols)

Illustration of hands holding a cup with an upward arrow inside, inside an open box (no text or symbols)

Illustration of a hand cleaning a cylindrical container with a cloth (no text or symbols)

OK

fig.1
2

Illustration of a hand pouring liquid into a container with a rotating arrow (no text or symbols)

Diagram of a kitchen appliance with a pot and fan, enclosed in a circular frame (no text or symbols)

Diagram of a kitchen utensil with a rotating handle and lever mechanism (no text or symbols)

fig.2
3

Diagram of a mechanical device with two cylindrical components and an arrow indicating rotation (no text or symbols)

Simple line drawing of a kitchen appliance with a lid and side bowl, no text or symbols present.

Diagram illustrating a hand using a tool to clean or store items, with arrows indicating process flow.

Diagram showing a hand holding a component with two arrows labeled 1 and 2 indicating direction or movement.

fig.3
* Selon modèle - Depending on model - Afhankelijk van de model - Je nach Modell - A seconda del modello - Según modelo - Consoante o modelo - Aváloya με το μοντέλο - Modeline göre - Afhængigt af modellen - Avhengig av modell - Beroende på modell - Riippuu mallista - بسته به مدل - حسب melody - B зависимости от модели - B залежности від модели - Улгіге байланысты

4

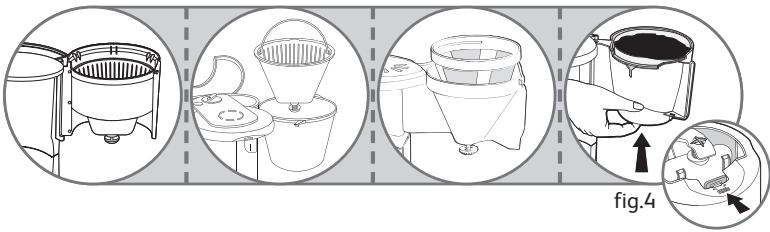

fig.4

5

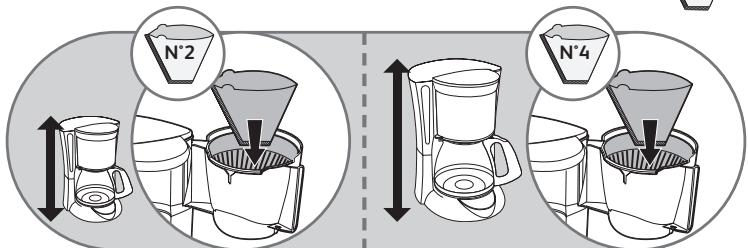

N°2 N°4

fig.5
6

Illustration of a hand pouring dark granular material into a bucket with a downward arrow (no text or symbols)

fig.6
* Selon modèle - Depending on model - Afhankelijk van de model - Je nach Modell - A seconda del modello - Según modelo - Consoante o modelo - Aváloya με το μοντέλο - Modeline göre - Afhængigt af modellen - Avhengig av modell - Beroende på modell - Riippuu mallista - حسب melody - بسته به مдел - حسب melody - B зависимости от модели - В залежности від моделі - Улгіге байланысты

7

fig.7
8

Diagram of a hand holding a curved object with directional arrows, enclosed in a circular frame (no text or symbols)

Hand inserting a small rectangular component into a circular frame (no text or symbols)

Hand pressing a button on a circular button (no text or symbols visible)

fig.8
9

Illustration of a hand pouring liquid into a cup with an asterisk symbol (no text or symbols present)

Illustration of a coffee maker being held in two different positions (no text or symbols present)

fig.9
* Selon modèle - Depending on model - Afhankelijk van de model - Je nach Modell - A seconda del modello - Según modelo - Consoante o modelo - Aváloya με το μοντέλο - Modeline göre - Afhængigt af modellen - Avhengig av modell - Beroende på model - Riippuu mallista - بسته ME مдел - حسب melody - B зависимости от модели - В залежности від моделі - Улгіге байланысты

Circular icon showing a showerhead and bucket with a crossed black mark (no text or symbols)

fig.10

Diagram showing a hand holding a screwdriver with a magnified inset showing a lightning bolt (no text or symbols present)

fig.11

Illustration of a pot on a stove burner with a crossed pan (no text or symbols)

fig.12

Illustration of a hand pressing down on a steaming cup with a diagonal line crossing through (no text or symbols)

fig.13

Illustration of a person pouring liquid into a bucket with a pen and arrow (no text or symbols)

fig.14

Circular diagram showing mechanical components with arrows indicating direction (no text or symbols)

fig.15

Diagram of a mechanical device with a cross mark and downward arrow indicating motion (no text or symbols)

fig.16

Illustration of a person using a device to smoke or smoke, with a crossed-out black X symbol (no text or labels)

fig.17

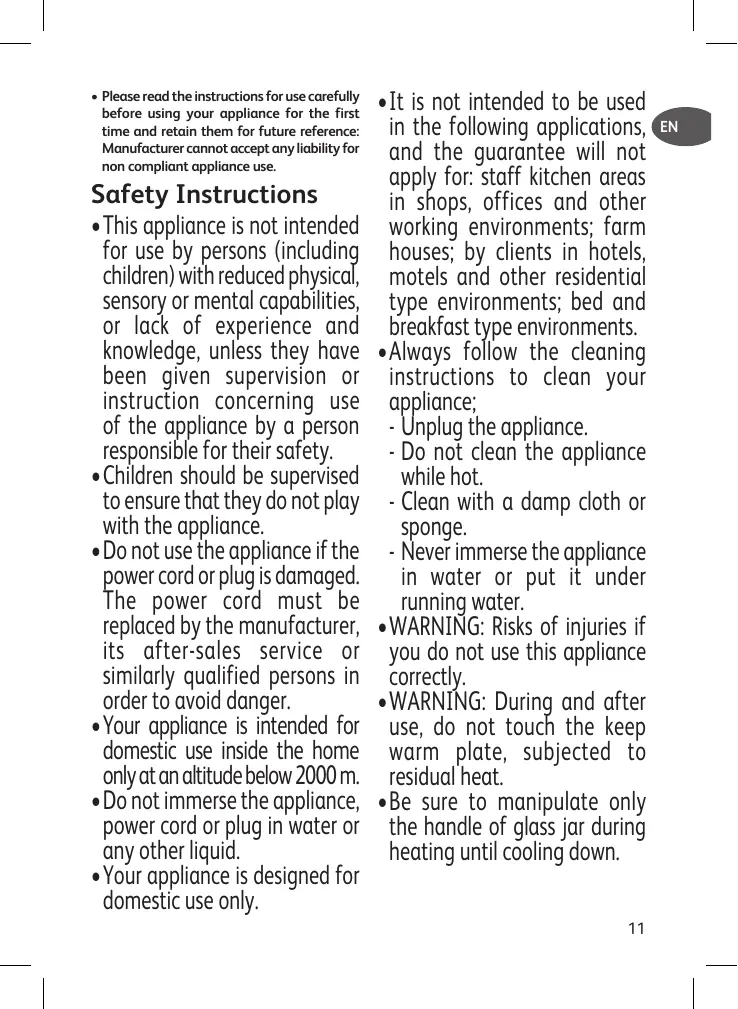

- Please read the instructions for use carefully before using your appliance for the first time and retain them for future reference: Manufacturer cannot accept any liability for non compliant appliance use.

Safety Instructions

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- Do not use the appliance if the power cord or plug is damaged. The power cord must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid danger.

- Your appliance is intended for domestic use inside the home only at an altitude below 2000 m.

- Do not immerse the appliance, power cord or plug in water or any other liquid.

- Your appliance is designed for domestic use only.

- It is not intended to be used in the following applications, and the guarantee will not apply for: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

• Always follow the cleaning instructions to clean your appliance;

• Unplug the appliance.
• Do not clean the appliance while hot.
• Clean with a damp cloth or sponge.
• Never immerse the appliance in water or put it under running water.

- WARNING: Risks of injuries if you do not use this appliance correctly.

- WARNING: During and after use, do not touch the keep warm plate, subjected to residual heat.

- Be sure to manipulate only the handle of glass jar during heating until cooling down.

- This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and they are supervised by an adult.

- Keep the appliance and its cord out of reach of children under 8 years of age.

- This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the device safely and understand the dangers.

- Children should not use the appliance as a toy.

- *The temperature of the accessible surfaces may be high when the appliance is in operation. Do not touch the hot surfaces of the appliance.

• Before plugging the appliance in, make sure that the power it uses corresponds to your electrical supply system and that the outlet is earthed.
• Any error in the electrical connection will negate your guarantee.
• Unplug the appliance when you have finished using it and when you clean it.
• Do not use the appliance if it is not working properly or if it has been damaged. If this occurs, contact an authorised service centre.
• All interventions other than cleaning and everyday maintenance by the customer must be performed by an authorised service centre.
• The power cord must never be close to or in contact with the hot parts of your appliance, near a source of heat or over a sharp edge.
• For your safety, only use the manufacturer's accessories and spare parts designed for your appliance.
• Do not pull on the cord to unplug the appliance.
• Never put your coffee jug in a microwave oven, on a flame or a electric cooking plates.
• Do not fill the appliance with water if it is still hot.
• All appliances are subject to strict quality control procedures. These include actual usage tests on randomly selected appliances, which would explain any traces of use.
  • Always close the lid when running the coffee maker.
• Do not use the jug without the lid.
• Do not pour hot water in the tanks.

Using the machine for the first time

Before making coffee you should use the coffee maker once with water only (without coffee).

Preparing the coffee

(Follow figures 1 to 9)

• Use only cold water and filter paper n°2 or 4 (fig.5) or the permanent filter* (fig.4).
• Do not exceed the maximum quantity of water indicated by the water level on the tank.

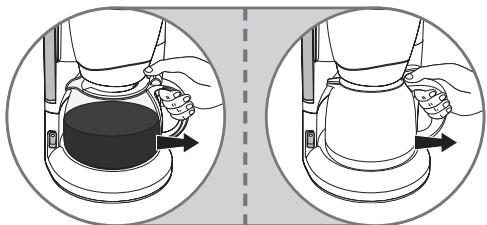

• This coffee maker has a drip stop so that you can serve coffee before the end of the cycle. Once your coffee is served, replace the jug or thermal pot* to prevent overflowing.
• Ground Coffee: Use one measuring spoon of ground coffee per large cup.
• Wait a few minutes before making a second pot of coffee.
• Do not make another pot of coffee if the jug already contains coffee.

Thermal pot\*

• Do not use the thermal pot without its lid.
• The lid of the isothermal pot must be closed properly when preparing coffee and to keep it warm.
• To serve coffee, press the lever on the lid of the isothermal pot downwards or unscrew the lid half way*.
• Do not put your thermal pot in the microwave or dishwasher.
• Rinse the thermal pot in hot water before using so that it retains heat better and do not put it back inside the coffee maker after you have prepared the coffee.
• The thermal pot keeps your coffee warm for a maximum of four hours.

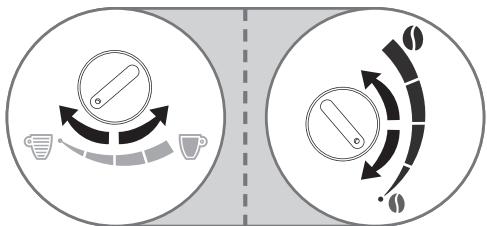

Aroma selector\* (see figure n°7)

• The aroma selector (fig.7) allows you to adjust the intensity of the coffee.
• For a stronger cup of coffee, turn the aroma setting either towards the black cup or the large coffee grain*.

Automatic stop

- In order to save energy, your coffee machine will turn off automatically.

- Models with glass pot:

About 30 minutes after the end of the coffee brewing cycle (i.e. about 30 minutes after there is no more water in the tank), your coffee machine will turn off automatically. The light on the on/off button will turn off.

During these 30 minutes, your coffee will be kept warm at a suitable temperature.

- Models with thermo pot:

A few minutes after the end of the brewing cycle (i.e. a few minutes after there is no more water in the tank), your coffee machine will turn off automatically. The light on the on/off button will turn off.

Reheating the coffee

- Do not put the glass jug into the microwave if it has a metallic part (e.g.: metal band).

Cleaning

• To dispose of the used coffee grounds, remove the filter paper (fig.5) or permanent filter* (fig.4).
• Unplug the appliance from the wall socket outlet, and allow the coffee maker to completely cool down.
• Clean with a cloth or damp sponge.
• Do not clean the appliance when it is still hot.
• Never immerse the appliance, the power cord or plug in water or any other liquid.

Dishwasher:

• The removable filter holder is dishwasher safe.
• Only glass jugs without a metal band can be placed in the dishwasher (without lid).

Thermal jug\*

• Do not clean with abrasive cleaning products.
• Do not put your hand inside to clean (risk of breaks).
• To clean your Thermal jug, fill it with soapy water and then rinse out thoroughly.
• In cases where the jug becomes very stained by the coffee, fill it with lukewarm water, add a dishwasher detergent tablet and let it soak. Afterwards, rinse out thoroughly.

Descaling

- Descale your coffee maker every 40 uses.

You can use:

• a sachet of descaling agent diluted in two large cups of water;

• or two large cups of commercially available white vinegar.

• Pour into the tank (b) and turn on the coffee maker (without coffee).

• Allow the equivalent of one cup flow into the jug or thermal pot (f) then stop your coffee maker (you will have to turn off the coffee maker on some automatic models).

• Allow to act for one hour.

• Restart the coffee maker to stop the flow.
• Run the coffee maker two or three times with the equivalent of one jug of water to rinse.

The guarantee excludes coffee makers that are not working or are not working properly due to lack of descaling.

N.B.: as soon as the coffee brewing cycle takes longer or becomes noisier, de-scale your machine.

Accessories\*

• Glass jug
• Thermal pot
• Permanent filter

Think of the environment!

i Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point or at an approved service centre, where it will be disposed of properly.

- European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), stipulates that used household appliances must not be disposed of in normal unsorted municipal waste. Old appliances must be collected separately to optimise the sorting and recycling of their parts and to reduce the impact on human health and the environment.
