Service Mounting Instructions Product: Drying machine Date: 25.10.2020 External systems on professional dryers Reference: Service Support

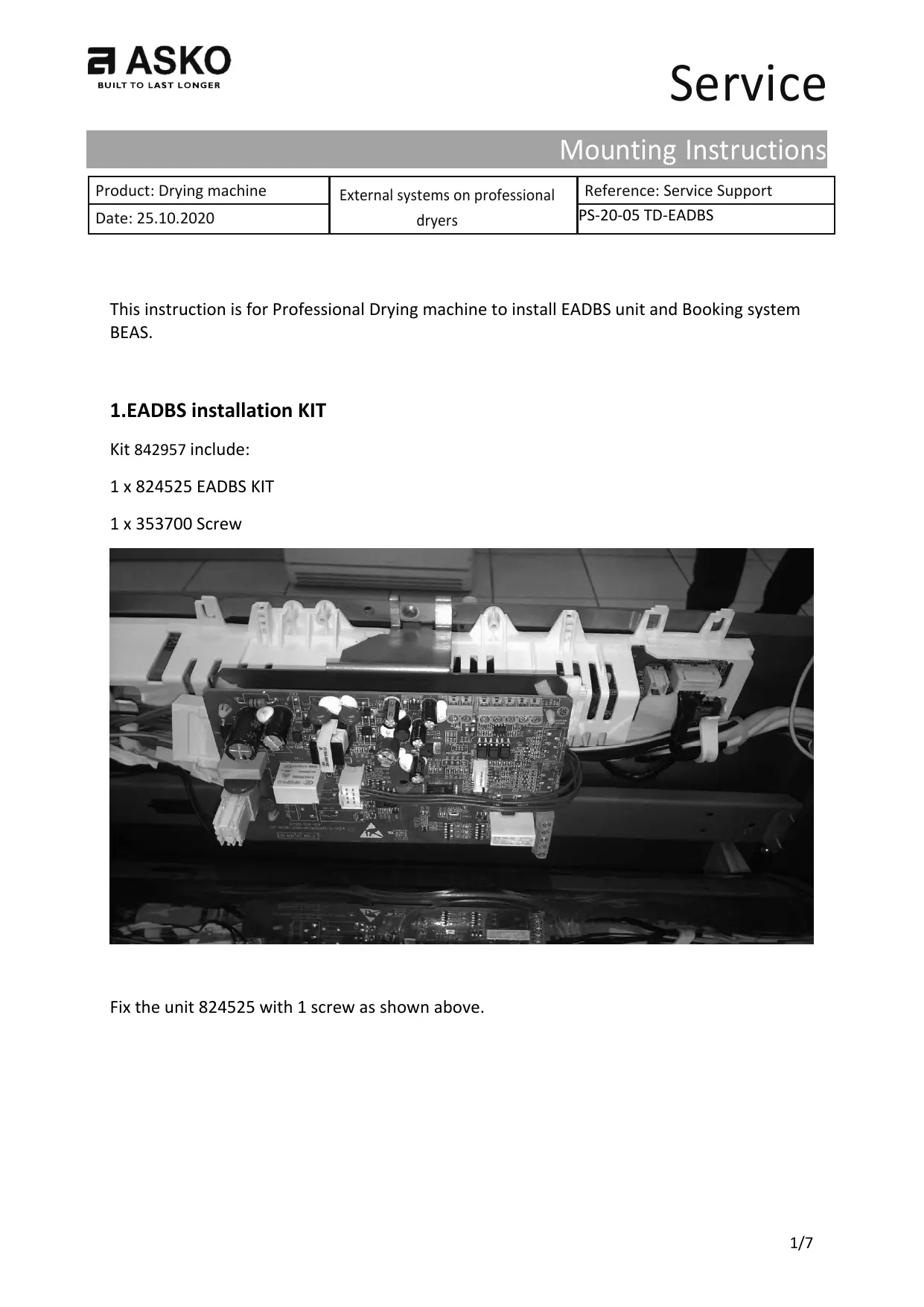

This instruction is for Professional Drying machine to install EADBS unit and Booking system BEAS. 1.EADBS installation KIT Kit 842957 include: 1 x 824525 EADBS KIT 1 x 353700 Screw Fix the unit 824525 with 1 screw as shown above. 1/7 Service Mounting Instructions 2.Booking system kit This instruction is for drying machine fitted with BEAS cable. Kit includes: - 1x BEAS cable - 1x cable gland - 1x cable tie 2/7 Service Mounting Instructions 105mm Installation of BEAS cable for booking system. Hole that needs to be increased 108mm

1. Diameter of hole which is marked on the picture needs to be increased from Ø5.5mm

2. Install the cable through grommet as shown on picture above.

3/7 Service Mounting Instructions

3. Route the cables as shown on the picture above.

4/7 Service Mounting Instructions

4. Connect the wires on relay board (EADBS).

5/7 Service Mounting Instructions

5. Route the cables as shown on picture above, use cable tie to hold the cables

together. 6/7 Service Mounting Instructions

6. Where cable is routed through grommet, screw the grommet nut very tight, the

cable pull out force of >100N and rotational force of ≥0,35Nm without movement must be assured! 7/7
