ML820BIS - Range hood TEKA - Free user manual and instructions

Product type	Range hood
Brand	Teka
Model	ML820BIS
Dimensions (W x D x H)	80 cm x 50 cm x 60 cm (estimate)
Weight	15 kg (estimate)
Power supply	220-240 V ~ 50 Hz
Nominal power	250 W (estimate)
Maximum extraction	700 m³/h (estimate)
Noise level	55 dB (estimate)
Filter type	Washable aluminum grease filter
Optional charcoal filter	Yes, compatible
Lighting	Integrated LED lamp
Number of speeds	3 speeds (estimate)
Control type	Push buttons
Material	Stainless steel and glass
Installation type	Built-in or wall-mounted
Outlet diameter	150 mm (estimate)
Energy class	A (estimate)
Maintenance and cleaning	Clean the grease filter every month; replace the charcoal filter every 6 months
Safety	Programmed automatic shutdown (estimate)
Spare parts	Filters, bulbs and controls available
Repairability	Repairability index: 7/10 (estimate)
General information	Manual available in multiple languages

Frequently Asked Questions - ML820BIS TEKA

How to properly install the ML820BIS range hood?

Installation must be done by a professional. Respect the minimum safety distances: 65 cm minimum between the hood and an electric cooktop, 75 cm for a gas cooktop. Make sure the outlet diameter matches (150 mm).

How to clean the grease filter of the hood?

The aluminum grease filter is dishwasher safe or can be washed by hand with mild detergent. Clean it at least once a month to maintain efficiency.

How to replace the charcoal filter?

The charcoal filter is optional and must be replaced every 6 months or depending on use. Open the access panel, remove the old filter and insert the new one following the instructions in the manual.

Why is my hood making noise?

Abnormal noise may come from dirty filters, unstable installation or a faulty motor. First check the condition of the filters and tighten the fixings.

How to adjust the suction speed?

Use the push buttons located on the control panel. The hood generally has 3 speeds. Choose the speed according to the intensity of cooking vapors.

The LED lighting no longer works, what should I do?

The lighting is an integrated LED. If it no longer lights up, check the power supply. If necessary, contact customer service for a replacement.

How to use the automatic shutdown function?

The programmable timer allows the hood to stop automatically after a set time. Press the dedicated button and set the duration (e.g. 15 minutes) according to your need.

What regular maintenance is recommended?

Clean the grease filter every month, replace the charcoal filter every 6 months, and clean the exterior surfaces with a soft cloth and non-abrasive cleaner.

Can I use the hood without external evacuation?

Yes, in recirculation mode with a charcoal filter. The air is filtered and returned to the kitchen. Make sure the charcoal filter is installed and in good condition.

Where to find the complete manual for the ML820BIS hood?

The complete manual is available as a free download on our website notice-facile.com in PDF format. You can also request a translation in your language.

USER MANUAL ML820BIS TEKA

Before using your oven for the first time, please carefully read the installation and maintenance instructions that come with it.

Depending on the model, the accessories included in your oven may vary from those shown in the pictures.

ESPANOL

Children and Vulnerable People Safety.4

General Safety. 5

Installation 7

Cleaning and Maintenance 7

Service and Repair 8

Avoid damaging the oven or other dangerous situations by following these instructions. 8

Advantages of the microwave oven.....10

Microwave oven operating mode. 10

Why the food is heated 10

Description of the appliance. 11

Control Panel. 12

Description of functions 12

Basic settings. 13

Setting the clock 13

Safety lock. 13

Basic functions 14

Microwave 14

Quick Start 14

Function: Grill 14

Microwave + Grill 14

Defrosting by weight (automatic) 15

Defrosting by time (manual) 15

pecial functions. 16

Special function: Auto1 (cook 500g potatoes) 16

Special function: Auto 2 (slow boiled / stewed dishes) 16

Special function: Auto 3 (mashed potato)

Memory Function 16

Memory storage procedure 16

Memory use procedure 16

Delete a Memory 17

During operation. 17

Function interruption 17

End of programme 17

What type of containers may be used?...17

Microwave function 17

Test the dishes 17

Grill function 18

Combined function 18

Aluminium containers and foils. 18

Lids. 18

Table - dishware. 18

Cleaning and care 19

Outer surface 19

Inside 19

Door, door-hinges and front of the appliance 20

Mica covers 20

Troubleshooting 20

Technical Features 21

Specifications 21

Environmental protection. 21

Installation instructions 21

Installation 86

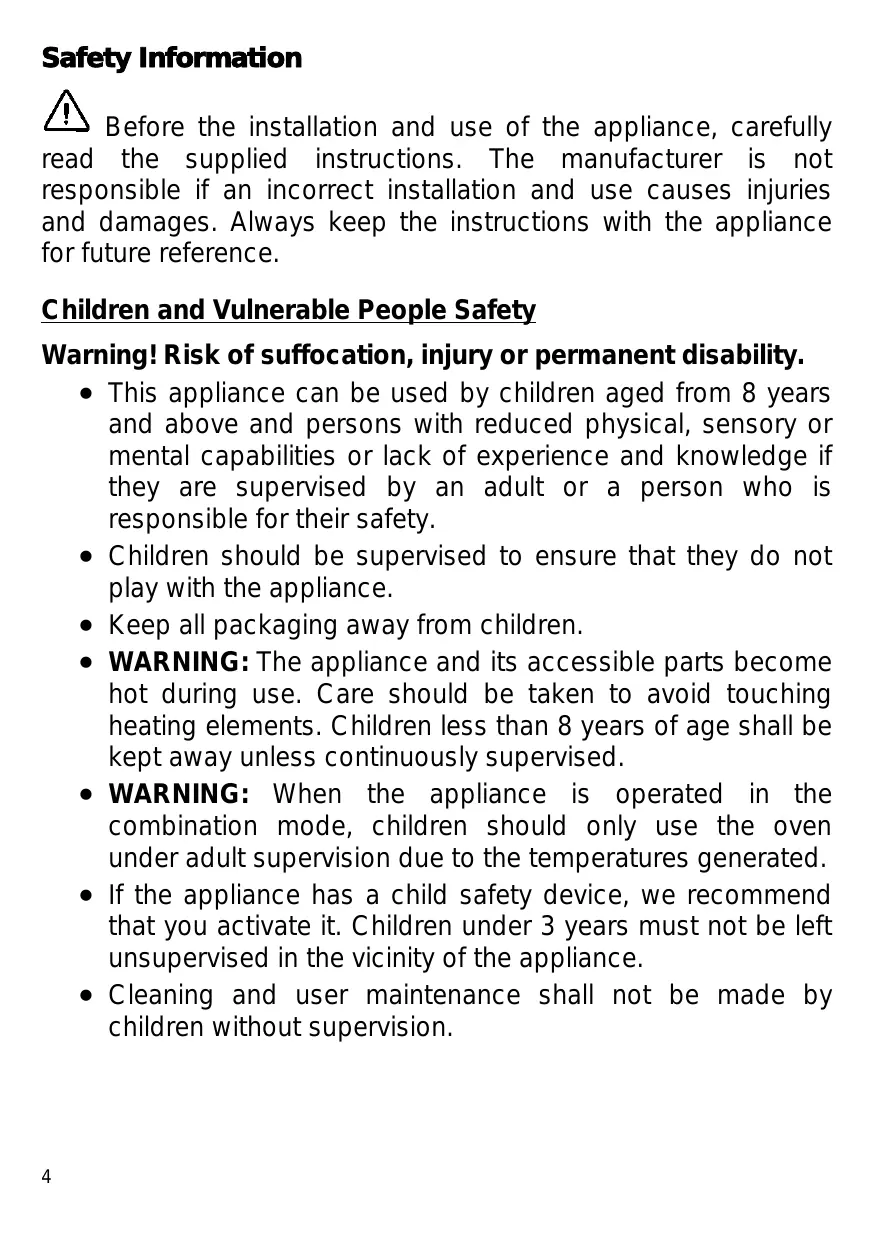

Safety Information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and Vulnerable People Safety

Warning! Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
• If the appliance has a child safety device, we recommend that you activate it. Children under 3 years must not be left unsupervised in the vicinity of the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

General Safety

• This appliance is intended to be used in household applications and not in hotels, shops, offices and other similar environments.
• Internally the appliance becomes hot when in operation. Do not touch the heating elements that are in the appliance. Always use oven gloves to remove or put in accessories or ovenware.
• WARNING: Do not heat liquids and other foods in sealed containers. They are liable to explode.
• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the appliance due to the possibility of ignition.
• The appliance is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

• Warning! The oven cannot be used if:

• The door is not closed correctly;

• The door hinges are damaged;
• The surfaces of the contact between the door and the oven front are damaged;
• The door window glass is damaged;
• There is frequent electrical arcing inside the oven even though there is no metal object inside.

The oven can only be used again after it has been repaired by a Technical Assistance Service technician.

• If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

• Microwave heating of beverages can result in delayed eruptive boiling. Care must be taken when handling the container.

• Take care when heating liquids!

When liquids (water, coffee, tea, milk, etc.) are nearly at boiling point inside the oven and are taken out suddenly, they may spurt out of their containers.

DANGER OF INJURIES AND BURNS!

To avoid that type of situation when heating liquids, put a teaspoon or glass rod inside the container.

• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

• Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance since they may explode, even after microwave heating has ended.

• Warning! Do not heat pure alcohol or alcoholic drinks in the microwave. FIRE RISK!

• Beware! To avoid food overheating or burning it is very important not to select long time periods or power levels that are too high when heating small quantities of food. For example, a bread roll can burn after 3 minutes if the power selected is too high.

• For toasting, use just the grilling function and watch the oven all the time. It you use a combined function to toast bread it will catch fire in a very short time.

• Make sure you never catch the power cables of other electrical appliances in the hot door or the oven. The cable insulation may melt. Danger of short-circuiting!

Installation

• The electrical installation is to be set up so that the appliance can be isolated from the mains with a minimum 3mm all-pole contact separation. Suitable separation devices include e.g. cutouts, RCD's and contactors. This installation must comply with current regulations.
• If the electrical connection is done through a plug and this remains accessible after installation, then it is not necessary to provide the mentioned separation device.
• The installation must comply with current regulations.
• Protection against electric shock must be provided by the electrical installation.
• WARNING! The oven must be earthed.

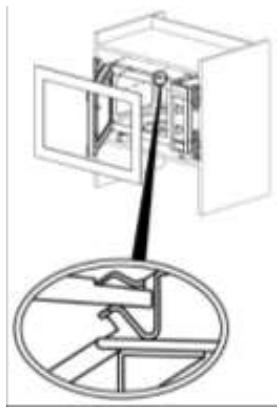

• WARNING! The appliance is intended to be built in. Please refer to the last pages of this user manual for detailed information on the installation dimensions.

Cleaning and Maintenance

• WARNING! Cut the power supply before cleaning and maintenance.
• The appliance should be cleaned regularly and any food deposits removed.
• Failure to maintain the appliance in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

• Do not use a steam cleaner to clean the appliance.

• The door contact surfaces (the front of the cavity and the inside part of the doors) must be kept very clean in order to ensure the oven functions correctly.

• Please follow the instructions regarding cleaning in the section "Oven Cleaning and Maintenance".
• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. Please refer to the chapter "CHANGING THE OVEN LIGHT BULB".

Service and Repair

• WARNING! Cut the power supply before repair.
• WARNING! Only a competent person can carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• WARNING! If the door or door seals are damaged, the appliance must not be operated until it has been repaired by a competent person.
• If the power cable is damaged it should be substituted by the manufacturer, authorized agents or technicians qualified for this task in order to avoid dangerous situations.
• Repair and maintenance work, especially of current carrying parts, can only be carried out by technicians authorized by the manufacturer.

Avoid damaging the oven or other dangerous situations by following these instructions

• Never switch on the microwave when it is empty. If there is no food inside there may be an electrical overcharge and the oven could be damaged. RISK OF DAMAGE!

• For carrying out oven programming tests put a glass of water inside the oven. The water will absorb the microwaves and the oven will not be damaged.

• Do not cover or obstruct the ventilation openings.
• Use only dishes suitable for microwaves. Before using dishes and containers in the microwave, check that these are suitable (see the section on types of dishes).

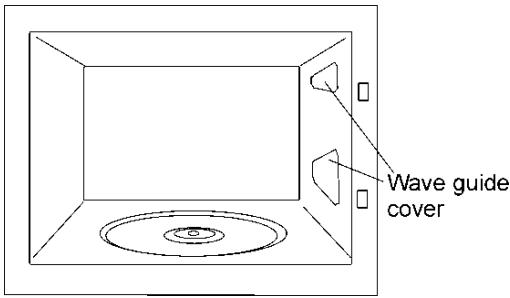

• Never remove the mica cover on the ceiling of the oven interior! This cover stops fat and pieces of food damaging the microwave generator.
• Do not keep any inflammable object inside the oven as it may burn if the oven is switched on.
• Do not use the oven as a pantry.
• Do not use the oven for frying as it is impossible to control the temperature of oil heated by microwaves.
• The base and the grills can bear a maximum load of 8 ~kg . To avoid damaging the oven, do not exceed this load.

In a conventional cooker, the heat that is radiated through the resistances or gas burners slowly penetrates the foods from the outside in. Therefore, there is a great loss of energy in heating the air, the oven components and the containers holding the food.

In the microwave, the heat is generated by the foods themselves, i.e. the heat goes from the inside out. There is no loss of heat to the air, the walls of the cavity or the containers (as long as they are microwave-safe containers). This means that only the food is heated.

To sum up, microwave ovens have the following advantages:

1. Savings in cooking time; in general, there is a 34 reduction in time compared to conventional cooking.
2. Ultra fast defrosting of foods, thus reducing the danger of bacteria developing.
3. Energy-saving.
4. Conservation of the nutritional value of foods due to the reduction in cooking time.

Microwave oven operating mode

The microwave oven contains a high voltage valve called a Magnetron, which converts the electrical energy into microwave energy. These electromagnetic waves are channeled towards the inside of the oven by a wave guide and distributed using a metallic disperser or a rotating plate.

Inside the oven, the microwaves are propagated in all directions and reflected by the metallic walls, thus uniformly penetrating the foods.

Why the food is heated

Most foods contain water and the water molecules vibrate with the microwaves.

The friction between the molecules generates heat, which raises the temperature of the foods, defrosting or cooking them or keeping them hot.

Because heat is formed inside the foods:

• The foods may be cooked without any liquids or oils, or with very little of these;
• Defrosting, heating or cooking in the microwave oven is faster than in a conventional oven;
• The vitamins, minerals and nutritious substances are conserved;
• Neither the natural colour nor the aroma are altered.

The microwaves go through porcelain, glass, cardboard or plastic, but not trough metal. For this reason, metallic containers or containers with metallic parts should not be used in the microwave oven.

Microwaves are reflected by metal...

...they go through glass and porcelain...

... and are absorbed by the foods.

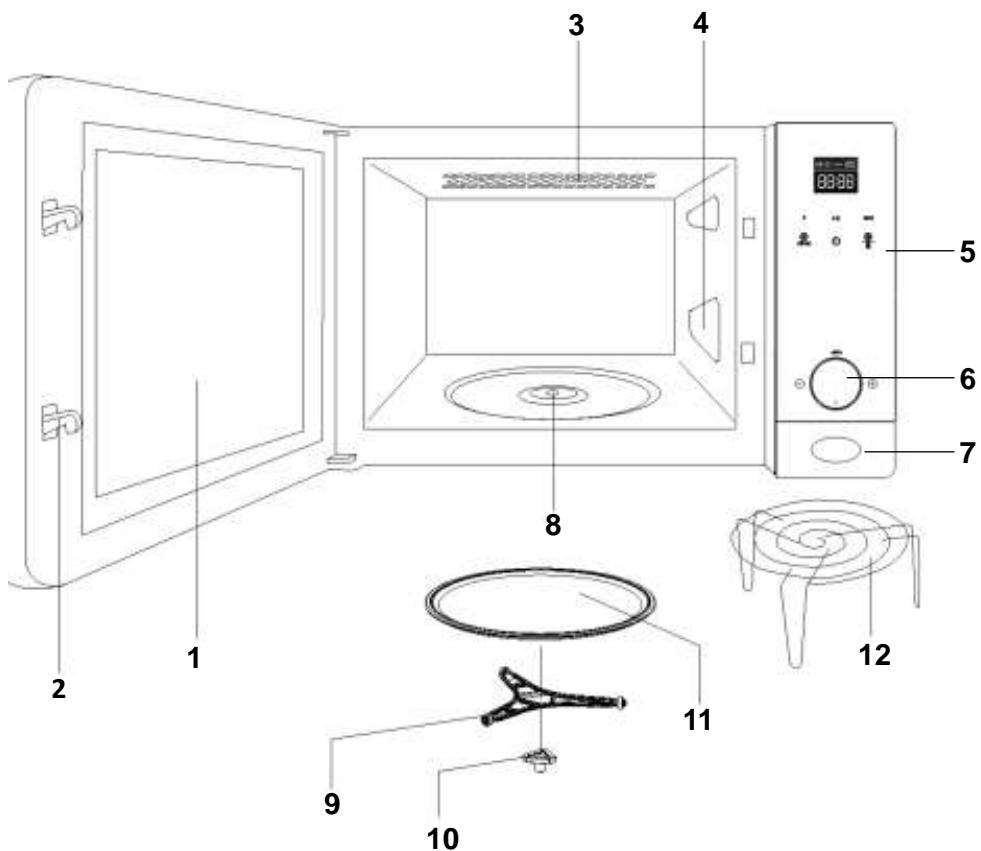

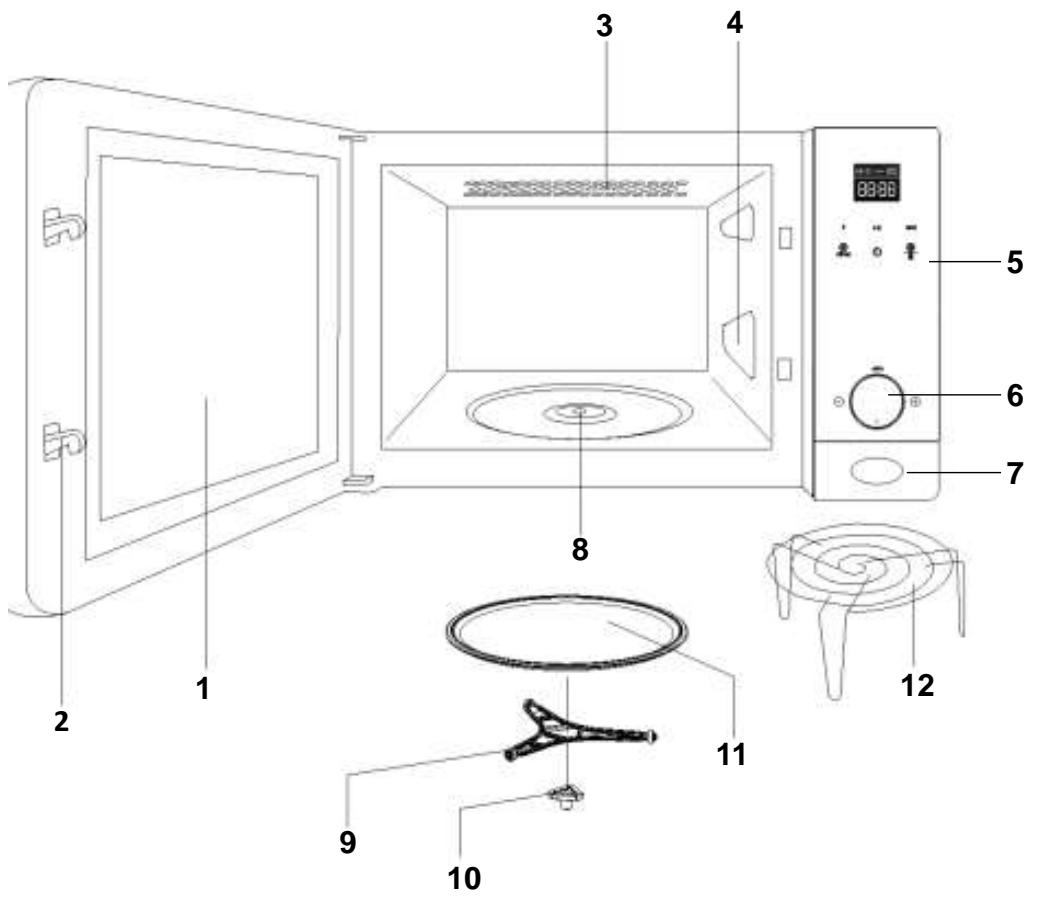

1. Glass window on the door
2. Catch
3. Quartz grill
4. Mica covers
5. Control panel

6. Rotating Knob

7. Open button

8. Slot for rotating base
9. Rotating base
10. Turntable support
11. Rotating plate
12. Grill

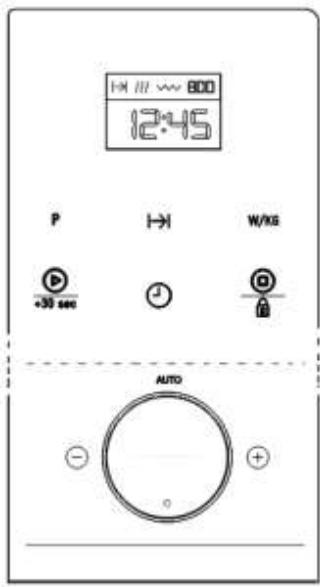

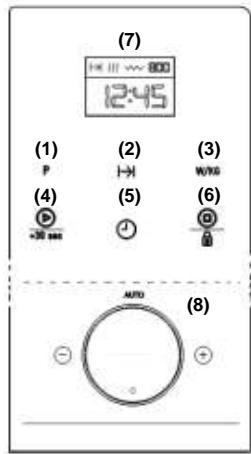

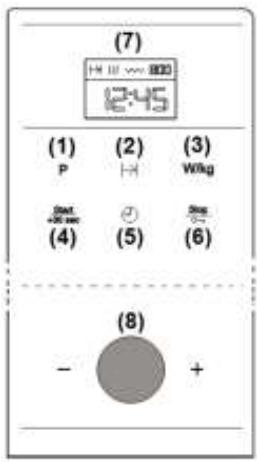

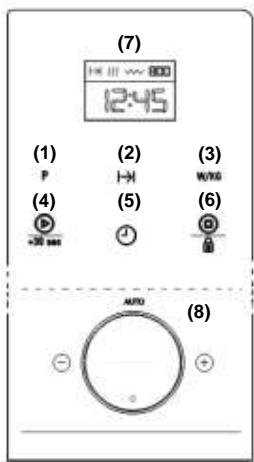

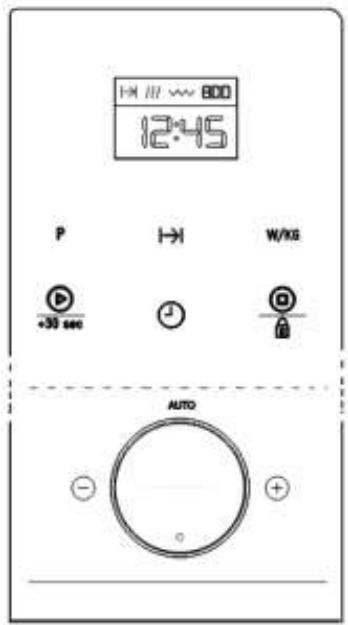

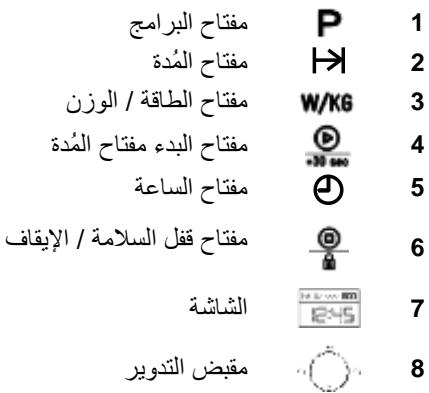

Program key

Duration key

Power / Weight key

Start key

Clock key

Stop / Safety block key

Display

Rotating knob

Description of functions

Symbol	Description	Power	Foods
Microwave	P 01 - 160W	Slow defrosting for delicate foods, keeping food hot
	P 02 - 320W	Cooking at low heat, boiling riceFast defrosting
	P 03 - 480W	Melting butterHeating baby food
	P 04 - 640W	Cooking vegetables and other foodsCooking and heating carefully,Heating and cooking small quantitiesHeating delicate foods
	P 05 - 750W	Cooking and heating liquids and other foodsfast
Microwave + Grill	P 01 - 95W	Browning toast
	P 02 - 135W	Grilling poultry and meat
	P 03 - 170W	Cooking meatloaves and “au gratin” dishes
	P 04 - 200W	Preparing meat round
	P 05 - 230W	Potatoes “au gratin”
WW	Grill	---	Grill all sorts of foods
	Defrosting	---	Defrosting by time.
		---	Defrosting by weight.
RUTO 1	Automatic cooking	---	Boiling potatoes.
RUTO 2		---	Fritters and stews
RUTO 3		---	Mashed potatoes

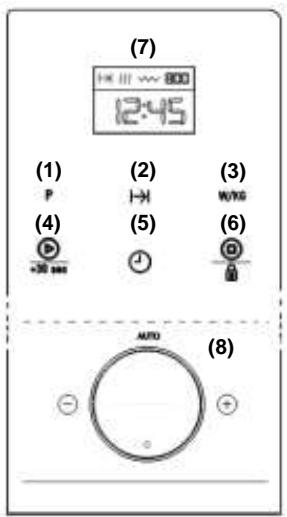

Basic settings

Setting the clock

1. Press the CLOCK key (5) until the hour numbers start to flash.
2. Enter the time value by turning the ROTATING KNOB (8), in any direction.
3. Press the CLOCK key (5) again to set the minutes.
4. Enter the minute's value by turning the ROTATING KNOB (8) in any direction.
5. To finish, press the CLOCK key (5) again.

Safety lock

It is possible to block functioning of the appliance (for example, to prevent it being used by children); to do so:

1. Press the STOP / SAFETY BLOCK KEY (6) for 3 seconds. The microwave will beep and the appliance will be locked.

The screen will display four lines and oven operation will be blocked.
2. The Clock will continue to be displayed and the Safety block indicator will illuminate on the DISPLAY (7).

1. In order to unlock the microwave, press the STOP / SAFETY BLOCK KEY (6) for 3 seconds. The microwave will beep and the screen will display the clock again.

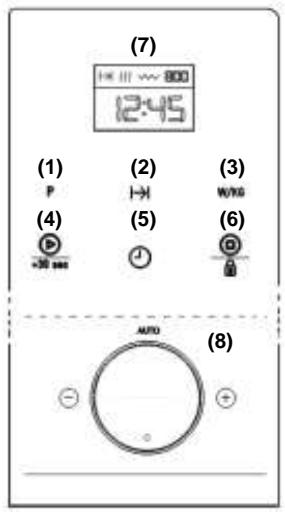

Basic functions

Microwave

1. Press the PROGRAM KEY «P» (1). The
   MICROWAVE indicator lights up on the DISPLAY (7). Confirm the function by pressing the PROGRAM KEY «P» (1) again.
2. Press the DURATION KEY (2). Enter the desired operating time by turning the ROTATING KNOB (8) in any direction. Confirm by pressing the DURATION KEY (2). again.
3. To change the power of the microwave, press the POWER/ WEIGHT KEY (3). (If this key is not pressed, the appliance functions at the maximum power.) Enter the desired power turning the ROTATING KNOB (8) in any direction. Confirm by pressing the POWER/ WEIGHT KEY (3) again.
4. Press the START KEY (4). The microwave starts to function.

Quick Start

1. In the Standby mode press START (4). The appliance starts immediately to function on the MICROWAVE function at the maximum power for 30 seconds.
2. If you would like to increase the functioning time press the START KEY (4) again. Each time the START key (4) is pressed the duration increases in 30 seconds.

Function: Grill

1. Press the PROGRAM KEY «P» (1). Select the GRILL function by turning the ROTATING KNOB (8) in any direction. Confirm the function by pressing the PROGRAM KEY «P» (1) again.
2. Press the DURATION KEY (2). Enter the desired operating time by turning the ROTATING KNOB (8) in any direction. Confirm by pressing the DURATION KEY (2) again.
3. Press the START KEY (4). The microwave starts to function.

Microwave + Grill

1. Press the PROGRAM KEY «P» (1). Select

the MICROWAVE + GRILL function by turning the ROTATING KNOB (8) in any direction. Confirm the function by pressing the PROGRAM KEY «P» (1) again.

1. Press the DURATION KEY (2). Enter the desired operating time by turning the ROTATING KNOB (8) in any direction. Confirm by pressing the DURATION KEY (2) again.
2. To change the power of the microwave, press the POWER/WEIGHT KEY (3). (If this key is not pressed, the appliance

functions at the maximum power.) Enter the desired power turning the ROTATING KNOB (8) in any direction. Confirm by pressing the POWER/WEIGHT KEY (3) again.

1. Press the START KEY (4). The microwave starts to function.

Defrosting by weight (automatic)

1. Press the PROGRAM KEY «P» (1). Select

the DEFROSTING.BY WEIGHT function by turning the ROTATING KNOB (8) in any direction. Confirm the function by pressing the PROGRAM KEY «P» (1) again.

1. Program « P01 » flashes (by default). Select the food type (program) by turning the ROTATING KNOB (8) in any direction (see table below). (If you do not turn the rotating knob « P01 » is selected by default.) Confirm by pressing the POWER/WEIGHT KEY (3).
2. On the display you will see the weight (ex. « 0.1 » by default) and the weight indicator « kg » .flashing. Indicate the weight of the food (ex. « 1,2 kg») by turning the ROTATING KNOB (8) in any direction.) Confirm by pressing the POWER/ WEIGHT KEY (3). The program you selected before (ex: « P01 ») starts to flash again.
3. Press the START KEY (4). The microwave starts to function.
4. Turn the foods around at the moment the microwave beeps and starts to flash on the DISPLAY (7): «TURN». Close the door again and press the START key (4).

The following table shows the programmes for the defrosting by weight function, indicating the weight ranges, defrosting and resting times (to ensure that the food reaches a uniform temperature):

Prog.	Food	Weight (kg)	Time (Min)	Resting time (Min)
P0 1	Meat	0,1 – 2,5	3 – 75	20 – 30
P0 2	Poultry	0,1 – 2,5	3 – 75	20 – 30
P0 3	Fish	0,1 – 2,5	3:20 – 83	20 – 30
P0 4	Fruit	0,1 – 1,0	2:36 – 26	5 – 10
P0 5	Bread	0,1 – 1,5	2:25 – 36:15	5 – 10

Defrosting by time (manual)

1. Press the PROGRAM KEY «P» (1). Select

the DEFROSTING BY TIME function by turning the ROTATING KNOB (8) in any direction. Confirm the function by pressing the PROGRAM KEY «P» (1) again.

1. Press the DURATION KEY (2). Enter the desired operating time by turning the ROTATING KNOB (8) in any direction. Confirm by pressing the DURATION KEY (2) again.
2. Press the START KEY (4). The microwave starts to function.
3. When the oven stops and starts to beep, move or turn the foods. To continue, close the door of the microwave and press the start key, to continue the defrosting process.

Special function: Auto1 (cook 500g potatoes)

1. Put the potatoes (approx. 500g) with some water in a heat resistant container and place it on the rotating plate in the microwave.
2. Press the PROGRAM KEY «P» (1). Select the «AUTO 1» function by turning the ROTATING KNOB (8) in any direction. Confirm the function by pressing the PROGRAM KEY «P» (1) again.
3. Press the START key (4). The microwave starts to function and the screen displays the remaining operating time.

Special function: Auto 2 (slow boiled / stewed dishes)

1. Place the ingredients to be slow boiled/stewed (e.g. cabbage, chicken stew) in a bowl, cover the bowl and place on the oven"s tray.
2. Press the PROGRAM KEY «P» (1). Select the «AUTO 2» function by turning the ROTATING KNOB (8) in any direction. Confirm the function by pressing the PROGRAM KEY «P» (1) again.

3. Press the START key (4). The microwave starts to function and the screen displays the remaining operating time.

4. Turn the foods around at the moment the microwave beeps and starts to flash on the screen: «TURN». Close the door again and press the START key (4).

Special function: Auto 3 (mashed potato)

1. Prepare the mashed potato using 1 kg of raw potatoes. Place the mashed potato in a suitable container (25-26 cm in diameter) and then place it on the microoven tray.
2. Press the PROGRAM KEY «P» (1). Select the «AUTO 3» function by turning the ROTATING KNOB (8) in any direction. Confirm the function by pressing the PROGRAM KEY «P» (1) again.
3. Press the START key (4). The microwave starts to function and the screen displays the remaining operating time.

Memory Function

The «MEM» function allows a range of frequently used parameters (time and power) to be stored in the memory. Nevertheless, you may only use it with the main functions: Microwave, Grill and Microwave + Grill.

Memory storage procedure

1. Press the PROGRAM KEY «P» (1). Select the desired function (eg. MICROWAVE) by turning the ROTATING KNOB (8) in any direction. Confirm the function by pressing the PROGRAM KEY «P» (1) again.
2. Set the desired parameters (duration and power) as described in the basic functions.
3. Press the PROGRAM KEY «P» (1) until you hear a beep and the DISPLAY (7) displays the word «MEM».

Memory use procedure

1. Press the PROGRAM KEY «P» (1). Select the «MEM» function by turning the ROTATING KNOB (8) in any direction. Confirm the function by pressing the PROGRAM KEY «P» (1) again.

2. Press the START key (4). The microwave starts to function.

Delete a Memory

1. Press the PROGRAM KEY «P» (1). Select the «MEM» function by turning the ROTATING KNOB (8) in any direction.

Confirm the function by pressing the PROGRAM KEY «P» (1) again.

1. Press the STOP/ SAFETY BLOCK key (6) until you hear a beep. The oven returns to "Standby" mode.

During operation...

During the cooking process, you may open the door at any moment, as:

• THE PRODUCTION OF MICROWAVES IS IMMEDIATELY INTERRUPTED.
• The grill is deactivated and remains at a high temperature.
• The timer stops and the screen shows the operating time that is left.

If you wish, you may:

1. Turn around or move the foods to ensure uniform cooking.
2. Change the power of the microwave, using the “-” and “+” keys.
3. Select another function, using the function keys.
4. Adjust the operating time that is left, by using the ROTATING BUTTON.

Close the door again and press the start button. The appliance will start to function again.

Function interruption

To interrupt the programme, press the STOP button or open the door of the appliance.

If you wish to cancel the cooking process, close the door again and press the STOP button. The oven will beep and the screen will display the time

End of programme

When the programme is finished, the microwave beeps 3 times and the screen displays "End". The beeps are repeated every 30 seconds, until the door is opened or the "STOP" button is pressed.

What type of containers may be used?

Microwave function

In the microwave function, it is important to remember that the microwaves are reflected by metallic surfaces. Glass, porcelain, ceramic, plastic and paper will allow the microwaves to pass through.

Therefore, metallic pans and dishes for cooking or containers with metallic components or decorations may not be used in the microwave. Glassware and ceramic with metallic decorations or parts (e.g. lead glass) may not be used.

The ideal materials to be used for cooking in a microwave oven are refractory, heat-resistant glass, porcelain or ceramic. Very

fine crystal and porcelain should only be used for a short time, to defrost or reheat foods that have already been cooked.

Test the dishes

Place the dish inside the oven at the maximum power level for 20 seconds. If it is cold or not very hot, it is suitable. However, if it gets very hot or causes an electrical arch, it is not suitable.

Hot foods transmit heat to the dish, which may become very hot. Therefore, always use a glove!

In the case of the grill function, the dish must be resistant to temperatures of at least 250^ .

Plastic dishes are not suitable.

Combined function

In the combined function, the dishes that are used must be suitable for both microwave and grill cooking.

Aluminium containers and foils

Precooked foods in aluminium containers or wrapped in aluminium foil may be placed in the microwave oven if the following instructions are followed:

• Pay attention to the manufacturer's instructions that are printed on the packaging,
• Aluminium containers should not be higher than 3cm and they should not come into contact with the walls of the cavity (minimum distance 3cm ). The aluminium lid should be removed.
• Place the aluminium container directly on the rotating plate. If the grille is used, the container should be placed on a porcelain plate. Never put the container directly on the grille!
• The cooking time will be longer because the microwaves only enter the food from

above. In case of doubt, only use microwave-safe dishes.

• Aluminium foil may be used to reflect the microwaves during the defrosting process. Delicate foods, such as poultry or minced meat, may be protected from excessive heat by covering the respective ends.
• Important: the aluminium foil must not come into contact with the walls of the cavity, as this could cause an electrical arch.

Lids

The use of glass or plastic lids or adherent film is recommended, for the following reasons:

1. They prevent excessive evaporation (especially in very long cooking periods);
2. The cooking process is faster;
3. The food does not go dry;
4. The aroma is preserved.

The lid should have holes to avoid any type of pressure from building up. Plastic bags should also have openings. Baby bottles and baby food jars and other similar containers must only be heated without the lid, as they might explode if it is left on.

The following table gives general guidelines on the type of dishes that are suitable for each situation.

Table - dishware

Operating mode Type of dish	Microwave		Grill	Microwave + Grill
	Defrost / heat	Cook
Glass and porcelain 1) Domestic, non fire-resistant, may be washed in dishwasher	yes	yes	no	no
Glazed ceramic Fire-resistant glass and porcelain	yes	yes	yes	yes
Ceramic, earthenware dishes unglazed glazed without metallic decorations	yes	yes	no	no
Earthenware dishes glazed unglazed	yes no	yes no	no no	no no
Type of dish\Operating mode	Microwave		Grill	Microwave + Grill
	Defrost / heat	Cook
Plastic dishes 2)
heat-resistant up to 100°C	yes	no	no	no
heat-resistant up to 250°C	yes	yes	no	no
Plastic films 3)
Cling film	no	no	no	no
Cellophane	yes	yes	no	no
Paper, cardboard, parchment 4)	yes	no	no	no
Metal
Aluminium foil	yes	no	yes	no
Aluminium containers 5)	no	yes	yes	yes
Accessories	yes	yes	yes	yes

1. No golden or silver edges and no lead glass.
2. Remember the manufacturer's tips!

3. Do not use metal clips to close the bags. Perforate the bags. Use films only to cover foods.

4. Do not use paper plates.

5. Only shallow aluminium containers without lids. The aluminium must not come into contact with the walls of the cavity.

Cleaning and care

BEFORE CLEANING the microwave,
ENSURE THAT THE PLUG IS NOT IN THE SOCKET.

After using the appliance, let it cool off. Do not clean the appliance with abrasive cleaning products, scourers that will scratch the surface or sharp objects.

Outer surface

1. Clean the outer surface with a neutral detergent, lukewarm water and a damp cloth.
2. Do not allow water to pass through the outer structure.

Inside

1. After each use, clean the inside walls with a damp cloth.

2. Do not allow water to enter the ventilation holes of the microwave oven.

3. If it has been some time since the last cleaning and the cavity of the microwave oven is dirty, put a glass of water on the tray and connect the microwave at maximum power for 4 minutes. The steam that is released will soften the dirt, which will be easy to clean with a soft cloth.

4. Important! The appliance should not be cleaned with steam cleaning machines. The steam may reach the charged parts and cause a short circuit.

5. The most soiled stainless steel surfaces may be cleaned using a non-abrasive cleaning product.

6. Then they should be rinsed with hot water and dried well.

7. Clean accessories after each use. If they are very dirty, steep them first and then use a brush and a sponge. The

accessories may be washed in the dishwasher. Ensure that the rotating plate and respective base are always clean.

Door, door-hinges and front of the appliance

1. These parts must always be clean, especially the contact surfaces between the door and the front of the appliance, so that there are no leaks.
2. To clean, use a neutral detergent and lukewarm water. Dry with a soft cloth.

Mica covers

Always keep the mica covers clean. Food remaining in the covers may deform it or

Troubleshooting

The appliance does not function properly:

• Is the power plug correctly inserted in the socket?
• Is the door properly closed? The door should make an audible click when it closes.
• Are there any foreign bodies between the door and the ring?

The foods do not heat up or they heat very slowly:

• Did you use a metallic dish by mistake?
• Did you select the right operating time and power level?
• Did you place a larger or colder amount of food than usual in the microwave?

The food is too hot, dry or burned:
- Did you select the right operating time and power level?

The display shows "HOT"!

• The temperature in the components compartment reached a safety limit. Check the installation conditions.

produce sparks if they go on fire. Therefore, they should be cleaned on a regular basis, but abrasive cleaning products or sharp objects should not be used. Do not remove the covers, to avoid any risk.

There are noises while the appliance is in operation:

• Is there an electrical arch inside the microwave?
  Is the dish coming into contact with the walls of the cavity?
• Are there loose skewers or spoons inside the microwave?

The inside lighting does not come on:

• If all of the functions are operating correctly, the bulb is probably blown. You may continue to use the appliance.
• The light bulb may only be replaced by the Technical Support Service.

The power cable is damaged

• The power cable must be replaced by the manufacturer, authorised agents or technicians that are qualified to perform this task, in order to avoid dangerous situations and because special tools are needed.

If any other type of fault is noticed, contact the Customer Support Service.

All repairs must be performed by specialised technicians.

Technical Features

Specifications

AC voltage. (See rating plate)
- Fuse. 8A/250V
Power required. 1200 W
- Grill power. 1000 W
- Microwave output power. 750 W
- Microwave frequency... 2450 MHz
- Outer dimensions (W × A × D) . 595 × 390 × 350 ~mm
Cavity dimensions (W× A× D) 305 x 210 x 305 mm
Oven capacity. 201
Weight 18,6 kg

Environmental protection

Disposal of the packaging

The packaging bears the Green Point mark.

Dispose of all the packaging materials such as cardboard, expanded polystyrene and plastic wrapping in the appropriate bins. In this way you can be sure that the packaging materials will be re-used.

Disposal of equipment no longer used

According to European Directive 2012/19/EU on the management of waste electrical and electronic equipment (WEEE), home electrical appliances should not be put into the normal systems for disposal of solid urban waste.

Outdated appliances should be collected separately to optimise component material recovery and re-cycling rates and to prevent potential harm to human health and the environment. The symbol of a rubbish container superimposed by a diagonal cross should be put on all such products to remind people of their obligation to have such items collected separately.

Consumers should contact their local authorities or point of sale and request information on the appropriate places to leave their old home electrical appliances.

Before disposing of your appliance, render it non-usable by pulling out the power cable, cutting this and disposing of it.

Installation instructions

Use the "open" button to open the door and remove all packaging materials. Then clean the inside and the accessories with a damp cloth and dry them. Do not use abrasive or strong-smelling products.

Ensure that the following parts are in good condition:

• Door and hinges
• Front of the microwave
• Inner and outer surfaces of the appliance

DO NOT USE THE APPLIANCE if you notice any kind of defect in the aforementioned parts. If this occurs, contact the After Sales Service.

Place the appliance on a stable, flat surface. Fit the rotating base in the centre of the microwave cavity and place the rotating plate on top until it clicks into position Whenever the microwave is used, both the rotating plate and the respective base must be inside the oven and correctly positioned. The rotating plate turns clockwise and anticlockwise.

Warning! The microwave oven may be wrapped in a protective film. Before switching it on for the first time, carefully remove this film, starting at the underside.

In order to ensure proper ventilation for the appliance, install the frame in the correct way. Please refer to the following pictures:

Warning: after installing the microwave, it is necessary to guarantee access to the electrical socket.

During installation, ensure that the power cable does not come into contact with the back of the appliance, because the high temperatures may damage the cable.

If you are installing a microwave and a conventional oven in the same column, the microwave must not be placed under the oven, because of the formation of condensation.

The electrical installation is to be set up so that the appliance can be isolated from the mains with a minimum 3mm all-pole contact separation.

Suitable separation devices include e.g. cutouts, fuses (screw fuses are to be taken out of the holder), RCD's and contactors. This installation must comply with current regulations.

If the electrical connection is done through a plug and this remains accessible after installation, then it is not necessary to provide the mentioned separation device.

Protection against electric shock must be provided by the electrical installation

Warning: The oven must be earthed.

The appliance must not be placed in the vicinity of heating elements, radios or television sets.

In case of fault, the manufacturer and the seller will not accept any responsibility if the installation instructions have not been properly followed.

$$ \therefore \lim _ {x \to 0} \frac {\sin^ {2} x}{\cos^ {2} x + 1} = 1 $$

$$ \therefore \mathrm {d} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {f} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {d} \mathrm {f} $$

$$ \therefore \text {l l} \text {i d i} \text {i} \text {c l} \Rightarrow j \text {c l} - $$

$$ \begin{array}{l} \left. \right.\left. \right.\left. \right.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right. \ j _ {i} \vert j _ {i} \vert i = 2 \ \end{array} $$

$$ \begin{array}{l} j _ {k} = 1 \ \left. \int_ {0} ^ {\infty} \frac {1}{x ^ {2}} \frac {1}{x ^ {3}} \frac {1}{x ^ {4}} \dots \frac {1}{x ^ {n - 1}} \frac {1}{x ^ {n}} \right| _ {0} ^ {\infty} \ \therefore \mathrm {d} \mathrm {a l l} \in \mathrm {d} \mathrm {a l l} \mathrm {d i c} \ \end{array} $$

Jil gull jizui wic aiiil

i j 1

e 1

！

j 1 j 2 3 4 5 6 7 8 9

$$ . s l c g $$

Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg

$$ \ddot {g} \dot {g} \dot {g} \dot {g} \dot {g} \dot {g} \dot {g} \dot {g} \dot {g} \dot {g} \dot {g} $$

！

Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn

1 3 2

1 1

J 1

J 1

J 1 J 1 J 1 J 1 J 1 J 1 J 1

J 1

1

jll jll ljjl ljjl ljjl

（）

J 1

"

"Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn

y

J 1

j 1

y 1

Jg

i 1

aolal

C

1

i

1. 1

ailll lnnn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

1

(）

g j 1111 1111 1111 1111 1111 1111 1111

J 1

.

p 1

y

.

jgl j 8 n j g jg j j

aill jn nn jll gl lal 1

cill j.7

1.1

8

2.2

jssd 9

jJgSdA.3

jzilai jzilawc.10

Laii.4

z.11

sill 4.5

a.12

Jzill 6

Funktionsbuchung

jll jll jll jll jll jll jll jll

Cioagall no aiaaill joljol jolal

jolal jll jll jll jll jll jll

aalb oos ojus jolld jlll

glll 1 gll lllllllll

plabll Jusai

J 1

jlll lllllllllllllllllllllllllll

J 1

jglalaiy jnay

Jauaal 8jaiuall jaiuall

...Jn Jn Jn Jn Jn ...

palebll DIs Ieualial pijg...

J 1

1 2

Jg jnll Jg gall

Jusii ad jusall juslln nn Jusci ci

Jusitie plabill

pabil jssu 1jla

clll lilyj jigj glll aabbl pln s jni

G

i 1

AaBb BaaBb

L

alall 120 jolll

aJ aal jy aabj y

gai jia jia jia jia jia jia

j4 4401 g j4401 g 4401 4401 4401 4401 4401

Aaalil 1j 10g

alall jolll lilll

S OBC = S BOC + S_ BOC

y pabll yjll jy jj

a//b

aalwai 1

aolalb

(5) a c l l a 1.1

.

（8）J 2

.01

bual 5 (5) cull clla bc bual .3

.

（8）J 4

.0123456789

(5) all clles 50

.

a1b. 《P》(1)2al lcl bai .1
yduo yduo duo yduo duo yduo duo yduo duo yduo duo yduo duo yduo duo yduo duo yduo duo yduo duo yduo duo yduo duo yduo duo yduo duo yduo duo yduo duo yduo duo yduo duo yduo duo yduo duo yduo

gila 2.2
la 8.2
(8) y 2
(2) 1

1.23 1.24

a1b1.（P）(1)2alllc bai 1
yjduo auiu+uygolall
uii dle .olil y(8) ydiill jao
（P）(1) ciao lc biwally aibgol
.

gila 2.2
la 8.2
(8) y 2
(2) 1

i. 1
a l l 1
cl a b i a b j 7. . 2
j 2
j 3
(3) jg/4jll
j (4) j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl jgl

gabla jiaaiia aae bll 1

"-" 2

.3

yj yj jyj yj yj yj yj yj 4

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 2

a1g+aggsll a

J 1

a 1000

1.20 2.10 3.10 4.10

aagaaag aagaaag

a 1

j 1

ailllll lalilll aaii iia

sle ac giall aaiall as jill cailbail

(2)

j 1

3

3

.

.

Lg 1

sle jujieele gjjj .

A

Jusu cagall jolal gall ojss

aill 1jgl aill g jg albll gl jn bii

aal aaiiaai jlaai baa

jS.5jzall jgall jll all j!

pall j clall jia wlll plalll

i j 1

A

jRg jy

J 1

A

a a a a a a a a a a a a

ailllll

ggsall

aagall j Sii aeggsslll alaae bgsall

jll jai aaii ai jai i

gall glll

all

gabla gabla gabla gabla gabla gabla

yj 1 j g j j j j j j j j j

a 1

（）

iJall aogjiall, gssll agjiall algai j

aalal alal

J 1

i j 0j 0j 0j 0j 0j

(Stio juswill)

a gillgabla jlljall jlll lalall

Culjie 1i

Llalaaa aaii iin

20 2d aill llll l l l l l

i 1j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

J 1 J 1 J 1

Liu liu

：

a aalll

a

J 1

Jie 15 Jy jy yj

jg

a1g2

Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn

300 a

auiuuii iuii iuii

A

aannall is jill clogles sii .2

.3

i

4

p5 1gaaa aie aaiia aiai i

iJyI 1

y j 1

Jlll Jn Jn Jn Jn Jn Jn Jn Jn

.

jzll 2. jyil 45jil . jzll

dss sss ss

1

a.b.c.d.e.f.g.

2

山

a 1

A. b , c , d , e , f , g , h , i , j , k , l , m , n ;

j 2

1

aill lai jao jai iis jia jaoi .3

ysslll lssg yllll gcl s

jL 4 aB

y j 1

AacLi Jus Laa aab! gijbii slle

aill yjll 1

aia 1jz jll JlJy d. Jldly

5

iisii jiyj iis wuiuuiuui uaii

Jilll aas

iLgaiisj aiisluolgaiu ci

:

gill 1e 1ill 1ll

Jl

iDjS jGg

1

jll j jlllall kll l

gall 1agall oal

1

A

Juiyie clde cbi jn jzjg jdzj

all

Jn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.

jll

J

?

jz jy?uulll gail 1e jia uill

AaIc! 1e aegaa 4Si Cg

Paiallll llllllll 1

:

jll jbjc jg jbjp jil

Ssuuagall Juaa

aaaab

jds jsi jia jsi jia

yssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss

:gi jgljj

Gssu 1

aaaab

!"HOT"

lll lllll 000000000000000000000000000

jL j

yall yjy jy s jdi li

Jia 100

(）

1200 1

1000

750

2450

350x390x595 (JxxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJx

305x210x305. (JaxxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJx

120

18,6

auiuia

yababal yds Juaa a n a 1

i j

.

jlll jll ljj jll jll

3

jll bgi jlll lall jess

jla jai yalaua aai) ayaaia

123 456

ailll lll

1 1

J 1
