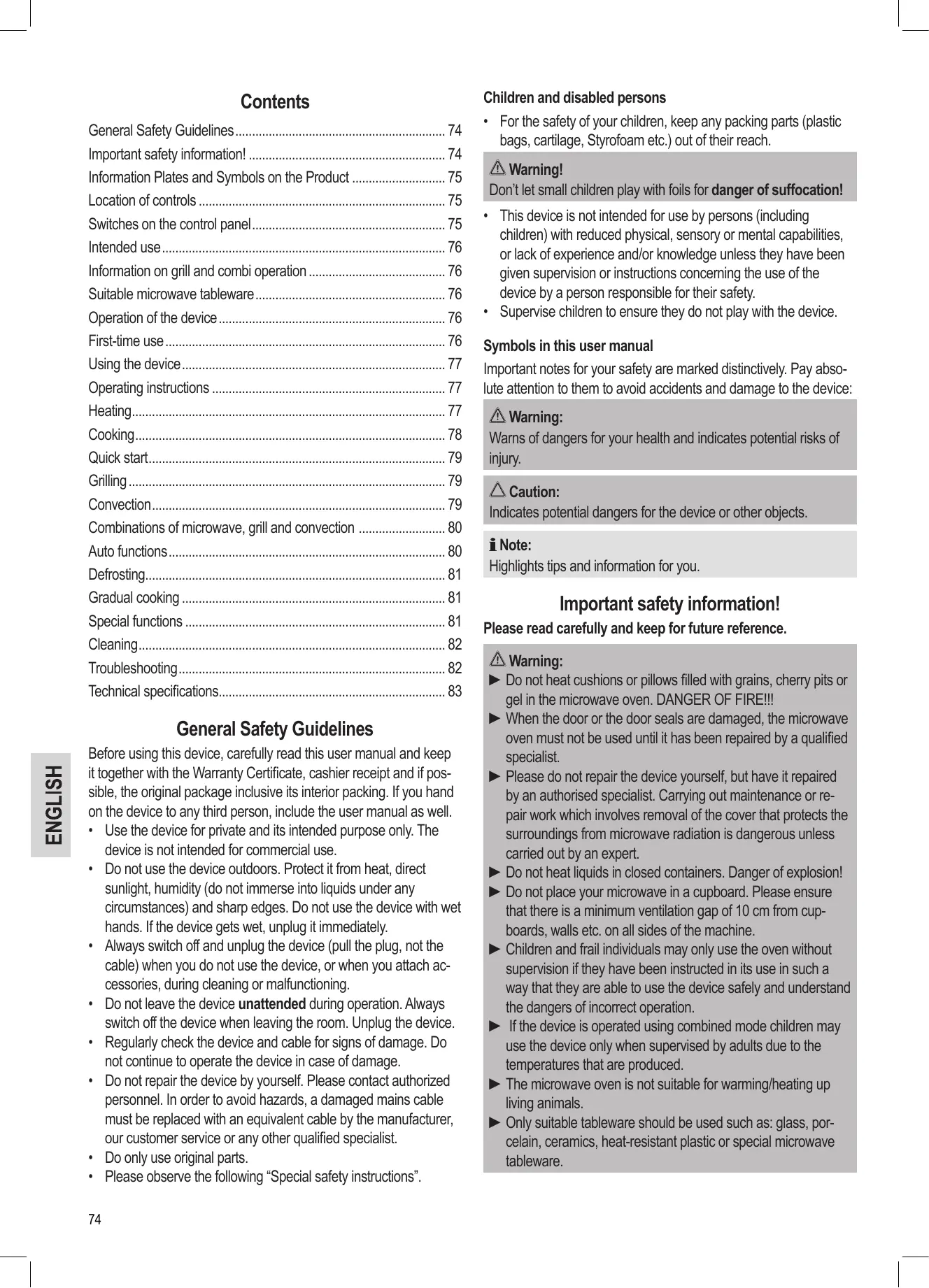

General Safety Guidelines 74

Important safety information! 74

Information Plates and Symbols on the Product 75

Location of controls 75

Switches on the control panel 75

Intended use 76

Information on grill and combi operation 76

Suitable microwave tableware 76

Operation of the device 76

First-time use 76

Using the device 77

Operating instructions 77

Heating. 77

Cooking. 78

Quick start. 79

Grilling 79

Convection 79

Combinations of microwave, grill and convection 80

Auto functions 80

Defrosting 81

Gradual cooking 81

Special functions 81

Cleaning 82

Troubleshooting 82

Technical specifications. 83

General Safety Guidelines

Before using this device, carefully read this user manual and keep it together with the Warranty Certificate, cashier receipt and if possible, the original package inclusive its interior packing. If you hand on the device to any third person, include the user manual as well.

• Use the device for private and its intended purpose only. The device is not intended for commercial use.
• Do not use the device outdoors. Protect it from heat, direct sunlight, humidity (do not immerse into liquids under any circumstances) and sharp edges. Do not use the device with wet hands. If the device gets wet, unplug it immediately.
• Always switch off and unplug the device (pull the plug, not the cable) when you do not use the device, or when you attach accessories, during cleaning or malfunctioning.
• Do not leave the device unattended during operation. Always switch off the device when leaving the room. Unplug the device.
• Regularly check the device and cable for signs of damage. Do not continue to operate the device in case of damage.
• Do not repair the device by yourself. Please contact authorized personnel. In order to avoid hazards, a damaged mains cable must be replaced with an equivalent cable by the manufacturer, our customer service or any other qualified specialist.
• Do only use original parts.
• Please observe the following "Special safety instructions".

Children and disabled persons

• For the safety of your children, keep any packing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach.

Warning!

Don't let small children play with foils for danger of suffocation!

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge unless they have been given supervision or instructions concerning the use of the device by a person responsible for their safety.
• Supervise children to ensure they do not play with the device.

Symbols in this user manual

Important notes for your safety are marked distinctively. Pay absolute attention to them to avoid accidents and damage to the device:

Warning:

Wards of dangers for your health and indicates potential risks of injury.

Caution:

Indicates potential dangers for the device or other objects.

i Note:

Highlights tips and information for you.

Important safety information!

Please read carefully and keep for future reference.

Warning:

Do not heat cushions or pillows filled with grains, cherry pits or gel in the microwave oven. DANGER OF FIRE!!!
- When the door or the door seals are damaged, the microwave oven must not be used until it has been repaired by a qualified specialist.
Please do not repair the device yourself, but have it repaired by an authorised specialist. Carrying out maintenance or repair work which involves removal of the cover that protects the surroundings from microwave radiation is dangerous unless carried out by an expert.
Do not heat liquids in closed containers. Danger of explosion!
- Do not place your microwave in a cupboard. Please ensure that there is a minimum ventilation gap of 10cm from cupboards, walls etc. on all sides of the machine.
Children and frail individuals may only use the oven without supervision if they have been instructed in its use in such a way that they are able to use the device safely and understand the dangers of incorrect operation.
If the device is operated using combined mode children may use the device only when supervised by adults due to the temperatures that are produced.
The microwave oven is not suitable for warming/heating up living animals.
- Only suitable tableware should be used such as: glass, porcelain, ceramics, heat-resistant plastic or special microwave tableware.

Warning:

If food is being heated or cooked in combustible materials, such as plastic or paper containers, the microwave oven should be checked frequently due to the risk of fire.
If smoke is produced, turn the device off and remove the plug. Keep the door closed in order to suffocate any flames.
The contents of babies' bottles and jars of baby food must be stirred or shaken and the temperature checked before use. There is a danger of burns.
- Use pot cloths or oven gloves to remove containers. RISK OF BURNS!
▶ Food with a shell or skin, such as eggs, sausages, sealed jars etc. must not be heated up in the microwave as they may explode even when heating by the microwaves is finished.

Delay in boiling:

During boiling, particularly during the reheating of liquids (water), it may happen that the boiling temperature has been reached but the typical bubbles have not yet started to rise. The liquid does not boil evenly. When the vessel is removed this so-called delay in boiling may result in the sudden formation of bubbles when the vessel is knocked, causing the water to boil over. There is a serious danger of burns! In order to achieve even boiling, please place a glass rod or similar item, but nothing metallic, in the vessel.

• Any dirt on the door frame/door seal and neighbouring parts must be carefully cleaned with a damp cloth.
• Clean the microwave oven regularly and remove any food residues from the interior.
• If the machine is not clean the surface may be damaged, affecting its serviceable life and possibly resulting in hazardous situations.
• Please do not operate the device with an external timer or a separate remote control system.

Information Plates and Symbols on the Product

On the top of the microwave there is a hazard symbol with the following text:

WARNING-

MICROWAVE ENERGY-DO

NOT REMOVE THIS COVER.

CAUTION: HOT SURFACE

During operation the temperature of the exposed surface may be very hot. Danger of burns!

On the back of the microwave there is an information plate with the following text:

WARNING

• MICROWAVE AND HIGH VOLTAGE INSIDE. BE SURE NOT TO REMOVE THE ENCLOSURE.

• THIS APPLIANCE IS EQUIPPED WITH A GROUNDED PLUG FOR YOUR PROTECTION AGAINST POSSIBLE SHOCK HAZARDS AND SHOULD BE CONNECTED TO A PROPERLY GROUNDED OUTLET.

• THIS DEVICE IS TO BE SERVICED ONLY BY PROPERLY QUALIFIED SERVICE PERSONNEL.

• DISCONNECT POWER PLUG BEFORE SERVICING. REMOVAL OF THE ENCLOSURE WITH PRODUCT ENERGIZED COULD EXPOSE SERVICEMEN TO HAZARDOUS HIGH VOLTAGE POTENTIAL.

Location of controls

Picture A

1 Control Panel 6 Turntable ring
2 Door opener 7 Enamelled metal plate
3Griller 8Door latch
4 Drive shaft 9 Viewing window
5 Lower heating element Not shown.: Pizza stone

Picture B: Symbols on the control panel

1 Microwave 5 Child-proof lock activated
2 Convection 6 Auto function
3 Grill 7 Temperature indicator
4 Defrost

Switches on the control panel

MICROWAVE

Microwave: Select power setting of the microwave

DOUBLE GRILL/COMBI.

Grill: For roasting and scalloping

Grill/Combi: Grill, microwave and convection operate in turns

CONVECTION

Convection: Convection without microwave operation; select a temperature.

W.T./TIME DEFROST

Defrosting by weight or time

CLOCK/PRE-SET

Clock: In combination with the turning knob for setting the clock or a starting time

STOP/CLEAR

Stop: Press once to stop cooking.

Delete: Press twice to delete function.

Lock: Press and hold the STOP/CLEAR button for 3 seconds in order to lock (child-proof lock) or unlock the control panel

START/+30Sec./CONFIRM

Starting the function
Quick start of the microwave (always +30 seconds at 100% power)
Prolonging the cooking time by 30 seconds during operation (except when defrosting or using auto function)
Confirming a setting

TIMER WEIGHT AUTO MENU

Turning knob for setting the clock, cooking time, temperature, combi modes, auto functions or weight settings

Intended use

This device is intended for

heating and cooking firm or liquid food
- scalloping and roasting firm food

It is intended for this purpose only and may only be used for such.

It may only be used as described in this user manual.

You must not use this device for commercial purposes.

Every other use is not intended and may cause damage or even injuries.

C. Bomann GmbH is not responsible for damage resulting from non-intended use.

Information on grill and combi operation

• Use heat-resistant tableware only, as radiation heat develops during grill and combi operation.
• When operating in grill mode only, you may also use metal or aluminum tableware, but not during normal or combined microwave operation (see table "Suitable microwave tableware").
• Do not place anything on the top of the enclosure. It will become hot. Always keep the ventilation slots unblocked.
• Use the grill to place the food closer to the heating element.

Suitable microwave tableware

• The most suitable material to be used in a microwave is transparent and allows the microwave radiation to heat the food evenly.
• Round/oval bowls and plates are more suitable than square ones, as the food might boil over at the corners.

Caution:

Risk of explosion by sealed tableware.

Open closed containers before cooking or heating.
Pierce protective plastic foil several times using a fork.

• Microwave radiation cannot penetrate metal; therefore do not use metal containers or plates.

Caution:

Do not use paper bowls made of recycled material, as these might contain small amounts of metal which might cause flying sparks or fire.

The table below is intended to help you choose suitable tableware:

Material	Suitable for
	Micro-wave	Grill	Con-vection	Combi-nation*
Heat-resistant glass container	yes	yes	yes	yes
Non heat-resistant glass container	no	no	no	no
Heat-resistant ceramic container/plate	yes	yes	yes	yes
Plastic containers suitable for microwaves	yes	no	no	no
Kitchen paper	yes	no	no	no
Supplied enamelled plate	yes	yes	yes	yes

Material	Suitable for
	Micro-wave	Grill	Con-vection	Combi-nation*
Metal or aluminium ovenware	no	yes	yes	no
Grill	no	yes	yes	no
Aluminum foil or aluminum foil containers	no	yes	yes	no

*) Combination of microwave with grill/convection or of grill with convection

Operation of the device

• A signal tone sounds when first turning the turning knob.
• Your selection by pressing buttons is confirmed by a signal tone. If not, you did not press properly.
• If you set a program but do not press the START/+30SEC./ CONFIRM button within 5 minutes, the setting will be canceled. The display will then show the current time again.
• When starting a program (except during pre-heating), the remaining operating time will be displayed. The countdown runs.
  5 signal tones will indicate the end of the program.

First-time use

Installation Instructions

Install the appliance with the back of the appliance facing the wall.
- In order to avoid interference with the operation of other devices, do not place your device near other electronic devices.

Preparation

• Remove all accessories found in the cooking chamber and unpack them.
• Position the turntable ring in such a way that it slots into the recesses and lies straight.
• Place the supplied metal plate onto the turntable ring.
• Check the device for visible damage, especially in the area at and around the door. It is imperative not to use the device in case of any damage.
• Remove protective sheets that might be attached to the enclosure.
• Connect the plug to a properly installed isolated ground receptacle 230V, 50Hz .

Caution:

Do not remove mounted parts from the cooking chamber or inside of the door!

i Note:

If there are manufacturing or oil remains on the enclosure or heating element, smoke or odor might occur during the beginning operation.

This is normal and will cease after repeated use.

We strongly recommend proceeding as follows:

• Turn on the grill mode and let the device operate several times without food to be cooked.
  Ensure sufficient ventilation.

Setting the clock:

i Note:

During the first setting a signal tone will sound and the display will show "0:00".

1. Press the CLOCK/PRE-SET button once or repeatedly in order to toggle between 24 hour and 12 hour display mode.
2. Use the turning knob to set the desired hour.
3. Press the CLOCK/PRE-SET button to confirm your settings.
4. Use the turning knob to set the desired minutes.
5. Press the CLOCK/PRE-SET button again to activate the new time. The delimiter symbol “:” of the digital time will be flashing on the display.

Using the device

Important information on the operation of microwaves

• Your device operates with microwave radiation which heats water particles in food very quickly. There is no heat radiation and therefore hardly any browning.
• Use this device to heat food only.
  The device is not suitable for deep-frying.
• Heat 1-2 servings at a time. Otherwise the device will not work efficiently.
• Microwaves provide full power instantly. Pre-heating is therefore not necessary.
• Never operate the device empty during microwave operation.
• The microwave is not a replacement for your common stove. It is mainly intended for:

defrosting deep-frozen/frozen food

---

cooking dishes

Operating instructions

1. Put the food to be heated in suitable tableware.
2. Open the door and place the container on the centre of the metal plate. Close the door. (For safety reasons, the device can only operate when the door is properly closed.)
3. Press the MICROWAVE button once/repeatedly to select the desired power setting. After pressing the button once you may also use the turning knob.

Power setting on the display as selected in %	Power in Watt (approx.)	Application
P100	900	Quick heating
P80	720	Cooking
P50	450	Simmering
P30	270	Defrosting frozen goods
P10	90	Melting butter etc.

1. Press the START/+30SEC./CONFIRM button to confirm your settings.
2. Use the turning knob to set the desired cooking time between 5 seconds and 95 minutes.
3. Press the START/+30SEC./CONFIRM button to start operation. The cooking time depends on the quantity and texture of the food. After a few times trying you will quickly learn to estimate the cooking time.

i Note:

Each time pressing the START/+30SEC./CONFIRM button will prolong the operating time by 30 seconds.
Cooking in a microwave is much faster than on a stove. If you are not sure, set a shorter cooking time and continue operation if necessary.

After the cooking time has elapsed the device will turn off and 5 signal tones will sound. Take the food from the device.

Pause or stop cooking

• If you wish to pause the cooking operation, press the STOP/CLEAR button once and open the door.
• If you wish to continue the cooking operation, close the door and press the START/+30SEC./CONFIRM button.
• If you wish to completely stop operation, press the STOP/CLEAR button twice.

Heating

Warming and heating are special characteristics of microwaves. Refrigerated liquids and foods can be easily warmed up to room or eating temperature without having to use a lot of pots.

The heating times in the following table are for reference only, as the time depends very much on the original temperature and the texture of the food. It is therefore recommended to check once in a while whether the food is hot enough.

Heating table

Edibles/food	Quan-tity	Power setting	Time approx. min.	Cover
Liquids
Water, 1 cup	150 g	P 100	0.5 - 1	no
Water, 0.5 l	500 g	P 100	3.5 - 5	no
Water, 0.75 l	750 g	P 100	5 - 7	no
Coffee, 1 cup	150 g	P 100	0.5 - 1	no
Milk, 1 cup	150 g	P 100	0.5 - 1	no
Tip: Put a glass stick into the container to avoid superheating; stir well before drinking.
Plated meals
Cutlet + potatoes and vegetables	450 g	P 100	2.5 - 3.5	yes
Goulash with noodles	450 g	P 100	2 - 2.5	yes
Meat + lump + sauce	450 g	P 100	2.5 - 3.5	yes
Tip: Slightly moisten before cooking; stir occasionally.
Meat
Cutlet, breaded	200 g	P 100	1 - 2	no
Meatballs, 4 pieces	500 g	P 100	3 - 4	no
Joint	250 g	P 100	2 - 3	no
Tip: Coat with oil for the breading or crust not to soften.
Poultry
1/2 chicken	450 g	P 100	3.5 - 5	no
Chicken fricassee	400 g	P 100	3 - 4.5	yes
Tip: Coat with oil; stir occasionally.
Side dish
Noodles, rice, 1 serving2 servings	150 g	P 100	1 - 2	yes
	300 g	P 100	2.5 – 3.5	yes
Potatoes	500 g	P 100	3 - 4	yes
Tip: Slightly moisten prior to cooking.
Soups / sauce
Broth, 1 plate	250 g	P 100	1 – 1.5	yes
Soup with solids	250 g	P 100	1.5 - 2	yes
Sauce	250 g	P 100	1 - 2	yes
Infant food
Milk	100 ml	P 50	0.5 - 1	no
Mash	200 g	P 50	1 – 1.5	no
Tip: Thoroughly shake or stir. Check temperature!

Cooking

Hands-on cooking tips

Follow the guidelines given in the cooking table and recipe. Monitor the cooking process if you do not yet have as much experience.

You may open the door of the device at any time. The device will turn off automatically.

It will only continue operation when the door is closed and the START/+30SEC./CONFIRM button pressed again.

Refrigerated food needs a longer cooking time than that with room temperature.

The chunkier the food, the longer the cooking time. Meat cut in bigger pieces, for example, requires longer cooking than meat of the same quantity cut into strips. It is recommended cooking larger amounts of food at maximum power and having it simmer at medium power for a more evenly cooking.

Lower foodstuffs cook faster than higher ones; therefore distribute the food as low as possible. Place thinner parts such as chicken legs or fish files in the center or leave them overlapping.

Smaller amounts cook faster than bigger ones. The following rule of thumb applies:

Double amount = almost double time

Half amount = half time

If you cannot find the exact cooking time for a dish, you may apply the following rule:

Per 100 g approx. 1 minute cooking

All foods that you cover on a common stove should be covered in the microwave as well.

A cover will prevent the food from running dry. An upside-down plate, greaseproof paper or microwave cooking foil are all suitable as covers. Cook food that should be getting a crust without cover.

Cooking Table

Edibles/food	Quantity	Power setting	Time ap- prox. min	Cover
Vegetables
Eggplant	500 g	P 80	7 - 10	yes
Cauliflower	500 g	P 80	8 - 11	yes
Broccoli	500 g	P 80	6 - 9	yes
Chicory	500 g	P 80	6 - 7	yes
Peas	500 g	P 80	6 - 7	yes
Fennel	500 g	P 80	8 - 11	yes
Green beans	300 g	P 80	13 - 15	yes
Potatoes	500 g	P 80	9 - 12	yes
Stem turnip	500 g	P 80	8 - 10	yes
Leek	500 g	P 80	7 - 9	yes
Corn on the cob	250 g	P 80	7 - 9	yes
Carrot	500 g	P 80	8 - 10	yes
Pepper	500 g	P 80	6 - 9	yes
Brussels sprouts	300 g	P 80	7 - 10	yes
Asparagus	300 g	P 80	6 - 9	yes
Tomatoes	500 g	P 80	6 - 7	yes
Zucchini	500 g	P 80	9 - 10	yes
Tip: Cut vegetables into small pieces and cook with 2-3 spoons of liquid; stir occasionally. Simmer 3-5 minutes; add seasoning just before eating.
Fruits
Stewed apple or pear	500 g	P 80	5 - 8	yes
Plum butter	250 g	P 80	4 - 6	no
Stewed rhubarb	250 g	P 80	5 - 8	yes
Roast apple, 4 pieces	500 g	P 80	7 - 9	yes
Tip: Add 125 ml of water; lemon juice will prevent the fruits from discoloring; simmer 3-5 minutes.
Meat*)
Meat with sauce	400 g	P 80	10 - 12	yes
Goulash, veal strips	500 g	P 80	10 - 15	yes
Beef roulades	250 g	P 80	7 - 8	yes
Tip: Stir occasionally; rest for 3-5 minutes.
Poultry*)
Chicken fricassee	250 g	P 80	6 - 7	yes
Chicken soup	200 g	P 80	5 - 6	yes
Tip: Stir occasionally; rest 3-5 minutes.
Fish
Fish filet	300 g	P 80	7 - 8	yes
	400 g	P 80	8 - 9	yes
Tip: Tum over after half the time has elapsed; simmer 3-5 minutes.
Defrosting and cooking vegetables
Red cabbage with apple	450 g	P 80	14 -16	yes
Spinach leaves	300 g	P 80	11 - 13	yes
Cauliflower	200 g	P 80	7 - 9	yes
String beans	200 g	P 80	8 - 10	yes
Broccoli	300 g	P 80	8 - 9	yes
Peas	300 g	P 80	7 - 8	yes
Stem turnip	300 g	P 80	13 - 15	yes
Leek	200 g	P 80	10 - 11	yes
Corn	200 g	P 80	4 - 6	yes
Carrots	200 g	P 80	5 - 6	yes
Brussels spout	300 g	P 80	7 - 8	yes
Spinach	450 g	P 80	12 - 13	yes
	600 g	P 80	15 - 17	yes
Tip: Cook with 1-2 spoons of liquid; stir occasionally or carefully cut. Simmer 2-3 minutes; add seasoning just before eating.
Soups / stew *)
Stew	500 g	P 80	13 - 15	yes
Soup with solids	300 g	P 80	7 - 8	yes
Crème soup	500 g	P 80	13 - 15	yes
Tip: Stir occasionally; simmer 3-5 minutes.

*) Ready-made food

Quick start

You wish to heat food or drinks shortly at the highest power setting? There are two possibilities:

1. Quick-start the microwave by directly pressing the START/+30SEC./CONFIRM button. The cooking process will start immediately, whereas each time pressing the button will prolong the cooking time by 30 seconds.

Or:
2. Turn the turning knob towards the left. A signal tone sounds and the display will show "95:00". Set the time by turning the knob left or right. Press the START/+30SEC./CONFIRM button to start operation.

The power setting of the microwave is thereby 100% .

Grilling

You can select between three grill variants:

G-1 top quartz grill only
G-2 top quartz grill and lower heating element
G-3 lower heating element only

Use of grill

Place the grill onto the supplied metal plate. Use suitable heat-resistant tableware or directly put the food onto the grill.

When using in G-1 mode preheating is not necessary, since the quartz grill generates direct radiant heat.

Proceed as follows for roasting and scalloping:

1. Select the required grill mode by pressing the DOUBLE GRILL/COMBI. button once/repeatedly. After pressing once, you can also use the knob.
2. Press the START/+30SEC./CONFIRM button to confirm your settings.

3. Use the turning knob to set the desired roasting time between 5 seconds and 95 minutes.

4. Press the START/+30SEC./CONFIRM button to start.

i Note:

After half of the time has elapsed, signal tones will alert you to turn the food over.

After the full time has elapsed, the appliance switches off and 5 beeps sound. You may then remove the food.

Edibles/food	Quantity	Time ap-prox. min.	Cover
Scalloping toast with cheese	2-3 slices	3-4	no
Scalloping soups, e.g. onion soup	2-3 cups	10-15	no

Using the pizza stone

• Remove the metal plate and place the pizza stone directly onto the turntable ring.
• For best results when preparing your pizza we recommend that you preheat the pizza stone in G-3 mode for around 5 minutes.
• After placing the pizza on the stone, continue in G-2 mode. Follow the timing guidelines in your recipe.
• For best results with deep frozen pizza, use Automatic program A-9.

Convection

Convection enables you to cook food as in a traditional oven. The microwave is not active. The heat is generated through a quartz grill and the top heating element. We recommend preheating the oven to the correct temperature before placing food inside.

i Note:

The fans which blow heat from the top grills into the cooking chamber only switch on if the set temperature has been reached. This effective process enables the oven to heat up very quickly. If the set temperature has been reached in the cooking chamber, the convection fan is then only activated at intervals according to the same principle.

Convection mode with pre-heating

1. Select the required temperature between 140^ und 230^ by pressing the CONVECTION button once/repeatedly. You can also use the knob after pressing once.
2. Press the START/+30SEC./CONFIRM button to confirm your settings.
3. Press the START/+30SEC./CONFIRM button a second time to start pre-heating.

i Note:

For each settable temperature (140^, 150^, 160^, 170^, 180^, 190^, 200^, 210^, 220^, 230^) there is an indicator. e.g. 200^ = seventh bar.
- During pre-heating operation this display will be flashing. The increasing bars on the display will be indicating the preheating process.

i Note:

• Two signal tones will sound when the desired temperature is reached. The pre-heating temperature will be flashing.

• Open the door and place the food in the device.

• Use the turning knob to set the desired cooking time between 5 seconds and 95 minutes.

i Note:

You may not set the cooking time when the temperature has not yet been reached or when the door is closed.
If you do not set the cooking time within 5 minutes, the convection mode will be canceled. 5 signal tones will sound and the device will return to its original operation mode. The display will show the current time.

1. Press the START/+30SEC./CONFIRM button to start operation.

After the time has elapsed the device will turn off and 5 signal tones will sound. Take the food from the device.

Convection mode without pre-heating

1. Place the food in the device.
2. Select the required temperature between 140^ and 230^ by pressing the CONVECTION button once/repeatedly. You can also use the knob after pressing once.
3. Press the START/+30SEC./CONFIRM button to confirm your settings.
4. Use the turning knob to set the desired cooking time between 5 seconds and 95 minutes.
5. Press the START/+30SEC./CONFIRM button to start operation.

i Note:

The bars on the display will also in this case indicate the temperature reached. It will be flashing during the heating phase.

After the time has elapsed the device will turn off and 5 signal tones will sound. Take the food from the device.

Combinations of microwave, grill and convection

When using these settings, the

• Microwave
  Top Quartz grill
  Lower heating element
  Convection

will operate in turn in the following combinations:

Display	Micro-wave	Top Quartz grill	Top heating element	Lower heating element	Convection
C-1	24%	76%	—	76%	—
C-2	73%	—	—	—	27%
C-3	52%	—	—	—	48%

1. Press the DOUBLE GRILL/COMBI. button once/repeatedly to select the desired combi setting. After pressing the button once you may also use the turning knob.

2. Press the START/+30SEC./CONFIRM button to confirm your settings.

3. Use the turning knob to set the desired cooking time between 5 seconds and 95 minutes.

4. Press the START/+30SEC./CONFIRM button to start operation.

After the time has elapsed the device will turn off and 5 signal tones will sound. Take the food from the device.

Tips for combi operation

When cooking food with the combined setting of microwave-grill, you should adhere to the following:

The cooking time for big and thick food items, such as roast pork, is respectively longer than for small, lower food. Nevertheless, when roasting, the opposite rule applies. The closer the food is to the grill, the faster it will become brown. I.e., when preparing big joints during combi operation, the roasting time is possibly shorter than for smaller joints.

Auto functions

Use the auto functions to cook certain amounts of foods automatically. Proceed as follows:

1. Turn the turning knob clockwise and select the desired auto function. Choose one of the settings given in the table below.

Code	Function	Display / weight in gram	Power setting
A-1	Heating	150	Microwave 100%
		250
		350
		450
		600
A-2	Potatoes	1 / over 200	Microwave 100%
		2 / over 400
		3 / over 600
A-3	Meat	150	Microwave 100%
		300
		450
		600
A-4	Vegetables	150	Microwave 100%
		350
		500
A-5	Fish	150	Microwave 80%
		250
		350
		450
		600
A-6	Noodles/pasta	50 (with 450g Water)	Microwave 80%
		100 (with 800g Water)
		150 (with 1200g Water)
A-7	Soup	200	Microwave 100%
		400
		600
A-8	Cake	475	Convection with pre-heating to 160°C
A-9	Pizza	200	Microwave + Quartz grill + lower Heating element (C-1)
		300
		400
A-10	Poultry (roasted)	500	Microwave + Quartz grill + lower Heating element (C-1)
		750
		1000
		1200

1. Press the START/+30SEC./CONFIRM button to confirm your settings.
2. Use the turning knob to set the desired weight.
3. Press the START/+30SEC./CONFIRM button to start operation.

After the time has elapsed the device will turn off and 5 signal tones will sound. Take the food from the device.

i Note:

During the A-8 setting for cakes the device will pre-heat to 160^ . 2 signal tones will sound when the temperature is reached. Open the door and place the cake inside. Press the START/+30SEC./CONFIRM button. The baking time of 35 minutes will start running.
- Menu A-9: For best results when preparing your pizza, we recommend that you preheat the pizza stone in G-3 mode for around 5 minutes.

Defrosting

Using the defrost settings you may automatically defrost your food in two different ways. Select the defrost function by weight and time.

1. Repeatedly press the W.T./TIME DEFROST button to select one of the defrost functions:

dEF I Defrosting by weight btw. 0.1 -2.0kg dEF II Defrosting by time btw. 5 seconds - 95 minutes

1. Use the turning knob to set the desired weight/ time.
2. Press the START/+30SEC./CONFIRM button to start operation.

After the time has elapsed the device will turn off and 5 signal tones will sound. Take the food from the device.

i Note:

Microwave power when defrosting is 30% (270W).
If the weight of the goods is less than 200g , do not place them on the centre, but at the edge of the metal plate.

Gradual cooking

You can set the programs in such a way that up to 3 different functions can be carried out in succession.

Assume you select the following programs:

Defrost

Cook

Grill

1. Select the 1st function: Press the W.T./TIME DEFROST button once or twice.
2. Set the weight or the required time using the knob.
3. Select the 2nd function: Press the MICROWAVE button once/ repeatedly to select the desired microwave power setting.
4. Press the START/+30SEC./CONFIRM button to confirm your settings.
5. Use the turning knob to set the desired cooking time between 5 seconds and 95 minutes.
6. Select the 3rd function: Select the required grill mode by pressing the DOUBLE GRILL/COMBI button once or repeatedly.
7. Press the START/+30SEC./CONFIRM button to confirm your settings.
8. Use the turning knob to set the desired cooking time between 5 seconds and 95 minutes.
9. Press the START/+30SEC./CONFIRM button to start operation.

i Note:

The change of program is indicated by an acoustic signal.
- When half of the grilling time has passed two acoustic signals are heard to remind you to turn the food over.

After the time has elapsed the device will turn off and 5 signal tones will sound. Take the food from the device.

i Note:

The auto functions and the convection mode with pre-heating may not be used for gradual cooking.

Special functions

Auto start

You may delay the start of microwave, grill, convection, auto functions or even of a combi setting. The maximum time-delay is 23 hours and 59 minutes.

i Note:

First set the clock! Otherwise you may not use this function.
When using auto start, the defrost function is not available.

Example: Proceed as follows for automatically starting the microwave:

1. Press the MICROWAVE button once/repeatedly to select the desired microwave power setting.
2. Press the START/+30SEC./CONFIRM button to confirm your settings.
3. Use the turning knob to set the desired cooking time.
4. Press the CLOCK/PRE-SET button. A signal tone sounds and the display will show the current time, with the first digit flashing.
5. Use the turning knob to set the hour of the desired start time.
6. Press the CLOCK/PRE-SET button. A signal tone sounds and the minutes will be flashing on the display.
7. Use the turning knob to set the minutes of the desired start time.
8. Press the START/+30SEC./CONFIRM button to confirm. The delimiter symbol “:” of the digital clock on the display stops flashing.

Example: 7:30 minutes cooking time at 100% power; start time 14:20 o'clock

Step	Button	Display
1	MICROWAVE	P100	(Power setting)
2	START/+30SEC./CONFIRM
3		7:30	(Cooking time)
4	CLOCK/PRE-SET	10:45	(Current time)
5		14:45	(Set hour)
6	CLOCK/PRE-SET	14:45
7		14:20	(Set minutes)
8	START/+30SEC./CONFIRM	10:45	(Current time)

i Note:

During this programmed setting the functions of the controls are blocked (except: CLOCK/PRE-SET and STOP/CLEAR).
If you wish to display the start time again, press the CLOCK/ PRE-SET button.
- When the pre-set time has been reached, the microwave will start operation. Two signal tones will indicate the start.

Warning: Risk of fire!

Always supervise the device during operation.
- When using the time-delay function, set the time in such a way that the device will be operating under proper supervision.
Do not operate the microwave empty.
If you take the food earlier from the device, you will have to terminate the function by pressing the STOP/CLEAR button.

After the time has elapsed the device will turn off and 5 signal tones will sound. Take the food from the device.

Locking (Child-proof lock)

Press and hold the STOP/CLEAR button for more than 3 seconds to lock the device. The display will show the locked setting. The functions of the controls are blocked. Press and hold the STOP/CLEAR button again for more than 3 seconds to unlock.

Display function

• During microwave, grilling, combination or convection (without preheating) mode, the mode or temperature setting is displayed by pressing the buttons MICROWAVE, DOUBLE GRILL/COMBI. or CONVECTION for 2 - 3 seconds.
• In disregard to the operation mode, the display will be showing the current time for 2-3 seconds when pressing the CLOCK/ PRE-SET button.
• During time-delay mode, press the CLOCK/PRE-SET button to display the start time.

Cleaning

Turn the microwave off and disconnect the plug.

Interior

• Keep the interior of the microwave clean. Use a damp cloth to remove splashing and spilling on the walls of the microwave. If the device is very dirty, you may also use a mild detergent. Do not use aggressive detergents.
• Use a damp cloth to wipe the viewing window inside and outside, and regularly remove splashing and spots caused by spilled liquids.

Exterior

• Clean the exterior walls of the enclosure with a damp cloth only. Make sure no water enters the openings in the enclosure and therefore the inside of the device.
• Use a damp cloth to clean the switches. When cleaning the function switches, first open the door in order to avoid accidentally switching on the device.

Accessories

If required, clean the metal plate with dish detergent.
- Regularly clean the guide ring and the inside of the bottom. You may remove the guide ring and manually clean it. Use a mild detergent or glass cleaner. Dry thoroughly. Make sure to position the ring properly afterwards.

Odor

• In order to remove unpleasant odor in the microwave, place a bowl suitable for microwave use filled with water and lemon juice in the device and heat for approx. 5 minutes. Then wipe the oven with a soft cloth.

Oven lights

• Please contact a service center for replacing the oven lights.

Troubleshooting

Malfunctions are often just caused due to minor problems. Before contacting our customer service, please check the table below:

Problem	Possible cause	Notes/ solution
Radio or TV reception is interrupted during microwave operation.	The electromagnetic fields of this device might interfere with the pictures and sound of special frequencies.	This is normal and not a malfunction. Position the devices further away from each other.
The device is not supplied with electricity; the display is black.	Defect wall socket.	- Try another wall socket. - Check the main fuse in your household.
The display shows “0:00”	There was a power failure.	Set the clock again.
The device does not start operation. The display shows a readout other than the current time.	The door is not properly closed. The START/+30SEC./CONFIRM button was not pressed after selecting the function.	Check if there are objects or food remains jammed in the door. Press the START/+30SEC./CONFIRM button, or press the STOP/CLEAR button to cancel the function.
All controls are locked.	The child-proof lock is activated. The display shows the current time without the delimiter symbol “:” flashing.	Press and hold the STOP/CLEAR button for more than 3 seconds to unlock. The time-delay function is activated. Press the CLOCK/PRE-SET button to display the start time. Press STOP/CLEAR button to terminate the function.
The turn-table causes a scratching or aberrant noise.	There are dirt or foreign objects in the area of the turntable shaft.	Remove possible objects and food remains as described under “Cleaning”.
The operation is terminated without any obvious reason.	The device is defect.	Please contact our customer service.

Technical specifications

Model: MWG 2218 H CB

Power supply: 230 V, 50 Hz

Power consumption:

Microwave: 1450 W

Grill: 1700 W

Convection: 2300 W

Rated microwave power output: 900 W/2450 MHz

Cooking chamber capacity: 25 Liter

Protection class:

Net weight: 16.5 kg

Subject to changes without prior notice!

This device complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations.

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical appliccances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.

Spis tresci

NOT REMOVE THIS COVER.

CAUTION: HOT SURFACE

Tlumaczenie:

Ostrzeżenie

Energia mikrofalowa -

Polecamy nastepujace procedure:

NOT REMOVE THIS COVER.

CAUTION: HOT SURFACE

Forditas:

Figyelmeztetes

Mikrohullámú energia - ne

UcyHenHHeCnpaBHOCTeI 117

Texhihi xapaKtepcntnki 117

3araJIbHi Bka3iBKn ⅢoDo TexHikn 6e3neKn

Iepsh hix BnKOpncSTOBvBaTn npicpti, yBaXHo npOHTaTe uei nocihk KopucstbyaHa i 36epiraNe Ioro, a TAKoK rapaHTIO, Yek i, kso MOxJIbBO, opriHaJIbHy ypaKOBky pa3OM i3 BHytpiUHM nakyBaHnM. Ka so BN nepeJaCTe npicpti TpeTI oc6i, doaTe TakoK cei nocihk Kopucstbya.

BnKOpNCTOBuYTe uei npucTpiI dIy npBaTHnx ciJeI i 3a npn3NaueHnA.M. Pnpctpi He npn3NaueHn IJy KomepuiHoro BnKOpNCTaHH.
He BnKOpncTOBvIte ue npncTpi Ha ByIinCi. 3axucaTe npncTpi BiD TeIIa, npamix coHryHnx npomehiB, BOIorN (3a JODHx o6CTaBHn He 3aHpyHouTe npncTpi y pIDHH) i roctpnx KpaIB. He KopncTyTeec npncTpoE M, kUo y BaC Bonori pyKn. JaKuo npncTpi HAMOKHe, HeaHNo BiD'EDHaNe Te NOrO BiD MepeXki.
3aBxDn BmMkaIte npncpti i BiD'edHynte BiD MepeXi (TraHITb 3a stKeep, a He 3a Ka6enb), kkuo npncpti Hne BnKOpncTOBy-ctbcra 60 KOJI NiD'edHyTe npniladn, nD qac YnUeHHy u paazi HeHaJeXHOi po6Otn pncptoio.
He 3aIIuHaIe npucpti8 6e3 harJy nID qac po6oTu. 3aIINUOHy KIMHaTy, 3aBxDn BmMkaTe npucpti.BiD'edHyTe npucpti BiD MepeXi.
- PeryIpaHNo nepeBipRyTe npicTpi i Ka6JIb Ha HaaBHiCtB noUKoJKeHb. He BMnKaIte npicTpi, RaIcO BnAIBneHO noUkoDKeHHa.

He pemohTyIe npicTpi camOtjKKn. 3BepHItbcr do ynoBHO- baxKeHNxC cneuiiACtIB. Uo6 yHnKHytn He6e3neKn, cnid 3amHHTn noSKoJKeHn Ka6eIb XnBJIeHHra Na TKn CaMn Ka6eIb; 3a- Miny MaC BnKOHyBaTn BnO6HKn, cnyX6a NiDTPmKn CNOxNBAuiv Ch nIHsIK KBAiOfIKOBAHn CneuiAICI.
BukopncToByTe NlleOpirHaJIbHi deTaJI.
-ДotprimyIteb noaHnx dani y po3di npo cneiaIbHi Bka3iBkn 3Texhik6e3neKn.

Iitn i oco6n 3 oco6JHbHM notpe6amn

3aJ7 6e3n BaInx dTei 36epiraTe nakyBaIbHn MaTepi (nactNKoBI nakETn, cKOBn, NiHnPnact ToO y Mlcx, HeOCTynHnx dIaTei.

PonepeDxKeHnHa!

He do3bojne MaIIM dITram 6abTnca fOJIbTOIO, icHyc He6e3- neka 3aDyweHnra!

• LéienpincptiHne np3haueHnI DnBvBkopncTahnOOC6aMn (BKNIOUcHOnDiTe) 3OBmExKeHMMNΦi3NUHMN NPO3yMOBIMN 3d16bHOCTaMn, a6o 36paKOM DoCbiDy Ta/a60 3HaNb, JaKIO 3a HMMN He BeDeTbcra HaJIaD YH Me 6bYNI HadaHI BiINOBiHi Bka3IBKn CTOCOBHO BVKOpncTahHn IpnCTpoIO Oc6oH, JKA Hece BiINOBIaJIbHicTb 3aixHIO 6e3neKy.
• CTeXTe, Ⅲo6 DiTn He 6aBunncb npucTpoem.

CnmbOny ycbomy noci6hNky

3aIyBaIoI 6e3neKn noaHOn yITki 3actepexhenr. PaIMo 3BepHyTuHa HnX yBary, uOb yHnKHyTu nHeuacnX BnPaKIB i no- shKOJxKeHHn PnCtpoH.

Посярженья.

PonepeJkae npo He6e3neky 3dOpOB'io i Bka3ye Ha MOxJIINBn Pn3NK TpaBMyBaHHa.

ybara.

Bka3ye Ha moKnBy He6e3neky dny npncTropo uHnix nped-MetIb.

I PnpMItka.

Bka3ye Ha niiikak3ky uhiinfoopmaizio JnKoprncTBya.

BaxnBa iHΦopMaζε 3 6e3πεκι!

YBaJHo npOHTaIe i 36epexiTb dIy DOiDOK y MaIbTyHbOMy.

！PonepeJxKeHnI.

He nizirpibaTe noDyuueKn 3 cepHom, BnHni 3 KICTOyKaMn a6o xeneB mikpoxBnIbOBi neHi. ICHYc PN3Nk BNHK- HEHHa I0XEKJI!!!
RaIIO noIkoJKeHO DBepaTa a6o yuJIbHIOBaU DBepaT, He npOIOBxKyIe BnKOpNCaHHa PnICtPOH, DOnOKN Ie noIkoDxKeHHa Byde ycHyTO KBAIipikOBaHm CneiianicTom.
He hamaraTeCb BiDpemOnTByBaTn npicTpri BlnachOpuy; 3B'jXiTbC3 yNobHOBaXeHm ekCpeTOM. Lc Hebe3neHNO dIy6yb-Koro, OKiIM ekCpeTIB, aJxke IJIY BIKOHaHHa peMOHTy uOBCnyROyBaHHa NOTpi6Ho 3HrTI KpUkky, JaKa npIN3NaHeHa dJIa 3axnCTy BiD BVInPOMIHOBAHH, CnpuHHeHO- ro MikPOXBnJIaMn.

PonepeDxKeHn.

He harpiBaIte piDHH Nn iHsII npOyKTN B 3aKpNTnx KOHTeHepax. IChyE He6e3neKa Bn6byx!
He CTaBTe MIKPOXBnIbOBy niu y Iuafoy. YneBnITbcra, 0o BiDCTaHb MIX KOKHOIO CTOPHOIO npncTPOIO IuafoIO, CTiHaMToIO CTaHOBT b OHaNMeHwe 10 cm dIra 3a6e3neueHHaJIexKHOI BEHTnIaII.
ДiTи i HEMiHi OOC6n He NOBHHI BVKOpNCTOByBaTH npNCtpii 6e3HaTMy, kIIO IX He 6bYNo HAnExHNO pOIHCTpyKTOBaHO 5oDo 6e3NeuHOro BVKOpNCTaHHr HmMn pNcTPOIO i RaIcO BOHN He yCbIDOMHIOy, kIp N3uKn icHyOtB b pa3i HeHaJIeKHO BVKOpNCTaHHn pNcTPOIO.
Y BnpaKy BnKOpNCTaHЯ KOM6iHOBaHOro peXIMy DiTINMOxytB BnKOpNCTOByBaTn npIcTpiTiIbKnPiD HaIgIaOM DOpocInx Ypee3 BnCOKI TempepaTyPi.
MikpoxBnIbOba nIy He np3NaYeHa dIa nIirpIBaHHa XNBHX TBapH.
BnKOpncTObuIe TlIbKn npuaTHn dJa MIKPOXBnIBoBOi neCi nocyd, taKn Jk: cKnO, nopceJHa, KepaMka, TePMocTiKm nnactnk abo CneiaIbHn Nocyd dJa MIKPOXBnIBoBOi neci.
Плд惰 розirpiвань аб орпiroтунвань пюдуктів улergо-зай мости MaTePIaIax, taknx як пл actиki obo napepobi koHTeHepn,notpio6HO nOCTiHNo harlaTaN 3a npicntpoem y 3B'ЯЗКУ 3 MOxNlBICTU BHNKHeHHN NOXExKi.
Y BnpaKy IoBn DmBy BmKHiTb npncTpi i Bi'd'edHaIte NOro BiD MepeXi. TpmaTe DbePcTa 3akpntMn, 063aNo6iTn MOxNIOBocTi 3aropHn.
360bTaIte a6o NOMiuaTe BMICT dntraOoi nlaeuki iCKJHOrTo nocUdy 3 dntyHM xapuBaHHm i nepeBipTe TeMnepaTpy, nepH hIX BnKOpNCTOByBaTI. IChyE He6e3neKa OTpMaHnRa onikIB.
ⅡO6 BmHnTn EMHoCTi, BnKOpNtOBuYte raHcIpy KxOHnHi pyKaBnCi.IHAKUIE ICHYE HEBE3NEKA OTPIMAHHr ONIKIB!
PódykTN 3i ŠkapaJyNToO a6o ŠkipKoU, Taki Jk JnCz, CocncK, 3akpnti cKJHl KOhcepBHi bAHKn Ta iH. He MoXHa pO3irpBaTn B MikPOxBnJIbOBiI neHi, OckJIbKN BOHm MOxTyB Bn6yXHyTn HabITb NiCJr 3aBepSeHnI prouccy po3irpBaHH.

He6e3neka neperpiBaHHa.

Пд час пригоруваимя嘉兴，ocobиwoпд час пдірівань рідн(BOD)，MOKE CTATNCS TAK，TO TempepaTpyKINHNYDOCSRHTO，ODHak TINOBI 6yJIb6aWKU Σе He 3'YBIAHOCTB.C. PdHnHe KINIIPTb pIBHomipHO.PIDчac BIMMaHHKOHTeMHepa ue epeKTpeperpibAHNMAOme pnp3BecTNdo paNTBOI NOABu 6yJIb6aWOK,ZOМожE 6bytncPunHHeHO HABITb He3NaHmM KOINBaHHM,ipeJIbAHNpyiDHN.HcHye He6e3neKa OTpImaHHOnPiKIPbHOMIPHO KINiHHN poklaɪt b cKJIHy naIynchky abo zuocb noDi-6He，HE MeTaJIeBE，y KOHTeHep.

• Petelbno nouchte pamky/yujiNbHOBaU dBepuT i cymkiHi yactHHN BOJoroIO raHcyo y BnnaIky ix 3a6pydHeHH.
• Peru npocntbte MikpoxBnIbOBy niu ycyBaTe 3aIIuKi iXi BCEpeHNI npocTPOU.
• Y Bnpiakky HehaJIeXHOrO DoIgJIaY 3a IprNCTpoE M IORo NOBepxHr MOKe NOnKoDInTcB, IIO IprN3BeDe DO 3MeHSeHHe TepMIny EKCnIpyatauI IIpNCTpoI i BnHKnHHeH Hne63NeuHX CITyaui.

He ynpabJnIe npicTroem 3a donomoro 3OBHiiHbOTo TaI-Mepa abo OKpemoi dinCTaHciHoi CnCTeMn KepyBaHH.

Ta5nukn 3 iHopmaicio icmboln Ha Bnpo6i

Bropi mikpoxbunbobo'i neci e cmboI i3 taKIM TEKCTOM, 10 nopepeJxac npo He6e3neky.

WARNING-

MICROWAVE ENERGY-DO

NOT REMOVE THIS COVER.

CAUTION: HOT SURFACE

Ipeekna

PonepedkeHH

Mikpoxbuni -

He 3HimaTe KpnuKy.

Ybara. rapa na NOBepxna.

Пд чароботи зовни поberхя пистою може harpiBaTия. He6e3neka otprmaнь onikib!

Ha 3Bopoti mikpoxbnboo'i nei e Ta6JnUka 3 Takoio iHOpmaciEIO.

WARNING

• MICROWAVE AND HIGH VOLTAGE INSIDE. BE SURE NOT TO REMOVE THE ENCLOSURE.
• THIS APPLIANCE IS EQUIPPED WITH A GROUNDED PLUG FOR YOUR PROTECTION AGAINST POSSIBLE SHOCK HAZARDS AND SHOULD BE CONNECTED TO A PROPERLY GROUNDED OUTLET.
• THIS DEVICE IS TO BE SERVICED ONLY BY PROPERLY QUALIFIED SERVICE PERSONNEL.
• DISCONNECT POWER PLUG BEFORE SERVICING. REMOVAL OF THE ENCLOSURE WITH PRODUCT ENERGIZED COULD EXPOSE SERVICEMEN TO HAZARDOUS HIGH VOLTAGE POTENTIAL.

Переклад

PonepedkeHHa.

• Míkpoxbni i BnCoka Happyra BCEpeDnHi. He po3bpaIte kOp-nyc.
  Ley npictpi o6laHaHO 3aemneHm uTeKkepOM 3aIy 3axcty BiD MOxJIbOro ypaXeHH eJeKtpnHm cTpymOM i Ioro cnid nikHHTn Do HaneKHM YINHom 3a3eMHeoP03ETKn.
  LeynpictiMaeO6cIyroByBaTnJIiueKbaniΦikoBAnHcnCnei- anicT.
  Bicnnae tte neped o6cnyrobybaHnM. kio 3nTn Kopnyc i3 npictpo, kni nepe6yBaC nD happyo, cneiaiict i3 o6cnyrobybaHHa napkaTMetbcs Ha Hebe3neky ypaXeHH BVCOKOHO HAppyo.

Po3taшуBaHHЯ opraHIB kepyBaHHa

MaJIHOHOK A

1Панель Керувань.

6 NobopOthe KInbIe

23acic BiDkPnBaHn DBepT

7 EmalboBaHa MeTaJIeBa Taipika

3rnnb

83acyBkaDbepaT

4 Bicb npBovdy

9OrJIOBeBikHO

5 Huxkhi eIeMeHT harpiBaHHa

He noka3aHo: kamiHb dIy niu

MaHIOHOK B.CIMBOJN Ha naHeJI kepyBaHHa

1 MikpoxBuni

5ФункцязамkaВддITEI

2 KohBekui

6 ABTomatnHa dhyHKlij

3rnnb

7 IIndiKaTop TemnepaTpy

4PozMopoxKeHHa

Y tabnui Hxue noaHO BiOMOCTi, kI DOnOMOxyTb Bam y Bn-60py nocudy.

Ha npn6JI. 100 r-1 XB.npIroTByaHnH Ixi

Yci npodykTN, kki BN hakpnbAcTe KpnUKOIO y 3BnuaHni neyi, cnid HakpnbATn i B miKPOXBnIbOBi nepi.

Kpnka do3BOINb 3aON6iITN BnCysuYBaHHIO npOdykTy. IpeBepHyta TApIka, KnpoHEnpOHNkHnn pAnip qN fOJbRa dIy nprirotyBaHHy y MIKPOXBnIbOBi MoXHa 3aCTOCOBaTH nK pKniSku. JkUo Notpi6Ho, 06 yTBOpNJacc KopHnKa, He NaKpNBaTe cTpaBy.

Ta6JIu3I npaamn 10do nprirotybaHnCTpaB

Проб乾坤инилой	Кльб-кICTь	Налаштуваши потужностi	Час (прибл. XB.)	Кршka
Овочи
Ба KMяЖан	500 r	P80	7 - 10	ТаK
ЦВітнаду STауСТа	500 r	P80	8 - 11	ТаK
БрOKkoni	500 r	P80	6 - 9	ТаK
ЦКорій	500 r	P80	6 - 7	ТаK
Горox	500 r	P 80	6 - 7	ТаK
ФECHХел	500 r	P 80	8 - 11	ТаK
Зелені божи	300 r	P 80	13 - 15	ТаK
Карто NFLя	500 r	P 80	9 - 12	ТаK
РINA	500 r	P 80	8 - 10	ТаK
ЦИБУЛД-Порей	500 r	P 80	7 - 9	ТаK

Проб乾坤и наоюi	Кльь-кICTь	Налаштуваши потужностi	Час (прибл. XV).	Кршka
Кукудза на качанi	250 r	P 80	7 - 9	ТаK
Морковa	500 r	P 80	8 - 10	ТаK
Пereць	500 r	P 80	6 - 9	ТаK
БróccSEL- сыka калystа	300 r	P 80	7 - 10	ТаK
Сларka	300 r	P 80	6 - 9	ТаK
Помідори	500 r	P 80	6 - 7	ТаK
Цкунi	500 r	P 80	9 - 10	ТаK

Плдказа. ПоріжTe Oвоci Ha MaJI ShMaTKn i roTyJTe 3 npi6IиЗнO 2-3 loxKamn piDHH; yac BiD yacy nomiuyTe. rOtyJTe Ha MaJI INOTyKHOCTi 3-5 XBnINH;doaIte npinpabN npeEd cnoKbAH-NHM.

Фрукtn

Po3MopoxeHHI npiroTyBaHHOBOyIB

Moxha Bn6pau 3-nomix Tpbox HanaaTyBaHb rpiJr:

G-1 IINSeBepxHnKbapcOuBNrPnlb
G-2 BepxHnKbapcObni rnpJIb i HnXhHi eIeMeHT HaPribaHH
G-3 IINIe HIXHNI eIeMeHT HaRpiBaHHa

KopncTyBaHHraPnJIeM

BctaHObIb rpiNb ha metaneBiem tapiui, jka doJaetbcra. BnkOpncTobynte tepmoCTiKm nocuD qH npocTo noknaDiB npodykTu Ha pewiTkY.

Y pa3i 3actocybaHHpeKIMy G-1 nonepedne po3irpibaHHe noTpi6He, ockilbKn KBapcOBN rnilb rehepye npme npomHHn.

IotpmyTecbnoaHx daJI Bka3iBOK dJIa CmaKeHHa.

1. Виберітьnotрибни ржим грпя, натуснчыши Кногку DOUBLE GRILL/COMBI. один aбо кльka pa3iB. натуснчыши один pa3, можна викоростовыати ретулготop.
2. Hatachitb KhoNky START/+30SEC./CONFIRM, 1o6 niTbepn- Tn HanaStyBaHHa.
3. 3a donomorooperynlaTopa BcTaHOBitb notpi6Hm qac cMaKeHN HBAID5ceKHyDdo95xbnnH.
4. Hatachitb KhoIky START/+30SEC./CONFIRM, 06 po3noaTn.

I PnmiTka.

KoIIMHe noIOBHa hAcy npriroTyBaHnry, IpOlyHae 3ByKOBn CnHaI, HaraDyUOni, Izo NotPi6Ho nepeBepHyTu CTpaBy.

KoJI MInHe BeCb Yac, npIcTpiB BmKHeTbCra I npOlyHae 5 3ByKObNX CnHAniB. Tenep MoXHa BmHrTn CTpaBy.

BnKOpncTaHnKaMeHaIpn

Pexim KOHBeKzii 3 nonepeD him po3irpibHHaM

1. Bn6epitb nopti6Hy tempeatypy y diaana3oHi 140°C-230°CHaTnCSHeHHaM KHOJKN CONVECTION oDIn h a6o KiIbka pa3iB. HatncHyBUn OOnH pa3, MoXHa BVNKOpNCTOByBaTu peYJLTop.

2. Hatachitb kHonky START/+30SEC./CONFIRM, 06 niTbepn- Tn HanaStyBaHHa.

3. HATINCHITb KHOIIky START/+30SEC./CONFIRM ue pa3, zuo6 po3noaTn nonepdHc po3irpiBaHHJ.

I PnpMItKa.

1. Hatachitb khoiky START/+30SEC./CONFIRM, 106 po3noaTnpo6oty.

Iicna toro, kMHe yac npiroToyBaHnHa iKi, npncTpiB BMKHeTbcra I npolyhae 53BykoBnx CnHanib. Bmmitb npOkykn 3 npncTpoJ.

Pexim KOHBekui 6e3 nonepeHboro po3irpiBaHHa

1. PoknadiTb npoDyKTny npncTpi.
2. Bn6epiB noTpi6Hy tempepaty y diana30hi 140°C-230°C HATINCHENHm KHOPIK CONVECTION oDHH a6o KiJIbKa pa3iB. HATINCHYBm ODNH pa3, MoJHa BnKOpNCTOBvBaTu peYIaTOp.
3. HATNCHITb KhoNky START/+30SEC./CONFIRM, icosiTBePdI-Tn HalaSTyBaHHa.
4. 3a donomoro peyraTopa BCTaHOBiTB noTpiBn yac npiroTyBaHHia biD 5cekynd do 95 xBnInH.
   5.ΗΤιςχίβε Κλοήκγ START/+30SEC./CONFIRM, ζύδ ροδηρατηνρόθουτγ.

I PnpMItKa.

IoiJIKnHaDnCnIeTAKOXBkA3yBaTMMybHaTeMnepaTypy, kOoi DocRHyTo.BiO6paXeHnHaDnCnIeMIroTITmpe nID yac pa3n po3irpibAHn.

Iicra toro, kMHe yac npiroToyBaHH iKi, npictpiBmKHeTbCra I npolyhae 53bykoBnx CnHaJIb. BmMitb npOdykTN 3 npncTroIO.

KombiHaCiЯ peXmMiB mIKPOXBnIb, rPnJIa I KOHBeKciI

Ypa3i 3actocyBaHHaHnHaIaHTyBaHb

MikpoxbnJI
Bepxhi Kbapocboi prnilb
HIXHI eIeMeHT HaPribaHHA
KOHBeKLJ

No Yep3i BMNKaTImyTbCraY TaKNX KOM6iHaζijX:

TexhiHixapaKTepeNCTnKn

MoeB: MWG 2218 H CB

KINBHeHHa: 230B,50Tc

CnoKmbaHn ehepri:

Mikpoxbni: 1450 Bt

Tpnilb: 1700 Bt

KoHBeKzj: 2300B

HominaBbna BnXiHa nOToxHicTb: 900BT/2450M

EmhictkameprnnpiroToyBaHHi: 25 n

Klac 3axncty:

Bara HETTO: 16,5 k

XapakTepcntKMOke 6yTu 3miHeNo 6e3nonepdKeHHa!

Lcienpncptpi ceptnphiikobaho BiDnoBIDHO do DiOuHx HopM PC, HapnKlaH Hopm eIeKtpomarHITHOi Cymichocti i Hn3bKOi HanpyrN, i CKOHCTpyIOBAHO BiDNOBIDHO DO OCTaHHix XapaKTepNCtIK i3 Texhikn 6e3neKn.

BOMANN®

C. Bomann GmbH

Heinrich-Horten-Str. 17 · 47906 Kempen

Tel.: [phone] · Fax: [phone]

e-mail: [e-mail] · Internet: www.bomann.de
