USER MANUAL SCMW20SMB SCHNEIDER

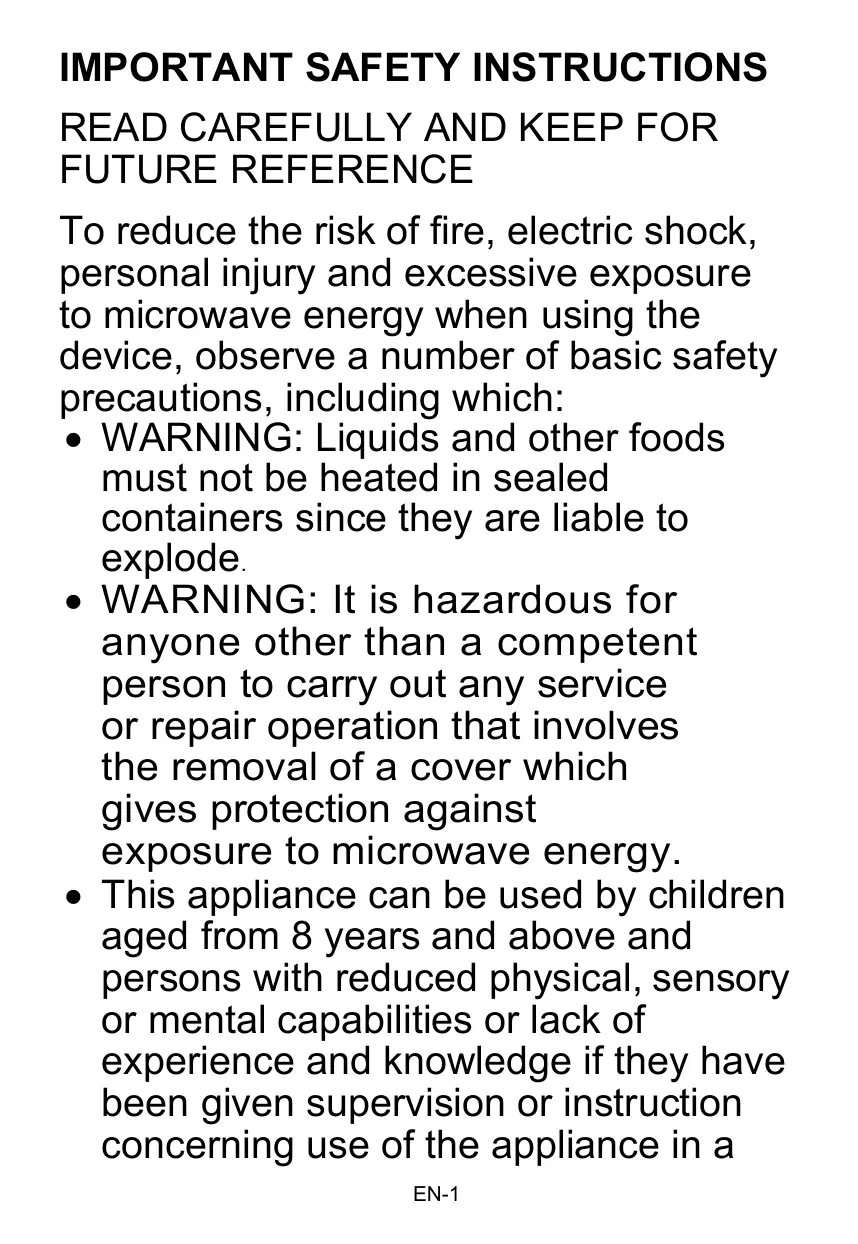

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE To reduce the risk of fire, electric shock, personal injury and excessive exposure to microwave energy when using the device, observe a number of basic safety precautions, including which: • WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode. • WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a EN-1

safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Refer to the section "Instruction for use" on page 13 and paragraph "Cleaning and maintenance" on page15. Make sure the device and the power cable are out of reach of children under 8 years. Only use utensils that are suitable for use in microwave ovens. The oven should be cleaned regularly and any food deposits removed. Please read and follow these instructions: "PRECAUTIONS TO AVOID EXCESSIVE EXPOSURE TO MICROWAVE ENERGY". When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. If smoke is observed, switch off or unplug the appliance and keep the EN-2

door closed in order to stifle any flames. Do not overcook food. Do not use the oven for storing food or containers. Do not store food (such as bread, cookies, etc.) in the oven. Remove all fasteners and metal handles of the bags / containers of paper or plastic before placing them in the oven. Install or position the microwave oven in accordance with the installation instructions provided. The minimum installation height is 85 cm. The back of the device should be placed against a wall. Leave a minimum gap of 30 cm above the oven and 20 cm between the oven and each wall. Refer to the section "Installation" on page 9. Eggs in their shell and whole hardboiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. This device is intended solely for domestic use. EN-3

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • Do not use and do not store the device outdoors. • Do not use this oven near a place where there is water, in a wet basement or near a swimming pool. • Accessible surfaces can be subjected to high temperatures during operation. The surfaces may become hot during use. Be sure to keep it away power cable from hot surfaces. Do not cover any of the oven vents. • Do not leave the cable hanging from a table edge or counter. • If the oven is not regularly cleaned, the walls may deteriorate; this phenomenon is potentially dangerous and can shorten the furnace life. • To avoid burns, baby bottles and baby jars should absolutely be mixed or shaken after heating in a microwave oven, and the contents of the temperature should be checked before consumption. EN-4

• Liquid heated microwave oven may boil suddenly after being baked. Handle containers with care. • Appliances are not intended to be operated by means of an external timer or separate remote-control system. • Accessible parts may be subjected to high temperatures during operation. • The young children must be kept away. • The appliance shall not be cleaned with a steam cleaner. • The unit is heated to a high temperature during operation. Be careful not to touch the resistors located inside the oven. • Only use the temperature probe recommended for this oven (for ovens provided with a facility for using a temperature sensing probe.) • WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching the heating elements. EN-5

• Children under 8 must be left out unless they are supervised at all times. • The back of the device must be placed against a wall. • The microwave oven should not be installed in a closet. • The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. • Metallic containers for food and beverages are not allowed during microwave cooking. • WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. • This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other EN-6

residential environments; - bed and breakfast type environments. Microwave heating of beverages can result in delayed eruptive boiling, therefore, care must be taken when handling the container. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. Regarding the instructions for cleaning and use maintenance, especially of door seals, cavities and adjacent parts, refer to the following paragraph of the user manual. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. The appliance must not be placed in a cabinet. This appliance is not intended for use by persons (including children) with EN-7

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. • WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. • The microwave oven is intended to be used freestanding. This product is a Group 2 ISM equipment class B. Group 2 includes all equipment ISM (Industrial, Scientific and Medical) radio frequency energy which is intentionally generated and / or used in the form of radiation Electromagnetic for the treatment of materials and equipment EDM. The Class B includes equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network that supplies domestic premises. EN-8

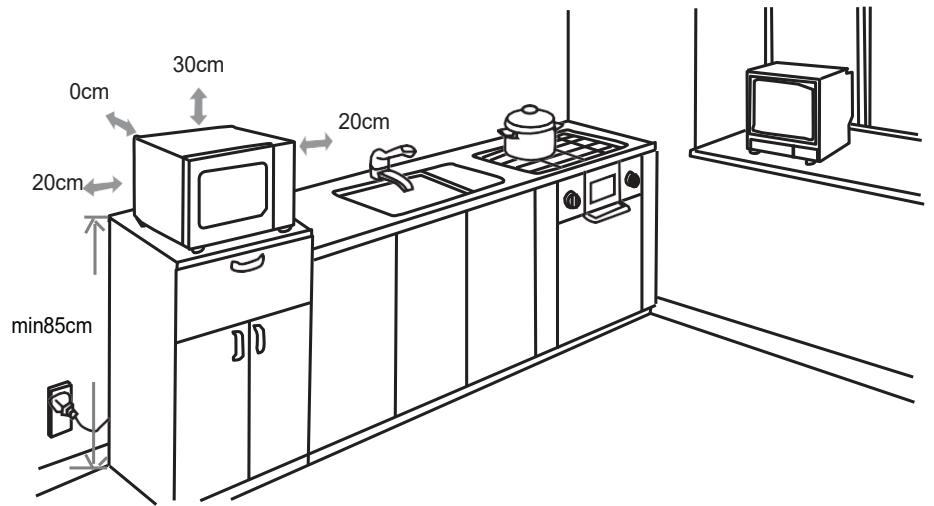

Installation 1. Select a level surface with a sufficient open space for the inlet openings and / or air outlet. 0cm

(1) The minimal mounting height is 85 cm. (2) The back of the device must be placed against a wall. Leave a minimum gap of 30 cm above the oven and 20 cm between the oven and each wall. (3) Do not remove the feet underneath the microwave oven. (4) Block the inlet and / or air outlet apertures may damage the oven. EN-9

(5) Make sure that the microwave oven is as far away as possible from TVs and radios. Using a microwave oven can cause interference disturbing the reception of your radio or television. 2. Plug your oven into a wall outlet. Make sure that the voltage and frequency of the current it supplies are identical to those indicated on the nameplate of the unit. WARNING: Do not install oven over a cooktop or other device that produces heat. If the oven is installed near or above a heat source, it may cause damage and void your warranty. Caution, hot surface. The surfaces are liable to get hot during use.

IMPORTANT It is forbidden to replace the power cable by yourself. If damages must be repaired by the service of local distributors, by the manufacturer or by a qualified person. If the unit is fallen visit qualified to check before using again. Internal damage may cause accidents. For all types of problems or repairs, please contact the after-sales service of local dealer, the manufacturer or qualified person to avoid hazard.

Disposal and environmental responsibility In order to be environmentally friendly, we encourage you to take this device correctly. You can contact your local authorities or recycling centers for more information.

Read the instructions carefully before use. This product complies with the requirements of Directive 2014/35/EU (repealing Directive 73/23/EEC as amended by Directive 93/68/ EEC) and 2014/30/EU (repealing Directive 89/336/EEC).

Description of your product Oven parts and accessories Remove the oven and all parts from the shipping carton and from the oven interior. Your oven contains the following accessories: Glass top

a. Never place the glass top upside

Connector (under the tray)

down. Make sure that the rotation of the glass plate is not obstructed.

b. The glass platter and the turntable support assembly should always be installed in the oven when in use.

c. All food and food containers should always be placed on the Guide ring

glass pan for cooking. d. If the glass platter or the turntable cracks or breaks, contact your nearest authorized service center.

Installing the oven on a worktop Remove all accessories and packing materials. Examine the oven and check for signs of damage, such as the door for breakage and dents. Do not install the oven if it is damaged.

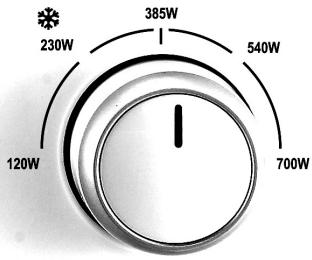

Instructions 1. To adjust the cooking power, turn the power knob to the desired level. 2. Set the cooking time by turning the timer knob to the desired time according to your food cooking guide. 3. The microwave oven will automatically start cooking after the power level and time have been set. 4. When cooking is complete, the oven will ring once and stop. 5. If the oven is not in use, always set the time to position "0".

Function button / power

17% in the microwave

33% in the microwave

For stews and soups, to soften butter or defrost

55% in the microwave

77% in the microwave

Rice, fish, chicken, minced meat

For reheating, boiling water or milk, heating vegetables, drinks

Note: When removing the food from the oven, please ensure that the oven power is turned off by turning the timer knob to 0 (zero). Failure to turn off the power and operating the microwave oven without food inside may result in overheating and damage to the magnetron.

Troubleshooting guide Normal The microwave oven creates interference

It is normal for the microwave oven in operation to interfere with the reception of your radios and televisions. This is a phenomenon that can be found with other small household appliances, for example mixers, vacuum cleaners and fans.

In low power mode, it is normal for microwave cooking to be slower.

Steam builds up and hot air comes out of the ducts

During cooking, food may release steam. But some steam may collect on a cold surface such as the oven door. It's normal.

The oven has been accidentally turned on when there is no food in it.

It is forbidden to operate the oven without food inside. It's very dangerous.

Cannot turn on the oven.

Possible cause (1) The cable power supply is not properly connected. (2) The fuse has blown or the circuit breaker is activated.

Solution Wait 10 seconds, then plug it back in.

Replace the fuse or reset the circuit breaker (repairs must be carried out by a professional from our company).

(3) There is a problem with the power plug.

Test it with other electrical devices.

The oven does not heat up.

(4) His door is not properly closed.

Close the door properly.

The glass top makes noise when the microwave oven is in use.

(5) The guide ring or the bottom of the internal oven compartment is dirty.

Refer to the section Cleaning your microwave oven to clean the room surfaces.

Maintenance and cleaning Make sure to unplug the device from the power supply. 1.After use, clean the oven cavity with a slightly damp cloth. 2.Clean the accessories with soapy water. 3.The door frame, gasket and nearby parts should be thoroughly cleaned with a damp cloth when they become dirty. 4.Do not use abrasive cleaners or a hard metal scraper to clean the oven door glass, as this will scratch the surface of the glass, which can cause it to break. 5.Cleaning tip - To make it easier to clean the interior walls of the oven that may come in contact with cooked food: Place half a lemon in a bowl, add 300 ml (1/2 pint) of water and heat with 100% of the microwave power for 10 minutes. Wipe down the oven with a soft, dry cloth.

Maximum absorbed power:

1050W Power restored (microwave):

700 W Oven capacity:

Diameter of the turntable:

External dimensions:

If this logo appears on the device, it means that it must be disposed of in accordance with Directive 2012/19 / EU on electronic and electrical equipment (WEEE). All hazardous substances contained in electrical and electronic equipment can have adverse effects on the environment and human health. Consequently, when this device is out of use, it should not be disposed of with unsorted municipal waste. As the end consumer, your role is essential to ensure reuse, recycling or any other form of value creation for this device. You have several collection and recovery systems set up by your local authorities (recycling centers) and distributors. You have an obligation to use these systems.

GUARANTEE: The warranty does not cover wearing parts of the product, nor problems or damage resulting from: (1) surface deterioration due to normal wear and tear of the product; (2) defects or deterioration due to contact of the product with liquids and due to corrosion caused by rust or the presence of insects; (3) any unauthorized incident, abuse, misuse, modification, disassembly or repair; (4) any improper maintenance operation, use not in accordance with the instructions concerning the product or connection to an incorrect voltage; (5) any use of accessories not supplied or approved by the manufacturer. The warranty will be void if the nameplate and / or serial number of the product is removed.
