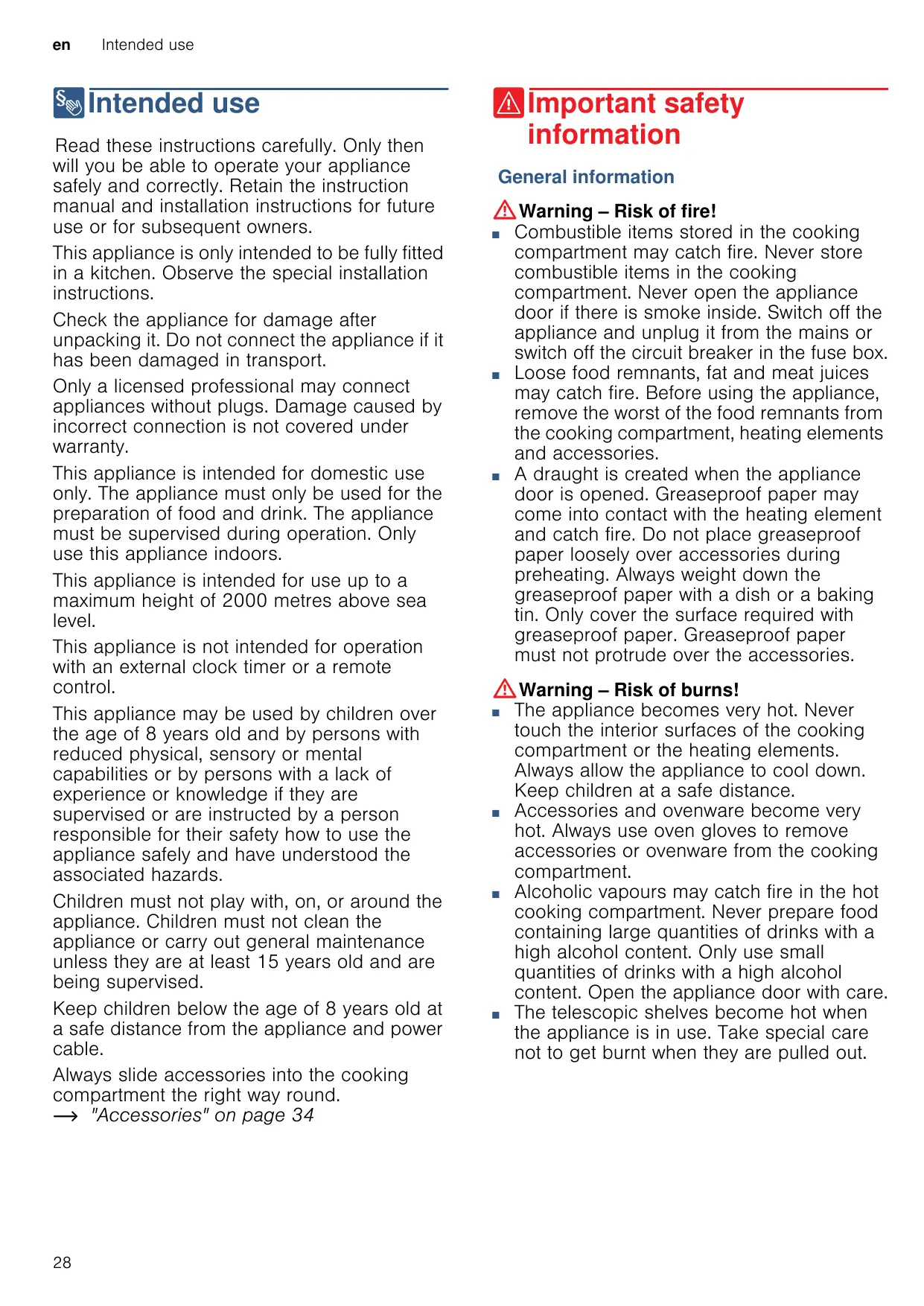

: Warning – Risk of fire! Combustible items stored in the cooking compartment may catch fire. Never store combustible items in the cooking compartment. Never open the appliance door if there is smoke inside. Switch off the appliance and unplug it from the mains or switch off the circuit breaker in the fuse box. Risk of fire! Loose food remnants, fat and meat juices may catch fire. Before using the appliance, remove the worst of the food remnants from the cooking compartment, heating elements and accessories. Risk fire! is created when the appliance A of draught door is opened. Greaseproof paper may come into contact with the heating element and catch fire. Do not place greaseproof paper loosely over accessories during preheating. Always weight down the greaseproof paper with a dish or a baking tin. Only cover the surface required with greaseproof paper. Greaseproof paper must not protrude over the accessories.

: Warning – Risk of burns! The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance. Risk of serious burns! Accessories and ovenware become very hot. Always use oven gloves to remove accessories or ovenware from the cooking compartment. Risk of burns!vapours may catch fire in the hot Alcoholic cooking compartment. Never prepare food containing large quantities of drinks with a high alcohol content. Only use small quantities of drinks with a high alcohol content. Open the appliance door with care. Risk of burns! The telescopic shelves become hot when the appliance is in use. Take special care not to get burnt when they are pulled out.

Important safety information : Warning – Risk of scalding! Cleaning function

: Warning – Risk of fire! The accessible parts become hot during operation. Never touch the hot parts. Keep children at a safe distance. Risk of scalding! When you open the appliance door, hot steam can escape. Steam may not be visible, depending on its temperature. When opening, do not stand too close to the appliance. Open the appliance door carefully. Keep children away. Risk of scalding! Water in a hot cooking compartment may create hot steam. Never pour water into the cooking compartment when the cooking compartment is hot. : Warning – Risk of injury! Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents. Risk of injury! The hinges on the appliance door move when opening and closing the door, and you may be trapped. Keep your hands away from the hinges.

: Warning – Risk of electric shock! Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Contact the after-sales service. Risk of electric shock and serious injury! The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance. Risk electric Doofnot use shock! any high-pressure cleaners or steam cleaners, which can result in an electric shock. Risk of electric shock!the cooking compartment When replacing bulb, the bulb socket contacts are live. Before replacing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Risk electric shock! A of defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

Loose food residues, grease and meat juices may catch fire during the cleaning function. Before starting the cleaning function, remove coarse dirt from the cooking compartment and from the accessories. Risk of fire! The appliance will become very hot on the outside during the cleaning function. Never hang combustible objects, e.g. tea towels, on the door handle. Do not place anything against the front of the appliance. Keep children away from the appliance. Risk of fire! If the door seal is damaged, a large amount of heat will be generated around the door. Do not scrub or remove the seal. Never operate the appliance if the seal is damaged or missing.

: Warning – Risk of serious damage to health! The appliance will become very hot during the cleaning function. The non-stick coating on baking trays and tins is destroyed and noxious gases are released. Never clean non-stick baking trays and baking tins using the cleaning function. Only clean enamelled accessories using the cleaning function. : Warning – Risk of harm to health! The cleaning function heats up the cooking compartment to a very high temperature so that food remnants left over from roasting, grilling and baking will burn off.This process releases vapours, which can irritate the mucous membranes. While the cleaning function is running, keep the kitchen well ventilated. Do not remain in the room for long periods. Keep children and pets away. Follow the instructions even when using the Delayed start function with a delayed end time. : Warning – Risk of burns! The cooking compartment becomes extremely hot during the cleaning function. Never open the appliance door. Allow the appliance to cool down. Keep children away from the appliance. Risk burns! ;ofThe appliance becomes very hot on the outside during the cleaning function. Never touch the appliance door. Allow the appliance to cool down. Keep children at a safe distance.

Causes of damage ]Causes of damage Causes of damge General information Caution! Accessories, foil, greaseproof paper or ovenware on the cooking compartment floor: do not place accessories on the cooking compartment floor. Do not cover the cooking compartment floor with any sort of foil or greaseproof paper. Do not place ovenware on the cooking compartment floor if a temperature of over 50 ºC has been set. This will cause heat to accumulate. The baking and roasting times will no longer be correct and the enamel will be damaged. Aluminium foil: Aluminium foil in the cooking compartment must not come into contact with the door glass. This could cause permanent discolouration of the door glass. Water in a hot cooking compartment: do not pour water into the cooking compartment when it is hot. This will cause steam. The temperature change can cause damage to the enamel. Moisture in the cooking compartment: Over an extended period of time, moisture in the cooking compartment may lead to corrosion. Allow the cooking compartment to dry after use. Do not keep moist food in the closed cooking compartment for extended periods of time. Do not store food in the cooking compartment. Cooling with the appliance door open: Following operation at high temperatures, only allow the cooking compartment to cool down with the door closed. Do not trap anything in the appliance door. Even if the door is only left open a crack, the front of nearby furniture may become damaged over time. Only leave the cooking compartment to dry with the door open if a lot of moisture was produced whilst the oven was operating. Fruit juice: when baking particularly juicy fruit pies, do not pack the baking tray too generously. Fruit juice dripping from the baking tray leaves stains that cannot be removed. If possible, use the deeper universal pan. Extremely dirty seal: If the seal is very dirty, the appliance door will no longer close properly during operation. The fronts of adjacent units could be damaged. Always keep the seal clean. Never operate the appliance if the seal is damaged or missing. ~ "Cleaning" on page 40 Appliance door as a seat, shelf or worktop: Do not sit on the appliance door, or place or hang anything on it. Do not place any cookware or accessories on the appliance door. Inserting accessories: depending on the appliance model, accessories can scratch the door panel when closing the appliance door. Always insert the accessories into the cooking compartment as far as they will go. Carrying the appliance: do not carry or hold the appliance by the door handle. The door handle cannot support the weight of the appliance and could break.

Environmental protection 7Environmental protection

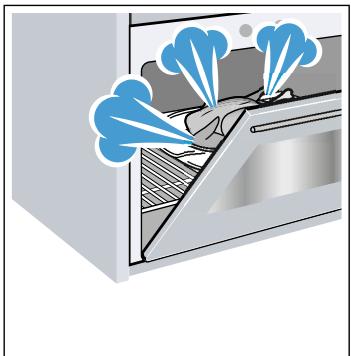

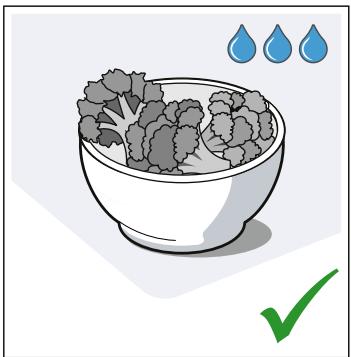

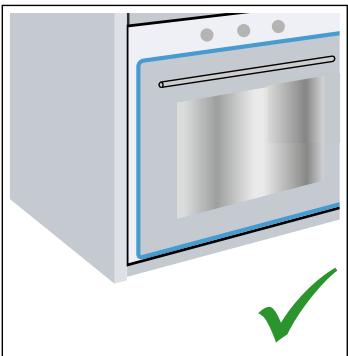

Open the appliance door as infrequently as possible when the appliance is in use. Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly. Envi r onment al pr ot ect i on Saving energy

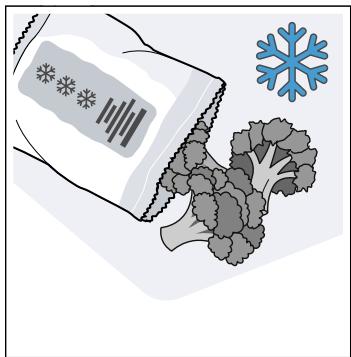

Only preheat the appliance if this is specified in the recipe or in the tables in the operating instructions. Leave frozen food to defrost before placing it in the cooking compartment.

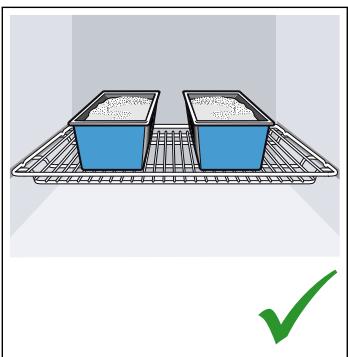

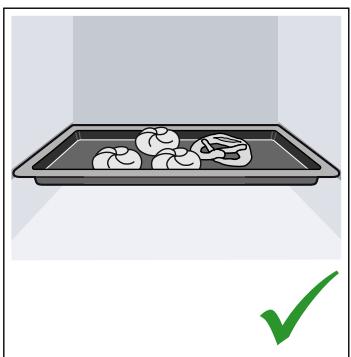

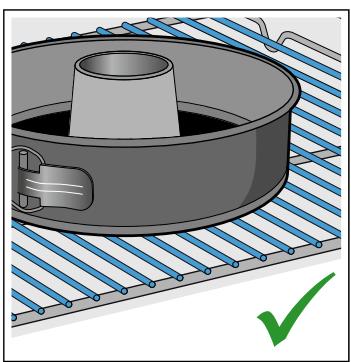

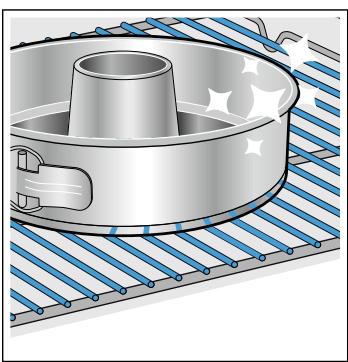

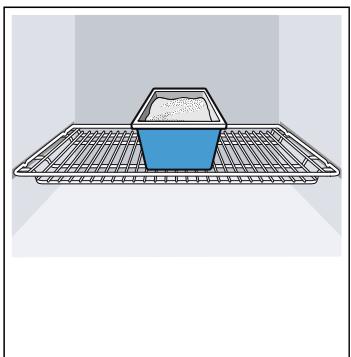

It is best to bake several cakes one after the other. The cooking compartment stays warm. This reduces the baking time for the second cake. You can place two cake tins next to each other in the cooking compartment. Use baking tins that are dark-coloured, painted black or have an enamel coating. These absorb the heat particularly well.

For longer cooking times, you can switch the appliance off 10 minutes before the end of the cooking time and use the residual heat to finish cooking. Environmentally-friendly disposal Dispose of packaging in an environmentally-friendly manner.

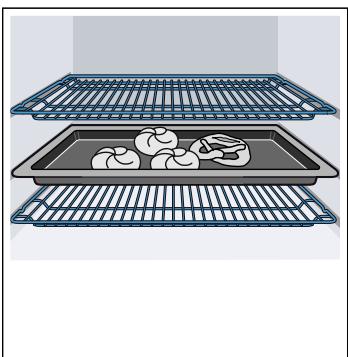

Remove any unnecessary accessories from the cooking compartment. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Getting to know your appliance *Getting to know your appliance In this section, we will explain the indicators and controls. You will also find out about the various functions of your appliance. Get i ng t o know your ap l i ance Note: Depending on the appliance model, individual details and colours may differ. Control panel You can set your appliance's various functions on the control panel. Below, you will see an overview of the control panel and the layout of the controls. ( Buttons and display The buttons are touch keys with sensors underneath. Simply touch a symbol to select the function. The display shows symbols for active functions and the time-setting options. 0 Function selector Use the function selector to set the heating function or other functions. You can turn the function selector clockwise or anti-clockwise from the "Off" position. 8 Temperature selector Use the temperature selector to set the temperature for the heating function or select the setting for other functions. You can also turn the temperature selector clockwise or anti-clockwise. It does not have an "Off" position. Buttons You will find a brief explanation of the various buttons below. If a button is not operational, an audible signal will sound. Button Explanation

Set the timer t, duration y, end time { and clock time v

Minus Reduce the setting value

Plus Increase the setting value Lighting Switch the interior lighting on/off Rapid heat-up Childproof lock Switch rapid heat-up on/off Activate and deactivate the childproof lock in standby mode

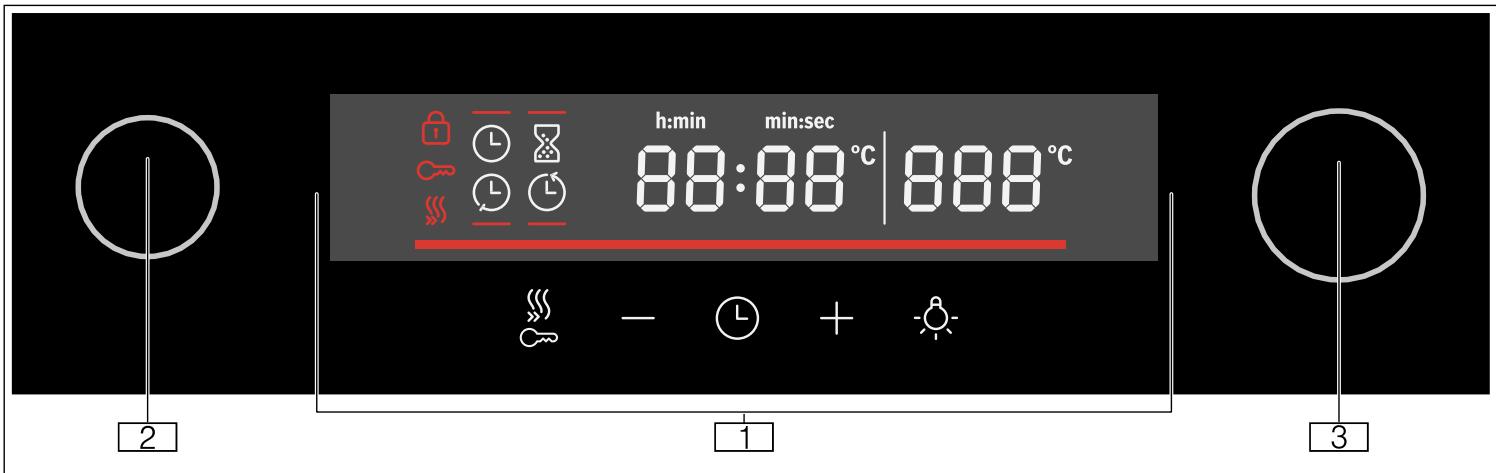

Display The display is structured so that the information can be read at a glance. The value that you can currently set is in focus. It is displayed in white lettering with a dark background. Symbol Explanation Rapid heat-up Timer Duration End time Clock time Time Temperature indicator Childproof lock Door lock Temperature Getting to know your appliance

Types of heating and functions Use the function selector to set the types of heating and other functions. Heating function "Off" position

To make sure you always use the right type of heating to cook your food, we have explained the differences and applications below. Temperature/setting Use In this position, the oven is switched off.

3D hot air 50-280 °C

Air recirculation 50-280 °C

Pizza setting 50-280 °C

Bottom heating 50-280 °C

Circulated air grill Cleaning settings: 1 = low 2 = medium 3 = high Grill settings: 1 = low 2 = medium 3 = high Grill settings: 1 = low 2 = medium 3 = high 50-280 °C

Gentle top/bottom heating 50-280 °C

Top/bottom heating 50-280 °C For cooking food on one or two levels. The fans distribute the heat from the ringshaped heating elements in the back panel evenly around the cooking compartment. This heating function is used to measure the energy consumption in air recirculation mode. For baking cakes and baked items on one level. The fans distribute the heat from the heating elements evenly around the cooking compartment. For cooking fresh pizza and frozen products, e.g. chips or strudel.The heating elements and fans heat quickly and distribute the heat evenly around the cooking compartment. For defrosting, e.g. meat, poultry, bread and cakes. The fan causes the warm air to circulate around the food. Use when you want to cook the food for a little longer. The heat is emitted only from below. For running a cooking compartment self-cleaning programme. For grilling small amounts of steak, sausages, bread and pieces of fish. The centre part of the grill heating element becomes hot. For grilling flat items, such as steaks or sausages, for making toast, and for browning food. The whole area below the grill element becomes hot. For baking or roasting meat, poultry and whole fish. The fan causes the hot air to circulate around the food. For gently cooking selected types of food (e.g. meat, vegetables) on one level without preheating. This heating function is unsuitable for food that rises as it bakes (e.g. bread). This heating function is used to measure both the energy consumption in the conventional mode and the energy efficiency class. For cakes, bakes and lean joints. Heat is emitted evenly from above and below.

Note: For each heating function, the appliance specifies a default temperature or level. You can accept this value or change it in the appropriate area. Temperature selector Use the temperature selector to set the temperature. The temperature that has been set will be shown on the display. Note: The temperature can be set in 1 degree increments up to 100 °C, and in 5 degree increments thereafter. Temperature indicator The temperature indicator bars show the heating-up phases or residual heat in the cooking compartment. Heating-up indica- The heating-up indicator displays the rising temtor perature in the cooking compartment. When all bars are filled, the optimal time for placing the food in the oven has been reached. In the grill and cleaning settings, the bars are all already filled at the start. The bars are not filled for the gentle top/bottom heating heating type. Residual heat When the appliance is switched off, the temperaindicator ture indicator shows the residual heat in the cooking compartment. Once the temperature has dropped to approximately 60 °C, the indicator goes out.

Accessories Cooking compartment functions Some functions make your appliance easier to use. This, for example, enables the cooking compartment to be well lit and a cooling fan to prevent the appliance from overheating. Opening the appliance door If you open the appliance door during an operation, the operation is paused. Operation continues to run when you close the door. _Accessories Your appliance is accompanied by a range of accessories. Here, you can find an overview of the accessories included and information on how to use them correctly. Ac es or i es Accessories Interior lighting When you open the appliance door, the interior lighting switches on.If the door remains open for longer than 15 minutes, the lighting switches off again. In most operating modes, the interior lighting will switch on as soon as the appliance is started. Once the program is complete, the lighting will switch off. Note: In "Top/bottom heating gentle" mode, the interior lighting will be switched off automatically after approx. 1 minute. It can be switched on using the B button. Cooling fan The cooling fan switches on and off as required. The warm air escapes above the door. With the gentle top/bottom heating heating type, the cooling fan switches off and on more frequently to save energy. Caution! Do not cover the ventilation slots, Otherwise the oven will overheat. To cool the cooking compartment more quickly after operation, the cooling fan continues to run for a certain period afterwards. Description Baking and roasting shelf For cookware, cake tins, joints of meat, grilled items and frozen food. Universal pan For moist cakes, pastries, frozen meals and large roasts. The universal pan can be used to catch dripping fat when you are grilling directly on the wire rack. Enamel baking tray For tray bakes and small baked products. Telescopic rail set You can use the pull-out rails to pull the accessories out further. Locking pins For locking the hinges.

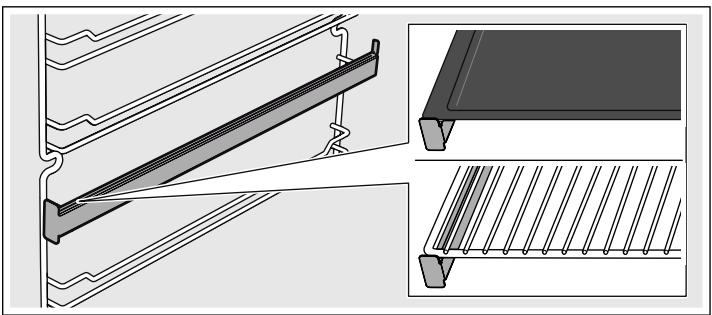

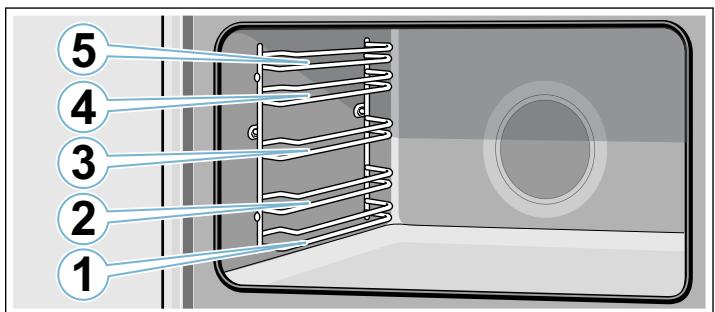

Shelf positions The baking tray and the baking and roasting shelf can be inserted into the cooking compartment at five different levels. Always push accessories in fully so that they do not touch the door panel. Make sure that you always insert the accessories into the cooking compartment the right way round.

: Warning – Risk of fire! Under no circumstances should a roasting tin, baking tray, frying pan or any other form of cookware be placed directly on the oven floor. This causes the floor of the appliance to overheat and can seriously damage the appliance.

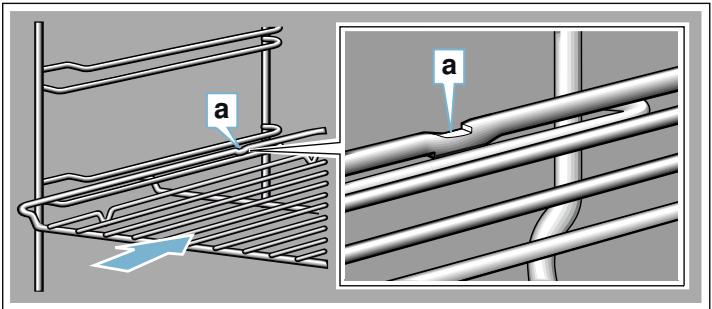

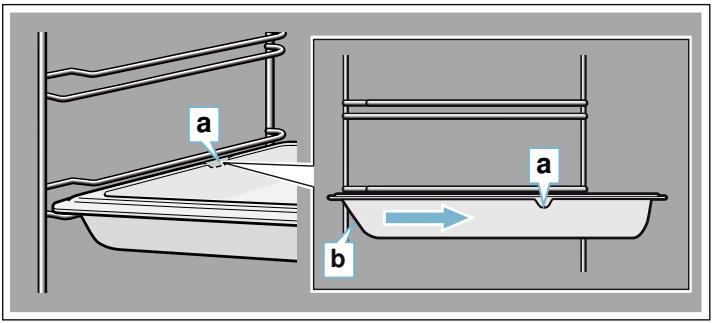

Locking function Special accessories The accessories can be pulled out approximately halfway before they lock in place.The locking function prevents the accessories from tilting when they are pulled out.The accessories must be inserted into the cooking compartment correctly for the tilt protection to work properly. You can buy accessories from the after-sales service. When inserting the wire rack, ensure that the lug ‚ is at the rear and is facing downwards. The open side must be facing the appliance door and the curvature must be at the bottom (i.e. ¾). Universal pan Accessories Enamelled baking tray

Baking and roasting shelf Telescopic shelf set When inserting baking trays, ensure that the lug ‚ is at the rear and is facing downwards. The sloping edge of the accessory ƒ must be facing towards the appliance door. Description For tray bakes and small baked items. After-sales service number: For moist cakes, pastries, frozen meals and large roasts. The universal pan can be used to catch dripping fat when you are grilling directly on the wire rack. After-sales service number: For ovenware, cake tins, joints, grilled items, frozen meals. After-sales service number: Telescopic shelf set for one level. After-sales service number:

Example in the picture: Universal pan

Telescopic rail set : Warning – Risk of burns! The telescopic shelves become hot when the appliance is in use. Take special care not to get burnt when they are pulled out. The pull-out rails allow you to pull accessories out completely. When inserting the adapter for the baking tray and roasting shelf, ensure that it locks into place in front of the tab on the pull-out rails.

Before using for the first time KBefore using for the first time Cleaning the accessories In this section, you can find out what you must do before using your oven to prepare food for the first time. Remove the appliance packaging and dispose of it appropriately. Fitting the telescopic shelf set Bef or e usi ng f or t he f i r st t i me Setting the time on the clock Once the appliance is connected to a power supply, ‚ƒ:‹‹ will flash on the display and the v symbol will be continuously lit. Set the time.

1. Use the A or @ button to set the time.

2. Press the v button.

Note: Once the period allowed for setting the clock time has elapsed, the clock time will automatically be saved. The time has now been set. Baking out the oven Precleaning the oven

1. Remove the accessories and the shelf supports from

the cooking compartment. ~ "Rails" on page 43

2. Completely remove any leftover packaging, e.g.

small pieces of polystyrene, from the cooking compartment.

3. Some parts are covered with a protective film.

Remove this scratch protection film.

4. Clean the outside of the appliance with a soft, damp

5. Clean the cooking compartment with hot soapy

water. Heating up the oven To remove the new cooker smell, heat up the oven when it is empty and closed. Note: Make sure that there is no leftover packaging, such as polystyrene pellets, in the cooking compartment. Before heating up the appliance, wipe the smooth surfaces in the cooking compartment with a soft, damp cloth.Keep the kitchen ventilated while the appliance is heating.

1. Turn the function selector to %.

2. Turn the temperature selector to the maximum

3. Switch the oven off after 1 hour.

Note: When the appliance is heating up for the first time, you may hear crackling noises coming from the oven. Recleaning the oven

1. Clean the cooking compartment with hot soapy

2. Refit the hook-in racks.

3. If necessary, clean the door panels. ~ "Appliance

Before using the accessories, clean them thoroughly using a cloth and warm soapy water. Instructions on fitting the telescopic shelf set are enclosed with the set. Operating the appliance 1Operating the appliance Oper at i ng t he ap l i ance Switching the oven on and off Switching on the oven

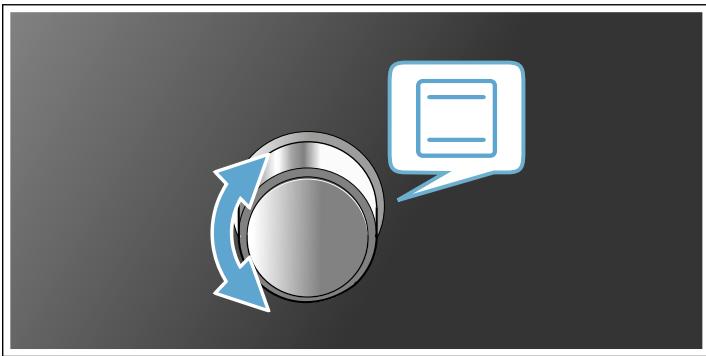

1. Use the function selector to set the heating function.

Note: Each function has a default temperature or grill setting.

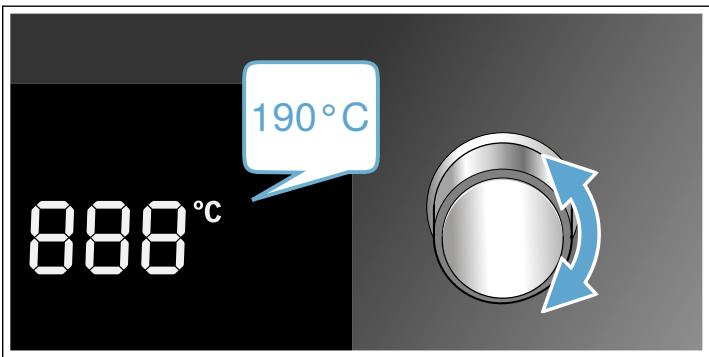

2. Use the temperature selector to alter the

temperature or grill setting.

Your appliance has different time-setting options. Overview of the time-setting options Time-setting option Timer

End time Use The timer functions like an egg timer. It runs independently of the appliance when it is heating and of other time-setting options, and does not affect the appliance. When no other function is running in the foreground, the appliance will show you the time of day on the display. Once the set cooking time has elapsed, the appliance will automatically stop heating. Enter a cooking time and the required end time. The appliance will start up automatically so that it finishes cooking at the required time.

The oven will then begin to heat. Note: The temperature indicator will show the current status of the heating-up phase. Changing settings The heating function and temperature or grill setting can be changed at any time using the relevant selector. Switching off the oven Turn the function selector to the "Off" position. Operating the electronic clock Setting the timer The timer has no effect on how the oven works. The timer duration can be set to between 30 seconds and 13 hours. The duration can be set in 30-second increments up to 10 minutes, in 1-minute increments from 10 minutes to 1 hour, and then in 5-minute increments.

1. Press the

v button. The t symbol will be lit.

2. Use the @ and A buttons to set the required

duration. An audible signal will sound once the time has elapsed. Switching on the rapid heat-up function To heat up the cooking compartment as rapidly as possible, press the ] button. Notes To change the remaining time, press the v button. Then change the remaining time using the @ and A buttons. To stop the timer counting down, set the remaining time to zero. Note: Rapid heat-up is available for 3D hot air mode, air recirculation mode, the pizza setting and top/bottom heating. Switching off the signal tone To switch the signal off, press any button or open the appliance door. Automatic safety switch-off function Note: After a short time, the audible signal will stop automatically. The appliance has an automatic safety cut-out function. The oven switches off automatically after 13 hours.

Setting the electronic clock You can alter the clock if you need to (e.g. from summer to winter time).To do this, the oven must be switched off.

1. Press the

v button. The t symbol will be lit. v button again. The v symbol will be lit.

3. Use the @ and A buttons to set the current time.

2. Press the

Setting the end time Baking or roasting starts for the set duration at a later time which you chose.

1. Set the type of heating and the temperature you

Setting the automatic timer The electronic clock can be used to switch the oven on or off automatically. Setting the cooking time You can set the cooking time for your food on the appliance. This prevents the food from accidentally being cooked for too long, and means that you do not have to stop what you are doing to switch off the oven.

1. Set the type of heating and the temperature you

require. The oven will start.

2. Press the v button twice.

3. Use the @ and A buttons to set the required cooking

time. Note: The cooking time can be set to between 30 seconds and 13 hours. The cooking time can be set in 1-minute increments up to 1 hour, and then in 5-minute increments. The y symbol will be lit. The cooking time has elapsed An audible signal will sound. The appliance will stop heating.

1. To switch the signal off, press any button or open the

appliance door. Note: After a short time, the audible signal will stop automatically.

2. Turn the function selector to the "Off" position.

require. The oven will start. Press the v button twice. Use the @ and A buttons to set the required cooking time. Note: The cooking time can be set to between 30 seconds and 13 hours. The cooking time can be set in 1-minute increments up to 1 hour, and then in 5-minute increments. The y symbol will be lit. Press the v button again. Use the @ and A buttons to set the end time. Note: When the button is first pressed, a value will be suggested on the display. This suggested value is calculated using the current time on the clock and the cooking time. This value can be changed using the @ and A buttons. The { symbol will be lit. The display will show the end time. The appliance will now switch to standby mode. The cooking time has elapsed An audible signal will sound. The appliance will stop heating.

1. To switch the signal off, press any button or open the

appliance door. Note: After a short time, the audible signal will stop automatically.

2. Turn the function selector to the "Off" position.

AChildproof lock QBasic settings The oven has a childproof lock to prevent children from switching it on by accident. There are various settings available to you in order to help use your appliance effectively and simply. You can change these settings as required. Note: If the hob is being used, it will not be affected by the childproof lock on the oven. Activating the childproof lock The appliance must be switched off. List of basic settings Depending on the features of your appliance, not all basic settings will be available. The D symbol will appear on the display. The childproof lock has now been activated. Basic setting Options Audible signal duration upon ‚ = approx. 10 seconds completion of a cooking time ƒ = approx. 30 seconds* or timer duration „ = approx. 2 minutes Deactivating the childproof lock ™‹ƒ Amount of time until a setting ‚ = approx. 3 seconds* is applied ƒ = approx. 6 seconds „ = approx. 10 seconds

Button tone that sounds when ‹ = off a button is touched ‚ = on*

Brightness of the display illumination Press and hold the ] button for approx. 4 seconds. Press and hold the ] button for approx. 4 seconds. The D symbol will go out on the display. The childproof lock has now been deactivated.

‚ = dark ƒ = medium* „ = bright Display time of day ‹ = hide the time ‚ = display the time* Interior lighting on when ‹ = no appliance in operation ‚ = yes* Cooling fan run-on time ‚ = short* ƒ = medium „ = long … = extra long Reset all values to factory set- ‹ = no* tings ‚ = yes Activate demo mode ‹ = no* Demo mode is provided for ‚ = yes demonstration purposes only; the oven does not actually heat in Demo mode. Demo mode can only be activated within 5 minutes of connecting the appliance to the mains power supply. Factory setting

Cleaning Changing the basic settings The function selector must be set to the "Off" position.

1. Press and hold the

v button for approx. 4 seconds. The first basic setting will appear on the display, e.g. ™‹‚ ‚.

2. Use the temperature selector to change the setting

3. Use the @ button to navigate to the next basic

4. Use the A or @ button to continue going through all

the basic settings as described above, and use the temperature selector if you want to change any of these settings.

5. When you have finished, press and hold the

v button again for approx. 4 seconds to confirm the settings. This applies all the basic settings. You can change the basic settings again at any time. Demo mode can only be activated within 5 minutes of connecting the appliance to the mains power supply. Note: Your changes to the basic settings will be retained even after a power failure. Setting energy-saving mode You can save energy by reducing the display brightness.You can set the display brightness under basic setting ™‹…. Note: This setting changes the brightness of the display while the appliance is in operation. In standby mode, the appliance automatically reduces the display brightness. The display is at its dimmest at night, between the hours of 22:00 and 05:59.

DCleaning With good care and cleaning, your appliance will retain its appearance and remain fully functioning for a long time to come. We will explain here how you should correctly care for and clean your appliance. Cl eani ng : Warning – Risk of electric shock! Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock. : Warning – Risk of burns! The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance. Suitable cleaning agents Observe the following information to ensure that the different surfaces are not damaged by using the wrong type of cleaning agent. Do not use any of the following on the oven:

Any harsh or abrasive cleaning agents, Cleaning agents with a high concentration of alcohol, Hard scouring pads or sponges, High-pressure cleaners or steam cleaners. Wash new sponge cloths thoroughly before use. Area Cleaning Appliance exterior Stainless steel Hot soapy water: front Clean with a dish cloth and then dry with a soft cloth. Remove flecks of limescale, grease, starch and albumin (e.g. egg white) immediately. Corrosion can form under such flecks. Special stainless steel cleaning products suitable for hot surfaces are available from our after-sales service or from specialist retailers. Apply a very thin layer of the cleaning product with a soft cloth. Control panel Hot soapy water: Clean with a dish cloth and then dry with a soft cloth. Do not use glass cleaner or a glass scraper. Door panels Hot soapy water: Clean with a dish cloth and then dry with a soft cloth. Do not use a glass scraper or a stainless steel scouring pad. Door handle Hot soapy water: Clean with a dish cloth and then dry with a soft cloth. If descaler comes into contact with the door handle, wipe it off immediately. Otherwise, any stains will not be able to be removed. Cleaning Appliance interior Enamelled surHot soapy water or a vinegar solution: faces Clean with a dish cloth and then dry with a soft cloth. Soften baked-on food remnants with a damp cloth and soapy water. Use stainless steel wire wool or oven cleaner to remove stubborn dirt. Caution! Never use oven cleaner in the cooking compartment when it is still warm. This may damage the enamel. Remove all food remnants from the cooking compartment and the appliance door before you next heat up the appliance. Glass cover for the interior lighting Door panels Door seal Do not remove. Door cover Rails Pull-out system Accessories Leave the cooking compartment open to dry after cleaning it. It is best to use the cleaning function. ~ "Cleaning function" on page 42 Note: Food residues can cause white deposits to form. These are harmless and do not affect how the appliance works. Remove using lemon juice if required. Hot soapy water: Clean with a dish cloth and then dry with a soft cloth. If the cooking compartment is heavily soiled, use oven cleaner. Hot soapy water: Clean with a dish cloth and dry with a soft cloth. Do not use a glass scraper or a stainless steel scouring pad. It is best to clean the door panels along with the rest of the cooking compartment. ~ "Cleaning the cooking compartment" on page 41 Hot soapy water: Clean with a dish cloth. Do not scour. made from stainless steel: Use stainless steel cleaner. Follow the manufacturers' instructions. Do not use stainless steel care products. made from plastic: Clean using hot soapy water and a dish cloth. Dry with a soft cloth. Do not use glass cleaner or a glass scraper. Remove the door cover for cleaning. Hot soapy water: Soak and clean with a dish cloth or brush. Hot soapy water: Clean with a dish cloth or a brush. Do not remove the lubricant while the pull-out rails are pulled out – it is best to clean them when they are pushed in. Do not clean in the dishwasher. Hot soapy water: Soak and clean with a dish cloth or brush. If there are heavy deposits of dirt, use a stainless steel scouring pad.

Notes Slight differences in colour on the front of the appliance are caused by the use of different materials, such as glass, plastic and metal. Shadows on the door panels, which look like streaks, are caused by reflections made by the interior lighting. Enamel is baked on at very high temperatures.This can cause some slight colour variation. This is normal and does not affect operation. The edges of thin trays cannot be completely enamelled. As a result, these edges can be rough. This does not impair the anti-corrosion protection. Keeping the appliance clean Always keep the appliance clean and remove dirt immediately so that stubborn deposits of dirt do not build up. : Warning – Risk of fire! Loose food remnants, fat and meat juices may catch fire. Before using the appliance, remove the worst of the food remnants from the cooking compartment, heating elements and accessories. Tips Clean the cooking compartment after each use. This will ensure that dirt cannot be baked on. Always remove flecks of limescale, grease, starch and albumin (e.g. egg white) immediately. Use the universal pan for baking very moist cakes. Use suitable ovenware for roasting, e.g. a roasting dish. Cleaning the cooking compartment

1. Pour 0.4 litres of water into the centre of the cooking

2. Set the $ heating function.

3. Use the temperature controller to set a temperature

4. Switch off the appliance after 18 minutes.

5. Allow the appliance to cool down.

6. Clean the cooking compartment with a cloth.

: Warning – Risk of burns! The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance.

Cleaning function .Cleaning function Your appliance has a self-cleaning function. You can use the self-cleaning function to clean the cooking compartment. Cl eani ng f unct i on Pyrolytic self-cleaning You can use "Pyrolytic self-cleaning" mode to clean the cooking compartment with no effort at all. The cooking compartment is heated up to a very high temperature.Residues from roasting, grilling and baking will burn. Running this cleaning programme requires approximately 5-10 kilowatt hours, depending on the time set. The cleaning programme can be set to run for between 2 hours 30 minutes and 3 hours 30 minutes. Note: For your safety, the cooking compartment door locks automatically. It cannot be opened again until the lock indicator light n goes out. The interior lighting remains off while the appliance is being cleaned. : Warning Risk of serious damage to health! The appliance will become very hot during the cleaning function. The non-stick coating on baking trays and tins is destroyed and noxious gases are released. Never clean non-stick baking trays and baking tins using the cleaning function. Only clean enamelled accessories using the cleaning function. : Warning Risk of burns! The cooking compartment becomes extremely hot during the cleaning function. Never open the appliance door. Allow the appliance to cool down. Keep children away from the appliance. ; The appliance becomes very hot on the outside during the cleaning function. Never touch the appliance door. Allow the appliance to cool down. Keep children at a safe distance. The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance. Risk of burns! Risk of burns! Before running the cleaning function Caution! Shelf supports and pull-out rails get demaged if they are left in the cooking compartment when it is cleaned. Before you start the cleaning function, remove the shelf supports and pull-out rails from the cooking compartment.

1. Remove the shelf supports and pull-out rails from the

cooking compartment.

2. Remove the worst of the food residues and

remnants from the cooking compartment.

3. Clean the inside of the appliance door and along the

edges of the cooking compartment in the area around the seal. Do not scrub the seal.

: Warning Risk of fire! Loose food remnants, fat and meat juices may catch fire when the cleaning function is in progress. Before you start the cleaning function, always remove the worst of the food residues and remnants from the cooking compartment. The appliance will become very hot on the outside during the cleaning function. Never hang combustible objects, e.g. tea towels, on the door handle. Do not place anything against the front of the appliance. Keep children away from the appliance. Risk of fire! Starting

1. Turn the function selector to the q heating function.

2. Use the temperature selector to set a cleaning

setting. Cleaning setting

Duration 2 hours 30 minutes 3 hours 3 hours 30 minutes Note: Moving the function selector while the cleaning cycle is in progress will stop the pyrolytic self-cleaning program. One minute after the cleaning cycle (pyrolytic selfcleaning) has begun, the oven door is locked to prevent it from being opened. The indicator light n lights up to show that this door lock has been activated.Once the door lock has been activated, it is no longer possible to select any functions. To select functions, wait until the n indicator light goes out. Note: You can continue to use the timer while the pyrolytic self-cleaning program is in progress. The duration you set will have no effect on the pyrolytic selfcleaning function. Note: You will not be able to use the interior lighting while the pyrolytic self-cleaning programme is in progress. Cancelling To cancel a programme, turn the function selector to the "Off" position. Ending Once the self-cleaning function has run through to the end, an audible signal will sound. The appliance door cannot be opened until the 5 symbol goes out. Once the cleaning function has ended Once the cooking compartment has cooled down, use a damp cloth to wipe off the ash that has been left behind in the cooking compartment and around the appliance door. Note: Very bad soiling may cause white deposits to remain on the enamel surfaces. This is residue from the food and is harmless. It does not affect performance. You can remove these residues using lemon juice if required. Rails qAppliance door pRails Rai l s

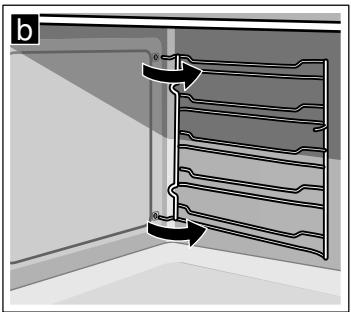

Detaching the shelf supports The shelf supports are each fixed to the side panels of the cooking compartment at three points. With good care and cleaning, your appliance will retain its appearance and remain fully functional for a long time to come. This will tell you how to clean the appliance door. Ap l i ance do r

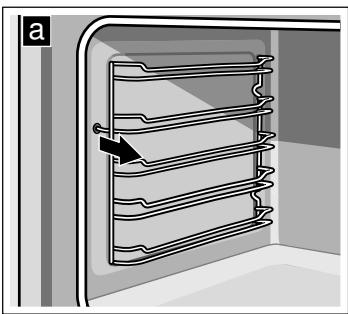

1. Grip the front of the shelf support and pull it round to

the middle of the cooking compartment. The front hook of the shelf support will come out of the hole.

2. Swing the shelf support round further and pull it out

of the rear holes in the side panel.

3. Remove the shelf supports from the cooking

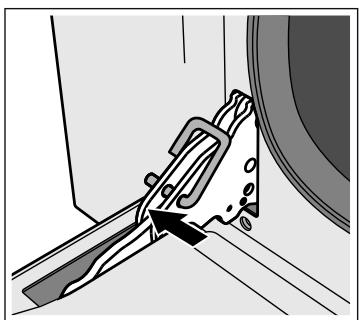

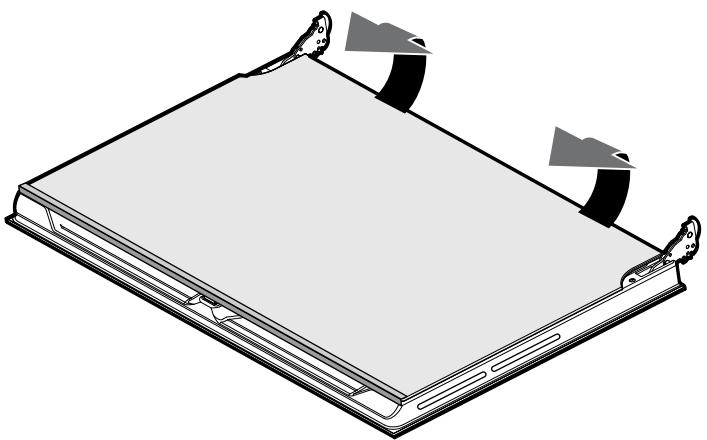

Removing and installing the door panels To facilitate cleaning, you can remove the glass panels from the oven door. Removing the door panels

1. Open the oven door fully.

2. Lock the two hinges on the left and right using the

locking pin. Note: The locking pins must be fully inserted into the holes in the hinges. Refitting the shelf supports

1. Insert the hooks of the shelf support into the rear

holes in the side panel.

2. Push the front hook of the shelf support into the

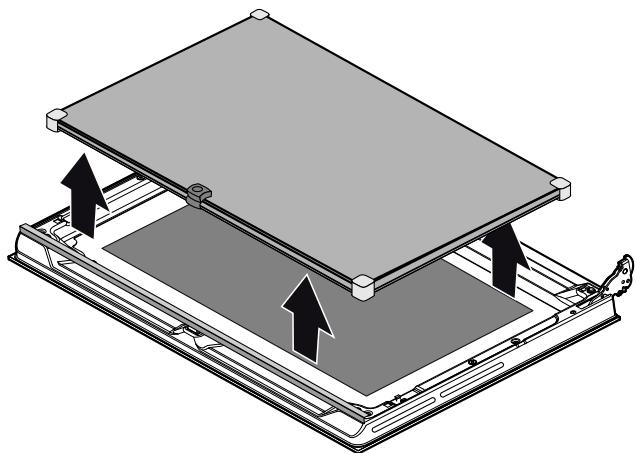

3. Use both hands to lift the bottom of the inner panel

until the fastening pins come out of the holder.

4. Carefully pull the top of the inner panel out of the

retaining strip and lift it to completely free the panel from the door.

5. Remove the two middle panels, along with their

holders. Note: The two middle panels are not fastened using retaining pins; instead, they are held in place using holders.

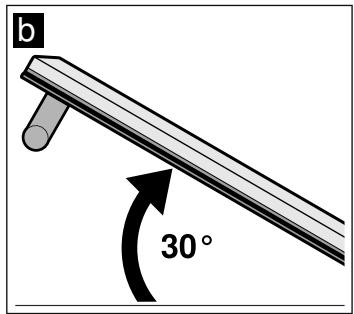

3. Take hold of the sides of the oven door with both

hands and close the oven door by approx. 30° (b).

4. Lift the oven door slightly and pull it out.

Note: Do not close the oven door fully,otherwise the hinges could become bent and the enamel could be damaged. Fitting the appliance door

1. Take hold of the sides of the oven door with both

6. Remove the holders to separate the two middle

panels from one another. hands.

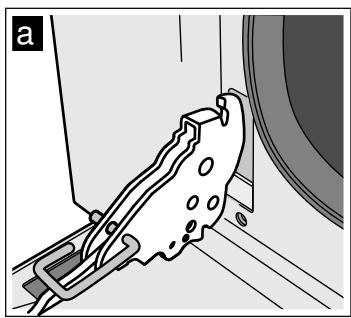

2. Slide the hinges into the slots in the oven (a).

Note: The notch at the bottom of the hinges must engage into the frame of the oven (b).

7. Clean the panels with glass cleaner and a soft cloth.

: Warning – Risk of injury! Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.

Fitting the door panels

1. Reinsert the two middle panels.

Notes – You will know that you have inserted the two middle panels correctly when you can see the "Low-E" symbol on both panels. – Make sure that the panels are seated correctly. All holders must lay flat against the outer panel.

2. Reinsert the inner panel.

Note: The panel must first be inserted into the retaining bar. The two fastening pins must then engage in the holders provided for them.

3. Remove the locking pins and close the oven door.

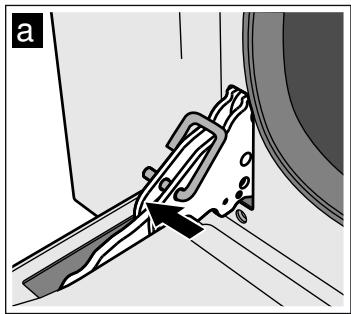

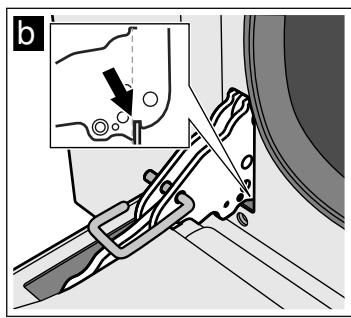

Removing and fitting the appliance door If the oven is very heavily soiled, the oven door can be removed for easier cleaning. Normally, however, this is not necessary. Removing the appliance door

1. Open the oven door fully.

2. Lock the two hinges on the left and right using the

locking pin (a). Note: The locking pins must be fully inserted into the holes in the hinges.

3. Lower the door.

4. Remove the locking pins.

: Warning – Risk of injury! If the oven door falls out accidentally or a hinge snaps shut, do not reach into the hinge. Call the after-sales service. : Warning – Risk of injury! The door may not close properly if the door hinges have not engaged correctly. This will allow heat to escape and the parts of the appliance may become very hot. To prevent this from happening, remove the door again. Then refit the door as shown in the drawing, making sure that the groove on the underside of the hinges engages in the oven frame. Trouble shooting

3Trouble shooting Tr oubl e sho t i ng Fault The appliance does not work Possible cause The plug is not plugged into the mains Power cut The circuit breaker is faulty The appliance cannot be started ‚ƒ:‹‹ is flashing on the display The appliance door is not fully closed The appliance is not switched off Power failure The interior lighting is not working Gentle top/bottom heating mode is active All food that is cooked in the oven burns within an extremely short period of time. Door panels are steamed up. Although the appliance is switched on, it cannot be operated; the D symbol is shown on the display The bulb is faulty Thermostat faulty. Notes/remedy Connect the appliance to the power supply Check whether other kitchen appliances are working Check in the fuse box to make sure that the fuse for the appliance is OK Close the appliance door Switch the appliance off and back on again Reset the clock. In gentle top/bottom heating mode, the interior lighting is not switched on. Replace the bulb. Call the after-sales service. This is normal and results from differences in temper- Heat the appliance up to 100 °C and then switch it ature. back off after 5 minutes. The childproof lock is activated. Press and hold the ] touch button until the D symbol goes out. The appliance door will not open; the The appliance door remains locked until the cooking compartment has cooled down. n symbol is shown on the display Wait until the n symbol goes out

Fault messages If a fault message beginning with “§§ appears on the display, set the function selector to "Off". If the fault message does not disappear, please contact our aftersales service. Fault message

Possible cause Temperature sensor failed. Information/remedy Call the after-sales service. The temperature in the cooking compartment is too high. Door locking mechanism incorrectly activated. Call the after-sales service. Fan heating element faulty or not connected. Call the after-sales service. Motor faulty or not connected. Call the after-sales service. Cooling fan faulty or not connected. Call the after-sales service. Call the after-sales service.

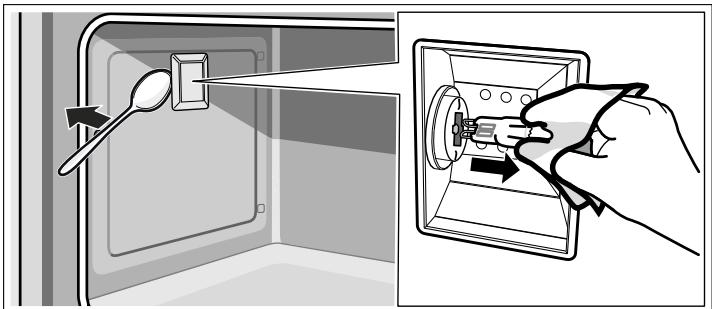

Customer service Replacing the oven light bulb If the oven light bulb fails, it must be replaced. Replacement heat-resistant bulbs can be obtained from the after-sales service or from specialist retailers. Please specify the E number and FD number of your appliance. Do not use any other type of bulb. : Warning – Risk of electric shock! When replacing the cooking compartment bulb, the bulb socket contacts are live. Before replacing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

1. Allow the cooking compartment to cool down.

2. Open the appliance door.

3. Place a tea towel in the cooking compartment to

4. Remove the shelf supports.

5. Remove the glass cover.To do this, open the glass

cover from the front with your hand. Should you experience difficulties removing the glass cover, use a spoon to help you.

6. Remove the oven light bulb.

4Customer service Our after-sales service is there for you if your appliance needs to be repaired. We will always find an appropriate solution, also in order to avoid after-sales personnel having to make unnecessary visits. Cust omer ser vi ce E number and FD number When calling us, please quote the full product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate bearing these numbers can be found when you open the appliance door. On some appliances with a steam-assisted cooking function, you will find the rating plate behind the control panel. (1U

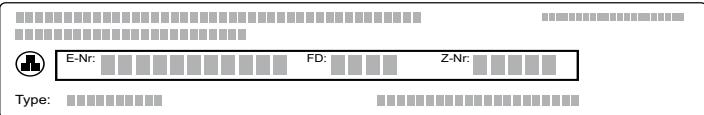

=1U 7\SH To save time, you can make a note of the numbers for your appliance and the telephone number of the aftersales service in the space below in case you need them. E no. FD no. After-sales service O

7. Replace the oven light bulb with a bulb of the same

type: Voltage: 230 V; Power: 40 W; Fitting: G9; Temperature resistance: 300 °C

8. Refit the glass cover for the oven light bulb.

9. Refit the shelf supports.

10. Remove the tea towel.

11. Switch the circuit breaker back on.

12. Check that the oven lighting is working again.

Please note that a visit from an after-sales service engineer is not free of charge in the event that the appliance has been misused, even during the warranty period. Please find the contact data of all countries in the enclosed customer service list. To book an engineer visit and product advice

Calls charged at local or mobile rate.

0.03 € per minute at peak. Off peak 0.0088 €

per minute. Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.

Tested for you in our cooking studio JTested for you in our cooking studio Here, you can find a selection of dishes and the ideal settings for them. We will show you which type of heating and temperature are best suited to your dish. You will get information on suitable cooking accessories and the height at which they should be placed in the oven. You will also get tips about cookware and preparation methods. Test ed f or you i n our co ki ng st udi o

Note: A lot of steam can build up in the cooking compartment when cooking food. Your appliance is very energy-efficient and radiates very little heat to its surroundings during operation. Due to the high difference in temperature between the appliance interior and the external parts of the appliance, condensation may build up on the door, control panel or adjacent kitchen cabinet panels. This is a normal physical phenomenon. Condensation can be reduced by preheating the oven or opening the door carefully. Table of dishes Dish Weight (in kg) Shelf position Heating function Lasagne 3-4

Spare ribs Temperature in °C Cooking time in minutes 220-230* 45-50 220-230* 45-50 180-190* 90-100 200**

190-200* 90-100 200**

280* 200* 180-190* 70-80 180-190* 110-120 180-190* 170-180 180-190* 65-70

First side: 10 Second side: 5 40-45 280*

280* First side: 15 Second side: 5 First side: 15 Second side: 10 First side: 10 Second side: 8 First side: 12

Second side: 5 First side: 10 150-160* Second side: 7 35-40 160* 60-65 160* 45-50 280* 8-9 190-200* 25-30 180-190* 20-25 160* 55-60 160* 35-40 160-170* 45-55 Fillet of beef

• Preheat ** Do not preheat

Tested for you in our cooking studio Dish Weight (in kg) Shelf position Heating function Short-crust pastry

Temperature in °C Cooking time in minutes 160-170* 35-40 170**

160* 55-60 180* 80-90 150-160* 55-60 160* 55-60 160* 30-35

• Preheat ** Do not preheat User tips In this section, you will find a selection of tips on how to use your cookware and prepare your food. Notes Use the accessories provided. Additional accessories may be obtained as optional accessories from specialist retailers or from our after-sales service. Before using the oven, remove any unnecessary accessories and cookware from the cooking compartment.

Always use an oven cloth or oven gloves when taking hot accessories or cookware out of the cooking compartment. Gentle top/bottom heating is an intelligent heating function that allows you to gently cook meat, fish and baked items that do not need to rise. The appliance optimally controls the supply of energy to the cooking compartment. The food is cooked in phases using residual heat. This means that it remains more succulent and browns less. If you open the door before the food has finished cooking or if you preheat the oven, you will not be able to achieve this result. Place the food into the empty cooking compartment before the oven has heated up.Always keep the appliance door closed when cooking. Baking tips You want to find out whether the cake Push a cocktail stick into the highest point on the cake. If the cocktail stick comes out clean with no dough resis completely cooked in the middle. idue, the cake is ready. The cake collapses. Next time, use less liquid. Alternatively, set the temperature to be 10 °C lower and extend the baking time. Adhere to the specified ingredients and preparation instructions in the recipe. The cake has risen in the middle but Only grease the base of the springform cake tin. After baking, loosen the cake carefully with a knife. is lower around the edge. The fruit juice overflows. Next time, use the universal pan. Small baked items stick to one There should be a gap of approx. 2 cm around each item. This gives enough space for the baked items to another during baking. expand well and brown on all sides. The cake is too dry. Set the temperature 10 °C higher and shorten the baking time. The cake is generally too light in col- If the shelf position and the cookware are correct, then you should increase the temperature if necessary or our. extend the baking time. The cake is too light on top, and too Bake the cake one level higher in the oven the next time. dark underneath. The cake is too dark on top, and too Bake the cake one level lower in the oven the next time. Select a lower temperature and extend the baking light underneath. time. Cakes baked in a tray or tin are too Place the baking tray in the middle of the accessories, not directly against the back wall. brown at the back. The whole cake is too dark. Select a lower temperature next time and extend the baking time if necessary. The cake is unevenly browned. Select a slightly lower temperature. Protruding greaseproof paper can affect the air circulation. Always cut greaseproof paper to size. Ensure that the baking tin does not stand directly in front of the openings in the cooking compartment back wall. When baking small items, you should use similar sizes and thicknesses wherever possible.

Tested for you in our cooking studio You were baking on several levels. The items on the top baking tray are darker than those on the lower baking tray. The cake looks good, but is not cooked properly in the middle. The cake cannot be turned out of the dish when it is turned upside down.

Always select hot air when baking on several levels. Baked items that are placed into the oven on trays or in baking tins/dishes at the same time will not necessarily be ready at the same time. Use a lower temperature and bake slightly longer; if necessary, add slightly less liquid. For cakes with a moist topping, bake the base first. Sprinkle it with almonds or breadcrumbs and then place the topping on top. Allow the cake to cool down for 5 to 10 minutes after baking. If it still sticks, carefully loosen the cake around the edges again using a knife. Turn the cake tin upside down again and cover it several times with a cold, wet cloth. Next time, grease the baking tin/dish and sprinkle with breadcrumbs. Tips for Roasting and Braising The roast is too dark and the crackling is burned in places, and/or the roast is too dry. The crackling is too thin. The roast looks good but the juices are burnt. The roast looks good but the juices are too clear and watery. The meat gets burned during braising. Check the shelf position and temperature. Select a lower temperature the next time and reduce the roasting time if necessary. Increase the temperature or switch on the grill briefly at the end of the roasting time. Next time, use a smaller roasting dish and add more liquid if necessary. Next time, use a larger roasting dish and add less liquid if necessary. The roasting dish and lid must fit together well and close properly. Reduce the temperature and add more liquid when braising if necessary. Acrylamide in foodstuffs Acrylamide is mainly produced in grain and potato products prepared at high temperatures, such as potato crisps, chips, sliced bread, bread rolls, bread or fine baked goods (biscuits, gingerbread, spiced biscuit). Tips for keeping acrylamide to a minimum General Keep cooking times as short as possible. Cook food until it is golden brown, but not too dark. Large, thick pieces of food contain less acrylamide. Baking With top/bottom heating at max. 200 °C. With hot air at max. 180 °C. Biscuits With top/bottom heating at max. 190 °C. With hot air at max. 170 °C. Egg or egg yolk reduces the production of acrylamide. Oven chips Spread out a single layer evenly on the baking tray. Cook at least 400 g at once on a baking tray so that the chips do not dry out. Test dishes These tables have been produced for test institutes to facilitate appliance testing. As per EN 60350-1. Baking Dish Accessories Shelf position Heating function Shortbread strips

160* 26-28 Small cakes Universal pan with greaseproof paper Universal pan + baking tray with greaseproof paper Universal pan Temperature in °C Cooking time in minutes 160*

150* 21-23 Small cakes, 2 levels Universal pan + baking tray 1+4

160* 25-28 Shortbread strips, 2 levels

Tested for you in our cooking studio Dish Accessories Shelf position Heating function Hot water sponge cake Springform cake tin

Hot water sponge cake, 2 levels 2 springform cake tins 2+4 Double-crusted apple pie, x 1 Springform cake tin

Double-crusted apple pie, x 2 2 springform cake tins 2+4

Temperature in °C Cooking time in minutes 170* 160* 40-45 170*

Cooking time in minutes 5-6

• Preheat Grilling Also slide in the universal pan. The liquid will be caught and the cooking compartment stays cleaner. Dish Accessories Shelf position Heating function Grill setting Bread for toasting Wire rack

Beef burger, x 10, 75 mm diameter Baking tray + wire rack 4+5

• Preheat for at least 12 minutes

First side: 15 Second side: 5 Tested for you in our cooking studio

pRejillas Rej i l as

Lasanha Gratinar massas 3-4
