Product type	Built-in fridge/freezer
Brand	ELECTROLUX
Model	EN3854POX
Height	2010 mm
Width	595 mm
Depth	647 mm
Total net volume	Not specified
Climate class	SN, N, ST, T (from +10°C to +43°C)
Voltage	230-240 V
Frequency	50 Hz
Operating autonomy	18 h
Main functions	EcoMode, FastFreeze, Freestore, FreshZone
Temperature setting	From +2°C to +8°C, EcoMode by default
Lighting	Long-life LED
Defrosting	Automatic (frost-free)
Refrigerant type	Isobutane (R600a)
Noise level	Not specified
Energy class	Not specified
Door reversibility	Yes (by authorized service)
Maintenance and cleaning	Clean interior with warm water and mild detergent
Safety	Child lock not specified, door open alarm, high temperature alarm
Spare parts and repairability	Original parts available through after-sales service

Frequently Asked Questions - EN3854POX ELECTROLUX

How to adjust the temperature of my Electrolux EN3854POX refrigerator?

Press the temperature button repeatedly until the indicator light for the desired temperature lights up (from +2°C to +8°C). The recommended setting is EcoMode (between +3°C and +4°C).

What to do if the audible and visual alarm triggers?

The alarm may indicate a door open for more than 5 minutes or a temperature too high. Close the door or press the temperature button to deactivate the alarm. If the temperature is too high, check the load and wait.

How to activate the FastFreeze function to quickly freeze food?

Press the temperature button repeatedly until the indicator light near the FastFreeze symbol turns on. The function deactivates automatically after 52 hours.

Why is there water flowing inside the refrigerator?

The defrost water drain hole is probably clogged. Clean it with a cotton swab or soft brush. Also ensure that food is not blocking the flow.

How to clean the interior of the appliance?

Use a soft cloth soaked in warm soapy water. Never use abrasive detergents, chlorine, or oil. Dry thoroughly after cleaning.

What to do if the door does not close properly?

Check that food is not obstructing closure. Clean the door seals. If the problem persists, contact after-sales service.

Can I change the door opening direction?

Yes, but this operation must be carried out by an authorized after-sales service technician. Contact your after-sales service for a paid intervention.

What is the maximum freezing capacity in 24 hours?

The maximum quantity is indicated on the rating plate located inside the appliance. In general, it is about 10 to 15 kg for this type of appliance.

How to use the FreshZone?

The FreshZone drawer is designed to keep highly perishable foods (meat, fish) at a lower temperature. Place these foods there for optimal preservation.

What to do in case of a prolonged power outage?

Do not open the door. The operating autonomy is 18 hours. If the outage exceeds this time, quickly consume the thawed food or cook it before refreezing.

USER MANUAL EN3854POX ELECTROLUX

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com/webselfservice

Register your product for better service: www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information
(1) General information and tips
Environmental information

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.
• Keep all packaging away from children and dispose of it appropriately.

1.2 General Safety

• This appliance is intended to be used in household and similar applications such as:

• Farm houses; staff kitchen areas in shops, offices and other working environments

• By clients in hotels, motels, bed and breakfast and other residential type environments

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Do not use water spray and steam to clean the appliance.

• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging and the transit bolts.
• Do not install or use a damaged appliance.
• Follow the installation instruction supplied with the appliance.
  Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
  Make sure the air can circulate around the appliance.
• At first installation or after reversing the door wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
• Before carrying out any operations on the appliance (e.g. reversing the door), remove the plug from the power socket.
• Do not install the appliance close to radiators or cookers, ovens or hobs.
• Do not install the appliance where there is direct sunlight.
• Do not install this appliance in areas that are too humid or too cold, such as the construction appendices, garages or wine cellars.
• When you move the appliance, lift it by the front edge to avoid scratching the floor.

2.2 Electrical connection

WARNING!

Risk of fire and electrical shock.

The appliance must be earthed.
- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
Always use a correctly installed shockproof socket.
- Do not use multi-plug adapters and extension cables.
Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Authorised Service Centre or an electrician to change the electrical components.
- The mains cable must stay below the level of the mains plug.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Use

WARNING!

Risk of injury, burns, electrical shock or fire.

• Do not change the specification of this appliance.
• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
• Be careful not to cause damage to the refrigerant circuit. It contains isobutane (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.
• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not put soft drinks in the freezer compartment. This will create pressure on the drink container.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.
• Do not remove or touch items from the freezer compartment if your hands are wet or damp.
• Do not freeze again food that has been thawed.
• Obey the storage instructions on the packaging of frozen food.

2.4 Internal light

• The type of lamp used for this appliance is not suitable for household room illumination

2.5 Care and cleaning

WARNING!

Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.
• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

3. CONTROL PANEL

1 Temperature scale
2 EcoMode icon
3 FastFreeze icon

4 Temperature key

3.1 Switching on

1. Plug the appliance into electrical mains socket.
2. To turn on the appliance, touch the temperature key until all LED indicators light up.

After approximately 3 seconds LED indicators fade and the temperature is set to the default setting (EcoMode). LED indicator next to EcoMode icon illuminates.

3.2 Switching off

1. To switch off the appliance press the temperature key for 3 seconds. All LED indicators turn off.
2. To disconnect the appliance from the electrical supply, remove the mains plug from the power socket.

3.3 Temperature regulation

To regulate the temperature, press the temperature key. Every time the key is pressed, the set temperature moves by 1 position and corresponding LED indicator

lights up. Press the temperature key repeatedly until the required temperature is selected. The setting will be fixed.

Selection is progressive,
varying from +2^ to +8^ .
Coldest setting: +2^ .
Warmest setting: +8^ Most suitable setting: EcoMode (+3 to +4°C).

Choose the setting keeping in mind that the temperature inside the appliance depends on:

• room temperature
• frequency of opening the door
  quantity of food stored
• appliance location.

3.4 Sleep mode of the display

After 30 seconds of no interaction with the appliance, the display goes into the sleep mode. Only LED indicator corresponding to currently set temperature illuminates in low light. All other LED indicators are off. To deactivate this mode press the temperature key.

3.5 EcoMode

In this mode the temperature is set between +3 and +4^ .

This is the best temperature to ensure good food preservation with minimal energy consumption.

To activate EcoMode press the temperature key repeatedly until LED indicator next to EcoMode icon lights up.

3.6 FastFreeze function

If you need to insert a large amount of warm food into fridge compartment (for example after doing the grocery shopping) or rapidly decrease the temperature in the freezer compartment to freeze fresh food quickly, we suggest activating FastFreeze function for proper food storage.

To activate this function press the temperature key repeatedly until the LED indicator next to FastFreeze icon lights up. Also LED indicator corresponding to +2^ illuminates.

This function stops automatically after 52 hours. When the function deactivates, the previous temperature setting is restored.

4. DAILY USE

4.1 Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

To freeze fresh food activate the FastFreeze function at least 24 hours before placing the food to be frozen in the freezer compartment.

Place the fresh food to be frozen in the bottom compartment.

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the appliance.

You can deactivate this function at any time by pressing the temperature key and choosing a new temperature setting.

This function corresponds both to fridge and freezer compartment.

3.7 Door open indicator (available only for selected models)

If the door has been left open for approximately 5 minutes, the door open indicator activates. The temperature key and LED indicator of the currently set temperature flash.

You can deactivate this indicator by closing the door or by pressing the temperature key.

The freezing process lasts 24 hours: during this period do not add other food to be frozen.

When the freezing process is completed, return to the required temperature (see "FastFreeze Function").

In this condition, the refrigerator compartment temperature might drop below 0^ . If this occurs reset the temperature regulator to a warmer setting.

4.2 Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours with the FastFreeze function turned on.

If large quantities of food are to be stored, remove all drawers from appliance and place food on glass shelf to obtain the best performance.

In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer that the value shown in the technical data chart under "Rising time", the defrosted food must be consumed quickly or cooked immediately and then refrozen (after cooling).

4.3 Storage of the food in a fridge compartment

Cover or wrap the food, particularly if it has a strong flavour.

Position the food so that air can circulate freely around it.

Keep the food on all shelves no closer than 20mm from the rear wall and 15 mm from the door.

4.4 FREESTORE

The FREESTORE function lets the food cool quickly and keeps a more uniform

5. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

5.1 Cleaning the interior

Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brand-new product, then dried thoroughly.

temperature in the compartment. It is recommended to switch on the FREESTORE function when the ambient temperature exceeds 25^ .

To activate FREESTORE device press the button on it.

The green light comes up.

When you switch off the appliance remember to turn off the fan by pressing button again.

The green light comes off.

4.5 Cold accumulators

The freezer contains at least one cold accumulator which increases storage time in the event of a power cut or breakdown.

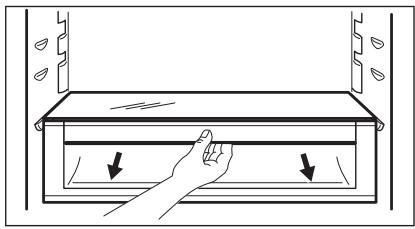

4.6 FreshZone drawer

The drawer is suitable for storing fresh food like fish, meat, seafood, because the temperature is lower here than in the rest of the fridge.

CAUTION!

Do not use detergents, abrasive powders, chlorine or oil-based cleaners as they will damage the finish.

5.2 Periodic cleaning

CAUTION!

Do not pull, move or damage any pipes and/or cables inside the cabinet.

CAUTION!

Take care of not to damage the cooling system.

CAUTION!

When moving the cabinet, lift it by the front edge to avoid scratching the floor.

The equipment has to be cleaned regularly:

1. Clean the inside and accessories with lukewarm water and some neutral soap.
2. Regularly check the door seals and wipe clean to ensure they are clean and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption.

The lowest shelf, dividing the cooler compartment from the compartment can be removed only for cleaning. To remove pull out the shelf straight.

To make sure fully functionality of the FreshZone compartment the lowest shelf and cover plates must be put back in their original position after cleaning.

6. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

The cover plates above the drawers in the compartment can be taken out for cleaning.

5.3 Defrosting

Your appliance is frost free. This means that there is no build up of frost when it is in operation, neither on the internal walls nor on the foods. The absence of frost is due to the continuous circulation of cold air inside the compartment, driven by an automatically controlled fan. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

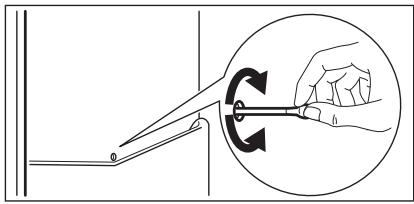

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside.

5.4 Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

1. Disconnect the appliance from electricity supply.
2. Remove all food.
3. Clean the appliance and all accessories.
4. Leave the door/doors open to prevent unpleasant smells.

6.1 What to do if...

Problem	Possible cause	Solution
The appliance is noisy.	The appliance is not supported properly.	Check if the appliance stands stable.
Audible or visual alarm is on.	The cabinet has been recently switched on or the temperature is still too high.	Refer to "Door Open Alarm"or "High Temperature Alarm".
	The temperature in the appliance is too high.	Refer to "Door Open Alarm"or "High Temperature Alarm".
The lamp does not work.	The lamp is in stand-by mode.	Close and open the door.
The lamp does not work.	The lamp is defective.	Contact the nearest Authorised Service Centre.
The compressor operates continually.	Temperature is set incorrectly.	Refer to "Operation"/"Control panel" chapter.
	Many food products were put in at the same time.	Wait a few hours and then check the temperature again.
	The room temperature is too high.	Refer to climate class chart on the rating plate.
	Food products placed in the appliance were too warm.	Allow food products to cool to room temperature before storing.
	The FastFreeze function is switched on.	Refer to "FastFreeze function".
The compressor does not start immediately after pressing the FastFreeze or after changing the temperature.	This is normal, no error has occurred.	The compressor starts after some time.
Water flows inside the refrigerator.	The water outlet is clogged.	Clean the water outlet.
	Food products prevent water from flowing into the water collector.	Make sure that food products do not touch the rear plate.
Water flows on the floor.	The melting water outlet is not connected to the evaporative tray above the compressor.	Attach the melting water outlet to the evaporative tray.
Temperature cannot be set.	The FastFreeze or Shop- pingMode function is switched on.	Switch off FastFreeze or ShoppingMode manually, or wait until the function resets automatically to set the tem- perature. Refer to "Fast- Freeze or ShoppingMode function".
The temperature in the appliance is too low/too high.	The temperature regulator is not set correctly.	Set a higher/ lower tempera- ture.
	The food products tem- perature is too high.	Let the food products tem- perature decrease to room temperature before storage.
	Many food products were stored at the same time.	Store less food products at the same time.
	The FastFreeze function is switched on.	Refer to "FastFreeze func- tion".
There is too much con- densed water on the rear wall of the refrigerator.	Door was opened too fre- quently.	Open the door only when necessary.
	Door was not closed com- pletely.	Make sure the door is closed completely.
	Stored food was not wrapped.	Wrap food in suitable pack- aging before storing it in the appliance.
Door does not open easi- ly.	You attempted to re-open the door immediately after closing.	Wait a few seconds between closing and re-opening of the door.

If the advice does not lead to the desired result, contact the nearest Authorised Service Centre.

Only service is allowed to replace the lighting device. Contact your Authorised Service Centre.

6.2 Replacing the lamp

The appliance is equipped with a longlife LED interior light.

7. INSTALLATION

WARNING! Refer to Safety chapters.

7.1 Positioning

This appliance can be installed in a dry, well ventilated indoor where the ambient temperature corresponds to the climate

class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN	+10°C to + 32°C
N	+16°C to + 32°C
ST	+16°C to + 38°C
T	+16°C to + 43°C

7.2 Location

It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.

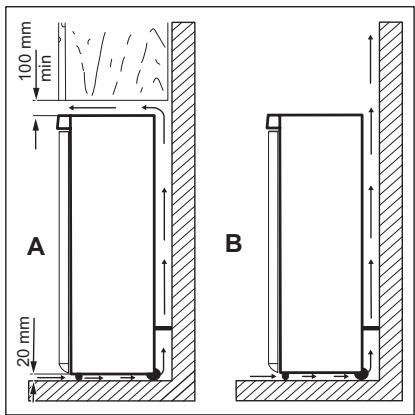

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100mm . Ideally, however, the appliance should not be positioned below overhanging wall units. One or more adjustable feet at the base of the cabinet ensure that the appliance stands level.

CAUTION!

In order to guarantee proper functioning in ambient temperature above 38^ , it is advised to have a 30mm separation between the sides of the appliance and surrounding furniture.

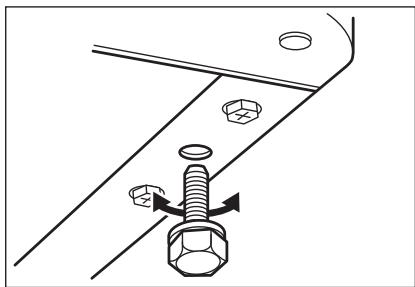

7.3 Levelling

When placing the appliance ensure that it stands level. This can be achieved by two adjustable feet at the bottom in front.

7.4 Electrical connection

• Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.
• The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
• The manufacturer declines all responsibility if the above safety precautions are not observed.
  This appliance complies with the E.E.C.Directives.

7.5 Door reversibility

In case you want to change the opening direction of the door, contact the nearest Authorised Service Centre. The Authorised Service specialist will carry out the reversibility of the doors at your cost.

8. TECHNICAL DATA

Height	2010 mm
Width	595 mm
Depth	647 mm
Rising time	18 h

Voltage	230 - 240 V
Frequency	50 Hz

The technical information is situated in the rating plate, on the external or internal side of the appliance and in the energy label.

9. ENVIRONMENTAL CONCERNS

Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances

marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES

1. INFORMATIONS DE SECURITE 15
2. CONSIGNES DE SECURITE 16
   3.BANDEAU DE COMMANDE 18
3. UTILISATION QUOTIDIENNE 20
4. ENTRETIEN ET NETTOYAGE 21
5. EN CAS D'ANOMALIE DE FONCTIONNEMENT 22
6. INSTALLATION 24
   8.CARACTERISTIQUES TECHNIQUES 26

NOUS PENSES À VOUS

1 Temperaturskala
Symbol EcoMode
3 Symbol FastFreeze

4 Temperaturtaste

4.6 Cassetto FreshZone
