USER MANUAL SCOUT RX2 HOME VISION MIELE

Operating instructions Robot vacuum cleaner

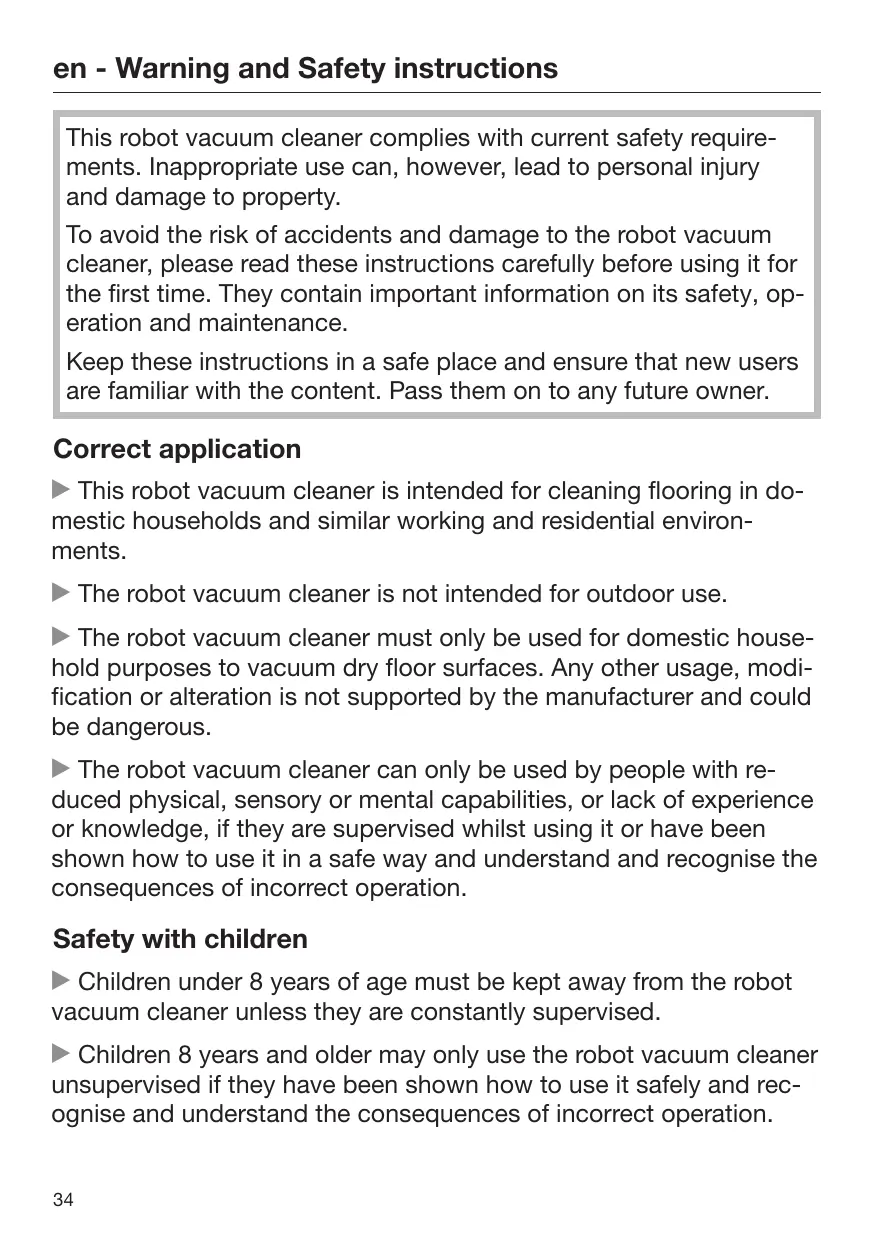

en - Warning and Safety instructions

This robot vacuum cleaner complies with current safety require‐ ments. Inappropriate use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to the robot vacuum cleaner, please read these instructions carefully before using it for the first time. They contain important information on its safety, op‐ eration and maintenance. Keep these instructions in a safe place and ensure that new users are familiar with the content. Pass them on to any future owner.

 This robot vacuum cleaner is intended for cleaning flooring in do‐ mestic households and similar working and residential environ‐ ments.  The robot vacuum cleaner is not intended for outdoor use.  The robot vacuum cleaner must only be used for domestic house‐ hold purposes to vacuum dry floor surfaces. Any other usage, modi‐ fication or alteration is not supported by the manufacturer and could be dangerous.  The robot vacuum cleaner can only be used by people with re‐ duced physical, sensory or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it or have been shown how to use it in a safe way and understand and recognise the consequences of incorrect operation.

Safety with children

 Children under 8 years of age must be kept away from the robot vacuum cleaner unless they are constantly supervised.  Children 8 years and older may only use the robot vacuum cleaner unsupervised if they have been shown how to use it safely and rec‐ ognise and understand the consequences of incorrect operation. 34

en - Warning and Safety instructions

 Children must not be allowed to clean or maintain the robot vac‐ uum cleaner unsupervised.  Please supervise children in the vicinity of the robot vacuum cleaner and do not let them play with it.  Keep the rechargeable battery and the batteries for the remote control out of the reach of children.

 The Robot vacuum cleaner operates at 14.8 V. It is classified as a class III appliance. Class III appliances are supplied by a safety extra-low voltage (SELV) power source where the voltage is low enough to protect users from the risk of electrical shock.  Before using the robot vacuum cleaner and the accessories sup‐ plied, check for any visible signs of damage. Do not use a damaged appliance or damaged accessories.  Ensure that the connection data on the data plate of the robot vacuum cleaner and the base station (voltage and frequency) match the mains electricity supply exactly.  The mains electrical plug must be fitted with an appropriate fuse.  Reliable and safe operation of this robot vacuum cleaner can only be assured if its docking station has been connected to the mains electricity supply.  While the robot vacuum cleaner is under guarantee, repairs should only be undertaken by a Miele authorised service technician. Other‐ wise the guarantee will be invalidated.  Repairs should only be carried out by a Miele authorised service technician. Repairs and other work by unqualified persons can cause considerable danger to users. 35

en - Warning and Safety instructions

 Make sure that the mains electrical cable is not damaged, bent or twisted. Do not place any heavy items on top of it.  Do not let the robot vacuum cleaner travel over the mains cable or other cables.  Switch the robot vacuum cleaner off with the OFF switch on the side before cleaning / maintaining it. Also switch it off in this way if it is operating unusually.  Only use the parts supplied (mains cable, power supply unit and base station) to charge the rechargeable battery.  Batteries can leak corrosive fluids. Avoid contact with the eyes and skin. In the event of contact, rinse thoroughly with water and seek medical advice.  Do not stick any labels on the base station infrared transmitter. Do not place any items in front of it.  Do not cover the robot vacuum cleaner's sensors or the camera in the display.  Do not immerse the robot vacuum cleaner or the parts supplied in water. Clean all parts with a dry or slightly damp cloth only.

 Do not use the robot vacuum cleaner without the exhaust filter fit‐ ted.  Remove all breakable or lightweight items from the floor and make sure that the robot vacuum cleaner cannot become entangled in cords, curtains, fringes or similar.  Animals must be kept away from the robot vacuum cleaner. Do not allow animals to stand or sit on the robot vacuum cleaner.  Do not use the robot vacuum cleaner to vacuum up anything which has been burning or is still glowing e.g. cigarettes, ashes or coal, whether glowing or apparently extinguished. Do not use it in the vicinity of a fireplace. 36

en - Warning and Safety instructions

 Do not use the robot vacuum cleaner to vacuum up any water, liq‐ uid or damp dirt. Wait until any freshly cleaned or shampooed car‐ pets or floor coverings are completely dry before attempting to vac‐ uum.  Do not use the robot vacuum cleaner to vacuum toner dust. Toner, such as that used in printers and photocopiers, can conduct elec‐ tricity.  Do not use the robot vacuum cleaner to vacuum up any inflamma‐ ble or combustible liquids or gases and do not use it in areas where such substances are stored.  Do not allow loosely fitting clothes or long hair near the roller brush or other moving parts of the robot vacuum cleaner. Handling the rechargeable battery and remote control batteries:

 Do not drop or throw the rechargeable battery. For safety reasons do not continue to use a rechargeable battery which has been drop‐ ped or damaged.

 Keep the rechargeable battery or the batteries away from naked flames or other heat sources. Do not heat the rechargeable battery or batteries or place them in direct sunlight.  Do not dismantle the rechargeable battery.  Do not cause a short circuit by bridging the contacts of the re‐ chargeable battery or the batteries, either unintentionally or deliber‐ ately.  Do not allow the rechargeable battery or the batteries to come in‐ to contact with liquids.  Never continue to use the rechargeable battery if you notice an unusual smell from it, if liquid is leaking from it, it is significantly overheating or if it is discoloured or deformed. Dispose of the re‐ chargeable battery immediately.  Do not attempt to recharge the remote control batteries. 37

en - Warning and Safety instructions

 Disposing of batteries: Remove the rechargeable battery from the robot vacuum cleaner and the batteries from the remote control. In‐ sulate metal contacts prior to disposal to avoid a short circuit. Dis‐ pose of the rechargeable battery and the batteries from the remote control in a designated collection/recycling bin for batteries. Do not dispose of them with the normal household waste.

 Only use genuine accessories with the "Original Miele" logo on them. Otherwise the manufacturer cannot guarantee the safety of the product. Miele cannot be held liable for damage caused by incorrect use or operation or by non-compliance with these Warning and Safety in‐ structions.

en - Guide to the appliance

Illustrations A, B and C for this section are on the pull-out pages in the back of these operating instructions.

A - Robot vacuum cleaner and base station

Top of the robot vacuum cleaner a Camera b Display c Sensors (collision protection) d Impact protection e ON/OFF switch f Power supply unit socket g Dust box h Dust box release button Bottom of the robot vacuum cleaner i Side brushes j Battery compartment k Front wheel l Sensors (toppling protection) m Charging contacts n Drive wheels o Data plate p Roller brush holder q Roller brush r Dust box seal Base station a Power supply unit storage compartment b Power supply unit socket (not visible) c Infrared transmitter d Charging contacts 39

en - Guide to the appliance e Cleaning brush storage compartment f Contact indicator

B and C - remote control and display

B - Remote control a Start / Pause button ( ) b Timer button c Spot vacuuming mode button d Corner vacuuming mode button e Base button f OK confirmation button with direction buttons around it g Turbo vacuuming mode button h Auto standard vacuuming mode button i Clock button j Power button k Battery compartment cover C - Display a Camera b Rechargeable battery status indicator c Clock display d Spot vacuuming mode indicator e Corner vacuuming mode indicator f Vacuuming mode selection sensor g Start / Pause sensor h Turbo vacuuming mode indicator i Auto standard vacuuming mode indicator j Timer indicator

en - Caring for the environment

Disposal of packing material The packaging is designed to protect the robot vacuum cleaner from damage during transportation. The packaging materials used are selected from mate‐ rials which are environmentally friendly for disposal and should be recycled. Recycling the packaging reduces the use of raw materials in the manufactur‐ ing process and also reduces the amount of waste in landfill sites. Ensure that any plastic wrappings, bags,etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.

The lithium-ion rechargeable battery is located in the battery compartment on the bottom of the robot vacuum clean‐ er. Remove the rechargeable battery from the robot vacuum cleaner and the batteries from the remote control. Dis‐ pose of the rechargeable battery and the batteries in a designated collection bin for batteries.

Ensure that the vacuum cleaner presents no danger to children while being stored for disposal.

Disposing of your old appli‐ ance

Electrical and electronic equipment of‐ ten contain valuable materials. They al‐ so contain materials which, if handled or disposed of incorrectly, could be po‐ tentially hazardous to human health and to the environment. They are, however, essential for the correct functioning of your appliance. Please do not therefore dispose of it with your household waste.

Please dispose of it at your local com‐ munity waste collection / recycling cen‐ tre, or contact your dealer for advice.

Functions and features of the robot vacuum cleaner The robot vacuum cleaner is suitable for the daily cleaning of short pile car‐ pets, fitted carpets and hard flooring. Please observe the flooring manu‐ facturer's cleaning and care instruc‐ tions. The robot vacuum cleaner is fitted with a camera and various sensors. During operation, the room plan as well as the items present in the room are recorded. The robot vacuum cleaner uses this da‐ ta to create an efficient vacuuming plan of the surfaces to be vacuumed, which it can then vacuum autonomously.

Accessories supplied

– Two side brushes – Two replacement exhaust filters – Remote control / two batteries – Base station, including a cleaning brush – Power supply unit with connector – Mains connection cable with plug – Magnetic strip

Diagrams 1 - 13 for this section are at the end of these operating instruc‐ tions. Insert the side brushes (dia. 01)  Place the robot vacuum cleaner upsi‐ de down on a level, clean surface. 42

Do not lift the robot vacuum cleaner by the area around the dust box as it can come loose.

 Press the two side brushes supplied firmly but carefully onto the pins pro‐ vided. Ensure that they match up correctly with the L and R markings. Remove the protective foil (dia. 02)  Remove the protective foil from the base station and from the top of the robot vacuum cleaner. Place the batteries in the remote control (dia. 03)  Remove the battery compartment co‐ ver.  Insert the two batteries supplied, ma‐ king sure the polarity is correct. Switch on the robot vacuum clean‐ er (dia. 04)  Press the ON switch on the side of the robot vacuum cleaner. The rechargeable battery status and the Auto standard vacuuming mode indica‐ tors will light up in the display. After approx. 60 seconds the robot vac‐ uum cleaner will switch into standby. The battery status indicator will contin‐ ue to light up. The robot vacuum cleaner is reactiva‐ ted by pressing any button on the re‐ mote control or one of the two sensors in the robot vacuum cleaner display. Connect the base station (dia. 05 - 09)  Open the storage compartment at the back of the base station (dia. 05).

 Insert the power unit connector sup‐ plied into the socket at the top of the storage compartment (dia. 06)  Connect the mains connection cable to the power supply unit and the mains plug to an electrical socket (dia. 07). The contact indicator will light up red on the base station.  Stow the power supply unit in the storage compartment in the base sta‐ tion and feed the mains connection cable through the slot (dia. 08).  Place the base station on a level sur‐ face against a free wall. Ensure that there is an obstacle free distance of at least 1.5 m in front and 0.5 m to the right and left of the base stati‐ on (dia. 09). Charge the rechargeable battery (dia. 10) The rechargeable battery is supplied not fully charged. It needs to be charg‐ ed fully before first use. The battery can also be charged when the robot vacuum cleaner is switched off (OFF switch). In this case, the vac‐ uum cleaner indicators will not react.  Connect the robot vacuum cleaner correctly to the charging contacts on the base station. Do not lift the robot vacuum cleaner by the area around the dust box as it can come loose.

The base station contact indicator will go out as soon as the robot vacuum cleaner has been positioned correctly.

The battery will charge and the battery status indicator will flash in the display. The charging process takes up to 120 minutes and is complete when the bat‐ tery status indicator in the display lights up green. You can then vacuum for up to two hours. You can also charge the battery without using the base station directly via the power supply unit.  Insert the power supply unit connec‐ tor into the socket on the side of the robot vacuum cleaner (dia. 11).  Connect the mains connection cable to the power supply unit and the mains plug to an electrical socket (dia. 07). Rechargeable battery status indica‐ tor in the display Red

charged capacity approx. 0%

charged capacity approx.

charged capacity approx.

Set the time of day (dia. 12)

Use the remote control to set the clock.  Press the Clock button for three se‐ conds. The hour indicator will flash in the clock display on the robot vacuum cleaner.  Press the + or - direction button to set the current hour. 43

 Press the OK button to confirm your selection. The minutes indicator will flash in the clock display on the robot vacuum cleaner.  Press the + or - direction button to set the current minutes.  Press the OK button to confirm your selection. If you want to alter the time of day, pro‐ ceed as described above. Define the area to be vacuumed (dia. 13) The robot vacuum cleaner is 88 mm high. Any items which are to be vac‐ uumed under should have a mini‐ mum clearance of 90 mm. You can define any areas which the ro‐ bot vacuum cleaner should not have access to.

Always watch the robot vacuum cleaner when it is vacuuming new surroundings for the first time. This way you will be able to detect and remove any problematic obstacles or define the area they are in with the magnetic strip. Switching on and off

 Press the Power button on the remo‐ te control.

The display will be activated. Starting vacuuming There are two ways to start vacuuming in the Auto standard vacuuming mode. Option 1 (Remote control)

 Place the magnetic strip supplied with the groove facing downwards on the floor.

The robot vacuum cleaner will not cross over the magnetic strip. Adhesive strips are supplied for perma‐ nent fixing. Additional magnetic strips are available to order from Miele or online at www.miele-shop.com.

 Press the   sensor in the display.

The area to be vacuumed will be cleaned.

Finish vacuuming: if vacuuming star‐ ted from the base station The robot vacuum cleaner will return to the base station automatically and re‐ charge. The robot vacuum cleaner will return to the base station and recharge even when there is low battery capacity. II will appear in the clock display. The robot vacuum cleaner will then contin‐ ue vacuuming from the point at which it was interrupted. Finish vacuuming: if vacuuming star‐ ted from somewhere in the room The robot vacuum cleaner will return to its starting point and switch into stand‐ by. The robot vacuum cleaner will stand still when there is low battery capacity. You should then recharge it. Manually controlled vacuuming You can use the direction buttons on the remote control to vacuum a particu‐ lar area of the room.  While the robot vacuum cleaner is va‐ cuuming, press and hold one of the direction buttons. The robot vacuum cleaner will turn in the desired direction.

 Press and hold the + direction button.

The robot vacuum cleaner will travel in the desired direction and continue to vacuum.

Interrupting vacuuming

 Press the   button on the remote control.

Press the button again to continue vac‐ uuming. Manual navigation (without vacuum‐ ing) You can use the direction buttons on the remote control to direct the robot vacuum cleaner to a specific area of the room.  Press and hold one of the direction buttons. The robot vacuum cleaner will travel in the desired direction without vacuum‐ ing. You cannot direct the robot vacuum cleaner manually to the base station in order to recharge it. Directing the robot vacuum cleaner to the base station

 Press the Base button on the remote control.

The robot vacuum cleaner will travel to the base station and recharge. The base station contact indicator will go out.

For vacuuming normally soiled flooring (see Auto).

Additional edge vacuuming after returning the starting point.

For vacuuming lightly soiled flooring with a short vac‐ uuming duration.

Finishing vacuuming manually

 Press the Power button on the remo‐ te control.

The robot vacuum cleaner will switch into standby automatically after approx. 60 seconds. The display will be deacti‐ vated. The battery capacity status indi‐ cator will continue to light up. You can switch the robot vacuum cleaner into standby before 60 sec‐ onds is up by pressing the Power but‐ ton again.

Selecting the vacuuming mode

 Press the Power button on the remo‐ te control.

There are two ways of selecting the vacuuming mode. Option 1 (Remote control)

The robot vacuum cleaner is reactiva‐ ted by pressing any button on the re‐ mote control or one of the two sensors in the robot vacuum cleaner display.

Vacuuming modes There are four different vacuuming modes. Auto

Standard vacuuming mode for normally soiled flooring.

Targeted vacuuming of an area approx. 1.8 x 1.8 m around the selected starting point of the robot vacuum cleaner.

 Press the button for the vacuuming mode you want. The corresponding vacuuming mode symbol will light up in the display.

 To start vacuuming, press the   but‐ ton on the remote control or the   sensor in the display.

The Timer  and the hour indicators will flash in the display.

 Press the  sensor repeatedly until the symbol for the vacuuming mode you want lights up.

 Press the + or - direction button to set the hour you want.

 Press the OK button to confirm your selection.

 To start vacuuming, press the   but‐ ton on the remote control or the   sensor in the display.

The Timer  and the minutes indica‐ tors will flash in the display.

(only possible if the clock has been set) If you would like the robot vacuum cleaner to start at the same time every day, you can save the start time and vacuuming mode you want to memory. You can also use the robot vacuum cleaner to vacuum in the dark. Howev‐ er, please be aware that vacuuming may be less thorough. The camera needs light to enable it to navigate with‐ out restriction. Use the remote control to set the timer.

 Press the + or - direction button to set the minutes you want.

 Press the OK button to confirm your selection.

 On the remote control, press the but‐ ton for the vacuuming mode you want or the direction buttons until the symbol for the vacuuming mode you want flashes.

 Press the Timer button for at least three seconds.

 Press the OK button to confirm your selection. The settings will be displayed for ap‐ prox. three seconds.The robot vacuum cleaner will now start to vacuum at the same time each day. The Timer indicator  lights up to show that the timer has been activa‐ ted. To alter the entries, proceed as descri‐ bed previously. Deactivating the timer

 Press the Timer button on the remote control briefly.

 Press the OK button on the remote control for at least three seconds.

OFF will appear briefly in the clock dis‐ play. Acoustic signals for fault messages cannot be deactivated. Reducing the maximum crossing over height The robot vacuum cleaner is set as standard so that it can negotiate a height of up to 20 mm. This allows it to vacuum carpets, cross over thresholds, etc.

Activating the timer / displaying a set start time

If you would like to reduce this height

(down to approx. 6 mm) in order to pro‐ tect chair or table legs, or lamps for ex‐ ample, you can deactivate the factory default setting.

 Press the Timer button on the remote control briefly.

 Press the Base button on the remote control for at least three seconds.

The Timer indicator  lights up, the set start time is shown briefly and the robot vacuum cleaner will start vacuuming at the set start time.

LO will appear in the clock display.

The Timer indicator  will go out.

Deactivating the acoustic signals

The acoustic signals are activated as standard. You can deactivate and then reactivate them.

Press the Base button again for at least three seconds if you want to reactivate the maximum crossing over height of

20 mm. HI will appear in the clock dis‐ play.

switch the robot vacuum cleaner off with the OFF switch on the side.

Only use genuine accessories with the "Original Miele" logo on them. This will ensure that the suction power of the robot vacuum cleaner is maintained, giving the best possi‐ ble cleaning results. Purchasing accessories Original Miele accessories can be or‐ dered from Miele, your Miele retailer or online at:

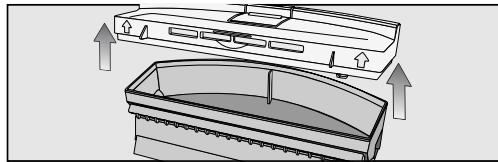

 Remove the lid from the dust box.

 Empty the dust box. The contents of the box can be dis‐ posed of with the normal household waste, providing it contains general household dust only. Cleaning the dust box Clean the dust box of the robot vacuum cleaner after each use. There is a storage compartment for the cleaning brush on the top of the base station.

Ordering the correct accessories

Original Miele accessories are identified by the "Original Miele" logo on the packaging.

 Open the storage compartment and remove the cleaning brush.

Emptying the dust box

Empty the dust box of the robot vac‐ uum cleaner after each use.

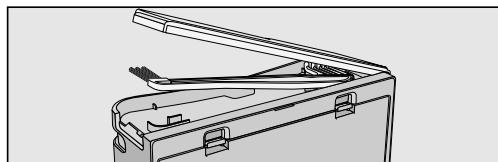

 Clean the dust box with the brush end of the cleaning brush.

 Press the dust box release button and remove the dust box.

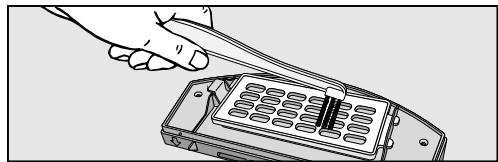

 Clean the bottom of the lid and also the filter grille using the brush end of the cleaning brush.

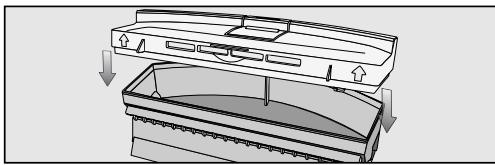

 Close the lid of the dust box making sure it clicks into place.

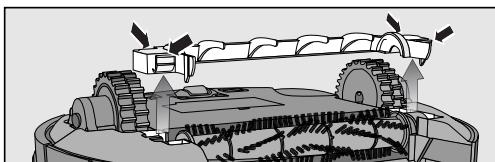

 Remove the roller brush cover.

 Remove the roller brush, taking care not to lose the square guide.

 Replace the dust box in the robot va‐ cuum cleaner, making sure it clicks into position.

Replacing the exhaust filter Replace the exhaust filter in the robot vacuum cleaner after approx. three months. Two replacement exhaust fil‐ ters are supplied.

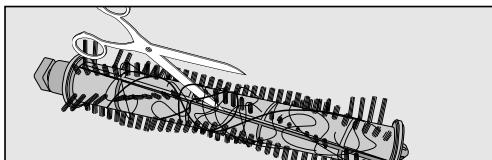

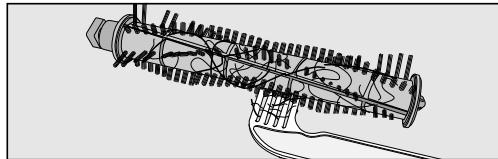

 Use scissors to cut any threads or hairs which have wound around the roller brush. There is a groove on the roller to guide you.

The exhaust filter is in the bottom of the dust box lid.

 Remove the threads and hairs with the comb end of the cleaning brush.

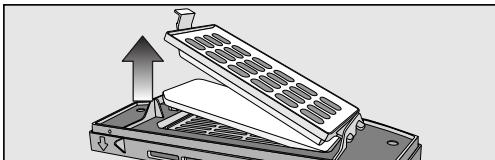

 Unclip the filter grille and replace the exhaust filter.

 Close the filter grille making sure it clicks into position. Cleaning the roller brush

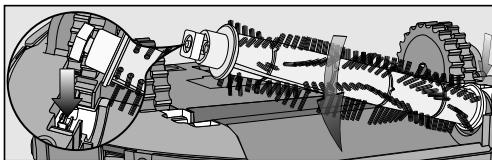

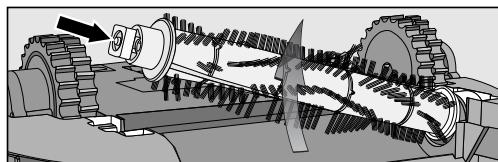

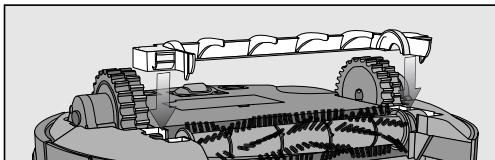

 Replace the roller brush. Make sure you position it carefully and that the square guide is attached.

 Remove the dust box and place the robot vacuum cleaner upside down on a level, clean surface.

 Lock the cover making sure it clicks into position.

 Replace the dust box in the robot va‐ cuum cleaner, making sure it clicks into position. In order to continue to achieve the best possible cleaning results re‐ place the roller brush with a new one after approx. two years. Cleaning the side brushes  Place the robot vacuum cleaner upsi‐ de down on a level, clean surface. Do not lift the robot vacuum cleaner by the area around the dust box as it can come loose.

Cleaning the seal on the dust box

 Press the dust box release button and remove the dust box.

 Clean the seal on the bottom of the dust box with a damp cloth.  Replace the dust box in the robot va‐ cuum cleaner, making sure it clicks into position. In order to continue to achieve the best possible cleaning results re‐ place the seal with a new one after approx. one year. Replacing the seal on the dust box

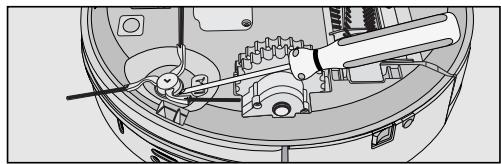

 Lift off the side brushes using a flat head screwdriver, for example.

 Remove the threads and hairs with the comb end of the cleaning brush.  Press the dust box release button and remove the dust box.

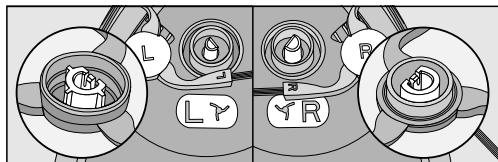

 Press the two side brushes firmly but carefully onto the pins provided. En‐ sure that they match up correctly with the L and R markings.

In order to continue to achieve the best possible cleaning results re‐ place the side brushes with new ones after approx. one year.

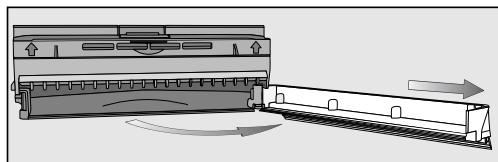

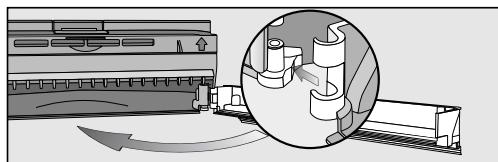

 Unclip the seal from the dust box and carefully swing it out until it detaches from the dust box.

 Attach the new seal to the side and clip it into position.  Replace the dust box in the robot va‐ cuum cleaner, making sure it clicks into position. Cleaning the front wheel  Place the robot vacuum cleaner upsi‐ de down on a level, clean surface.

 Carefully clean the sensors on the si‐ de and the bottom of the robot vacu‐ um cleaner using a dry cotton wool bud.

Changing the batteries in the remote control The remote control requires two 1.5 V (AAA) batteries.

Do not lift the robot vacuum cleaner by the area around the dust box as it can come loose.

 Remove the battery compartment co‐ ver.  Replace the batteries making sure the polarity is correct.  Unclip the cover.  Remove the front wheel.

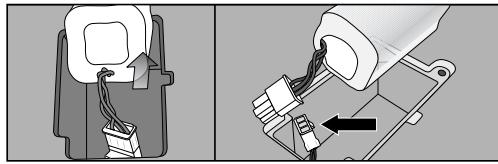

Replacing the rechargeable battery

Keep a spare original Miele lithium-ion rechargeable battery to hand for your Scout RX1.  Place the robot vacuum cleaner upsi‐ de down on a level, clean surface.

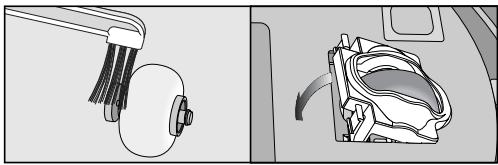

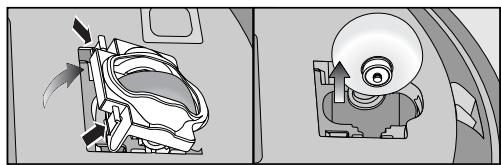

 Remove any threads and hairs and clean the front wheel with the brush end of the cleaning brush.

Do not lift the robot vacuum cleaner by the area around the dust box as it can come loose.

 Replace the front wheel and close the cover making sure it clicks into positi‐ on.

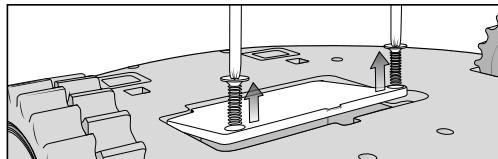

Cleaning the sensors  Unscrew the cover of the recharge‐ able battery compartment on both si‐ des with a cross-headed screwdriver.

The robot vacuum cleaner and all plas‐ tic accessories can be cleaned with a dry or a slightly damp cloth, or with a proprietary cleaner suitable for plastic.  Carefully remove the rechargeable battery, pressing the lug on the con‐ tact to release it.

 Do not use abrasive cleaning

agents, glass cleaning agents, allpurpose cleaners or oil-based condi‐ tioning agents.

 Do not immerse the robot vac‐

uum cleaner or any accessories sup‐ plied with it in water.

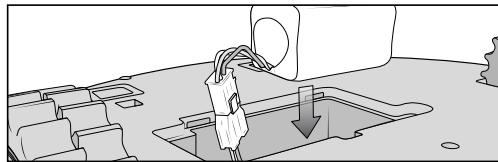

 Insert the new rechargeable battery.  Replace the cover of the rechargeab‐ le battery compartment.  Dispose of the old rechargeable bat‐ tery in a designated collection/recyc‐ ling bin for batteries.

 Before storing the robot vacuum cleaner, switch it off with the OFF switch on the side. If the robot vacuum cleaner is not going to be used for a long period of time, make sure it is stored in a well ventila‐ ted, cool place.

Maintaining the robot vacuum clean‐ er and accessories

 Before cleaning the robot vac‐ uum cleaner, switch it off with the

OFF switch on the side.

Problem solving guide  Before trying to solve any problems with the robot vacuum cleaner, switch it off with the OFF switch on the side. Problem

The robot vacuum cleaner switches itself off after it has been switched on using the

The rechargeable battery is not sufficiently charged.

The robot vacuum cleaner does not react.

The robot vacuum cleaner is switched off.

 Press the ON switch on the side of the robot vacu‐ um cleaner to switch it on. The batteries in the remote control have been inser‐ ted incorrectly.  Make sure the polarity is correct. The batteries in the remote control are dead.  Replace the batteries. The signal between the infrared transmitter on the vacuum cleaner and the remote control is broken.  Clean both parts carefully with a soft, dry cloth and make sure that no items disrupt the signal. The remote control is too near to the robot vacuum cleaner or too far away from it.  Increase or decrease the distance and when using the remote control direct it towards the robot va‐ cuum cleaner.

The cleaning result is poor.

The dust box is full.

 Empty and clean the dust box. The roller brush is dirty.  Clean the roller brush. The dust box seal is dirty.  Clean the dust box seal. The exhaust filter is dirty.  Replace the exhaust filter. The roller brush has worn out.  Replace the roller brush. The dust box seal has worn out.  Replace the dust box seal. The side brushes have worn out.  Replace the side brushes.

The base station / robot vacuum cleaner is not con‐ cleaner is not charging. nected to the electricity supply correctly.  Connect the base station exactly as described in these operating instructions. Do the same for the robot vacuum cleaner, see "Preparing for use Charge the rechargeable battery".

The Auto standard vacuuming mode was started cleaner does not return somewhere in the room. to the base station after  The robot vacuum cleaner will return to its starting vacuuming. point. The Spot vacuuming mode has been selected.  The robot vacuum cleaner will return to its starting point. There is insufficient light for the robot vacuum cleaner to navigate.  Provide sufficient lighting. The base station is not connected correctly.  Connect the base station exactly as described in these operating instructions. The sensors on the robot vacuum cleaner are dirty.  Clean the sensors carefully using a dry cotton wool bud. The signal between the infrared transmitter on the base station and the vacuum cleaner is broken.  Clean both parts carefully with a soft, dry cloth and make sure that no items disrupt the signal. Obstacles on the floor which is to be vacuumed can impede navigation.  Watch the robot vacuum cleaner during vacuu‐ ming.  Remove any obstructions.  Define the area they are in with the magnetic strip.  Reduce the maximum crossing over height, see "Use - Reducing the maximum crossing over height".

Fault messages  Before resolving any faults with the robot vacuum cleaner, switch it off with the OFF switch on the side. Fault messages are shown in the clock indicator of the robot vacuum cleaner's display. Problem

 Place the robot vacuum cleaner on a level floor surface.

 Clean the sensors. This fault message will also ap‐ pear if the side brushes are not fitted. In this case, fit the side brushes.

 Replace the dust box in the robot vacuum cleaner, making sure it clicks into position.

"Drive wheels overloaded"

 Check whether the drive wheels have become dir‐ ty. Remove any threads and hairs.

"Brushes overloaded"

 Check whether the roller brush and the side bru‐ shes have become dirty. Clean the roller brush and the side brushes.

 Empty and clean the dust box. Replace the ex‐ haust filter.

"Internal system fault"

 Switch the robot vacuum cleaner off and then back on again (press the ON/OFF switch on the side).

 Check the front wheel for debris. Remove any threads and hair and clean the front wheel.

After sales service In the event of a fault that you cannot easily remedy, please contact your Miele Dealer or Miele (see end of book‐ let for contact details). Please note that telephone calls may be monitored or recorded for training purposes (UK only).

In the U.K. the appliance is guaranteed for 2 years from the date of purchase. However, you must activate your cover by calling 0330 160 6640 or registering online at www.miele.co.uk. For information on the appliance guar‐ antee specific to your country please contact Miele. See end of booklet for contact details.

Electrical connection for the

UK All electrical work should be carried out by a suitably qualified and competent person in strict accordance with current national and local safety regulations (BS 7671 in the UK). The voltage and frequency are given on the data plate located underneath the vacuum clean‐ er. Please ensure that these match the household mains supply. The fuse rat‐ ing is quoted on the plug. The appli‐ ance is supplied with a cable and moul‐ ded plug ready for connection to a 230-240 V/50 Hz a.c. single phase sup‐ ply. Non-rewireable plugs BS 1363

The fuse cover must be re-fitted when changing the fuse, and if the fuse cover is lost the plug must not be used until a suitable replacement is obtained. The colour of the correct replacement cover is that of the coloured insert in the base of the plug, or the colour that is em‐ bossed in words on the base of the plug, (as applicable to the design of plug fitted). Replacement fuses should be ASTA approved to BS1362 and have the correct rating. Replacement fuses and fuse covers may be purchased from your local electrical supplier.

Accessories Copyright and licences Miele uses software to operate and control the robot vacuum cleaner. The copyright authorisation from Miele and other relevant software suppliers must be respected. Miele and their suppliers reserve the rights to the software components. In particular the following are prohibited: – copying and distribution, – modifications and derivations, – decompilation, reverse engineering, disassembling and other such reductions of software. Components which fall under GNU General Public Licence and further Open Source licences are integrated into the software. An overview of the integrated Open Source components and a copy of the current licence can be obtained at www.miele.com/device-software-licences. You will need to enter the specific product name. Miele will provide the source code for all components of software licensed under the GNU General Public Licence and comparable Open Source licences. For source code requests, please email info@miele.com.

Germany Miele & Cie. KG Carl-Miele-Straße 29 33332 Gütersloh

Miele Co. Ltd. Fairacres, Marcham Road Abingdon, Oxon, OX14 1TW Customer Contact Centre Tel: 0330 160 6600 E-mail: mielecare@miele.co.uk Internet: www.miele.co.uk Australia Miele Australia Pty. Ltd. ACN 005 635 398 ABN 96 005 635 398 1 Gilbert Park Drive, Knoxfield, VIC 3180 Tel: 1300 464 353 Internet: www.miele.com.au China Miele (Shanghai) Trading Ltd. 1-3 Floor, No. 82 Shi Men Yi Road Jing' an District 200040 Shanghai, PRC Tel: +86 21 6157 3500, Fax: +86 21 6157 3511 E-mail: info@miele.cn, Internet: www.miele.cn Miele (Hong Kong) Limited 41/F - 4101, Manhattan Place 23 Wang Tai Road Kowloon Bay, Hong Kong Tel: (852) 2610 1331, Fax: (852)2610 1013 Email: mielehk@miele.com.hk India Miele India Pvt. Ltd. Ground Floor, Copia Corporate Suites Plot No. 9, Jasola New Delhi - 110025 Tel: 011-46 900 000, Fax: 011-46 900 001 E-mail: customercare@miele.in, Internet: www.miele.in Ireland Miele Ireland Ltd. 2024 Bianconi Avenue Citywest Business Campus, Dublin 24 Tel: (01) 461 07 10, Fax: (01) 461 07 97 E-Mail: info@miele.ie, Internet: www.miele.ie Manufacturer: Miele & Cie. KG Carl-Miele-Straße 29, 33332 Gütersloh, Germany

Miele Sdn Bhd Suite 12-2, Level 12 Menara Sapura Kencana Petroleum Solaris Dutamas No. 1, Jalan Dutamas 1 50480 Kuala Lumpur, Malaysia Phone: +603-6209-0288 Fax: +603-6205-3768 New Zealand Miele New Zealand Limited IRD 98 463 631 Level 2, 10 College Hill Freemans Bay, Auckland 1011, NZ Tel: 0800 464 353 Internet: www.miele.co.nz Singapore Miele Pte. Ltd. 163 Penang Road # 04 - 03 Winsland House II Singapore 238463 Tel: +65 6735 1191, Fax: +65 6735 1161 E-Mail: info@miele.com.sg Internet: www.miele.sg South Africa Miele (Pty) Ltd 63 Peter Place, Bryanston 2194 P.O. Box 69434, Bryanston 2021 Tel: (011) 875 9000, Fax: (011) 875 9035 E-mail: info@miele.co.za Internet: www.miele.co.za United Arab Emirates Miele Appliances Ltd. P.O. Box 11 47 82 Gold & Diamond Park, Sheikh Zayed Road Building 6 / Offices Nos. 6-214 to 6-220 Dubai Tel: +971-4-341 84 44 Fax: +971-4-341 88 52 E-Mail: info@miele.ae Internet: www.miele.ae
