Product type	Cylinder vacuum cleaner with power cord
Brand	Hoover
Model	FREEDOM FD22BC
Power supply	Mains 220-240 V, 13 A fuse (UK)
Filter type	Washable HEPA filter and foam microfilter
Dust bin capacity	Approx. 2 L (with maximum level mark)
Included accessories	3-in-1 nozzle (crevice, furniture, brush), turbo brush, mini turbo brush, parquet care brush
Cord length	Approx. 8 m (automatic cord rewinder)
Weight	Approx. 5 kg
Noise level	Approx. 75 dB(A)
Suction adjustment	Variable slider on the vacuum body
Main brush type	2-position brush (hard floor/carpet) with pedal
Telescopic tube	Height adjustable with grip handle
Safety	Double insulation, automatic shut-off in case of overheating (resets after 30 min)
Filter maintenance	Wash with lukewarm water every 3 months, dry completely before reuse
Dust bin emptying	Bottom flap opening, cyclonic cassette can be cleaned
Warranty	According to retailer conditions, purchase receipt required
Spare parts available	Filters (U46-35600814), floor brush (G72-04845090), turbo brush (J31-35600816), etc.
Recycling	Complies with WEEE directive, do not dispose of with household waste

Frequently Asked Questions - FREEDOM FD22BC HOOVER

How to empty the dust bin of the FREEDOM FD22BC vacuum cleaner?

When dust reaches the maximum level mark, unlock the bin transport handle by pulling the central latch, lift the bin upwards, then open the bottom flap over a trash can to empty it. Close the flap and put the bin back by pushing the handle until it clicks.

How to clean the filters of the Hoover FREEDOM vacuum cleaner?

The HEPA filter and foam microfilter are washable. Open the filter cover by pulling the lock, remove the filter set, separate the elements, tap gently and wash with lukewarm water without detergent. Let them dry completely in the air before putting them back.

What to do if my vacuum cleaner no longer sucks or sucks poorly?

First, check that the dust bin is not full and the filters are not clogged. Then, inspect the hose, telescopic tube and accessories for any blockage. If nothing solves the problem, clean the cyclonic cassette as described in the manual.

How to unclog the hose or nozzle of the vacuum cleaner?

Detach the hose and telescopic tube. Use a non-metallic rod or a broom handle to gently remove the blockage. Also check the dust bin inlet and the nozzles.

What to do if the vacuum cleaner suddenly turns off?

This may be due to overheating. Turn off the appliance, unplug it and let it cool for about 30 minutes. It will reset automatically. Also check that the dust bin is not full and the filters are not blocked.

How to use the 3-in-1 accessory?

The 3-in-1 accessory combines a crevice nozzle, a furniture nozzle and a dusting brush. It is stored under the hose handle. To switch functions, rotate the body of the accessory. It allows reaching difficult areas.

How to adjust suction on the FREEDOM FD22BC model?

Use the suction slider located on the vacuum body or on the handle. Slide the slider up to increase suction and down to reduce it. This allows adjusting the power according to the surface.

Can I use the Hoover FREEDOM vacuum cleaner on parquet floors?

Yes, the main brush has a 'hard floor' position that lowers the brushes to protect the parquet. Additionally, the Parquet Care brush (included accessory) is specially designed for delicate floors. Avoid using the turbo brush on parquet.

How to clean the cyclonic cassette?

Remove the dust bin, unclip both sides, lift the upper part containing the cassette. Wipe off dust with a dry cloth. Reassemble by aligning the arrows and closing the clips. Put the bin back on the vacuum.

What are the spare part codes for this vacuum cleaner?

The main references are: HEPA/microfilter set (U46-35600814), floor brush (G72-04845090), turbo brush (J31-35600816), mini turbo brush (J32-35600817), flexible hose (D101-35600815). Order these parts from an authorized Hoover dealer.

USER MANUAL FREEDOM FD22BC HOOVER

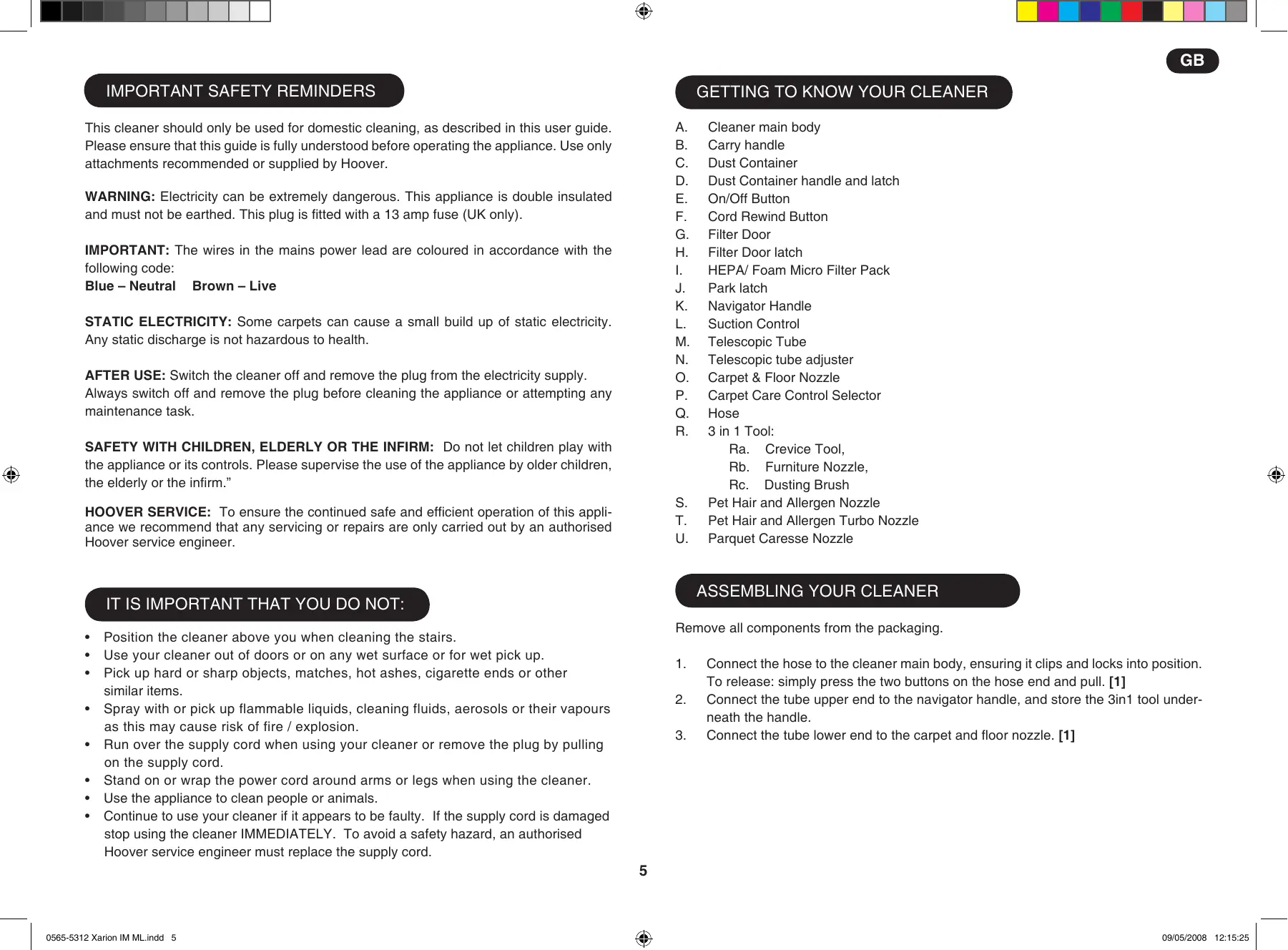

This cleaner should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance. Use only attachments recommended or supplied by Hoover.

WARNING: Electricity can be extremely dangerous. This appliance is double insulated and must not be earthed. This plug is fitted with a 13 amp fuse (UK only).

IMPORTANT: The wires in the mains power lead are coloured in accordance with the following code:

Blue - Neutral Brown - Live

STATIC ELECTRICITY: Some carpets can cause a small build up of static electricity. Any static discharge is not hazardous to health.

AFTER USE: Switch the cleaner off and remove the plug from the electricity supply. Always switch off and remove the plug before cleaning the appliance or attempting any maintenance task.

SAFETY WITH CHILDREN, ELDERLY OR THE INFIRM: Do not let children play with the appliance or its controls. Please supervise the use of the appliance by older children, the elderly or the infirm.

HOOVER SERVICE: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised Hoover service engineer.

IT IS IMPORTANT THAT YOU DO NOT:

• Position the cleaner above you when cleaning the stairs.
• Use your cleaner out of doors or on any wet surface or for wet pick up.
• Pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items.
• Spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapours as this may cause risk of fire / explosion.
• Run over the supply cord when using your cleaner or remove the plug by pulling on the supply cord.
• Stand on or wrap the power cord around arms or legs when using the cleaner.
• Use the appliance to clean people or animals.
• Continue to use your cleaner if it appears to be faulty. If the supply cord is damaged stop using the cleaner IMMEDIATELY. To avoid a safety hazard, an authorised Hoover service engineer must replace the supply cord.

GETTING TO KNOW YOUR CLEANER

A. Cleaner main body B. Carry handle C. Dust Container D. Dust Container handle and latch E. On/Off Button F. Cord Rewind Button G. Filter Door H. Filter Door latch I. HEPA/ Foam Micro Filter Pack J. Park latch K. Navigator Handle L. Suction Control M. Telescopic Tube N. Telescopic tube adjuster O. Carpet & Floor Nozzle P. Carpet Care Control Selector Q. Hose R. 3 in 1 Tool:

Ra. Crevice Tool,

Rb. Furniture Nozzle,

Rc. Dusting Brush

S. Pet Hair and Allergen Nozzle T. Pet Hair and Allergen Turbo Nozzle U. Parquet Caresse Nozzle

ASSEMBLING YOUR CLEANER

Remove all components from the packaging.

1. Connect the hose to the cleaner main body, ensuring it clips and locks into position. To release: simply press the two buttons on the hose end and pull. [1]
2. Connect the tube upper end to the navigator handle, and store the 3in1 tool underneath the handle.
3. Connect the tube lower end to the carpet and floor nozzle. [1]

USING YOUR CLEANER

1. Extract the power cord and plug it into the power supply. Do not pull the cord beyond the red marker. [2]
2. Adjust the telescopic tube to the desired height by holding the handle and moving the central hand grip up or down. [3]
3. Select carpet care control height by pressing the pedal in the nozzle. [4] Hard Floor - Brushes are lowered to protect the floor. Carpet - Brushes are raised for the deepest clean.
4. Switch the cleaner on by pressing the On/Off Button on the cleaner main body. [5]
5. Adjust the suction by sliding the suction regulator to the desired level. [6]
6. Switch off at the end of use by pressing the On/Off Button. Unplug and press the cord rewind button to wind the power cord back into the cleaner. [7]
7. To store your cleaner, adjust the telescopic tube to the lowest height setting and park the nozzle in the park position on the cleaner main body. [1]

ACCESSORIES

Please see the model specification on the packaging label for inclusion of accessories to individual models. All accessories can be purchased separately from Hoover. (See Hoover Spares and Consumable section).

All accessories can be fitted to the end of the hose or the end of the telescopic tube.

3 in 1 tool – Combines several functions in one, with maximum flexibility by the rotating body. Reach into awkward areas by rotating the body. The 3 in 1 tool can be stored neatly underneath the hose handle.

Crevice Tool - For corners and hard to reach areas.

Furniture Nozzle - For soft furniture and fabrics.

Dusting Brush - For bookshelves, frames, keyboards and other delicate areas. To extend the brushes, push the button on the body of the tool.

Parquet Caresse Nozzle – For parquet floors and other delicate floors.

Allergen Remover Turbo Nozzle - Use the turbo nozzle for deep cleaning on carpets.

Allergen Remover Mini Turbo Nozzle - Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas.

IMPORTANT: Do not use the turbo and mini turbo nozzles on rugs with long fringes, animal hides and carpet pile deeper than 15 mm. Do not keep the nozzle stationary while the brush is rotating.

CLEANER MAINTENANCE

Emptying the Dust Container

When the dust reaches the max level indicator in the container, empty the dust container. IMPORTANT: To maintain optimum performance, do not allow the dust to sit higher than the max level.

1. Release the container carry handle by lifting the centre latch to detach the dust container from the main cleaner and pull upward to remove. [8,9]
2. Hold the dust container over a bin with one hand and with the other pull the dust container catch to open the door and empty. [10]
3. Close the dust container door and refit to the cleaner main body. To lock in place, push the container carry handle down until the latch connects with the main body of the cleaner. Once correctly retained, the carry handle will sit flush with the top of the cleaner.

Cleaning the washable filters

The cleaner is fitted with a blue HEPA filter pack. To maintain optimum cleaning performance, regularly remove the filters and tap against the side of the bin to release dust. The filters should be washed every 3 months or when the filter has excessive dust level.

IMPORTANT: Regularly check and maintain the filters.

IMPORTANT: Always ensure the filter pack is fully dry before use.

To access the filter:

1. Unlock the filter door by pulling the filter latch upwards. Open the filter door. [11]
2. Remove the filter pack by pressing down on the retainer catch to release. The filter pack will pop up. Slide the filter pack out. [12,13]
3. Unlatch the filter pack frame.
4. Remove the foam micro filter from the pack.
5. Gently tap and wash the grey foam micro filter attached to the filter frame using warm water. Do not use hot water or detergents. Remove excess water from the filter and leave to dry fully before re-using. [14]
6. Gently tap and wash the Blue HEPA filter unit. Do not use hot water or detergents. Remove excess water from the filter and leave to dry fully before re-using.
7. Reassemble to filter pack once fully dry and refit to the cleaner. Press on the top of the filter to ensure it clips back into place. [15]

IMPORTANT: Do not use the product without the filter pack fitted.

NOTE: Ensure the carry handle is at its down position before opening the filter door.

Cleaning the cyclonic unit

If necessary the cyclone unit can be removed from the cyclonic cassette and cleaned.

1. Remove dust container from the cleaner by releasing the container carry handle to detach the dust container from the main cleaner and pull upward to remove. [8,9]
2. Place the bin on a flat surface and unclip the clips from either side of the dust container. [16]
3. Using the bin handle lift the bin upper section containing the cyclonic unit from the lower section. [17]
4. Use a cloth to remove excessive dust from the cyclone unit's surface. [18]
5. Reassemble the bin upper section taking care to align the arrows on the container. Push clips back to fully close the bin. [19]
6. Refit the dustbin to the cleaner. To lock it in place, push the container carry handle down until the latch connects with the main body of the cleaner. Once correctly retained, the carry handle will sit flush with the top of the cleaner.

Removing a blockage

1. Check if the dust container is full. If so, refer to 'Emptying the dust container'.
2. If the dust container is empty but suction is still low:

A. Do the filters need cleaning? If so, refer to 'Cleaning the washable filters'. B. Check if there is any other blockage in the system - Use a rod or pole to remove any blockage from the extension tube or flexible hose. C. Check if the pre-motor filter is fitted and the filter door is closed. D. Check if the cyclonic unit needs to be cleaned. Refer to 'Cleaning the cyclone unit'.

USER CHECKLIST

Should you have a problem with the product, complete this simple user checklist before calling your local Hoover service.

• Is there a working electricity supply to the cleaner? Please check with another electrical appliance.
• Is the cyclonic dust container over-filled? Please refer to 'Cleaner Maintenance'.
• Is the filter blocked? Please refer to 'Cleaner Maintenance'.
• Is the hose or nozzle blocked? Please refer to 'Removing a blockage from the system'.
• Has the cleaner overheated? If so, it will take approximately 30 minutes to automatically reset.

IMPORTANT INFORMATION

Hoover spares and Consumables

Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts, always quote your model number.

• Hepa / Micro Filter pack: U46 - 35600814
• Carpet & Floor Nozzle: G72 - 04845090
• Allergen Remover Turbo Nozzle: J31 - 35600816
• Allergen Remover Mini Turbo Nozzle: J32 - 35600817
• Flexible Hose: D101 - 35600815
• Caresse Nozzle: G90PC - 35600660

Hoover Service

Should you require service at any time, please contact your local Hoover Service Office.

Quality, Safety and the Environment

Safety

Although safety certification of electrical appliances is not required by law in the UK, Hoover believe that independent approval is the best way of demonstrating safety in design and manufacture. The British Electrotechnical Approvals Board (BEAB), the independent UK national authority for the safety of domestic electrical appliances, ensures that European safety standards are met and maintained throughout the production life of an appliance. All appliances that pass the requirements are permitted to carry the BEAB mark of safety.

Quality

BSI ISO 9001

Hoover's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001

The Environment:

This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the appliance collection point for recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with the local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Your Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.

IMPORTANT SAFETY NOTES

MAINTENANCE OF THE VACUUM CLEANER

Emptying the dust container

When the dust reaches the maximum level indicator in the container, the dust container must be emptied. IMPORTANT: To maintain optimal performance, do not let the dust level rise above the maximum level.

1. Release the container's carrying handle by lifting the middle lock to detach the dust container from the vacuum cleaner's main body and pull upwards to remove. [8,9]
2. Hold the dust container over a trash bin with one hand, and with the other hand pull the release mechanism on the dust container to open the door and empty the container. [10]
3. Close the dust container door and reinsert it into the main body of the vacuum cleaner. To lock it in place, push the container's carrying handle down until it clicks into the main body. Once correctly locked, the carrying handle will be flush with the top of the vacuum cleaner.

Cleaning the washable filters

Emptying the dust container

When the dust in the container reaches the maximum level indicated by the indicator, the container should be emptied. ATTENTION: For optimal performance, do not allow dust to accumulate above the maximum level.

1. Free the hand for carrying the container by pressing the central latch to detach the dust container from the main body of the vacuum cleaner, then pull it upward to remove it. [8,9] 2. Hold the dust container over a trash bin, and with the other hand pull the latch of the dust container to open the flap and empty the container. [10]
2. Close the flap of the dust container and secure the container back into the main body of the vacuum cleaner. To fix it in place, press the carrying handle of the container down until the latch locks the container into the main body. When correctly installed, the carrying handle will be in a recessed position flush with the top surface of the vacuum cleaner.

Cleaning the washable filters

The vacuum cleaner is equipped with a blue HEPA filter. To maintain optimal performance, regularly remove the filters to remove dust by tapping them against the edge of a trash bin. The filters should be washed every 3 months, and also in case of excessive dust accumulation.

ATTENTION: Regularly check the filters and perform their maintenance.

ATTENTION: It is mandatory to check that the filter is completely dry before use.

To remove the filters:

1. Unlock the filter door by pressing the filter latch upward. Open the filter door. [11]
2. Remove the filter by pressing the locking latch down. The filter will lift upward. Extract it upward. [12,13]
3. Release the latch of the filter frame.
4. 13BJIeKInTe MmKpOoPnJbTp n3 nopNCtOrO MaTePnAna n3 paMbI.
5. AkkypaTHo 06ctyUHTe n npOMOte TepIIO BDOJ MmKpOΦnJIbTp n3 ceporo BCNEHHeHO MaTePnAHa, 3akpeIeHHbI Ha pamKe. He nCNoJIb3yIe TropaYIO BOy IIN MOUzle CpeDCTBa. YdaJInte n3 ΦIIbTa pN36bITOK BOdI N daJIte emu NONHOCTbIO pNOCOXHyTb NepeD NOBTOPbIM nCNoJIb3OBAHNEM. [14]
6. Octopojkno BbIbeiTe nbIb n3 roJyboRo fNbItpa HEPA n npomoye ero. He nCNoJIb3yIte TepaYIO BOy uIN MOUzne cpeDCTBa. YdaIITe n3 fNlbTpa N3bItoK BObl I daIte emy NOHOCbIO pOcOXHyTB nepeD NOBTOBhIM NCNOJIb3OBAHnEM.
7. Choba co6epeHte qnIbTp (y6eINBUNCb, yTO OH nOJIHOCTbIO cyXOI) n yCTaHOBInTe erO B nIeoc. HaxMITE Ha BepxHIOU qactb qnIbTpA, yTObI OH 3aueJIKNpy HA CBOEM MecTe. [15]

BHIMAHNE: He cneIyET nCnOJIb3OBAbT 3TOT nbJIeCoc 6e3 yCTaHOBJIeHHO B HeroФИЛТpa.
