KI720810 - Kettle TEFAL - Free user manual and instructions

Product type	Electric kettle
Brand	TEFAL
Model	KI720810
Capacity	1.7 L (estimated)
Body material	Stainless steel
Power	2200 W (estimated)
Supply voltage	220-240 V ~ 50/60 Hz
Shut-off type	Automatic at boiling
Overheat protection	Yes (dry operation)
Temperature selector	Available on some models
Anti-scale filter	Removable, mesh
Base	Rotating with cable storage
Lid opening	Hinged, assisted or automatic depending on version
Recommended cleaning	Monthly descaling with white vinegar or citric acid
Filter maintenance	Clean with water or brushing, descaling if necessary
Usage	Domestic, indoor, altitude < 4000 m
Child safety	Keep out of reach of children under 8 years
Cable length	Adjustable by winding under the base
Warranty	Manufacturing defects, domestic use
After-sales service	TEFAL authorized service center

Frequently Asked Questions - KI720810 TEFAL

What to do if the kettle does not work or stops before boiling?

Check that the kettle is plugged in correctly. If it has run dry or limescale has accumulated, let it cool for 15 minutes, fill it with water and restart.

The water tastes like plastic, how to fix it?

For a new kettle, discard the water from the first uses. If the problem persists, fill the kettle to the maximum, add two teaspoons of baking soda, boil, discard the water and rinse.

How to descale the kettle?

Use white vinegar 8%: fill with 1/2 L of vinegar, let sit for 1 hour cold. Or use citric acid: bring 1/2 L of water to a boil, add 25 g of acid, let sit for 15 min. Then rinse 5 to 6 times.

How to clean the anti-scale filter?

Remove the removable filter (after cooling). If it is wet, rinse it under water; if dry, brush it gently. If scale persists, soak it in white vinegar or diluted citric acid.

Can I use the kettle without the lid?

No, the kettle should only be used with the lid locked. Do not use it without the lid.

What is the minimum and maximum water level?

Do not fill below the minimum level (min) or above the maximum level (max) indicated on the kettle. Overfilling may cause boiling water to overflow.

The kettle has been dropped or is leaking, what to do?

Do not reuse the appliance. Return it to a TEFAL Authorized After-Sales Service Center for repair.

How to adjust the cable length?

Wind the cable under the base and secure it in the notch provided (see figure 1 of the manual).

Can the kettle or base be immersed in water?

No, never immerse the appliance, base, cable or plug in water or any other liquid. Clean with a damp cloth or sponge.

What to do in case of burns from steam or hot water?

Immediately run cold water over the burn and consult a doctor if necessary. For children, always supervise them near the appliance.

USER MANUAL KI720810 TEFAL

• Read the instructions for use carefully before using your appliance for the first time: the manufacturer does not accept responsibility for use that does not comply with the instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Keep the appliance and its lead out of reach of children under 8 years of age.
• This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the device safely and understand the dangers.
• Children should not use the device as a toy.
• This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved. Cleaning and maintenance by the user should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.

• Your appliance was designed for domestic use only.

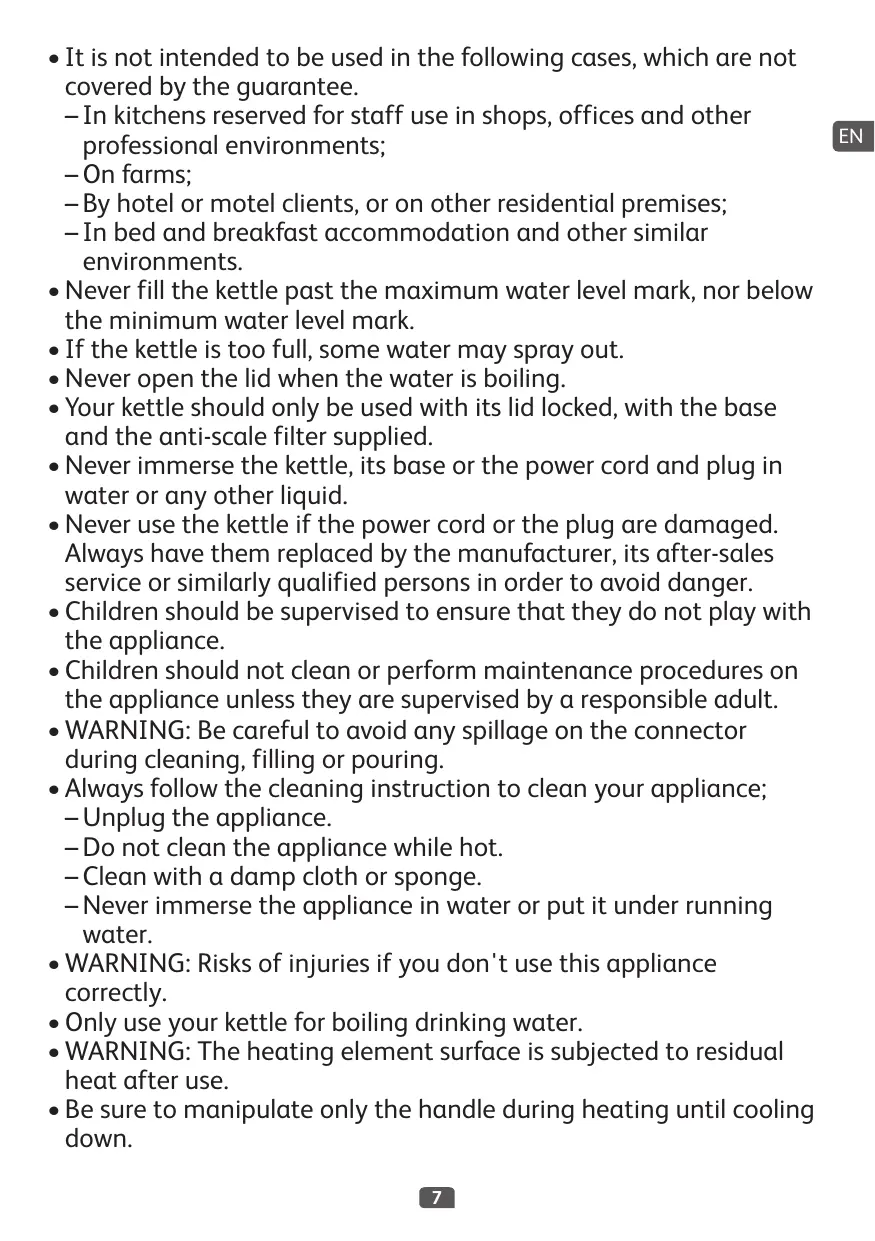

• It is not intended to be used in the following cases, which are not covered by the guarantee.

• In kitchens reserved for staff use in shops, offices and other professional environments;

• On farms;
• By hotel or motel clients, or on other residential premises;

• In bed and breakfast accommodation and other similar environments.

• Never fill the kettle past the maximum water level mark, nor below the minimum water level mark.

• If the kettle is too full, some water may spray out.
• Never open the lid when the water is boiling.
• Your kettle should only be used with its lid locked, with the base and the anti-scale filter supplied.
• Never immerse the kettle, its base or the power cord and plug in water or any other liquid.
• Never use the kettle if the power cord or the plug are damaged. Always have them replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid danger.
• Children should be supervised to ensure that they do not play with the appliance.
• Children should not clean or perform maintenance procedures on the appliance unless they are supervised by a responsible adult.
• WARNING: Be careful to avoid any spillage on the connector during cleaning, filling or pouring.
• Always follow the cleaning instruction to clean your appliance;
• Unplug the appliance.
• Do not clean the appliance while hot.
• Clean with a damp cloth or sponge.
• Never immerse the appliance in water or put it under running water.
• WARNING: Risks of injuries if you don't use this appliance correctly.
• Only use your kettle for boiling drinking water.
• WARNING: The heating element surface is subjected to residual heat after use.

• Be sure to manipulate only the handle during heating until cooling down.

• Your appliance is intended for domestic use inside the home only at an altitude below 4000m .

• For your safety, this appliance meets applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food articles, Environment, etc.).
• Only plug the appliance into an earthed mains outlet. Check that the voltage indicated on the rating plate of the appliance corresponds to that of your electrical installation.
• Any connection error will invalidate your guarantee.
• The guarantee does not cover kettles that fail to operate or operate badly due to a failure to descale the appliance regularly.
• Do not let the power cord hang where children may reach it.
• Never disconnect the plug by pulling on the power cord.
• Any intervention other than normal cleaning and maintenance by the customer must be performed by an Approved Service Centre.
• All appliances are subject to strict quality control procedures. These include actual usage tests on randomly selected appliances, which would explain any traces of use.
• Never use scouring pads for cleaning purposes.
• To remove the scale filter, remove the kettle from its base and leave it to cool down. Do not remove the filter when the appliance is filled with hot water.
• Do not use any method to descale the kettle other than that recommended.
• Keep the kettle and its power cord away from any source of heat, from any wet or slippery surface and away from sharp edges.
• Never use the appliance in a bathroom or close to a water source.
• Never use the kettle when your hands or feet are wet.
• Always unplug the power cord immediately if you observe any anomaly during operation.
• Never pull on the power cord to remove it from the wall socket.
• Always remain vigilant when the appliance is on, and in particular be careful of the steam coming out of the spout which is very hot.
• Never leave the power cord hanging from a table top or kitchen counter to avoid any danger of it falling to the floor.
• Never touch the filter or the lid when the water is boiling.
• Also be careful as the body of stainless steel kettles becomes very hot during operation. Only touch the handle of the kettle.
• Never move the kettle when it is in operation.
• Protect the appliance from damp and freezing conditions.
  Always use the filter during heating cycles.
• Never heat the kettle when it is empty.
• Place the kettle and its power cord well to the back of the work surface.
• The guarantee covers manufacturing defects and domestic use only. Any breakage or damage resulting from a failure to comply with these instructions for use is not covered by the guarantee.

BEFORE USING FOR THE FIRST TIME

1. Remove all of the various packaging, stickers or accessories from both the inside and outside of the kettle.
2. Adjust the length of the cord by winding it under the base. Wedge the cord into the notch. (fig 1) Throw away the water from the first two/three uses as it may contain dust. Rinse the kettle and the filter separately.

1. TO OPEN THE LID, ACCORDING TO THE MODEL

• Hinged lid: press if necessary on the locking system and pull backwards. (fig 2)
• Assisted opening lid: press on the locking system and the lid lifts automatically. (fig 3 / fig 3.1)
• Automatic opening lid: press the button at the top of the handle. (fig 4)
• Lockable lid: turn the lid to the left to unlock it and lift it. (fig 5)
  To close the lid, press it down firmly or turn it to the right in the case of the lockable lid.
• Removable lid : do not use your kettle without its lid. In case the lid is lost or broken, please contact your after-sales service center. (fig 5.1)

2. PLACE THE BASE ON A FLAT, STABLE, HEAT-RESISTANT SURFACE AWAY FROM WATER SPLASHES AND ANY SOURCES OF HEAT.

• Kettle is only to be used with the stand provided.

3. FILL THE KETTLE WITH THE DESIRED AMOUNT OF WATER. (fig 6)

• You can fill it through the spout, which ensures better maintenance of the filter.(according to the model)
• Never fill the kettle when it is on its base.
• Do not fill it above the maximum level, or below the minimum level. If the kettle is too full, boiling water may spill out.
• Do not use without water.
• Check that the lid is closed properly before use.

4. POSITION THE KETTLE ON ITS BASE. PLUG IT INTO THE MAINS SOCKET.

5. FOR KETTLES THAT FEATURE A TEMPERATURE SWITCH

Select the temperature according to your needs:

Position for boiling water or position for the ideal temperature for drinking immediately. (fig 7)

6. TO START THE KETTLE

Press the on/off button positioned on the top or the bottom of the handle according to the model. (fig 8)

7. FOR KETTLES THAT FEATURE A TEMPERATURE SWITCH

if you move quickly from position to position after heating the water, the kettle has to reinitialise. If you think that this is taking a long time, you can add cold water to speed up the start of heating.

8. THE KETTLE MAY HAVE AN INTERNAL LIGHT, DEPENDING ON MODEL

9. THE KETTLE WILL SWITCH OFF AUTOMATICALLY

as soon as the water reaches boiling point or the chosen temperature. You can stop it manually, before removing it from its base to pour the water. Depending on the model, the interior light and the indicator light will go out when the water reaches boiling point. Make sure that the on/off button is in the off position after boiling and that the kettle has switched off before removing it from its base.

• Do not leave water in the kettle after use as this quickens the formation of scale.

CLEANING AND MAINTENANCE

CLEANING YOUR KETTLE

Unplug it.

Let it cool down and clean it with a damp sponge.

• Never immerse the kettle, its base, the cord or the electric plug in water: the electrical connections or the switch must not come into contact with water.
• Do not use scouring pads.

CLEANING THE FILTER (ACCORDING TO THE MODEL) (fig 9)

The removable filter consists of a mesh to retain the particles of scale and prevent them falling

into your cup when pouring. This filter neither treats nor removes the hardness of the water. It thus conserves all the qualities of the water. With very hard water, the filter can clog very quickly (10 to 15 uses). It is important to clean it regularly. If it is wet, put it under a running tap, if dry, then brush it gently. Sometimes the scale will not detach itself; it will then need descaling.

DE-SCALING

De-scale regularly, preferably at least once a month or more frequently if your water is very hard.

To de-scale your kettle:

• Using white vinegar:

• Fill the kettle with 12 of vinegar,

• Leave to stand for 1 hour without heating.

Using citric acid:

-Boil 1 / 2 Iof water,
- Add 25g of citric acid and leave to stand for 15min .

• Using a de-scaler specifically for plastic kettles: follow the manufacturer's instructions.
• Empty your kettle and rinse 5 or 6 times. Repeat if necessary.

To de-scale your filter (according to model):

Soak the filter in white vinegar or diluted citric acid.

• Never use a de-scaling method other than that recommended.

IN THE EVENT OF PROBLEMS

THERE IS NO EVIDENT DAMAGE TO YOUR KETTLE

• The kettle does not work or stops before coming to the boil

• Check that your kettle is properly connected.

• The kettle has been switched on without water or an accumulation of scale has caused the overheat cut-out to operate: allow the kettle to cool and fill it with water. Descale first if scale has accumulated.

Switch it on: the kettle should start working again after about 15 minutes.

• The water tastes of plastic:

Generally, this happens when the kettle is new, discard the water from the first few boilings. If the problem persists, fill the kettle to maximum and add two teaspoons of bicarbonate of soda. Bring to the boil and discard the water. Rinse out the kettle.

IF YOUR KETTLE HAS BEEN DROPPED, IF IT LEAKS OR IF THERE IS VISIBLE DAMAGE TO THE POWER CORD, THE PLUG OR THE BASE OF THE KETTLE

Return your kettle to your After-Sales Service Centre, only they are authorised to carry out repairs. See the guarantee conditions and list of centres in the booklet supplied with your kettle. The type and serial number are shown on the bottom of your kettle. This guarantee covers manufacturing defects and domestic use only. Any breakage or damage resulting from failure to comply with the instructions for use is not covered by the guarantee.

• The manufacturer reserves the right to modify the characteristics or components of its kettles at any time in the interests of the consumer.
• Do not use the kettle. No attempt must be made to dismantle the kettle or its safety devices.
• If the supply cord is damaged, it must be replaced by the manufacturer, its after-sales service centre or a similarly qualified person, in order to avoid any danger.

PREVENTION OF DOMESTIC ACCIDENTS

For a child, a burn or scald, even if slight, can sometimes be serious.

As they grow up, teach your children to beware of hot liquids to be found in the kitchen. Position the kettle and its supply cord well to the rear of the work surface, out of the reach of children. If an accident does occur, run cold water over the scald immediately and call a doctor if necessary.

• In order to avoid any accident: do not carry your child or baby at the same time as drinking or carrying a hot drink.

ENVIRONMENTAL PROTECTION

① Your appliance contains many recoverable or recyclable materials.
Take it to a local, civic waste collection point.
