PG6070 - Multifunction mower REMINGTON - Free user manual and instructions

Product type	Multi-function trimmer (shaver and trimmer)
Brand	Remington
Model	PG6070
Use	Face only (facial hair)
Power supply	Mains (cord) via 100-240 V adapter
Adapter voltage	100-240 V, auto-adjusting
Shaving head	Pivoting, 3 flexible individual heads
Hair reservoir	Yes, removable
Retractable trimmer	Yes, with release button
On/off button	Slider
Protective cap	Included
Cleaning brush	Included
Cleaning	After each use, brush the inner and outer blades
Trimmer lubrication	Every 6 months with sewing machine oil
Safety	Do not use in water or near bathtub/shower/sink; unplug before cleaning
Storage temperature	0°C to 32°C
Domestic use	Yes, exclusively
Supplied accessories	Adapter, cleaning brush, protective cap
Repairability	Spare parts available via consumer service (replacement cord)
Recycling	Electronic device, do not dispose of with household waste

Frequently Asked Questions - PG6070 REMINGTON

How long does it take to get used to the new shaver?

It is recommended to use the shaver daily for four weeks so that your beard and skin become accustomed to the new shaving system.

Can I use the shaver cordlessly?

No, this model (PG6070) operates only when plugged into mains via the supplied adapter.

How to clean the blades?

Unplug the device, open the shaving head by pressing the release button, remove the shaving unit, separate the inner blade, brush the inner and outer blades, then reassemble.

Can the trimmer be used for hair?

No, the device is designed only for facial hair, not for head hair.

How to use the retractable trimmer?

Slide the release button to release the trimmer, hold it at a right angle against the skin, and make short movements.

What to do if the power cord is damaged?

Do not use the device. Contact Remington consumer service to obtain a replacement cord. Replacement must be carried out by a qualified professional.

Can I use the device in the shower?

No, the device is not waterproof. Do not use it near a bathtub, shower, or sink, and do not immerse it in water.

How to lubricate the trimmer?

Every six months, apply a drop of sewing machine oil to the trimmer teeth.

Is the shaver suitable for all electrical voltages?

Yes, the adapter automatically adjusts to any mains voltage between 100 V and 240 V.

Where can I find the model number?

The model number of your shaver is printed in the top right corner of the rating plate, accessible by opening the retractable trimmer or on the packaging.

USER MANUAL PG6070 REMINGTON

Thank you for buying your new Remington® product. Please read these instructions carefully and keep them safe. Remove all packaging before use.

IMPORTANT SAFETY INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE, OR INJURY TO PERSONS:

1 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.
2 Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by Remington.
3 Do not use this product if it is not working correctly, if it has been dropped or damaged, or dropped in water.
4 An appliance should never be left unattended when plugged into a power outlet, except when charging.
5 Keep the power plug and cord away from heated surfaces.
6 Make sure the power plug and cord do not get wet.
7 Do not plug or unplug the appliance with wet hands.
8 Do not use the product with a damaged cord. A replacement can be obtained via our International Service Centres.
9 Do not twist or kink the cable, or wrap it round the appliance.
10 Store the product at a temperature between 0^ and 32^ .
11 Do not use attachments other than those we supply.
12 The appliance, including its cord, must not be used, played with, cleaned or maintained by persons under eight years old and should at all times be kept out of their reach.
13 Do not immerse the appliance in liquid; do not use it near water in a bath-tub, basin or other vessel; and don't use it outdoors.
14 Never operate this shaver if it has a damaged cord or plug, if it is not working correctly, if it has been dropped or damaged, or dropped into water. If the supply cord or plug of this shaver is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. It cannot be repaired.
15 For use on facial hair only. Not intended for shaving the hair on your head.
16 For household use only.
WARNING: Keep the appliance dry.

10

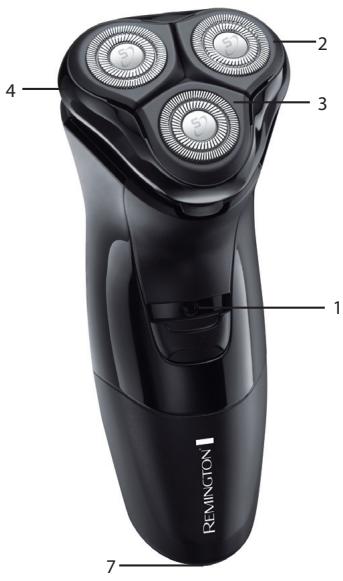

KEY FEATURES

1 On/off switch
3 Individual flexing heads
5 Detail trimmer
7 Power port
9 Cleaning brush (not shown)

2 Pivoting head and cutter assembly
4 Hairpocket
6 Trimmer release button
8 Adaptor
10 Head guard

GETTING STARTED

It is recommended that you use your new shaver daily for up to four weeks to allow time for your beard and skin to become accustomed to the new shaving system.

To confirm the model number of your shaver, please refer to the packaging or open the trimmer where the model number is printed in the upper right corner of the rating information.

The shaver automatically adjusts to a mains voltage between 100V and 240V.

INSTRUCTIONS FOR USE

SHAVING

Note: PR1230 shaver is for corded use only.
1 Connect the shaver to the adaptor and then to the mains.
3 Slide the power switch to turn on.
3 Stretch the skin with your free hand so the hairs stand upright.
4 Only apply light pressure on the shaving head while shaving (pressing too hard can damage the heads and make them vulnerable to breakage).
5 Use short, circular strokes.

TRIMMING

6 Slide the trimmer button to release the detail trimmer.
7 Hold the trimmer at a right angle to your skin.
8 Place the trimmer at desired trim line for a quick, easy, professional trim.
9 To retract the trimmer, push down until it locks into position.

Tips for best results

• Ensure your skin is dry. Always hold the shaver at right angles to the skin so that all three heads are touching the skin with equal pressure.
• Use moderate to slow stroking movements. The use of short circular motions in stubborn areas may obtain a closer shave, especially along the neck and chin line.
  DO NOT press hard against the skin in order to avoid damage to the rotary heads.

Care for your appliance to ensure a long lasting performance. We recommend you clean your product after each use.

CLEANING CAUTIONS

• Ensure the appliance is switched off and unplugged from the mains before cleaning.
• Open the shaver head by pressing the release button on the front of the shaver (Fig. A) and flipping open the head away from the body of the shaver (Fig. B).
• Hold the cutter assembly so that the blue cutter is facing towards you. Slide the inner cutter carrier away from the blue cutter to release it from the assembly (Fig. C).
  Pull the inner cutter carrier away from the inner cutters (Fig. D).
  Thoroughly brush hairs from the inner and outer cutters.
• Place the inner cutter carrier back into position and lock into place (Fig. E-F).
• Align the spring hinge into the slot at the back of the hair pocket and press into place. Snap the head assembly closed.

CLEANING THE TRIMMER

• Lubricate the teeth of the trimmer every six months with a drop of sewing machine oil.

ENVIRONMENTAL PROTECTION

To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with this symbol must not be disposed of with unsorted municipal waste, but recovered, reused or recycled.

For further information on recycling see www.remington-europe.com

UW APPARAAT VERZORGEN

aJyI JzI yI (b) aI I aI aI aI aI aI

(K-J kill) dIklal bgal, g jilall a jil 1

J

aii

gall jbjll gall yll aal, ayll slal

ppl jll lgljll jll jll jll jll jll jll

jll jll jll jll jll jll jll jll jll jll

12

e 151 152 153 a 154 a 155 a 156

clally laii jia xiall aisla 70 clll o

JbIeJIJI, Jusll

73479 Ellwangen, Germany.

I3rotobuteb: Spectrum Brands Shenzhen Ltd./CneKtpm BpəHc

UeHbUxKeHb IToT, KTuT aIy Varta Consumer Batteries GmbH & Co. KGaA, AInbΦpei

Kpynn 1tpacce 9,3JIbBaHren,73479,epMaHHa

Remington® is a Registered Trade Mark of Spectrum Brands, Inc.,

or one of its subsidiaries

VARTA Consumer Batteries GmbH & Co. KGaA, Alfred-Krupp-Str. 9, 73479 Ellwangen,

Germany

www.remington-europe.com

© 2013 SBI
