Product type	Epilator
Power supply	Rechargeable via 100-240 V adapter
Runtime	40 minutes cordless
Charging time	1 hour
Epilation head	Rotating discs
Shaving head	Yes, removable
Trimming comb	3 mm
Mini precision epilator	Yes, with AA batteries (non-rechargeable)
Lighted tweezers	Yes, with built-in light
Included accessories	Active massaging hair straightener, Skin Stretcher, sensitive area reducer, cleaning brush, storage pouch
Use	On dry or wet skin, waterproof
Speeds	2 speeds
Overheat protection	Yes
Overcharge protection	Yes
Travel lock	Yes
Cleaning	Rinse under running water
Maximum noise level	77 dB(A)
Epilation head replacement	After 1 to 2 years depending on use
Warranty	International (see leaflet)

Frequently Asked Questions - HP6523/20 PHILIPS

Why won't my epilator turn on?

Check that the outlet used to charge the epilator is powered (in a bathroom, turn on the light). If the batteries are empty, recharge the epilator for 1 hour. Make sure the travel lock is not activated: press and hold the on/off button for 3 seconds until the speed indicators flash white twice.

What to do if the epilator stops suddenly and the indicators flash red?

This may be due to overheat protection or overcharge protection. If the speed and charge indicators flash red for 30 seconds, let the device cool down then turn it back on. If only the speed indicators flash red for 5 seconds, the rotating discs are blocked: gently turn them with your thumb to clear the obstruction.

How to clean the epilation head?

After each use, turn off the device, remove the attachment and the epilation head. Remove hairs with the included cleaning brush, then rinse all parts under running water while turning them. Shake off excess water and let dry completely before reassembling.

Can I use the epilator in the shower?

Yes, this epilator is waterproof. It can be used in the bath or shower, but only cordless (unplugged). For epilation on wet skin, you can use your usual shower gel.

How long does charging take?

Full charge takes about 1 hour. The charging indicator flashes white during charging and becomes solid white for 20 minutes once complete, then turns off. The runtime is up to 40 minutes.

How to activate the travel lock?

Press and hold the on/off button for 3 seconds until the speed indicators flash white twice. To deactivate, repeat the same action or plug the adapter into the mains.

What to do if my skin is irritated after epilation?

Mild redness or irritation is normal, especially during the first uses. They usually disappear quickly. To avoid them, use the device on clean, non-greasy skin, move it gently in the direction opposite to hair growth without pressing too hard. Apply a moisturizing cream after epilation.

How to replace the batteries of the mini precision epilator?

Open the battery compartment cover by pressing the latches. Insert 2 alkaline AA 1.5 V batteries respecting polarity. To close, first insert the bottom of the cover then press the top until it clicks.

Can I use the epilator while plugged into the mains?

No, the epilator can only be used cordless. You can charge it while plugged in, but to use it, unplug it.

How to replace the epilation head?

If you use the epilation head twice a week or more, it is recommended to replace it after 1 to 2 years or if damaged. Remove the old head by pressing the release button, then attach the new one by pressing until it clicks. Use genuine Philips parts.

USER MANUAL HP6523/20 PHILIPS

Always here to help you

Register your product and get support at

www.philips.com/welcome

HP6583

HP6581

ENGLISH 4

DANSK 21

DEUTsCH 38

EAAHNIKA 56

ESPANOL 75

SUOMI 93

FRANÇAIS 110

ITALIANO 128

NEDERLANDS 146

NORSK 164

PORTUGUES 182

PORTUGUES DO BRASIL 200

SVENSKA 218

TURKCE 235

267

283

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/ welcome.

Important

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

• Keep the adapter dry.
• If you charge the epilator in the bathroom, do not use an extension cord.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Always unplug the appliance before you clean it under the tap.
• Do not insert metal-containing material into the socket on the epilator to avoid short circuiting.
• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

Caution

• Never use water hotter than 40^ C to rinse the appliance. It is strongly recommended to rinse the appliance with cold water to prevent bacterial growth.

• Only use this appliance for its intended purpose as shown in the user manual.

• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

• Make sure the socket is live when you charge the appliance. The electricity supply to sockets in bathrooms may be cut off when the light is turned off.
• For hygienic reasons, the appliance should only be used by one person.
• To prevent damage and injuries, keep operating appliances (with or without attachment) away from scalp hair; face, eyebrows, eyelashes, clothes, threads, cords, brushes, etc.
• Do not use the appliance on irritated skin or skin with varicose veins, rashes, spots, moles (with hairs) or wounds without consulting your doctor first. People with a reduced immune response or people who suffer from diabetes mellitus, haemophilia or immunodeficiency should also consult their doctor first.
• Your skin may become a little red and irritated the first few times you use an epilator. This phenomenon is absolutely normal and quickly disappears. As you epilate more often, your skin gets used to epilation, skin irritation decreases and regrowth becomes thinner and softer. If the irritation has not disappeared within three days, we advise you to consult a doctor.
• Do not use any exfoliation brush immediately after epilation, as this may intensify possible skin irritation caused by the epilator.
• Do not use bath or shower oils when you epilate under wet conditions, as this may cause serious skin irritation.
• Charge, use and store the epilator at a temperature between 10^ C and 30^ C .
• If your epilator is equipped with a light for optimal epilation, do not look directly into the light to avoid being dazzled by it.
• Do not use the epilating head of the epilator without one of the epilation caps.
• Fully charge the epilator every 3 to 4 months, even if you do not use the epilator for a longer time.

• If your epilator comes with tweezers, always replace the batteries of the tweezers with batteries of the original type.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure electromagnetic fields.

General

• This epilator is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the epilator can therefore only be used without cord.
• The appliance is suitable for mains voltages ranging from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.
  Maximum noise level: Lc = 77dB(A)

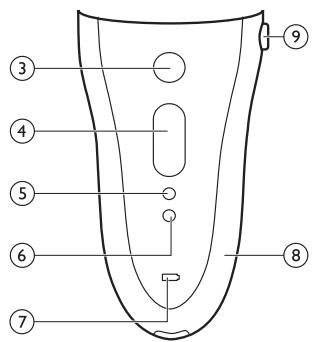

General description (Fig. 3)

1 Epilating discs
2 Epilating head
3 Opti-Light
4 On/off button

• Press once for speed II
• Press twice for speed I
  5 Light for speed I
  6 Light for speed II
  7 Charging light
  8 Epilator
  9 Release button
  10 Trimming comb
  11 Shaving head
  12 Basic epilation cap
  13 Sensitive area cap
  14 Active hair-lift and massage cap
  15 Skin stretcher

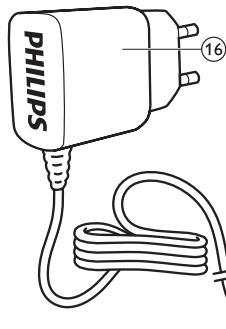

  16 Adapter
  17 Cleaning brush
  18 On/off slide
  19 Precision epilator
  20 Disposable non-rechargeable batteries
  21 Storage case of Smart Tweezers
  22 Smart Tweezers
  23 Light of Smart Tweezers
  24 On/off slide for light
  25 Pouch

Preparing for use

Charging

• Charging the epilator takes approx. 1 hour. When the epilator is fully charged, it has a cordless operating time of up to 40 minutes.
  1 Connect the small plug to the appliance (1) and the mains plug to the wall socket (2).

The charging light pulsates white to indicate that the appliance is charging. When the batteries are fully charged, the charging light lights up white continuously for 20 minutes and then goes out.

Batteries low or empty

• When the batteries are almost empty, the charging light starts to flash red. When this happens, the batteries still contain enough energy for a few minutes of operation.

• When the batteries are completely empty, the appliance stops operating and the charging light lights up red continuously. To charge the epilator, see 'Charging' above.

Using the epilator

Clean the epilating head and charge the appliance fully before you use the appliance for the first time.

Note: You cannot use the appliance while it is connected to the mains.

Epilating tips

• Wet: If you are new to epilation, we advise you to start epilating on wet skin, as water relaxes the skin and makes epilation less painful and gentler. The appliance is waterproof and can be safely used in the shower or bathtub.
• Wet: If you want, you can use your common shower gel or foam.
• Dry: If you epilate dry, epilation is easier just after taking a bath or shower.
• Dry: Make sure your skin is clean and free from grease. Do not apply any cream to your skin before you start to epilate.
• General: We advise you to epilate in the evening, as skin irritation usually disappears overnight.

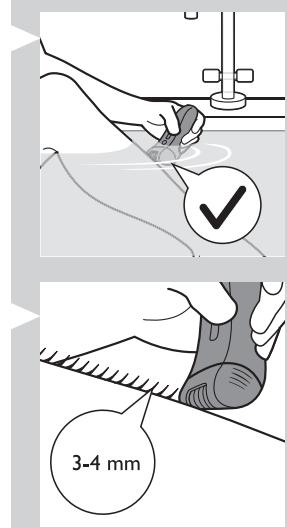

• General: Epilation is easier and more comfortable when the hairs have a length of 3-4 mm. If the hairs are longer, we recommend that you shave first and epilate the shorter regrowing hairs after 1 or 2 weeks. Alternatively, you can trim the hairs to 3-4 mm.
• General: Use the skin stretcher to keep the skin tight on your arms or upper legs. The skin stretcher helps to reduce the pain while epilating.

Epilating the legs with the epilator

• If you already have some experience with epilation, you can simply use the epilating head with the basic epilation cap.
• If your hairs lie flat on your skin, we advise you to use the active hair-lift and massage cap. This cap not only lifts up the hairs but its active massaging roller also minimises the pulling sensation of epilation.

Note: Remove the basic epilation cap by pressing its both sides (1) before you attach another cap (2) or the skin stretcher.

1 Put any cap on the epilating head.

Press the on/off button once to switch on the appliance.

The appliance starts to operate at speed II, which is the most efficient speed for epilating.

Note: If you want to use speed I, press the on/off button a second time.

Note: Speed I is suitable for areas with little hair growth and for hard-to-reach areas, such as knees and ankles.

3 If you are not using the skin stretcher, stretch the skin with your free hand to make the hairs stand upright (1). Place the epilating head at an angle of 90^ onto the skin with the on/off button pointing in the direction in which you are going to move the appliance (2).

Note: If you are using the skin stretcher you do not need to stretch your skin anymore. The skin stretcher also ensures that you keep the appliance on your skin at the right angle. Make sure that the skin stretcher is in contact with your skin as shown in the figure.

4 Slowly move the appliance over the skin against the direction of the hair growth while pressing it lightly.

Tip: To relax the skin, we advise you to apply a moisturising cream immediately or a few hours after epilation. For the underarms, use a mild deodorant without alcohol.

Shaving the underarms and bikini line

Use the shaving head to shave sensitive areas, such as the underarms and the bikini line.

Note: To get the best shaving results, use the shaving head on a dry skin. If you want to use the shaving head in the bath or shower, we advise you to use your common shower gel for a more gentle shave.

1 Press the release button (1) and remove the epilating head from the epilator (2).

Note: You can remove the shaving head in the same way.

2 Put the shaving head on the appliance and press it until it snaps home.

3 Switch on the appliance.

4 Place the shaving head at an angle of 90^ onto your skin with the on/off button pointing in the direction in which you are going to move the appliance.
5 Slowly move the appliance against the direction of hair growth.

Note: Make sure that the shaving head is always fully in contact with the skin.

6 Shave your bikini line as shown in the figure. Stretch the skin with your free hand and move the appliance in different directions.

7 Shave your underarms as shown in the figure. Move the appliance in different directions and raise your arm to stretch the skin.

Note: When you use shaving foam or gel, clean the shaving head during and after each use with water to ensure optimum performance.

8 When you have finished shaving, switch off the appliance and clean the shaving head according to the instructions in chapter 'Cleaning and maintenance'.
9 Put the trimming comb on the shaving head when you store the appliance.

Trimming with the comb

Use the shaving head with the comb attached to trim your hairs in the bikini line to a length of 3mm . You can also use the comb to pretrim long hairs (longer than 10mm ) on the underarms or legs.

1 Press the release button (1) and remove the epilating head from the epilator (2).

2 Put the shaving head on the appliance and press it until it snaps home.

3 Put the comb on the shaving head.
4 Follow steps 3 to 8 in section 'Shaving the underarms and bikini line'.

Overheat protection

This function helps to prevent overheating of the appliance.

Note:To avoid overheating of the appliance, do not press it too hard onto your skin. The appliance works best when you move it over your skin without excessive pressure.

If the overheat protection is activated, the appliance switches off automatically and the charging light and the speed lights flash red for 30 seconds.

You can deactivate the overheat protection by letting the appliance cool down and then switch it on again.

Note: If the charging light flashes red again, the appliance has not yet cooled down completely.

Overload protection

If you press the epilating head onto your skin too hard or when the epilating discs of the epilating head get blocked (e.g. by clothes), the appliance switches off automatically and the speed lights flash red for 5 seconds.

1 Turn the epilating discs with your thumb until you can remove whatever blocks the epilating discs.

Using the precision epilator

Inserting/changing the batteries

1 Remove the lid of the battery compartment by pressing the snap hooks.

2 Insert 2 AA 1.5V alkaline batteries into the battery compartment.

Note: Make sure the + and - poles of the batteries point in the direction indicated at the bottom of the battery compartment.

Note: New batteries have an operating time of up to 40 minutes.

3 To close the battery compartment, first insert the bottom part of the lid into the rim of the compartment (1) and then press the top part of the lid home until it locks with a snap (2).

Removing the batteries

1 If you want to remove the batteries, open the lid of the battery compartment, see step 1 in section 'Inserting/changing the batteries' above.
Take out the first battery.

3 Turn the appliance around, so that the open part of the battery compartment is facing the floor. Hold your hand under the opening and shake the appliance until the second battery falls out.

Note: When you put down the appliance, place it in such a way that the on/off slide is facing the floor to prevent the appliance from rolling away.

Epilating with the precision epilator

Do not use this appliance to epilate eyebrows or eyelashes.

Do not use this appliance to remove hairs that grow out of moles.

• Use the precision epilator to epilate the underarms, the bikini line and hard-to-reach areas, wet or dry.

1 Thoroughly clean the area to be epilated. Remove any residues of deodorant, cream etc.
Switch on the appliance.
3 Place the epilating head at an angle of 90^ onto the skin with the on/off slide pointing in the direction in which you are going to move the appliance.
4 Slowly move the appliance over the skin, against the direction of the hair growth.
Epilate your bikini line as shown in the figure. Stretch the skin with your free hand and move the appliance in different directions to catch all hairs.
6 Epilate your underarms as shown in the figure. Raise your arms to stretch the skin and move the appliance in different directions to catch all hairs.

Tip: If you want to use the precision epilator in the bath or shower, we advise you to use a small amount of your common shower gel for better gliding.

Using the Smart Tweezers

Your epilator comes with Smart Tweezers with integrated light for easy removal of facial hair, such as eyebrow hairs. The Smart Tweezers are protected by a case with integrated mirror which allows you to depilate wherever and whenever you want. The Smart Tweezers are supplied ready for use with 3 button batteries in the battery compartment.

Using the Smart Tweezers

Do not use the Smart Tweezers to remove hairs that grow out of moles.

Do not point the light of the Smart Tweezers directly at your or somebody else's eyes.

1 Use an eye pencil to mark the desired shape of your eyebrows.

2 Switch on the light by sliding the on/off button.

3 Remove any hairs outside the marked shape. Always pull out the hair in the direction of hair growth.

Replacing the batteries

1 Open the battery and light compartment by turning the bottom anticlockwise with a coin.
2 Remove the old button batteries.

• Keep the button batteries out of the reach of children and pets.
• Button batteries present a potential choking hazard.

3 Insert the new button batteries with the negative side pointing forward into the battery and light compartment.

Note:The Smart Tweezers work on three alkaline button batteries, type L736H or AG3 (dia. 7.8 × 3.4 ~mm ).

4 Screw the bottom back onto the battery and light compartment by turning it clockwise with a coin.

Cleaning and maintenance

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Always keep the adapter dry. Never rinse it under the tap or immerse it in water. If necessary, clean the adapter with the cleaning brush or a dry cloth.

Cleaning the epilator and attachments

Clean the epilating head after each wet use to ensure optimum performance.

Always switch off the appliance before you clean it.

1 Switch off the appliance.
2 Remove the cap from the epilating head.
3 Press the release button (1) and remove the epilating head from the appliance (2).

Note: Never try to detach the epilating discs from the epilating head.

4 Remove loose hairs with the cleaning brush.
5 Rinse all parts (epilator, epilating head, caps and skin stretcher) under a lukewarm tap while turning them.

6 Shake excess water off the parts and let them dry.
Note: For hygienic reasons, make sure all parts are dry before you reassemble the appliance.
7 To reattach the epilating head, place it on the appliance and press it onto the appliance until it snaps home.

Cleaning the shaving head and the comb

1 Remove the comb, if attached, by pulling it off the shaving head.

Press the release button (1) and remove the shaving head from the appliance (2).
3 Remove the shaving unit from the shaving head.

4 Rinse the shaving unit, the shaving head and the comb under a lukewarm tap while turning them.

5 Shake the shaving unit, the shaving head and the comb firmly and let them dry.
Note: Do not exert any pressure on the shaving unit to avoid damage.
6 Reattach the shaving unit to the shaving head.

Note: Make sure all parts are dry before you place them back on the appliance.

Tip: Rub a drop of sewing machine oil onto the shaving unit twice a year to extend the lifetime of the cutting element.

Cleaning the precision epilator

1 Clean the precision epilator regularly by removing loose hairs with the cleaning brush.

Do not switch on the appliance while brushing.

2 Rinse the precision epilator under the tap.

3 Shake excess water off the precision epilator and let it dry.

Note: To make cleaning easier, the epilating head can also be detached by pulling it off the appliance.

Storage

• Store the appliances and the accessories in the pouch.
• Put the comb on the shaving head to prevent damage.

Note: Make sure that all parts are dry when you store them.

Travel lock

The epilator has an integrated travel lock which prevents the appliance from accidentally being switched on during travel.

1 To activate the travel lock, press and hold the on/off button for 3 seconds until the speed lights flash white 2 times.
The epilator starts running and stops immediately when the travel lock activates.

2 To deactivate the travel lock, press and hold the on/off button for 3 seconds until the speed lights flash white 2 times.

Note:You can also insert the appliance plug into the inlet socket and the adapter into a wall socket to deactivate the travel lock.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

Epilating head

If you use the epilating head two or more times a week, we advise you to replace the epilating head after two years or when it is damaged.

Recycling

• This symbol on a product means that the product is covered by European Directive 2012/19/EU.

• This symbol means that the product contains a built-in rechargeable battery covered by European Directive 2006/66/EC which cannot be disposed of with normal household waste. We strongly advise you to take your product to an official collection point or a Philips service centre to have a professional remove the rechargeable battery.
• Inform yourself about the local separate collection system for electrical and electronic products and rechargeable batteries. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. Correct disposal of old products and rechargeable batteries helps prevent negative consequences for the environment and human health.

Removing the rechargeable battery

Note: We strongly advise you to have a professional remove the rechargeable battery.

Only remove the rechargeable battery when you discard the appliance.
Make sure the battery is completely empty when you remove it.

1 Check if there are any screws in the back or front of the appliance. If so, remove them.
2 Remove the back and/or front panel of the appliance with a screwdriver. If necessary, also remove additional screws and/or parts until you see the printed circuit board with the rechargeable battery.
3 If necessary, cut the wires to separate the printed circuit board and the rechargeable battery from the appliance.

Removing the disposable battery

To remove the disposable batteries, see the appropriate section in the user manual.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

Cutting units are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliances. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.

Problem	Possible cause	Solution
The epilator does not work.	The socket used to charge the epilator does not work.	Make sure the socket you use to charge the epilator is live. The charging light goes on to indicate that the epilator is charging. If you connect the epilator to a socket in a bathroom cabinet, you may need to switch on the light in the bathroom to make sure the socket is live.
	The rechargeable batteries are empty.	When the charging light lights up red continuously, the batteries are empty and you need to charge the epilator for approx. 1 hour. Note:You have to charge the epilator fully before first use.
	The travel lock is active.	To deactivate the travel lock, press and hold the on/off button for 3 seconds until the speed lights flash white 2 times. You can also connect the epilator to the mains with the adapter to deactivate the travel lock.
During use, the epilator becomes hot and suddenly stops operating. Then the speed lights and the charging light flash red for 30 seconds.	The overheat protection has been activated.	The epilator is equipped with integrated overhead protection, which prevents the epilator from becoming too hot. If the overheat protection is activated, the appliance switches off automatically. Then the speed lights and the charging light flash red for 30 seconds. To reset the overheat protection, let the epilator cool down and then switch it on again. To avoid overheating of the epilator, do not press the epilator too hard onto your skin.
During use, the epilator suddenly stops operating. Then the speed lights flash red for 5 seconds.	The overload protection has been activated.	If you press the epilating head too hard onto your skin or when the rotating discs of the epilating head get blocked (for instance because a piece of clothing has got stuck between the epilating discs), the epilator switches off automatically. Then the speed lights flash red for 5 seconds. Turn the epilating discs with your thumb until you can remove whatever is blocking the epilating discs. Then switch on the epilator again.
My skin is irritated after shaving or trimming.	You move the shaver (with or without trimming comb) in the wrong direction or you press too hard.	Slight skin irritation like red skin may occur. This is normal. To avoid irritated skin, make sure the shaving head (with or without trimming comb) is always in full contact with the skin and that you gently move the appliance against the direction of hair growth.
		Do not apply too much pressure during shaving and trimming, as this may cause skin irritation.
		Check if the shaving head or the trimming comb is broken. Always replace damaged or broken parts with original Philips parts.
The precision epilator does not work.	The disposable batteries are empty or have been inserted incorrectly.	Replace the batteries or insert them correctly (see chapter 'Using the precision epilator').
The precision epilator is operating, but its performance is poor.	After 40 minutes, the disposable batteries are almost empty and no longer have enough power to guarantee good performance.	Insert new batteries (see chapter 'Using the precision epilator'). Only use disposable non-rechargeable AA 1.5V alkaline batteries.

Introduction

1 Pinsettilvyt
2 Epilogue
3 Opti-light-valo
4 Virtapainike

Commanded accessoires

Colocar/substituir as pilhas

www.philips.com/support

a#da 1

ilwslg

Jg w o Jg w o g y w y jlll all ool cui aia iia u w w w

#

auiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuuiuui uuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuu uu

jgl julu jlau

www.shop.philips.com/ www.shop.philips.com/

gssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss

#

oluiu ydlwuslbo joo nJy Jgss 00s 2012/19/EU

doluiu uusuy ciu d cwl uysj y slu d lsl u w u 2006/66/EC
gulao sla dlj uilo j uil gai g u y u ygl ayu12006/66/EC
cls jylo y sgl gauw j u y u ygl ayuog aaggl .psi Philips
g y bgyo d y d lsl y gay p uu u y l p jx kcsbl
g y du ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu ydu y

jLdJgJyJyJyJy

1. 有二不等实数根,即 ( mx - 1) ( x + 2) = 0 无解; 当 x > 1 时方程有两个不等实数根

J 1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

joc jcb 11111111111111111111111111111111111

g

a dai jaoj yduo aag sglgo yjaoj l piojg j g

L

J 1

i j k l m n o p q r s t

S1

a 1 a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Ssly sss ss sss sss sss sss sss sss sss

jla

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

siaiae aieae 1

sglgulil gog sglgo l u yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yuuy u

iaisga slsgoj ulaiul

aaiiui iij joo ooiy jwgl slls jd slalagolol jiaaa

.

yjglai jiai ylaaiuol iaigg g

aaii i 1

1

Jy Jy go I ayai aiaaa .aiae 1 y aia aiaie 1 y aiaie

auiuui

LjJyJy

1

R

cLg s0sSsIyIyIyIyIyIyIyIy

S_ AOB = 12 · OB · AB = 12 × 2t × 5

gssssssssssssssssssssssssssssssssssssssssssssssssssssssss

Joue wu Ioo

aaii aiai iaii j 1000000000000000000000000000000000000000

j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

0g g pS, cuiyjguyu aiaiayly ayg y. dss jao slol 1, yogw cyol ayd 5

.

1

gols/2w ggs

a

a 8

JgJg0

p 1

s s s s s s s s s s s s s s s s s s s s s s s

Jg Jago pao laa

j1 p55 o aaggi aaiw w gjj jplas jgjjgjjj jalggsj:

a 15 aaii i dai jiu juyu yu yu yu yu

J 1

4yjyj yjgyj/

1

A 1AA 1,0

111 111 111 111 111 111 111 111 111 111 111 111 111 111 1

aaii 100000000000000000000000000000000000000

w g aJl j (1) abao aJy Jy sIaai y bJy ay bao y Sly .(r) uo oJ Lg y SjLg Lg yu

45 150

1

1

JJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJ

a 9

aIbJyFJy

jusipguljygljwogol/suggsosuSsOlaallCuWJdAolgy

S OBC = S COD + S_ BOC

jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI jI J I J I J I J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J JJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJ

gjslal jolaiw l gwl

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

1

d 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

olaiwslgdyalwus

jL

JwJwJwSbolgjvslaldsolla. solsila Jgcbcluugd jwJw

Jd Jai a j j j j j j j j j j j j j j j

.（）a y 1 g a d Lw g Sg (1) dS u a 1

jLw JbJdWuJUw uWg Wgws Jy aJyJz Jz 1. Cua ydu w Jydy jyJz Jz wuyjLxol LqjyQolldcw

aalggsogolssw g joloalgs bajnagdd

jLg

s oioi .j ooi jao jij jui jil jil jil s oio

J 1

joo jy jy jy g y g w y u gols d iu juii jlls lsl o5 lydy aol fia 100 "Jn Jy Jy W y u ygduj y dy yu yu yu yu yu

111 10

y

jLwJolwJgJgSgJgJdaiowJdJdSgJgJd

aaii i 1000000000000000000000000000000000000000000

d: jgj gai laeauo, wu wo gilbo ngwusdyu cgs e jajxoo laiwjgulj

iJiI Jaiu jgi li

i i 1

Jwlo wswy L Jg 500 aii 14

wos 15

16

17

wgsols/ wgsgws 18

gdd 19

20

21

laigwgo slgwo 22

uaaogseleuo go 23

24

a.s 25

douao

jI Jolalaiawl lJySs Philips a g y Ss wu Ww Lw wu bWbL www.philips.com/welcomcJrJgDw dWu Ww Ww Philips aS Juiu

#

a aas jy ly lgl g wlg ax y dllwjl alaiwlj j ppo cksbl j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

jbs

LjduSisJgul J 1

Jua

Jg 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

blusl

aagglg aalaaal cwl gsswssw aegj j jyssy bcl yd 5 agl j jg .jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jai j jali ydl sial alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal

JHL	Jaizal	aLlulll
Jluiw lle jyssu ybiipill biai g iäxlall wj, cii5 lji lao jiaox .Philips no yiaxlal xylbjxlyaiyssoll g iälllcljxrl
seill all jlg plssil" (joi sybil) suu Jxi liyssg ijlaljball jiuw .("guill	allll yic ayljllbail acjla Jiaziwxl alcx yic Jxi liyssjpi g .cuoi	gaiiell all jlg jay .Jaox
X. ("guill seill all jlg plssil" (joi sybil) aiai cyjllbajy , gillg uill aulex alllg icci g1,o AA aygl ayljblg yosossi .boa aulg aor pssiw	cuoi dao yc yjgo dej Jiaziwxl cij cyljllall yag yae jaydall jlawal aolldal yj .yj clj

aLx aIall aIbIg aegal all aIal all gol al slw al abol, ogyolll

j

glll plaaaal cia aylall eji

puiuall jwulaiol wllgj, alglll aaiy

poulll

gww.philips.com/support aj j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

Jaaiaaall aalll aaaii jie bblx

a

Jell l a 12

gshaljIb2x1Lafu

jie j 100

. 1

aii iie 100000000000000000000000000000000000000000000000000

aallll al1j4 aabii

1

auii iuij pluiu

ally all dlaaui sic jiaai

jolll clo cix jgdljglj

aagjgljll jgllll

jssll 0o lssssg jcbse baj jessll aillj wjj d sSosuill Juswld:abdo

#

aai 1

a1 = 23,a2 = - 43,b1 = 58,b2 = - 34

J

aJyIgWll cIe aag uJgUJgUJ gauu Gooa Jaa JcJauu allJg

jglg r aol jaiuill gla/ jaiyjj jyjayuoy, jaiy jaiy

a a a a a a a a a a a a a a a a a a

. 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

bailg aolll wj jai

aalwJoo aW JbLoo aJy pJ 15j bll Eyy

.（r）jglldn aadoll wj g（1)jlljj

aaaal j no aal al aagjul

algoa jalialljaiall alco cui buiuallg aekkll w gddkll aagab

Lg aag g bailg aball wjg aball wjll clall

aill lss s 2 ss aess sasg s abz s 8

aalw j aall aag yj aolg

j_2 = 1 + 12 + 13 + ·s + 1n + 1

aIbll aJy Jl 111111111111111111111111111 1g21g
bb) AG3 g L736H egill no aigla jj cIb b. tJc aiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaia

aclll alac alzal go daly cogallg aarlll aag y s r g o plawll cjll S 8 .aiiae alac plaxwly

aJallgabittll

Jia aag jilg w g abtill jao g oall aai y
jai lai all
aai all
aai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai

alldolg jewell allj!j4a

JIOXl JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI JxI

jgljzw

jlll jllj 10000000000000000000

(1)jgl jyj yj (1)jyj j

ailll llll! 1000000000000000000000000000000000000000

aill alpa pluow y caiy aal

（aJll aIg aIg gseal allj wgrgall jla）cJgXg

algo jolalljollldoo

aallbdolll plsi

jao gao jgao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao

aill bolll plu

ololl 1000

aJyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIy

gol goll jull jout gol pl

Jzill 1 Jzill j dzy 8dall

g lagjewll swh. oaiyai ci gill jll qbi jil gogall jwll dji y

jai jai

Jyj

plaaa aalw alw wse gwlll clll ygall lll

duo

aalllulbll qjil

aIjIbll aii i .aiJx ilgllg Jlab jglio g liy ayblly

g^ ( x) = - 1x + 2x + 1 = - 1x + 1( 2 - x) ( x + 1) = 0

aallallllglgloiswyslll

glll jaiy 1j gll lio yissx
clolll gaii gll caiyall i jgll lio yssx
jogll yll glblllg i jyew llj jjwl lio jaoiwl

.1

jglauu

J /1j#iill 11000000000000000000000000000000000000000000000000000

8

aull lly bll 100 .Llull gdo go lo sall bs no jull yj

Jg jll jll jll jll .jll g o go lo s b21 no g aill jil

Jiaaiyuiu 1i i jiu uui yjus jiyuiui jiuuiui

dallallll jla pluul

a

cull llb: le bally aylll alal e 1

a|b2ll a> c> 1,0AA

gagall daxl gclalbll (-) aillwgl (+) aggall lbbxg o goo sfo

a1 + a2 + a_3 = 6 ②

.1j000000000000000000000000000000000000

1450 6a jaiuui jiu lae baoaljgl aaii

aalw jle yieill bio

"gall bgs gbsgll aas"pwll gagwglwll A Jr Gogbglwl 8

ailll aigssll no ayalall

jaiill dill iigil gio aia bll iaui

Jsu jupu Jao. auijui iguiu wui ciui diyau de aga jiuui jiaai 2: abdo

.8a aue baaall 0g dya daaie laai

aill aol c gai lalali jall jai wai ayai jll qaiwll no ayai al aols buiu sic

dui r. dai jao 21 gully dc wll cai oao

a 10000000000000000000000000000000000000000000

alai jyssll pl o! syyosx glll yssll aol jaoi: abso

jill Joll no Joll

jai jai aie iic gai aywagayd jayi jy jy bao yai jgull aywai aol oogig laljglll (sio wssll j)jw

algo

1

= 1.2

1450 6jaiw jiaLg jaojgl J aJy

jai jiaiu y

Jusill /jusill jssy j 9- ygj yll jss

aJgJgJdJyJgJgJbJdJzJf

jaiil gao jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia

.3aill 20 aal lwl pll wol llo g sfo : abdo

y 1

.

yjg aliss cai jgl s. Jlll g no go loa y a

aJll aJl eJll

cll clll aessll wj gabj .gglil gl jllll plaxiwyl ngdo Jaeuw ilacbslo

clj jzil jzlal JzaiiJ 529

aill bddd 1 aigjgl jai jaoe o g eai xie

"ddalglddill"dlllg

jll jssic aalw jle yieill bao 9

biolliigill

jaiy1 jiaiill jie jiaol i acjll gaiu pluiu uui ci5 li: abdo

Jgogll gill glblialg jai jw clj glbliall wio1 aepull sgiwo : abdo 1. JdIggl a5y Ito 4.

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

a 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 12

8 1

aill bgs hll a

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

.1

aaiyblw yaaay baxll wj Eji Sao:abdo

Jc jll Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy Jy J yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ yJ y

jlll j1j pluillnolll no jlll

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

aJg aagaa Jbll

eeg 1y jia aai ylll lal n 10n 10n 10n 10n 10n 10n 10n

Lolai aicjia jllbll lioic jaiwuyasXy jll yu wll qagjllg 00 g y uill djjj xu wul ocl "xu"

aill allj! jles plaii

. 100000000000000000000000000000000000000000000000000000000

jaiabci uogy jaiy jayu oal jaiy aui 1000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

(EMF)

aill lai ylll lal gall gall ge aq Philips d j w no j 11 li q bblb .d bliagg

pIlog wll cni g plall aplisswll plo gog .alall pglao liq jelljg
LlWd lllg ,baa ayblll jlejelljlg Jao ,nog .gaiill Cbiil
.0sully glz
.1gge 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11
aiot aig glcag 11 11 11 11 11 11 11 11 11 11 11
.0g re no jai axiog
(200) Lw W = LC :clogall gio wo

(rJ5) pall aagll

jull j 1

jw 2

ai a ai 的最小值为 k .

aJ/1uuiiJJ 4

Joljoll joll gogjll 14

JlJ 15

16

17

Juaill gla/Jeauill giaoll 18

. aollll jcbll bag gasu ujub cjlssl pluul

g g 0) d aill d aal l c al l aal g g g

dLwIg bgyllg wlllgl gogolg golglg gglg c

.ellj log, wyalg

g j sJl l aabll g jll g Jy dlaal abaiol g jdailall aajll jc jj

LgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg

Jgll gnnn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

gaii aai iaiia jgel g (p alg w)

a a

aIjJlpoJolowwoljgo.ooJIo JcJyoglaia jalall oiae

aee aee gai yg aag yg aag yg aag alj! aac agd ayu jay

aill jll aaiy sill aaii laiia

j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j

.ajlljbjlll

aagto aRg1 1 jyjgljddjgsjg jg jg jg jg jgiwlg j

jill sall alljz aill oll jol allg jol jol allj1j4

ailljllg 10
