Product type	Tube guitar amplifier
Brand	EVH
Model	5150III
Channels	3 channels (clean, medium gain, high gain) with individual settings
Output power	100 W RMS into 4, 8 or 16 Ω
Output impedance	4 Ω / 8 Ω / 16 Ω (selectable)
Tubes	4 x 6L6WXT (output), 8 x 12AX7 (preamp)
Input	1 x 6.35 mm Input jack (instrument)
Speaker outputs	2 x 6.35 mm speaker jacks
Effects loop	Send/Return 6.35 mm jacks
Preamp Out	1 x 6.35 mm jack
Included footswitch	Yes, 4 switches (channels 1/2/3 + effects loop activation)
Power supply	100-240 V, 50/60 Hz depending on version; power consumption 533 W
Fuses	100V: F7A L 250V; 120V: F6A L 250V; 220-240V: F3A L 250V
Dimensions (H x W x D)	26 x 75.5 x 29.3 cm
Weight	25 kg
Recommended speaker cabinet	5150-III 412 straight cabinet (16 Ω)
Maintenance and cleaning	Unplug before cleaning; use a slightly damp cloth; wait until fully dry before reconnecting.
Safety	Do not expose to humidity or rain; rear ventilation space min. 15.25 cm; use only on recommended support; repair by qualified personnel.
Spare parts and repairability	Tubes and fuses replaceable; internal repair by qualified personnel only.

Frequently Asked Questions - 5150III EVH

How to connect a guitar to the EVH 5150III amplifier?

Use a high-quality shielded cable and connect it to the INPUT jack on the front of the amplifier. Ensure the amp is in Standby mode or turned off when connecting.

What is the difference between the three channels of the 5150III?

The Channel 1 is a clean channel for pristine sounds. Channel 2 offers medium gain for moderate overdrive sounds. Channel 3 is a high gain channel for intense distortion. Each channel has independent gain, volume, and EQ controls.

How to use the included footswitch with the amplifier?

Connect the footswitch to the FOOTSWITCH jack on the rear of the amp before powering on. The footswitch allows selecting each channel (green, blue, red LEDs) and toggling the effects loop.

Which speaker impedance should I select?

Use the LOAD IMPEDANCE selector on the rear. With a 5150-III 412 cabinet (16 Ω), set to 16 Ω. With two cabinets (each 16 Ω), set to 8 Ω. Never operate the amp without a speaker load.

How to connect an external effect (pedal or rack)?

Use the SEND/RETURN effects loop on the rear. Connect the SEND output to the effect's input, then the effect's output to the RETURN input. The EFFECTS LOOP button on the footswitch activates/deactivates the loop.

What to do if the amplifier does not power on?

Check the power cable and wall outlet. Inspect the rear fuse; if blown, replace it with a fuse of the same rating (see specifications). If the problem persists, contact a qualified technician.

Should I leave the amplifier in Standby mode during breaks?

Yes, Standby keeps the tube filaments powered without high voltage, which extends tube life. Wait 30 seconds in Standby before playing.

How to clean the EVH 5150III amplifier?

Unplug the power cable. Use a slightly damp cloth to wipe the chassis. Wait until the unit is completely dry before reconnecting.

Can I use the amp with a cabinet from another brand?

Yes, provided the cabinet impedance matches one of the settings (4, 8 or 16 Ω). Also ensure the cabinet power handling is at least 100 W RMS.

How to replace the amplifier tubes?

Unplug the amp and remove the back panel. The preamp tubes (12AX7) and output tubes (6L6WXT) are mounted in sockets. Handle with care; use identical replacement tubes. For safety, have a qualified technician perform the replacement.

USER MANUAL 5150III EVH

IMPORTANT SAFETY INSTRUCTIONS

This symbol warns the user of dangerous voltage levels localized within the enclosure.

This symbol advises the user to read all accompanying literature for safe operation of the unit.

Read, retain, and follow all instructions. Heed all warnings.
Only connect the power supply cord to an earth grounded AC receptacle in accordance with the voltage and frequency ratings listed under INPUT POWER on the rear panel of this product.
WARNING: To prevent damage, fire or shock hazard, do not expose this unit to rain or moisture.
Unplug the power supply cord before cleaning the unit exterior (use a damp cloth only). Wait until the unit is completely dry before reconnecting it to power.
Maintain at least 6 inches (15.25cm) of unobstructed air space behind the unit to allow for proper ventilation and cooling of the unit.
This product should be located away from heat sources such as radiators, heat registers, or other products that produce heat.
This product may be equipped with a polarized plug (one blade wider than the other). This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician to replace your obsolete outlet. Do not defeat the safety purpose of this plug.
Protect the power supply cord from being pinched or abraded.
This product should only be used with a cart or stand that is recommended by the manufacturer.
The power supply cord of this product should be unplugged from the outlet when left unused for a long period of time, or during electrical storms.
This product should be serviced by qualified service personnel when: the power supply cord or the plug has been damaged; or objects have fallen, or liquid has been spilled onto the product; or the product has been exposed to rain; or the product does not appear to operate normally or exhibits a marked change in performance; or the product has been dropped, or the enclosure damaged.
Do not drip nor splash liquids, nor place liquid filled containers on the unit.
CAUTION: No user serviceable parts inside, refer servicing to qualified personnel only.
FMIC amplifiers and loudspeaker systems are capable of producing very high sound pressure levels which may cause temporary or permanent hearing damage. Use care when setting and adjusting volume levels during use.
Hazardous voltages may be present within the cabinet even when the power switch is off and the power cord is connected. Therefore, disconnect the power cord from the rear panel power inlet before servicing. The power inlet must remain readily operable.

FCC COMPLIANCE STATEMENT: This equipment has been tested and found to comply with the limits of Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

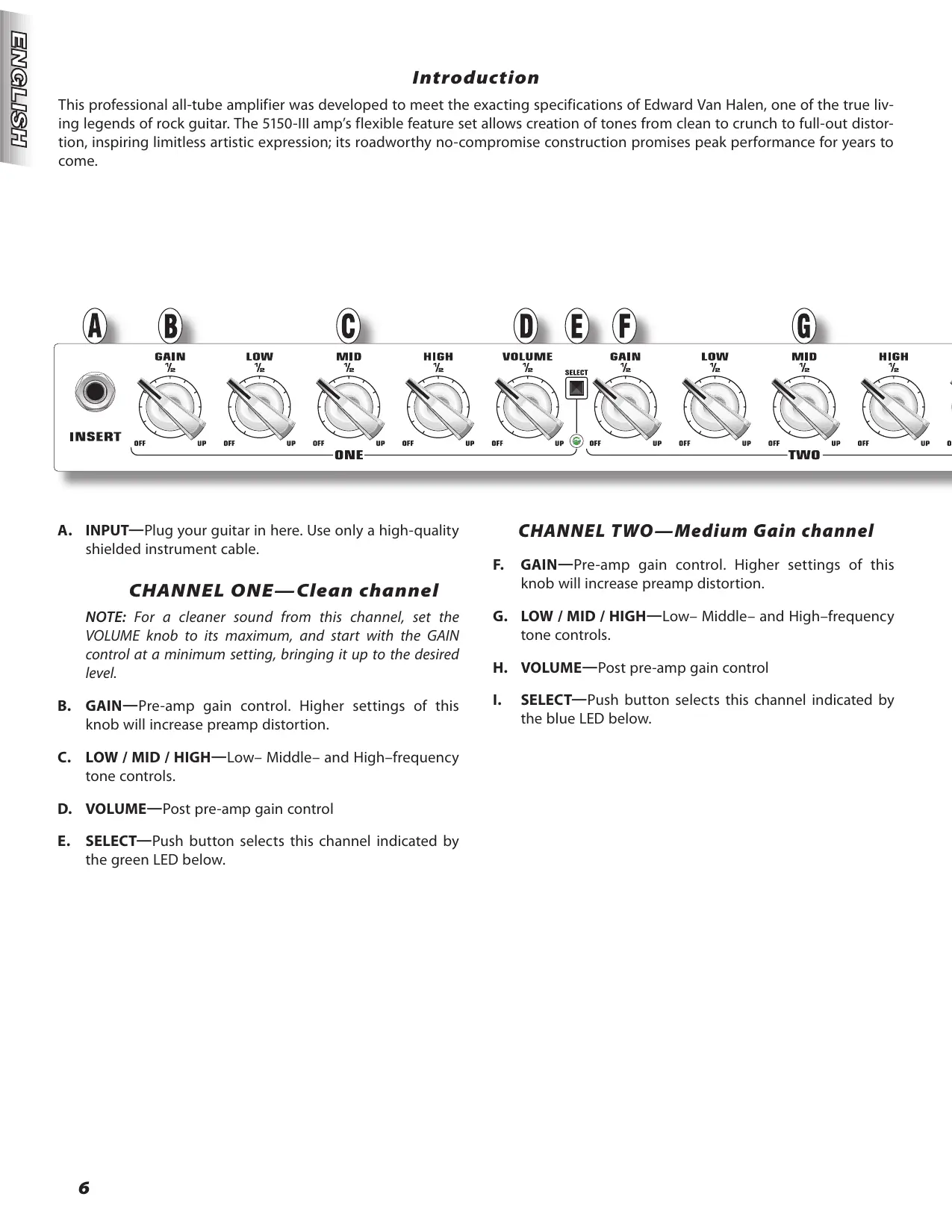

This professional all-tube amplifier was developed to meet the exacting specifications of Edward Van Halen, one of the true living legends of rock guitar. The 5150-III amp's flexible feature set allows creation of tones from clean to crunch to full-out distortion, inspiring limitless artistic expression; its roadworthy no-compromise construction promises peak performance for years to come.

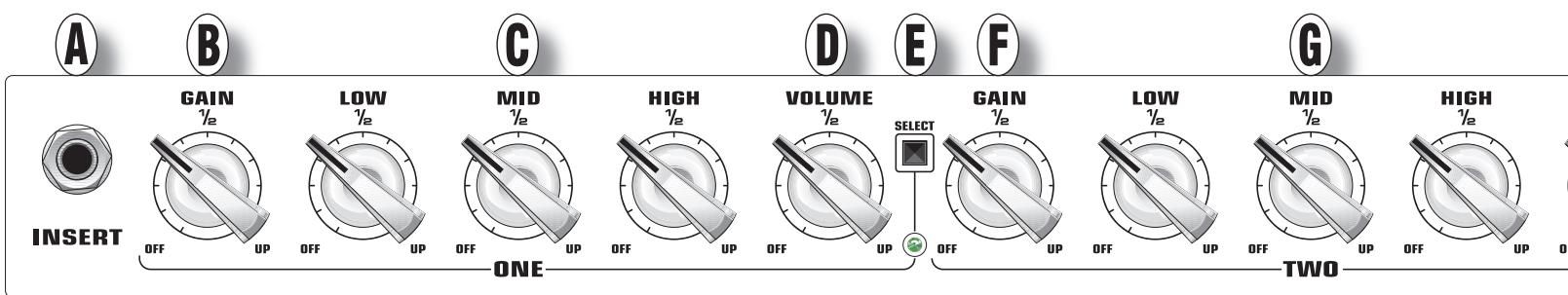

CHANNEL ONE—Clean channel

A. INPUT—Plug your guitar in here. Use only a high-quality shielded instrument cable.
NOTE: For a cleaner sound from this channel, set the VOLUME knob to its maximum, and start with the GAIN control at a minimum setting, bringing it up to the desired level.
B. GAIN—Pre-amp gain control. Higher settings of this knob will increase preamp distortion.
C. LOW / MID / HIGH—Low- Middle- and High-frequency tone controls.
D. VOLUME—Post pre-amp gain control
E. SELECT—Push button selects this channel indicated by the green LED below.

CHANNEL TWO—Medium Gain channel

F. GAIN—Pre-amp gain control. Higher settings of this knob will increase preamp distortion.
G. LOW / MID / HIGH—Low- Middle- and High-frequency tone controls.
H. VOLUME—Post pre-amp gain control
I. SELECT—Push button selects this channel indicated by the blue LED below.

Unique features include:

• Ultra high gain preamp design, custom voiced for maximum harmonic content
  True three channel configuration with dedicated Gain, Volume, EQ, and Presence controls
• Custom heavy-duty footswitch with simplified "step on the channel you want" configuration
• Front-panel metal grill with EVH striped motif
  Color-coded Channel and Footswitch LEDs

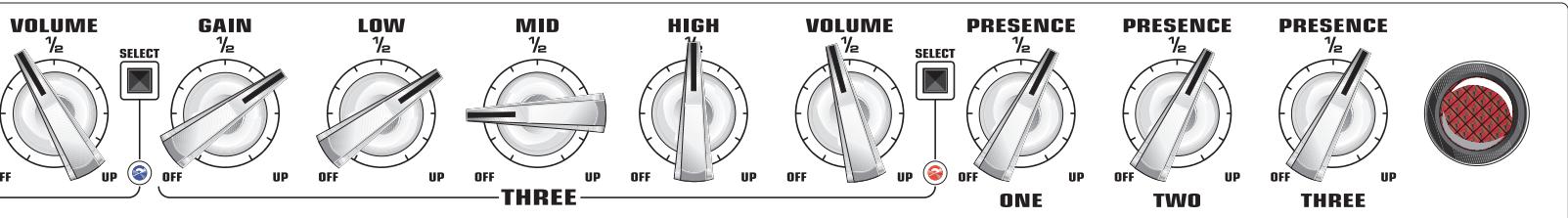

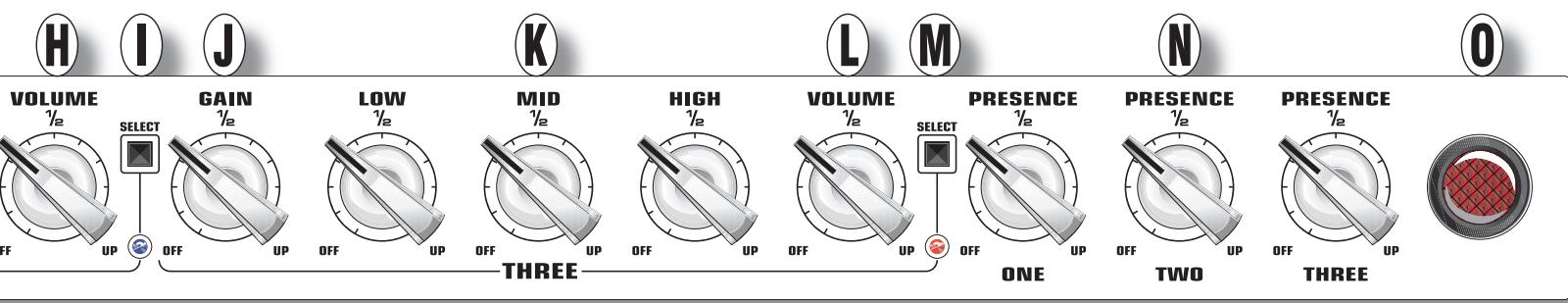

CHANNEL THREE—High Gain channel

J. GAIN—Pre-amp gain control. Higher settings of this knob will increase preamp distortion.
K. LOW / MID / HIGH—Low- Middle- and High-frequency tone controls.
L. VOLUME—Post pre-amp gain control
M. SELECT—Push button selects this channel indicated by the red LED below.

N. PRESENCE—Ultra-high frequency tone control for each of the three channels
O. POWER LAMP—Indicates amplifier is ON when illuminated.

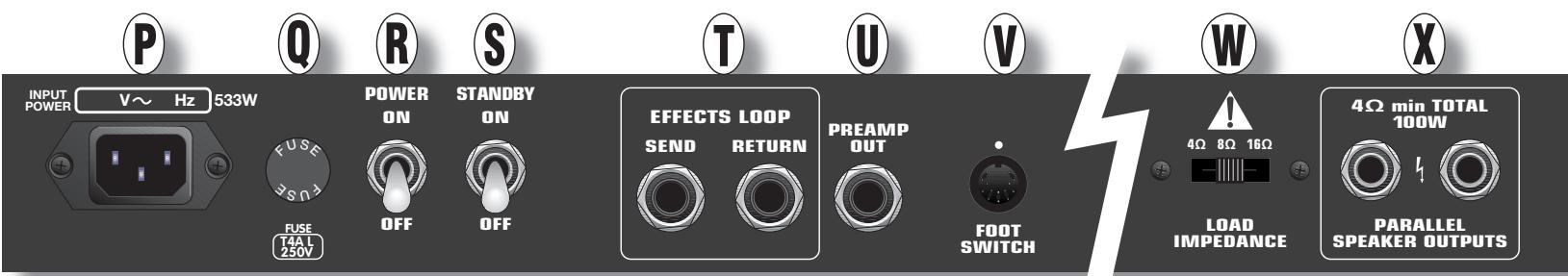

P. POWER INPUT—Connect the included power cord in accordance with the voltage and frequency ratings listed on the rear panel of the amplifier.
Q. FUSE—Replace with same rating only.
R. POWER—Turns amp ON
S. STANDBY—Puts amp in STANDBY mode to keep tubes warm during breaks. Switch OFF when turning amp ON; wait 30 seconds, then turn switch ON. This prolongs tube life.
T. EFFECTS LOOP—Useful for obtaining maximum performance from rack-mount or pedal effects like Reverb, Delay, Chorus, etc. Connect SEND to the input of your effects unit and RETURN to the output.
U. PREAMP OUT—Connect to another amp's EFFECTS RETURN or POWER AMP IN for simultaneous multiple amp use. This output may also be used to send the preamp's signal direct to a mixer.

V. FOOTSWITCH—Connect the cable of the supplied footswitch here (See EVH FOOTSWITCH {Y} next page).
W. LOAD IMPEDANCE—Selects the output impedance of the amp (4, 8 or 16 Ohms) to match the speaker load.

NOTE: The 5150-III 412 speaker enclosure (recommended) has an impedance of 16 Ohms. When using one 5150-III 412 speaker enclosure, set the LOAD IMPEDANCE switch to "16Ω." When using two 5150-III 412 speaker enclosures, set the LOAD IMPEDANCE switch to "8Ω."

X. SPEAKER OUTPUTS—For connection to speaker cabinet(s). When using one speaker cabinet, either jack can be used. Use only a high-quality unshielded speaker cable.

NOTE: A speaker must always be plugged into one of the speaker jacks when the EVH amplifier is "ON" or damage may occur. Switch the amplifier "OFF" or to "STANDBY" while changing speaker connections or impedance settings.

Speaker Configurations are as follows:

SPEAKER JACK		SPEAKER JACK		IMPEDANCE SETTING
16Ω	+	NONE	=	16Ω
16Ω	+	16Ω	=	8Ω
8Ω	+	NONE	=	8Ω
8Ω	+	8Ω	=	4Ω
4Ω	+	NONE	=	4Ω

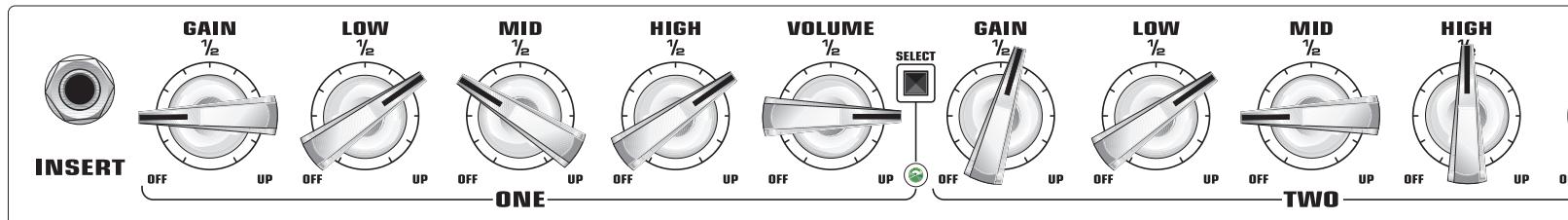

Recommended Settings

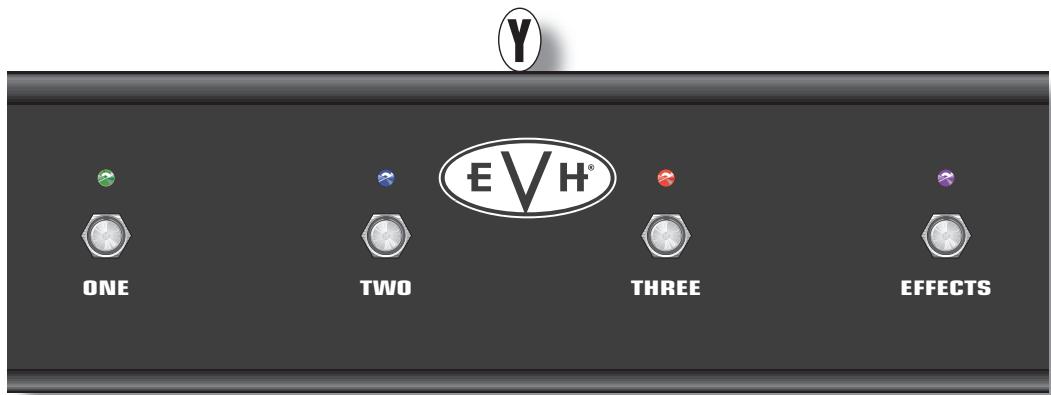

Y. EVH FOOTSWITCH—The footswitch allows easy selection of any of the three channels as well as the effects loop. When illuminated, the Green, Blue, and Red channel LEDs correspond with the channel LEDs on the amplifier's front panel.

Note: The 5150-III footswitch should be connected to the amplifier prior to turning on the POWER. If the footswitch is disconnected or reconnected after power-up, the amplifier may not function correctly.

Specifications

Type:PR 684

Part Numbers: 2251000x00* (120V, 60Hz);

2251001x00* (110V, 60Hz) TW;

2251003x00* (240V, 50Hz) AUS;

2251004x00* (230V, 50Hz) UK;

2251005x00* (220V, 50Hz) ARG;

2251006x00* (230V, 50Hz) EUR;

2251007x00* (100V, 50Hz) JPN;

2251009x00* (220V, 60Hz) ROK

Power Requirement: 533W

Output: 100 Watts RMS into 4, 8, or 16 Ohms

Input Impedance: 1MΩ

Output Impedance: 4 / 8 / 16 (selectable)

Fuses: 100V units, F7A L, 250V;

120V units, F6A L, 250V;

220-240V units, F3A L, 250V;

Footswitch (included): 4-button, one / two / three / effects on-off (070926)

Tube Complement: Four 6L6WXT output tubes, Eight 12AX7 preamp tubes

Weight: 55 lb (25 kg)

Height: 10.25'' (26 cm)

Width: 29.75^ (75.5 cm)

Depth: 11.5^ (29.3 cm)

Recommended Speaker Enclosures:

5150-III 412 Straight Speaker Enclosure, 2252100x00*

*Exterior color code: Black "x" = 0, Ivory "x" = 4

Introducción

*Code couleur (finition): Noir "x" = 0, Ivoire "x" = 4

Introduzione

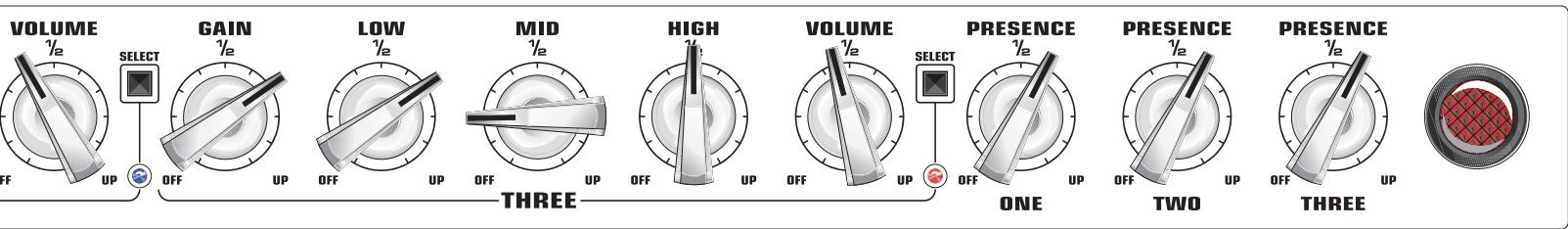

CHANNEL THREE—Canale High Gain

5150-III 412 Straight Speaker Enclosure, 2252100x00*

*Codici colorazione esterna: Nero "x" = 0 ,Avorio "x" = 4

Einleitung

5150-III 412 Straight Speaker Enclosure, 2252100x00*

EVH® and 5150-III™ are trademarks of Edward Van Halen.

Other trademarks are property of their respective owners.

© 2006 FMIC. All rights reserved.
