USER MANUAL EFV716K ELECTROLUX

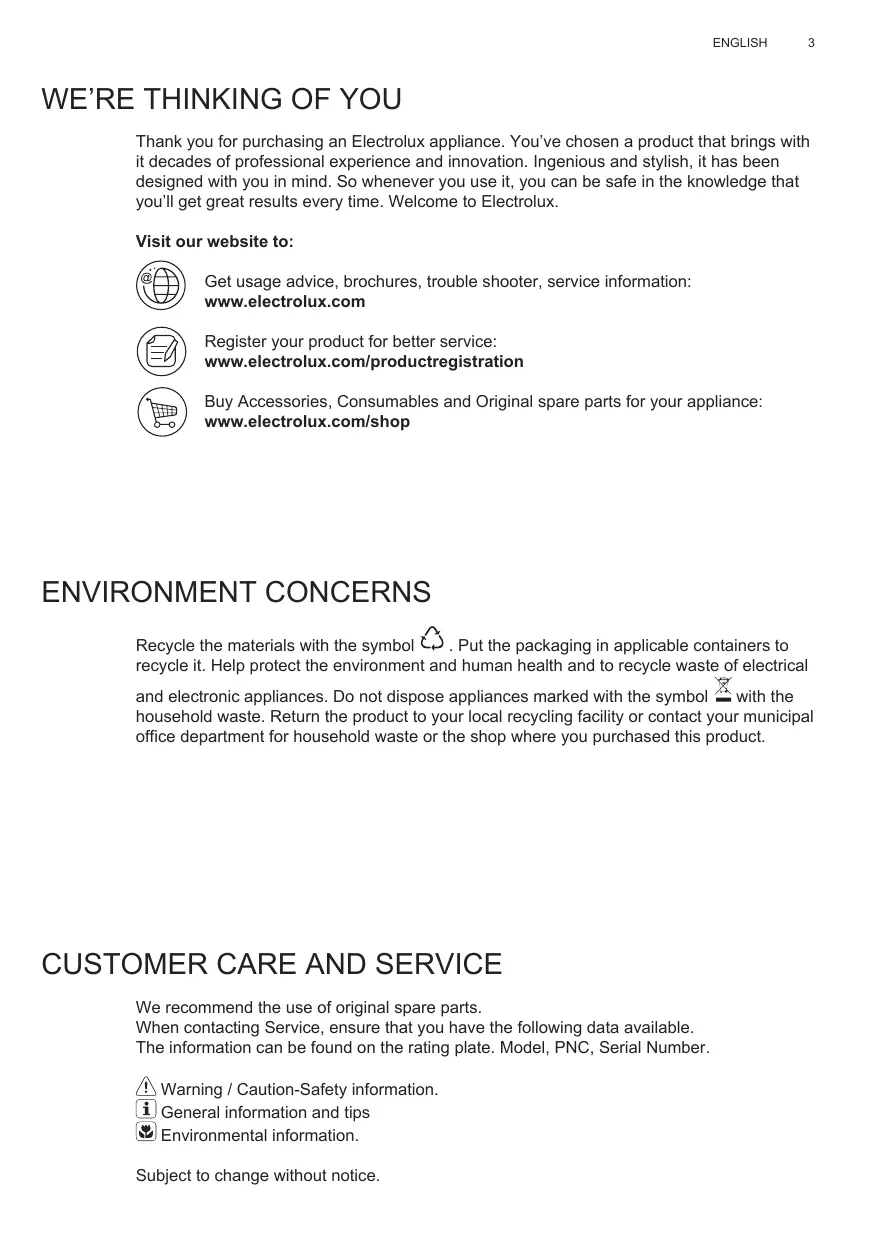

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time. Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

Register your product for better service:

www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol 📊. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol 📊 with the household waste. Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information.

General information and tips

Environmental information.

Subject to change without notice.

1. ⚠️ SAFETY INSTRUCTIONS

Caution! Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

Caution! Do not connect the appliance to the mains until the installation is fully complete. Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves during the maintenance, installation and lighting operations. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating! The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is stalled must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Caution!Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

⚠ Warning!Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

2.USE

The hood serves to aspirate the fumes and vapors resulting from cooking.

The attached installation manual indicates the version to be used depending on the model you have, the suction version with

external evacuation or filtering with internal recirculation.

3.INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

⚠ Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

3.1 Hob ^2 Hood

EFB90981OX - EFL10965OX

The hood is equipped with a function for wireless connection with the cooktop for automatic adjustment of the most suitable speed. Refer to the instruction manual of the cooktop to verify the presence and compatibility of this function.

In the case of first connection to the mains or abrupt disconnection from power supply (blackout), wait 1 minute to allow the hood to restore the connection with the cooktop.

4. MAINTENANCE

⚠️ ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

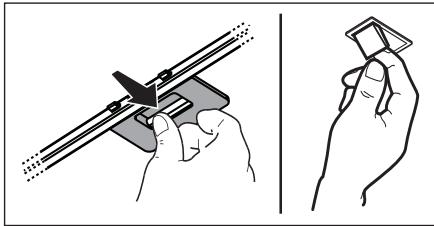

4.1 Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Illustration showing two hand positions: one holding a tool with a triangular ruler, the other holding a square object (no text or symbols present)

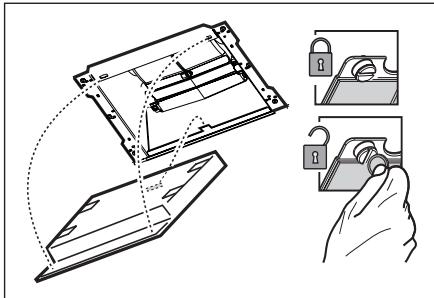

4.2 NON-washable activated charcoal filter - The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths. The charcoal filter may NOT be washed or regenerated.

Diagram illustrating a lock mechanism with labeled components and hand holding a key

5. CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights. Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

The control switches are located on the unit's front panel:

1 Motor ON/OFF button

By pressing the button, the hood starts at speed 1.

Pressing the button (OFF) while the hood is in function turns the latter off.

2 Speed increase button

By pressing the button, the hood starts at speed 1.

Pressing the button (while the hood is on) modifies the motor speed:

Speed 1: the number "1" appears on the display

Speed 2: the number "2" appears on the display

Speed 3: the number "3" appears on the display

High-speed: the number "4" appears (flashing) on the display

The high-speed function is regulated by a timer. The standard time setting is 5', at the end of which the hood adjusts to speed 2.

Press button 2 to deactivate this function before the set time expires; the hood will adjust to speed 1. Press button 1 to turn the hood off.

3 Lights ON/OFF button

4 Speed timer button

5 Display

Speed timer button

Press button 4 to activate the speed timer; the hood turns off once the set time expires. The timer functions in the following way:

• Speed 1 - 20 minutes (the number "1" and a small flashing LED light appear on the display)
• Speed 2 - 15 minutes (the number "2" and a small flashing LED light appear on the display)
• Speed 3 - 10 minutes (the number "3" and a small flashing LED light appear on the display)
• High-speed - 5 minutes (the number "4" and a small flashing LED light appear on the display)

Press button 1 or button 4 to turn the hood off while the speed timer is in function; by pressing button 2, the hood returns to the set speed.

Saturation indicator of the grease filter

After 80 hours of operation, the display shows alternately the set speed and the letter “F”.

Saturation indicator of the charcoal filter

After 320 hours of operation, the display shows alternately the set speed and the letter “C”.

Reset of saturation indicator

In order to reset the saturation indicator, switch on the hood then press and hold button 1 for about 3 seconds.

Perform filter maintenance as recommended in this manual.

In the event that both indicators of filter saturation “F” and “C” start flashing, proceed with the reset twice.

The saturation indicator of the charcoal filter is not normally active and if the hood is used in the recirculation mode, it must be activated manually the first time.

Activation of the charcoal filter saturation indicator:

Turn off the hood and simultaneously press buttons 2 and 3 for 3 seconds.

The letters “F” and “C” will flash on the display for 2 seconds, to indicate successful activation of the saturation indicator of the charcoal filter.

Deactivation of the charcoal filter saturation indicator:

Turn off the hood and simultaneously press the buttons 2 and 3 for 3 seconds. Only letter “F” will flash on the display for 2 seconds, to indicate successful deactivation of the saturation indicator of the charcoal filter.

Temperature Alarm

The hood is equipped with a temperature sensor which activates the motor at speed 3 in case the temperature in the display zone is too high. The alarm condition is indicated by the display with the letter “t” flashing. This condition remains as such until the temperature falls below the alarm threshold. This mode can be quit by pressing key “2”. Every 30" the sensor checks the ambient temperature of the display zone.

5.1 Hob ^2 Hood

EFB90981OX - EFL10965OX

The hood is equipped with a function for wireless connection with the cooktop for automatic adjustment of the most suitable speed. Refer to the instruction manual of the cooktop to verify the presence and compatibility of this function.

In the case of first connection to the mains or abrupt disconnection from power supply (blackout), wait 1 minute to allow the hood to restore the connection with the cooktop.

6. LIGHTING

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

Caution! Do not look directly into the LED light.

For replacement, contact the technical service.

WIR DENKEN AN SIE

www.electrolux.com/productregistration

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

Diagram illustrating a lock mechanism with hand holding a key, showing step-by-step assembly and lock state changes.

5. BEDIENELEMENTE

EFB90981OX - EFL10965OX

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool, the other holding a small object (no text or symbols present)

Diagram illustrating a device lock operation with hand holding a lock and lock switch, showing step-by-step assembly and lock mechanism.

5. COMMANDES

EFB90981OX - EFL10965OX

www.electrolux.com/productregistration

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

4.2 NIET wasbaar koolstofffilter

Diagram illustrating a lock mechanism with labeled components and hand holding a key

5. BEDIENINGSELEMENTEN

EFB90981OX - EFL10965OX

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a triangular ruler, the other holding a square object (no text or symbols present)

Diagram illustrating a folding or locking mechanism with labeled components and hand holding a key

5. MANDOS

EFB90981OX - EFL10965OX

www.electrolux.com/productregistration

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

Diagram illustrating a folding or locking mechanism with labeled parts and hand holding a key

5. COMANDOS

EFB90981OX - EFL10965OX

www.electrolux.com/productregistration

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a triangular ruler, the other holding a square object (no text or symbols present)

Diagram illustrating a door lock mechanism with labeled components and hand holding a lock

5. COMANDI

EFB90981OX - EFL10965OX

WE'RE THINKING OF YOU

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a cutting tool, the other holding a small object (no text or symbols present)

Diagram illustrating a lock mechanism with labeled components and hand holding a key

5. KOMMANDON

EFB90981OX - EFL10965OX

www.electrolux.com/productregistration

EFB90981OX - EFL10965OX

Hetten er utstyrt med en trådløs kobling til koketoppen for automatisk justering av den mest egnede viftehastigheten.

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

4.2 KKE vaskbart aktivt kullfilter

Diagram illustrating a device lock mechanism with labeled components and hand holding a key

5. KONTROLLER

EFB90981OX - EFL10965OX

Hetten er utstyrt med en trådløs kobling til koketoppen for automatisk justering av den mest egnede viftehastigheten.

WE'RE THINKING OF YOU

www.electrolux.com/productregistration

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a cutting tool, the other holding a small object (no text or symbols present)

Diagram illustrating a lock mechanism with labeled components and hand holding a key

5. OHJAIMET

EFB90981OX - EFL10965OX

www.electrolux.com/productregistration

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

Diagram illustrating a device lock operation with hand holding a lock and lock switch, showing step-by-step assembly and lock mechanism.

5. BETJENING

EFB90981OX - EFL10965OX

www.electrolux.com/productregistration

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a cutting tool, the other holding a small object (no text or symbols present)

Diagram illustrating a lock mechanism with labeled components and hand holding a key

EFB90981OX - EFL10965OX

www.electrolux.com/productregistration

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool, the other holding a small object (no text or symbols present)

4.2 MITTEPESTAV aktiivsöefilter

Diagram illustrating a device lock operation with labeled components and hand holding a lock

5. JUHIKUD

EFB90981OX - EFL10965OX

www.electrolux.com/productregistration

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a triangular ruler, the other holding a small object (no text or symbols present)

Diagram illustrating a folding or locking mechanism with labeled parts and hand holding a key

5. VADĪBAS ELEMENTI

EFB90981OX - EFL10965OX

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

4.2 Neplaunamas aktyviosios anglies filtras

Diagram illustrating a device lock operation with labeled components and hand holding a lock

5. VALDYMAS

EFB90981OX - EFL10965OX

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

Diagram illustrating a door lock operation with hand holding a lock and lock switch, showing step-by-step installation and locking mechanism.

EFB90981OX - EFL10965OX

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool, the other holding a small object (no text or symbols present)

Diagram illustrating a folding process of a device with lock and padlock, showing step-by-step assembly and hand holding key.

5. KEZELŐSZERVEK

EFB90981OX - EFL10965OX

www.electrolux.com/productregistration

EFB90981OX - EFL10965OX

Illustration of two hands using a tool to adjust or install a component, showing the process (no text or symbols present)

Diagram illustrating a device lock operation with hand holding a lock and lock switch, showing step-by-step assembly and lock mechanism.

5. PŘÍKAZY

EFB90981OX - EFL10965OX

www.electrolux.com/productregistration

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

Diagram illustrating a door lock mechanism with labeled components and hand holding a lock

5. OVLÁDAČE

EFB90981OX - EFL10965OX

www.electrolux.com/productregistration

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a triangular ruler, the other holding a small object (no text or symbols present)

4.2 Filtru cu carbon activ NElavabil

Diagram illustrating a device lock operation with hand holding a lock and lock switch, showing step-by-step assembly and lock mechanism.

5. COMENZI

EFB90981OX - EFL10965OX

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool, the other holding a small object (no text or symbols present)

Diagram illustrating a folding process of a device with lock and padlock, showing step-by-step assembly and hand holding key.

5. STEROWANIE

EFB90981OX - EFL10965OX

www.electrolux.com/productregistration

Kupovinu dodatne opreme, potrošnog materijala i originalnih rezervnih dijelova za vaš uređaj:

www.electrolux.com/shop

BRIGA ZA OKOLIŠ

Reciklirajte materijale sa simbolom 📊. Ambalažu za recikliranje odložite u prikladne spremnike.

Pomozite u zaštiti okoliša i ljudskog zdravlja, kao i u recikliranju otpada od električnih i elektroničkih uređaja. Uređaje označene simbolom ne bacajte zajedno s kućnim otpadom. Proizvod odnesite na lokalno reciklažno mjesto ili kontaktiraje nadležnu službu.

BRIGA O KUPCIMA I SERVIS

EFB90981OX - EFL10965OX

kuhinjska napa sadrži funkciju bežične (wireless) povezanosti s pločom za kuhanje za automatsko podešavanje najprikladnije brzine. Pogledajte upute za uporabu ploče za kuhanje kako biste provjerili prisutnost i kompatibilnost ove funkcije.

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

4.2 Aktivni karbonski filtar koji se NE može oprati.

Zasićenje karbonskog filtra se pojavljuje poslije manje-više produljene uporabe s obzirom na tip kuhinje i na urednost u čišćenju filtera za uklanjanje masnoće. U svakom slučaju je potrebno zamijeniti kartušu barem svaka četiri mjeseca.

Diagram illustrating a folding or locking process with labeled components and hand holding keys

5. NAREDBI

Napa ima upravljačku ploču s kontrolom brzine isisivanja i kontrolom paljenja svjetla za osvjetljenje površine za kuhanje. Upotrebljavajte veću brzinu u slučaju velikog prisustva pare u kuhinji. Savjetujemo da uključite usisavanje 5 minuta prije nego što počnete s kuhanjem i da ostavite da djeluje nakon što ste završili s kuhanjem za još otprilike 15 minuti. Komande se nalaze na prednjoj ploči aparata:

1 Tipka ON/OFF motora

Pritisnite ovu tipku da biste uključili kuhinjsku napu, bira se brzina(jsnaga) usisa 1.

EFB90981OX - EFL10965OX

kuhinjska napa sadrži funkciju bežične (wireless) povezanosti s pločom za kuhanje za automatsko podešavanje najprikladnije brzine. Pogledajte upute za uporabu ploče za kuhanje kako biste provjerili prisutnost i kompatibilnost ove funkcije.

www.electrolux.com/productregistration

Kupite dodatke, potrošni material in originalne nadomestne dele za vaš aparat:

www.electrolux.com/shop

SKRB ZA VARSTVO OKOLJA

Reciklirajte materiale, ki jih označuje simbol 🚙️. Embalažo odložite v ustrezne zabojnike za reciklažo.

Pomagajte zaščititi okolje in zdravje ljudi ter reciklirati odpadke električnih in elektronskih

EFB90981OX - EFL10965OX

Illustration of two hands using a tool to adjust or install a component, showing a hand holding a small object (no text or symbols present)

4.2 Nepralni filter z aktivnim ogljem

Diagram illustrating a device lock operation with labeled components and hand gesture

5. UPRAVLJALNI GUMBI

EFB90981OX - EFL10965OX

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

Diagram illustrating the step-by-step installation of a device with lock and lock-in, showing hand positioning and assembly steps.

5. XEIPISTHPIA

EFB90981OX - EFL10965OX

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

4.2 Yıkanamayan aktif karbon filtre

Diagram illustrating a door lock operation with hand holding a lock and lock switch, showing step-by-step installation and locking mechanism.

5. KONTROLLER

EFB90981OX - EFL10965OX

www.electrolux.com/productregistration

Купете принадлежности, консумативи и оригинални резервни части за вашия уред:

www.electrolux.com/shop

ОПАЗВАНЕ НА ОКОЛНАТА СРЕДА

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

Diagram illustrating a device lock operation with labeled components and hand holding a lock

5. УПРАВЛЕНИЯ

EFB90981OX - EFL10965OX

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

Diagram illustrating a door lock mechanism with hand holding a key, showing step-by-step assembly and lock state.

EFB90981OX - EFL10965OX

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

Diagram illustrating a device lock operation with labeled components and hand holding a key

5. КОНТРОЛИ

EFB90981OX - EFL10965OX

www.electrolux.com/productregistration

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

Diagram illustrating a device lock operation with hand holding a lock and lock switch, showing step-by-step assembly and lock mechanism.

5. KOMANDIMET

EFB90981OX - EFL10965OX

www.electrolux.com/productregistration

EFB90981OX - EFL10965OX

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

Diagram illustrating the step-by-step installation of a device with lock and lock-in, showing hand positioning and assembly steps.

5. КОМАНДЕ

EFB90981OX - EFL10965OX

EFB90981OX - EFL10965OX

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram illustrating a folding mechanism with lock and padlock components, showing step-by-step assembly and hand interaction.

EFB90981OX - EFL10965OX

www.electrolux.com/productregistration

Repeating pattern of gray geometric shapes on white background, no text or symbols present
