Product Type	TV Stand (cabinet with shelves)
Brand	SANUS
Model	BFAV344
Top shelf capacity	57 kg (125 lb)
Center shelf capacity	23 kg (50 lb)
Bottom shelf capacity	23 kg (50 lb)
Main material	Particle board and tempered glass
Glass shelf	Yes (top shelf)
Main functions	TV stand with shelves for audio/video components
Safety	Anti-tip strap included (ELM701)
Assembly required	Yes, cam screws and bolts provided
Provided parts	Panels, legs, shelves, hardware, protective pads
Care and cleaning	Clean with a soft, dry cloth. Avoid abrasive cleaners
Repairability	Spare parts available from the manufacturer
TV compatibility	Up to 57 kg on top shelf
Dimensions (approx.)	Height: ~60 cm, Width: ~100 cm, Depth: ~40 cm (estimate)
Weight (approx.)	Approximately 25 kg (estimate)

Frequently Asked Questions - BFAV344 SANUS

What is the maximum weight supported by the top shelf of the SANUS BFAV344?

The top shelf can support up to 57 kg (125 lb). The center and bottom shelves support 23 kg (50 lb) each.

Does the SANUS BFAV344 come with an anti-tip strap?

Yes, the stand comes with an anti-tip strap (model ELM701) to attach to the wall to secure the unit.

What tools are needed to assemble the cabinet?

No additional tools are required; hardware (cam screws, bolts, M4 Allen key) is provided. However, a screwdriver may be useful.

Is the top shelf made of glass?

Yes, the top shelf is made of tempered glass. The other shelves are made of particle board.

How to clean the SANUS BFAV344?

Use a soft, dry cloth to dust. Avoid abrasive or liquid cleaners that could damage the finish.

Can I use this stand for a 65-inch TV?

The stand has no screen size restriction, but the TV weight must not exceed 57 kg on the top shelf. Check your TV's weight.

Are the feet adjustable for uneven floors?

The feet are not height-adjustable. It is recommended to place the cabinet on a flat, stable surface.

How to attach the anti-tip strap to the wall?

Attach the strap to the wall using the provided hardware (screws and anchors suitable for the wall type). Attach the other end to the cabinet according to the instructions.

Can the cabinet be disassembled after assembly?

Yes, it is possible to disassemble the cabinet by unscrewing the cam screws and bolts. However, this may weaken the joints if repeated.

Where can I find spare parts for the SANUS BFAV344?

Contact SANUS customer service (via the Milestone AV Technologies website) to order spare parts such as shelves or hardware.

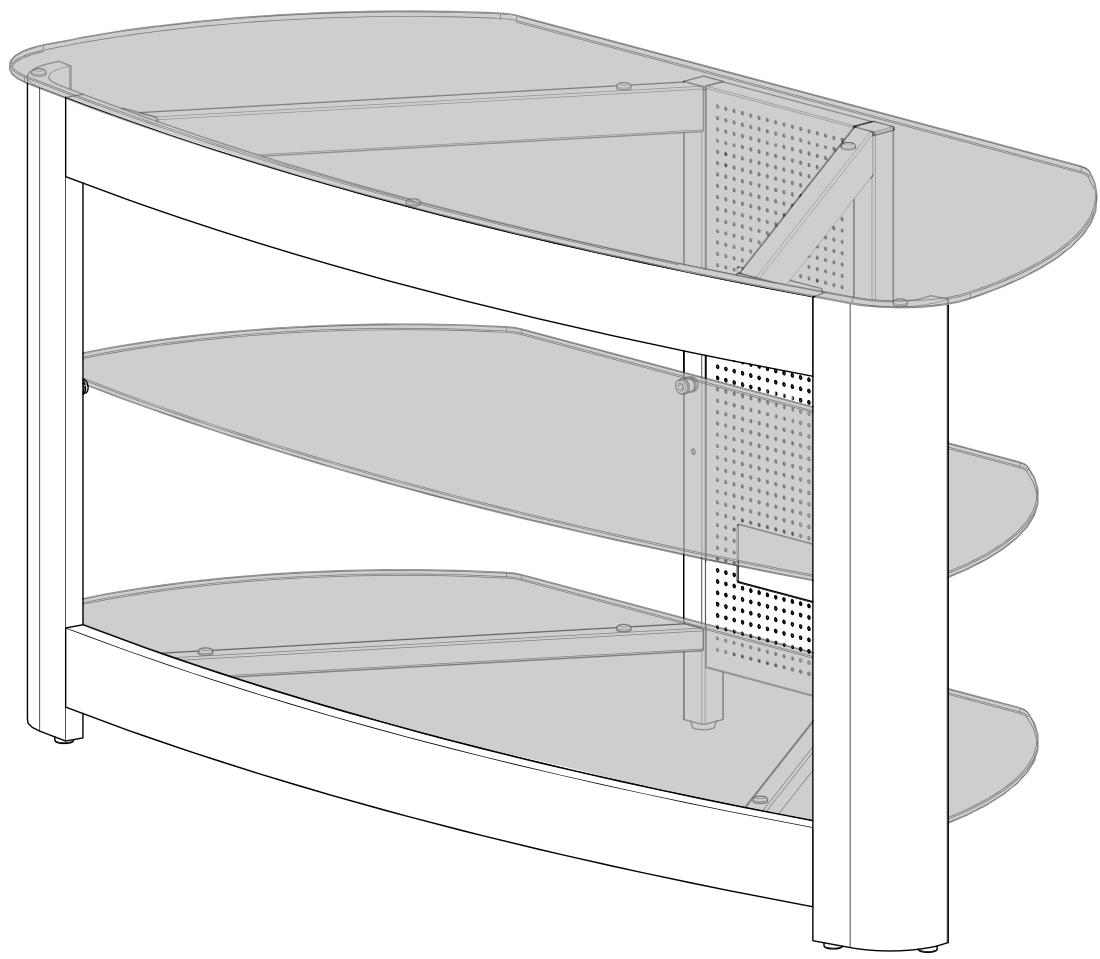

USER MANUAL BFAV344 SANUS

F O U N D A T I O N S

BFAV344

(6901-002082 <01>)

Sanus Systems

2221 Hwy 36 West

Saint Paul, MN 55113 USA

Customer Service

Americas: 800-359-5520 • 651-484-7988 • [e-mail]

Europe, Middle East, and Africa: + 31 40 2324700 • [e-mail]

Asia Pacific: 86 755 8996 9226·[e-mail]

sanus.com

English Tools required	WARNING: This product contains small items that could be a choking hazard.	CAUTION / WARNING	Alternate View
Français Outils nécessaires	Ce produit contient de petites piées qui peuvent représententer un risque d'étoffement.	ATTENTION/ AVERTISSEMENT!	Autre vue
Deutsch Benöttigte Werkzeuge	Dieses Produkt enthält keine Teile, die zum Erstickungstod führen können.	VORSICH/TARNING	Alternative Ansicht
Espanol Herramrientas necessities	Este produit contiene piezas pequeñas que, si fuesen tragadas, podrián producir asfixía.	PRECAUCión /IADVERTENCIA!	Vista ampliada
Portugues Ferramentas necessities	Este produit contém itens��enos que podem offérer risco de sufocamento.	ATENÇÃO / AVISO!	Exibição alternada
Nederland Benodigd gereedschap	Dit product bevatkleine onderden die stikkingsgevaar können opleveren.	VOORZICHTIG/ WAARSCHUUNG	Alternatieve weergave
Italiano Strumenti richiesti	Questo prodotto comprende elementi di piccole dimensioni che potrebbero causare il suffocamento.	PRECAUZIONE/AVVERTENZA	Visualizzazione alternativa
Éssentúka Ánaitaúüeva εργαλεία	To prooióu autó περλaúpáfvéi μíkrá avtikeímeva πou μπopéíν αποτeλéovu κíbùvó πιyμóu.	ΠΟΞOXH/ΠΡΕΙΟΙΟΗ	Evaλλaktíkí προβολí
Norsk Nødvendig verktøy	Dette produitet ineholder små elementer som kan utgjørde kvelefare.	FORSIKTIG/ADVARSEL	Alternativ visning
Dansk Redskaber, der skal bruges	Dette produit indeholder små dele, som kan forårsage kvænlning, hvis de bliver sleptg.	FORSIGTIG/ADVARSEL	Skift visning
Svenska Verktyg som behövs	Den härprodukten innehäller små delar som kan utgóra kvävningsrisk.	FÖRSKTIGHT/VARNING	Annan vinkel
Руsský Heóxbodímte INCTPUMENTB	Видени escb'melkné detali, kotorpbe MOγt CTaMb prinunnoi yduşeneia原則 nonadamn B dBixaetlbne lynt.	ПЕДУПЕЖДЕНЕ/ ПЕДУПЕЖDEHNE	Альтетаитовий вid
polski Wymagane naręźdia	ProduktZWiera male elementy, któ moga grozić zakrzuszeniem.	UWAGA / OSTRZEŽENIE	Widok z内在nej strony
Česky Požadované nastroje	Tento výrobek obsahuje malé součastky, které hroži rizikem zaduzeni.	POZOR / VAROVÁNÍ	Alternativni zobrazeni
Türkce Gereken Aletler	Bu ürün, boğulma tehlikesine neden olabilecek küçuk parçalar icçermektedir.	DİKKAT / UYARI	Diğer Görünüm
日本語 必要的スル	本製品のは-small部品が付属くださいます、窒息の危険性お願いいたします。	注意/警告	別の角度からの圖
中文	需要的工具	此产品包含可能带来窒息危险的小组件。	小心/警告	交换视图

SANUS

CAUTION:

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL BEFORE USING THIS PRODUCT

Specifications

Weight capacities:

Top shelf:57 kg (125 lbs)
Middle shelf: 23kg (50 lbs)
Bottom shelf: 23kg (50 lbs)

CAUTION: Avoid potential personal injuries and property damage!

Do not use this product for any purpose not explicitly specified by manufacturer.
If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact manufacturer Customer Service or call a qualified contractor.
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

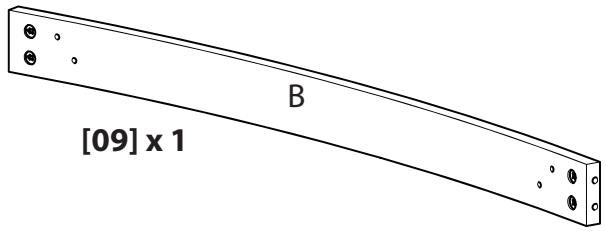

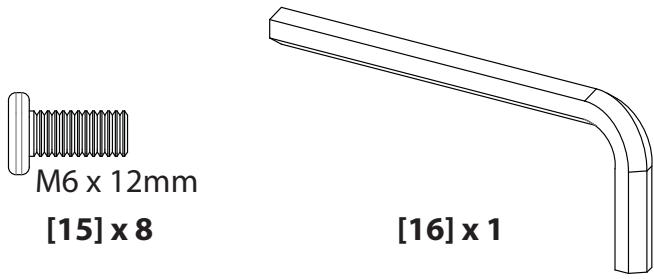

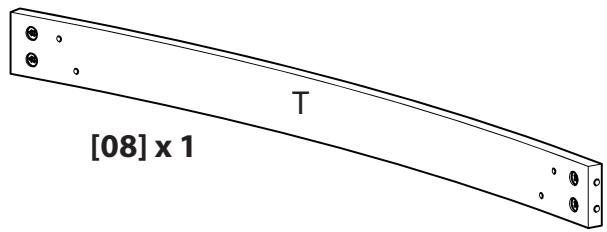

Supplied Parts and Hardware.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used

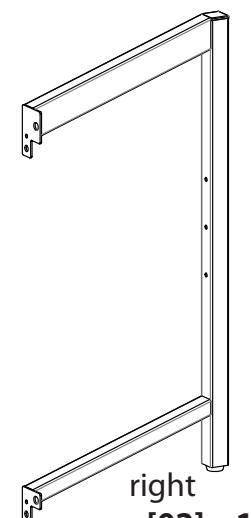

[01] x 1

[02] x 1

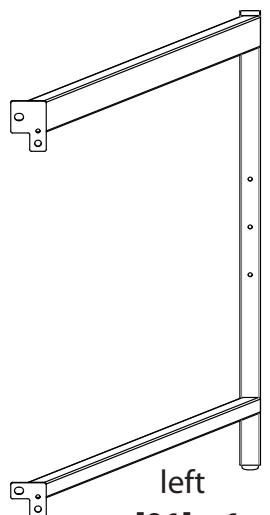

left

right

[04] x 1

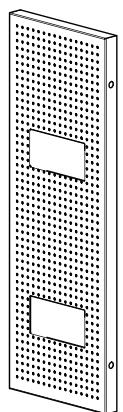

[05] x 1

[03] x 1

[06] x 1

[10] x 4

[11] x 4

[13] x 8

[14] x 9

[12] x 4

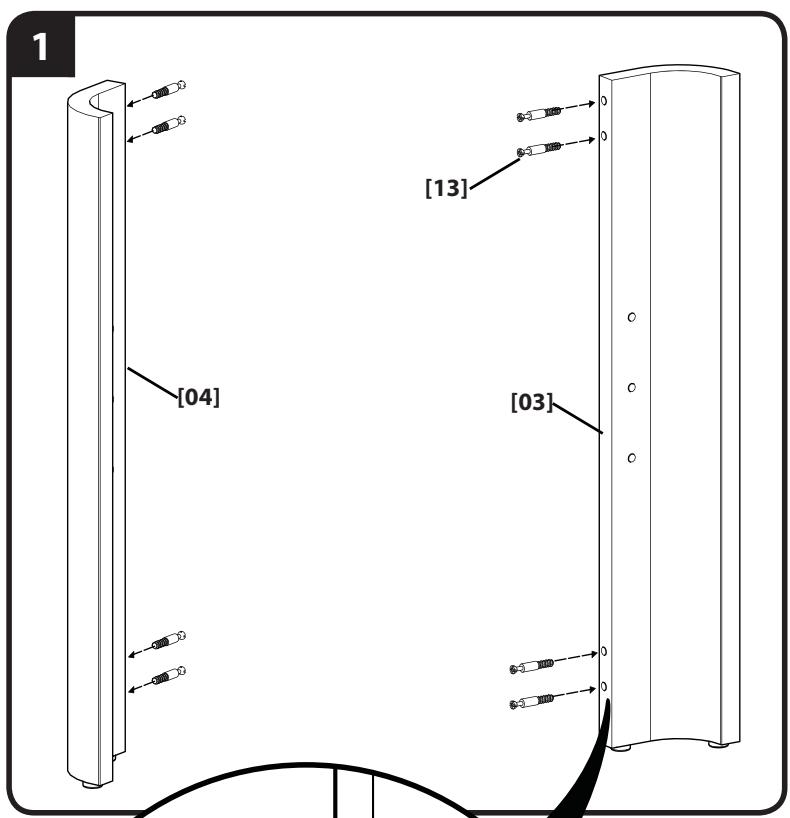

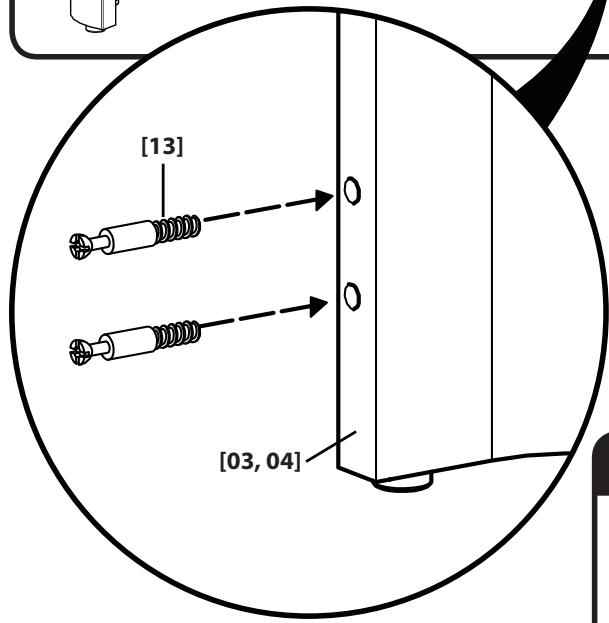

1. Insert Cam Pins [13] into the Brace Assemblies [03, 04].

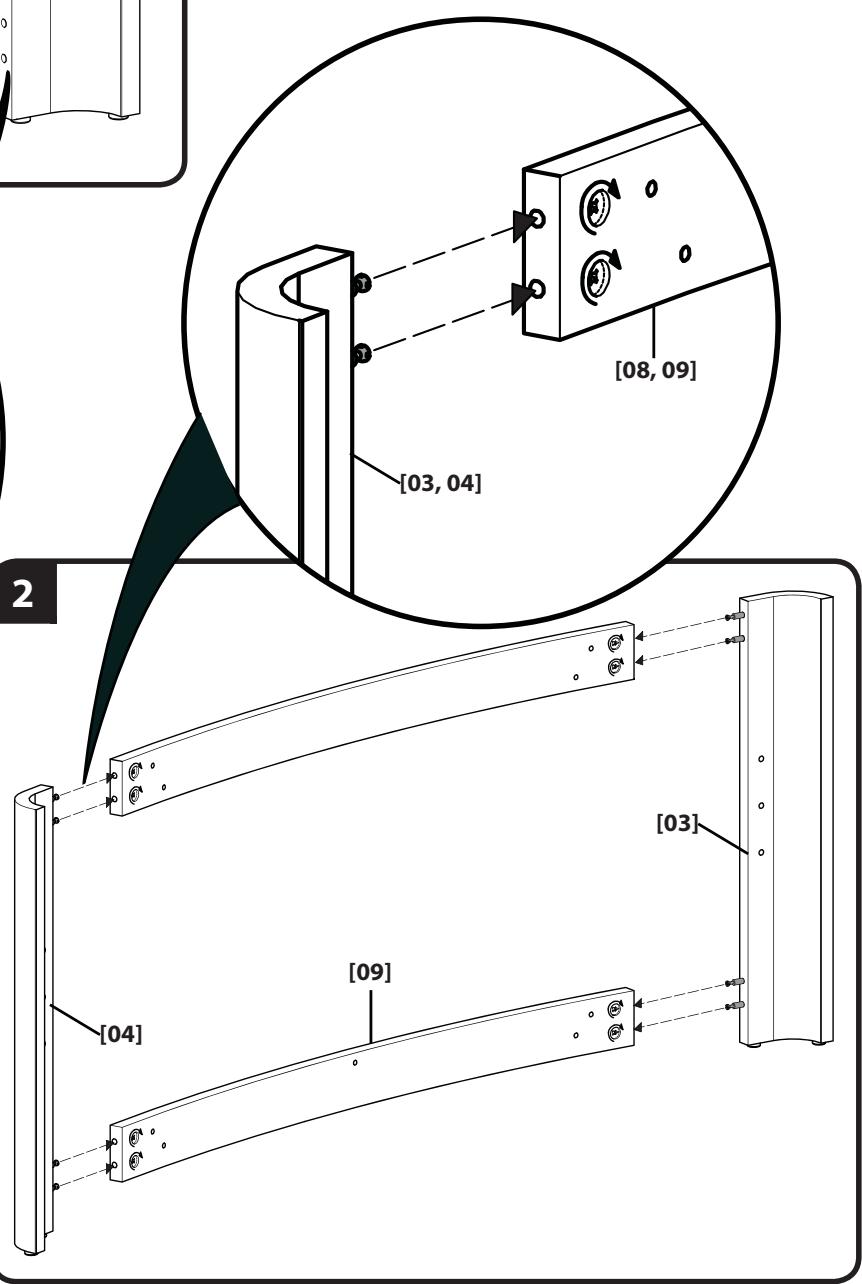

2. Attach Brace Assemblies [03, 04] to front panels [08, 09]. Turn Cam Locks 165^ to tighten

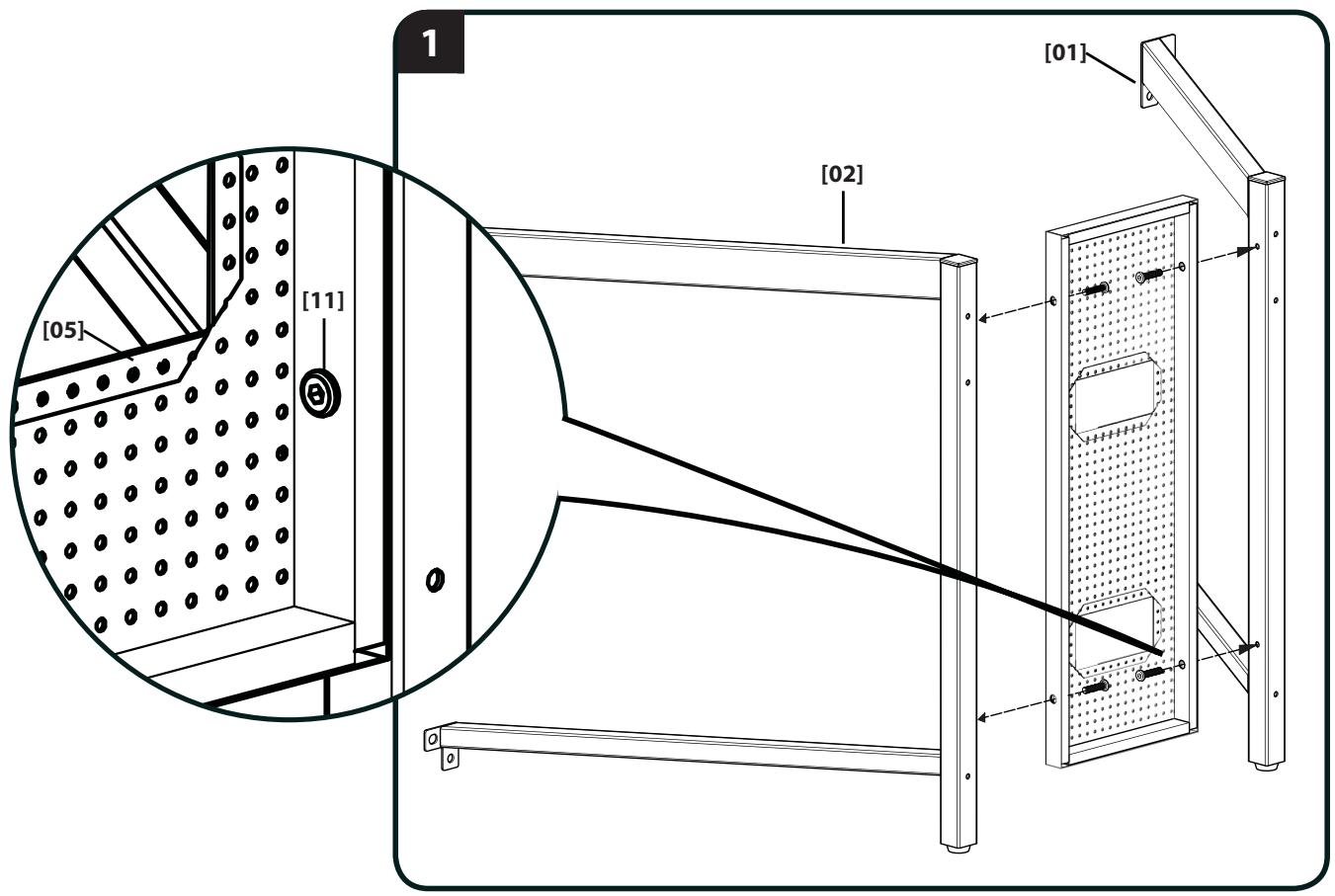

1. Attach the leg assemblies [01, 02] to the back panel [05]. Secure with bolt [11].

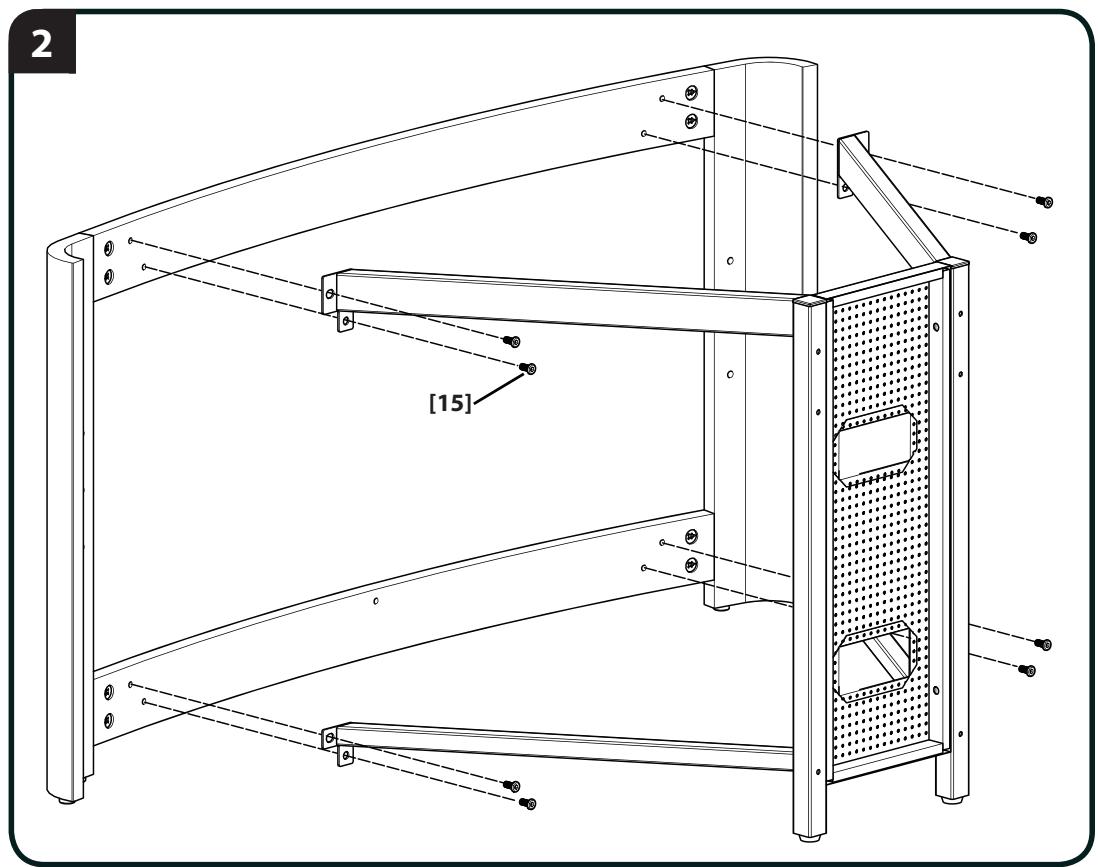

2. Attach the front and back assemblies using bolt [15].

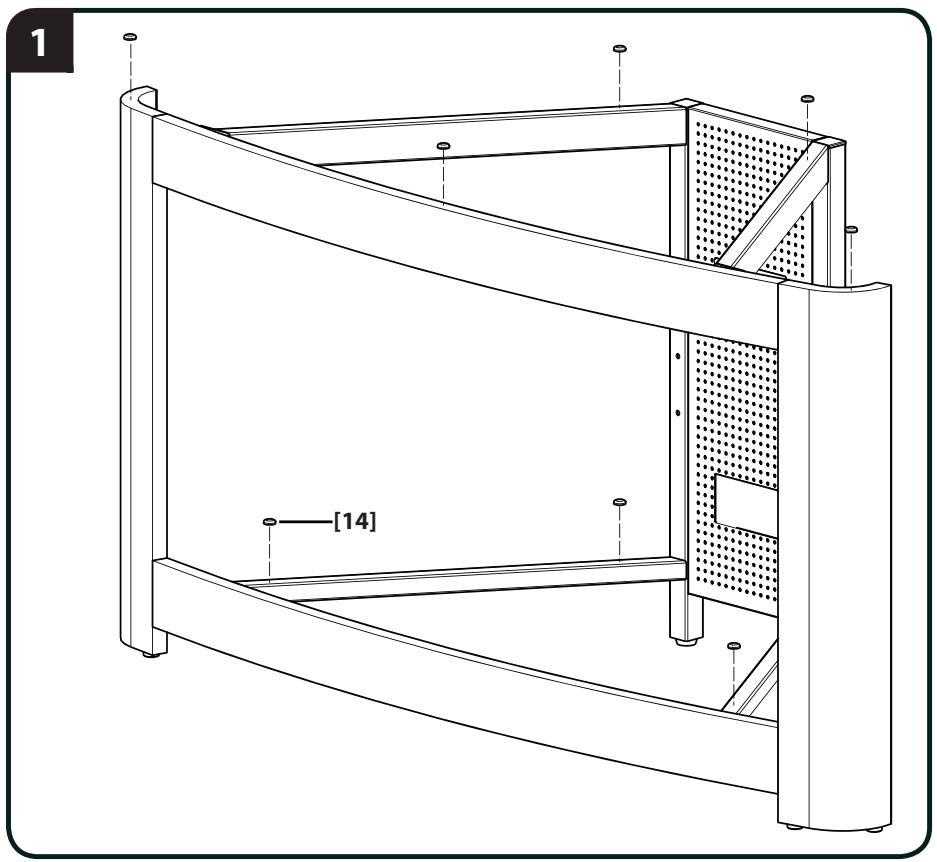

1. Attach glass pads [14] as shown.

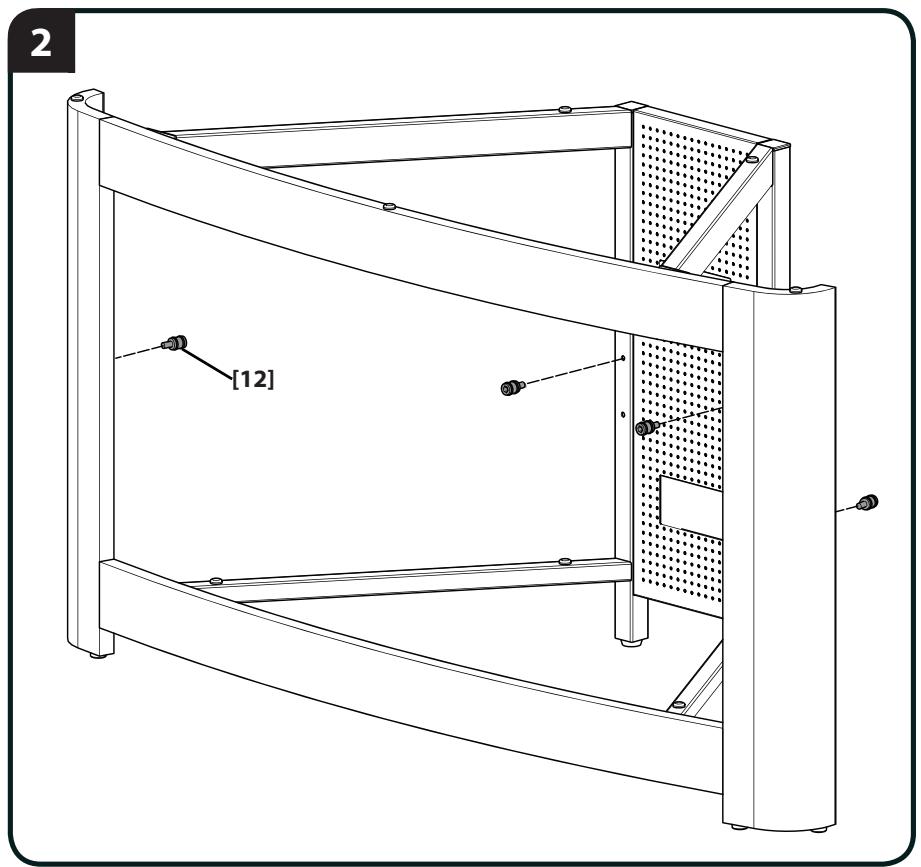

2. Insert shelf pins [12].

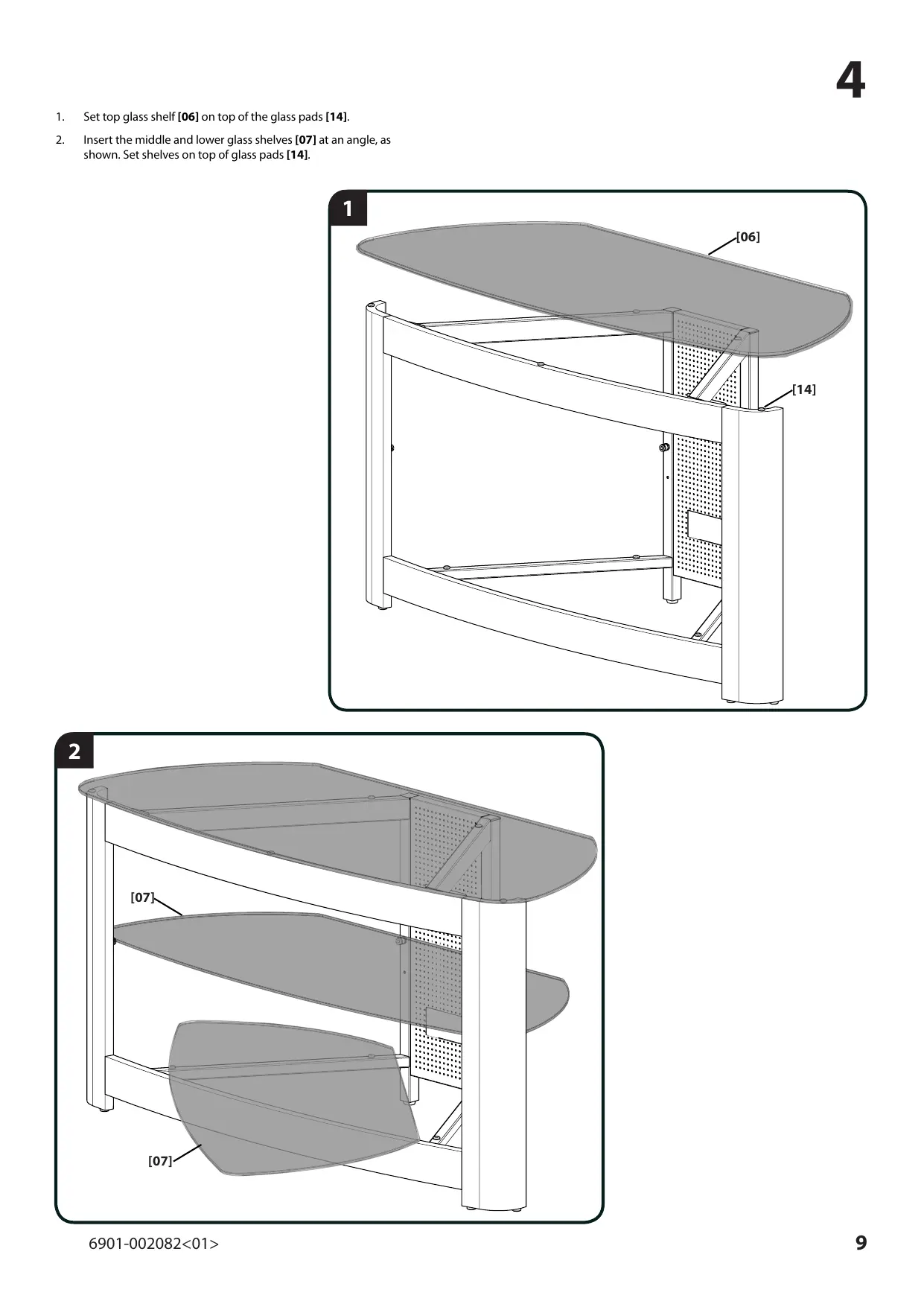

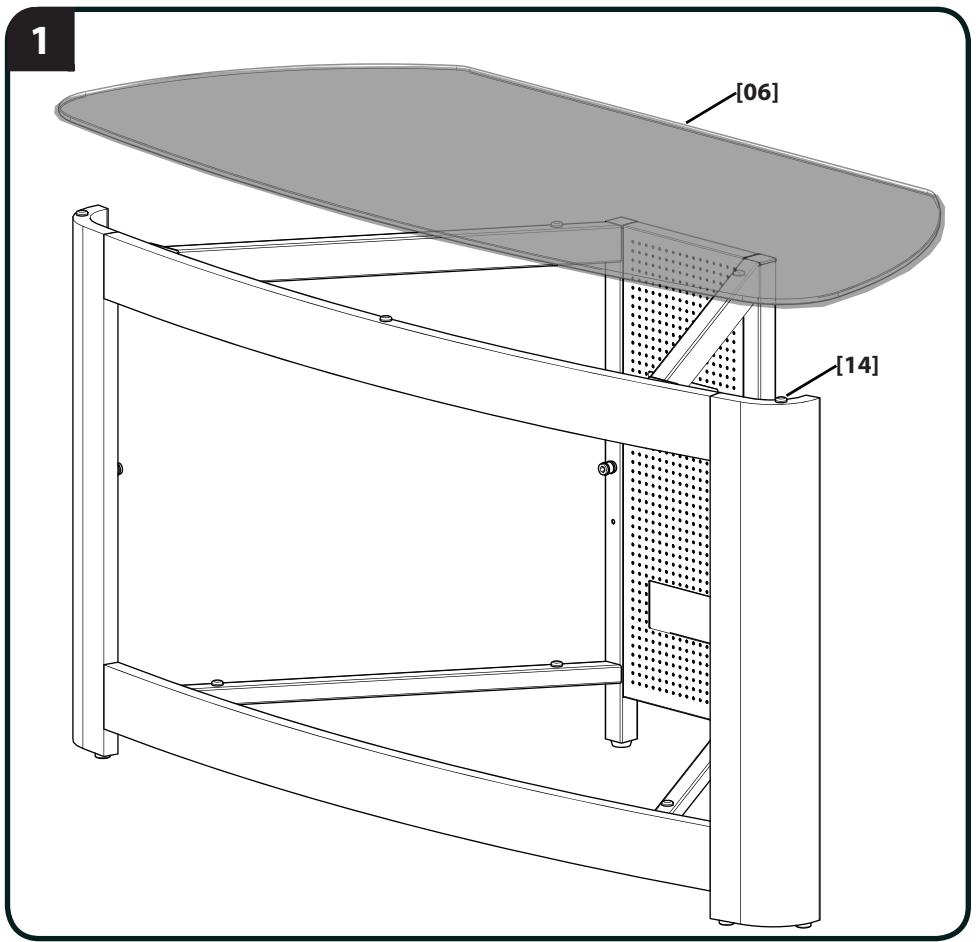

1. Set top glass shelf [06] on top of the glass pads [14].

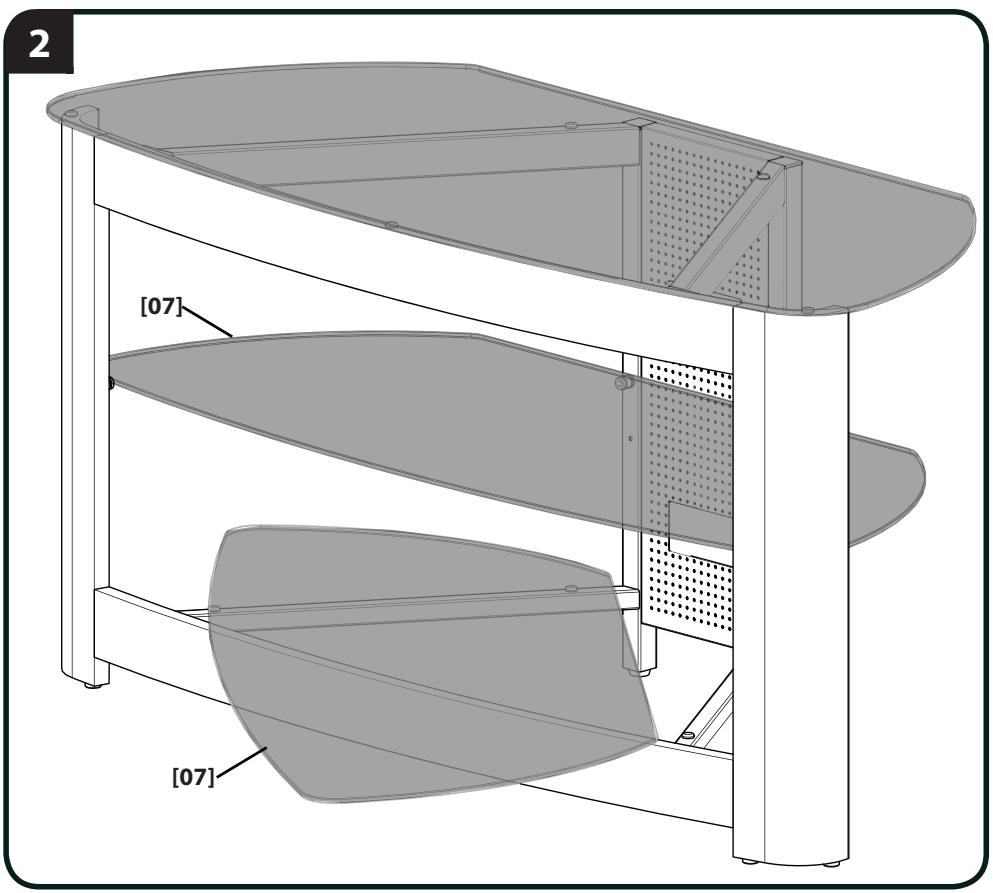

2. Insert the middle and lower glass shelves [07] at an angle, as shown. Set shelves on top of glass pads [14].

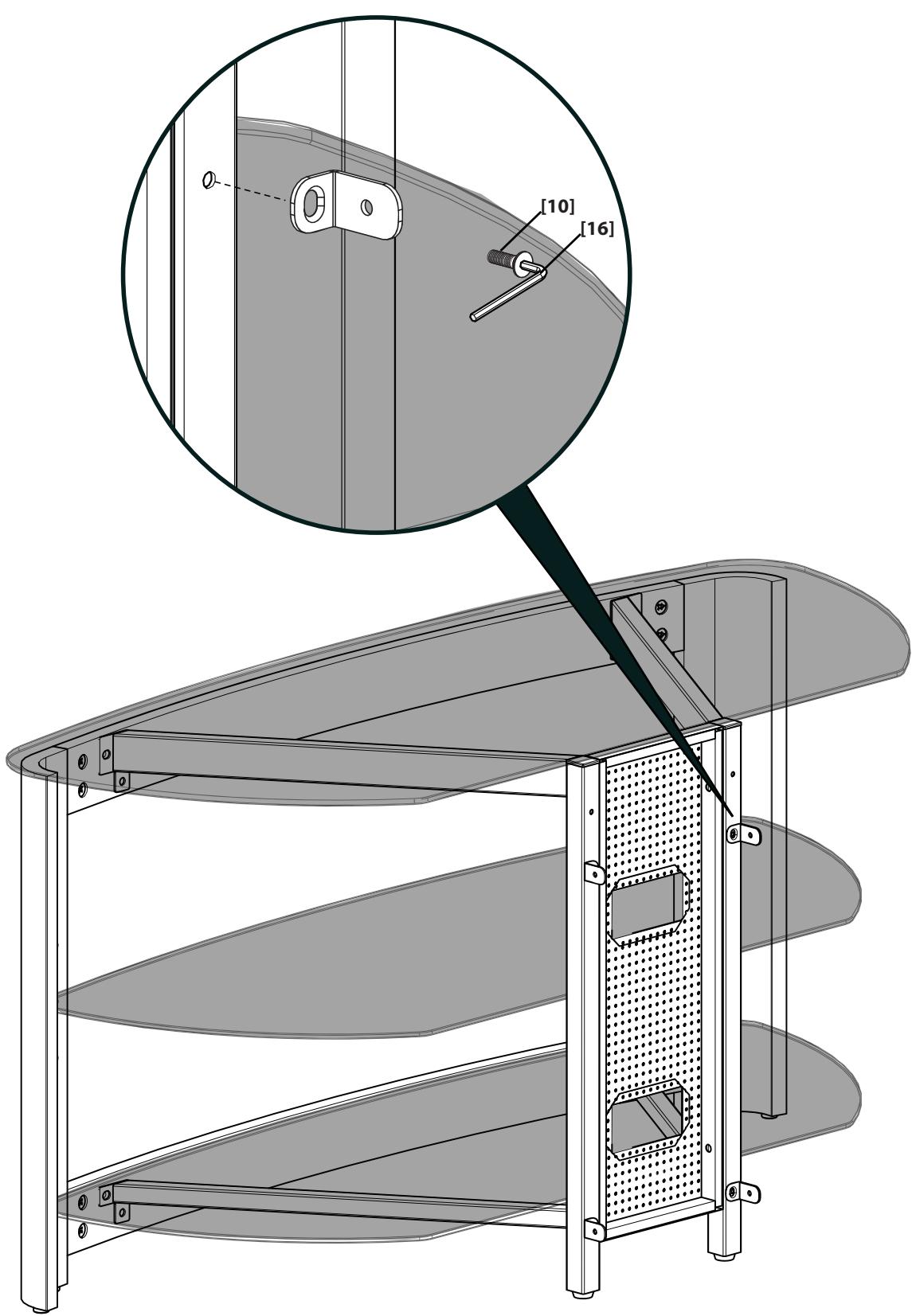

NOTE: The M4 allen key and pillar bracket are included with the FMK056 pillar kit mount.

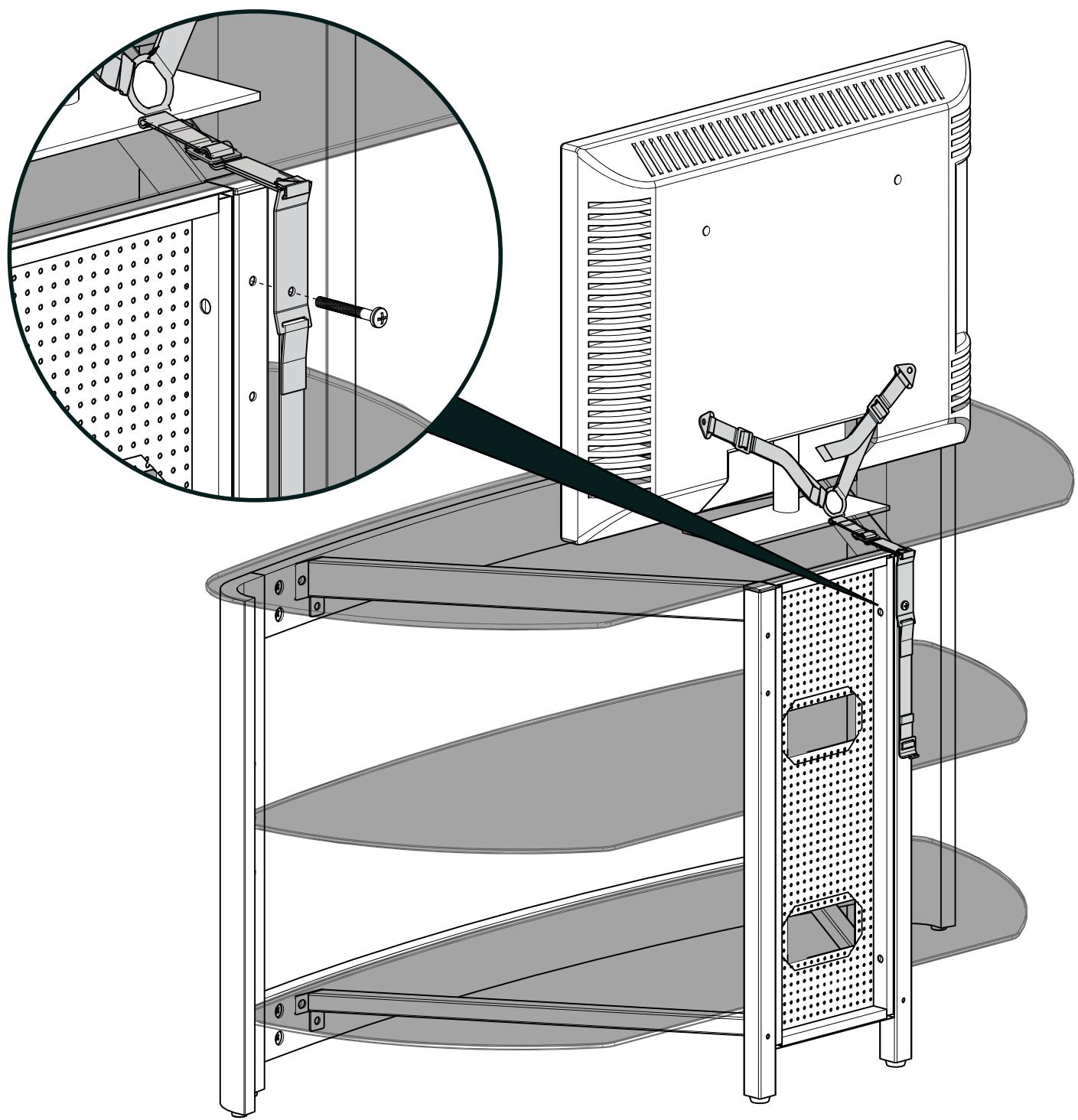

Attach the ELM701 Anti-tip Strap

NOTE: Hardware to attach the ELM701 Anti-Tip Strap is included with the strap.

ATTENTION:

INFORMATIONS IMPORTANTES CONCERNANT LA SECURITE - CONSERVEZ CES INSTRUCTIONS - VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL AVANT D'UTILISER CE PRODUIT

4 9-1J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
