Assembly Instructions for Model: WFA37

Thank you for choosing Sanus Systems Woodbrook Furniture. The Woodbrook Furniture is constructed of real hardwood and resonance dampening MDF.

Safety Warning: If you do not understand these directions, or have any doubts about the safety of the installation, please call a qualified contractor or contact Sanus at 800.359.5520 or www.sanus.com. Check carefully to make sure that there are no missing or defective parts. Our customer service representatives can quickly assist you with installation questions and missing or damaged parts. Replacement parts for products purchased through authorized dealers will be shipped directly to you. Never use defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified by Sanus Systems. Sanus Systems can not be liable for damage or injury caused by incorrect assembly, or incorrect use. Please call Sanus Systems before returning products to the point of purchase.

Required Tools: Phillips screw driver

Supplied Parts and Hardware: Some parts may be pre-assembled together*

Hardware: Shown as actual size

Line drawing of a simple side table with a top shelf and front pane (no text or symbols)

(8) Cam Pin - a
(8) Cam - b

(4) Dowel Pin - c

(8) Dowel - d

(16) Shelf Pin - e

(4) Wood Screw - f
(4) Spacer - g

(2) Phillips Bolt - h

(1) Door Handle - i*

Technical line drawing of a mechanical bracket or clamp assembly (no text or symbols)

(4) Hinge Screw - j

(4) Hinge Plate Screw - k

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

(2) Hinge - 1*
(2) Hinge Plate - m*

Parts: Not Shown as actual size

(2) Front Stretcher - o (2) Back Stretcher - p

(1) Top - n

Parts List (Cont)

Isometric line drawing of a rectangular electronic component or circuit board (no text or symbols)

(1) Bottom Shelf - q

Line drawing of a rectangular electronic component or panel with no text or symbols

(3) Mid Shelf - r

Simple line drawing of a rectangular frame with vertical supports and dotted lines indicating hidden edges (no text or symbols)

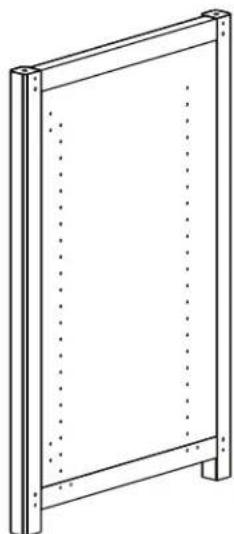

(1) Left Side Panel - s

(1) Wood

Simple line drawing of a rectangular frame with vertical supports and dotted lines indicating hidden edges (no text or symbols)

(1) Right Side Panel - t

Blank white rectangular panel with no text, numbers, or symbols

(1) Back Panel - u

Simple line drawing of a rectangular frame with a vertical divider and a horizontal bar (no text or symbols)

(1) Door - v

Blank white rectangular frame with no text, symbols, or markings

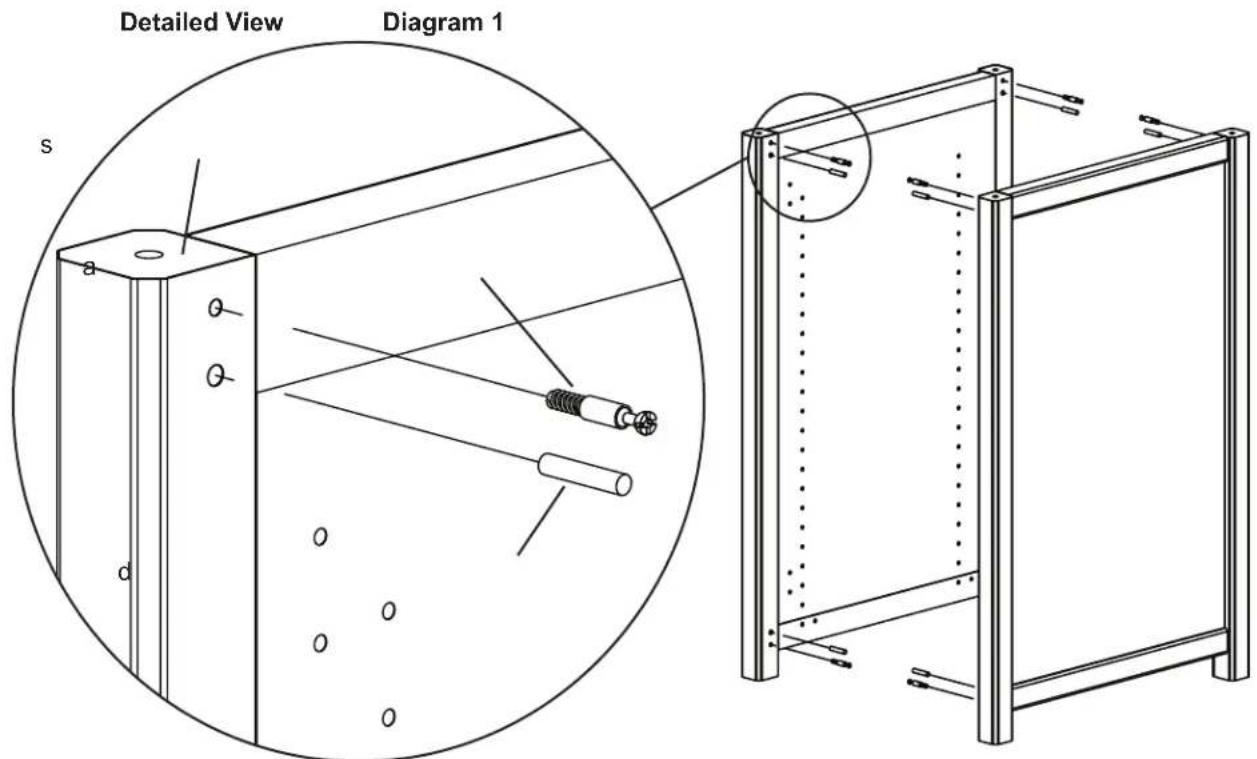

Step 1: Prepare the Side Panels

Thread a Cam Pin (a) into each of the smaller holes in the Side Panels (s,t). Tighten each Cam Pin with a Phillips screw driver. Insert a Dowel (d) into the larger adjacent hole in the Side Panels. See Diagram 1 for assistance.

Detailed View Diagram 1 s a Q Q d O O O O

Step 2: Prepare Stretchers

Add a Cam (b) to each Front Stretcher (o) and Back Stretcher (p). Make sure the arrow in each Cam faces the hole on the side of the Stretchers. See Diagram 2 for assistance.

Diagram 2 Detailed View o a arrow p

Step 3: Add Stretchers

Add the Front and Back Stretchers (o,p) to the Side Panel (s), by aligning the Cam Pin (a) with the hole which the Cams (b) point to and the Dowel (d) goes into the adjacent hole. Make sure the stretchers are oriented so the Cams face inward. Tighten each Cam closest to the Side Panel in a clockwise motion until the stretchers are secured. Note: Front stretchers attach to the same side as the hinge holes are on.

Diagram 3 Detailed View s d b a hinge holes p

Step 4: Add Side Panel

Press fit the Side Panel (t) against the Stretchers (o,p) so the Cam Pin (a) goes into the hole which the Cams (b) point to. The Dowel (d) fits into the adjacent hole. Tighten each Cam in a clockwise motion until the Stretchers are secured. Note: Make sure the hinge holes on the Side Panel are on the same side as the Front Stretchers.

Diagram 4 Detailed View p b o t a hinge holes

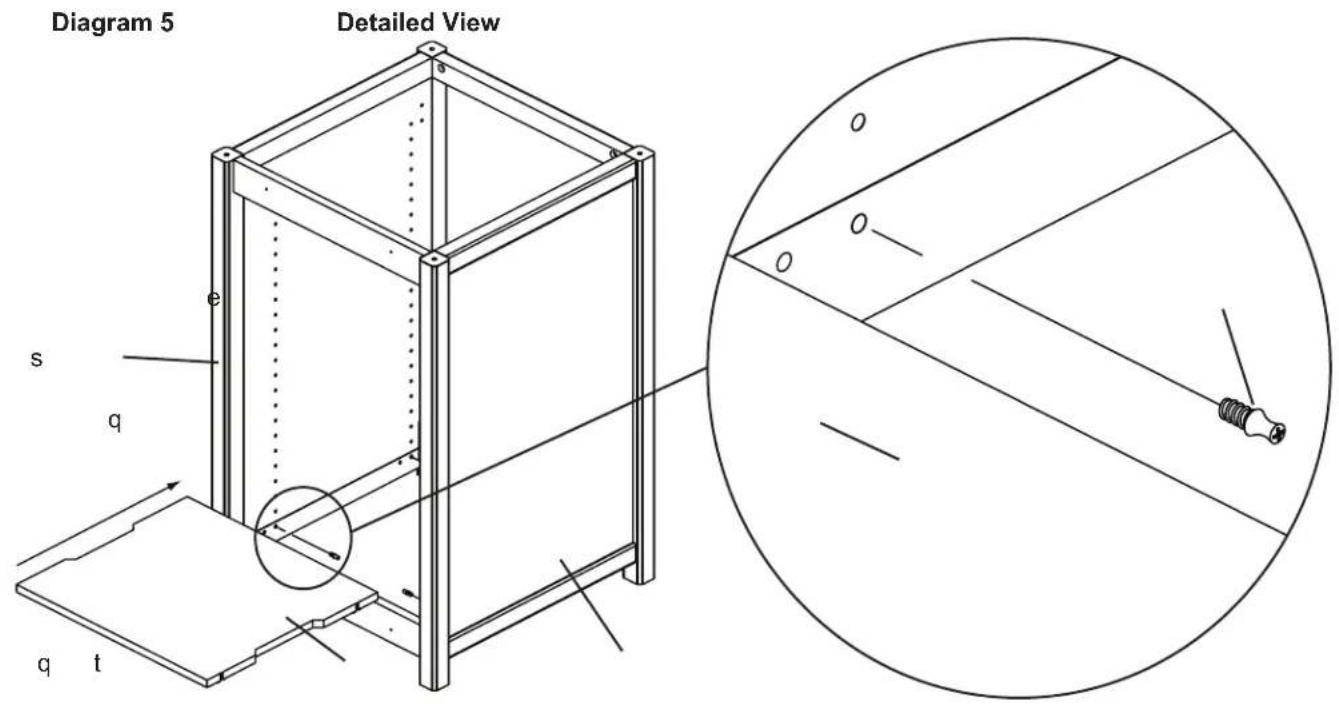

Step 5: Add Shelf Pins and Bottom Shelf

Thread the Shelf Pins (e) into the bottom hole in the line of holes in each Side Panel (s,t). Tighten all four Shelf Pins with a Phillips screw driver. Add the Bottom Shelf (q) by inserting it into the assembly and press fit it onto the Shelf Pins. Make sure the Bottom Shelf is flush against the Front Stretcher (o). If there is a gap in front, the shelf may be backward. See Diagram 5 for assistance.

Note: Diagram 5 is a Back View.

Diagram 5 Detailed View s q q t e O O O

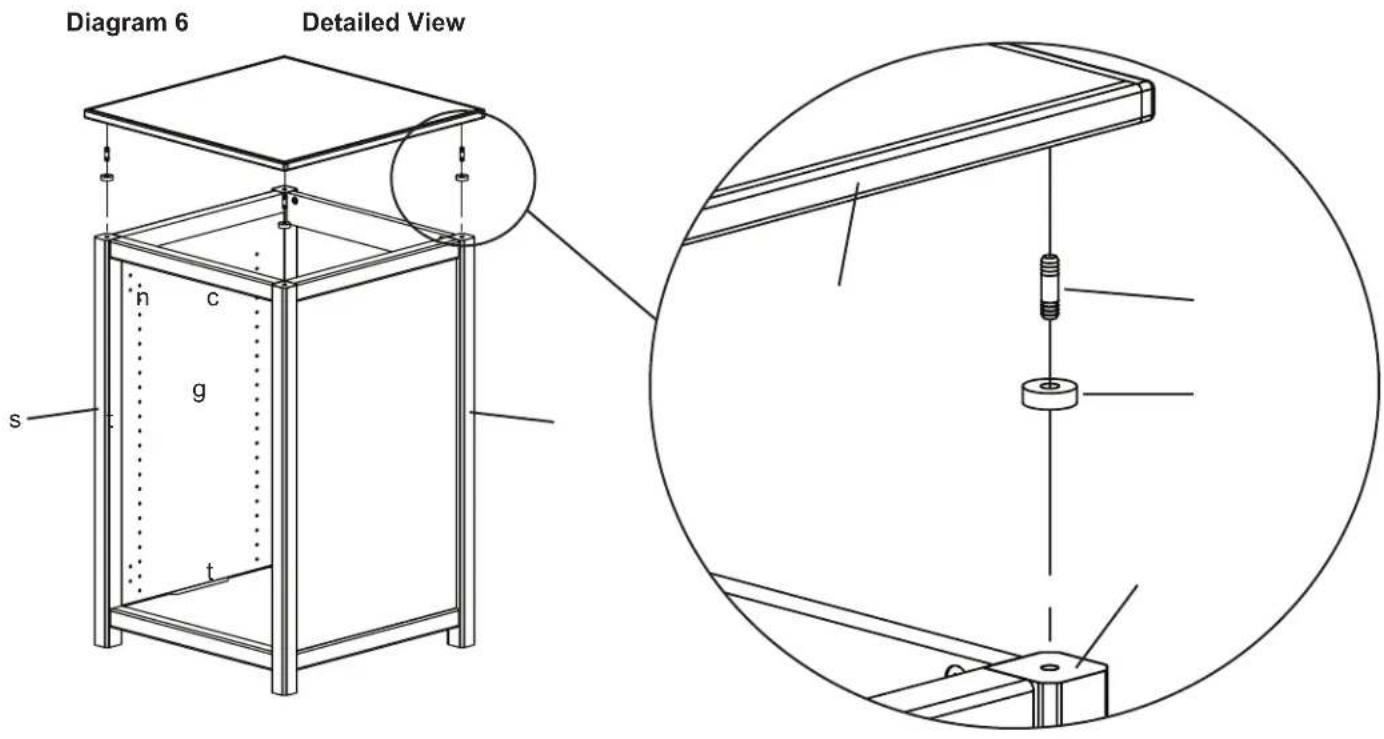

Step 6: Add Top

Gently tap a Dowel Pin (c) into the holes on the top of each Side Panel (s,t). Slide a Spacer (g) over each Dowel Pin. Press fit the Top (n) so it fits onto the Dowel Pins. See Diagram 6 for assistance.

Diagram 6 Detailed View s n c g t

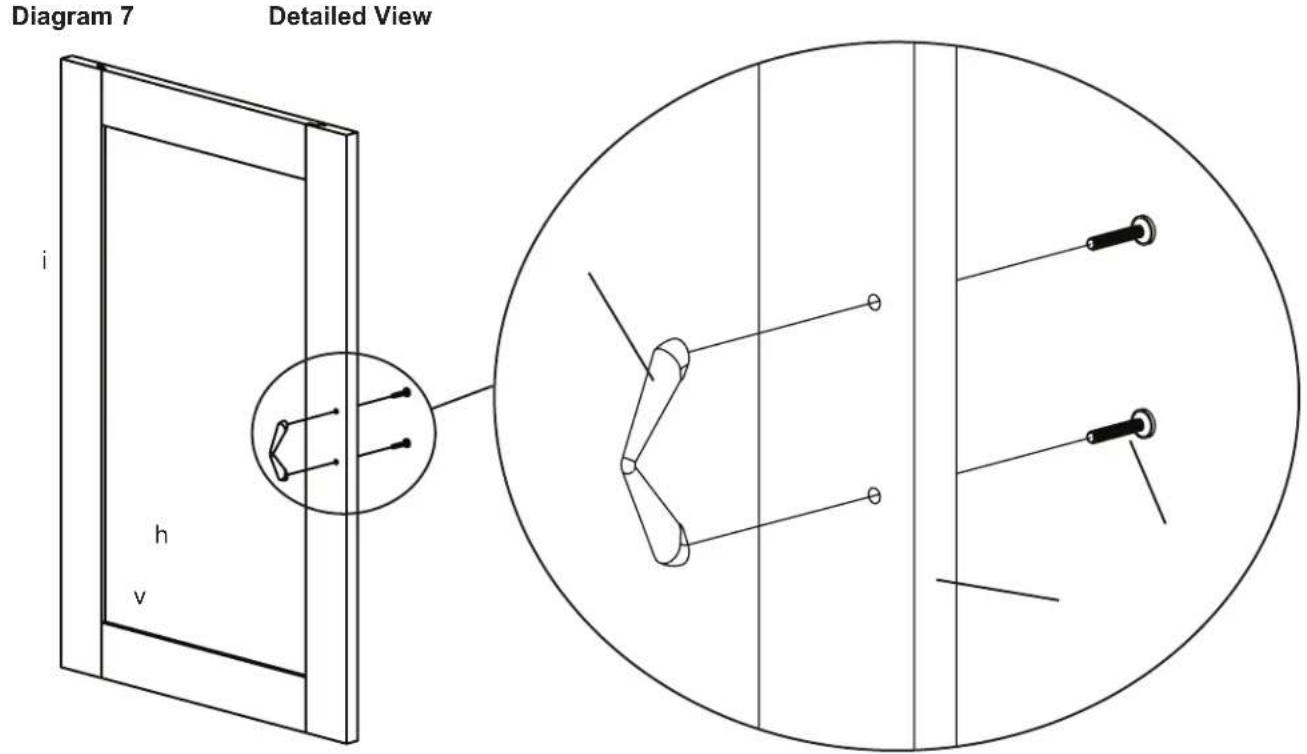

Step 7: Add Door Handle

Insert each Phillips Bolt (h) through the Door (v) and into the Door Handle (i). Tighten with a Phillips screw driver. See Diagram 7 for assistance. The Door Panels can be interchanged by removing and re-installing the plastic border from the perimeter of the Door's back side.

Diagram 7 Detailed View i h v

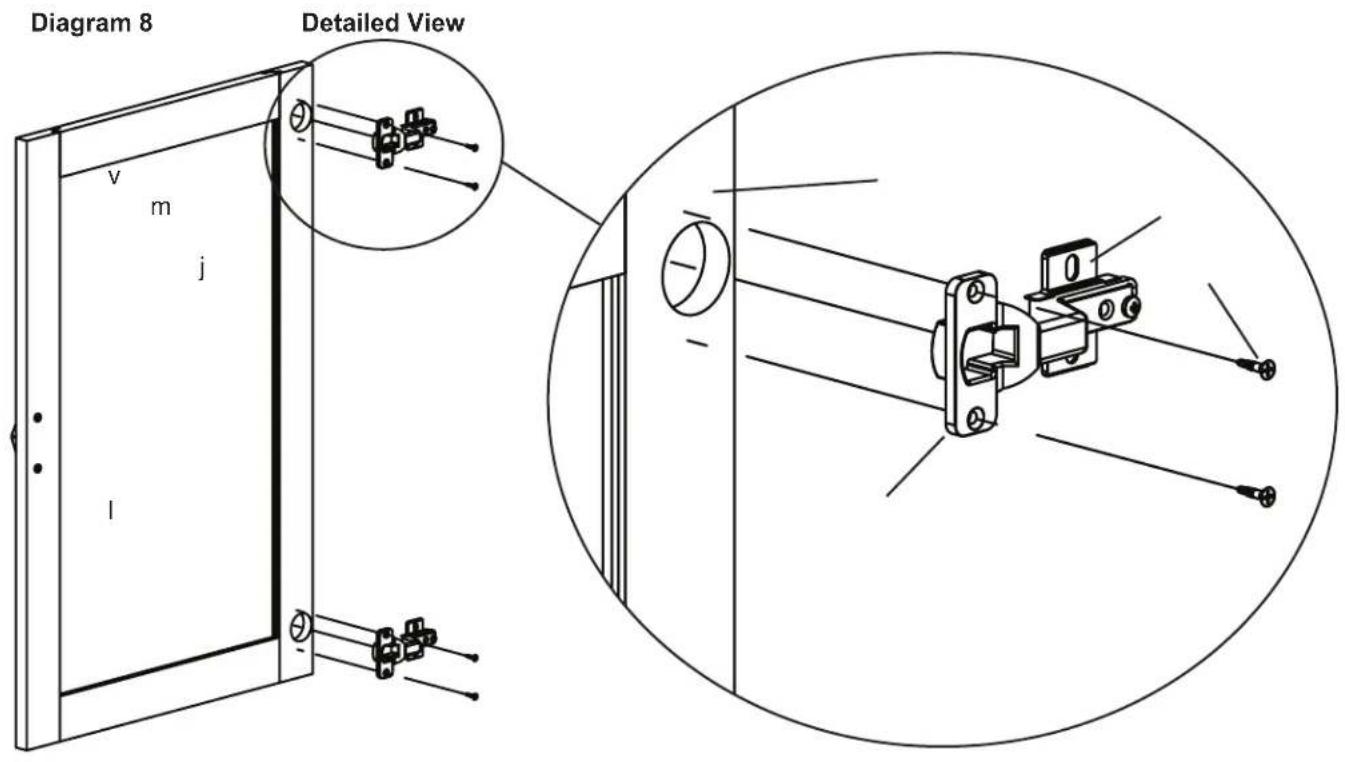

Step 8: Add Hinge Assembly to Door

Insert a Hinge Screw (j) through the Hinge (l) and thread it into the Door (v). Tighten each with a Phillips screw driver. Repeat process until both Hinge Assemblies are secured.

Diagram 8 Detailed View v m j l

Step 9: Door Install

Position the Door (v) so the holes in the Hinge Plate (m) line up with the front pair of holes in the Side Panel (s,t). Insert a Hinge Plate Screw (k) through the Hinge Plate and thread it into each hole in the Side Panel. Tighten with a Phillips screw driver. Repeat process so each Hinge Assembly is secured. See Diagram 9 for assistance.

Detailed View Diagram 9 s v m k

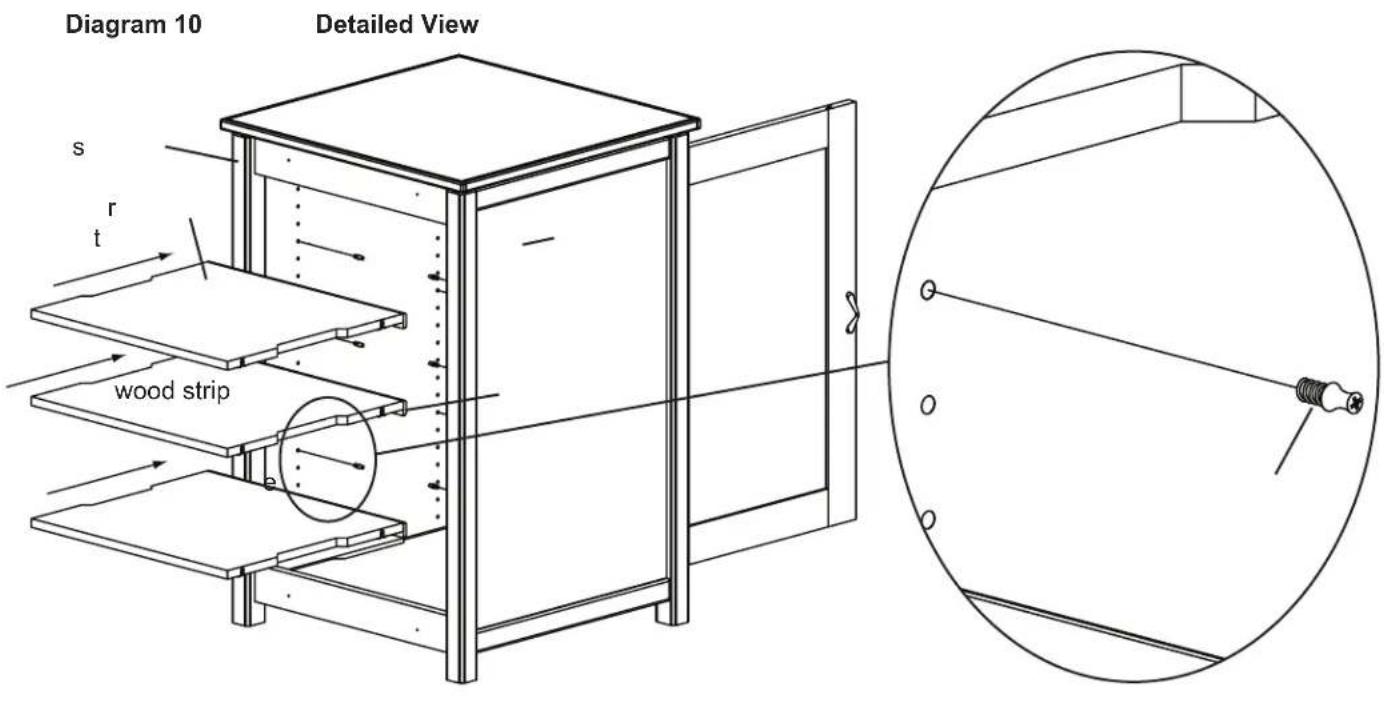

Step 10: Add Mid Shelves

Thread a Shelf Pin (e) into the desired location in the Side Panels (s,t). For each shelf, four Shelf Pins will be required. Insert each Mid Shelf (r) into the assembly and press fit onto the Shelf Pins. Make sure the wood strip on each shelf is facing toward the front. See Diagram 10 for assistance.

Note: Diagram 10 is a Back View.

Diagram 10 Detailed View s r t wood strip O O O

Step 11: Add Back Panel

Position the Back Panel (u) up against the assembly and thread a Wood Screw (f) through it and into the Back Stretcher (p). Repeat process until the Back Panel is secured with four Wood Screws. Tighten each with a Phillips screw driver. See Diagram 11 for assistance.

Note: Sanus recommends placing components and installing all cables/wires before putting the Back Panel on.

Detailed View Diagram 11 u p f

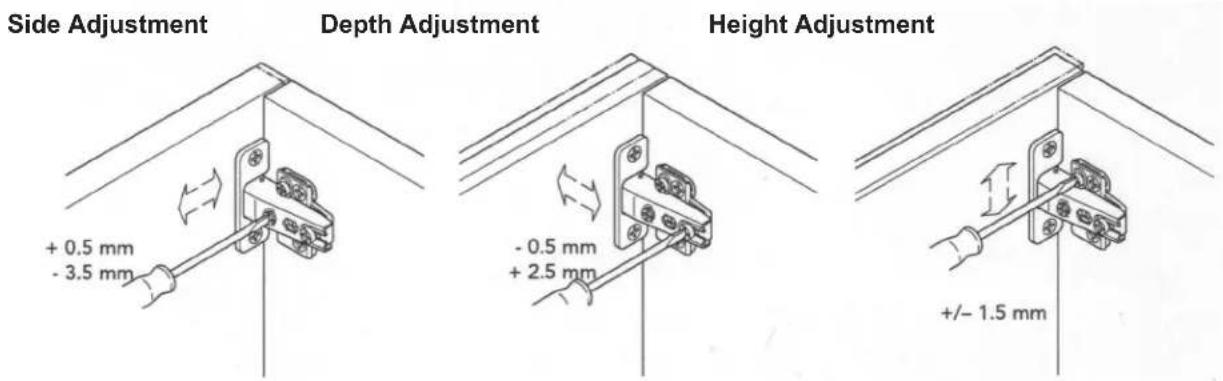

Step 12: Hinge Adjustment for small Door

Each hinge Assembly is adjustable in multiple directions. See Diagram 12 for assistance.

Diagram 12

Side Adjustment Depth Adjustment Height Adjustment + 0.5 mm - 3.5 mm - 0.5 mm + 2.5 mm +/- 1.5 mm
